Circle Graphs

Circle Graphs. A step by step how to. Example 1. A software company asked 60 owners what they use their computers for most. Of these owners, 21 said word processing, 18 said spreadsheets, 6 said Internet access, and 15 had other responses. Use a circle graph to display these results.

patty
Download Presentation

Circle Graphs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Circle Graphs A step by step how to.

  2. Example 1 A software company asked 60 owners what they use their computers for most. Of these owners, 21 said word processing, 18 said spreadsheets, 6 said Internet access, and 15 had other responses. Use a circle graph to display these results.

  3. Step 1: Organize the data in a table.

  4. Step 2: Find the percent of computer owners giving each response. Rememberto find percent set it up as follows… Part x 100 = Percent Whole

  5. Step 3: Use these percents to find the angle measures of the sectors of the circle graph. To find the angle measure, multiply the percent by 360º. 0.35 x 360º = 126º 0.30 x 360º = 108º 0.10 x 360º = 36º 0.25 x 360º = 90º

  6. Step 4: Use a compass to draw a circle. .

  7. Step 5: Use a protractor to draw sectors having the angle measures found in step 3. 126º .

  8. Step 5: Use a protractor to draw sectors having the angle measures found in step 3. Word Processing 35% 108º Label each sector with the corresponding response & percent.

  9. Label each sector with the corresponding response & percent. Step 5: Use a protractor to draw sectors having the angle measures found in step 3. Word Processing 35% 36º 30% Spreadsheets

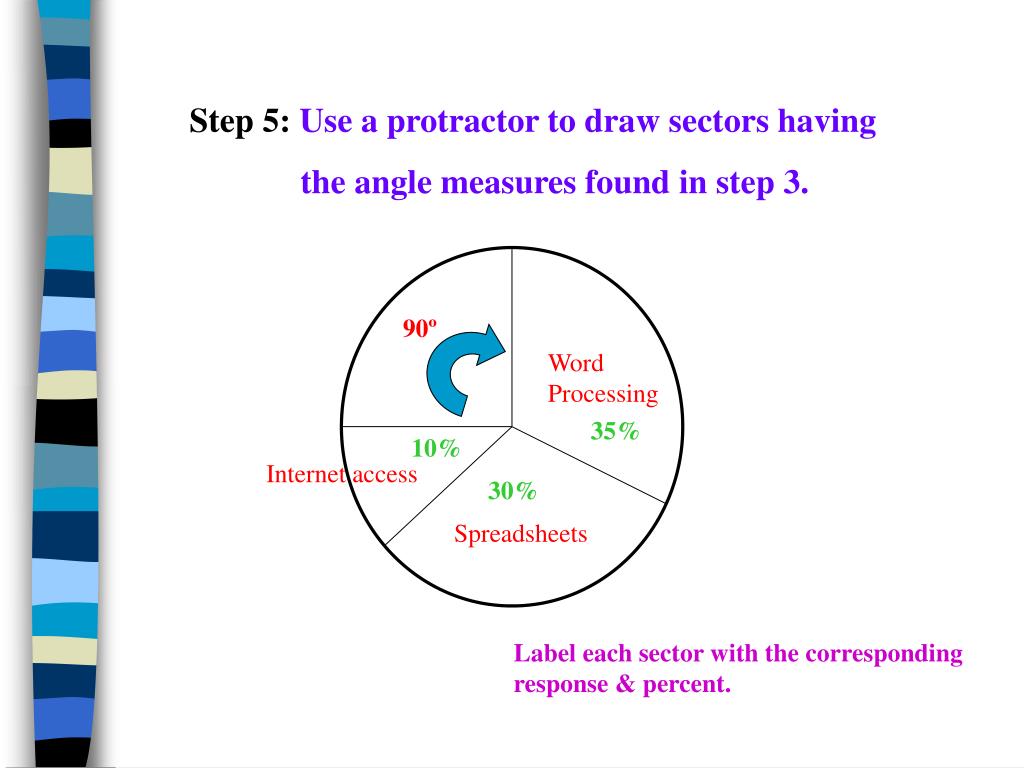

  10. Step 5: Use a protractor to draw sectors having the angle measures found in step 3. 90º Word Processing 35% 10% Internet access 30% Spreadsheets Label each sector with the corresponding response & percent.

  11. Step 5: Use a protractor to draw sectors having the angle measures found in step 3. 25% Word Processing Other 35% 10% Internet access 30% Spreadsheets Label each sector with the corresponding response & percent.

  12. Step 6: Title your circle graph. Computer Use 25% Word Processing Other 35% 10% Internet access 30% Spreadsheets

  13. Example 2 Recently, in our afternoon tutoring we counted the candy colors in a 1 pound bag of M & M’s. We came up with the following data… red = 109blue = 51green = 23yellow = 95brown = 31orange= 46 purple = 61 Make a circle graph to show the percent of each color of the M & M’s in the 1 pound bag.

  14. What do we need to do first?

  15. After I organized my data in a table, what should I do next?

  16. Make your circle graph. .
