g r a m s t a i n i n g in clinical microbiology

GramStaining in Clinical Microbiology

Dr.T.V.Rao. MD

Professor of Microbiology

Travancore Medical College, Kollam. Kerala

Dr.T.V.Rao MD

the g uest lecture presented by dr t v rao md at

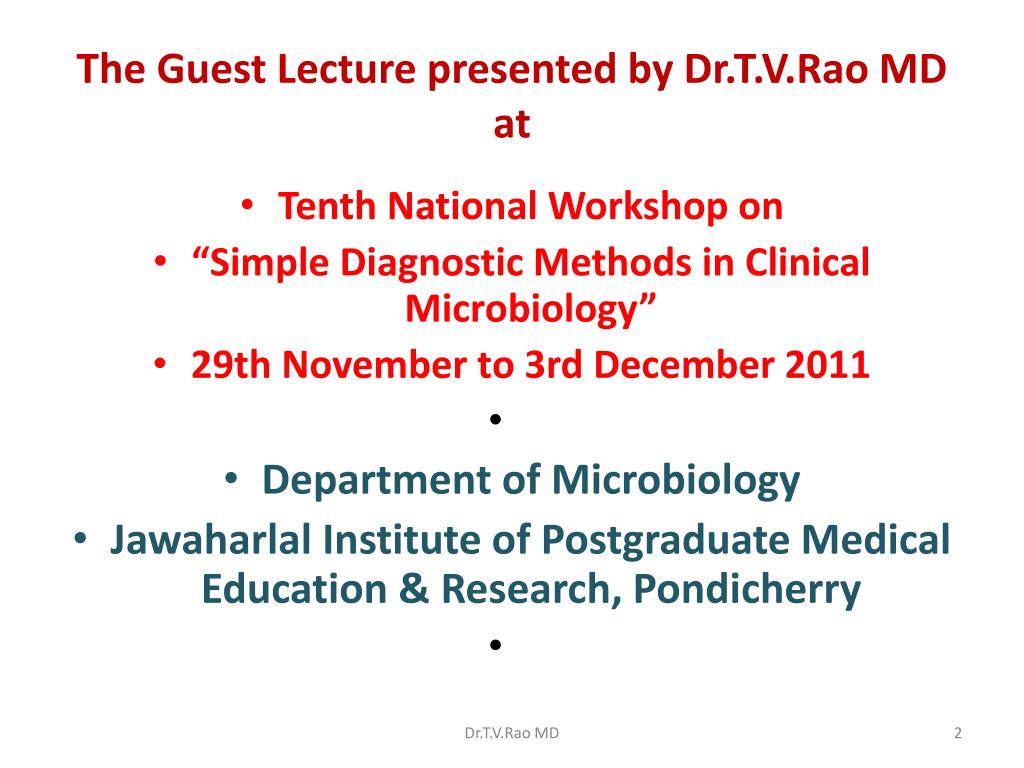

The Guest Lecture presented by Dr.T.V.Rao MD at
  • Tenth National Workshop on
  • “Simple Diagnostic Methods in Clinical Microbiology”
  • 29th November to 3rd December 2011
  • Department of Microbiology
  • Jawaharlal Institute of Postgraduate Medical Education & Research, Pondicherry

Dr.T.V.Rao MD

slide3

Working at Mansa General Hospital Mansa Republic of ZambiaTaught many lessons, to understand Infection and Ignorance are important causes of Morbidity and Mortality

Dr.T.V.Rao MD

hans christian gram
Hans Christian Gram
  • The Gram stain was devised by the Danish physician, Hans Christian Gram, while working in Berlin in 1883. He later published this procedure in 1884. At the time, Dr. Gram was studying lung tissue sections from patients who had died of pneumonia.

Dr.T.V.Rao MD

first paper on gram staining
First Paper on Gram Staining
  • In his paper, Dr. Gram described how he was able to visualize what we now call Staphylococcus, Streptococcus, Bacillus, and Clostridiain various histological sections. Interestingly, Dr. Gram did not actually use safranin as a counter stain in the original procedure (Gram negative cells would be colorless). He instead recommended using Bismarck brown as a counter stain to enable tissue cell nuclei to be visualized.

Dr.T.V.Rao MD

carl weigert 1845 1904
Carl Weigert (1845-1904)
  • German pathologist Carl Weigert (1845-1904) from Frankfurt, added a final step of staining with safranin.

Dr.T.V.Rao MD

traditional definition of gram stain

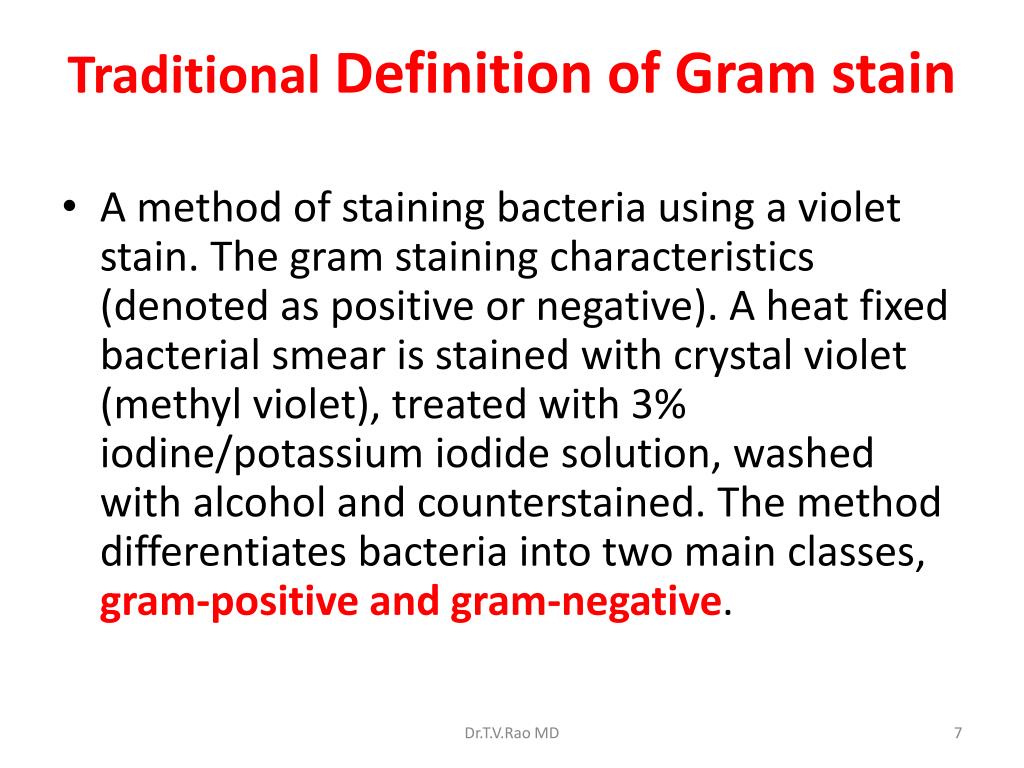

Traditional Definition of Gram stain
  • A method of staining bacteria using a violet stain. The gram staining characteristics (denoted as positive or negative). A heat fixed bacterial smear is stained with crystal violet (methyl violet), treated with 3% iodine/potassium iodide solution, washed with alcohol and counterstained. The method differentiates bacteria into two main classes, gram-positive and gram-negative.

Dr.T.V.Rao MD

gram positive should not be mistaken
Gram Positive should not be Mistaken
  • In the Gram Stain technique, two positively charged dyes are used: crystal violet and safranin. The use of the designation “gram-positive” should not be confused with the concept of staining cells with a simple stain that has a positive charge.

Dr.T.V.Rao MD

gram staining observation basic principle in koch s postulations

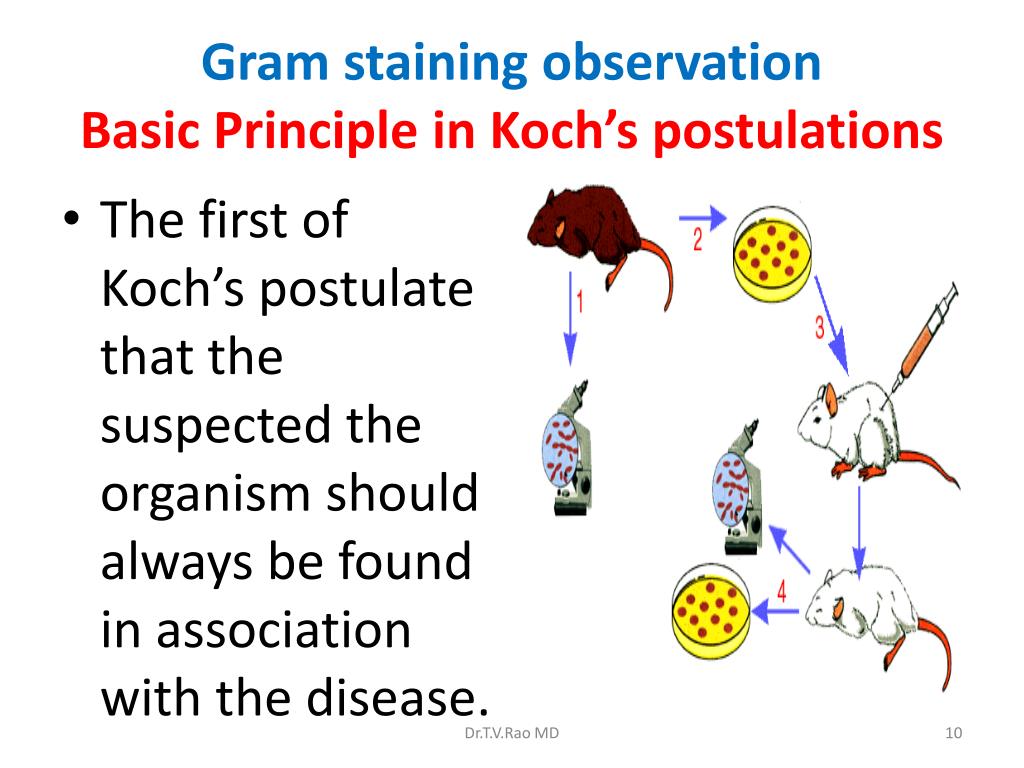

Gram staining observation Basic Principle in Koch’s postulations
  • The first of Koch’s postulatethat the suspected the organism should always be found in association with the disease.

Dr.T.V.Rao MD

poor quality of slides can be corrected
Poor quality of slidesCan be corrected
  • Use of glass slides that have not been pre cleaned or degreased ? NOTE: Storing slides in a jar with 95% ethanol will ensure clean slides. Drain excess alcohol or flame slide before use.

Dr.T.V.Rao MD

four major steps in gram staining
Four Major Steps in Gram Staining
  • There are four basic steps of the Gram stain, which include applying a primary stain (crystal violet)or Methyl violet to a heat-fixed smear of a bacterial culture, followed by the addition of a mordant (Gram's iodine), rapid decolorization with alcohol or acetone, and counterstaining with Safranin or basic fuchsin.

Dr.T.V.Rao MD

making a smear
Making a Smear
  • First prepare your slide. You do this by placing bacteria on a slide in a drop of water, allowing them to dry and then heat fixing them. Heating

Dr.T.V.Rao MD

correct preparation
Correct preparation
  • Smear preparation: Proper smear preparation should produce a monolayer of organisms sufficiently dense for easy visualization but thin enough to reveal characteristic morphological characteristics. Use clean, new glass slides.

NOTE: When using the same pipette or swab, always inoculate culture media first

Dr.T.V.Rao MD

using methanol is it better than heat fixation
Using Methanol is it Better than Heat Fixation ?
  • Fix the smear with 95% Methanol
  • Which will help in prevention of distortion of cells
  • Helpful in Microscopic observation of CSF and Urine

Dr.T.V.Rao MD

making multiple smears in same slide conserve resources
Making Multiple smears in same slide – conserve resources
  • Making multiple smears make the optimal use of the slide.
  • Reduces the economic costs and saves the technical time.

Dr.T.V.Rao MD

steps in gram staining procedure follow the clock

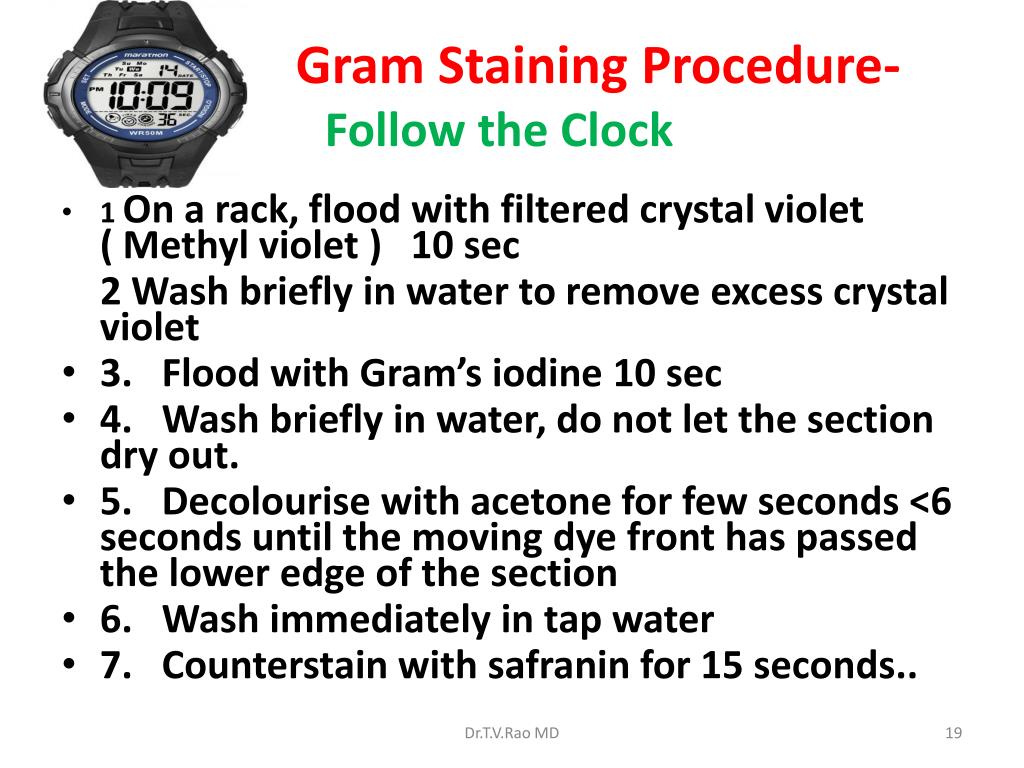

Steps in Gram Staining Procedure- Follow the Clock
  • 1On a rack, flood with filtered crystal violet ( Methyl violet )   10 sec

2 Wash briefly in water to remove excess crystal violet

  • 3.   Flood with Gram’s iodine 10 sec
  • 4.   Wash briefly in water, do not let the section dry out.
  • 5.   Decolourise with acetone for few seconds <6 seconds until the moving dye front has passed the lower edge of the section
  • 6.   Wash immediately in tap water
  • 7.   Counterstain with safranin for 15 seconds..

Dr.T.V.Rao MD

step 1
Step 1

Dr.T.V.Rao MD

step 2
Step 2

Dr.T.V.Rao MD

step 3
Step 3

Dr.T.V.Rao MD

step 4
Step 4

Dr.T.V.Rao MD

step 5

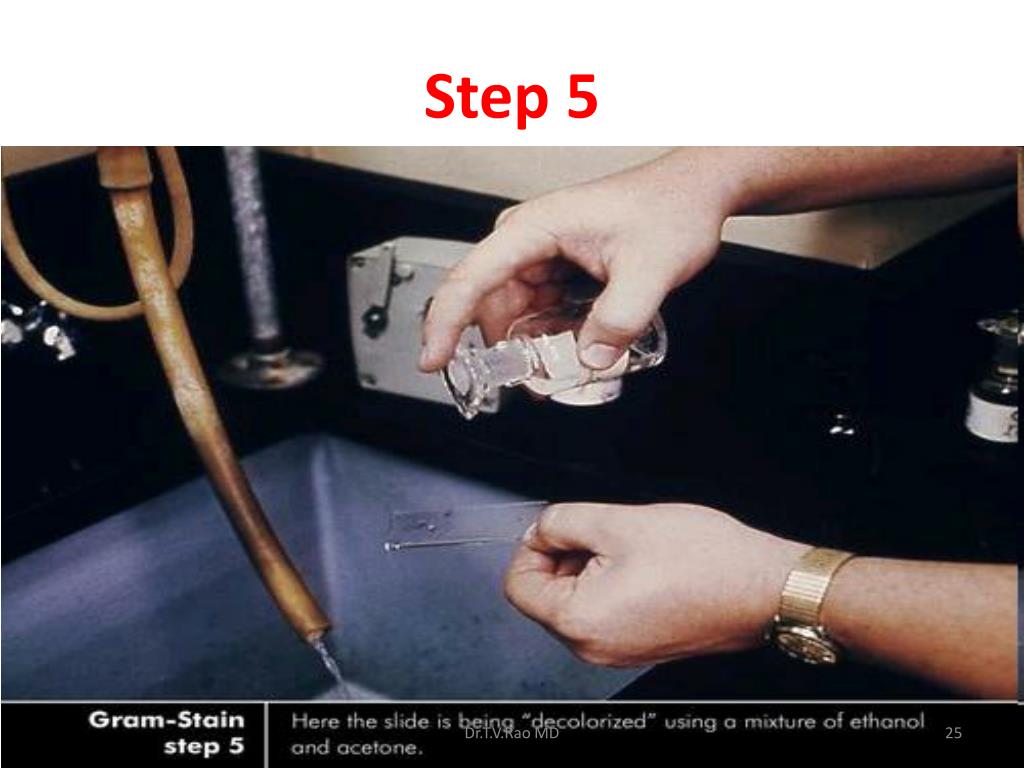

Step 5

Dr.T.V.Rao MD

how long you keep iodine in the laboratory
How long you keep Iodine in the Laboratory ???
  • The Gram’s Iodine we make in the laboratory from basic chemicals
  • How long we can use it ?
  • Why we have to make frequently ?

Dr.T.V.Rao MD

most critical step in gram staining

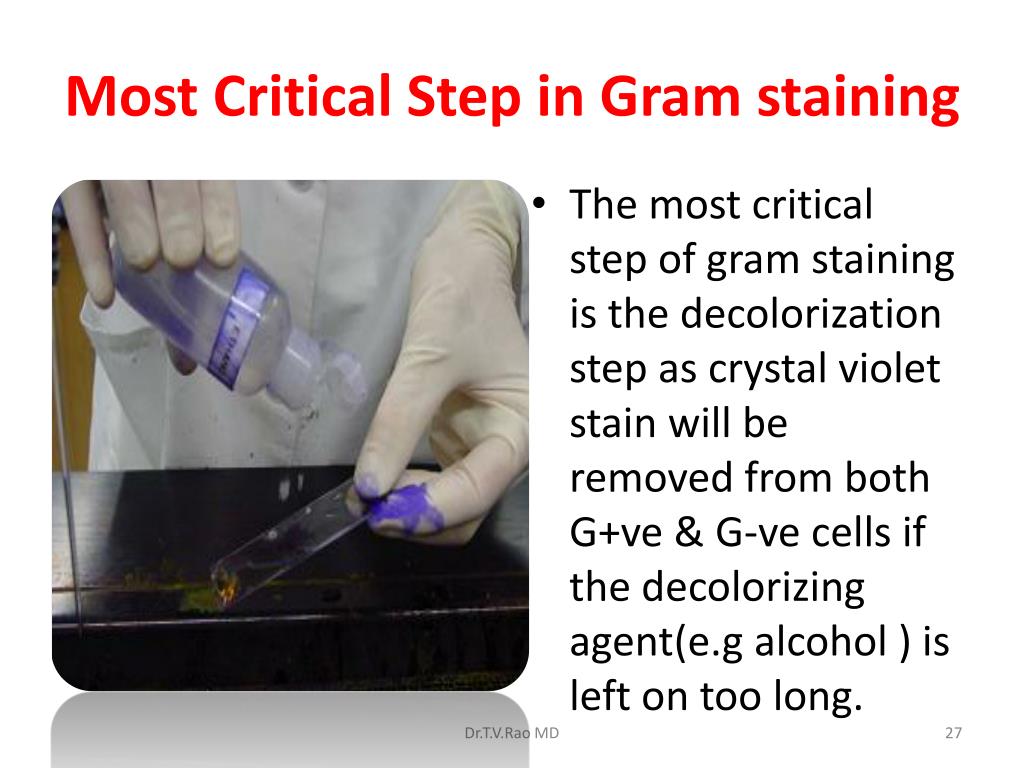

Most Critical Step in Gram staining
  • The most critical step of gram staining is the decolorization step as crystal violet stain will be removed from both G+ve & G-ve cells if the decolorizing agent(e.g alcohol ) is left on too long.

Dr.T.V.Rao MD

acetone used with caution
Acetone used with Caution
  • Acetone is a more rapid decolorizes than alcohol and must be used with some care.
  • Excessive decolorization turns Gram positive appear as Gram negative

Dr.T.V.Rao MD

which alcohol is better
Which alcohol is better
  • Several alcohols have been studied, and it has been reported that the more complex the alcohol, the slower the decolorization action. As the carbon chain lengthens, decolorization is slower. Conn found in practice, however, no known advantage can be gained by substituting the higher alcohols for ethyl alcohol.

Dr.T.V.Rao MD

step 6
Step 6

Dr.T.V.Rao MD

which counterstain is better
Which counterstain is better
  • Some bacteria which are poorly stained by Safranin,such as Hemophilus spp., Legionella spp., and some anaerobic bacteria, are readily stained by basic fuchsin, but not Safranin

Dr.T.V.Rao MD

step 7

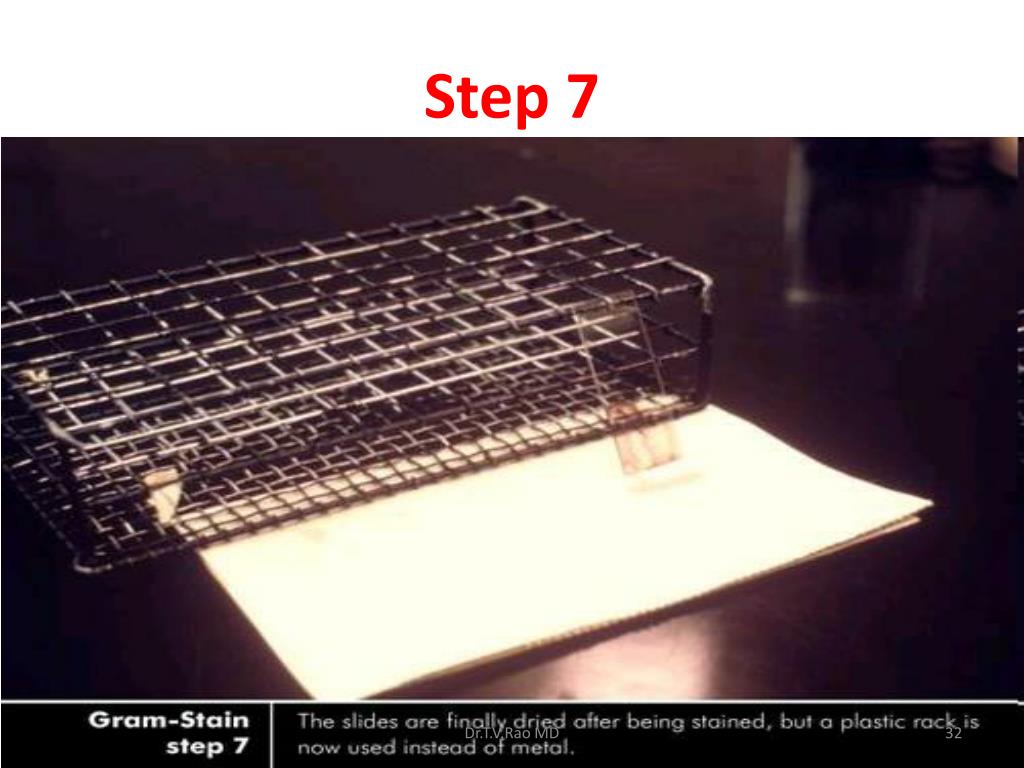

Step 7

Dr.T.V.Rao MD

caring the stained slide
Caring the stained slide

After the counterstain has been rinsed off, the slide is placed between some absorbent paper and the excess water gently blotted off. Care must be taken not to rub the slide with the blotting paper because this would remove the adhering bacteria.

Dr.T.V.Rao MD

gram staining depends on
Gram staining depends on
  • Includes culture age, media, incubation atmosphere, staining methods, . Similar considerations apply to the interpretation of smears from clinical specimens, and additional factors include different host cell types and possible phagocytosis.
  • Gram stain permits the separation of all bacteria into two large groups

Dr.T.V.Rao MD

how the gram stain work
How the Gram Stain Work
  • So how does it work? Gram didn't know - he simply worked empirically. We now know that the Gram reaction is based on the structure of the bacterial cell wall.
  • In Gram-positive bacteria, the dark purple crystal violet stain is retained by the thick layer of peptidoglycan which forms the outer layer of the cell.
  • In Gram-negative bacteria, the thin peptidoglycan layer in the periplasm does not retain the dark stain, and the pink safranincounterstains the peptidoglycan layer.

Dr.T.V.Rao MD

optimal use of microscopy
Optimal use of Microscopy
  • Gram stained preparations have to be observed with bright-field optics. Phase-contrast microscopy does not allow the recognition of true colours. Gram-positive bacteria may be seen under phase-contrast as red cells. Using bright-field optics, Gram-positive cells are purple or blue and Gram-negative pinkdue to counter stain with Safranin..

Dr.T.V.Rao MD

report as follows
Report as follows
  • 1 If no microorganisms are seen in a smear of a clinical specimen, report “No microorganisms seen.”
  • 2. If microorganisms are seen, report relative numbers and Describe morphology.
  • Observe predominant shapes of microorganisms

Dr.T.V.Rao MD

slide38

A gram stained bacterial suspension containing a mixture of Gram negative bacilli, and Gram positive cocci arranged in bunches (Staphylococci spp)

value of direct smears
Value of Direct Smears
  • Guide the physician on initial choice of antibiotic, pending results of culture and sensitivity.
  • Judge specimen quality.
  • Contribute to selection of culture media, especially with mixed flora.
  • Provide internal quality control when direct smear results are compared to culture results.

Dr.T.V.Rao MD

staining depends on staining depends on structural integrity of cell wall
Staining depends on Staining depends on Structural Integrity of Cell Wall
  • We know that only intact cells are Gram-positive, so that cells which are even gently broken become Gram-negative. Observations suggest that bacterial protoplasts, devoid of cell wall, are still Gram-positive, indicating that it is probably the semipermeable membrane which is somehow involved in the reaction.

Dr.T.V.Rao MD

identify
Identify
  • A young patient presented with foul smelling purulent discharge since 2 days on observation by Gram staining
slide46
Burkholderia pseudomallei  is a gram-negative bacilli with a “safetypin” appearance on microscopic examination

Dr.T.V.Rao MD

limitations of gram s staining
Limitations of Gram’s Staining
  • We know that Gram positivityis restricted almost exclusively to the bacteria, with only a few other groups, such as the yeasts, exhibiting this reaction.

Dr.T.V.Rao MD

better understanding of gram s staining

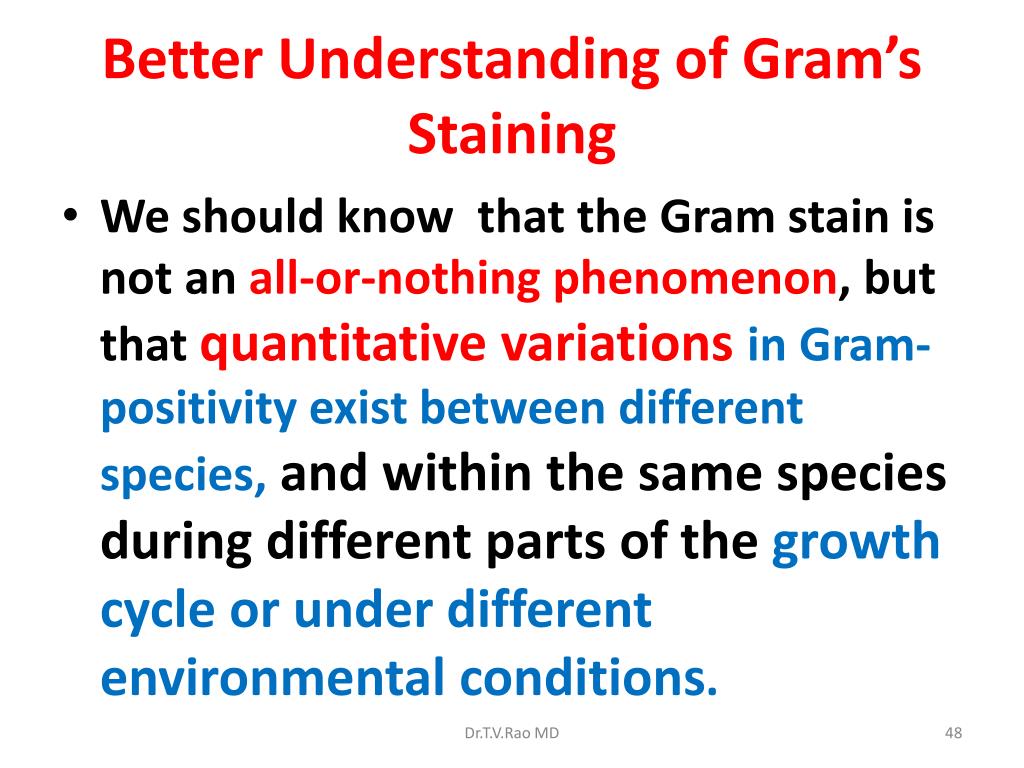

Better Understanding of Gram’s Staining
  • We should know that the Gram stain is not an all-or-nothing phenomenon, but that quantitative variations in Gram-positivity exist between different species,and within the same species during different parts of the growth cycle or under different environmental conditions.

Dr.T.V.Rao MD

faulty gram stain reactions
Faulty Gram stain reactions
  • It is possible to report as " Gram-negative" if the gram-positive bacteria are old, dead, or damaged and the cell wall is not intact.
  • There is no equivalent "false Gram-positive," but a false Gram-positive can occur if the decolorization step is accidentally omitted.

Dr.T.V.Rao MD

common errors in staining procedure
Common errors in Staining procedure
  • Excessive heat during fixation
  • Low concentration of crystal violet
  • Excessive washing between steps
  • Insufficient iodine exposure
  • Prolonged decolourization
  • Excessive counterstaining

Dr.T.V.Rao MD

gram stain results may not correlated with culture results
Gram stain results may not correlated with culture results
  • Gram stain-positive, culture-negative specimens may be the result of contamination of reagents and other supplies, presence of Antimicrobial agents, or failure of organisms to grow under usual Culture conditions (media, atmosphere, etc.)
  • Presence of anaerobic microorganisms

Dr.T.V.Rao MD

artifacts in gram staining
Artifacts in Gram Staining
  • Gram stain reagents Crystal Violet, Iodine ?, Safranin, contaminated.
  • Dirty glass slides
  • Contaminated water used to rinse slides

Dr.T.V.Rao MD

biochemical tests in identification
Biochemical Tests in Identification
  • KOH string test may be used as a confirmatory test for the Gram Stain (Powers, 1995, Arthi et al., 2003): The formation of a string (DNA) in 3% KOH indicates that the isolate is a gram-negative organism.

Dr.T.V.Rao MD

gram staining not a fool proof procedure
Gram staining not a fool proof procedure
  • Gram’s staining method is not without its problems.
  • It is , complicated, and prone to operator error.
  • The method also requires a large number of bacteria.

Dr.T.V.Rao MD

gram variable observations in gram staining
Gram variable observations in Gram staining
  • The Gram staining procedure does not always give clear-cut results. Some organisms are Gram-variable and may appear either Gram-negative or Gram-positive according to the conditions. With these types of organisms, Gram-positive and Gram-negative cells may be present within the same preparation

Dr.T.V.Rao MD

overcoming in gram variable observations
Overcoming in Gram Variable Observations
  • It is necessary that it is stained at two or three different ages (very young cultures should be used). In case a Gram-variable reaction is observed it is also good to check the purity of the culture.

Dr.T.V.Rao MD

gram staining appearance differs
Gram Staining appearance differs..

The genera Actinomyctes, Arthobacter, Corynebacterium, Mycobacterium, and Propionibacterium have cell walls particularly sensitive to breakage during cell division, resulting in Gram-negative staining of these Gram-positive cells. The staining of these organisms result in an uneven or granular appearance

Dr.T.V.Rao MD

quality control
QUALITY CONTROL
  • Check appearance of reagents daily
  • If crystal violet has precipitate or crystal sediment, refilter before use even when purchased commercially. NOTE: Some stains, especially basic fuchsin and safranin, can become contaminated. Start with fresh material in a clean bottle.
  • Evaporation may alter reagent effectiveness; working solutions should be changed regularly

Dr.T.V.Rao MD

quality control64
QUALITY CONTROL
  • Daily and when a new lot is used, prepare a smear of Escherichia coli (ATCC 25922) and Staphylococcus epidermidis (ATCC 12228)or Staphylococcus aureus (ATCC 25923). Fix and stain as described.

Dr.T.V.Rao MD

interpret gram staining with clinical picture and other investigations
Interpret Gram Staining with Clinical Picture and other Investigations
  • Nevertheless, Gram's stain findings can be equivocal and, therefore, must be assessed carefully in light of the clinical picture.

Dr.T.V.Rao MD

modification in gram staining methods
Modification in Gram staining methods ?
  • Since the original procedure of Gram, many variations of the Gram staining technique have been published. Some of them have improved the method, others include some minor technical variants of no value.

Dr.T.V.Rao MD

modifications report with caution
Modifications -Report with caution
  • Any final result is the outcome of the interaction of all of the possible variables.
  • All modified methods to be practised with caution should suit to the laboratory, and quality control checks.

Dr.T.V.Rao MD

is it wise to adopt different gram staining procedure
Is it wise to adopt different Gram staining procedure
  • Bartholomew (1962) has pointed out that each variation in the Gram staining procedure has a definite limit to its acceptability

Dr.T.V.Rao MD

hucker and conn s recommendation
Hucker and Conn's recommendation
  • There is no gram procedure which can be referred to as the best for all laboratories and for all situations. It is recommended that the young microbiologists adopt at least two of the well-accepted methods, practice them until he is familiar with their characteristics,

Dr.T.V.Rao MD

words of wisdom hans christian gram
Words of WisdomHans Christian Gram
  • I am aware that as yet it is very defective and imperfect

Dr.T.V.Rao MD

creating library of gram stains
Creating Library of Gram Stains

Drain or gently blot excess oil

For slide libraries and teaching collections that will be stored for longer periods, immersion oil can be removed with xylene solution and the slides can be cover slipped using Per mount to prevent fading.

Dr.T.V.Rao MD

best of references you can read on line
Best of ReferencesYou can read on line….
  • Amonograph of gram-stained preparations of clinical Specimens
  •  By Linda M. Marler, Jean A. Siders, Stephen D. Allen (MD.)

Dr.T.V.Rao MD

gram staining continues to be most rapid test
Gram staining continues to be Most Rapid test.
  • Even new molecular methodologies typically take hours rather than minutes. " This simple staining procedure remains the most useful test performed in the microbiology lab. Results from a Gram's stain can tell volumes about an infection within 15 minutes of a specimen's arrival in the lab, while most other microbiology results require 24 hours or more.

Dr.T.V.Rao MD

gram s staining a mystery
Gram’s Staining A Mystery
  • The exact mechanism of the staining reaction is not fully understood, however, this does not detract from its usefulness.

Dr.T.V.Rao MD
