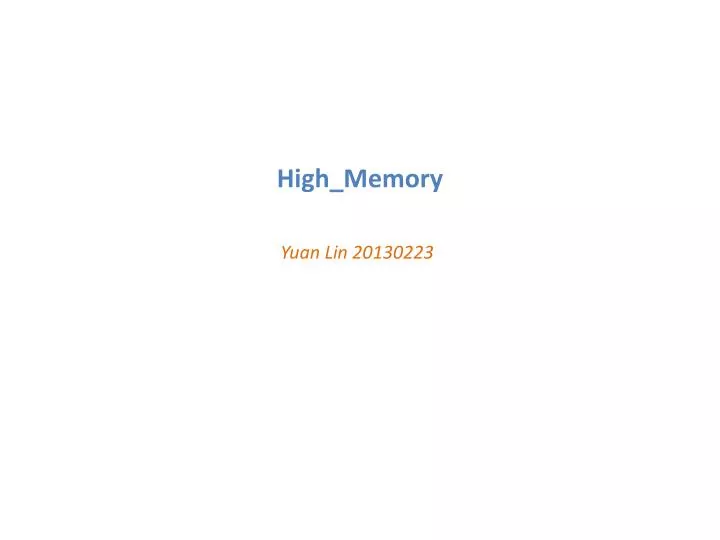

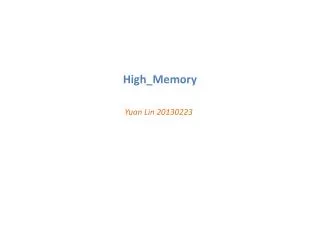

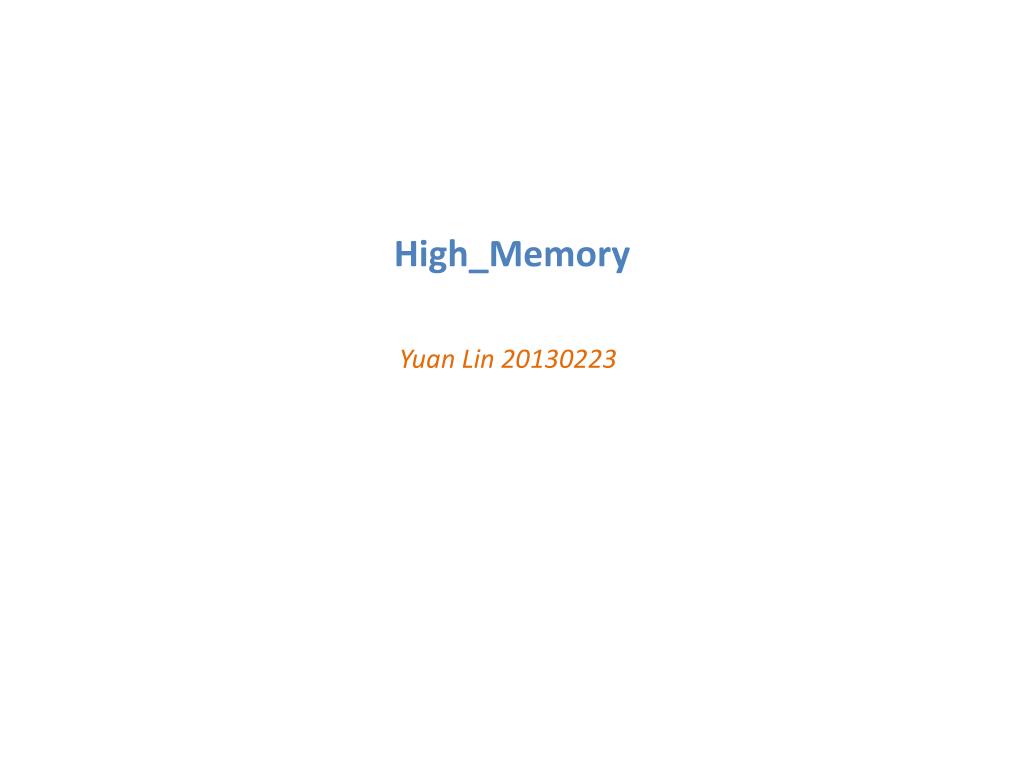

  1. High_Memory Yuan Lin 20130223

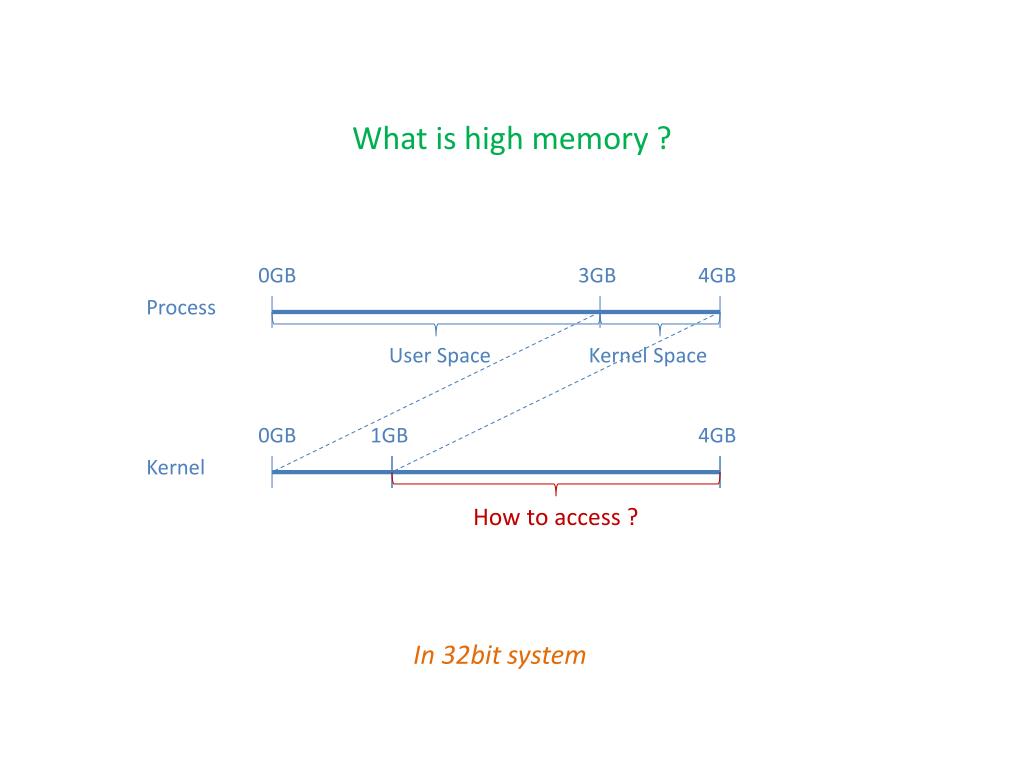

  2. What is high memory ? 0GB 3GB 4GB Process User Space Kernel Space 0GB 1GB 4GB Kernel How to access ? In 32bit system

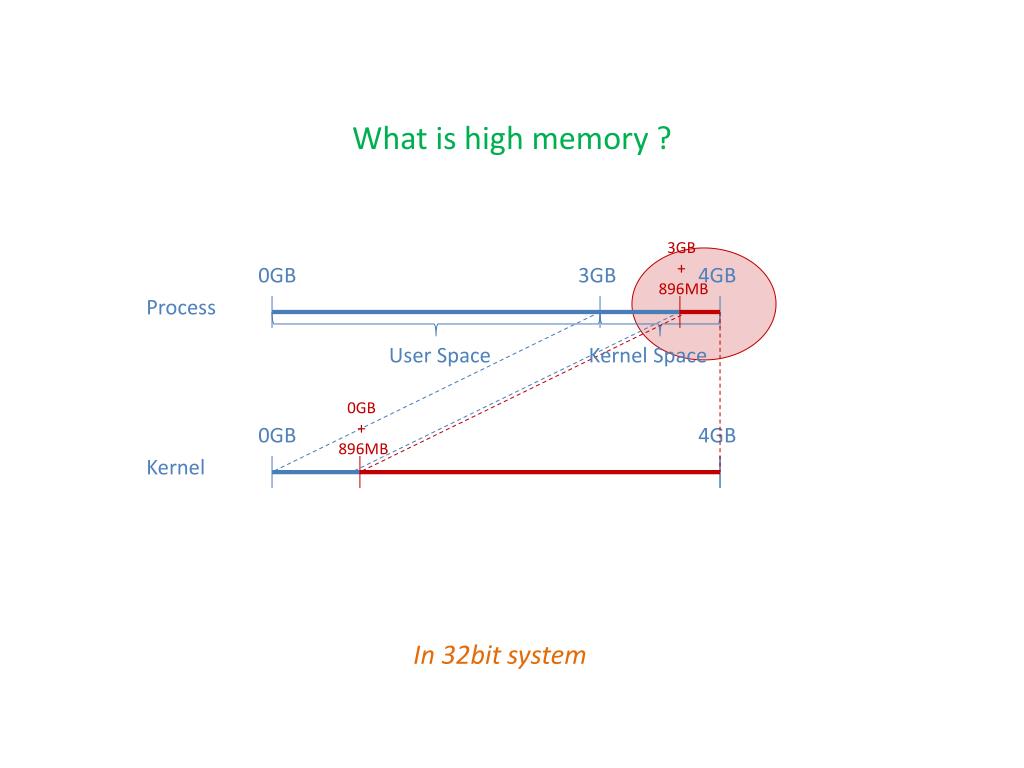

  3. What is high memory ? 3GB + 896MB 0GB 3GB 4GB Process User Space Kernel Space 0GB + 896MB 0GB 4GB Kernel In 32bit system

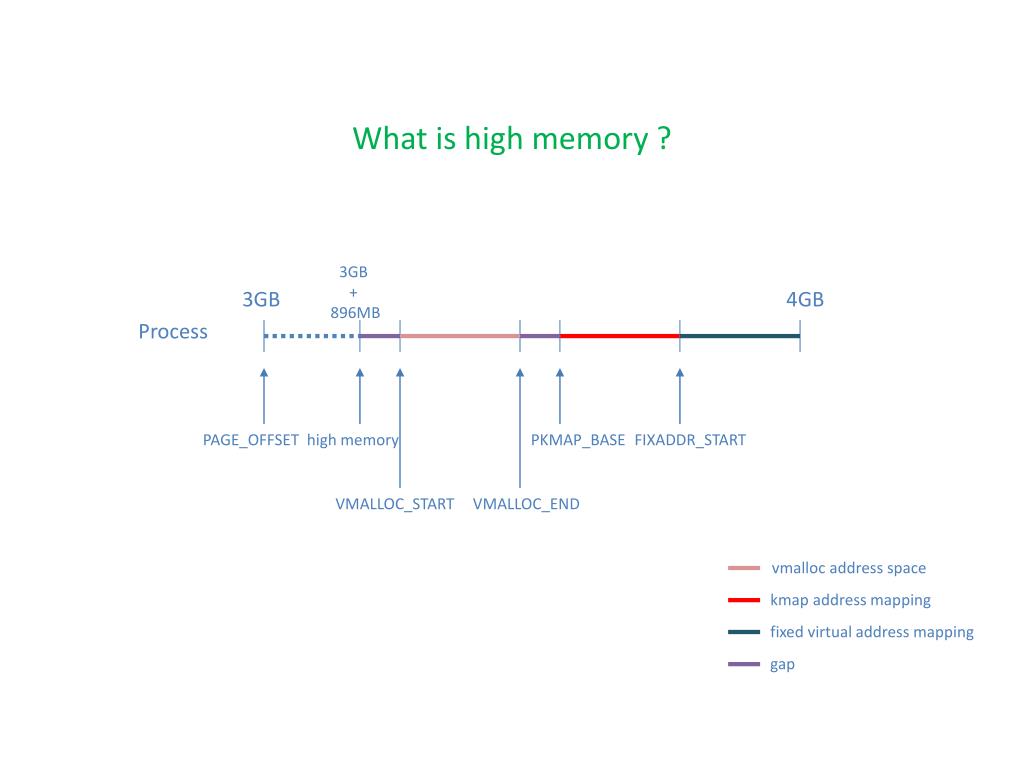

  4. What is high memory ? 3GB + 896MB 3GB 4GB Process PAGE_OFFSET high memory PKMAP_BASE FIXADDR_START VMALLOC_START VMALLOC_END vmalloc address space kmap address mapping fixed virtual address mapping gap

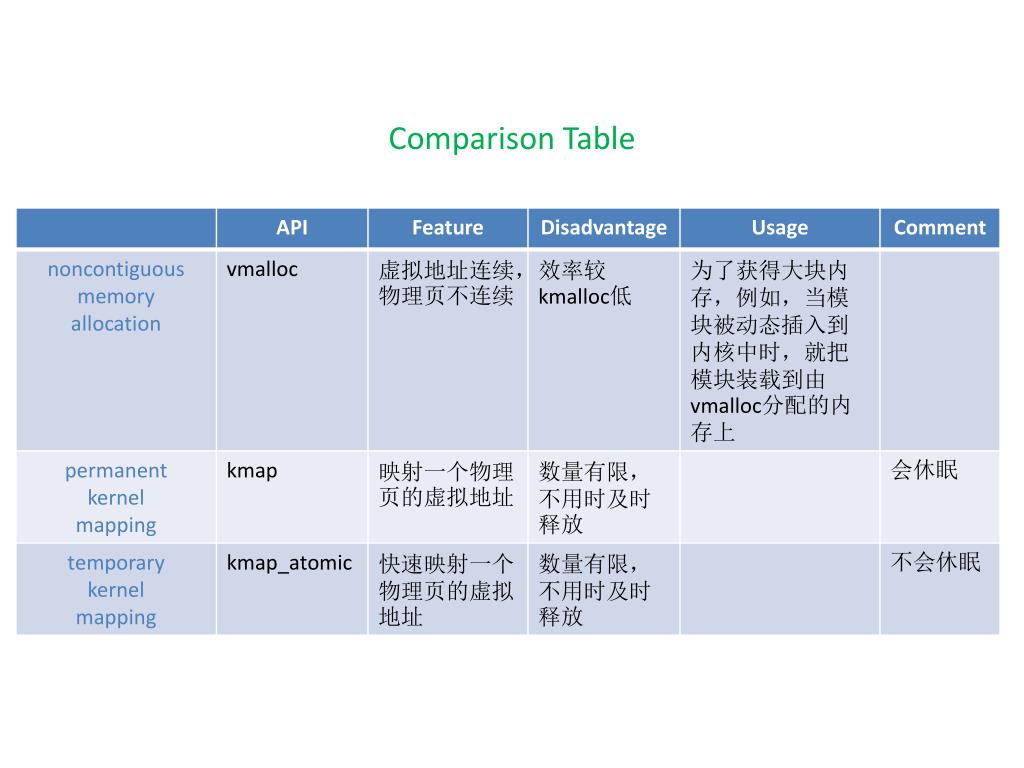

  5. Comparison Table

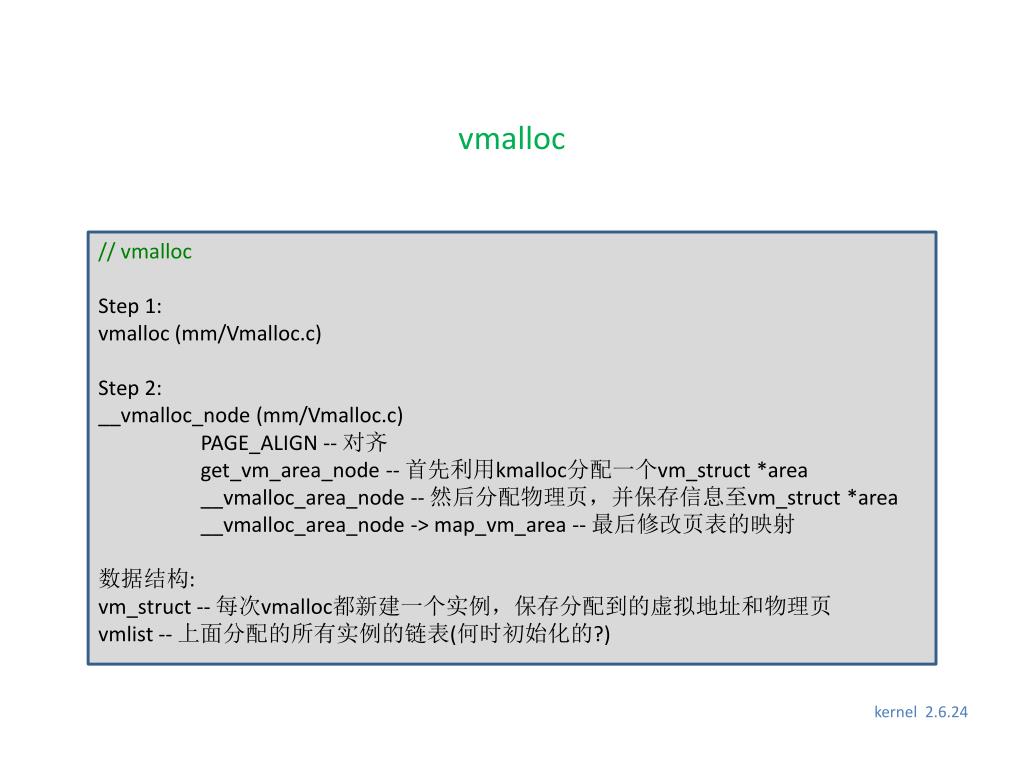

  6. vmalloc // vmalloc Step 1: vmalloc(mm/Vmalloc.c) Step 2: __vmalloc_node (mm/Vmalloc.c) PAGE_ALIGN -- 对齐 get_vm_area_node -- 首先利用kmalloc分配一个vm_struct *area __vmalloc_area_node-- 然后分配物理页，并保存信息至vm_struct *area __vmalloc_area_node -> map_vm_area-- 最后修改页表的映射 数据结构: vm_struct-- 每次vmalloc都新建一个实例，保存分配到的虚拟地址和物理页 vmlist-- 上面分配的所有实例的链表(何时初始化的?) kernel 2.6.24

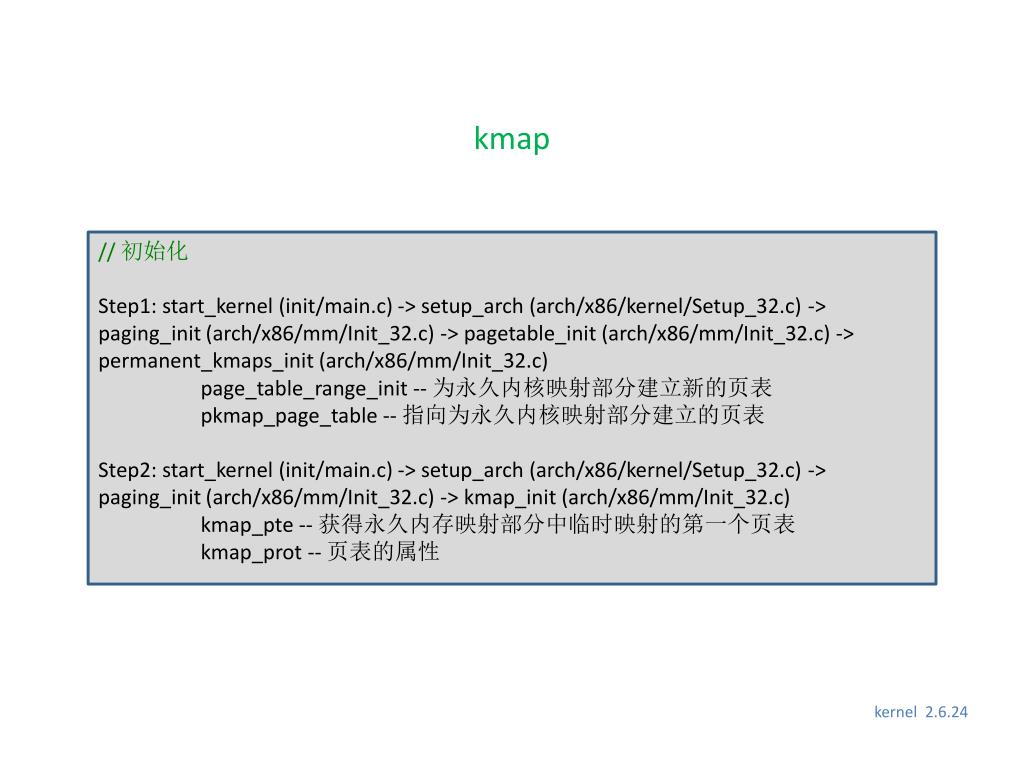

  7. kmap // 初始化 Step1: start_kernel (init/main.c) -> setup_arch (arch/x86/kernel/Setup_32.c) -> paging_init (arch/x86/mm/Init_32.c) -> pagetable_init (arch/x86/mm/Init_32.c) -> permanent_kmaps_init (arch/x86/mm/Init_32.c) page_table_range_init -- 为永久内核映射部分建立新的页表 pkmap_page_table-- 指向为永久内核映射部分建立的页表 Step2: start_kernel (init/main.c) -> setup_arch (arch/x86/kernel/Setup_32.c) -> paging_init (arch/x86/mm/Init_32.c) -> kmap_init (arch/x86/mm/Init_32.c) kmap_pte-- 获得永久内存映射部分中临时映射的第一个页表 kmap_prot -- 页表的属性 kernel 2.6.24

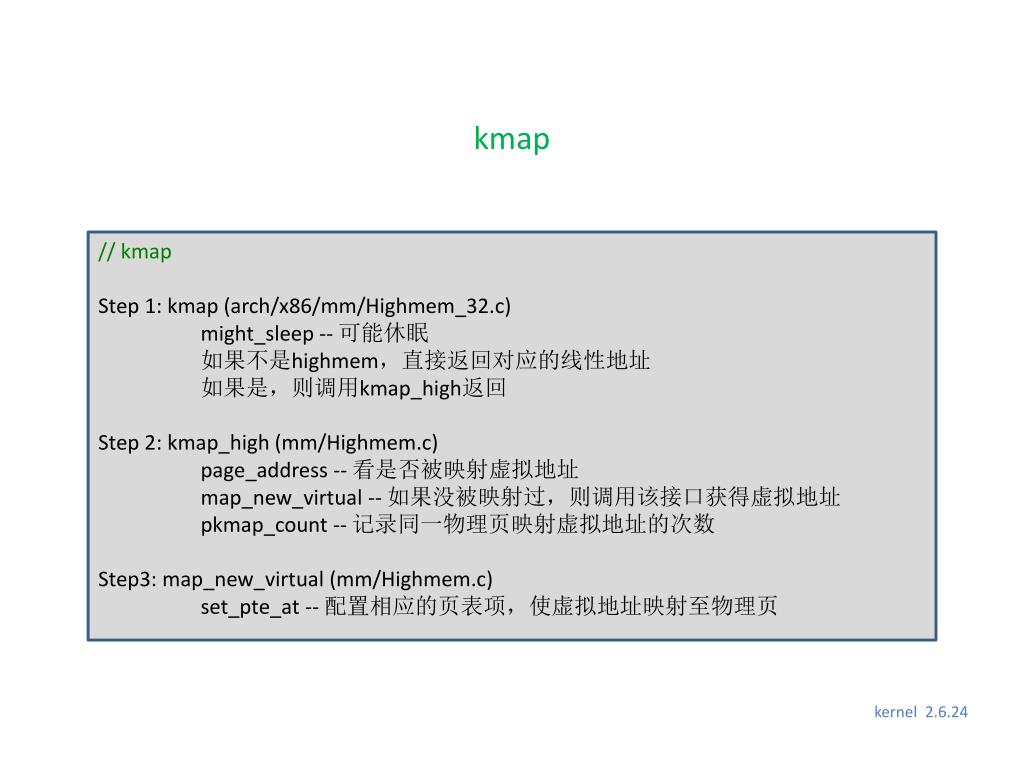

  8. kmap // kmap Step 1: kmap (arch/x86/mm/Highmem_32.c) might_sleep -- 可能休眠 如果不是highmem，直接返回对应的线性地址 如果是，则调用kmap_high返回 Step 2: kmap_high (mm/Highmem.c) page_address-- 看是否被映射虚拟地址 map_new_virtual-- 如果没被映射过，则调用该接口获得虚拟地址 pkmap_count-- 记录同一物理页映射虚拟地址的次数 Step3: map_new_virtual (mm/Highmem.c) set_pte_at-- 配置相应的页表项，使虚拟地址映射至物理页 kernel 2.6.24

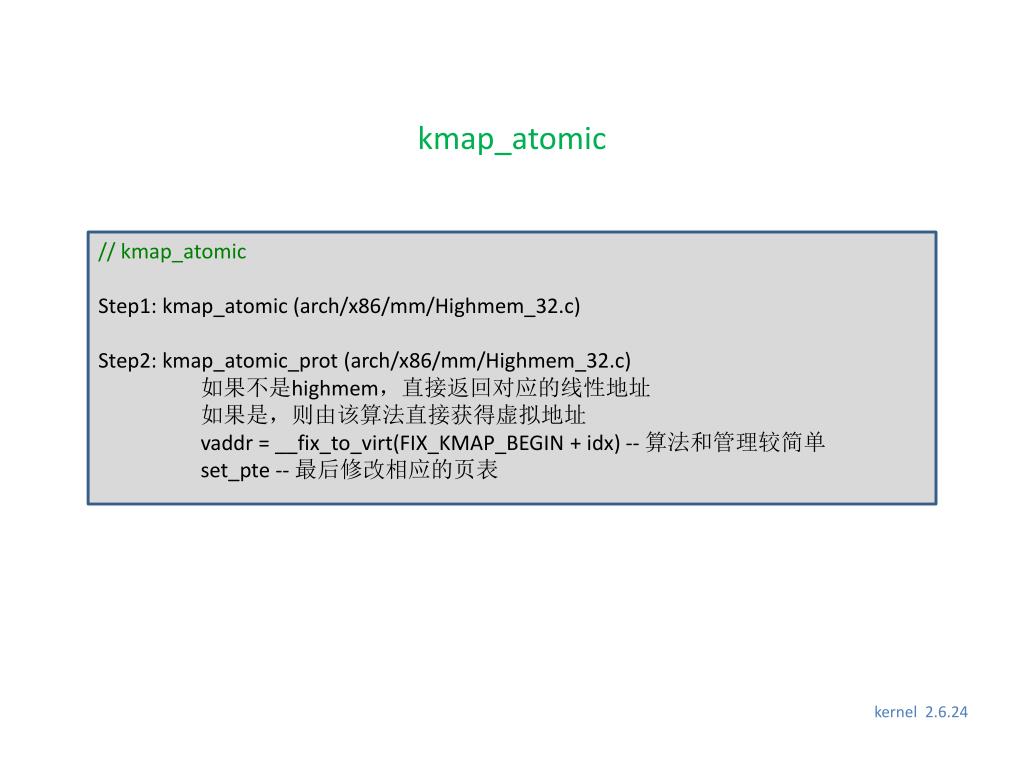

  9. kmap_atomic // kmap_atomic Step1: kmap_atomic (arch/x86/mm/Highmem_32.c) Step2: kmap_atomic_prot(arch/x86/mm/Highmem_32.c) 如果不是highmem，直接返回对应的线性地址 如果是，则由该算法直接获得虚拟地址 vaddr= __fix_to_virt(FIX_KMAP_BEGIN + idx) -- 算法和管理较简单 set_pte-- 最后修改相应的页表 kernel 2.6.24

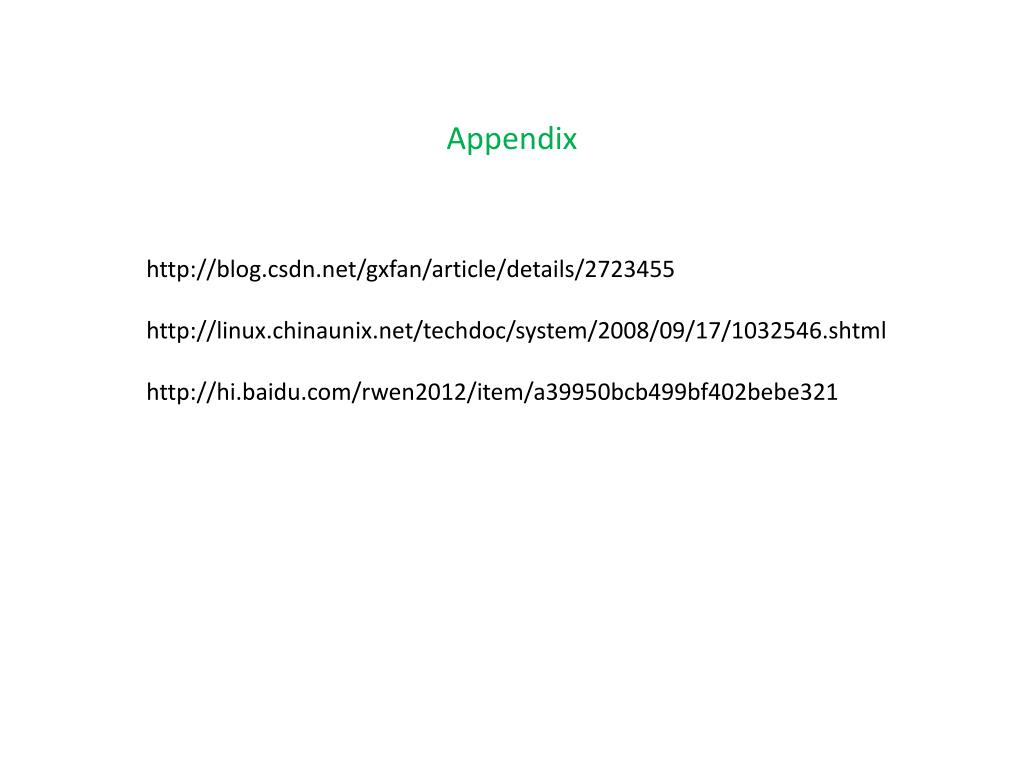

  10. Appendix http://blog.csdn.net/gxfan/article/details/2723455 http://linux.chinaunix.net/techdoc/system/2008/09/17/1032546.shtml http://hi.baidu.com/rwen2012/item/a39950bcb499bf402bebe321
