Warm-up

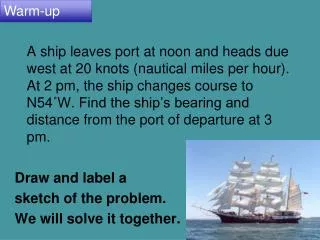

Warm-up. A ship leaves port at noon and heads due west at 20 knots (nautical miles per hour). At 2 pm, the ship changes course to N54 ˚W. Find the ship’s bearing and distance from the port of departure at 3 pm. Draw and label a sketch of the problem. We will solve it together.

rianne
Download Presentation

Warm-up

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Warm-up A ship leaves port at noon and heads due west at 20 knots (nautical miles per hour). At 2 pm, the ship changes course to N54˚W. Find the ship’s bearing and distance from the port of departure at 3 pm. Draw and label a sketch of the problem. We will solve it together. 4.8 Applications and Models

  2. SOLUTION: A ship leaves port at noon and heads due west at 20 knots (nautical miles per hour). At 2 pm the ship changes course to N54W. Find the ship’s bearing and distance from the port of departure at 3 pm (40 + 16.18)2 + (11.75)2 = d2 d = 57.39nm d 20 nm x 54 36 y 40nm z = 2(20 nm)

  3. A ship leaves port at noon and heads due west at 20 knots (nautical miles per hour). At 2 pm the ship changes course to N54W. Find the ship’s bearing and distance from the port of departure at 3 pm z = 12 W 12 N or N 78 W d 20 nm x 54 36 y 40nm z = 2(20 nm)

  4. Trig Game Plan Date: 10/8/13

  5. Example 4 SOLVING A PROBLEM INVOLVING ANGLES OF ELEVATION From a given point on the ground, the angle of elevation to the top of a tree is 36.7˚. From a second point, 50 feet back, the angle of elevation to the top of the tree is 22.2˚. Find the height of the tree to the nearest foot. The figure shows two unknowns: x and h. Since nothing is given about the length of the hypotenuse, of either triangle, use a ratio that does not involve the hypotenuse. TANGENT

  6. Example 4 In triangle BCD: SOLVING A PROBLEM INVOLVING ANGLES OF ELEVATION (continued) In triangle ABC: Each expression equals h, so the expressions must be equal.

  7. Example 4 SOLVING A PROBLEM INVOLVING ANGLES OF ELEVATION (continued) Since h = x tan 36.7˚, we can substitute. The tree is about 45 feet tall.

  8. Example: Solving a Problem Involving Angles of Elevation Sean wants to know the height of a Ferris wheel. From a given point on the ground, he finds the angle of elevation to the top of the Ferris wheel is 42.3˚. He then moves back 75 ft. From the second point, the angle of elevation to the top of the Ferris wheel is 25.4˚. Find the height of the Ferris wheel.

  9. The figure shows two unknowns: x and h. Since nothing is given about the length of the hypotenuse, of either triangle, use a ratio that does not involve the hypotenuse, (the tangent ratio). In triangle ABC, In triangle BCD, B h C x A D 75 ft

  10. Since each expression equals h, the expressions must be equal to each other. Solve for x. Distributive Property Get x-terms on one side. Factor out x. Divide by the coefficient of x.

  11. We saw above that Substituting for x. • tan 42.3 = .9099299 and tan 25.4 = .4748349. So, tan 42.3 - tan 25.4 = .9099299 - .4748349 = .435095 and • The height of the Ferris wheel is approximately 75 ft.

  12. Example: Solving a Problem Involving Angles of Elevation • Jenn wants to know the height of a Ferris wheel. From a given point on the ground, she finds the angle of elevation to the top of the Ferris wheel is 49.6° . She then moves back 65 ft. From the second point, the angle of elevation to the top of the Ferris wheel is 29.7° . Find the height of the Ferris wheel.

  13. The figure shows two unknowns: x and h. Since nothing is given about the length of the hypotenuse, of either triangle, use a ratio that does not involve the hypotenuse, (the tangent ratio). In triangle ABC, In triangle BCD, B h C x A D 75 ft x

  14. Since each expression equals h, the expressions must be equal to each other. Solve for x. Distributive Property Get x-terms on one side. Factor out x. Divide by the coefficient of x.

  15. B h C x A D 75 ft x≈61.32 ft x

  16. Marla needs to find the height of a building. From a given point on the ground, she finds that the angle of elevation to the top of the building is 74.2°. She then walks back 35 feet. From the second point, the angle of elevation to the top of the building is 51.8°. Find the height of the building.

  17. In triangle ABC In triangle BCD Solving a Problem Involving Angles of Elevation (cont.) • There are two unknowns, the distance from the base of the building, x, and the height of the building, h.

  18. Set the two expressions for h equal and solve for x. Since h = x tan 74.2°, substitute the expression for x to find h. The building is about 69 feet tall.
