Chapter 1. The Big Picture. QUIZ. Explain the abstractions we normally apply when using the following systems: DVD player Registering for classes on DuckTrax Walking In each case, explain what is the internal view and what is the abstract view. 2. 5. QUIZ.

Download Presentation
## Chapter 1

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

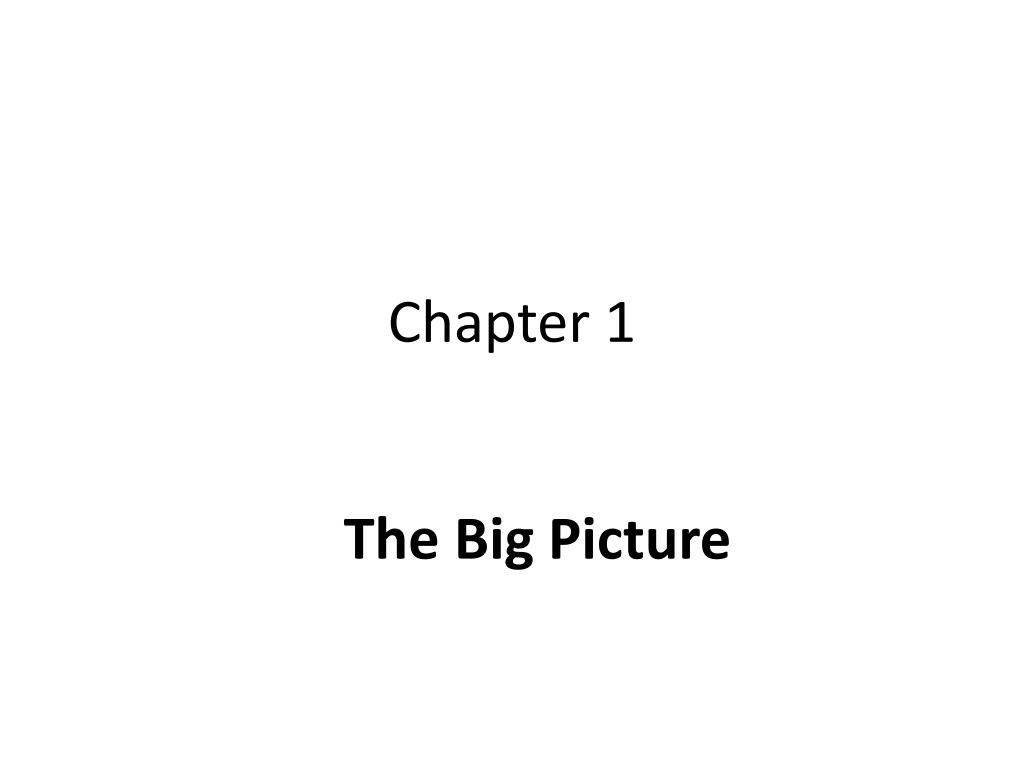

**Chapter 1**The Big Picture**QUIZ**Explain the abstractions we normally apply when using the following systems: • DVD player • Registering for classes on DuckTrax • Walking • In each case, explain what is the internal view and what is the abstract view. 2 5**QUIZ**Explain the abstraction applied in browsing the WWW: • What is the internal view? • What is the abstract view? 3**QUIZ**Connect each generation of computer hardware with its defining technology: 1st Gen. ICs 2nd Gen. Multi-core processors 3rd Gen. LSI, VLSI 4th Gen. Vacuum tubes 5th Gen. Transistors 4**Chapter 2**Binary Values and Number Systems**Converting Binary to Decimal**What is the decimal equivalent of the binary number 1101110? 11011102 = ???10 13**Converting Binary to Decimal**What is the decimal equivalent of the binary number 1101110? 1 x 26 = 1 x 64 = 64 + 1 x 25 = 1 x 32 = 32 + 0 x 24 = 0 x 16 = 0 + 1 x 23 = 1 x 8 = 8 + 1 x 22 = 1 x 4 = 4 + 1 x 21 = 1 x 2 = 2 + 0 x 2º = 0 x 1 = 0 = 110 in base 10 13**Converting Hexadecimal to Decimal**What is the decimal equivalent of the hexadecimal number DEF? D x 162 = 13 x 256 = 3328 + E x 161 = 14 x 16 = 224 + F x 16º = 15 x 1 = 15 = 3567 in base 10**Converting Octal to Decimal**What is the decimal equivalent of the octal number 642? 6428 = ???10 11**Converting Octal to Decimal**What is the decimal equivalent of the octal number 642? 6 x 82 = 6 x 64 = 384 + 4 x 81 = 4 x 8 = 32 + 2 x 8º = 2 x 1 = 2 = 418 in base 10 11**QUIZ: Convert to decimal1101 00112 = ???10AB716 =**???105138 = ???106928 = ???10**Addition QUIZ**Carry values go here 1 0 1 0 1 1 0 +1 0 0 0 0 1 1 Check in base ten! 14**Subtraction QUIZ**1 0 1 1 0 0 0 - 1 1 0 1 1 1 Borrow values Check in base ten! 15**Repeated division QUIZ**Convert 4210 to binary 42 2 = rem. 4210 = 2 19**Converting Binary to Octal**• Mark groups of three (from right) • Convert each group • 10101011 10101011 • 2 5 3 • 10101011 is 253 in base 8 17**Converting Binary to Hexadecimal**• Mark groups of four (from right) • Convert each group • 10101011 10101011 • A B • 10101011 is AB in base 16 18**Counting**Count from 5 to 17 in binary. Place the numbers in a table.**Converting Octal to Hexadecimal**Convert octal 253 into hex. 18**Converting Octal to Hexadecimal**Convert octal 253 into hex. 1010101110101011 2 5 3 A B 253 in base 8 = AB in base 16 18**Quiz on Ch.2**Convert 201023 to decimal**Chapter 03**Data Representation**Quiz**A video file is originally 3.5 GB long. We compress it to 490 MB. What is the compression ratio?**Quiz**A digital thermometer has a scale from 50 to 100 degrees (F). The temperature is represented on 7 bits. What is the smallest temperature difference that it can measure?**QUIZ**How many bits are needed to represent all the courses you’re planning to take in college?**QUIZ**Given the following representations, find in each case what actual number is being represented: • 51 • 52 • 96 • 47**EXTRA-CREDIT QUIZ**If the representation is 76, what actual number is being represented?**QUIZ**What is the representation for each of these actual numbers? • -48 • -40 • -30 • -5**Let’s use ten’s complement!**To perform addition, add the numbers and discard any carry • Now you try it • 48 (signed-magnitude) • 1 • 47 • How does it work in • the new scheme?**Adding two negative numbers**Try these: 4 - 4 -4 - 3 +3 + -3**QUIZ**What is the 8-bit two’s complement representation of these numbers? • -13 • 40**QUIZ**Perform the following operation in 8-bit two’s complement: 40 – 13**Trick QUIZ**What decimal number does this binary number represent? 1001 1110**Converting fractions from binary to decimal**Easy! Just multiply with the powers of 2, as we did for unsigned binary. Only difference is that now the powers are negative. Example: .10012 = 0. 10**QUIZ**Convert: .10112 = 0. 10**Converting fractions from decimal to binary**Remember the repeated divisionalgorithm? We apply it for the integer part of the number. To covert the fractional part, we use the repeated multiplicationalgorithm! Example: 0.43510 = 0. 2**QUIZ**Convert: 0.310 = 0. 2**QUIZ**Finite decimal fractions may have infinite binary representation! 0.310 = 0. 0100110011 2 Stop after 8 bits!**QUIZ**Convert to floating point and to scientific notation: 123.332 = -0.0034 = 0.0 =**QUIZ**Encode “Hello, world!” in ASCII Decode 67 83 32 49 49 48 from ASCII**Huffman decoding QUIZ**Decode: 1011111001010**QUIZ**Explain the similarities and differences between 00FF00 and 008800**Extra-credit question**TrueColor A 24-bit color depth: eight bits used for each number in an RGB value How many different colors can be represented in TrueColor? Please show your work.**QUIZ**Are these HiColor or TrueColor?**Extra-credit question**How many bits are needed to represent this palette? Please show your work.**3.6 Representing Video**The problem: huge amount of data! Example: In HDTV, the Frame size is defined as the number of horizontal pixels × number of vertical pixels: • 1280 × 720 • 1920 × 1080 Calculate: 1] Data rate (bits per second) for 25 fps 2] Size (bytes) of 2-hour movie**All hail the HARDWARE!**Chapter 4 Gates and Circuits(with some transistors thrown in for good measure)
