Interactive Data Analysis Activity: Paper Airplanes and Graph Types

Engage students in a hands-on activity creating and flying paper airplanes to collect data, followed by a lesson on data analysis covering types of variables and graphs. Explore categorical and quantitative data, distribution, frequency tables, marginal and conditional distributions, association, and Simpson’s Paradox. Homework exercises included.

quintin-hollis
Download Presentation

Interactive Data Analysis Activity: Paper Airplanes and Graph Types

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Warm-Up • List all of the different types of graphs you can remember from previous years:

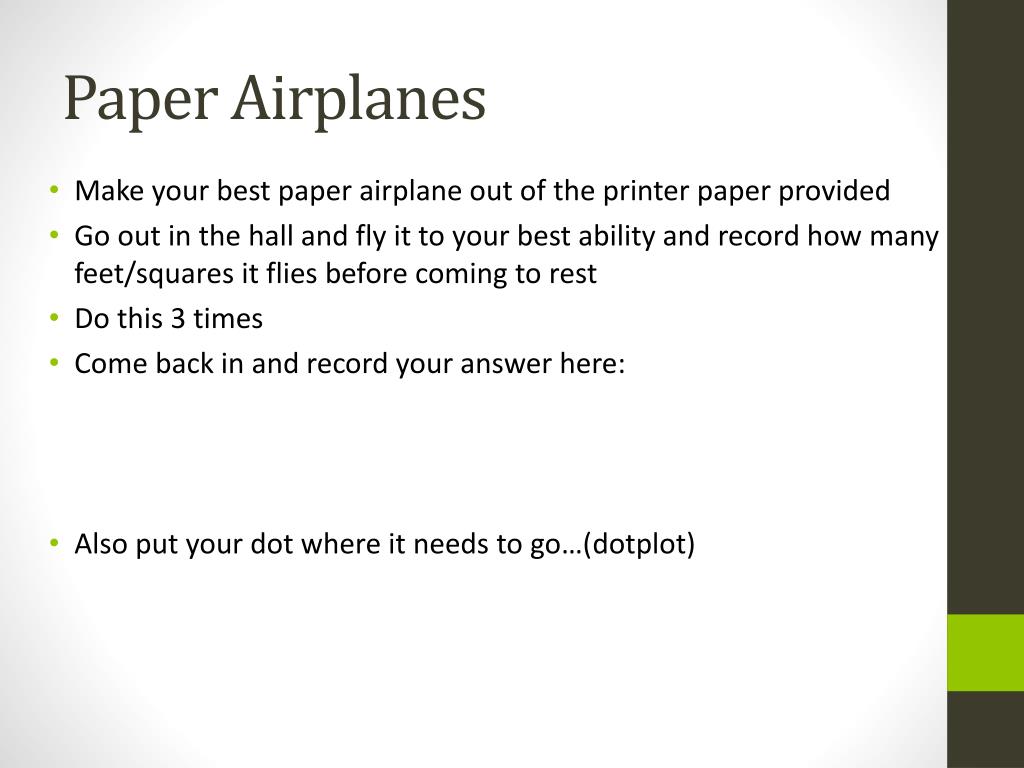

  2. Paper Airplanes • Make your best paper airplane out of the printer paper provided • Go out in the hall and fly it to your best ability and record how many feet/squares it flies before coming to rest • Do this 3 times • Come back in and record your answer here: • Also put your dot where it needs to go…(dotplot)

  3. Section 1.1 Data Analysis: Categorical and Quantitative Data

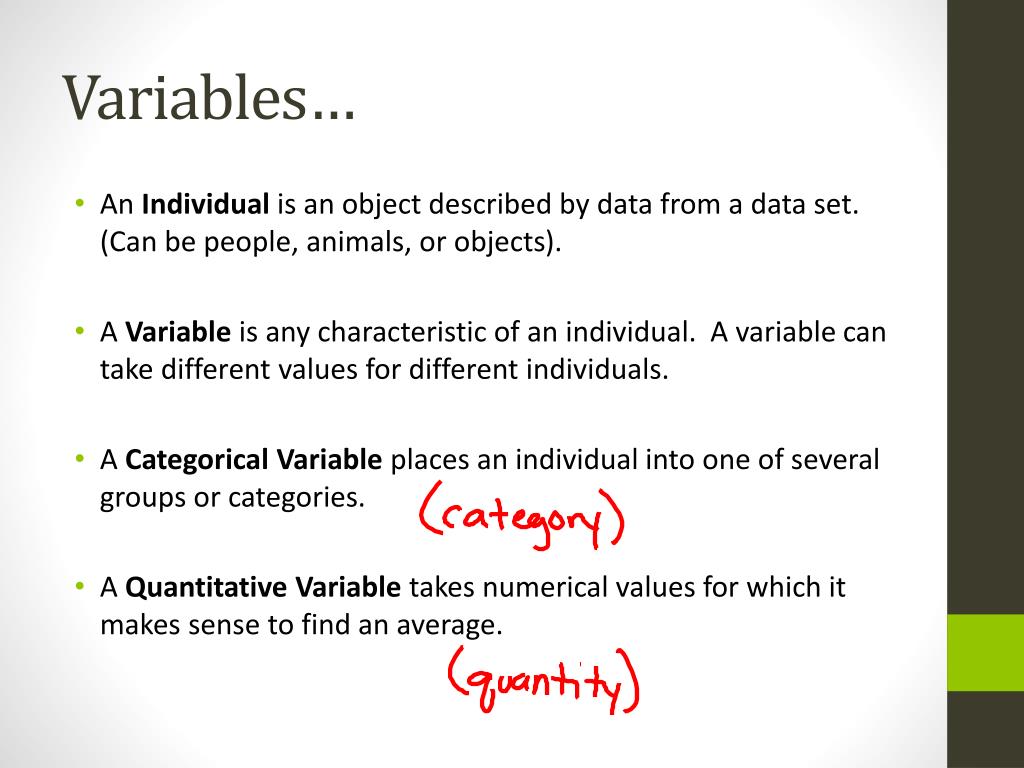

  4. Variables… • An Individual is an object described by data from a data set. (Can be people, animals, or objects). • A Variable is any characteristic of an individual. A variable can take different values for different individuals. • A Categorical Variable places an individual into one of several groups or categories. • A Quantitative Variable takes numerical values for which it makes sense to find an average.

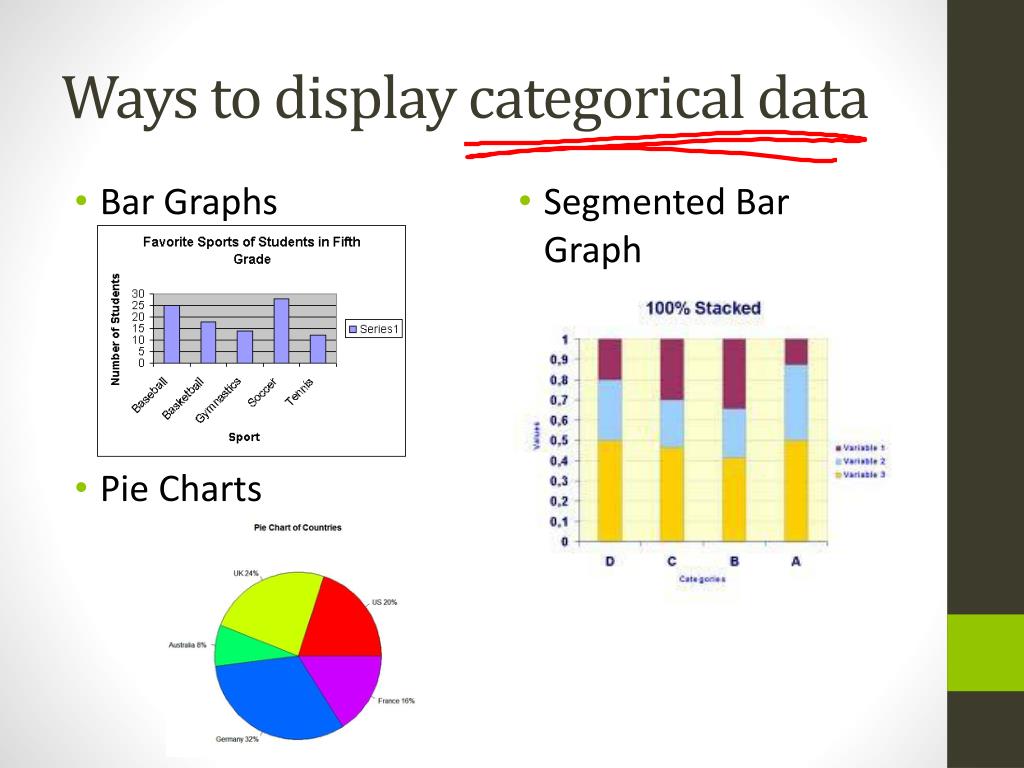

  5. Ways to display categorical data • Bar Graphs • Pie Charts • Segmented Bar Graph

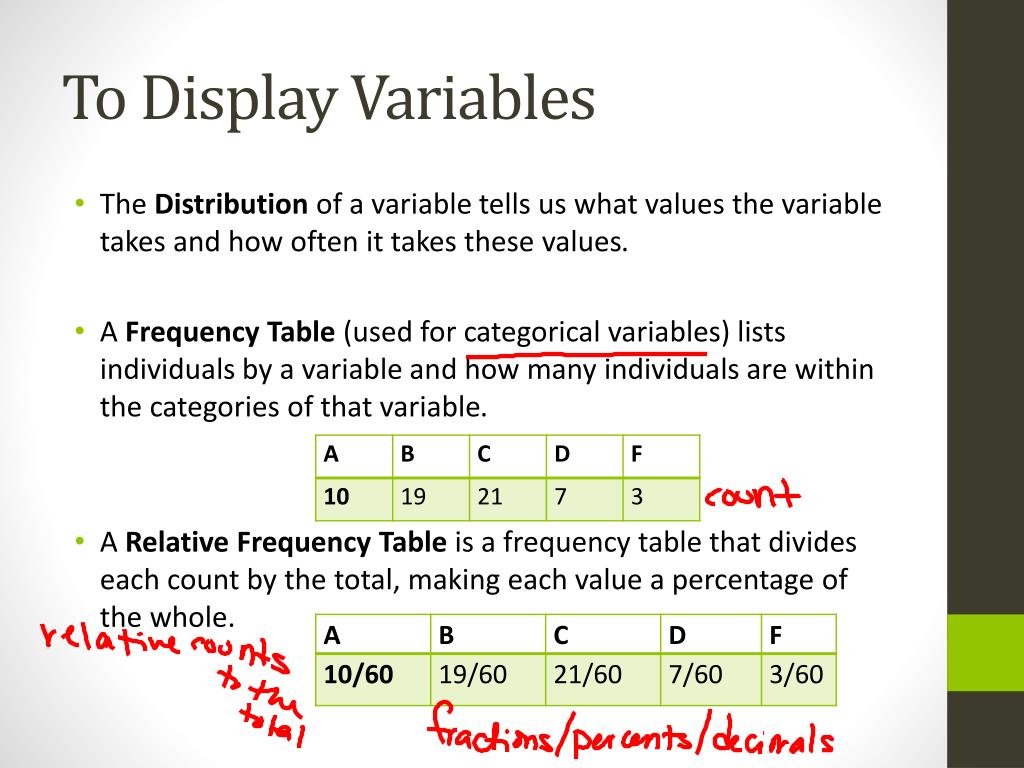

  6. To Display Variables • The Distribution of a variable tells us what values the variable takes and how often it takes these values. • A Frequency Table (used for categorical variables) lists individuals by a variable and how many individuals are within the categories of that variable. • A Relative Frequency Table is a frequency table that divides each count by the total, making each value a percentage of the whole.

  7. Roundoff Error • Roundoff Error is when percents or vales are rounded within a relative frequency or frequency table (respectively) which causes the total to not match what is expected. • Ex: Student AP Scores In Millions • Total: 10,531,277 students

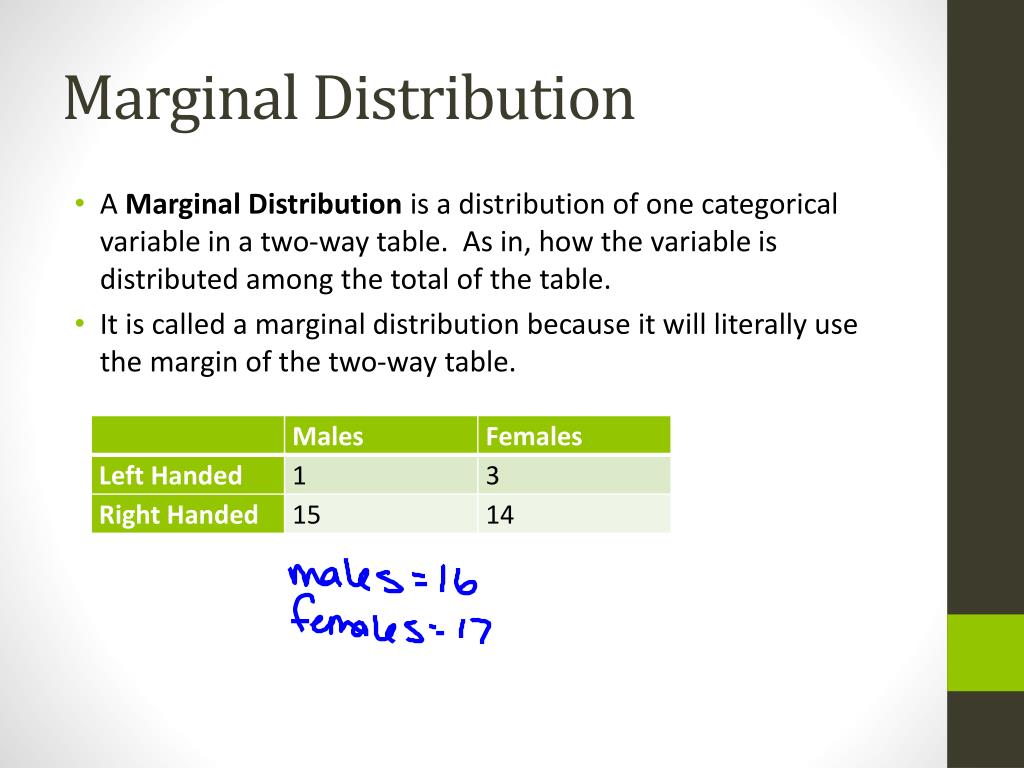

  8. Marginal Distribution • A Marginal Distribution is a distribution of one categorical variable in a two-way table. As in, how the variable is distributed among the total of the table. • It is called a marginal distribution because it will literally use the margin of the two-way table.

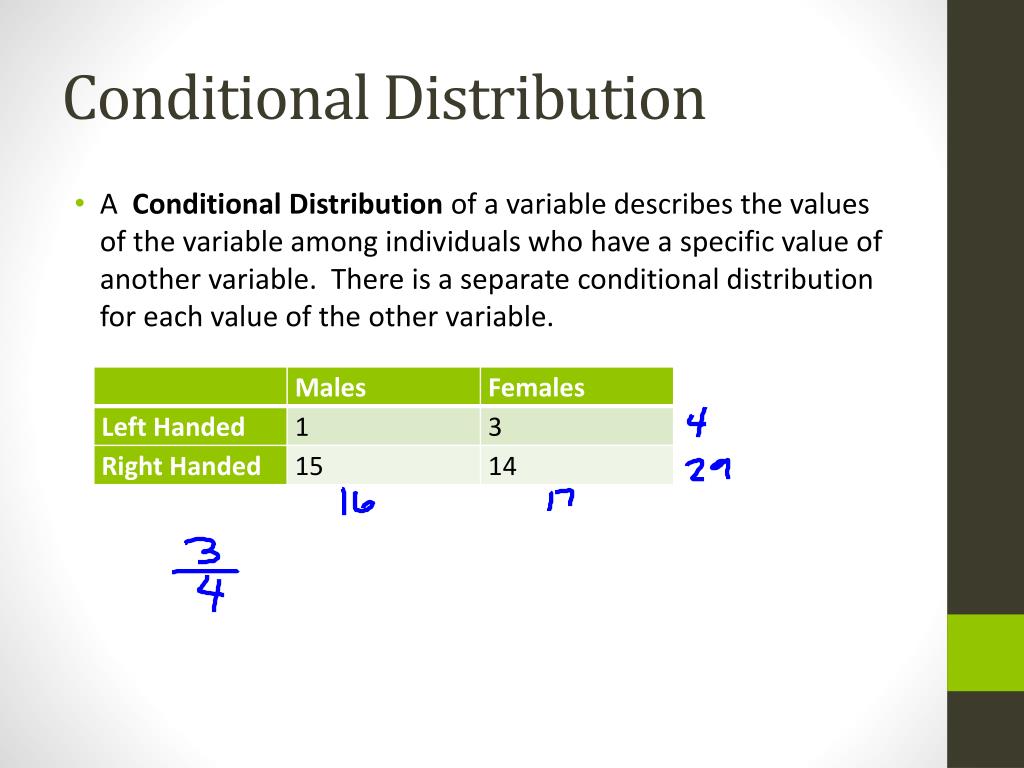

  9. Conditional Distribution • A Conditional Distribution of a variable describes the values of the variable among individuals who have a specific value of another variable. There is a separate conditional distribution for each value of the other variable.

  10. Example of Conditional Dist. Let’s do the conditional distribution for males… Now females…

  11. Your Answer… • To compare these, we would use a side-by-side bar graph

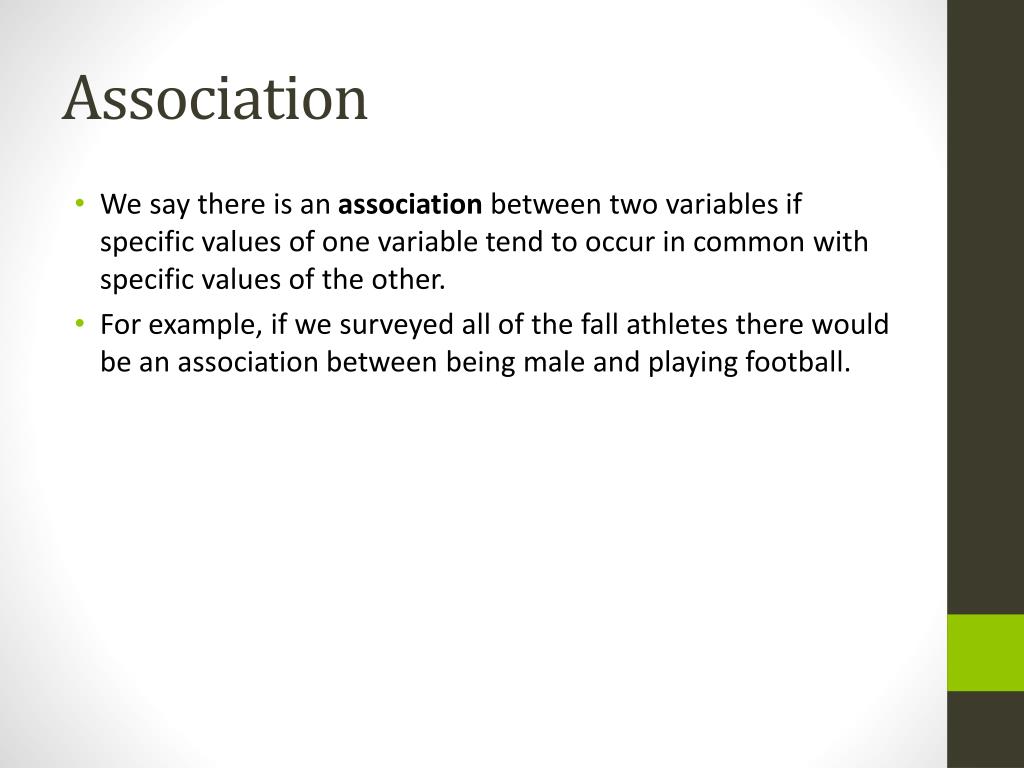

  12. Association • We say there is an association between two variables if specific values of one variable tend to occur in common with specific values of the other. • For example, if we surveyed all of the fall athletes there would be an association between being male and playing football.

  13. Simpson’s Paradox • Simpson’s Paradox is when an association between two variables that holds for each individual value of a third variable can be reversed when the data for all values of the third variable are combined. • Example: Accident Victims and how they are transported

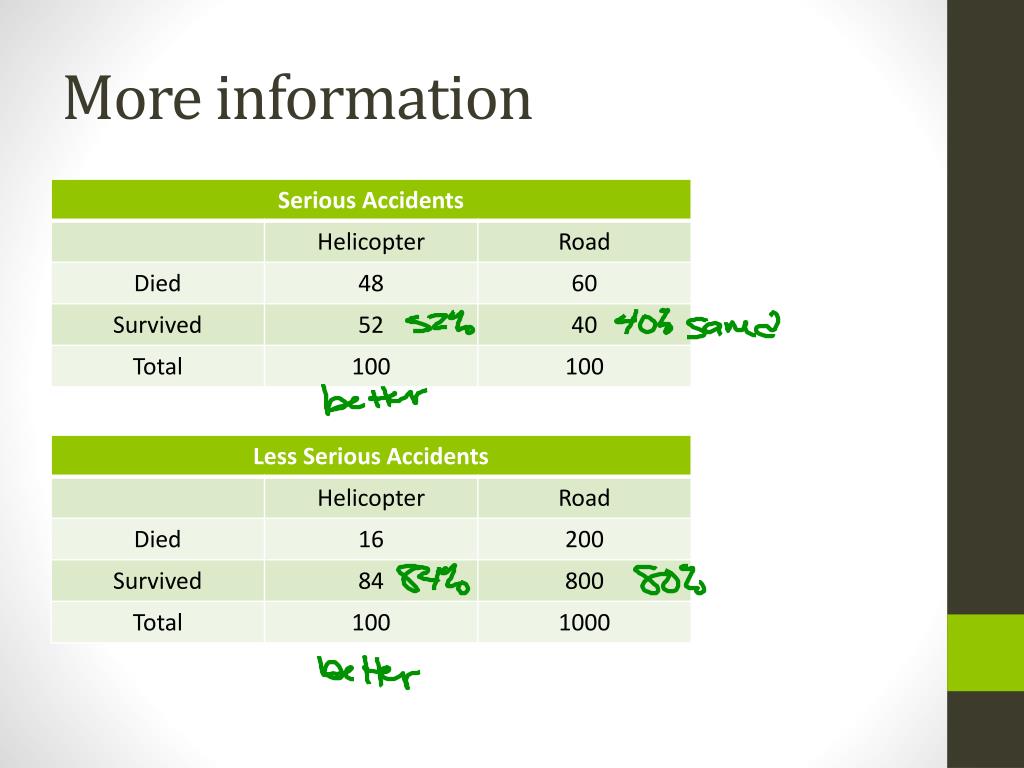

  14. More information

  15. Homework • Pg. 22 (9-12, 14-15, 17-22, 26)
