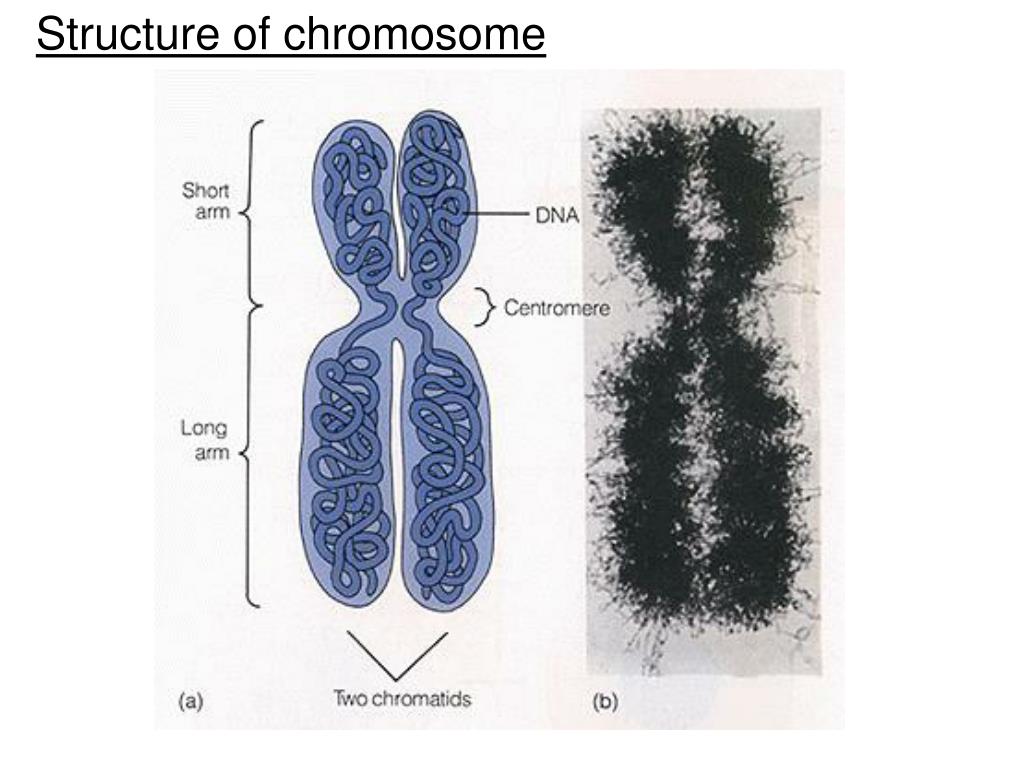

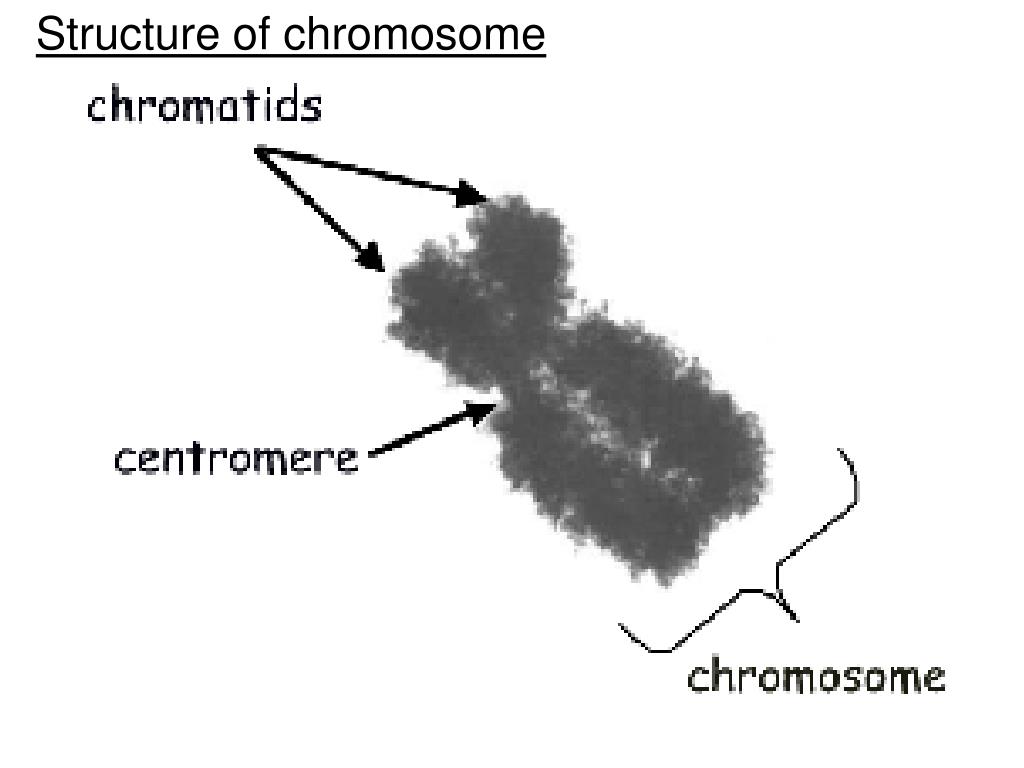

Mitosis. Cell Growth Cycle DNA replicated in S phase mitosis occurs in M phase. Structure of chromosome . Structure of chromosome. Mitosis the process of one cell making two identical daughter cells . Phases of Mitosis Prophase Metaphase Anaphase Telophase PMAT. prophase

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Mitosis' - oded


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide2

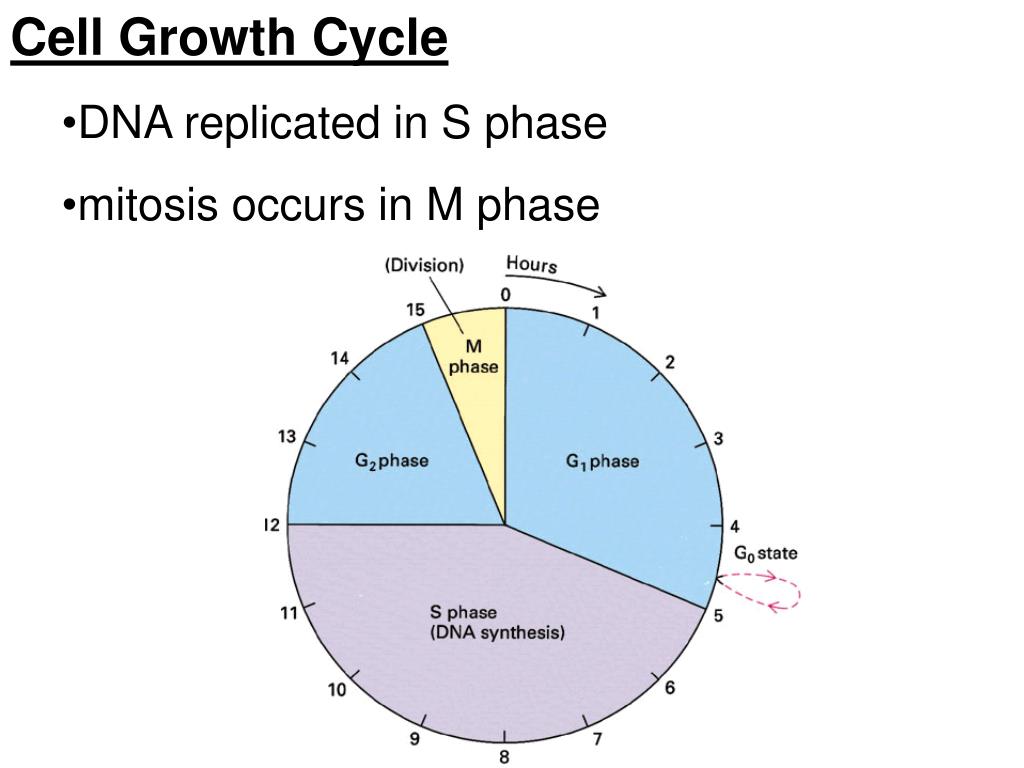

Cell Growth Cycle

    • DNA replicated in S phase
    • mitosis occurs in M phase
slide5

Mitosis

    • the process of one cell making two identical daughter cells
slide6

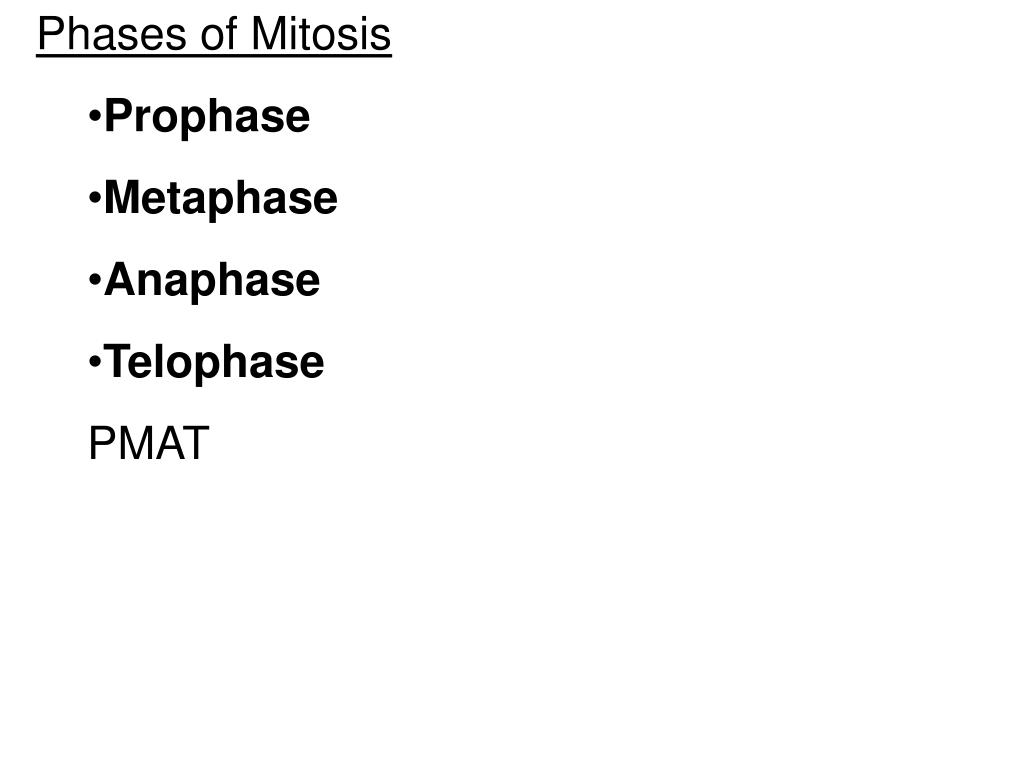

Phases of Mitosis

    • Prophase
    • Metaphase
    • Anaphase
    • Telophase
    • PMAT
slide7

prophase

    • chromatin condenses into chromosomes
    • sister chromosomes bound by centromere
slide8

prophase

    • sister chromosomes (chromatids) bound by centromere
    • spindle fibers bind centromeres to the centrioles
slide9

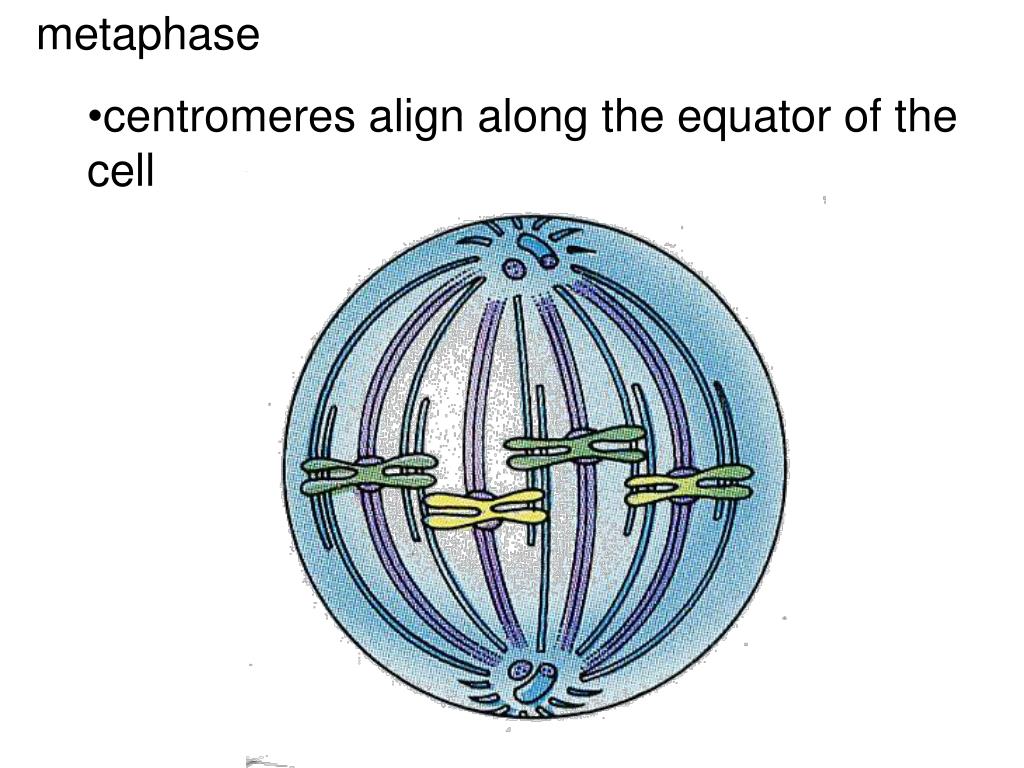

metaphase

    • centromeres align along the equator of the cell
slide10

anaphase

    • sister chromatids separate
    • spindle fibers pull chromosomes towards the centrioles
slide11

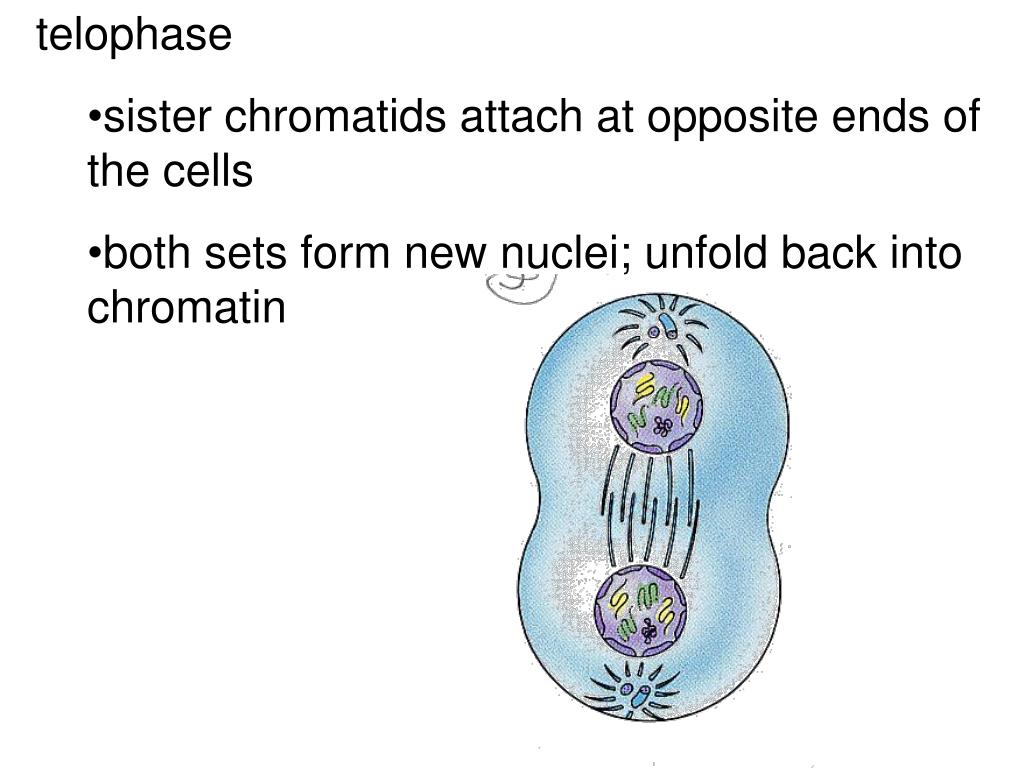

telophase

    • sister chromatids attach at opposite ends of the cells
    • both sets form new nuclei; unfold back into chromatin
slide12

Cytokinesis

    • process of splitting the cytoplasm
    • cleavage furrow starts at the ‘equator’ of the cell
slide13

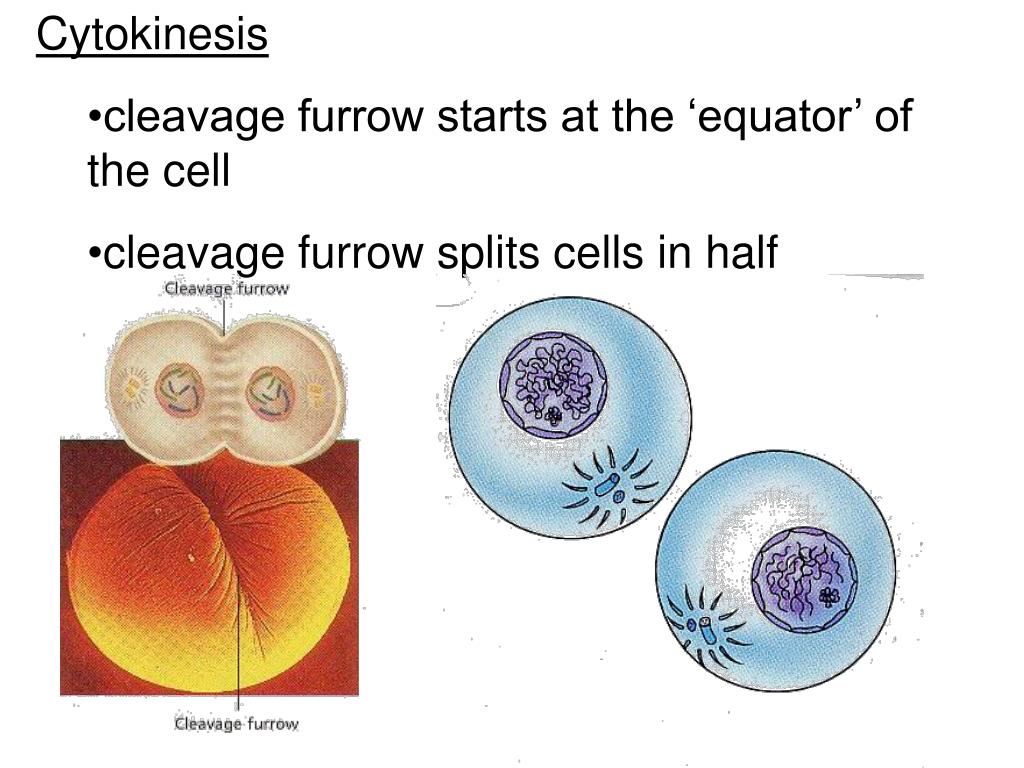

Cytokinesis

    • cleavage furrow starts at the ‘equator’ of the cell
    • cleavage furrow splits cells in half
slide14

Results of Mitosis

    • two identical daughter cells
    • all organelles and cytoplasm split evenly
slide17

Cytokinesis in plants

  • plant cells do not have use a cleavage furrow to separate
  • plants use a cell plate to split parent cell in two
  • the cell plate becomes the cell wall of the two daughter cells
slide19

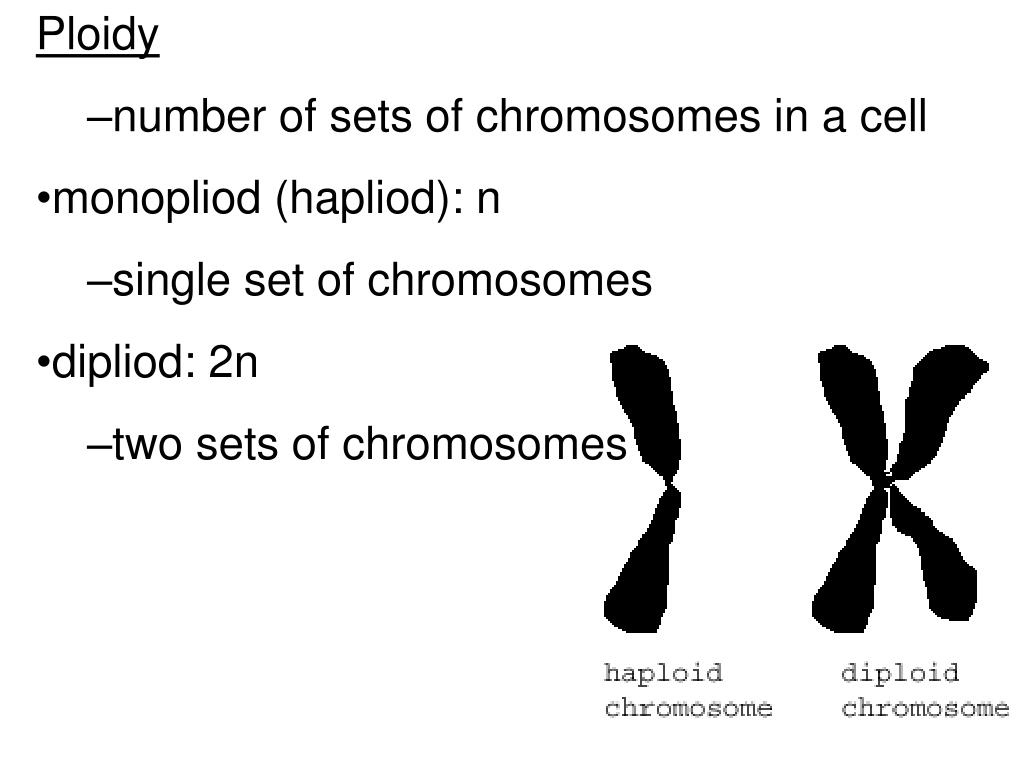

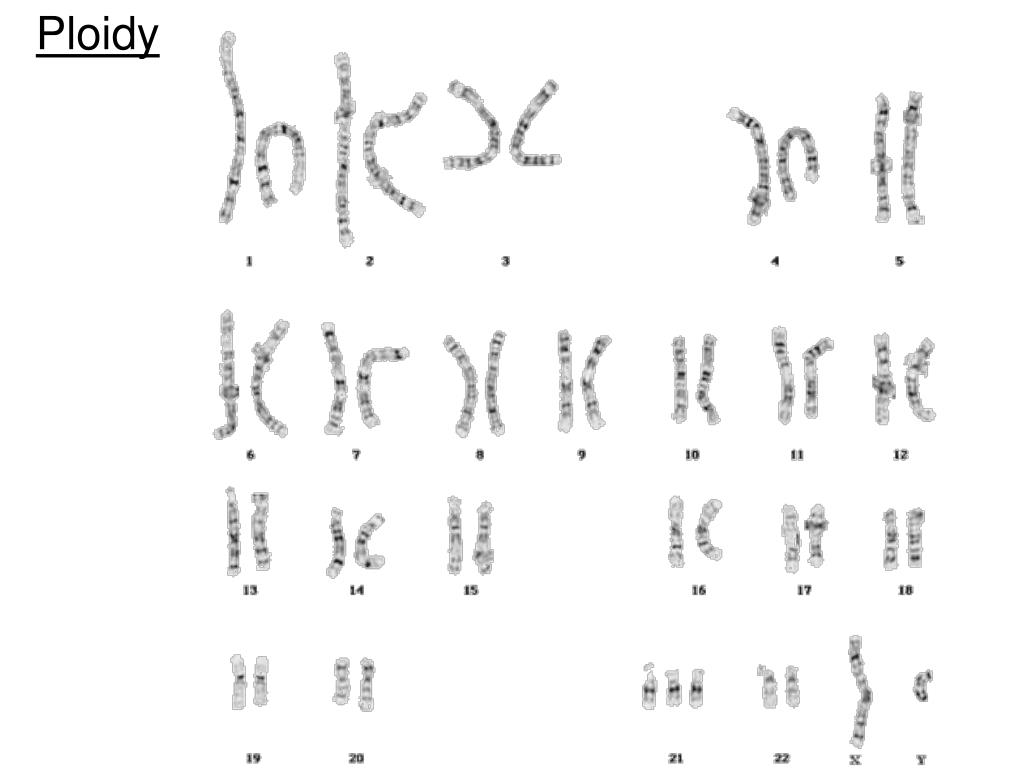

Ploidy

    • number of sets of chromosomes in a cell
  • monopliod (hapliod): n
    • single set of chromosomes
  • dipliod: 2n
    • two sets of chromosomes
slide20

Ploidy

  • human hapliod number?
        • 23
  • human diploid number?
        • 46
      • most all human cells are diploid,
      • 46 chromosomes
slide23

Ploidy

  • When is a cell at n? 2n?
  • G1 – n
  • S phase/G2/part of M phase – 2n
