warm up
Warm Up
  • Graph the line segment for each set of ordered pairs. Then find the length of the line segment.
  • 1. (–7, 0), (0, 0)
  • 2. (0, 3), (0, 6)
  • 3. (–4, –2), (1, –2)
  • 4. (–5, 4), (–5, –2)

7 units

3 units

5 units

6 units

perimeter area of rectangles parallelograms

Perimeter & Area of Rectangles & Parallelograms

6.1

Pre-Algebra

vocabulary
Vocabulary

perimeter

area

slide5

Any side of a rectangle or parallelogram can be chosen as the base. The height is measured along a line perpendicular to the base.

Parallelogram

Rectangle

Height

Height

Side

Base

Base

Perimeter is the distance around the outside of a figure. To find the perimeter of a figure, add the lengths of all its sides.

example finding the perimeter of rectangles and parallelograms

5

14

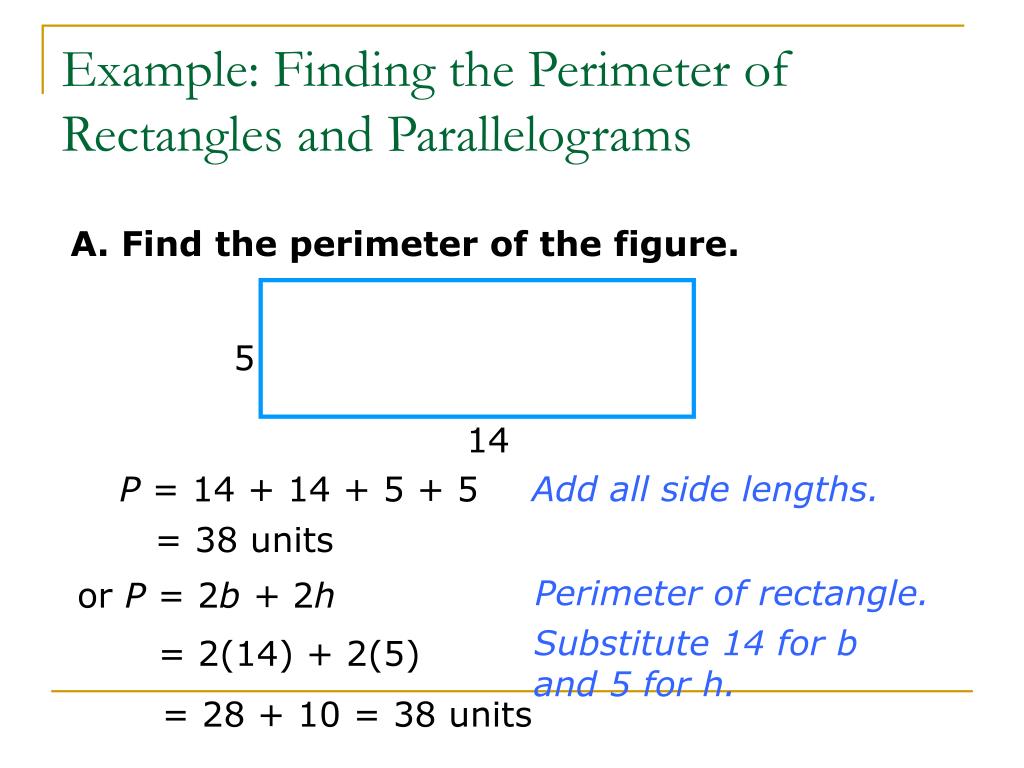

Example: Finding the Perimeter of Rectangles and Parallelograms

A. Find the perimeter of the figure.

Add all side lengths.

P = 14 + 14 + 5 + 5

= 38 units

Perimeter of rectangle.

or P = 2b + 2h

Substitute 14 for b and 5 for h.

= 2(14) + 2(5)

= 28 + 10 = 38 units

slide7

Helpful Hint

The formula for the perimeter of a rectangle can be written as P = 2b + 2h, where b is the length of the base and h is the height.

example finding the perimeter of rectangles and parallelograms1

16

20

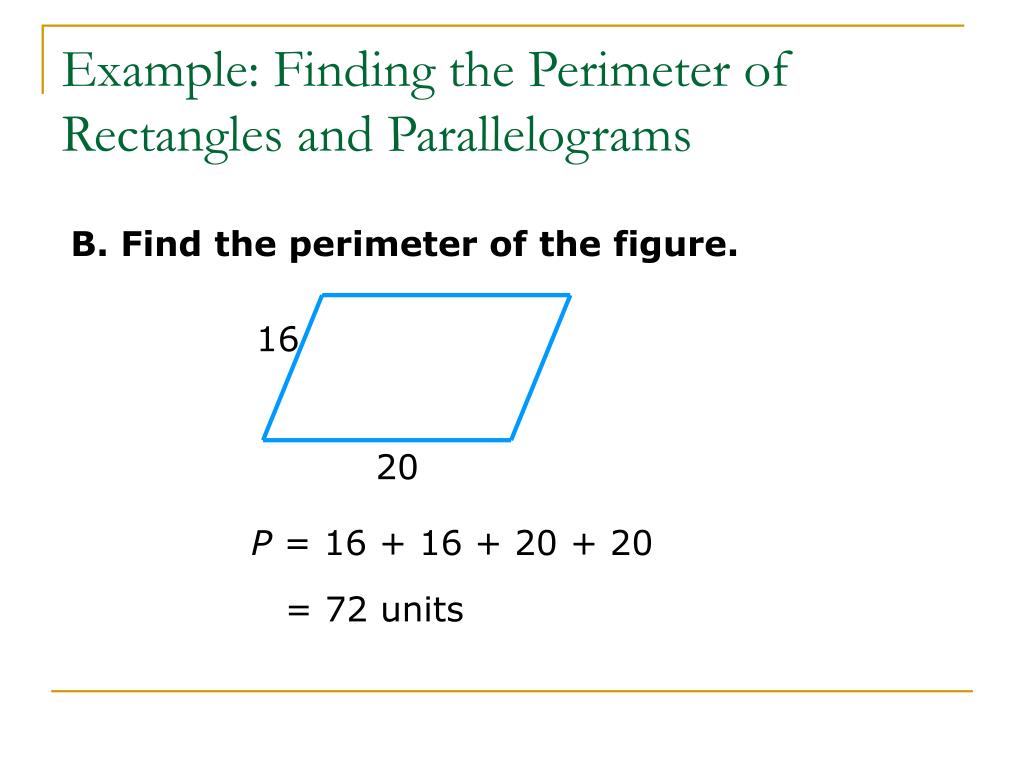

Example: Finding the Perimeter of Rectangles and Parallelograms

B. Find the perimeter of the figure.

P = 16 + 16 + 20 + 20

= 72 units

try this
Try This

A. Find the perimeter of the figure.

6

11

Add all side lengths.

P = 11 + 11 + 6 + 6

= 34 units

Perimeter of rectangle.

or P = 2b + 2h

Substitute 11 for b and 6 for h.

= 2(11) + 2(6)

= 22 + 12 = 34 units

try this1
Try This

B. Find the perimeter of the figure.

5

13

P = 5 + 5 + 13 + 13

Add all side lengths.

= 36 units

slide11

Area is the number of square units in a figure. A parallelogram can be cut and the cut piece shifted to form a rectangle with the same base length and height as the original parallelogram. So a parallelogram has the same area as a rectangle with the same base length and height.

slide12

units2

units2

example using a graph to find area

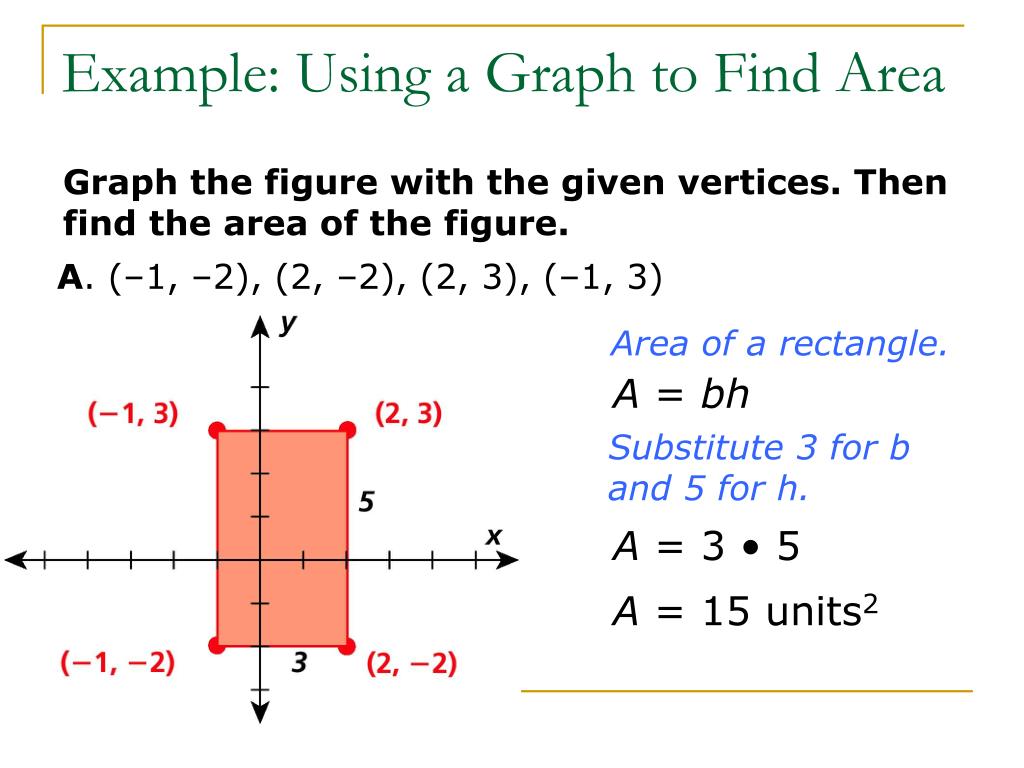

Example: Using a Graph to Find Area

Graph the figure with the given vertices. Then find the area of the figure.

A. (–1, –2), (2, –2), (2, 3), (–1, 3)

Area of a rectangle.

A = bh

Substitute 3 for b and 5 for h.

A = 3 • 5

A = 15 units2

slide14

Helpful Hint

The height of a parallelogram is not the length of its slanted side. The height of a figure is always perpendicular to the base.

example using a graph to find area1

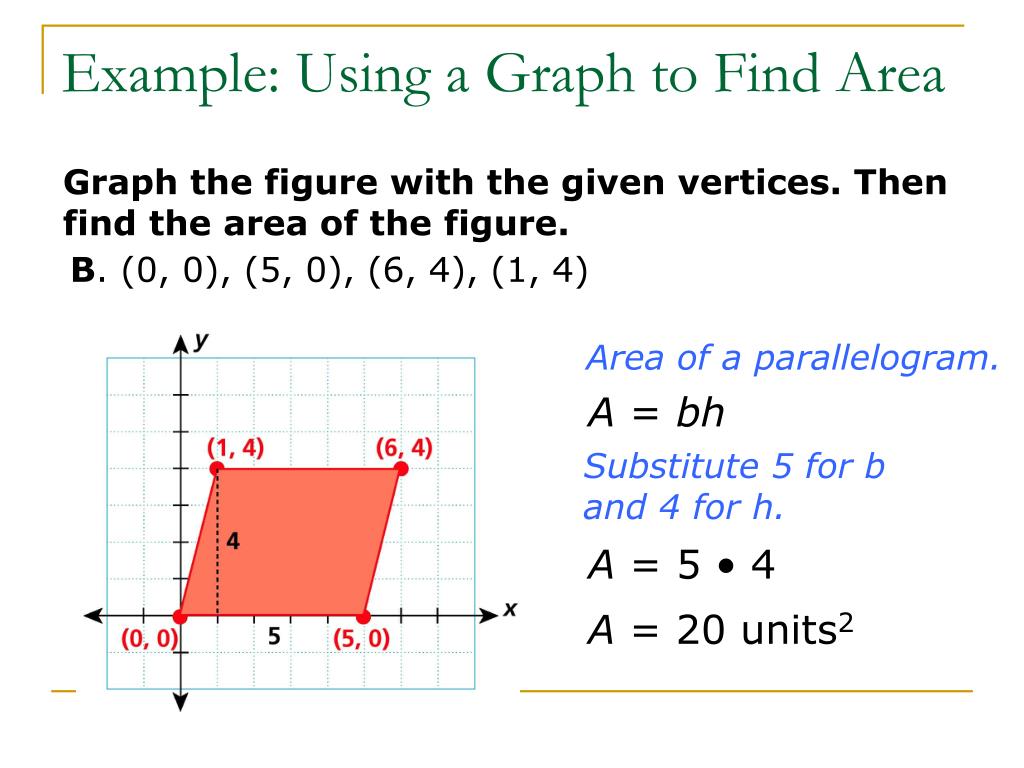

Example: Using a Graph to Find Area

Graph the figure with the given vertices. Then find the area of the figure.

B. (0, 0), (5, 0), (6, 4), (1, 4)

Area of a parallelogram.

A = bh

Substitute 5 for b and 4 for h.

A = 5 • 4

A = 20 units2

try this2

y

(–3, 3)

(1, 3)

x

5

4

(1, –2)

(–3, –2)

Try This

Graph the figure with the given vertices. Then find the area of the figure.

A. (–3, –2), (1, –2), (1, 3), (–3, 3)

Area of a rectangle.

A = bh

Substitute 4 for b and 5 for h.

A = 4 • 5

A = 20 units2

try this3

y

(1, 3)

(5, 3)

x

4

(3, –1)

4

(–1, –1)

Try This

Graph the figure with the given vertices. Then find the area of the figure.

B. (–1, –1), (3, –1), (5, 3), (1, 3)

Area of a parallelogram.

A = bh

Substitute 4 for b and 4 for h.

A = 4 • 4

A = 16 units2

example finding area and perimeter of a composite figure

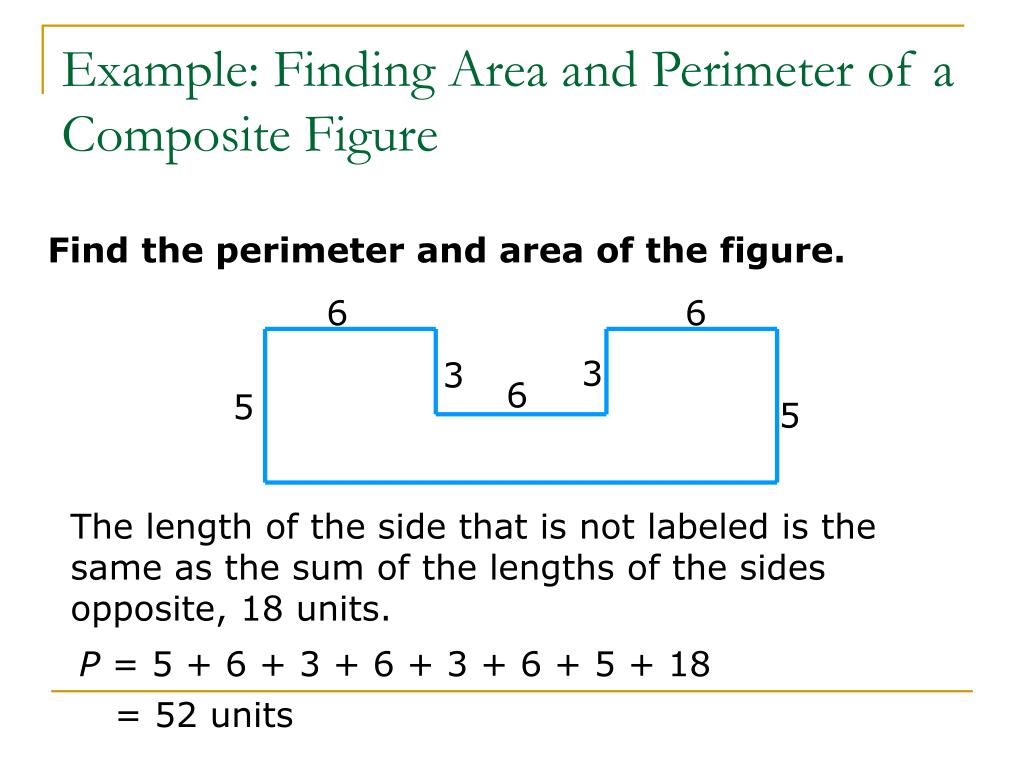

Example: Finding Area and Perimeter of a Composite Figure

Find the perimeter and area of the figure.

6

6

3

3

6

5

5

The length of the side that is not labeled is the same as the sum of the lengths of the sides opposite, 18 units.

P = 5 + 6 + 3 + 6 + 3 + 6 + 5 + 18

= 52 units

example continued
Example Continued

6

6

3

3

6

5

5

A = 6 • 5 + 6 • 2 + 6 • 5

Add the areas together.

= 30 + 12 + 30

= 72 units2

try this4
Try This

Find the perimeter of the figure.

The length of the side that is not labeled is 2.

2

4

6

7

7

2

6

2

P = 6 + 2 + 4 + 7 + 6 + 4 + 2 + 2 + 2 + 7

?

= 42 units

4

try this5

2

4

7

2

6

2

2

2

Try This

2

Find the area of the figure.

4

6

7

Add the areas together.

A = 2 • 6 + 7 • 2 + 2 • 2 + 4 • 2

7

2

6

2

= 12 + 14 + 4 + 8

2

2

= 38 units2

4

+

+

+

lesson quiz part 1
Lesson Quiz: Part 1

1. Find the perimeter of the figure.

12 ft

5 ft

5 ft

4 ft

5 ft

5 ft

44 ft

12 ft

lesson quiz part 2
Lesson Quiz: Part 2

2. Find the area of the figure.

12 ft

5 ft

5 ft

4 ft

5 ft

5 ft

108 ft2

12 ft

lesson quiz part 3
Lesson Quiz: Part 3

Graph the figure with the given vertices and find its area.

3. (–4, 2), (6, 2), (6, –3), (–4, –3)

50 units2

lesson quiz part 4
Lesson Quiz: Part 4

Graph the figure with the given vertices and find its area.

4. (4, –2), (–2, –2), (–3, 5), (3, 5)

42 units2
