Warm up

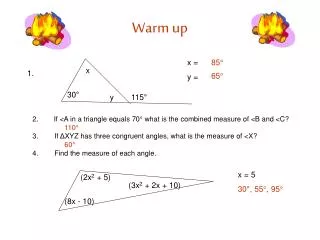

Warm up. x = y = . 85°. x. 1. 65°. 30 °. y. 115 °. If <A in a triangle equals 70° what is the combined measure of <B and <C? 110° 3. If Δ XYZ has three congruent angles, what is the measure of <X? 60 ° 4. Find the measure of each angle. x = 5 30 ° , 55°, 95°.

hedwig
Download Presentation

Warm up

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Warm up x = y = 85° x 1. 65° 30° y 115° If <A in a triangle equals 70° what is the combined measure of <B and <C? 110° 3. If ΔXYZ has three congruent angles, what is the measure of <X? 60° 4. Find the measure of each angle. x = 5 30°, 55°, 95° (2x2 + 5) (3x2 + 2x + 10) (8x - 10)

  2. 3 1 180° 4 2 360° 5 3 540° 6 4 720° (Number of sides - 2 ) times 180° = sum of interior angles • Copy this table • Fill in the first column • Just using one vertex, draw as many diagonals as you can in each shape. • Fill in the middle column • How many degrees in a triangle? • Fill in the last column. • Look at this:

  3. The measure of INTERIOR ANGLESin a polygon In a polygon with n sides, the total measure of interior angles = 180(n – 2)

  4. The measure of EXTERIOR ANGLES in a polygon is always 360°

  5. Example: Find the measures of each interior and each exterior angle in the pentagon. You can start by finding the interior OR the exterior measures. This is a REGULAR pentagon. Find the INTERIOR measure first: 180(5-2) = 180(3) = 540° (total interior degrees) 540/5 = 108° Therefore the exterior is 72° Find the EXTERIOR measure first: 360/5 = 72° Therefore the interior is 108°

  6. Try this one Draw a regular octagon • Find the sum of the measures of the interior angles. • Find the measure of EACH interior angle. • Find the measure of EACH exterior angle. • 1080° • 135° • 45°

  7. 360° ≈32.73° ≈147.27° Another practice problem… Find the sum of the measures of the exterior angles in an 11-gon. IF the 11-gon was regular, what would be the measure of EACH exterior angle? What would be the measure of EACH interior angle?

  8. 115° 120° y° 54° x° z° 48° 100° The fish problem(put this in your notes) X = 78° Y = 102° Z = 127°

  9. Uno mas Find the measure of an interior angle and an exterior angle in a regular dodecagon Exterior 360/12 = 30° Interior 180° – 30° = 150°

  10. Assignment Pg 180, 9-40
