Presentation Transcript
motivation
Motivation
  • Testability is an important quality metric in electronic systems
  • Cost of test is beginning to dominate the per-part cost of mant silicon products, e.g., in consumer market
  • Time-to-market pressures force the need of structured, repeatable and automatic test features as part of overall design methodology
  • In system-on-chip designs, test data management and cost of test are important
  • Reusable IP blocks need designed-in test features
  • Learn terminology
  • Industrial demand, employment opportunities

Design for Testability / O. Vainio

testing and diagnosis
Testing and Diagnosis
  • Testing: the system is exercised and the response is analyzed to check whether it behaved correctly
  • Diagnosis: if incorrect behavior is detected, locate the cause of misbehavior.

- Assumes knowledge of the internal structure of the system

Design for Testability / O. Vainio

main categories of tests

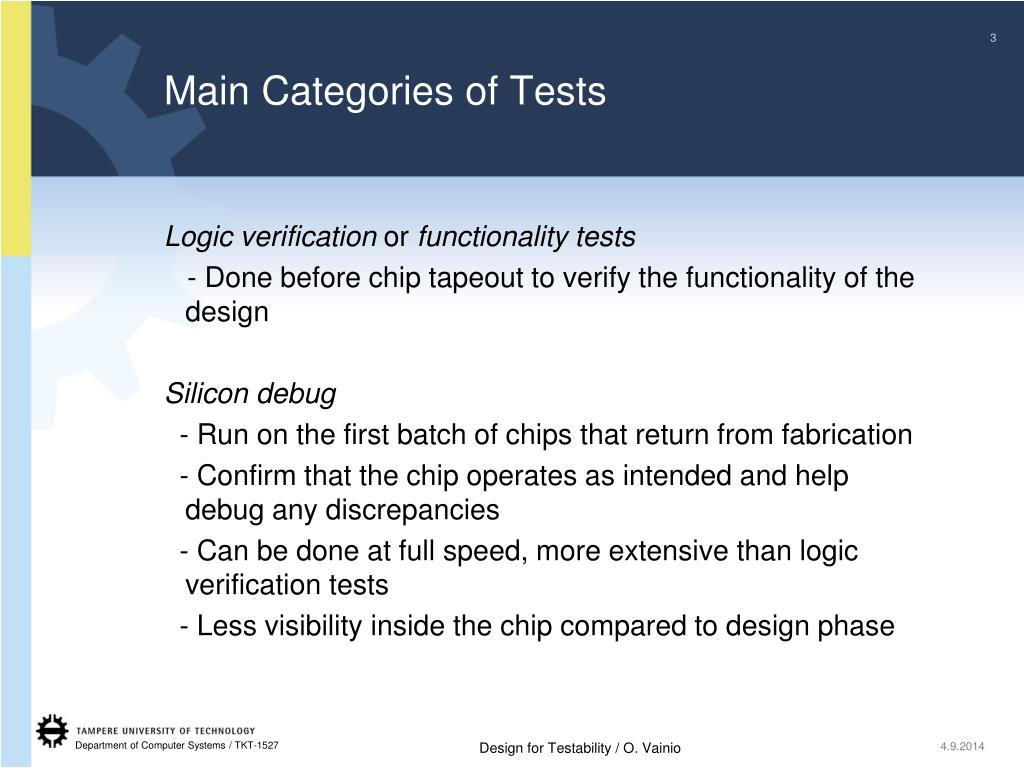

Main Categories of Tests

Logic verification or functionality tests

- Done before chip tapeout to verify the functionality of the design

Silicon debug

- Run on the first batch of chips that return from fabrication

- Confirm that the chip operates as intended and help debug any discrepancies

- Can be done at full speed, more extensive than logic verification tests

- Less visibility inside the chip compared to design phase

Design for Testability / O. Vainio

main categories of tests1
Main Categories of Tests

Manufacturing test or Production test

- Done on each manufactured chip before shipping to the customer to verify that the silicon is completely intact

- Verify that every transistor, gate, and storage element in the chip functions correctly

Design for Testability / O. Vainio

yield
Yield
  • Not all die on a wafer function correctly
  • There may be bridged connections or missing features due to dust particles, imperfections in materials or photomasking, etc.
  • Imperfections may result in a fault
  • Yield is the number of good die divided by the total number of die per wafer
  • The goal of a manufacturing test procedure is to determine which die are good and should be shipped to customers

Design for Testability / O. Vainio

cost of detecting a fault
Cost of Detecting a Fault

Wafer: $0.01 - $0.1

Packaged chip: $0.1 - $1

Board: $1 - $10

System: $10 - $100

Field: $100 - $1000

Design for Testability / O. Vainio

slide7

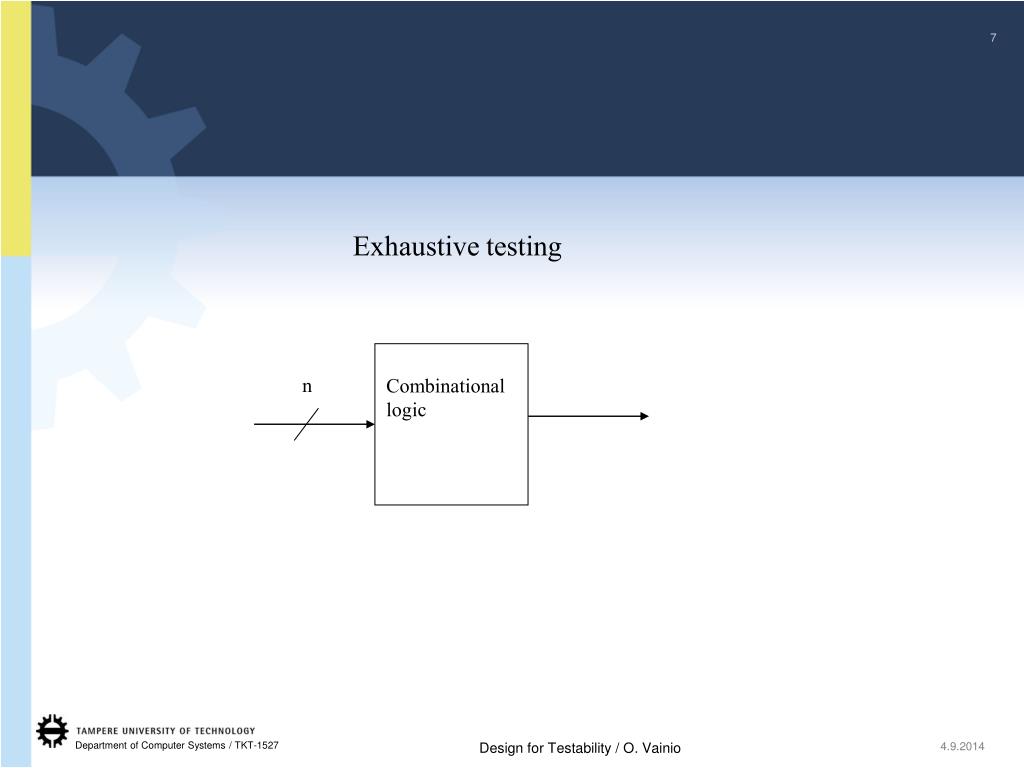

Exhaustive testing

n

Combinational logic

Design for Testability / O. Vainio

slide8

clk

reg

m

m

Combinational logic

n

Example:

n = 25

m = 50

Test takes 1 ms per pattern

Design for Testability / O. Vainio

basic digital debugging
Basic Digital Debugging
  • When a chip returns from fabrication, the first tests are run in a lab environment
  • Need a circuit board with features to support testing:

- Power for the IC with ability to vary VDD and measure power dissipation

- Analog and digital inputs and outputs as required

- Clock inputs as required

- A digital interface to a PC

- Zero insertion force socket for the chip

Design for Testability / O. Vainio

slide10
The chip should have a serial UART port or some other interface that can be used independently of the normal operation of the chip
  • Software should provide for peeking (reading) and poking (writing) registers in the chip
  • Also an interface for a logic analyzer may be provided

Design for Testability / O. Vainio

initial steps in chip testing
Initial Steps in Chip Testing
  • ”Smoke test”: ramp up supply voltages from zero without clocks running and monitor the current.
  • Enable the clocks, some dynamic current should be evident. If possible, initially use reduced clock speed.
  • Examine various registers using PC-based peek and poke software, checks the integrity of the interface.
  • The chip may have built-in self test that can be activated over a boundary scan interface.
  • Otherwise, the functionality is checked from the bottom-up.
  • Top-level test like running a piece of code at once often does not work, usually because of problems with the test fixture.

Design for Testability / O. Vainio

testers and test fixtures
Testers and Test Fixtures
  • A tester is a device that can apply a sequence of stimuli to a chip or system under test and monitor and/or record the results
  • Four general types of test fixtures are:

- A probe card to test wafers or unpackaged dies

- A load board to test a packaged part

- A PCB for bench-level testing (with or without tester)

- A PCB with the chip in situ, demonstrating the application for which the chip is used

Design for Testability / O. Vainio

handlers
Handlers
  • An IC handler feeds ICs to a test fixture attached to a tester.
  • Devices are gravity-fed to a handler, which mechanically picks the chips up and places them in the test socket on the load board.
  • The tester stimulus is then applied and chips are binned depending on whether or not they passed the test.

Design for Testability / O. Vainio

shmooing
Shmooing
  • The ability to vary the voltage and timing on a per-pin basis with a tester allows a process called ”Shmooing”.
  • For instance, vary VDD from 3 V to 6 V while varying the tester cycle time.
  • A shmoo plot shows the sensitivity of the part with respect to voltage.
  • Another example of shmoo is to skew the timing on inputs with respect to clock to look for setup and hold variations.

Design for Testability / O. Vainio

shmoo plot
Shmoo plot

1.0 * * * * * *

1.1 * * * * *

1.2 * * * *

1.3 * * *

1.4 * *

1.5 *

1.0 1.1 1.2 1.3 1.4 1.5

voltage

Normal, well-behaved shmoo

Typical speedpath

Clock

Period

in ns

* indicates failure

Design for Testability / O. Vainio

shmoo plot1
Shmoo plot

1.0 * * *

1.1 * * *

1.2 * * *

1.3 * * *

1.4 * * *

1.5 * * *

1.0 1.1 1.2 1.3 1.4 1.5

voltage

”Brick wall”

Bistable initialization

Clock

Period

in ns

Design for Testability / O. Vainio

shmoo plot2

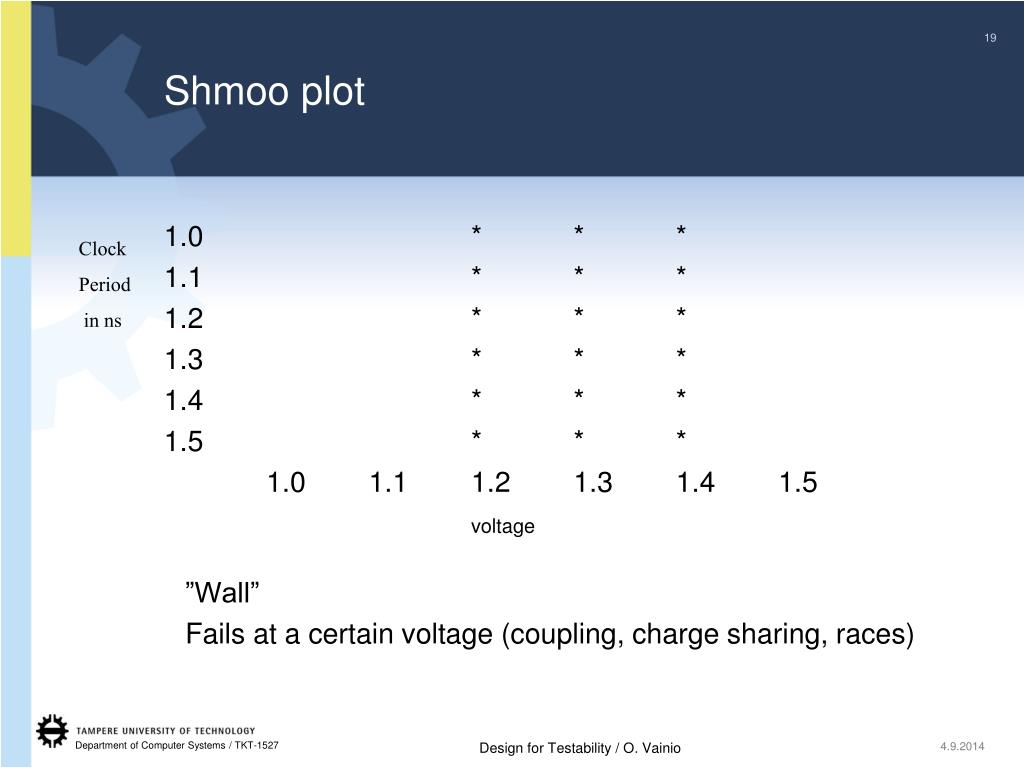

Shmoo plot

1.0 * * *

1.1 * * *

1.2 * * *

1.3 * * *

1.4 * * *

1.5 * * *

1.0 1.1 1.2 1.3 1.4 1.5

voltage

”Wall”

Fails at a certain voltage (coupling, charge sharing, races)

Clock

Period

in ns

Design for Testability / O. Vainio

shmoo plot3
Shmoo plot

1.0 * * * * *

1.1 * * * *

1.2 * * *

1.3 * *

1.4 *

1.5 *

1.0 1.1 1.2 1.3 1.4 1.5

voltage

”Reverse speedpath”

Leakage

Clock

Period

in ns

Design for Testability / O. Vainio

shmoo plot4
Shmoo plot

1.0

1.1

1.2

1.3

1.4 * * * * * *

1.5 * * * * * *

1.0 1.1 1.2 1.3 1.4 1.5

voltage

”Floor”

Works at high but not low frequency (leakage)

Clock

Period

in ns

Design for Testability / O. Vainio

shmoo plot5
Shmoo plot

1.0

1.1

1.2 * * * *

1.3 * *

1.4

1.5

1.0 1.1 1.2 1.3 1.4 1.5

voltage

”Finger”

Coupling

Clock

Period

in ns

Design for Testability / O. Vainio
