Motivation

1. Motivation • Historical handwritten manuscripts are valuable cultural heritage • Providing insights into both tangible and intangible cultural aspects from the past •  Efforts to understand, manipulate and archive historical manuscripts • Digitizationincreases accessibility and allows automatic processing *Courtesy: - wadod.com - Genizah Project

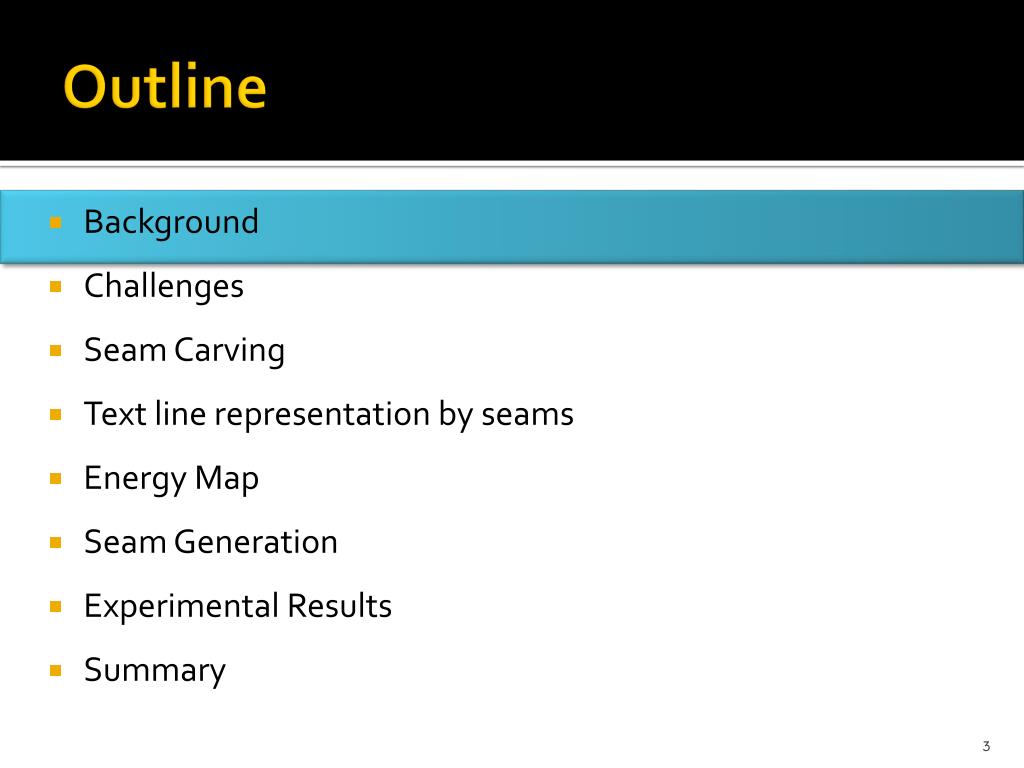

2. Outline • Background • Challenges • Seam Carving • Text line representation by seams • Energy Map • Seam Generation • Experimental Results • Summary

3. Image representation N x M (Matrix)

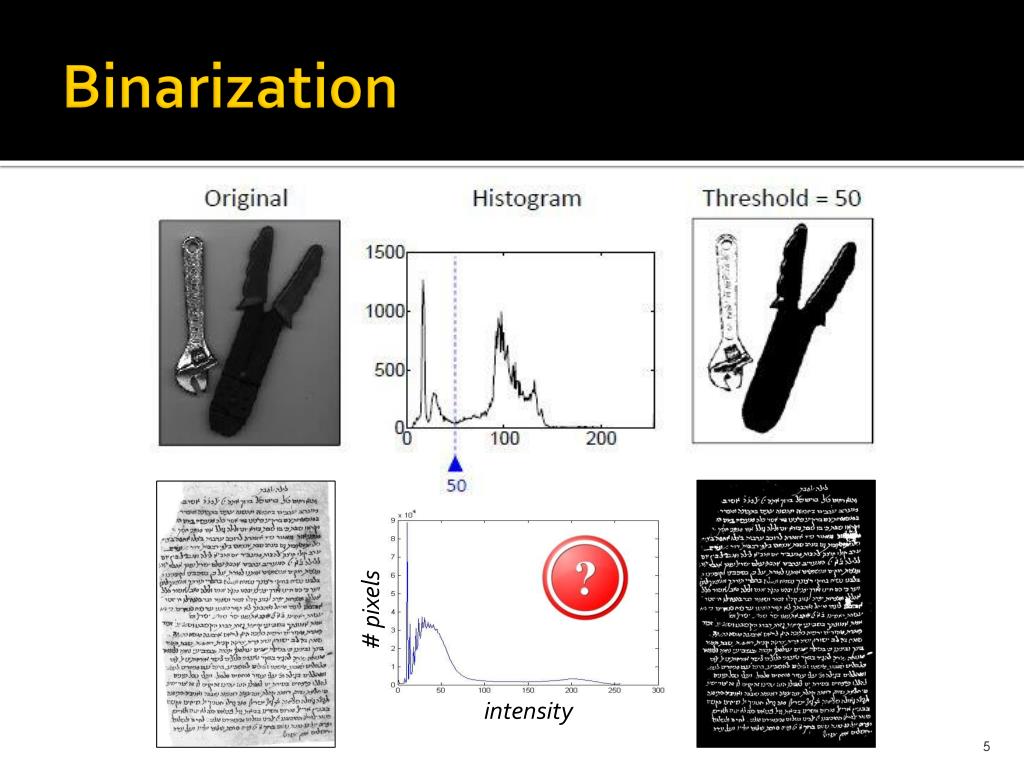

4. Binarization # pixels intensity

5. Connectivity & Components • We can define 4- or 8-paths depending on the type of connectivity specified • A set of pixels S is a Connected • Componentiffor each pixel pair • (x1,y1) є S and (x2,y2) є S there • is a path between them such that • every two successive pixels in the path • are in S and are X-neighbors. (X = 4, 8). 8-Neighborhood 4-Neighborhood

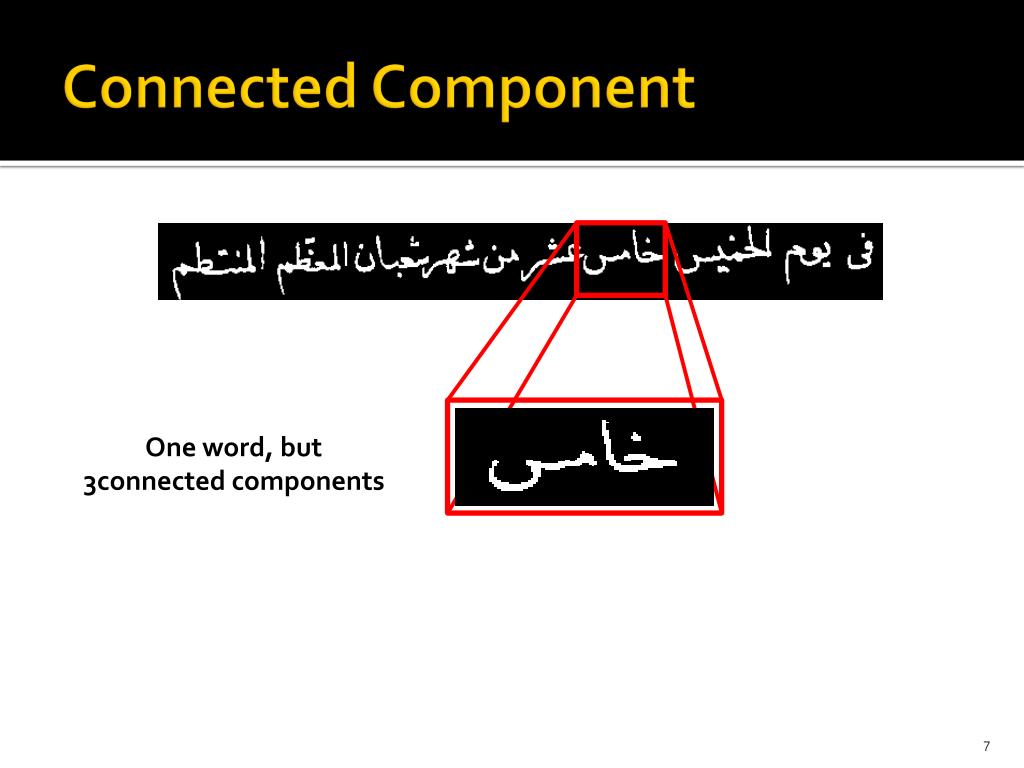

6. Connected Component One word, but 3connected components

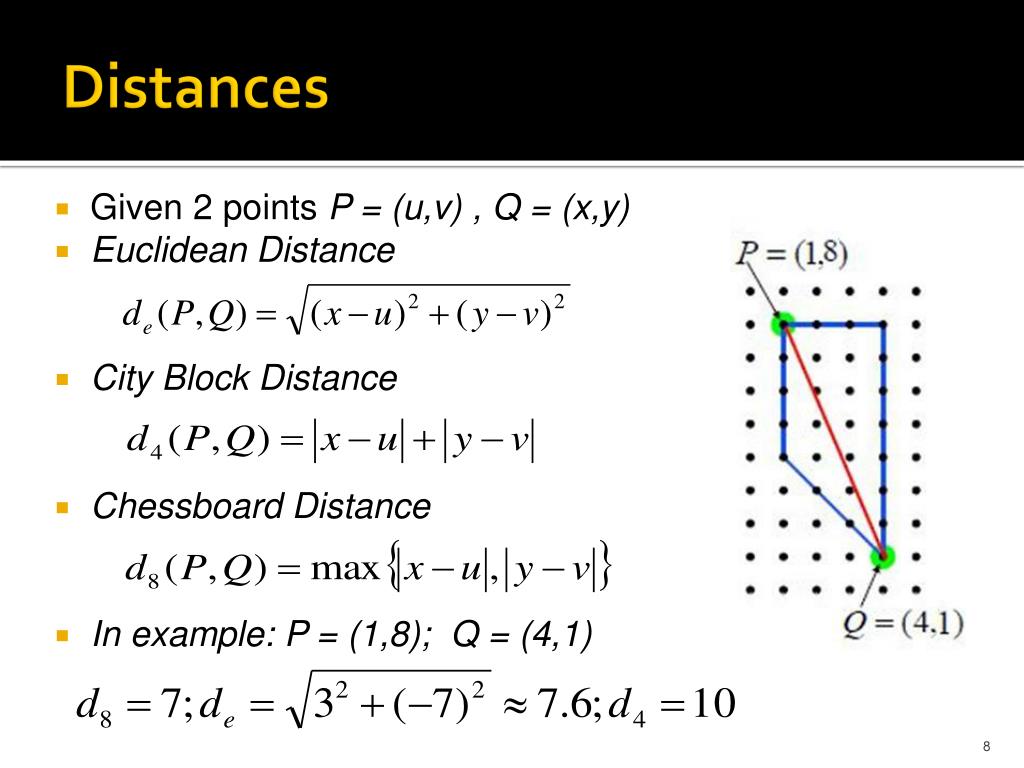

7. Distances • Given 2 points P = (u,v) , Q = (x,y) • Euclidean Distance • City Block Distance • Chessboard Distance • In example: P = (1,8); Q = (4,1)

8. Distance transform • Given a set of pixels S, calculate the distance of other pixels to S • The pixels in the set S will be considered as reference pixels • Let . We scan the image by a pre-defined connectivity : • First pass: Consider Green pixels (N1)

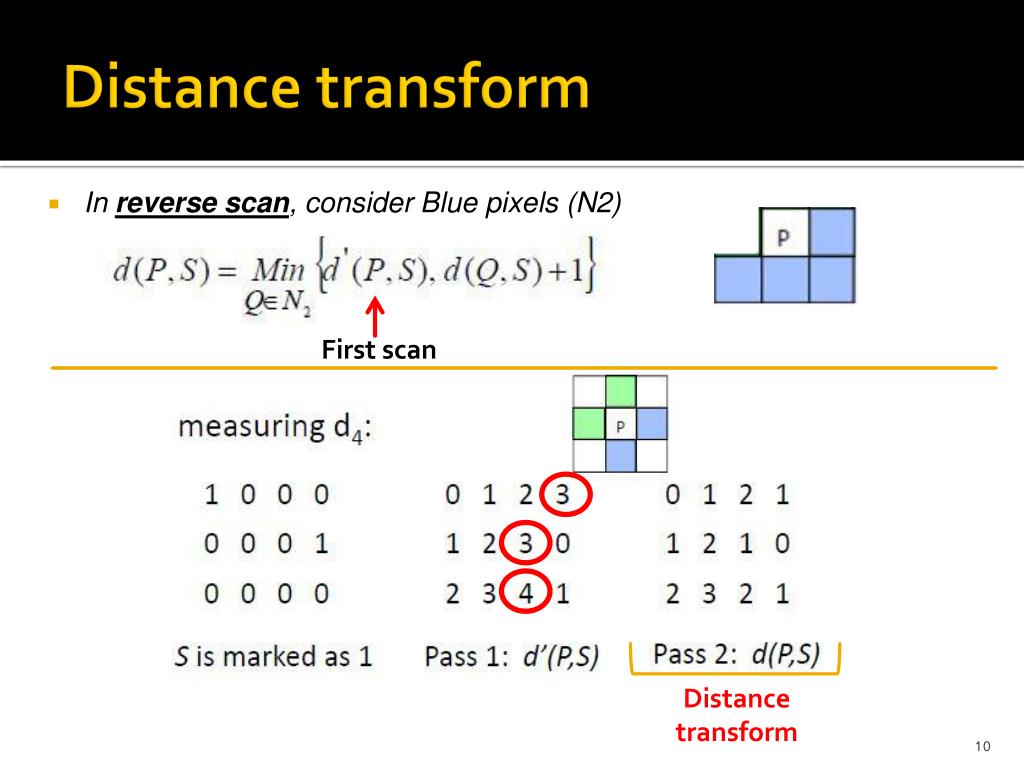

9. Distance transform • In reverse scan, consider Blue pixels (N2) First scan Distance transform

10. Distance transform – (cont’d) Alef Letter - Arabic Printed Handwritten Binary Representation Distance transform Chessboard metric = Reference pixels

11. Sign Distance transform Alef Letter Printed Handwritten Sign Distance transform chessboard metric

12. Sign Distance transform – (cont’d) • The brighter the color the larger the distance from reference pixels Original Document Image Sign Distance transform (SDT)

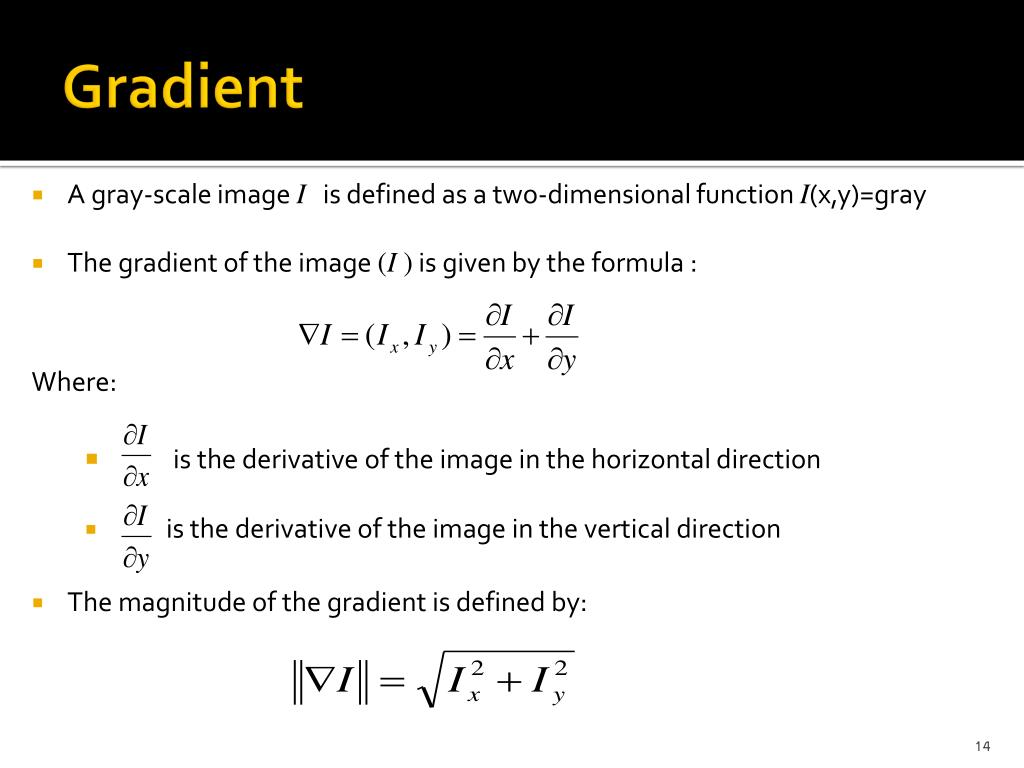

13. Gradient • A gray-scale image I is defined as a two-dimensional function I(x,y)=gray • The gradient of the image (I ) is given by the formula : Where: • is the derivative of the image in the horizontal direction • is the derivative of the image in the vertical direction • The magnitude of the gradient is defined by:

14. Gradient

15. Background Pre-Processing Segmentation Original *Courtesy: Islamic manuscript, Leipzig University Library, Germany

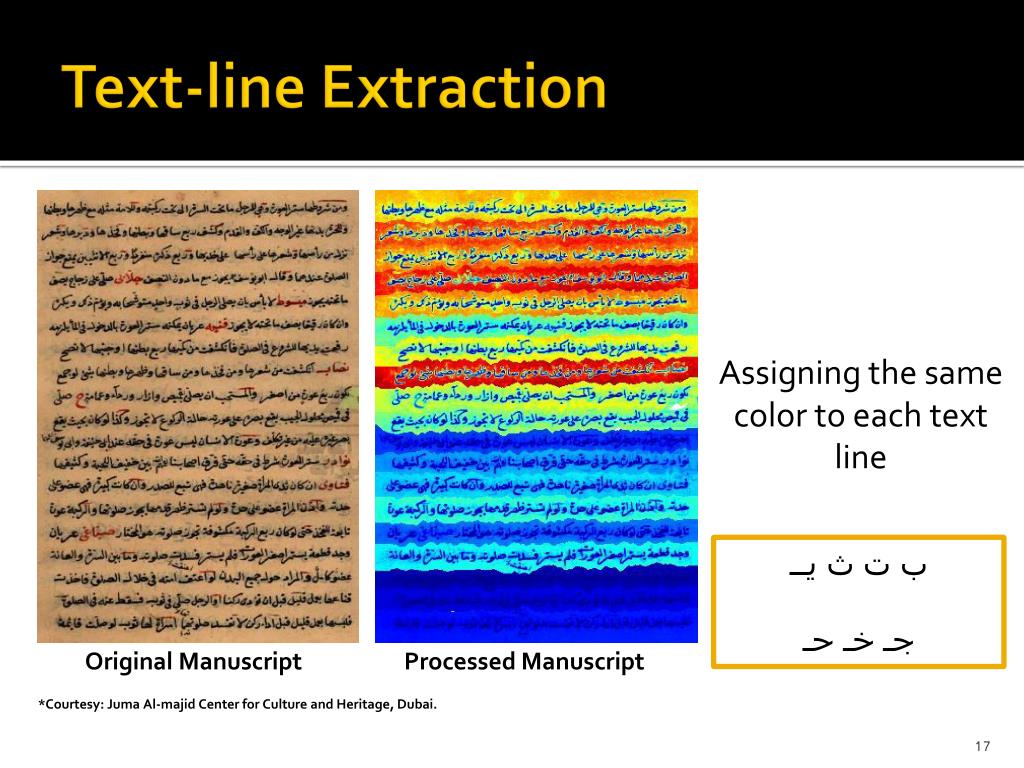

16. Text-line Extraction Assigning the same color to each text line ب ت ث يــجـ خـ حـ Original Manuscript Processed Manuscript *Courtesy: Juma Al-majid Center for Culture and Heritage, Dubai.

17. Outline • Background • Challenges • Seam Carving • Text line representation by seams • Energy Map • Seam Generation • Experimental Results • Summary

18. Challenges Historical handwritten documents pose different challenges than those in machine-printed. • Looser layout format • Line Proximity • Multi-Oriented lines • Touching components • Different slope (within the same line) • Delayed strokes • Overlapping components A 19th century master thesis – SAAB medical Library, American University of Beirut

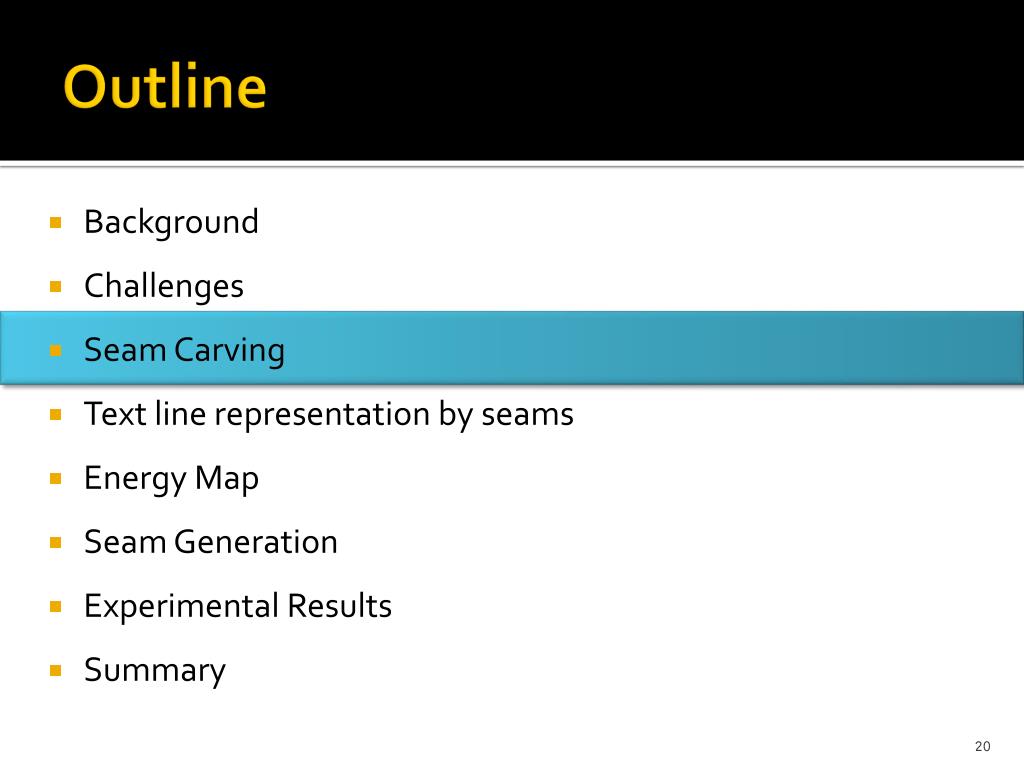

19. Outline • Background • Challenges • Seam Carving • Text line representation by seams • Energy Map • Seam Generation • Experimental Results • Summary

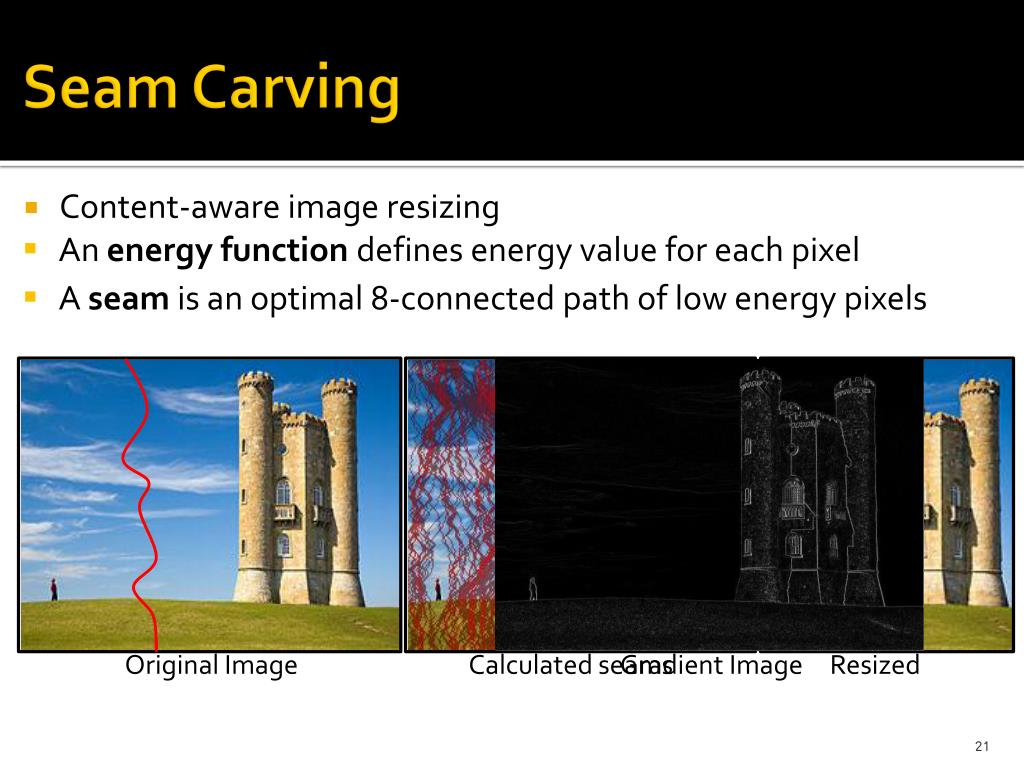

20. Seam Carving • Content-aware image resizing • An energy function defines energy value for each pixel • A seam is an optimal 8-connected path of low energy pixels Original Image Calculated seams Gradient Image Resized

21. Seam Carving – (cont’d) • let I be an n x m size image. Define a vertical seam to be: where x is a mapping x : [1, . . . ,n] [1, . . . ,m]. • Seam contains one, and only one, pixel in each row of the image, otherwise a distorted image might be obtained. • The pixels of the path of a seam will therefore be : • one can change the value of K in the constraint, and get either a simple column for k = 0 , or even completely disconnected set of pixels.

22. Seam Carving – (cont’d) • Given an energy function e, the cost of a seam is: • We look for the optimal seam s* that minimizes this cost : • The optimal seam can be found using Dynamic programming

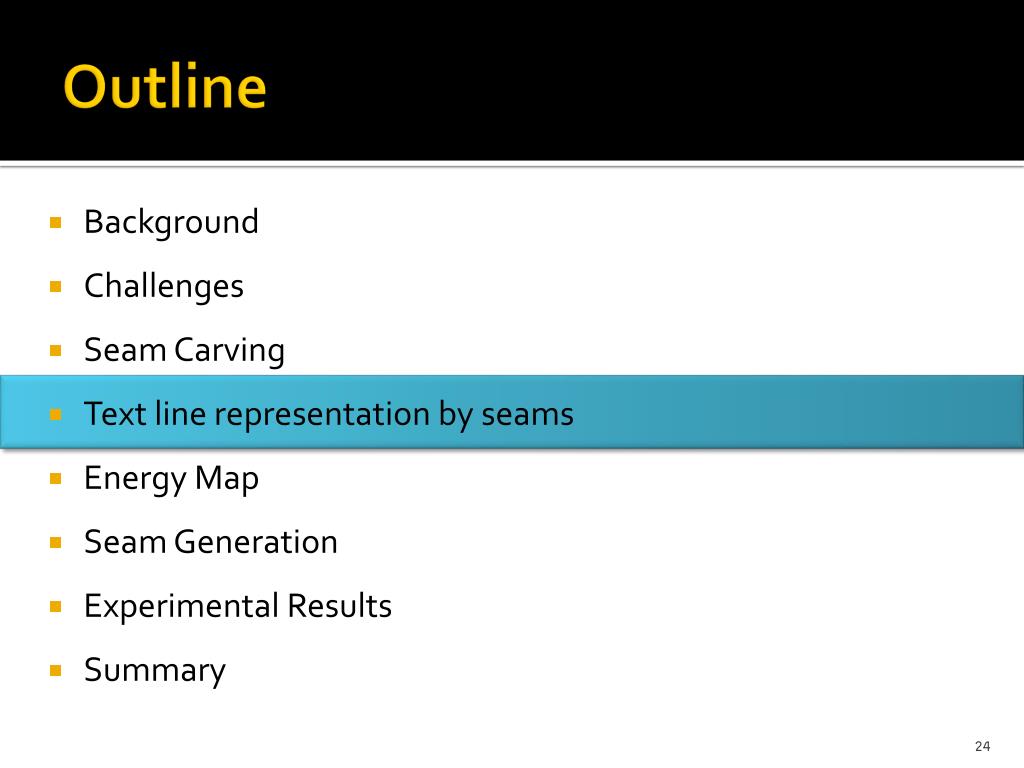

23. Outline • Background • Challenges • Seam Carving • Text line representation by seams • Energy Map • Seam Generation • Experimental Results • Summary

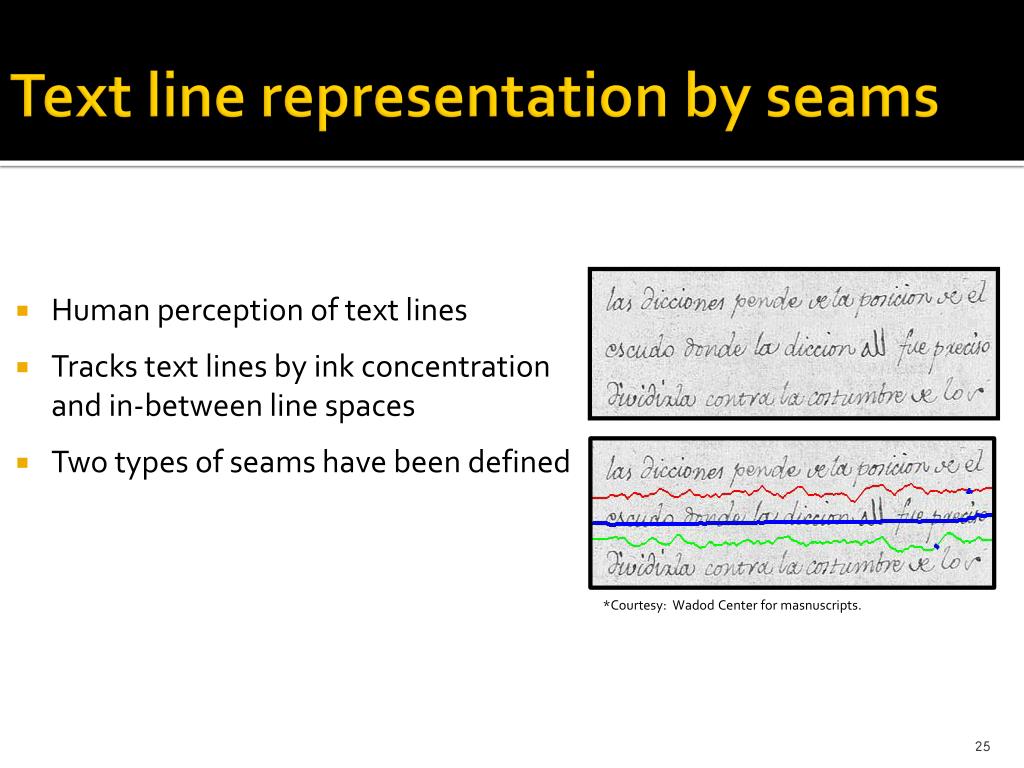

24. Text line representation by seams • Human perception of text lines • Tracks text lines by ink concentration and in-between line spaces • Two types of seams have been defined *Courtesy: Wadod Center for masnuscripts.

25. Text line representation by seams-(cont’) • The medial seam crosses the text area of a text line. • ASeparating seam is a path that passes between two consecutive text lines. Original Document Image Seam Seed Medial Seam Separating Seam Processed *Courtesy: Wadod Center for masnuscripts.

26. Outline • Background • Challenges • Seam Carving • Text line representation by seams • Energy Map • Seam Generation • Experimental Results • Summary

27. Energy Map • We use the Sign distance transform (SDT) as an energy map • In SDT, pixels values are assigned according to their distance from the nearest reference pixel • Recall, distance values are negative inside connected components and positivein-between • Intuition: Local minima and maxima points determine the medial and separating seams, respectively Original Document Image Sign Distance Transform (SDT) *Courtesy: Wadod Center for masnuscripts

28. Outline • Background • Challenges • Seam Carving • Text line representation by seams • Energy Map • Seam Generation • Experimental Results • Summary

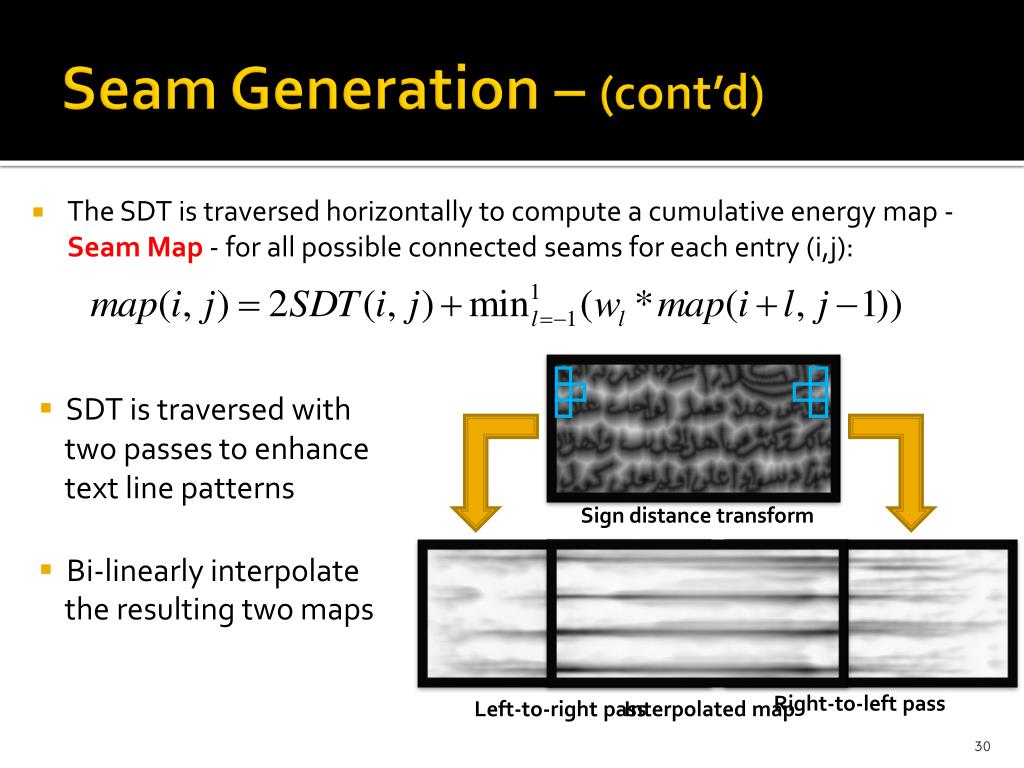

29. Seam Generation – (cont’d) • The SDT is traversed horizontally to compute a cumulative energy map - Seam Map - for all possible connected seams for each entry (i,j): • SDT is traversed with two passes to enhance text line patterns Sign distance transform • Bi-linearly interpolate the resulting two maps Right-to-left pass Left-to-right pass Interpolated map

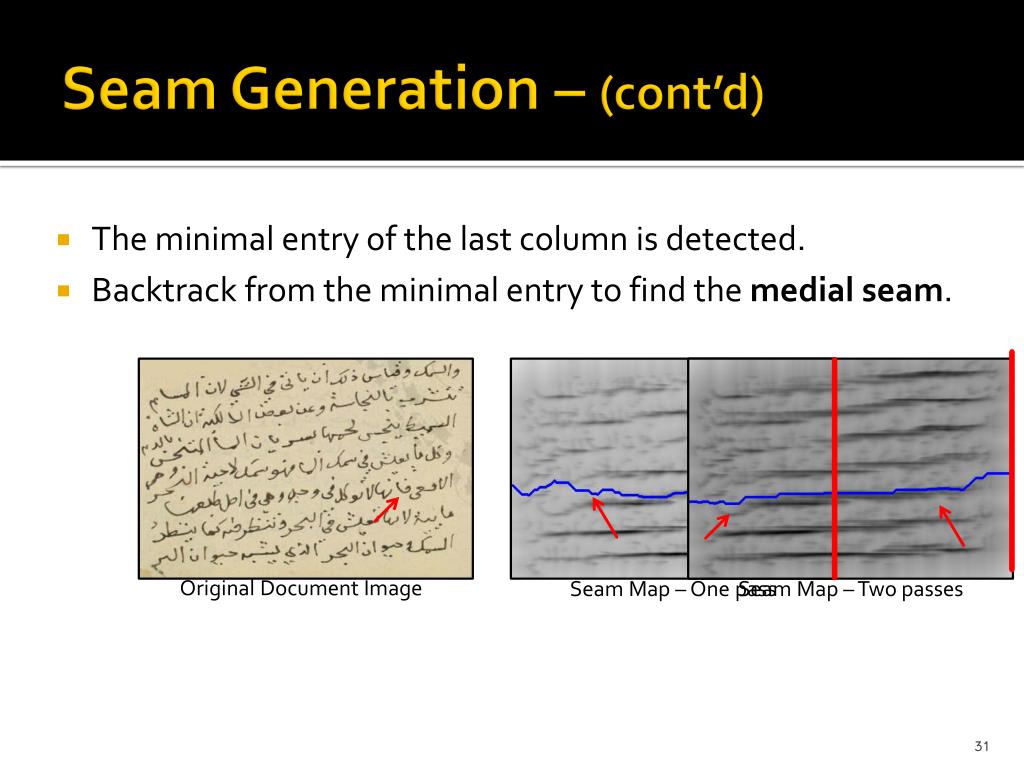

30. Seam Generation – (cont’d) • The minimal entry of the last column is detected. • Backtrack from the minimal entry to find the medial seam. Original Document Image Seam Map – One pass Seam Map – Two passes

31. Seam Generation – (cont’d) • Iteratively, all text lines will be extracted

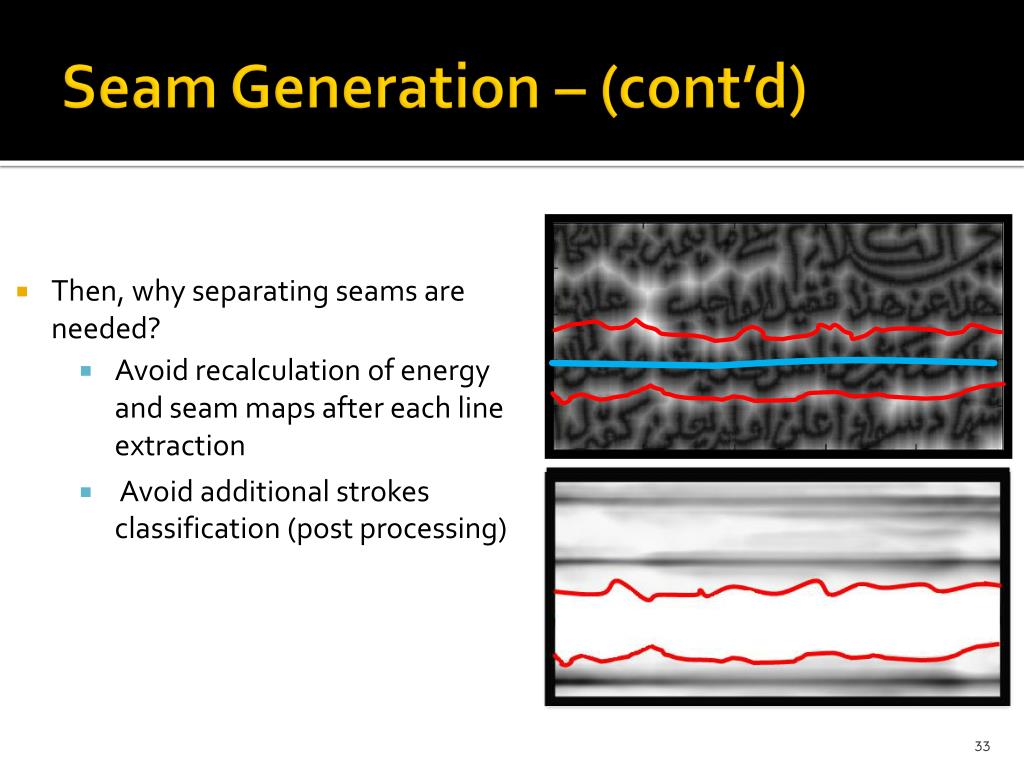

32. Seam Generation – (cont’d) • Then, why separating seams are needed? • Avoid recalculation of energy and seam maps after each line extraction • Avoid additional strokes classification (post processing)

33. Seam Generation – (cont’d) • Separating seams define the boundaries of text lines • Generated with respect to the medial seam of the corresponding text line • Grown from seam seeds toward the two sides of the image guided by the SDT

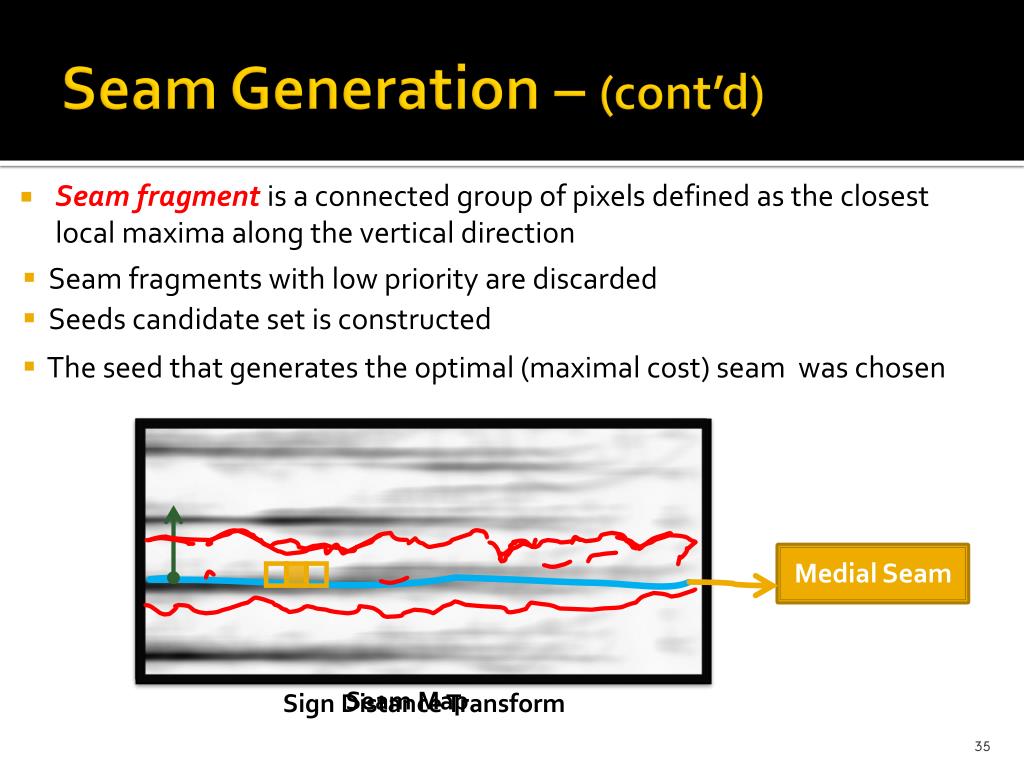

34. Seam Generation – (cont’d) • Seam fragment is a connected group of pixels defined as the closest local maxima along the vertical direction • Seam fragments with low priority are discarded • Seeds candidate set is constructed • The seed that generates the optimal (maximal cost) seam was chosen Medial Seam Seam Map Sign Distance Transform

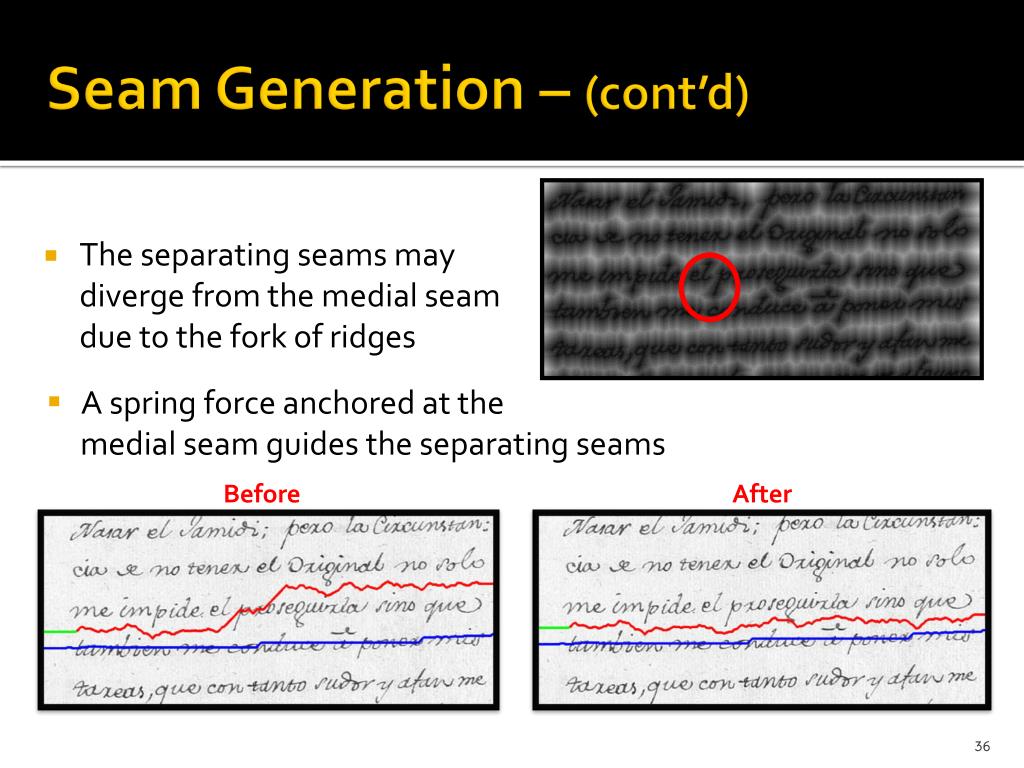

35. Seam Generation – (cont’d) • The separating seams may diverge from the medial seamdue to the fork of ridges • A spring force anchored at the medial seamguides the separating seams Before After

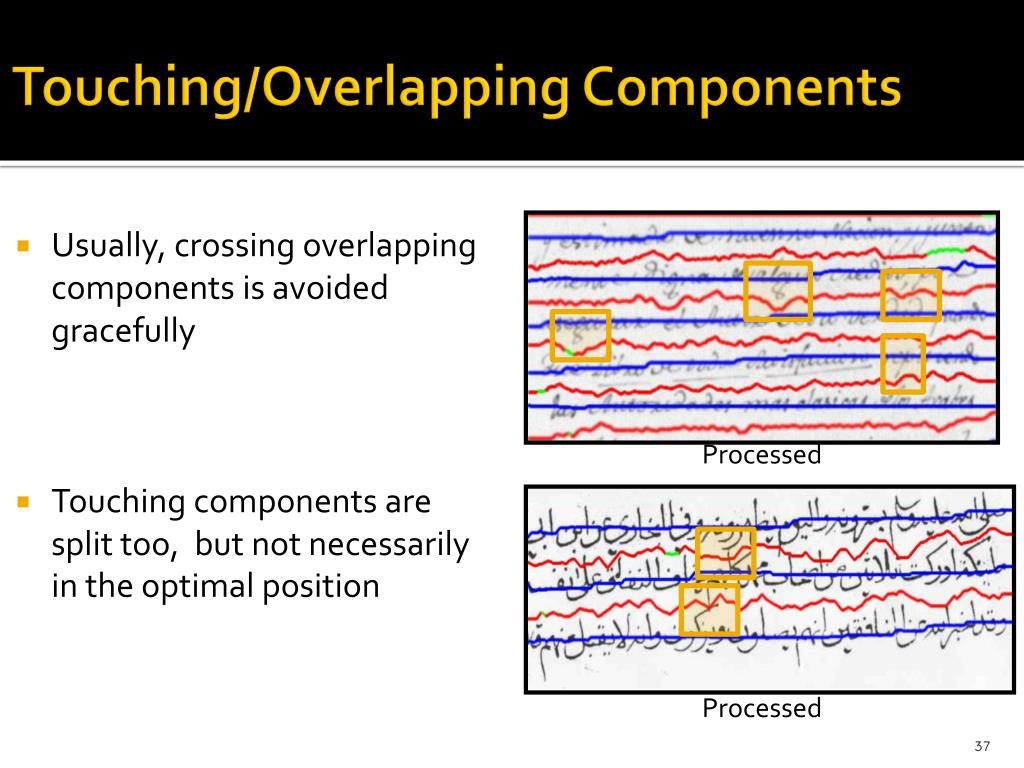

36. Touching/Overlapping Components • Usually, crossing overlapping components is avoided gracefully • Touching components are split too, but not necessarily in the optimal position Processed Processed

37. Outline • Background • Challenges • Seam Carving • Text line representation by seams • Energy Map • Seam Generation • Experimental Results • Summary

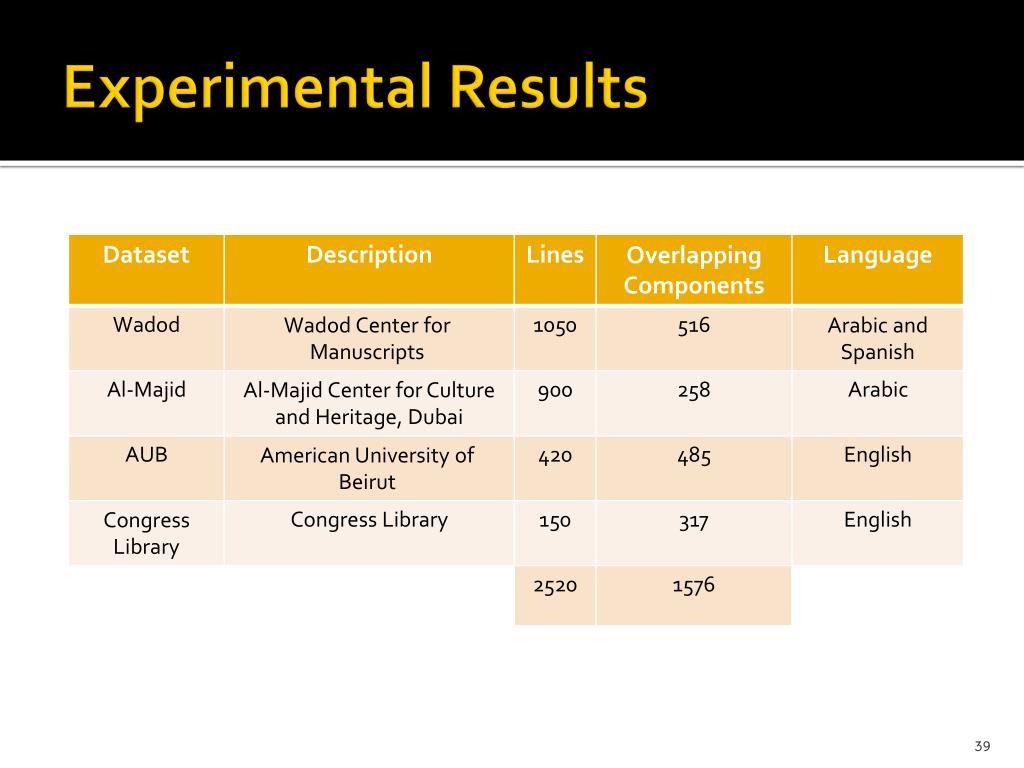

38. Experimental Results

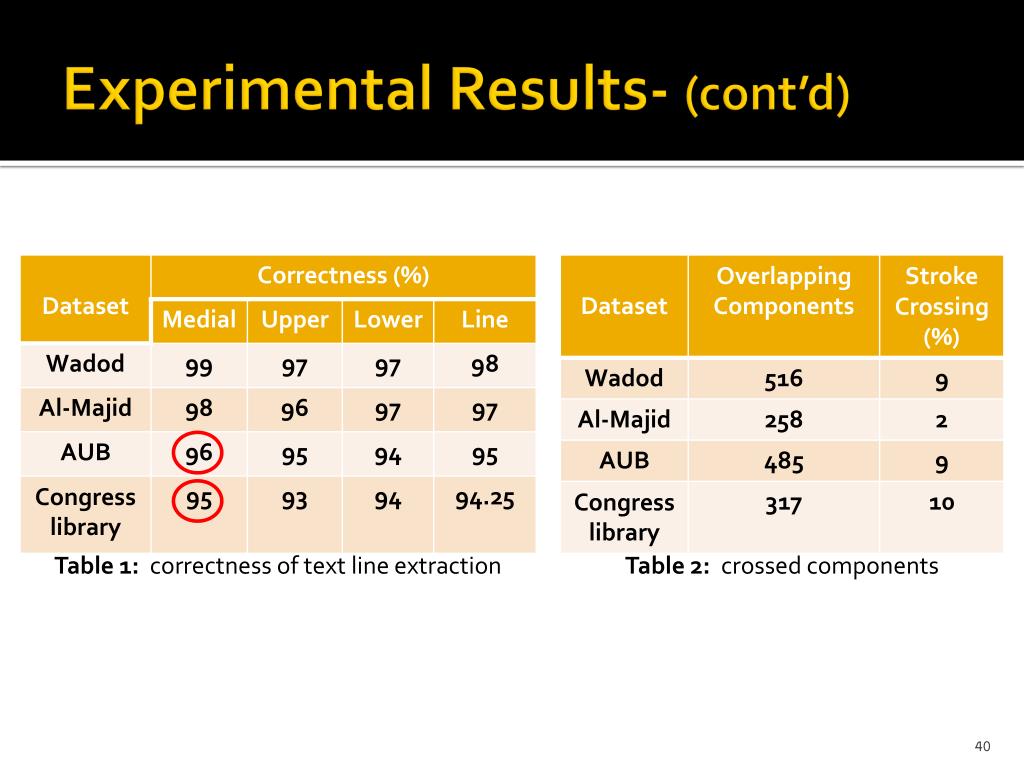

39. Experimental Results- (cont’d) Table 1: correctness of text line extraction Table 2: crossed components

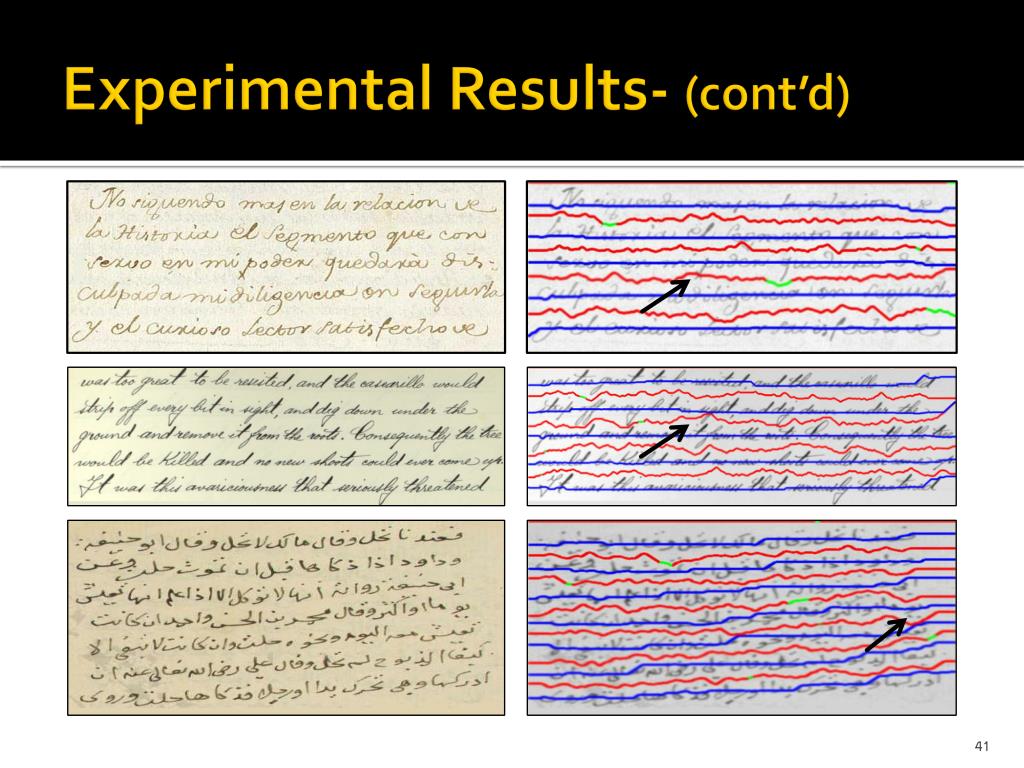

40. Experimental Results- (cont’d)

41. Outline • Background • Challenges • Seam Carving • Text line representation by seams • Energy Map • Seam Generation • Experimental Results • Summary

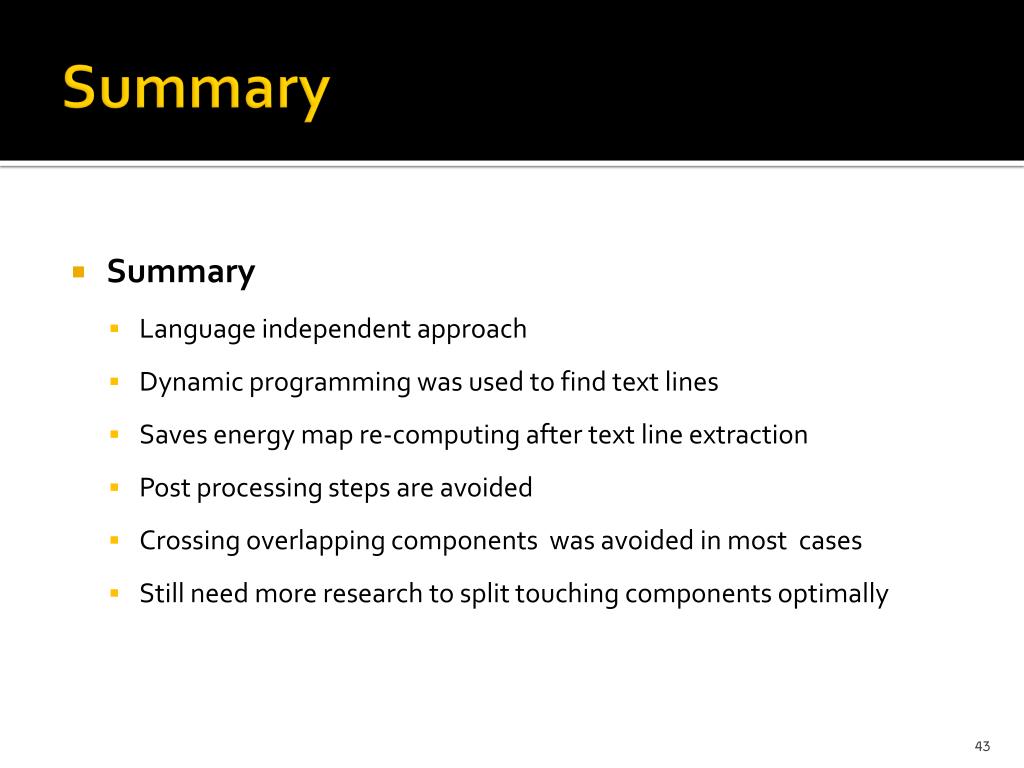

42. Summary • Summary • Language independent approach • Dynamic programming was used to find text lines • Saves energy map re-computing after text line extraction • Post processing steps are avoided • Crossing overlapping components was avoided in most cases • Still need more research to split touching components optimally

43. Thank you
