  1. Chapter1 Introduction to Windows Server 2003, Standard Edition

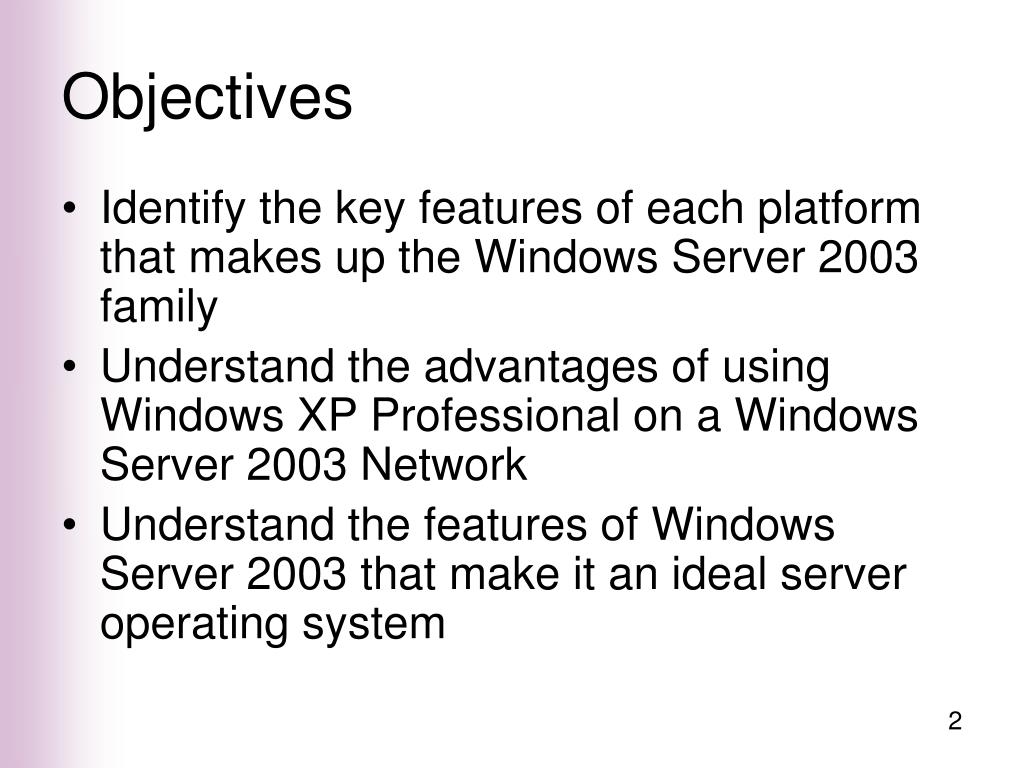

  2. Objectives • Identify the key features of each platform that makes up the Windows Server 2003 family • Understand the advantages of using Windows XP Professional on a Windows Server 2003 Network • Understand the features of Windows Server 2003 that make it an ideal server operating system

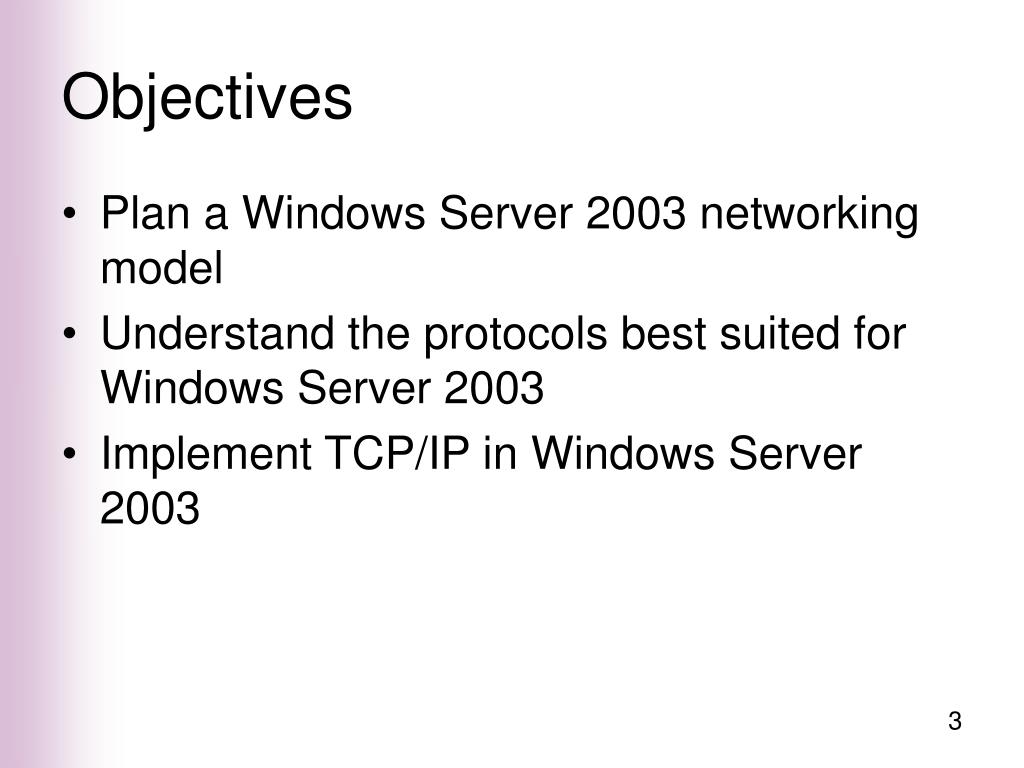

  3. Objectives • Plan a Windows Server 2003 networking model • Understand the protocols best suited for Windows Server 2003 • Implement TCP/IP in Windows Server 2003

  4. Windows Server 2003 Platforms • Windows Server 2003, Standard Edition • For the everyday needs of small to large businesses • Windows Server 2003, Web Edition • For hosting and deploying Web services and applications • Windows Server 2003, Enterprise Edition • For networks requiring high-end servers and a high level of productivity • Windows Server 2003, Datacenter Edition • For environments with critical applications, very large databases, and a high level of information access

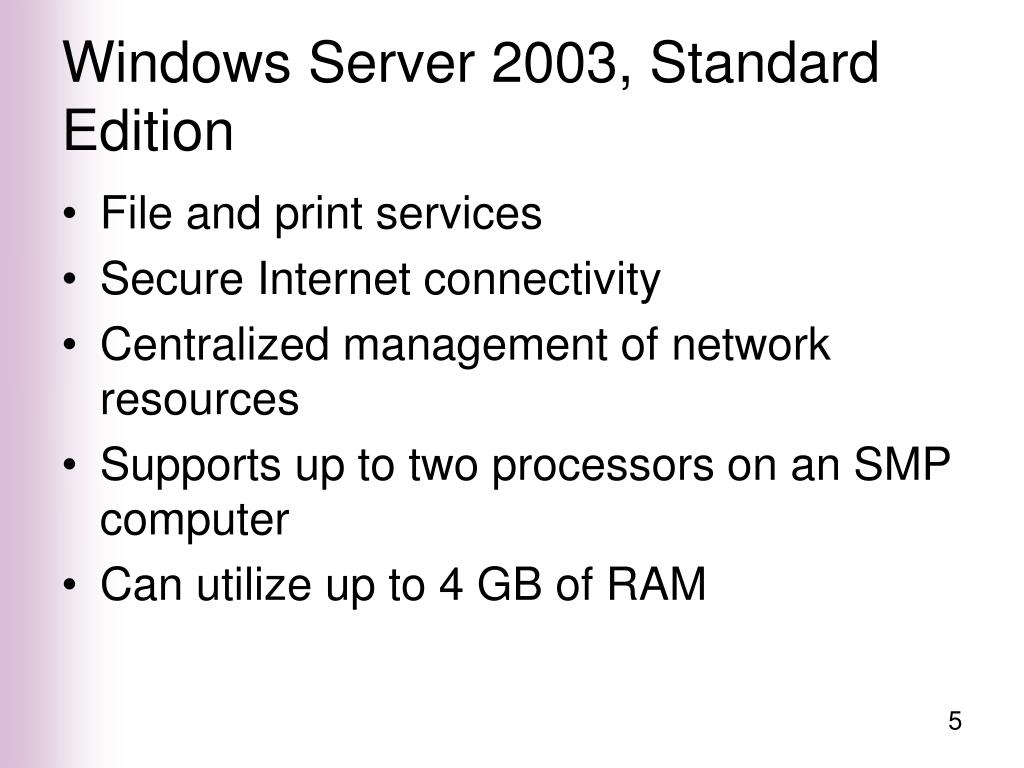

  5. Windows Server 2003, Standard Edition • File and print services • Secure Internet connectivity • Centralized management of network resources • Supports up to two processors on an SMP computer • Can utilize up to 4 GB of RAM

  6. Windows Server 2003, Web Edition • Supports up to two processors • Can utilize up to 2 GB of RAM • Optimized to run Microsoft Internet Information Services 6.0 • Cannot manage network resources via hosting Active Directory

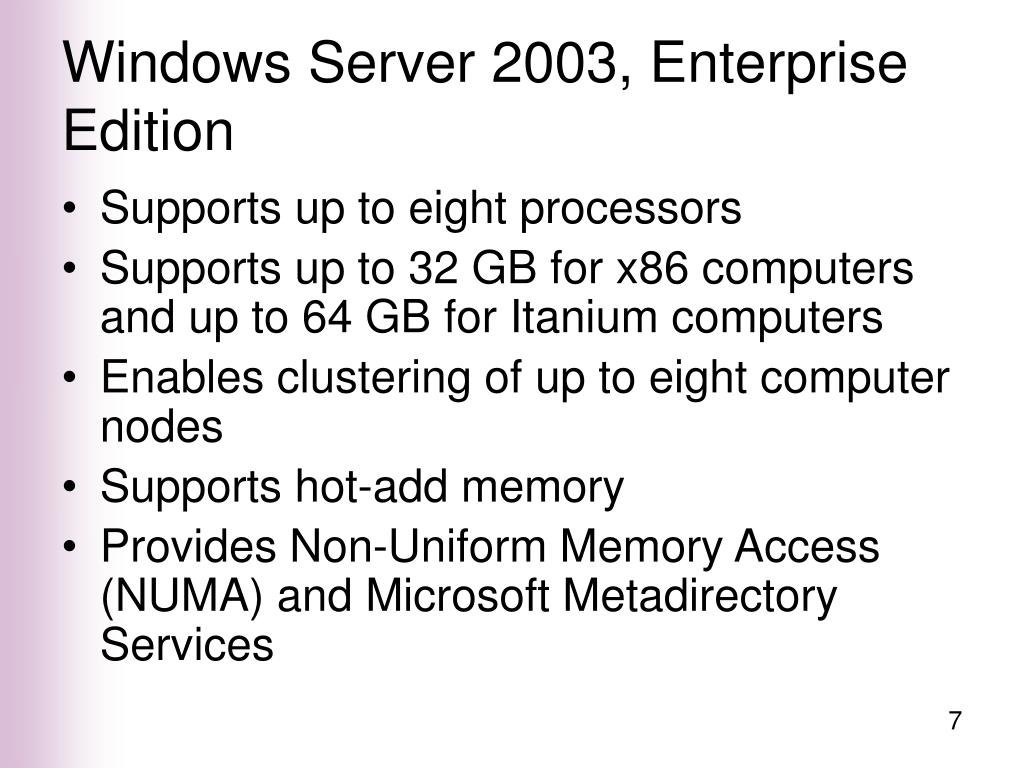

  7. Windows Server 2003, Enterprise Edition • Supports up to eight processors • Supports up to 32 GB for x86 computers and up to 64 GB for Itanium computers • Enables clustering of up to eight computer nodes • Supports hot-add memory • Provides Non-Uniform Memory Access (NUMA) and Microsoft Metadirectory Services

  8. Windows Server 2003, Datacenter Edition • Support eight to 32 processors • Eight-node clustering capacity • Can utilize 64 GB for x86 computers and 128 GB for Itanium processors • Supports hot-add memory • Designed for large database applications

  9. Windows XP Professional • A client is a computer that accesses resources on another computer. • A workstation is a computer with its own CPU. • XP Professional is the client workstation most compatible with Windows Server 2003. • Achieves a lower total cost of ownership (TCO) than other operating systems • Features automatic installation and configuration controlled by Windows Server 2003 • Compatible with Active Directory, a management database

  10. Windows Server 2003 Features • Centralized administration and management of resources • Security • Scalability and compatibility • Reliability and distributability • Fault tolerance and recovery

  11. Centralized Administration and Management of Resources • Active Directory service manages network resources. • Objects stored in Active Directory are easily accessible to all users. • Objects are grouped into units, domains, trees, forests, and sites. • Remote system administration through one central location

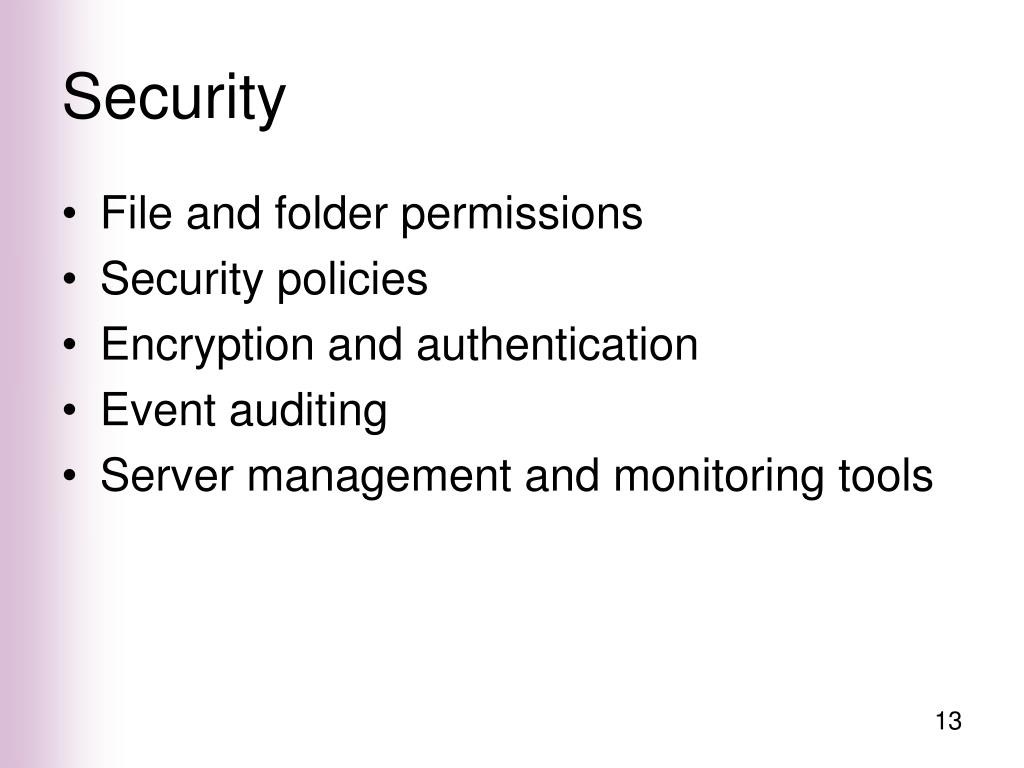

  12. Security • File and folder permissions • Security policies • Encryption and authentication • Event auditing • Server management and monitoring tools

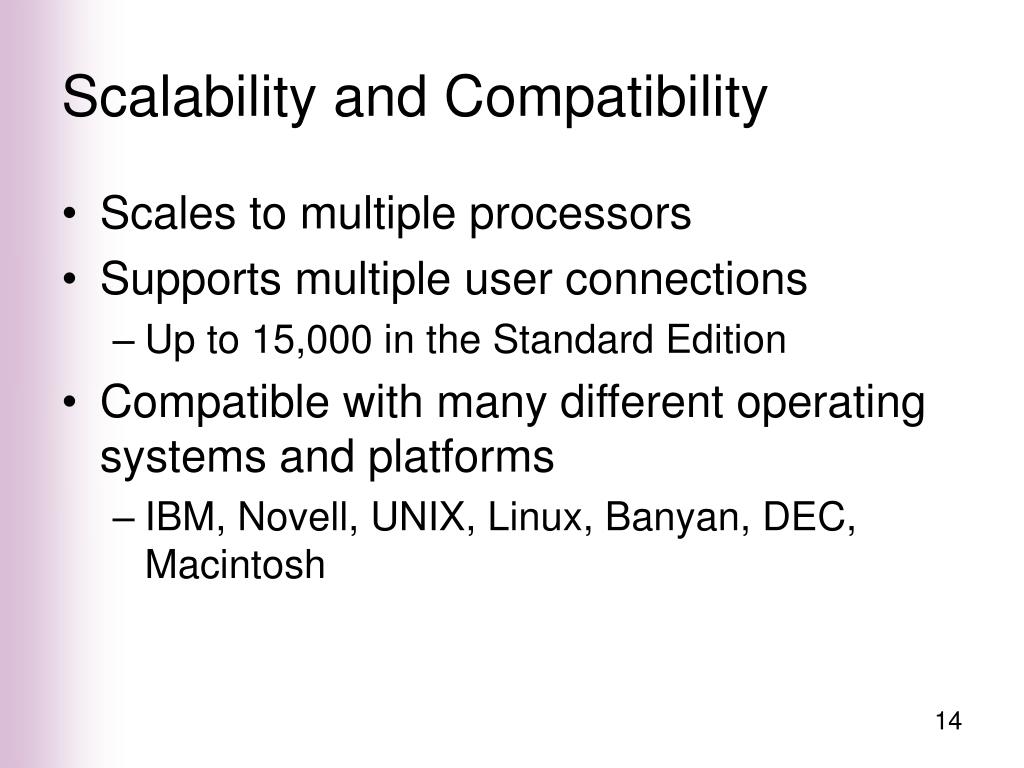

  13. Scalability and Compatibility • Scales to multiple processors • Supports multiple user connections • Up to 15,000 in the Standard Edition • Compatible with many different operating systems and platforms • IBM, Novell, UNIX, Linux, Banyan, DEC, Macintosh

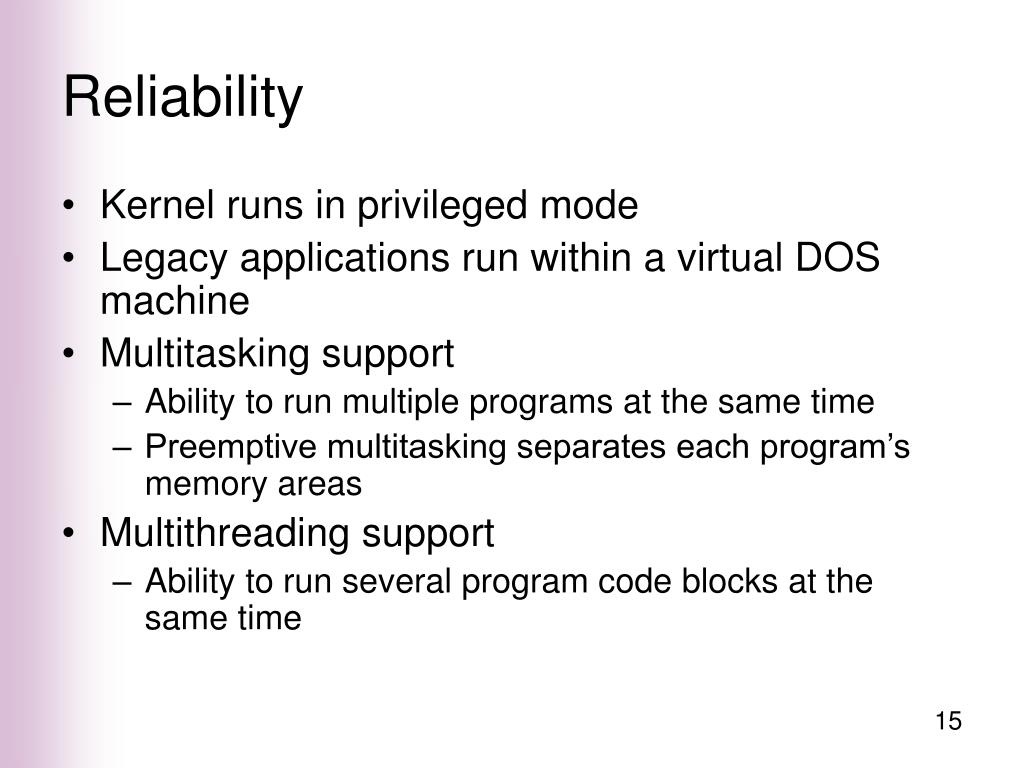

  14. Reliability • Kernel runs in privileged mode • Legacy applications run within a virtual DOS machine • Multitasking support • Ability to run multiple programs at the same time • Preemptive multitasking separates each program’s memory areas • Multithreading support • Ability to run several program code blocks at the same time

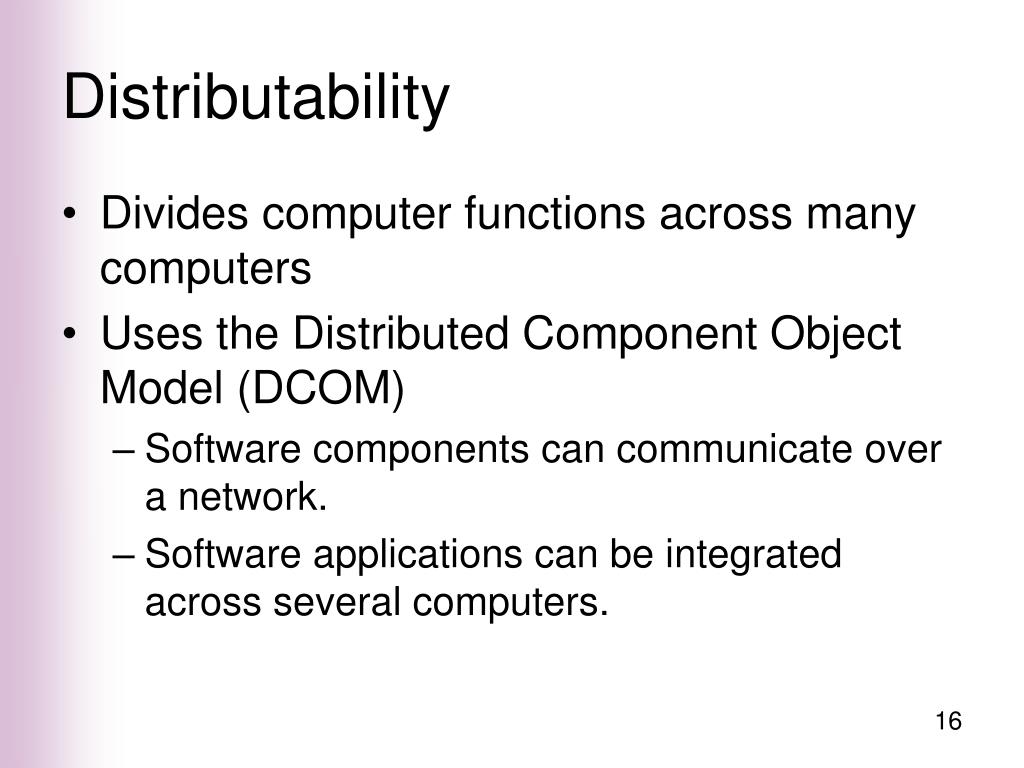

  15. Distributability • Divides computer functions across many computers • Uses the Distributed Component Object Model (DCOM) • Software components can communicate over a network. • Software applications can be integrated across several computers.

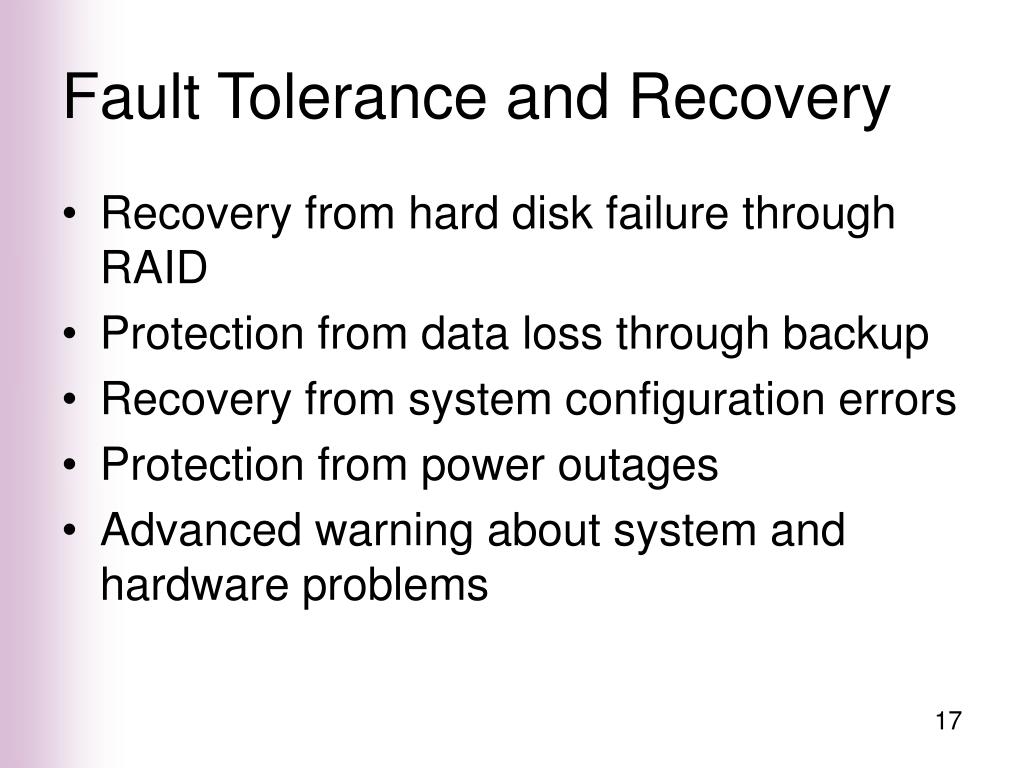

  16. Fault Tolerance and Recovery • Recovery from hard disk failure through RAID • Protection from data loss through backup • Recovery from system configuration errors • Protection from power outages • Advanced warning about system and hardware problems

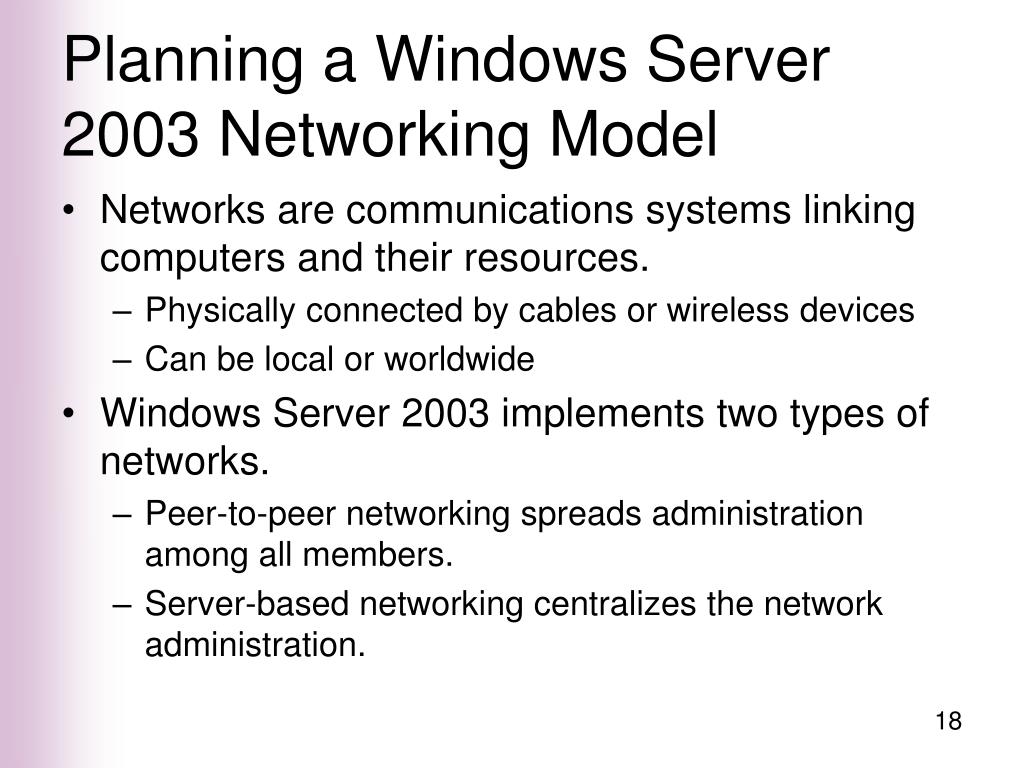

  17. Planning a Windows Server 2003 Networking Model • Networks are communications systems linking computers and their resources. • Physically connected by cables or wireless devices • Can be local or worldwide • Windows Server 2003 implements two types of networks. • Peer-to-peer networking spreads administration among all members. • Server-based networking centralizes the network administration.

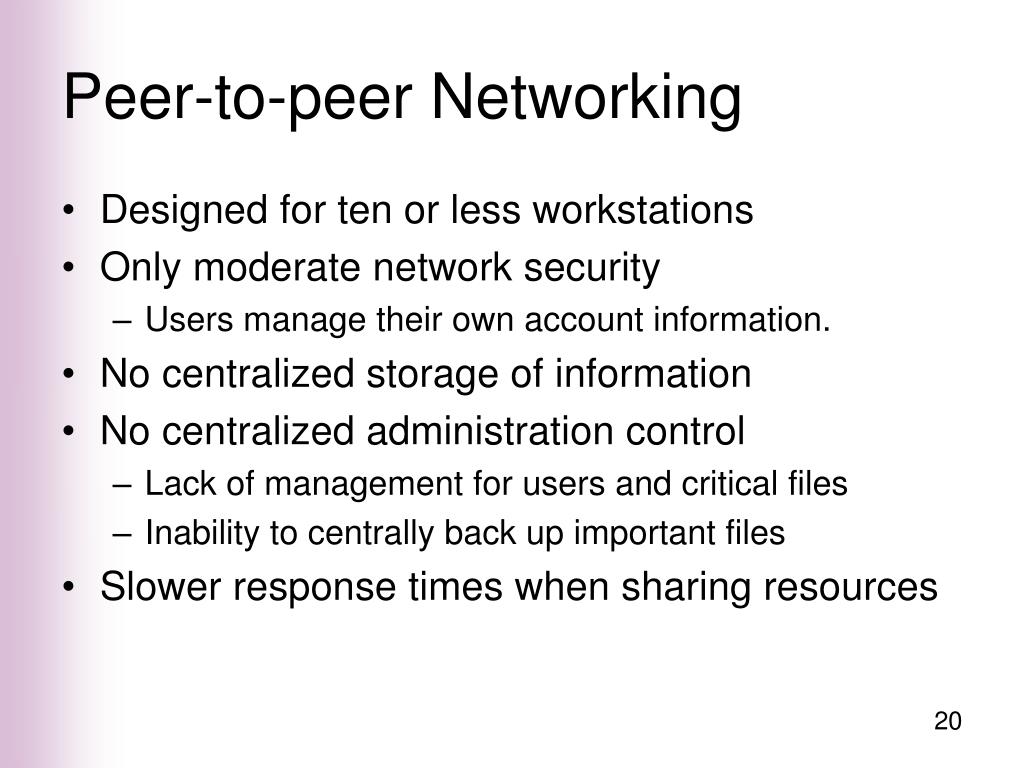

  18. Peer-to-peer Networking • Designed for ten or less workstations • Only moderate network security • Users manage their own account information. • No centralized storage of information • No centralized administration control • Lack of management for users and critical files • Inability to centrally back up important files • Slower response times when sharing resources

  19. Server-based Networking • Users log in once to access resources. • Stronger security because of server management • Shared files by members • Shared printers and other resources • E-mail capability through an e-mail server

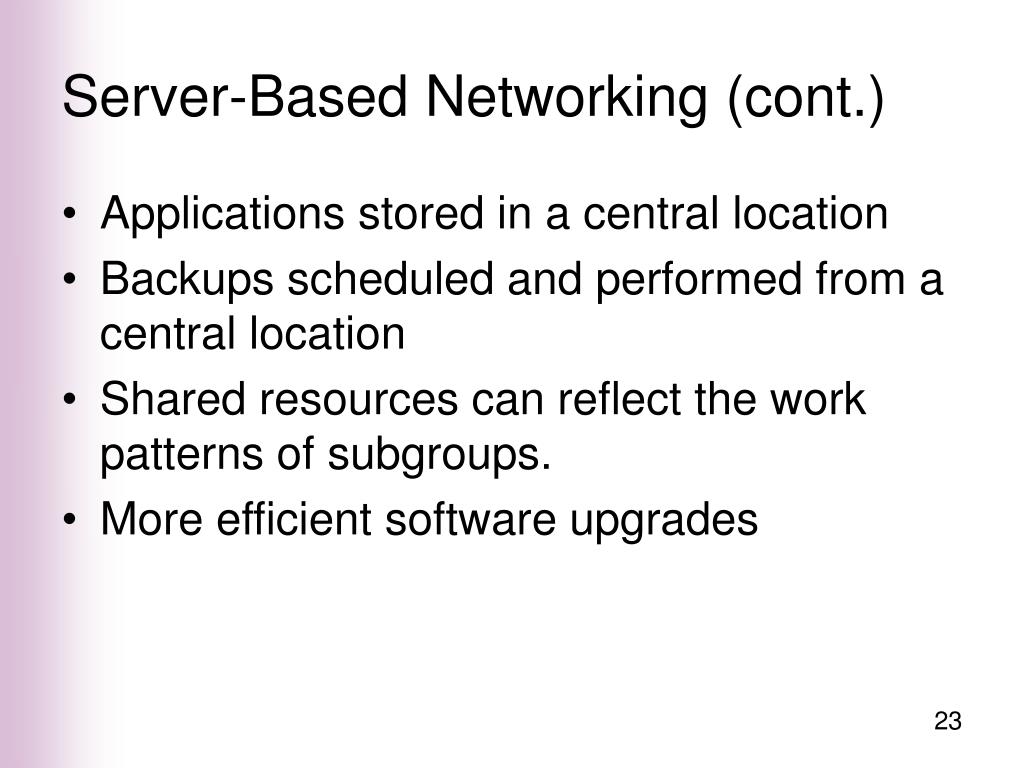

  20. Server-Based Networking (cont.) • Applications stored in a central location • Backups scheduled and performed from a central location • Shared resources can reflect the work patterns of subgroups. • More efficient software upgrades

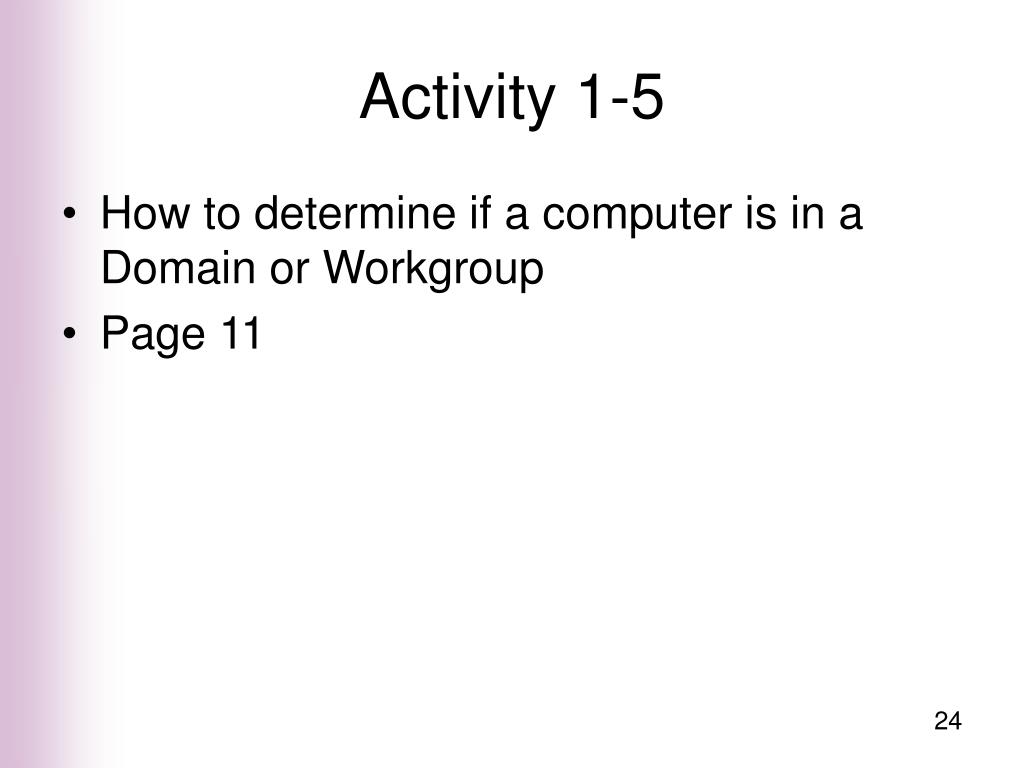

  21. Activity 1-5 • How to determine if a computer is in a Domain or Workgroup • Page 11

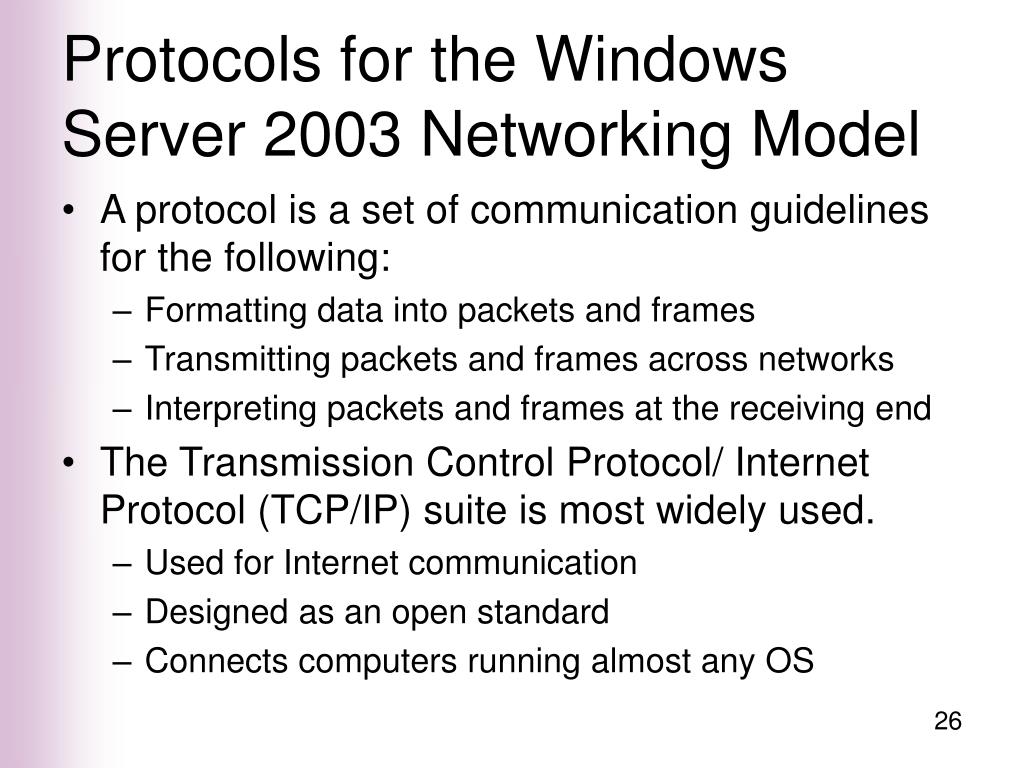

  22. Protocols for the Windows Server 2003 Networking Model • A protocol is a set of communication guidelines for the following: • Formatting data into packets and frames • Transmitting packets and frames across networks • Interpreting packets and frames at the receiving end • The Transmission Control Protocol/ Internet Protocol (TCP/IP) suite is most widely used. • Used for Internet communication • Designed as an open standard • Connects computers running almost any OS

  23. Transmission Control Protocol • Provides connection-oriented communication • Ensures that packets are delivered in the right sequence and with the right contents • Controls data flow based on network traffic • Listens for communications requests and establishes sessions • Handles transmitting and receiving data • Closes transmission sessions

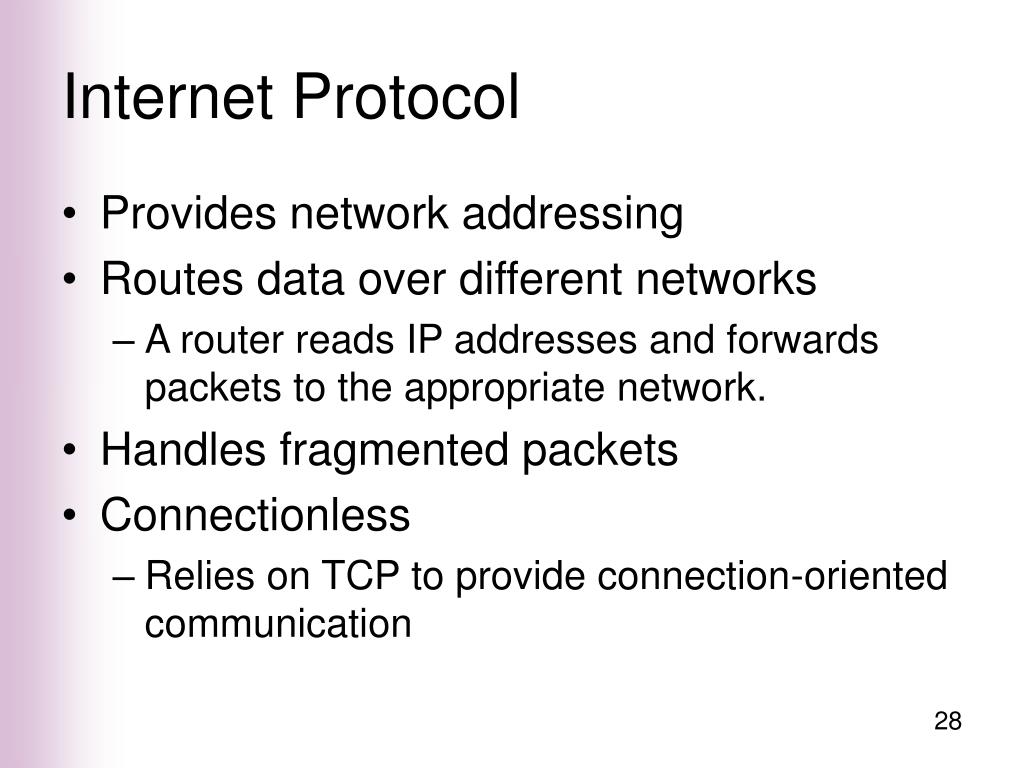

  24. Internet Protocol • Provides network addressing • Routes data over different networks • A router reads IP addresses and forwards packets to the appropriate network. • Handles fragmented packets • Connectionless • Relies on TCP to provide connection-oriented communication

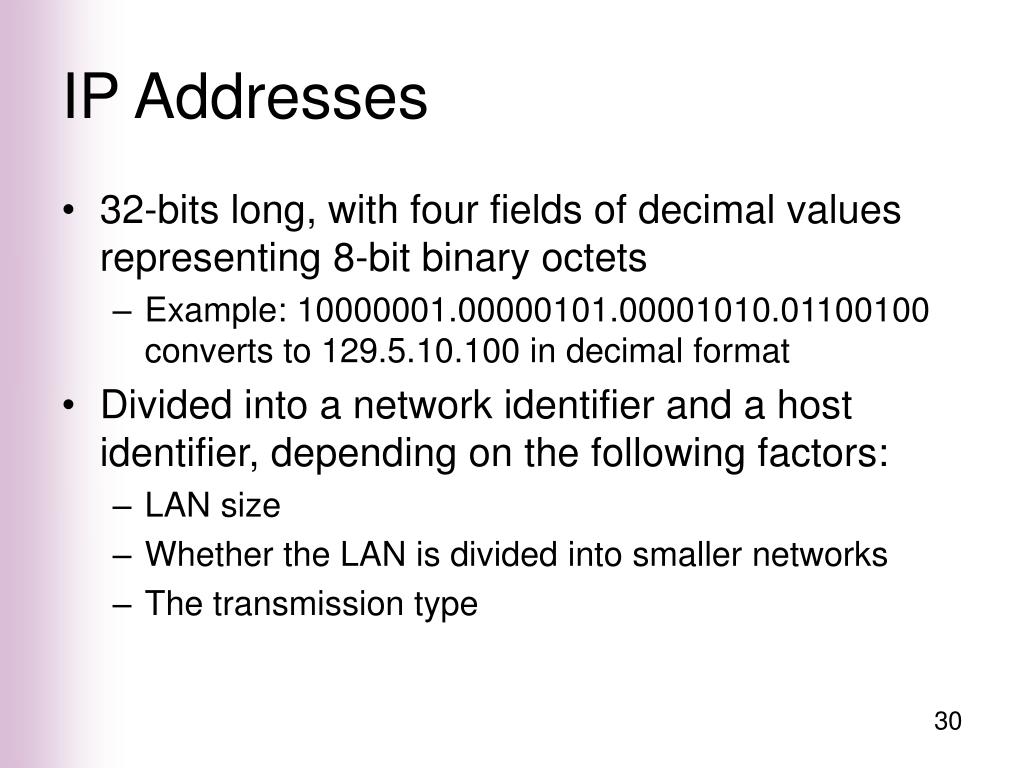

  25. IP Addresses • 32-bits long, with four fields of decimal values representing 8-bit binary octets • Example: 10000001.00000101.00001010.01100100 converts to 129.5.10.100 in decimal format • Divided into a network identifier and a host identifier, depending on the following factors: • LAN size • Whether the LAN is divided into smaller networks • The transmission type

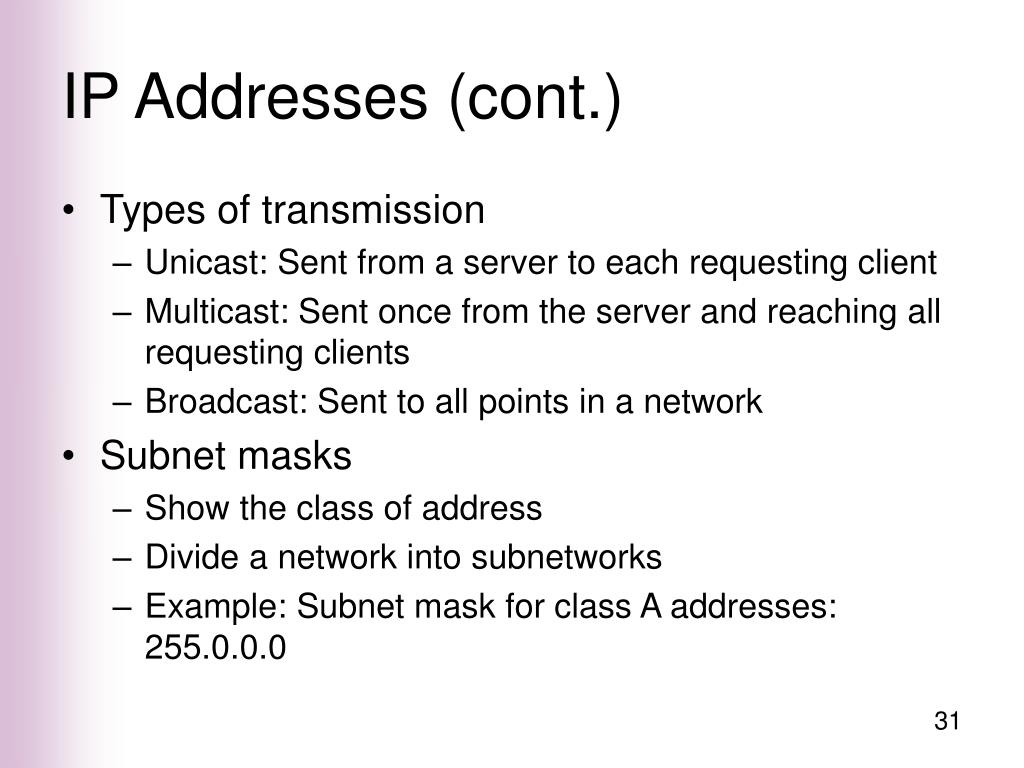

  26. IP Addresses (cont.) • Types of transmission • Unicast: Sent from a server to each requesting client • Multicast: Sent once from the server and reaching all requesting clients • Broadcast: Sent to all points in a network • Subnet masks • Show the class of address • Divide a network into subnetworks • Example: Subnet mask for class A addresses: 255.0.0.0

  27. IP Address Considerations • 127.0.0.0 cannot be used for any network. • 127.0.0.1 is the loopback address. • Certain addresses are reserved for private network use (see Table 1-2). • Network numbers cannot be assigned to a computer. • The highest number on a network is reserved for broadcast messages.

  28. Static and Dynamic Addressing • Static addressing assigns a permanent, unique address to a workstation. • Gives the administrator direct control • Useful for monitoring the network • Database is needed to keep track of the IP addresses • Dynamic addressing assigns an IP address to a computer each time it logs on. • Leased for a defined period of time • Uses the Dynamic Host Configuration Protocol (DHCP)

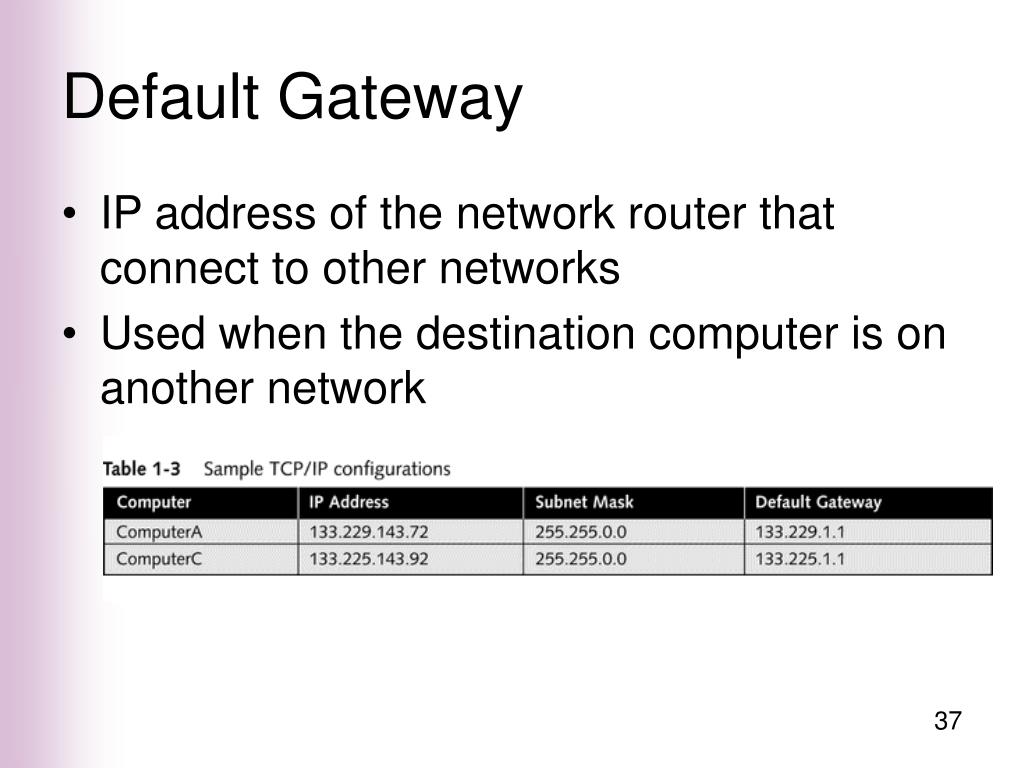

  29. Default Gateway • IP address of the network router that connect to other networks • Used when the destination computer is on another network

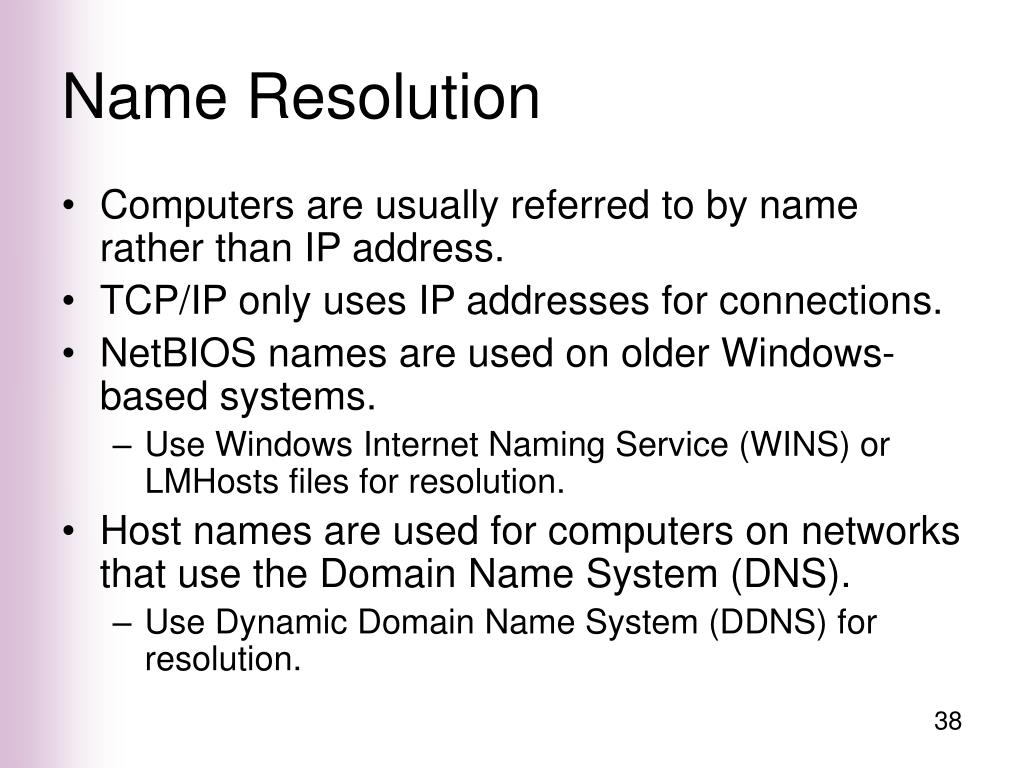

  30. Name Resolution • Computers are usually referred to by name rather than IP address. • TCP/IP only uses IP addresses for connections. • NetBIOS names are used on older Windows-based systems. • Use Windows Internet Naming Service (WINS) or LMHosts files for resolution. • Host names are used for computers on networks that use the Domain Name System (DNS). • Use Dynamic Domain Name System (DDNS) for resolution.

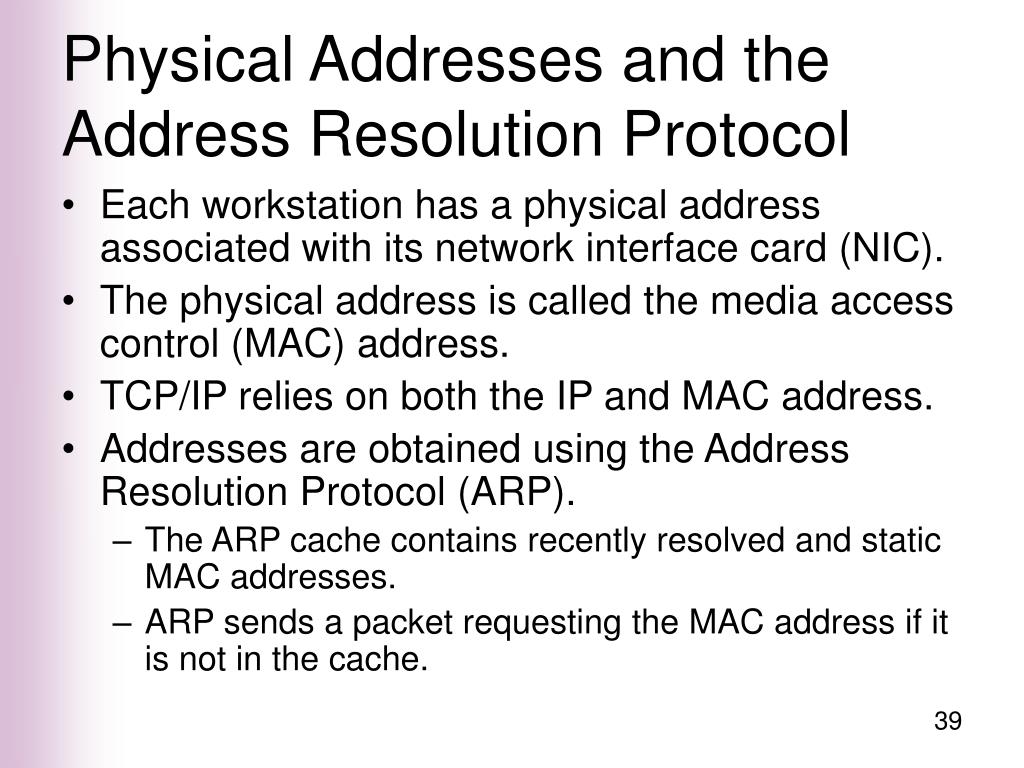

  31. Physical Addresses and the Address Resolution Protocol • Each workstation has a physical address associated with its network interface card (NIC). • The physical address is called the media access control (MAC) address. • TCP/IP relies on both the IP and MAC address. • Addresses are obtained using the Address Resolution Protocol (ARP). • The ARP cache contains recently resolved and static MAC addresses. • ARP sends a packet requesting the MAC address if it is not in the cache.

  32. Activity 1-6 • Sample Utilities for IP Address and Connectivity Testing • Page 17

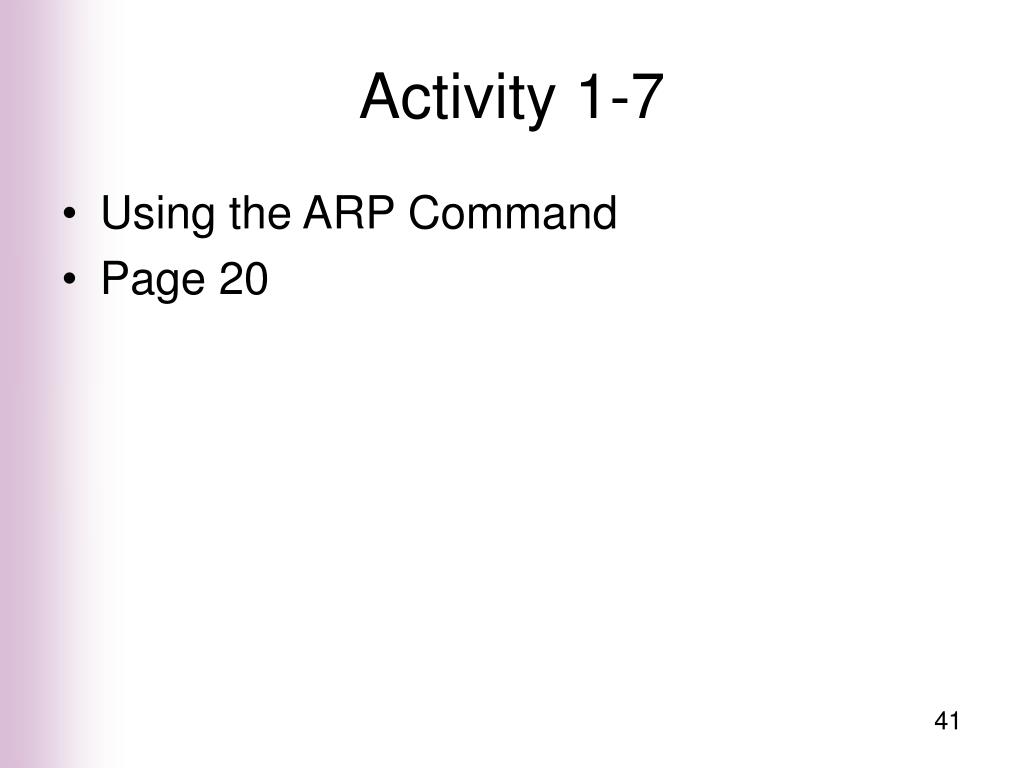

  33. Activity 1-7 • Using the ARP Command • Page 20

  34. Implementing TCP/IP in Windows Server 2003 • Installed by default in Windows Server 2003 • Can also be installed like any other protocol

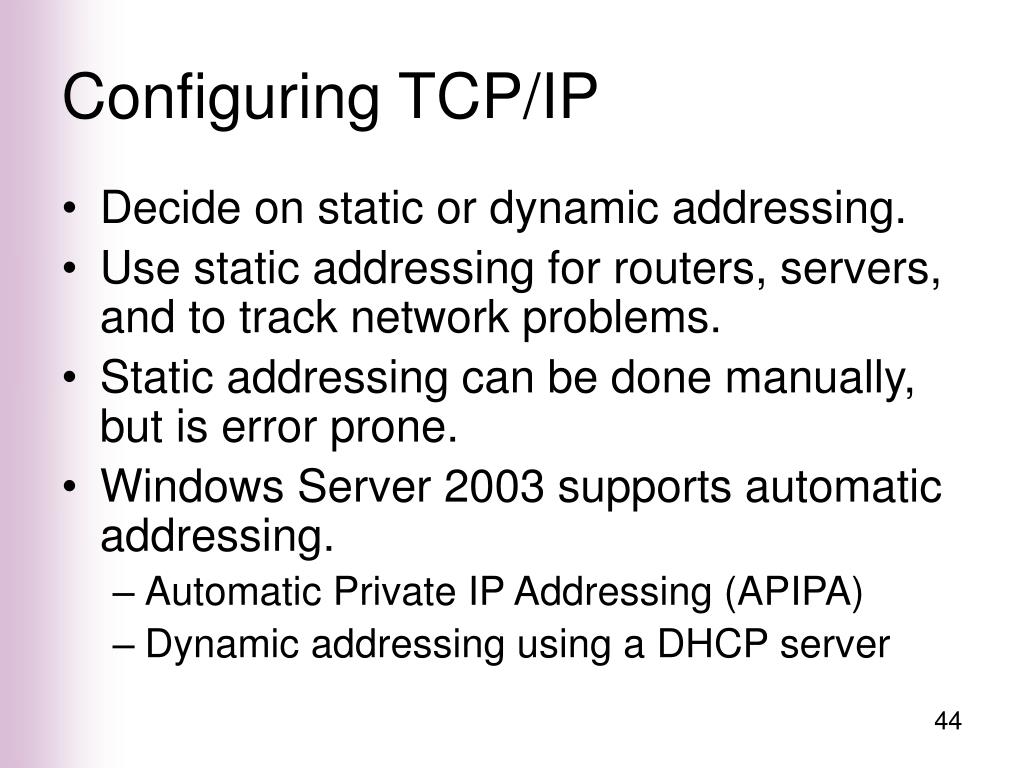

  35. Configuring TCP/IP • Decide on static or dynamic addressing. • Use static addressing for routers, servers, and to track network problems. • Static addressing can be done manually, but is error prone. • Windows Server 2003 supports automatic addressing. • Automatic Private IP Addressing (APIPA) • Dynamic addressing using a DHCP server

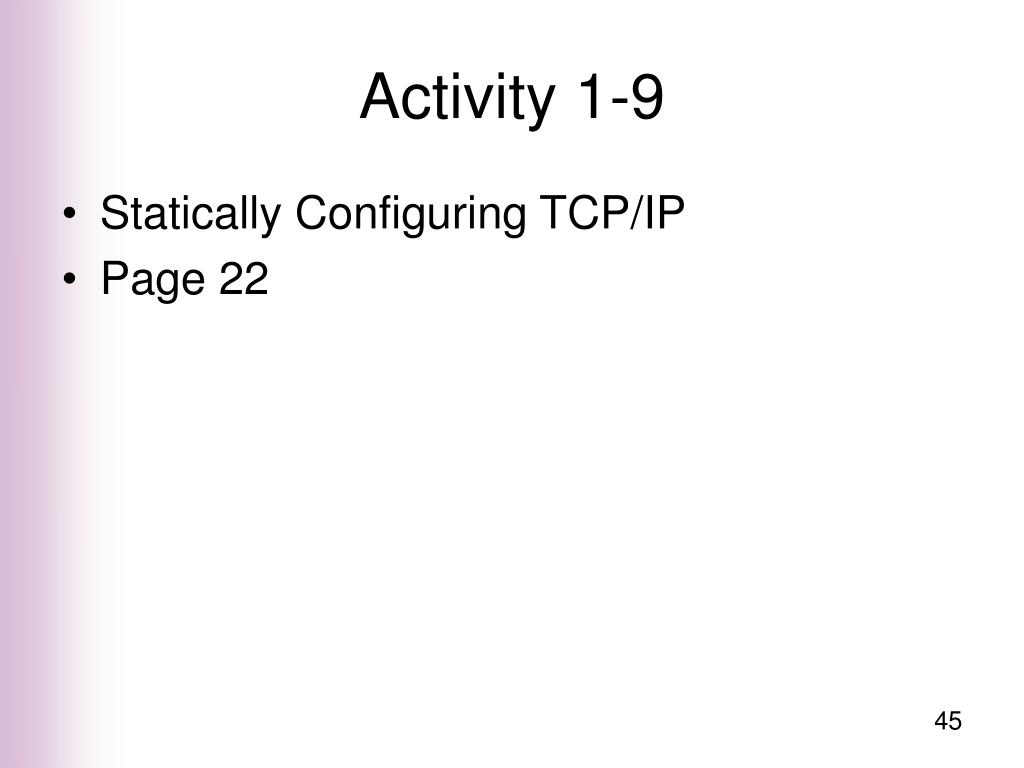

  36. Activity 1-9 • Statically Configuring TCP/IP • Page 22

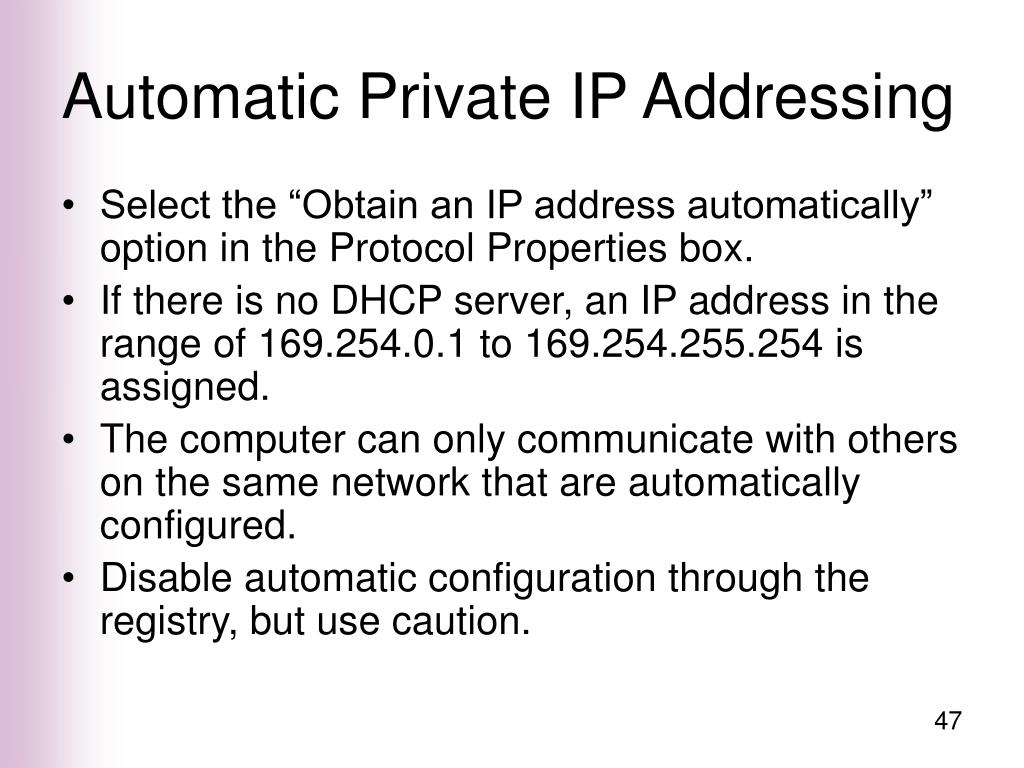

  37. Automatic Private IP Addressing • Select the “Obtain an IP address automatically” option in the Protocol Properties box. • If there is no DHCP server, an IP address in the range of 169.254.0.1 to 169.254.255.254 is assigned. • The computer can only communicate with others on the same network that are automatically configured. • Disable automatic configuration through the registry, but use caution.

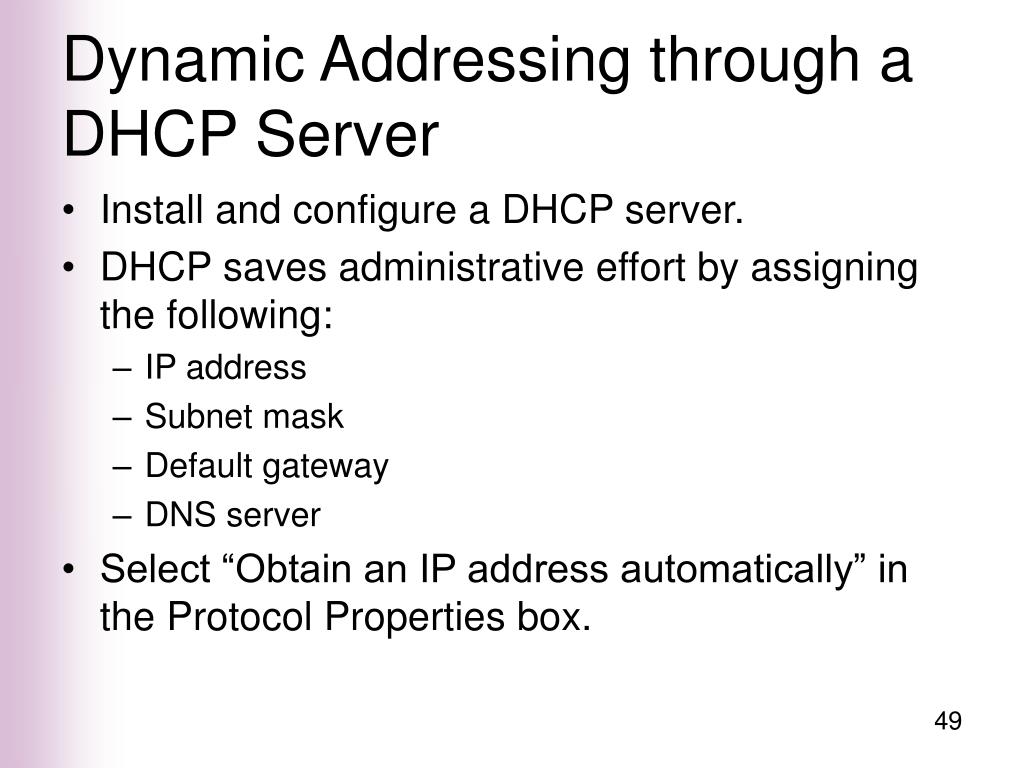

  38. Dynamic Addressing through a DHCP Server • Install and configure a DHCP server. • DHCP saves administrative effort by assigning the following: • IP address • Subnet mask • Default gateway • DNS server • Select “Obtain an IP address automatically” in the Protocol Properties box.

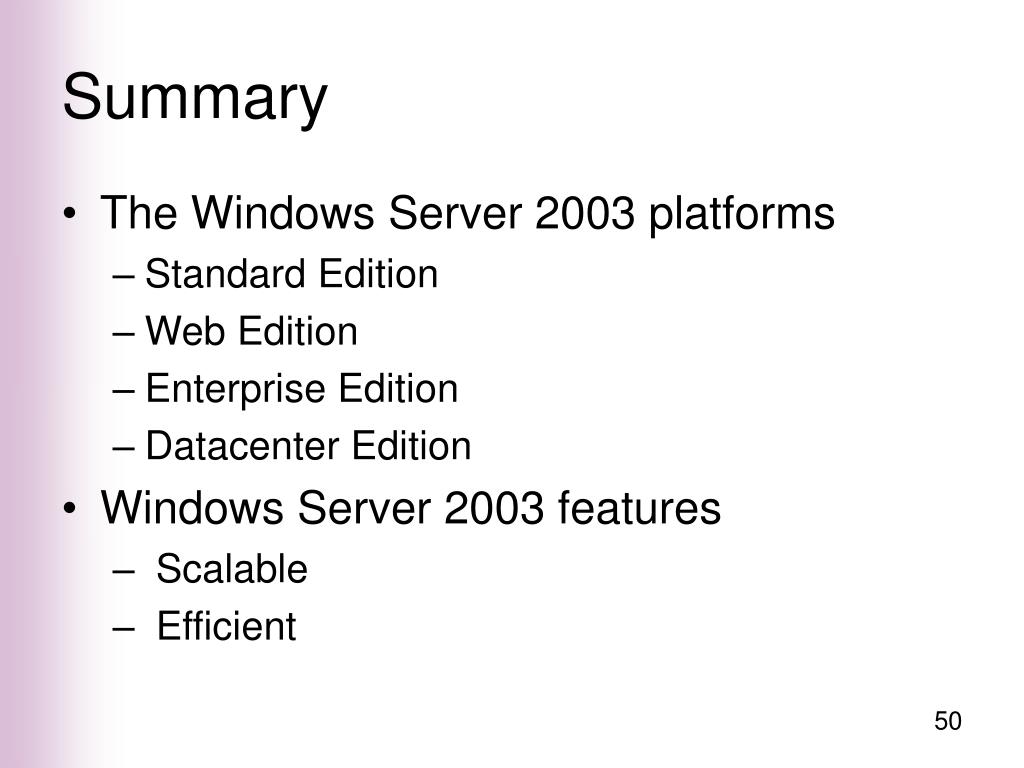

  39. Summary • The Windows Server 2003 platforms • Standard Edition • Web Edition • Enterprise Edition • Datacenter Edition • Windows Server 2003 features • Scalable • Efficient
