slide1

WebGen’sIntelligent Use of Energy (IUE)™ System Powering Smart Energy Networks Nowwww.webgensystems.com

webgen intelligent use of energy
WebGen: Intelligent Use of Energy

WebGen’s IUE is the first

intelligent, predictive

energy conservation system that

remotely monitors, forecasts,

continuously optimizes, and

automatically controls energy use.

iue an overview
IUE: An Overview
  • Low-cost, low-risk, energy conservation service
  • Helps companies understand & reduce energy costs
  • Conserves scarce energy resources & creates new revenue streams
  • Accounts for savings & revenues
representative customers
Hobbs Brook

Trizec Properties

Bank of America

NYSERDA, State of New York

State of California, DGS

University of Miami, Florida

Representative Customers
webgen installations
WebGen Installations
  • Total Installed Space
    • 25 million square feet
    • 185 buildings
  • Locations
    • California, New York, Florida, New England
our value 12 savings

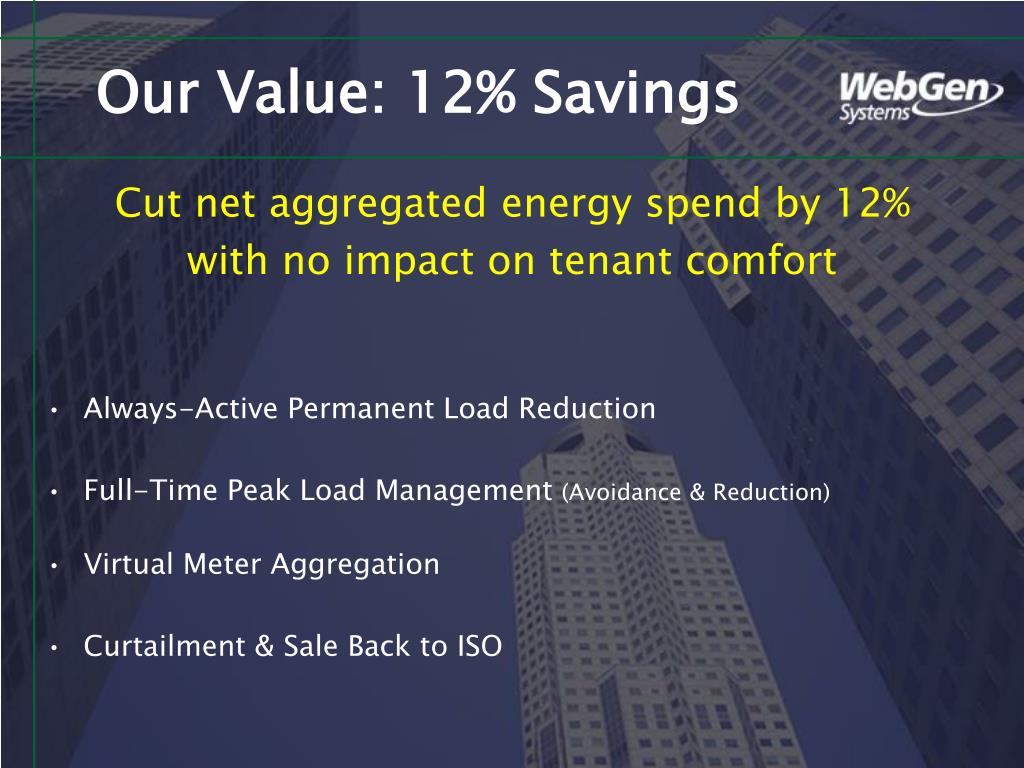

Our Value: 12% Savings
  • Always-Active Permanent Load Reduction
  • Full-Time Peak Load Management (Avoidance & Reduction)
  • Virtual Meter Aggregation
  • Curtailment & Sale Back to ISO

Cut net aggregated energy spend by 12%

with no impact on tenant comfort

slide7

IUE: Complete Enterprise

Energy Management

Energy Information

Systems

IUE

Demand Response

Systems

Building Management

Systems

iue what it does
IUE: What it Does
  • Monitors existing energy consuming devices and meters
  • Aggregates data in buildings, portfolios, power pools
  • Forecasts usage and executes smart conservation strategieswith real-time analysis of space temperature, air quality, occupancy, weather, and energy price
  • Intelligently controls devices and lighting, learns consumption patterns and reactions to change
  • Optimizes and accounts for results
slide10

Connecting to IUE

  • WebGen connects existing building management systems (BMS) to the Internet
  • If no BMS exists, equipment is connected directly via WebGen’s wireless connectivity solution
  • Building equipment & meters are mapped to WebGen’s IUE servers
  • Exchange begins, real-time monitoring & control signals are sent via secure Internet connection
slide11

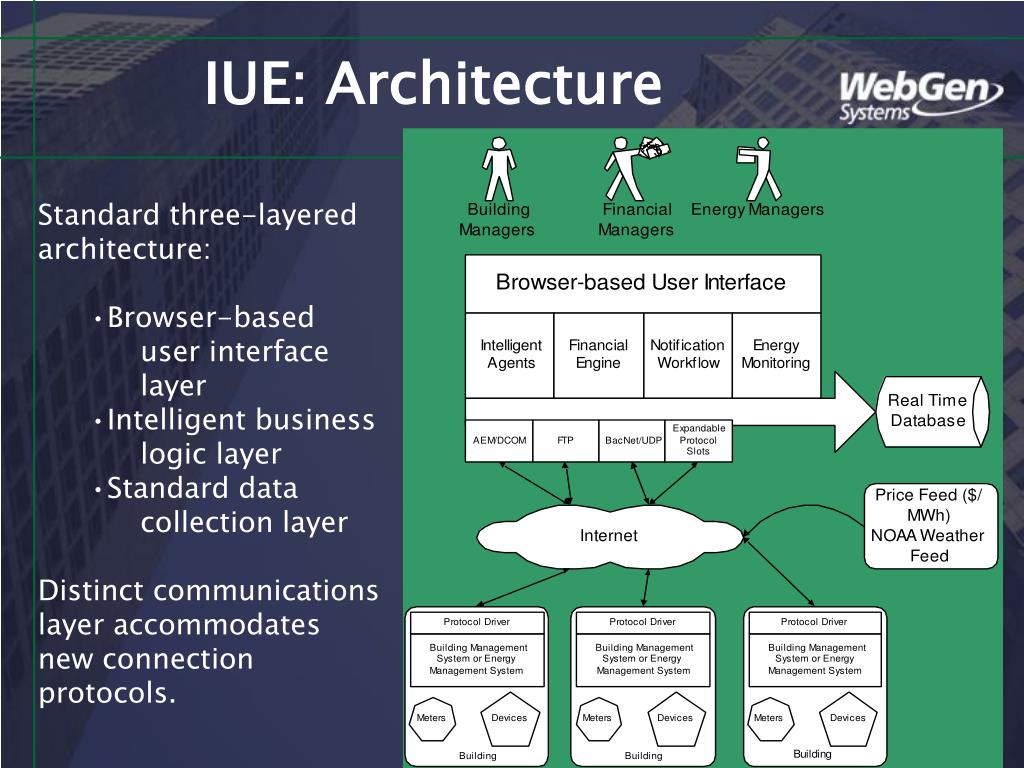

IUE: Architecture

  • Standard three-layered architecture:
    • Browser-based user interface layer
    • Intelligent business logic layer
    • Standard data collection layer
  • Distinct communications layer accommodates new connection protocols.
slide12

IUE: Lighting Agent

  • IUE Lighting Agent controls the Flux Regulator
  • External factors (weather, grid load, energy price) drive agent decisions
  • Flux Regulator responds to agent commands
  • Regulated voltage saves money

Electric Energy

Flux Regulator

Internet Connection

IUE

Office Lighting

slide13

IUE: Immediate Results

  • Provides detailed analysis of consumption
    • Shows and aggregates energy consumed at each device/meter

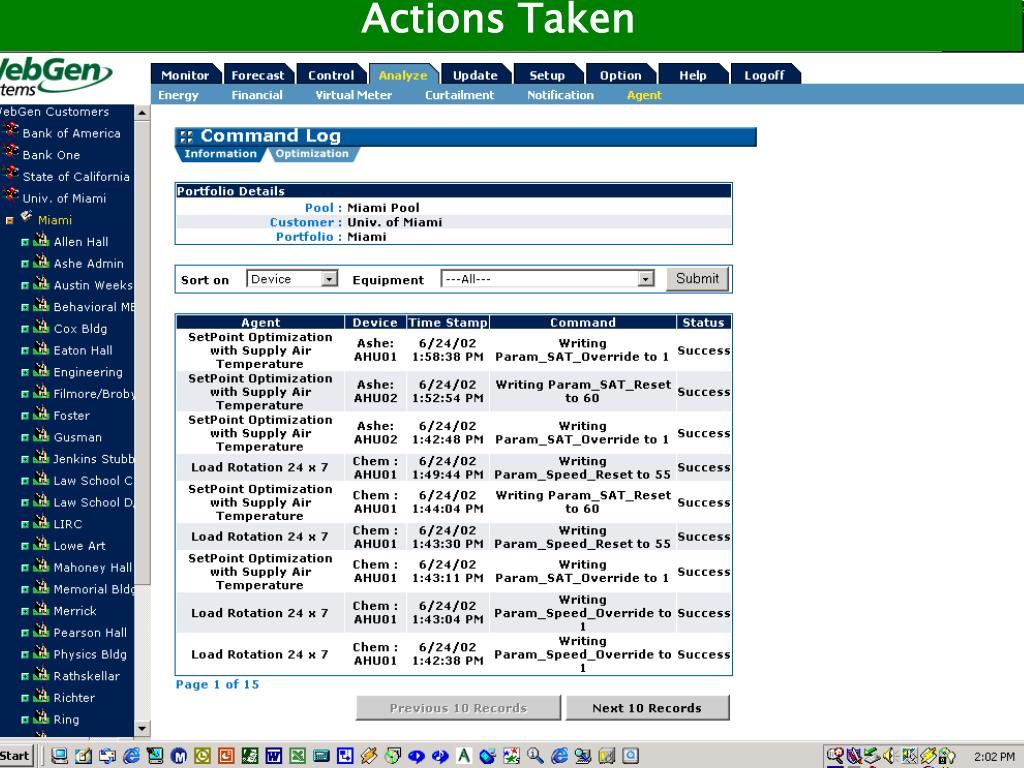

  • Shows actions taken & results in real-time
    • Depicts actual and forecasted consumption based on IUE usage
  • Translates actions taken into dollars saved
    • Complete comparison of baseline and actual energy data to bills
  • Accounts for capacity & energy revenues
    • Provides real time analysis of commitments, payments and fees
slide14

Logging In

Access system through any standard Web browser with password-protected, encrypted log-in.

detailed analysis of consumption

Consumption Analysis

Detailed Analysis of Consumption

kWh consumption over time

Cyclical kw demand

Selectable From and To Dates

slide18

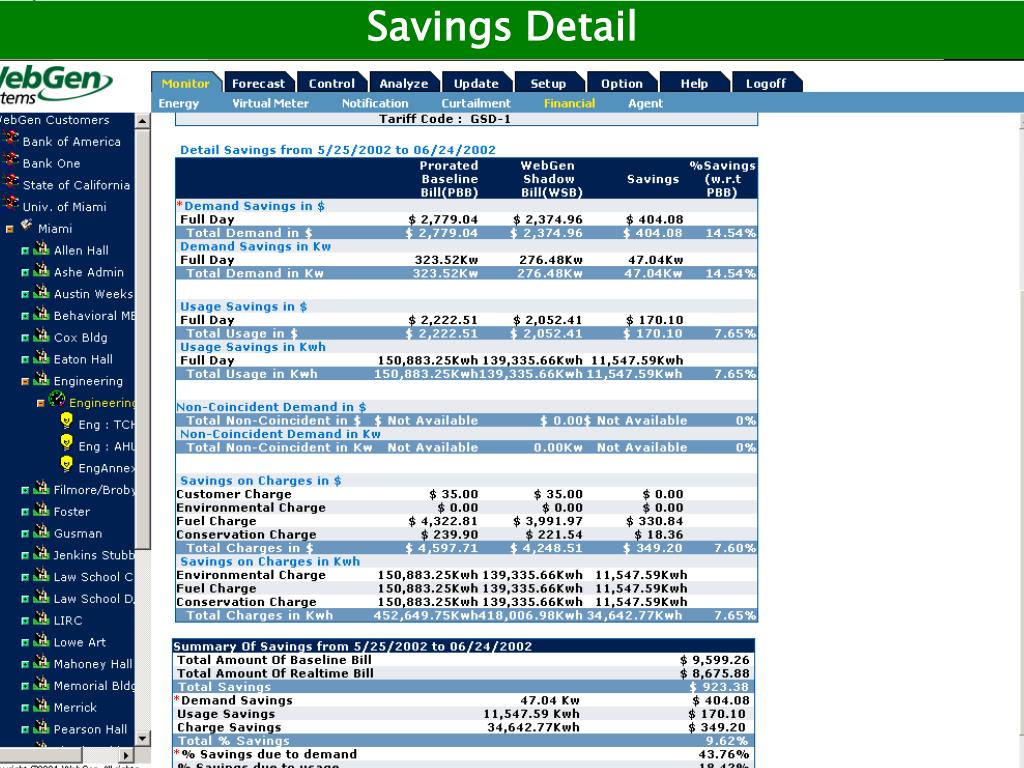

Savings Detail

Detailed Savings

iue system savings revenues us per square foot
IUE System Savings & Revenues(US $ Per Square foot)

Annual Energy Savings on $1.00 energy spend* $0.23

  • 10.0% Permanent Load Reduction $0.10
  • 5.0% Lighting Load Reduction ** $0.05
  • 7.5% Peak Load Avoidance & Diversification $0.08

Annual Capacity & Energy Revenues*** $0.11

  • Capacity (.75 W/sq.ft. @ $0.05/W) $0.04
  • Energy (.75 W/sq.ft. @ $0.10/kWh) $0.07

Total Annual Savings & Revenues $0.34

*Assumes constant baseline data. Any changes in weather patterns, building occupancy, plug load, lighting load, capital projects will impact savings up or down.

*WebGen does not participate in savings resulting from reduced maintenance, lower staff costs, energy-efficient capital projects, etc..

**Where applicable

***Assumes sale of Capacity @ $80,000/MWY and Energy @ $500/MWH (300 hours)

iue system benefits us per square foot

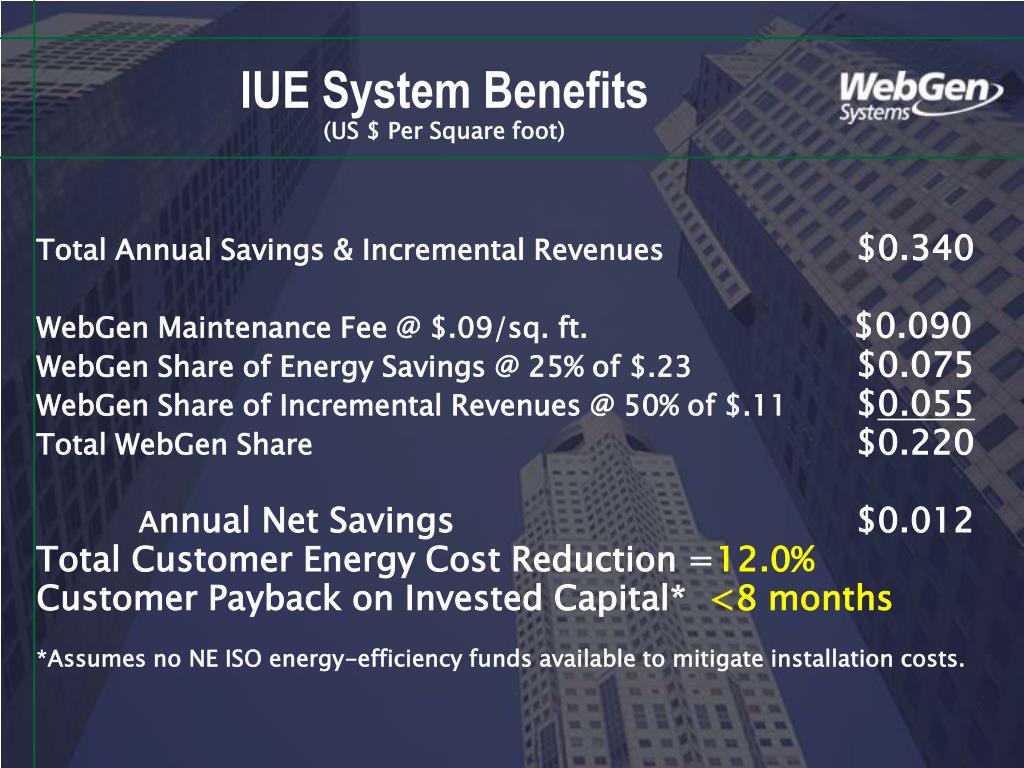

IUE System Benefits(US $ Per Square foot)

Total Annual Savings & Incremental Revenues $0.340

WebGen Maintenance Fee @ $.09/sq. ft. $0.090

WebGen Share of Energy Savings @ 25% of $.23 $0.075

WebGen Share of Incremental Revenues @ 50% of $.11 $0.055

Total WebGen Share $0.220

Annual Net Savings $0.012

Total Customer Energy Cost Reduction =12.0%

Customer Payback on Invested Capital* <8 months

  • *Assumes no NE ISO energy-efficiency funds available to mitigate installation costs.
bank of america

Bank of America

Energy Curtailment

For

The California Energy Commission

June 27, 2002

california energy commission pilot test
California Energy Commission Pilot Test
  • On June 27, 2002, WebGen Systems Intelligent Use of Energy product curtailed 2 Megawatts of power, in 78 Bank of America properties, within the state of California.
  • The total load of the 78 properties was approximately 9 Megawatts
  • The time duration was four hours. The test commenced at 2:00 PM, and completed at 6:00 PM, PDST
  • The following slides display the demand trends for Northern & Southern California, and the aggregate for the pilot test.
slide28

IUE: System Benefits

  • Increased Asset Value
    • Lowers costs of delivering higher capitalized value
  • Tenant/Employee Satisfaction & Security
    • Increases perceived value
    • Provides Consistent Comfort (space temp, air quality)
    • Heightens Safety (chemical and substance “sniffer” options)
  • Stakeholder/Management Bottom Line
    • Reduces energy costs
    • Eliminates uncertainty of energy price & capacity
    • Environmentally conscientious & technically superior
    • energy management solution
slide29

Financials and Payback:

Cost Summary

  • Net Reduction in Customer Energy Spend
    • 12% after payment of all fees, shared savings & revenues
  • One-Time Installation Cost
    • $.08 per gross square foot (An additional $.05 Lighting)
  • Annual Maintenance Fee
    • $.09 per gross square foot
  • WebGen Share of Energy Savings
    • 25% of reduced energy spend
  • WebGen Share of Capacity & Energy Sold
    • 50% of all new revenues generated
slide30

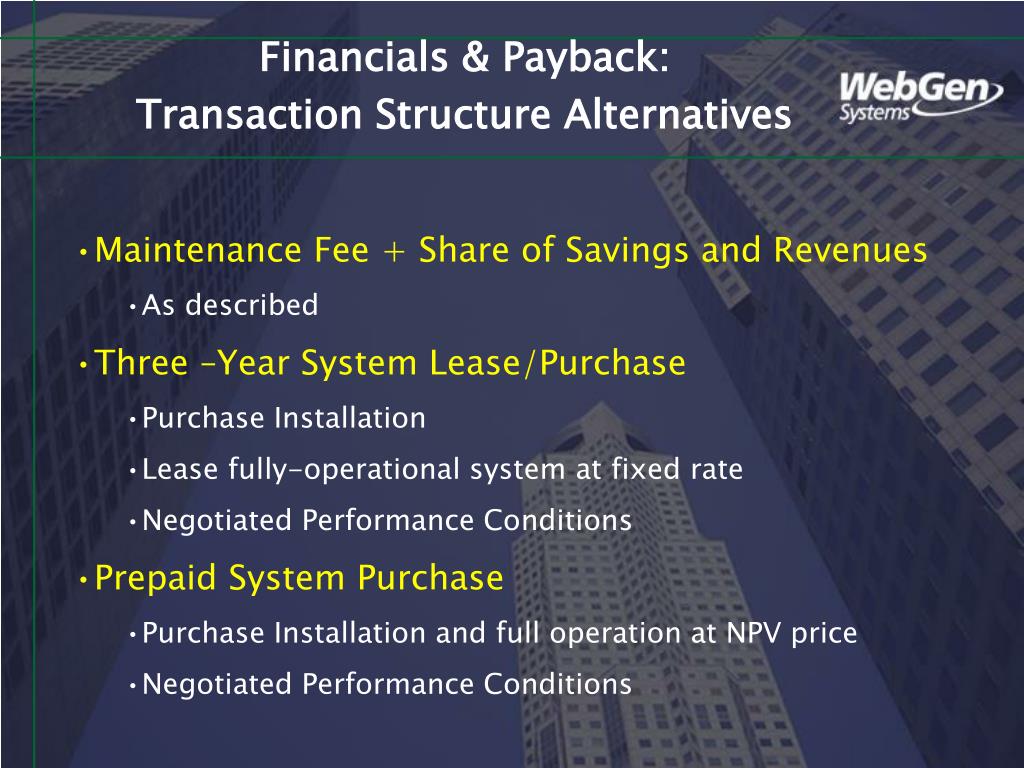

Financials & Payback:

Transaction Structure Alternatives

  • Maintenance Fee + Share of Savings and Revenues
    • As described
  • Three –Year System Lease/Purchase
    • Purchase Installation
    • Lease fully-operational system at fixed rate
    • Negotiated Performance Conditions
  • Prepaid System Purchase
    • Purchase Installation and full operation at NPV price
    • Negotiated Performance Conditions
webgen history
WebGen History
  • Founded, May 2000
  • Headquartered in Cambridge, MA
  • Experienced Senior Management: energy suppliers & policy-makers, commercial, institutional & industrial property owners, facilities management, online business services
  • Leading Institutional Investors
financials and payback market cap impact
Financials and Payback:Market Cap Impact

Assume:

Energy Spend/Sq. Ft. $1.30

Savings & Revenue/Sq. Ft. $0.18

7.5 million Sq. Ft. X $0.18 $1.4 million

After-Tax Impact @40% tax rate $0.8 million

Increase in Earnings ($34 to $34.8) 2.3 %

Price-Earnings Ratio 13.5

Market Cap Impact $10.8 million

financials and payback savings revenues us per square foot
Financials and Payback:Savings & Revenues(US $ Per Square foot)

Annual Energy Savings on $1.30 energy spend* $0.29

  • 10.0% Permanent Load Reduction $0.13
  • 7.5% Peak Load Avoidance & Diversification $0.10
  • 5.0% Permanent Lighting Reduction $0.07

Annual Capacity & Energy Revenues** $0.11

  • Capacity (.75 W/sq.ft. @ $0.08/W) $0.03
  • Energy (.75 W/sq.ft. @ $0.15/kWh) $0.08

Total Annual Savings & Revenues $0.40

*Assumes constant baseline data. Any changes in weather patterns, building occupancy, plug load, lighting load, capital projects will impact savings.

*WebGen does not participate in savings resulting from reduced maintenance, lower staff costs, energy-efficient capital projects, etc..

**Where applicable, assumes sale of Capacity @ $80,000/MWY and Energy @ $500/MWH (300 hours)

financials and payback savings revenues us per square foot35
Financials and Payback: Savings & Revenues(US $ Per Square foot)

Total Annual Savings & Incremental Revenues $0.400

WebGen Maintenance Fee @ $.09/sq. ft. $0.090

WebGen Share of Energy Savings @ 25% of $.29 $0.073

WebGen Share of Incremental Revenues @ 50% of $.11 $0.055

Total WebGen Standard Share $0.285

Fixed Portion (Customer responsibility) =$.090

Variable Portion (WebGen’s risk) =$.128

Annual Net Savings (50 % Share) $0.200

Total Customer Energy Cost Reduction =15.0%

Customer Payback on Invested Capital* <8 months

Minimum Energy Savings for Customer Break Even =4.7%

  • *Assumes no ISO energy-efficiency funds available to mitigate installation costs.
