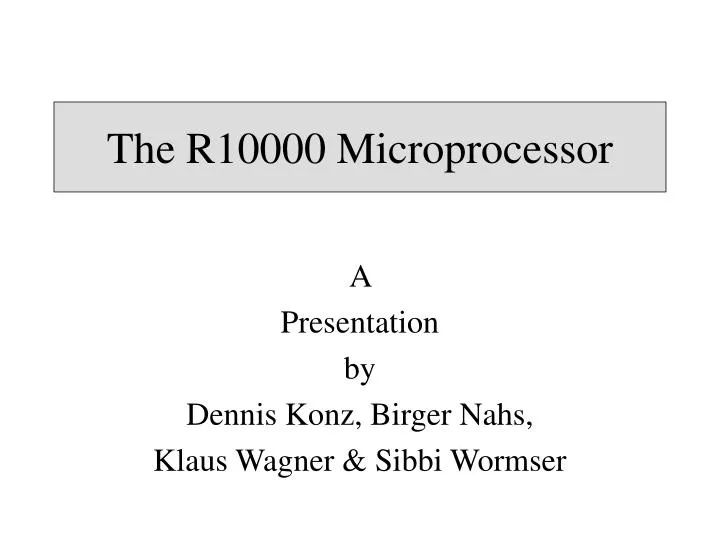

  1. The R10000 Microprocessor A Presentation by Dennis Konz, Birger Nahs, Klaus Wagner & Sibbi Wormser

  2. Outline • Introduction of the Team Members • Short Historic Treatise • Basic Features of the R10000 • Registers • Instruction Set • Addressing Modes • Speed • Factors Affecting Performance • Silicon Graphics‘s Onyx2 • Perspective in the Marketplace

  3. Short Historic Treatise 1981 * College professor James Clark found Silicon Graphics, Incorporated. 1984 * MIPS Computer Systems is founded, and begins developing its RISC architecture. 1994 * MIPS Technologies announces the R10000 RISC microprocessor. 1996 * Silicon Graphics introduces InfiniteReality, a workstation based on the MIPS Technologies R10000 microprocessor. * MIPS Technologies ships the 200-MHz R10000 RISC microprocessor

  4. Basic Features of the R10000 (1) • 64-bit MIPS IV instruction set architecture (ISA) • it can decode four instructions each pipeline cycle, • appending them to one of three instruction queues • five execution pipelines are connected to separate internal • integer and floating-point execution (or functional) units • dynamic instruction scheduling and out-of-order execution • RISC

  5. Basic Features of the R10000 (2) • separate on-chip 32-Kbyte primary • instruction and data caches • individually-optimized secondary cache • and System interface ports • an internal controller for the external secondary cache • an internal System interface controller • with multiprocessor support

  6. Registers (1) • two 64-bit-wide register files to store integer • and floating-point values • each file contains 64 registers • The integer register file has seven read and three write ports • the floating-point register file has five read • and three write ports

  7. Registers (2) • Floating-Point General Registers • (contains 64 physical 64-bit registers) • Floating-Point Control Registers • - Floating-Point Implementation and Revision Register • - Floating-Point Status Register • Coprocessor Registers • - Index Register • -Random Register • - Wired Register • - ...

  8. Instruction Set • Functional groups: •  Load and Store •  ALU •  Jump and Branch •  Miscellaneous MIPS Architectures Extensions

  9. Addressing Modes Depending on 3 different operating modes:  Kernel mode - allows 64-bit addressing and all instructions are valid  Superwiser mode - allows 64-bit addressing and MIPS III instructions - MIPS IV ISA is enabled all the time  User mode - allows 64-bit addressing, MIPS III instructions and the new MIPS IV instructions

  10. Speed  Internal clock rate of 195 MHz  Peak performance of 390 Mflop/s  780 mips

  11. Factors Affecting Performance MIPS ANDES Architecture (Non-sequential Dynamic Execution Scheduling)  Most important factors - superscalar instruction issue - speculative execution - non blocking cache

  12. Silicon Graphics‘s Onyx2 In October 1998 the world's largest Onyx2 visualization supercomputer has been installed at Argonne National Laboratory  Configured with 128 processors and eight graphics pipes  Provides up to 190 times the compute performance and 50 times the display capability available from today's highest performance personal computers  Enables Scientists to use up to six CAVE virtual reality environments to study such diverse problems as climate modeling, combustion dynamics, and quantum chemistry.

  13. Perspective in the Marketplace  good stock market performance of MIPS Technology and Silicon Graphics  While in 1996 MIPS already became the fastest growing RISC architecture  exceeded Motorola’s 32-bit 68000 CISC volume in 1997  For 1998 the R12000 has been announced, but will surely not replace the R10000 in foreseeable future

  14. END Thanks for your attention!!!!!
