overview
Overview
  • Diagnostics
    • Undulator Line Diagnostics
    • RF Beam Position Monitors
    • Beam Finder Wire
    • Beam Loss Monitors
  • Vacuum System
    • Undulator Vacuum Chamber
    • Bellows Module
  • Single Undulator Test
overview1

3,400

470

898

Undulator

12,038 mm

Total undulator length (x11): 131.52 m

Overview

Beam Position Monitor

Beam Finger Wire

Future Diagnostics Suite

Quadrupoles

  • Fabrication plan for vacuum chamber:
  • 33 production vacuum chambers & 7 spares
  • 1 mock-up chamber for single undulator test
  • 1 vacuum chamber for prototype
overview2
Overview

Short Break

Long Break

diagnostics
Diagnostics
  • Diagnostics
    • Undulator Line Diagnostics
    • RF Beam Position Monitors
    • Beam Finder Wire
    • Beam Loss Monitors
  • Vacuum System
    • Undulator Vacuum Chamber
    • Bellows Module
  • Single Undulator Test
diagnostics1
Diagnostics
  • Undulator Line Diagnostics
    • Optical Transition Radiation
    • Scanning Wire Monitor
    • Vacuum Chamber
  • ULD Team
  • Bingxing Yang
  • Jim Bailey
  • Tom Buffington
  • Pat Dombrowski

This was scheduled to be installed in the April/May shutdown on the BTX line.

slide7

Cavity

Network

Analyzer

Down Converter Electronics

Lab Test of a non-vacuum Cavity

  • RF Beam Position Monitor
    • Cavity
    • Down Converter Electronics
    • Support
rf beam position monitor
RF Beam Position Monitor
  • RF BPM Team
  • Bob Lill
  • Leonard Morrison
  • Randy Zabel
  • Michele Givens
  • Zek Salazar
  • The team is preparing two major test:
  • The ITS Single unit test -Scheduled for Feb/March 2006
  • The LEUTL tunnel three unit test –Scheduled for June 2006
beam finder wire
Beam Finder Wire
  • Beam Finder Wire Team
  • Jim Bailey
  • Jim Morgan
  • Scott Doran

Test of prototype components to

start in March 2006

beam loss monitors
Beam Loss Monitors
  • Beam Loss Monitors Team
  • Bill Berg
  • Jim Morgan
  • Scott Doran
  • Additional help from Northwestern
vacuum system
Vacuum System
  • Diagnostics
    • Undulator Line Diagnostics
    • RF Beam Position Monitors
    • Beam Finder Wire
    • Beam Loss Monitors
  • Vacuum System
    • Undulator Vacuum Chamber
    • Bellows Module
  • Single Undulator Test
lcls vacuum chamber ass y
LCLS Vacuum Chamber Ass’y

Vacuum Chamber Assembly

Support Assembly

  • Vacuum Chamber Team
  • Soon-Hong Lee
  • Jim Bailey
  • Tom Buffington
  • Scott Doran

X-Adjustor

Z-Adjustor

manufacturing processes

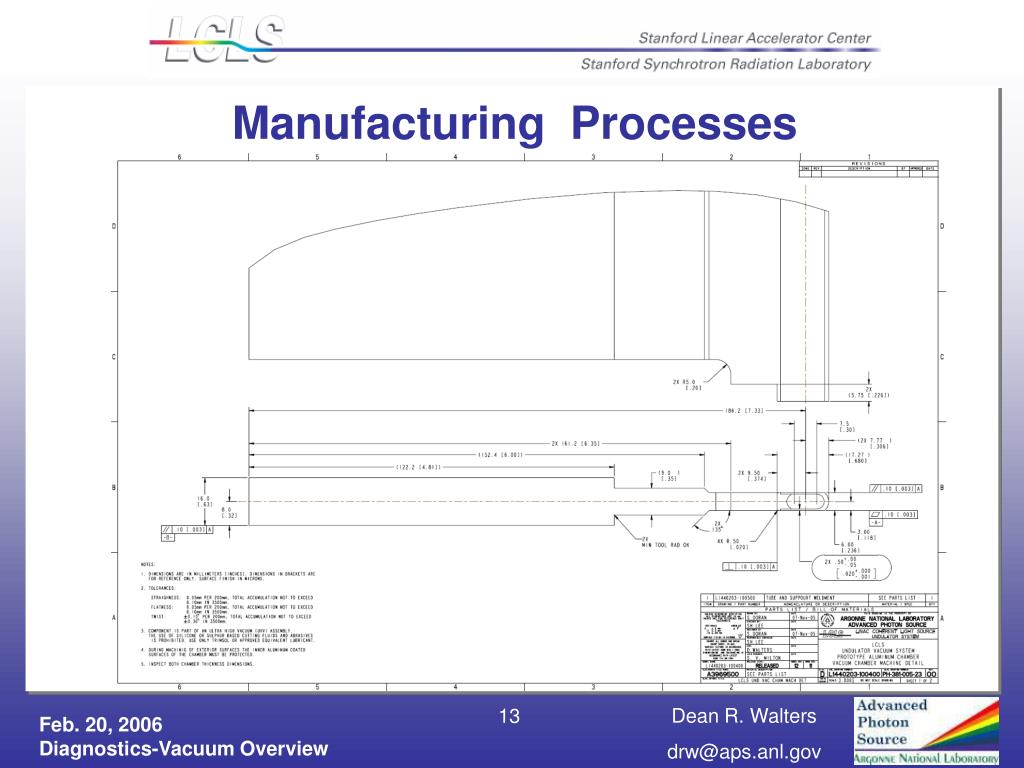

Manufacturing Processes

SST Sheet (144” x 2” x 0.118”)

SST Plate (144” x 6” x 1”)

Milling/Polishing

Polishing/Grinding

Al-Coating

Al-Coating

Forming

Laser Welding

Milling/Grinding

vacuum chamber prototypes
Vacuum Chamber Prototypes

Type 316 LN Laser Weld Specimen

  • Quotations for specialty stainless steel ( 316 LN) are in progress
  • Adjuster-Support is on order and will arrive early March 2006
  • Full chamber prototype to be complete by June 2006
bellows module
Bellows Module
  • Bellows Module Team
  • Soon-Hong Lee
  • Jim Morgan
  • Scott Doran

1. Prototype Bellows fabricated by April 2006

2. Bellows testing complete by June 2006

single undulator test
Single Undulator Test
  • Diagnostics
    • RF Beam Position Monitors (mock-up)
    • RF BPM Support
    • Beam Finder Wire (mock-up)
    • Beam Loss Monitors (mock-up)
  • Vacuum System
    • Undulator Vacuum Chamber
    • Chamber Support
    • Vacuum Pump
    • Chamber for the BFW-BLM & Support
  • Diagnostics-Vacuum
  • SUT Team
  • Soon-Hong Lee
  • Jim Bailey
  • Jim Morgan
  • Leonard Morrison
  • Scott Doran
  • Chamber and support due 1st week March 2006
  • RF BPM due end of Feb. 2006
  • Ion pump due mid Feb. 2006
  • Materials for BFW, BFW chamber, & BLM are on hand
