Undulator Vacuum System

Undulator Vacuum System. 6 Gauge Pairs (6 Cold Cathode + 6 Pirani) 33 Ion Pumps (one per undulator segment) 4 Pneumatic Valves (one at each end, two in middle). Undulator Vacuum Schedule. 09/2007-11/2007: Make rack profiles, specify cables (done)

chad
Download Presentation

Undulator Vacuum System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Undulator Vacuum System • 6 Gauge Pairs (6 Cold Cathode + 6 Pirani) • 33 Ion Pumps (one per undulator segment) • 4 Pneumatic Valves (one at each end, two in middle)

  2. Undulator Vacuum Schedule • 09/2007-11/2007: Make rack profiles, specify cables (done) • 12/2007-01/2008: Order equipment (done) • 01/2008-06/2008: Receive equipment • 05/2008-07/2009: Install cables • 07/2008: Load and install racks • 07/2008-08/2008: Terminate cables • 07/2008-09/2008: Test system • 09/2008: System ready (See next slide for detailed schedule)

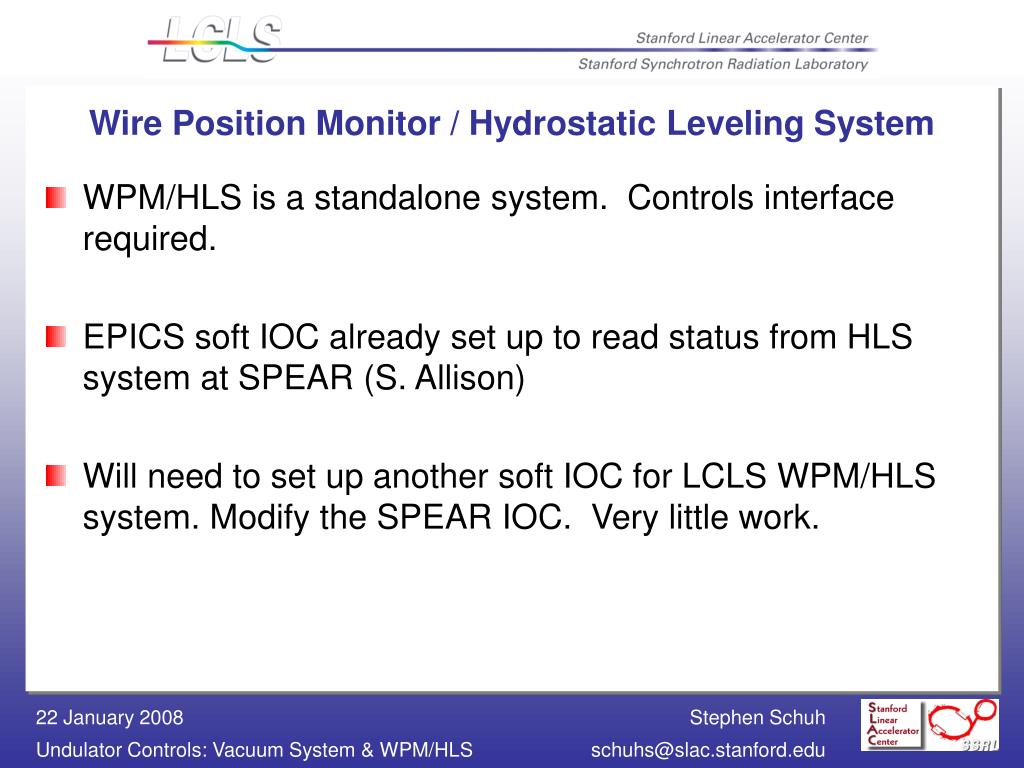

  3. Wire Position Monitor / Hydrostatic Leveling System • WPM/HLS is a standalone system. Controls interface required. • EPICS soft IOC already set up to read status from HLS system at SPEAR (S. Allison) • Will need to set up another soft IOC for LCLS WPM/HLS system. Modify the SPEAR IOC. Very little work.
