Fish: Form and function

Fish: Form and function. An LSU Museum of Natural Science presentation to accompany the activity. Types and Function of fins. All Fish have fins! Each fin shape has a unique shape and function. Dorsal - (top fin) Helps keep the fish upright. Also used for sudden direction changes.

omer
Download Presentation

Fish: Form and function

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Fish: Form and function An LSU Museum of Natural Science presentation to accompany the activity

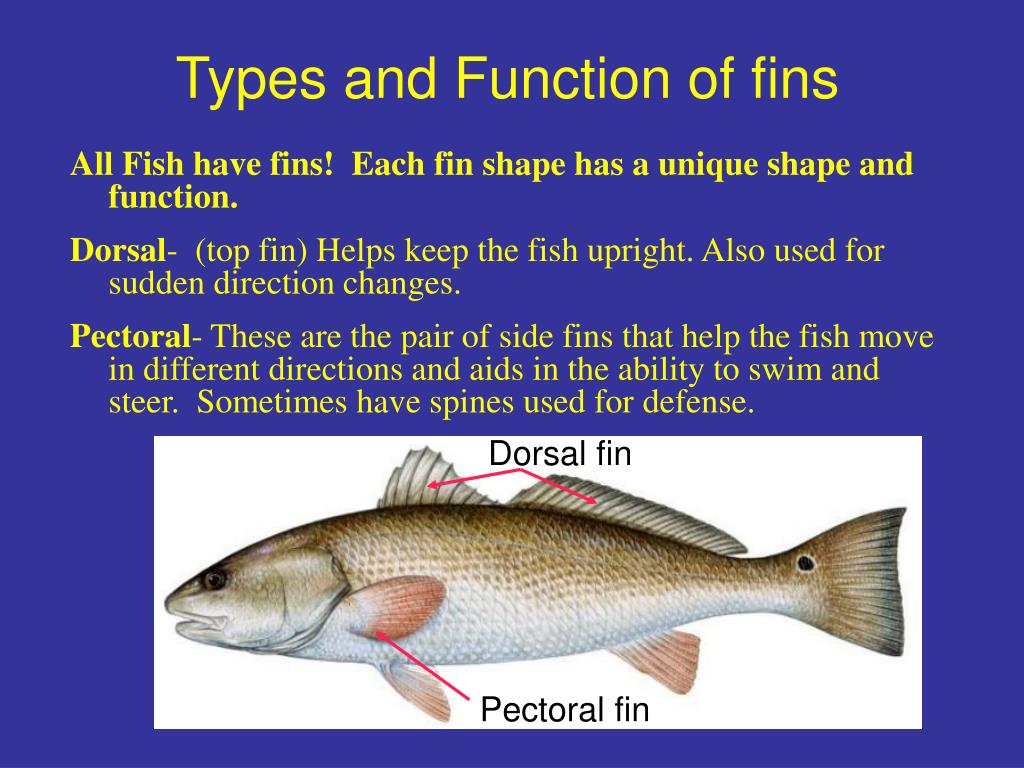

  2. Types and Function of fins All Fish have fins! Each fin shape has a unique shape and function. Dorsal- (top fin) Helps keep the fish upright. Also used for sudden direction changes. Pectoral- These are the pair of side fins that help the fish move in different directions and aids in the ability to swim and steer. Sometimes have spines used for defense. Dorsal fin Pectoral fin

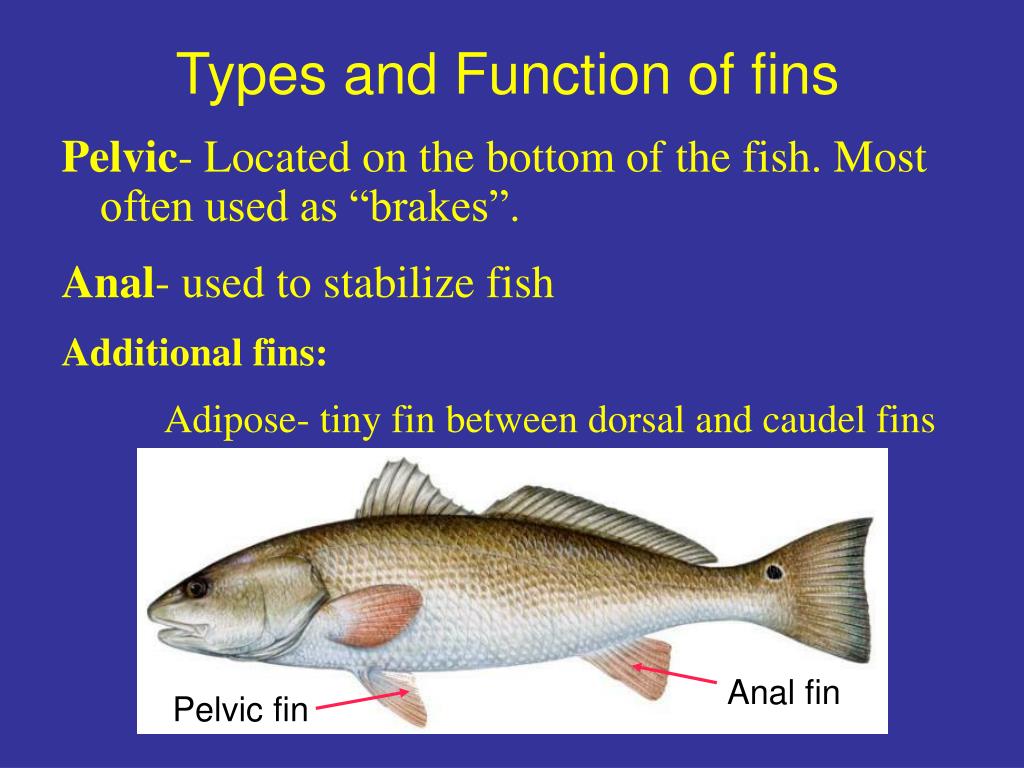

  3. Types and Function of fins Pelvic- Located on the bottom of the fish. Most often used as “brakes”. Anal- used to stabilize fish Additional fins: Adipose- tiny fin between dorsal and caudel fins Anal fin Pelvic fin

  4. Caudel (Tail) fin This fin is used to propel the fish through the water, pick up speed, and make turns. • Rounded caudal fin –allows for effective acceleration and maneuvering but in general is found on fish that do not swim long distances because of large amounts of drag • Truncated caudal fin – straight tipped tail; allows for quick turns and short burst of speed • Emarginated caudal fin – has the least amount of drag; fin has two lobes • Forked caudal fin- 2 lobes, helps reduce turbulance • Lunate caudal fin- tend to be fastest fishes, maintain speeds

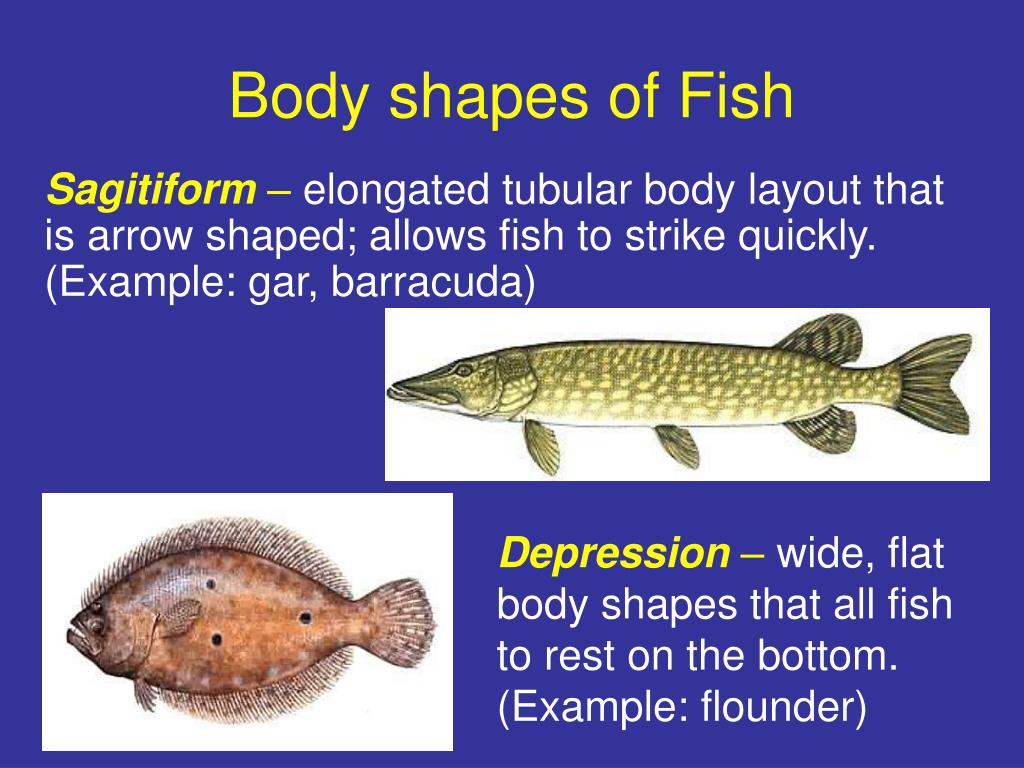

  5. Body shapes of Fish Sagitiform – elongated tubular body layout that is arrow shaped; allows fish to strike quickly. (Example: gar, barracuda)  Depression – wide, flat body shapes that all fish to rest on the bottom. (Example: flounder)

  6. Body shapes of Fish Compressiform – fish that are laterally compressed; tall, thin body shape that allows fish to enter vertical crevices; allows for quick bursts of speed and quick turns. Fusiform:streamlined with pointed ends - shaped like a plane; helps to lower frictional resistance, and allows them to move through the water extremely fast.

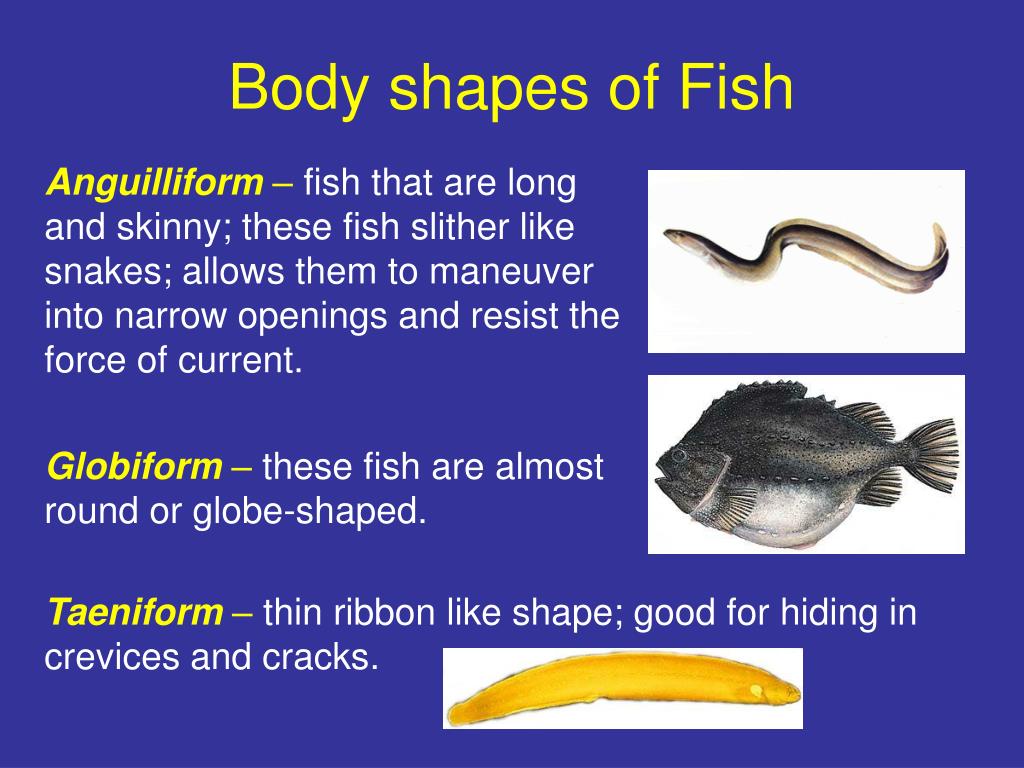

  7. Body shapes of Fish Anguilliform – fish that are long and skinny; these fish slither like snakes; allows them to maneuver into narrow openings and resist the force of current. Globiform – these fish are almost round or globe-shaped. Taeniform – thin ribbon like shape; good for hiding in crevices and cracks.

  8. 1st dorsal fin 2nd dorsal fin Eye Nostril Caudal Mouth Lateral line Anal fin Pectoral fin Operculum Pelvic fin

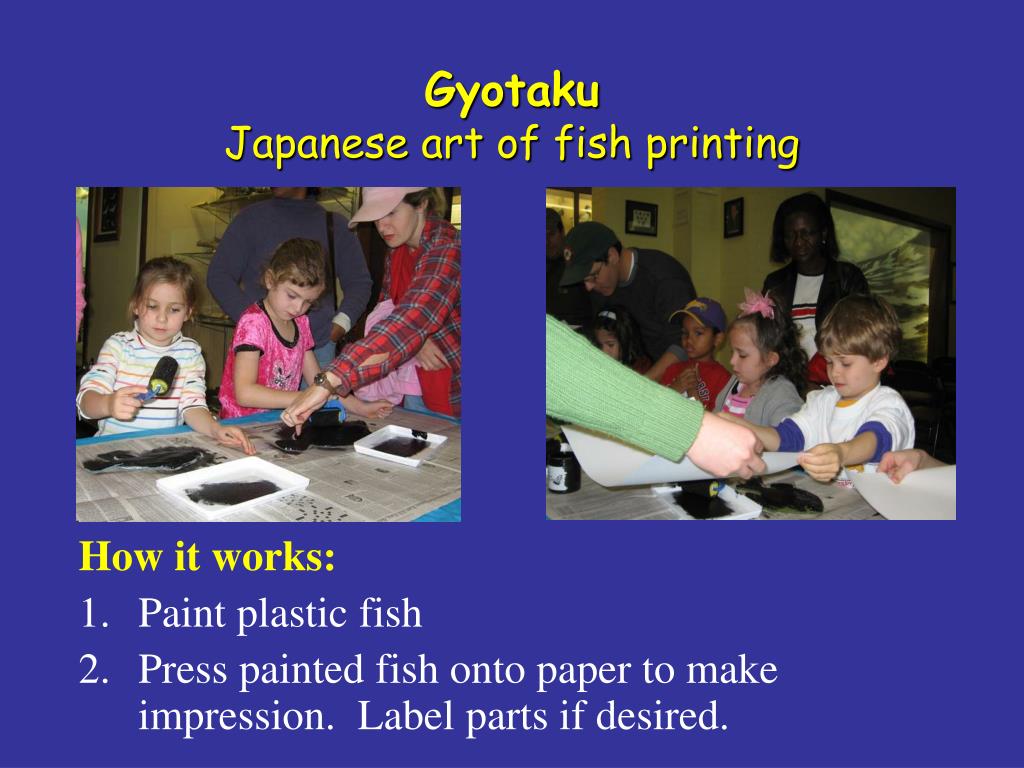

  9. Gyotaku Japanese art of fish printing How it works: • Paint plastic fish • Press painted fish onto paper to make impression. Label parts if desired.

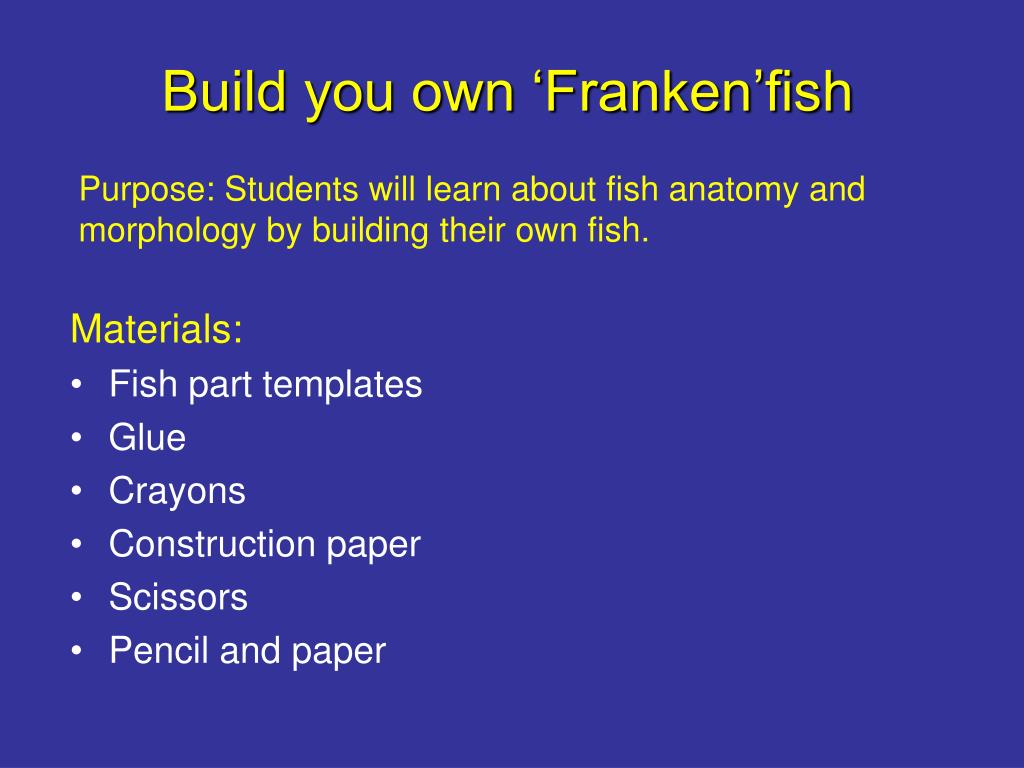

  10. Build you own ‘Franken’fish Purpose: Students will learn about fish anatomy and morphology by building their own fish. Materials: • Fish part templates • Glue • Crayons • Construction paper • Scissors • Pencil and paper

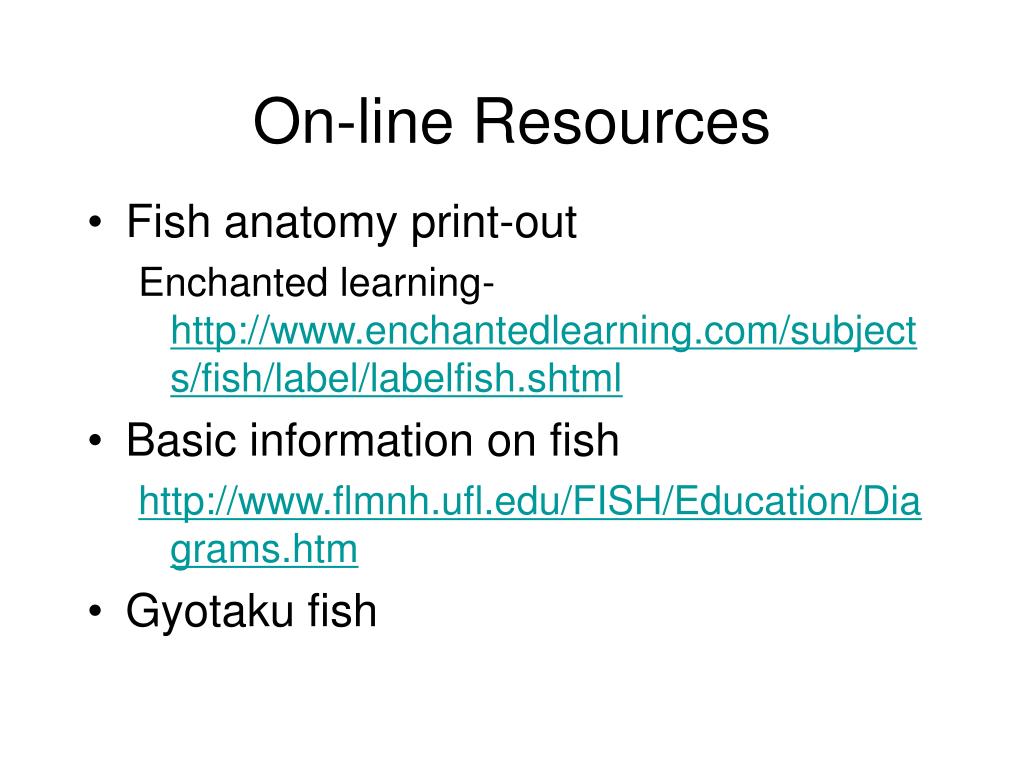

  11. On-line Resources • Fish anatomy print-out Enchanted learning- http://www.enchantedlearning.com/subjects/fish/label/labelfish.shtml • Basic information on fish http://www.flmnh.ufl.edu/FISH/Education/Diagrams.htm • Gyotaku fish
