Challenges and Solutions for Cloud/Ice Masking and SST Algorithms in the Arctic

This session discusses problems and plans for improving cloud/ice masking and SST algorithms in the Arctic, including issues with night separation, ice detection, simulation comparisons, biases, and error covariances.

mshockley
Download Presentation

Challenges and Solutions for Cloud/Ice Masking and SST Algorithms in the Arctic

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Session 1 Input for discussion

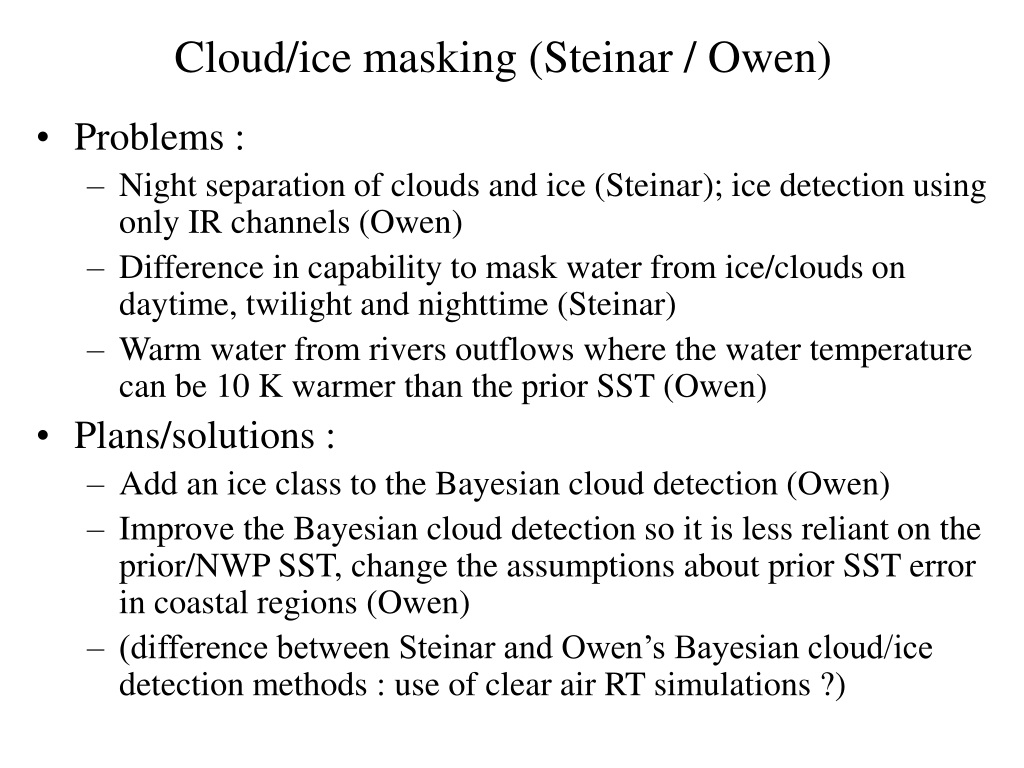

  2. Cloud/ice masking (Steinar / Owen) • Problems : • Night separation of clouds and ice (Steinar); ice detection using only IR channels (Owen) • Difference in capability to mask water from ice/clouds on daytime, twilight and nighttime (Steinar) • Warm water from rivers outflows where the water temperature can be 10 K warmer than the prior SST (Owen) • Plans/solutions : • Add an ice class to the Bayesian cloud detection (Owen) • Improve the Bayesian cloud detection so it is less reliant on the prior/NWP SST, change the assumptions about prior SST error in coastal regions (Owen) • (difference between Steinar and Owen’s Bayesian cloud/ice detection methods : use of clear air RT simulations ?)

  3. Use of NWP-based RT simulations in the Arctic (Pierre) • Problems : • Main problem in our OSI SAF METOP prototype : adjusting brightness temperature simulations • Simulations based on OSTIA foundation SSTs are very difficult to compare with observations, since foundation SST is very scarcely observed from space in low wind and permanent solar illumination conditions • Plans/solutions : • Use a drastic wind filtering before adjusting brightness temperature simulations in the Arctic • CMS to write a paper on 7 years of METOP-A Arctic results • X (?) to build up a profile data base adapted to Arctic algorithms • CMS to prepare regional high latitude algorithms as a back-up to simulation-derived BTs for METOP-B • CMS and DMI to compare METOP biases (derived from NWP simulations and from Jacob’s SST correction method)

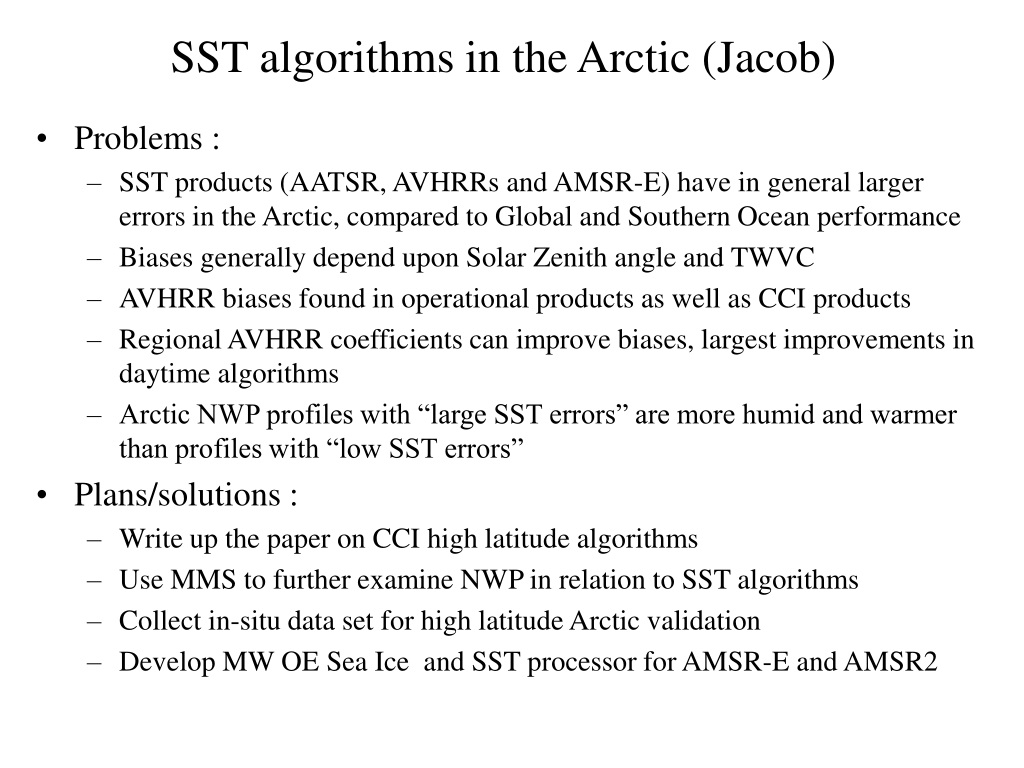

  4. SST algorithms in the Arctic (Jacob) • Problems : • SST products (AATSR, AVHRRs and AMSR-E) have in general larger errors in the Arctic, compared to Global and Southern Ocean performance • Biases generally depend upon Solar Zenith angle and TWVC • AVHRR biases found in operational products as well as CCI products • Regional AVHRR coefficients can improve biases, largest improvements in daytime algorithms • Arctic NWP profiles with “large SST errors” are more humid and warmer than profiles with “low SST errors” • Plans/solutions : • Write up the paper on CCI high latitude algorithms • Use MMS to further examine NWP in relation to SST algorithms • Collect in-situ data set for high latitude Arctic validation • Develop MW OE Sea Ice and SST processor for AMSR-E and AMSR2

  5. Physics-based SST retrieval in the Arctic (Chris) • Problems : • Errors in RT simulations can arise from surface temperature errors, RT model errors and/or NWP profiles errors (idea about NWP errors in the Arctic ?) • Error covariance of RT simulations is not well known • Plans/solutions : • “bias tolerant” approaches for SST retrieval : • Modified Total Least Square (Prabhat Koner) • Make the OE retrieval “bias aware”
