Dell™ Latitude™ E4 Technical Guidebook

1. Dell™ Latitude™ E4Technical Guidebook May 2012

2. Table of Contents

3. End user computing is no longer just about the deviceor technology… • It’s about the overall experience: • Enabling end users to do more without making IT sacrifices • Making data access pervasive anytime, anywhere, on any device • Developing a deeper understanding of end users, roles and needs Confidential

4. It’s aboutmaximizingend user productivityandIT control: • Making users more productive than ever by mapping to technology interaction, data access and device usage • Empowering IT professionals with tools to more efficiently deploy, manage, secure and support their changing workforce Confidential

5. Dell End User Computing is about: • Customer inspired design across a complete portfolio of systems, services and solutions • Seamless experience across multiple devices, operating systems and applications • Tailored solutions optimized for management, security and productivity Confidential

6. Commercial brands evolving with end user needs, enabling them to do more than ever before Latitude & OptiPlex Vostro XPS Dell Precision Empower your passions Big Ideas for Small Business Professional Class Laptops & Desktops The Ultimate in Workstation Performance Driving enterprise efficiency and TCO. Elevating design. Redefining durable, powerful, secure, manageable. Worry-free business solutions and services designed for small business. Artful blend of high performance and purposeful design for consumers. Confidential 6

7. Dell Latitude™ Laptops Enabling end users to do more than ever before without sacrificing IT management and security. Inspired Design Business-ClassControl Go-Anywhere Productivity IntegratedSolutions Confidential

8. Dell Latitude™ Laptops Inspired Design Business-ClassControl Go-AnywhereProductivity IntegratedSolutions Long-lasting durability, uncompromised reliability and flexible integration into your organization with environmentally conscious principles to respect our planet. Performance, versatility and collaboration features that that help end users be more productive than ever – no matter where they’re working, when they’re working, or who they’re collaborating with. Efficient manageability, confident security, long-term stability and proven service and support for uncompromised IT control over your laptops. Tailored solutions for cost effective security, management, virtualization and productivity in next-generation end user computing environments. Confidential

9. Inspired Design Long-lasting Durability Dell E-Family laptops are designed and tested to help ensure long term reliability and durability in hard working environments. Long-lasting durability, uncompromised reliability and flexible integration into your organization with environmentally conscious principles to respect our planet. Right Fit Dell Latitude E-Family laptops seamlessly integrate into the office and field environments and provide flexibility to support users’ needs. Environmentally-Conscious Principles Dell Latitude E-Family laptops are engineered to respect our planet and offer services that minimize energy consumption and help recycle. Confidential

10. Inspired Design Long-lasting Durability Dell Latitude E-Family laptops are designed and tested to help ensure long term reliability and durability in hard working environments. • Get ultimate protection from extreme temperatures, vibration, dust and high altitudes with MIL-STD 810G testing. • Handle work’s tough demands with the Tri-Metal™ casing, brushed aluminum finish, reinforced magnesium alloy wrapped corners and frame, strong steel hinges, rugged closing latch and durable powder-coated underside. • Worry less about a mess with the spill-resistant keyboard and LCD protective seal that helps to form a barrier around your LCD panel when closed. • Protect data from drops and vibration with StrikeZone™ shock absorber, Fast Response Free-Fall Sensor, and rubber hard drive isolation. Confidential

11. Inspired Design Right Fit Dell Latitude E-Family laptops seamlessly integrate into the office and field environments and provide flexibility to support users’ needs. • Get the protection you need no matter how tough the job with business rugged to fully rugged solutions. • Choose from a range of specialty models designed for integration into vertical solutions, such as education, healthcare, manufacturing, military, and more. • Find the right balance of sophisticated design and quality construction for ultimate durability. • Transition seamlessly to full desktop productivity with E-port docking solutions featuring true hot docking and undocking capabilities. Confidential

12. Inspired Design • Compute more, consume less, and save money with BVR/PFC free configurations on all Latitude E-family laptops, efficient power supplies, and recyclable packaging. • ENERGY STAR 5.2, EPEAT Gold3, CECP, TCO 3.0, WEEE, Japan Energy Law, Japan Green PC, EU RoHS, China RoHS • Protect your organization’s sensitive data and recycle responsibly with Dell Asset Recovery and Recycling Service. • OptiPlex 9010 small form factor is brominated flame retardant free (BFR-free) and polyvinyl chloride free (PVC-free); meeting the definition of BFR-/PVC-free as set forth in the iNEMI Position Statement on the ‘Definition of Low-Halogen Electronics (BFR-/CFR-/PVC-free)’. Plastic parts contain less than 1,000 ppm (0.1%) of bromine (if the Br source is from BFRs) and less than 1,000 ppm (0.1%) of chlorine (if the Cl source is from CFRs or PVC or PVC copolymers). All printed circuit board (PCB) and substrate laminates contain bromine/chlorine total less than 1,500 ppm (0.15%) with a maximum chlorine of 900 ppm (0.09%) and maximum bromine being 900 ppm (0.09%). • A minimum of 10% post-consumer recycled plastic enclosure on all new OptiPlex generation form-factors. • EPEAT Gold Registered in US. EPEAT registration varies by country – see www.epeat.net for registration status by country. Dell’s new generation of Latitude E-family laptops are the most environmentally-responsible Latitude laptops ever. Environmentally-Conscious Principles Dell Latitude E-Family laptops are engineered to respect our planet and offer services that minimize energy consumption and help recycle. Confidential

13. Go-Anywhere Productivity Agile Performance Dell Latitude E-Family laptops deliver agile performance to match productivity needs and help end users work effectively and efficiently, without interruption. Performance, versatility and collaboration features that that help end users be more productive than ever – no matter where they’re working, when they’re working, or who they’re collaborating with. Effective Collaboration Dell Latitude E-Family laptops enable end users to easily connect and collaborate with colleagues anytime, anywhere. Versatile Usage Dell Latitude E-Family laptops help professionals work comfortably and flexibly with intuitive design features that adapt to fit their unique work styles. Confidential

14. Go-Anywhere Productivity Agile Performance Dell Latitude E-Family laptops deliver agile performance to match productivity needs and help end users work effectively and efficiently, without interruption. • Power through your day with the latest Intel® Core™ i5 or i7 processor options, high-bandwidth DDR3 memory and Intel® HD or NVIDIA® graphics. • Stay productive with up to 32.8 hours1of battery life, 3-year battery and E-Family Battery Slice options, and ExpressCharge™ for 80% recharge in an hour. • Get up and going fast when traveling from site to site with Intel Rapid Start and Intel Smart Connect.2 • With optional 9-cell battery, optional 9-cell battery slice, optional 3-cell modular bay battery and optional SSD. Based on testing using the Mobile Mark 2007 battery life benchmark test. For more information about this benchmark test, visit www.bapco.com. Test results should be used only to compare one product with another and are not a guarantee you will experience the same battery life. Battery life may be significantly less than the test results and varies depending on your product’s configuration, software, usage, operating conditions, power management settings and other factors. Maximum battery life will decrease with time and use. • WiFienabled connection required. System must be on or in sleep mode with application running to update. Confidential

15. Go-Anywhere Productivity Effective Collaboration Dell Latitude E-Family laptops enable end users to easily connect and collaborate with colleagues anytime, anywhere. • Connect with colleagues from virtually anywhere with the high-performing antenna and latest wireless and mobile broadband options. • Communicate effectively worldwide with optional built-in HD webcam, array micro-phones and Microsoft Unified Communications certifications for an optimal video conference experience. Confidential

16. Go-Anywhere Productivity • Work comfortably and flexibly with 180 degree LCD movement, comfortable, responsive keyboard and enlarged touchpad, and dedicated number keypad on 15” laptops. • Easily work in low-light settings with the optional backlit keyboard. • Work efficiently with USB 3.0 for fast data transfers and USB Powershare to charge USB 3.0 devices while in sleep mode. Versatile Usage Dell Latitude E-Family laptops help professionals work comfortably and flexibly with intuitive design features that adapt to fit their unique work styles. Confidential

17. Business-Class Control Efficient Manageability Dell Latitude E-Family laptops deliver a choice of remote manageable hardware and solutions to help you manage your systems with ease. Efficient manageability, confident security, long-term stability and proven service and support for uncompromised IT control over your laptops. Confident Security Dell Latitude E-Family laptops deliver confident security with robust access control and strong data protection. Long-term Stability Dell Latitude long lifecycles and managed transitions ensure long-term stability that helps organizations save time and money. Proven Service & Support Dell Latitude E-Family laptops are put into production fast and remain up and running with services designed to configure, deploy, manage, and support your PCs. Confidential

18. Business-Class Control Efficient Manageability Dell Latitude E-Family laptops deliver a choice of remote manageable hardware and solutions to help you manage your systems with ease. • Remotely manage your Latitude E-family laptops with the latest Intel® vPro systems management iAMT 8.x with Dell‘s remote BIOS management and Dell’s remote hard drive wipe. • Minimize stocked parts with one common dock, AC adapter and accessories for typically up to 5 generations of a family or longer. • Easily share optical drives, hard drives and batteries between laptops with common media modules. • Upgrade components conveniently via one single access door, now with fewer screws. • Save time and money with easy to use centralized systems management appliances from Dell KACE™. Confidential

19. Business-Class Control Confident Security Dell Latitude E-Family laptops deliver confident security with robust access control and strong data protection. • Safeguard data and meet compliance regulations with Trusted Platform Module (TPM), Dell Data Protection | Encryption and encrypted hard drive options. • Control who has access to your data with ControlVault™ and contactless smart card and fingerprint reader login access options. • Strengthen security with industry standard anti-virus, physical hardware lock and optional remote hard drive location and wipe service. • Help prevent system viruses and contain data leaks with port control options. Confidential

20. Business-Class Control • Confidently plan future product roll-outs with ImageWatch™ advance look at software and hardware changes. • Maximize ROI with 15+ months stable lifecycle and 60 to 90 days transition period. • Easily order replacement parts and resolve issues by standardizing Latitude E-Family laptops to a global configuration with Global Standard Platform. Long-term Stability Dell Latitude long lifecycles and managed transitions ensure long-term stability that helps organizations save time and money. Confidential

21. Business-Class Control • Customize support services for your specific needs with Dell ProSupport for IT or End Users. • Simplify and accelerate the customization and utilization of your new Latitude E-Family laptops with Dell Configuration and Deployment Services. • Protect data by tracking lost or stolen laptops with Dell Asset Tagging and Reporting as well as Computrace. Proven Service & Support Dell Latitude E-Family laptops are put into production fast and remain up and running with services designed to configure, deploy, manage, and support your PCs. Confidential

22. Integrated Solutions Dell Data Protection Protect data no matter where it is with the most comprehensive and flexible data protection and encryption solutions. Tailored solutions for cost effective security, management, and productivity in next-generation end user computing environments. Dell Systems Management Save time and money with efficient solutions for centralizing management, automating processes, and reducing support costs. Dell Desktop Virtualization Improve data security, streamline management, and speed time to value with purpose-built hardware, software, and services. Dell Cloud (SaaS) Services Gain efficiencies by offloading selective IT tasks to a cloud and adopting an on-demand, pay-as-you-go model that scales with your needs. Confidential

23. Integrated Solutions Dell Data Protection Protect data no matter where it is with the most comprehensive and flexible data protection and encryption solutions. • Authentication Software • Manage strong authentication – Supports single sign on, pre-boot authentication, TPM and self-encrypting drives • Intuitive interface that allows end users to easily enroll credentials • Supports RSA’s SecurID, passwords, contactless Smart Cards, Smart Cards, multi-factor, biometric information and system passwords • Dell Data Protection | Encryption • Single solution for system disk and removable media vs. multiple software • One-touch preset compliance policy templates to enable fast deployment • Extremely flexible encryption based on user profile, data sensitivity and compliance needs instead of sector based that is either encrypted or not • Highest level of Federal Information Processing Standards 140-2 certification commercially available with optional Hardware Encryption Confidential

24. Integrated Solutions Dell Systems Management Save time and money with efficient solutions for centralizing management, automating processes, and reducing support costs. • Automating everyday management tasks with tools and utilities • Implement a KACE management appliance – 61%* report the appliance paid for itself in less than 3 months • Do it yourself with a leading client management solution Centralized Management Confidential

25. Dell Virtualization Solutions Portfolio Integrated Solutions Simplified Simple IT Infrastructure Enterprise Advanced IT Infrastructure On Premise DVS SimplifiedAppliance Dell Hosted Customer Managed Desktop as a Service Coming in mid-2012 DVS Enterprise Integrated Solution Stack Dell Desktop Virtualization Improve data security, streamline management, and speed time to value with purpose-built hardware, software, and services. Dell Hosted Dell Managed • Integrated validated solution stacks simplify deployment and decrease risk • Purpose built solutions with open, proven infrastructure - all the components from a single source • End to end platforms and services to meet the specific needs of our customers Confidential

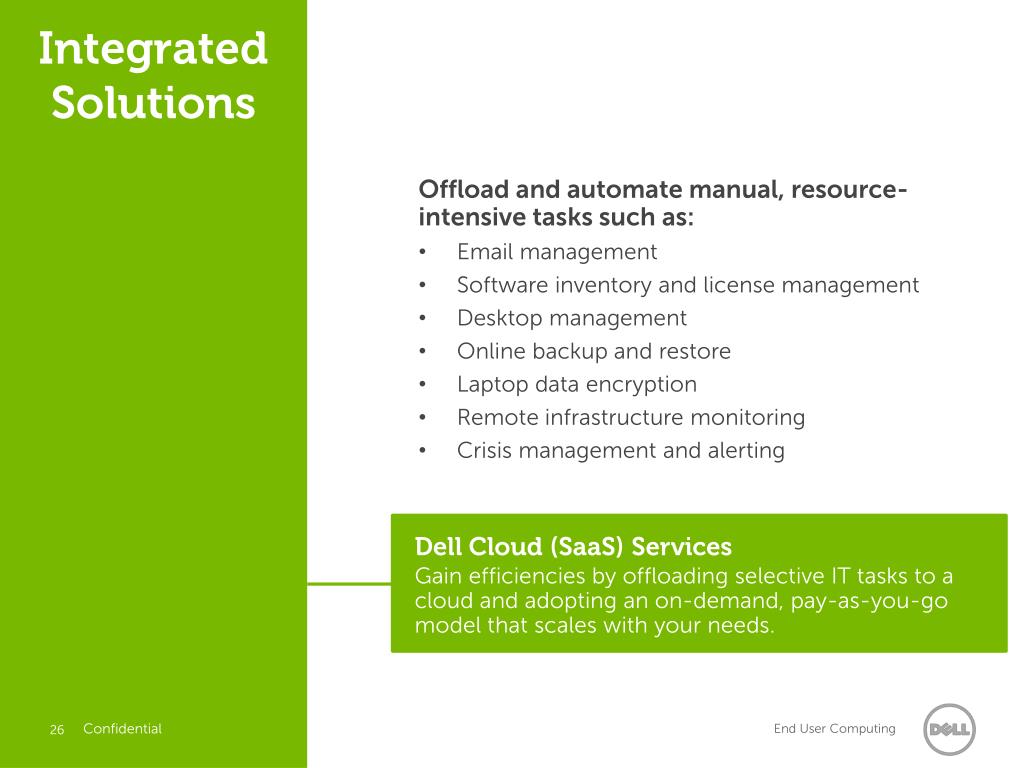

26. Integrated Solutions • Offload and automate manual, resource-intensive tasks such as: • Email management • Software inventory and license management • Desktop management • Online backup and restore • Laptop data encryption • Remote infrastructure monitoring • Crisis management and alerting Dell Cloud (SaaS) Services Gain efficiencies by offloading selective IT tasks to a cloud and adopting an on-demand, pay-as-you-go model that scales with your needs. Confidential

27. Latitude E6530 Product Views and Technical Specifications

28. E6530 Weight, Dimensions, Top/Right View display latch microphone display release latch camera camera status light display power button HDMI connector eSata/USB2.0 connector powered USB 3.0 connector optical drive wireless switch ExpressCard slot fingerprint reader security digital (SD) memory-card reader contactless smart card Reader touchpad touchpad buttons (2) touchpad buttons (3) trackstick keyboard volume control buttons device status light Starting weight: 5.4lbs / 2.449kg with a 4-cell battery, airbay, and optional SSD Dimensions: • Width: 15.12” / 384.00mm • Depth: 10.16” / 258.00mm • Height (front/back): 1.11-1.34” / 28.00-34.20mm

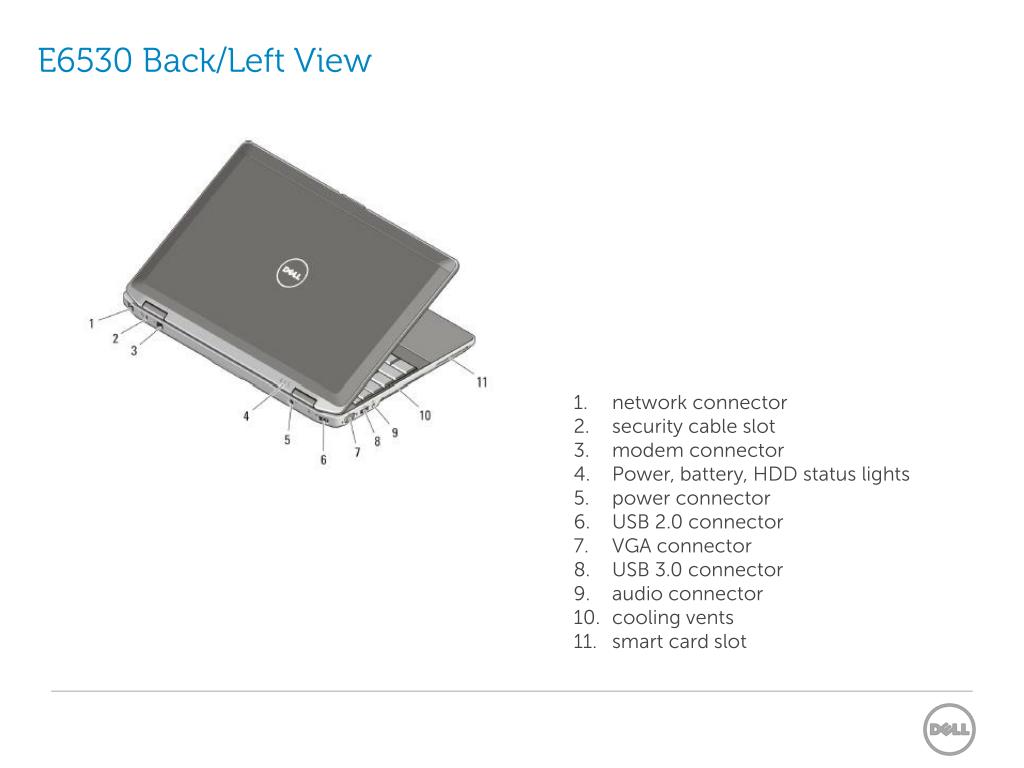

29. E6530 Back/Left View network connector security cable slot modem connector Power, battery, HDD status lights power connector USB 2.0 connector VGA connector USB 3.0 connector audio connector cooling vents smart card slot

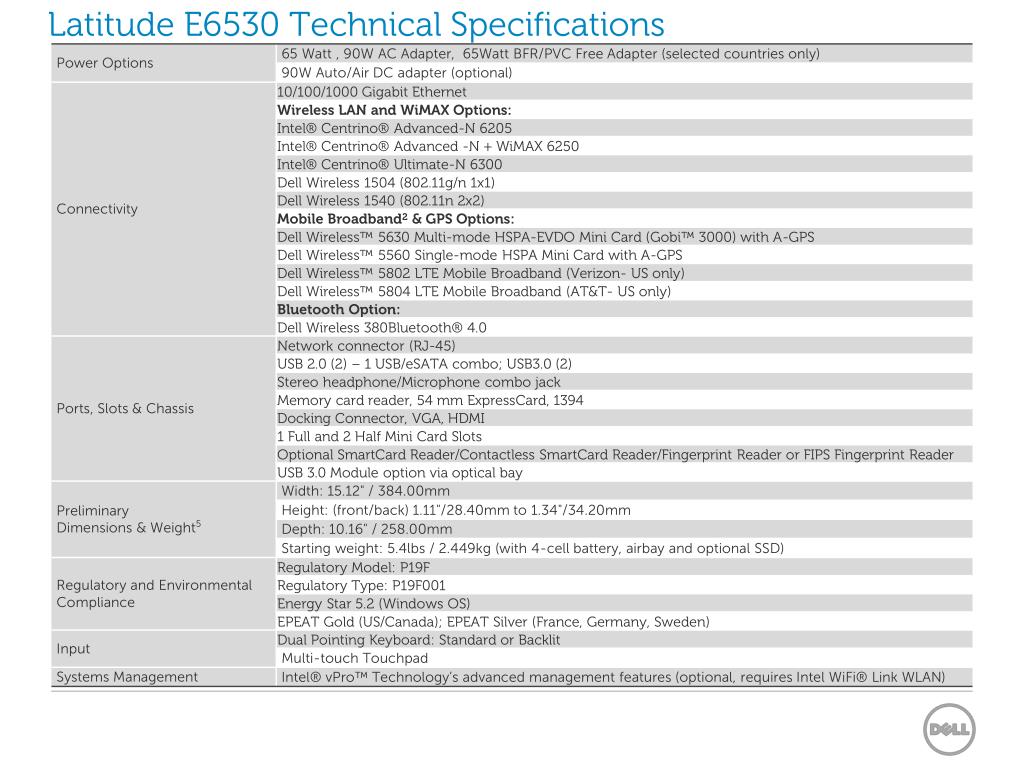

30. Latitude E6530 Technical Specifications

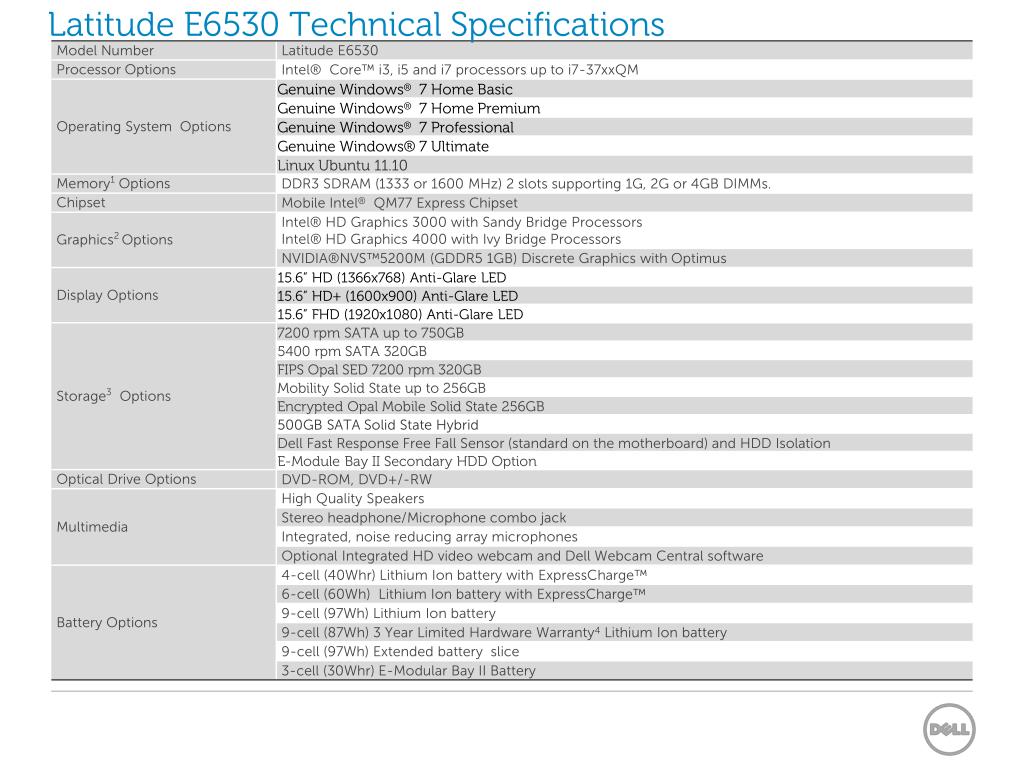

31. Latitude E6530 Technical Specifications

32. Latitude E6430 Product Views and Technical Specifications

33. E6430 Weight, Dimensions, Top/Right View microphone display release latch camera camera status light display latch display power button eSata/USB2.0 connector USB 3.0 connector Powered USB3.0 connector volume control buttons wireless switch optical drive ExpressCard slot fingerprint reader security memory-card (SD) reader contactless smart card reader touchpad buttons (2) touchpad trackstickbuttons (3) trackstick keyboard device status lights Starting weight: 4.44lbs/2.014kg with a 4-cell battery, airbay, and optional SSD Dimensions: • Width: 13.86” / 352mm • Depth: 9.49” / 241mm • Height (front/back): 1.05-1.27” / 26.60-32.40mm

34. E6430 Back/Left View HDMI connector security cable slot modem connector Power, battery, HDD status lights power connector network connector USB 2.0 connector VGA connector audio connector cooling vents smart card slot

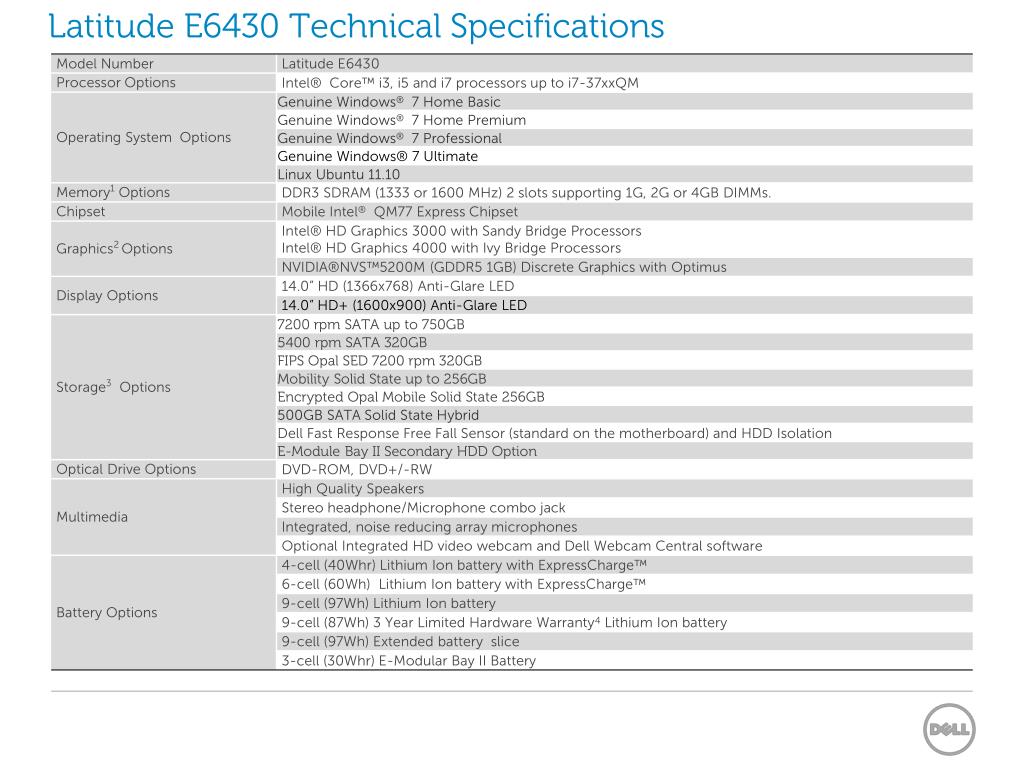

35. Latitude E6430 Technical Specifications

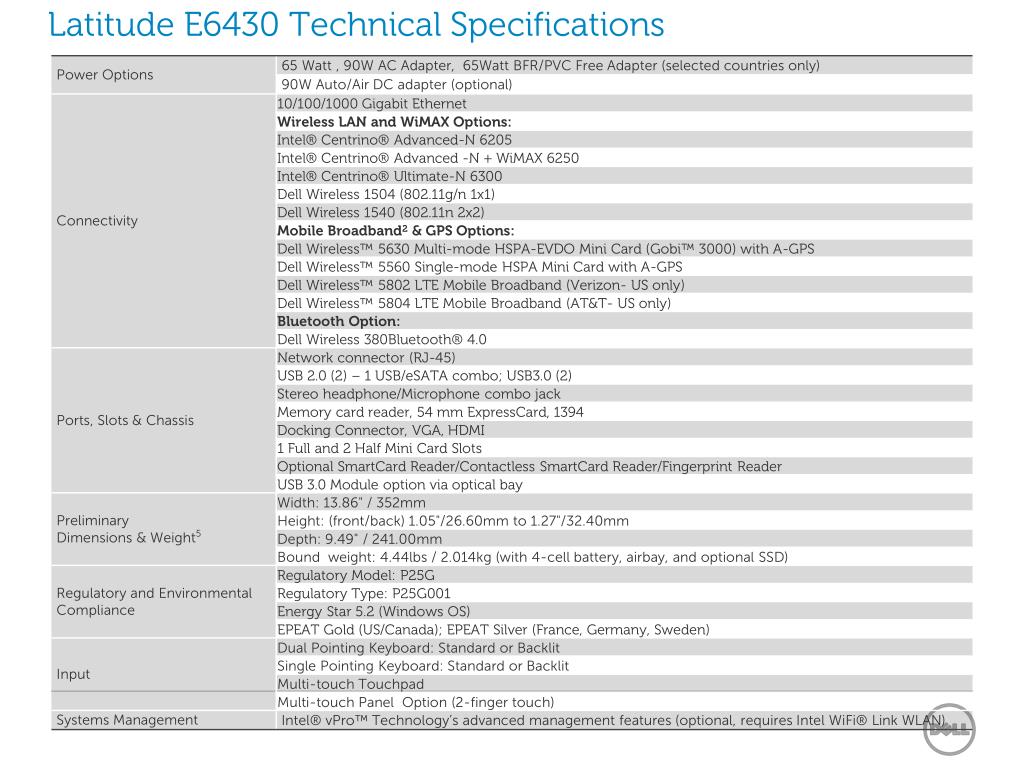

36. Latitude E6430 Technical Specifications

37. Latitude E6430s Product Views and Technical Specifications

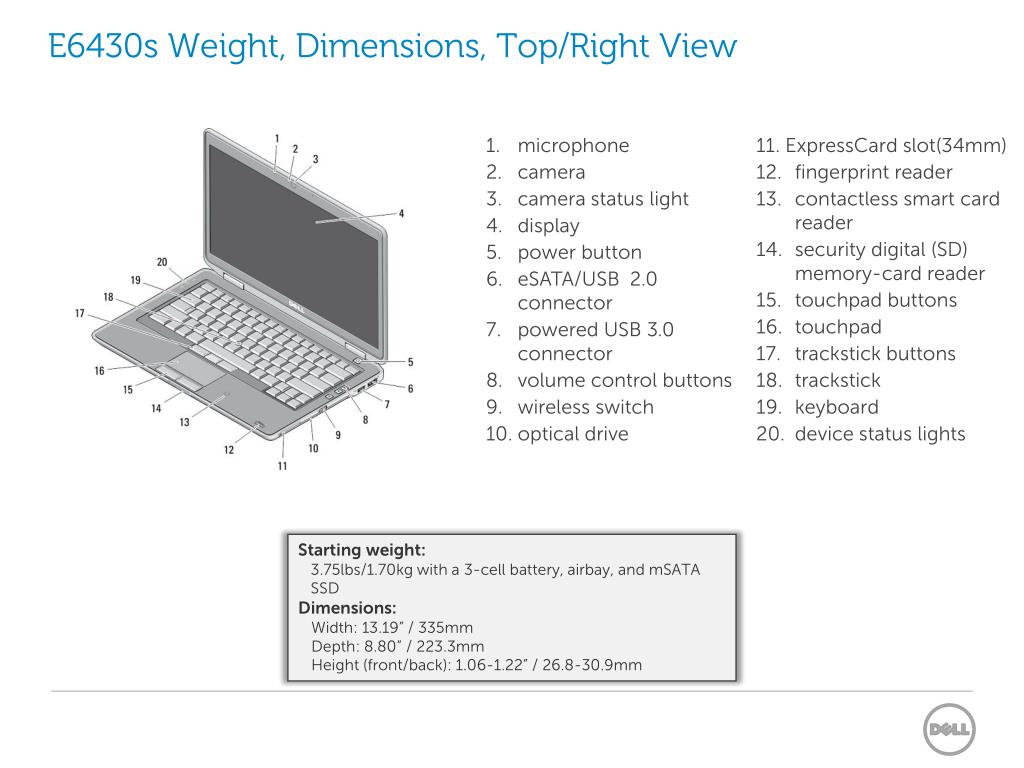

38. E6430s Weight, Dimensions, Top/Right View microphone camera camera status light display power button eSATA/USB 2.0 connector powered USB 3.0 connector volume control buttons wireless switch optical drive 11. ExpressCard slot(34mm) fingerprint reader contactless smart card reader security digital (SD) memory-card reader touchpad buttons touchpad trackstick buttons trackstick keyboard device status lights Starting weight: 3.75lbs/1.70kg with a 3-cell battery, airbay, and mSATA SSD Dimensions: • Width: 13.19” / 335mm • Depth: 8.80” / 223.3mm • Height (front/back): 1.06-1.22” / 26.8-30.9mm

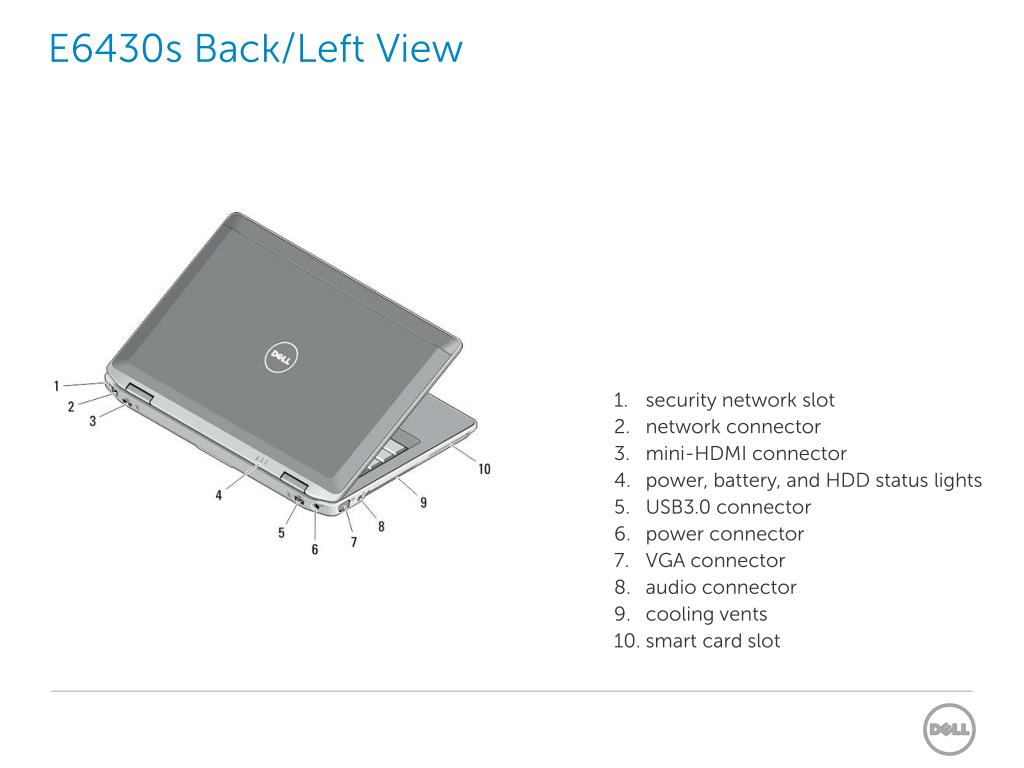

39. E6430s Back/Left View security network slot network connector mini-HDMI connector power, battery, and HDD status lights USB3.0 connector power connector VGA connector audio connector cooling vents smart card slot

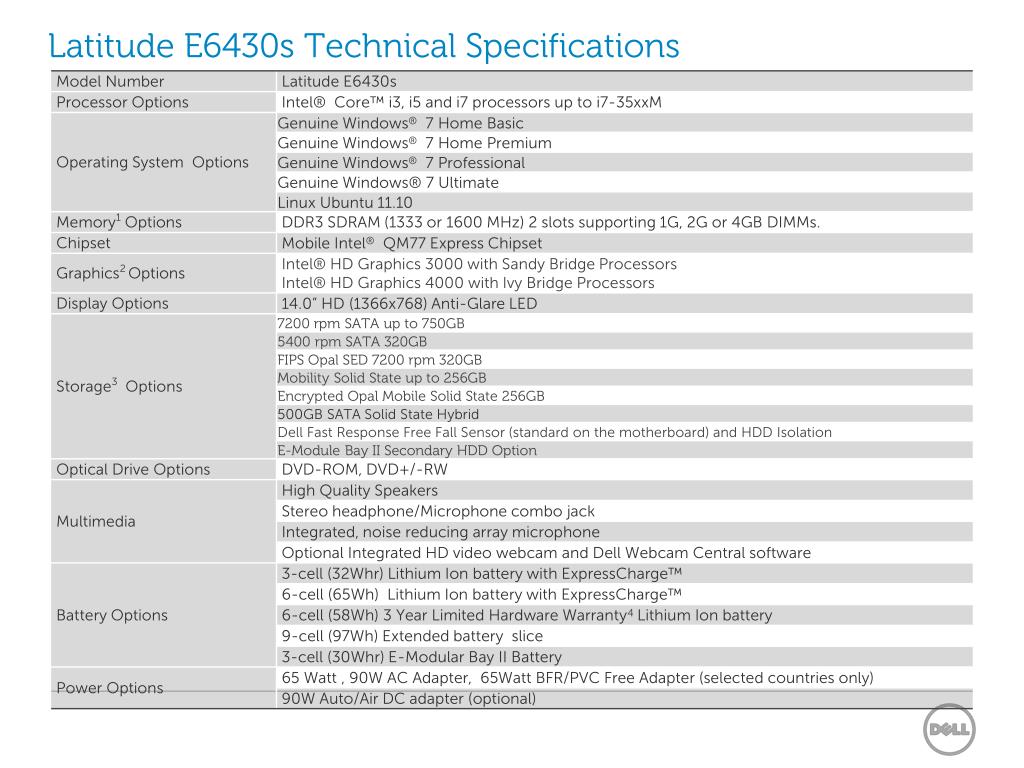

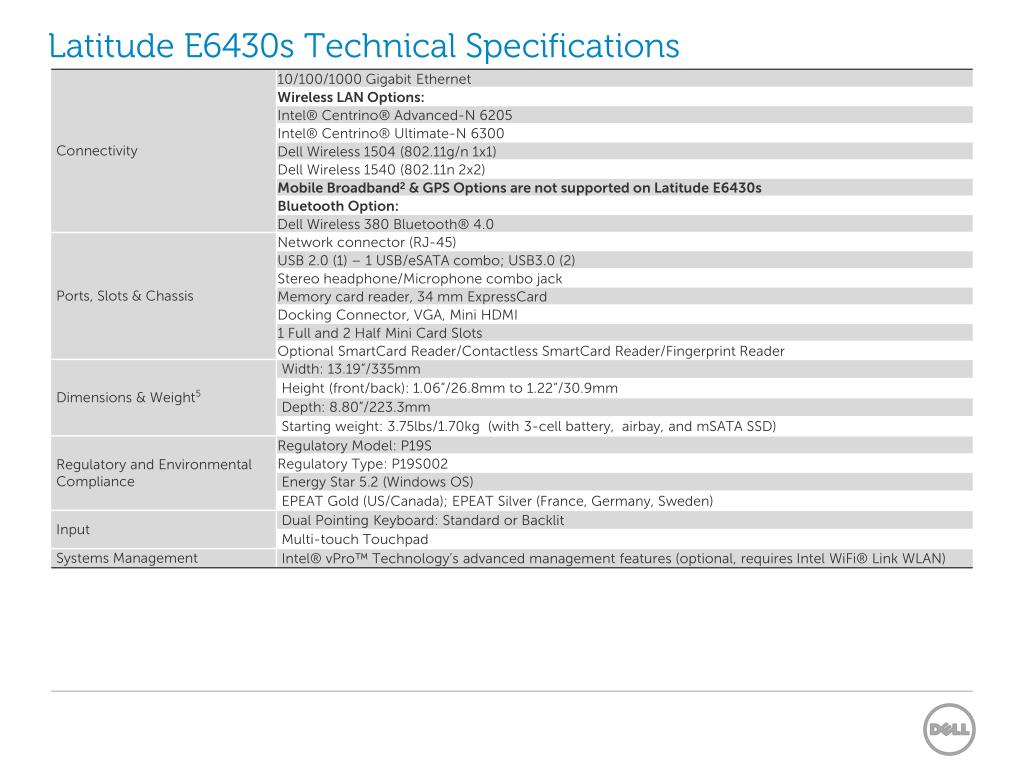

40. Latitude E6430s Technical Specifications

41. Latitude E6430s Technical Specifications

42. Latitude E6330 Product Views and Technical Specifications

43. E6330 Weight, Dimensions, Top/Right View microphone camera camera status light display power button eSATA/USB 2.0 connector powered USB 3.0 connector volume control buttons wireless switch optical drive 11. ExpressCard slot(34mm) fingerprint reader contactless smart card reader security digital (SD) memory-card reader touchpad buttons touchpad trackstick buttons trackstick keyboard device status lights Starting weight: 3.54lbs/1.606kg with a 3-cell battery, airbay, mSATA SSD Dimensions: • Width: 13.19” / 335mm • Depth: 8.80” / 223.3mm • Height (front/back): 1.0-1.18” / 25.4-30.1mm

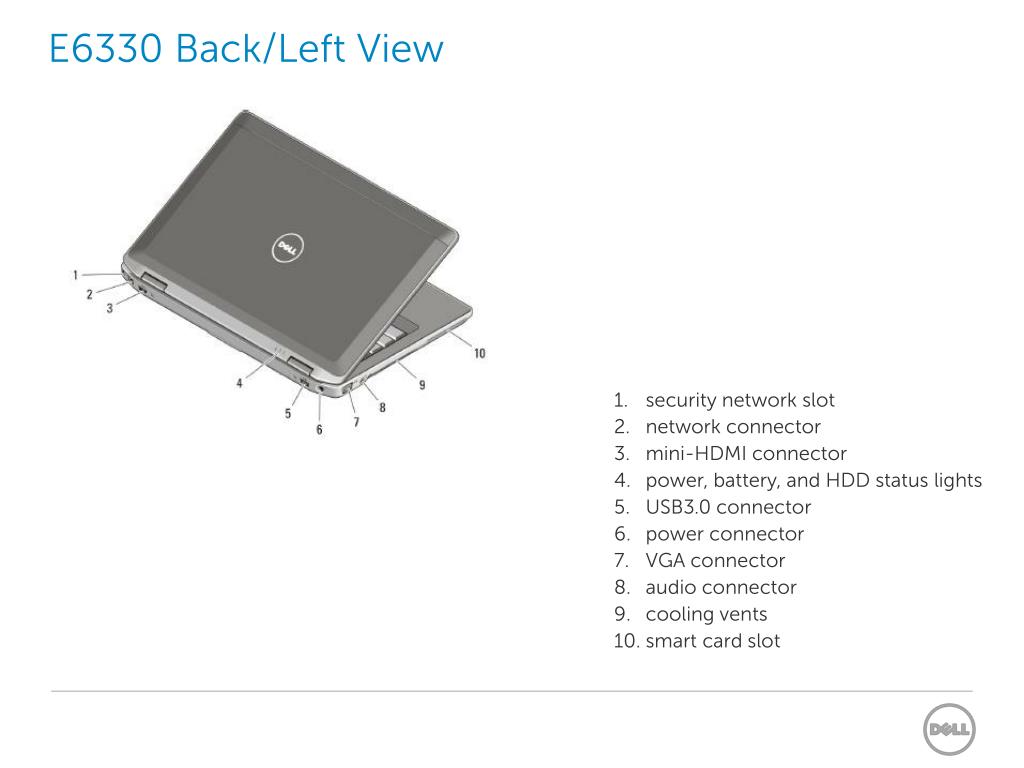

44. E6330 Back/Left View security network slot network connector mini-HDMI connector power, battery, and HDD status lights USB3.0 connector power connector VGA connector audio connector cooling vents smart card slot

45. Latitude E6330 Technical Specifications

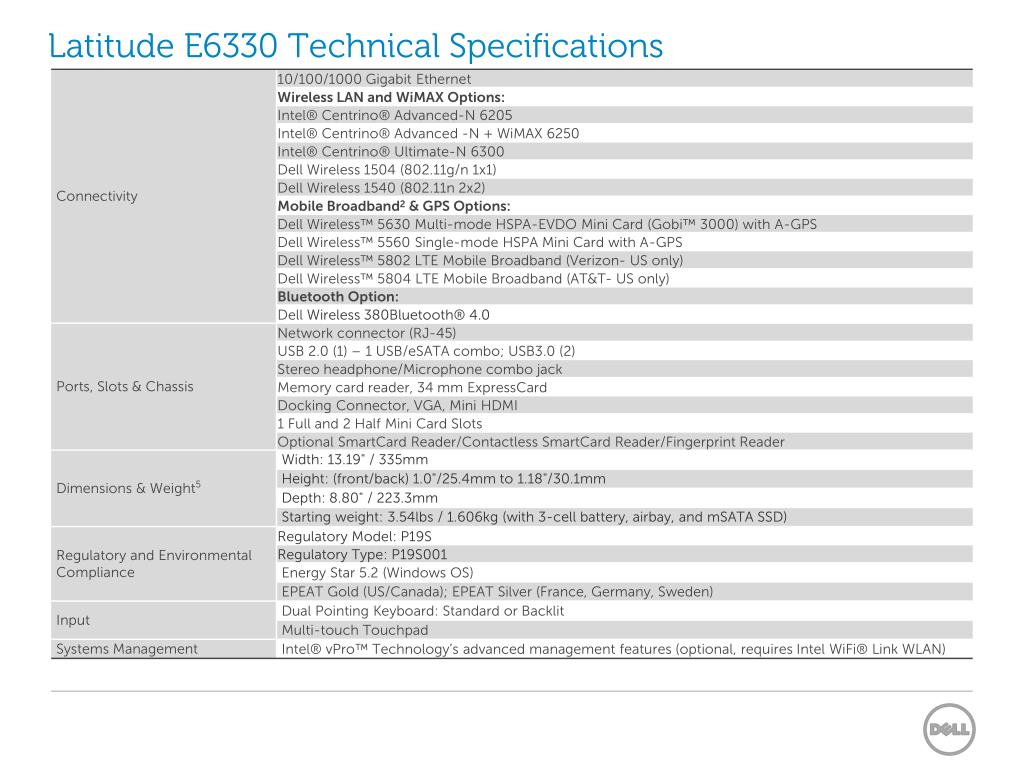

46. Latitude E6330 Technical Specifications

47. Latitude E6230 Product Views and Technical Specifications

48. E6230 Weight, Dimensions, Top/Right View microphone camera camera status light display power button HDMI USB 3.0 connector powered USB3.0 connector wireless switch ExpressCard slot (34mm) finger print reader touchpad buttons (2) touchpad contactless smart card reader (optional) keyboard volume and control buttons (3) device status lights Starting weight: 3.05lbs/1.383kg with a 3-cell battery, airbay, and mSATA SSD Dimensions: • Width: 12.2” / 309mm • Depth: 8.9” / 226mm • Height (front/back): 0.88”-0.97” / 22.4-24.65mm

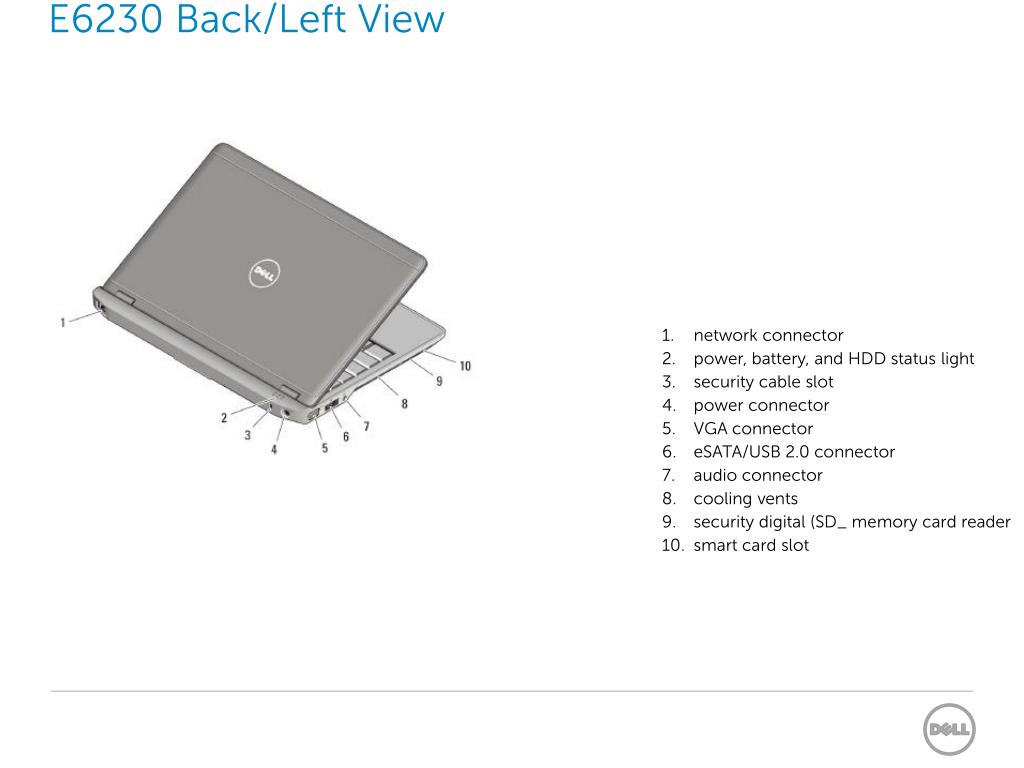

49. E6230 Back/Left View network connector power, battery, and HDD status light security cable slot power connector VGA connector eSATA/USB 2.0 connector audio connector cooling vents security digital (SD_ memory card reader smart card slot

50. Latitude E6230 Technical Specifications
