Definitions

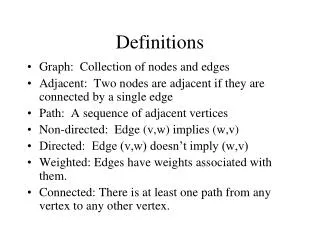

1. Definitions • Graph: Collection of nodes and edges • Adjacent: Two nodes are adjacent if they are connected by a single edge • Path: A sequence of adjacent vertices • Non-directed: Edge (v,w) implies (w,v) • Directed: Edge (v,w) doesn’t imply (w,v) • Weighted: Edges have weights associated with them. • Connected: There is at least one path from any vertex to any other vertex.

2. Representing Vertices • Adjacency Matrix typedef struct Graph { Vertex *vertexList; EDGE adjMat[V][V]; } • Adjacency Listtypedef struct Graph{ VERTEX *vertexList; }// Note: For adjacency lists, each vertex contains a linked list of adjacent edges • Sample Nodes (differs depending on the representation) typedef struct VERTEX_LNK { int vertex; int color; int weight; struct *EDGE_LNK edges; } VERTEX typedef struct EDGE_LNK { char *label; int weight; struct Edge_LNK *ptr;} EDGE

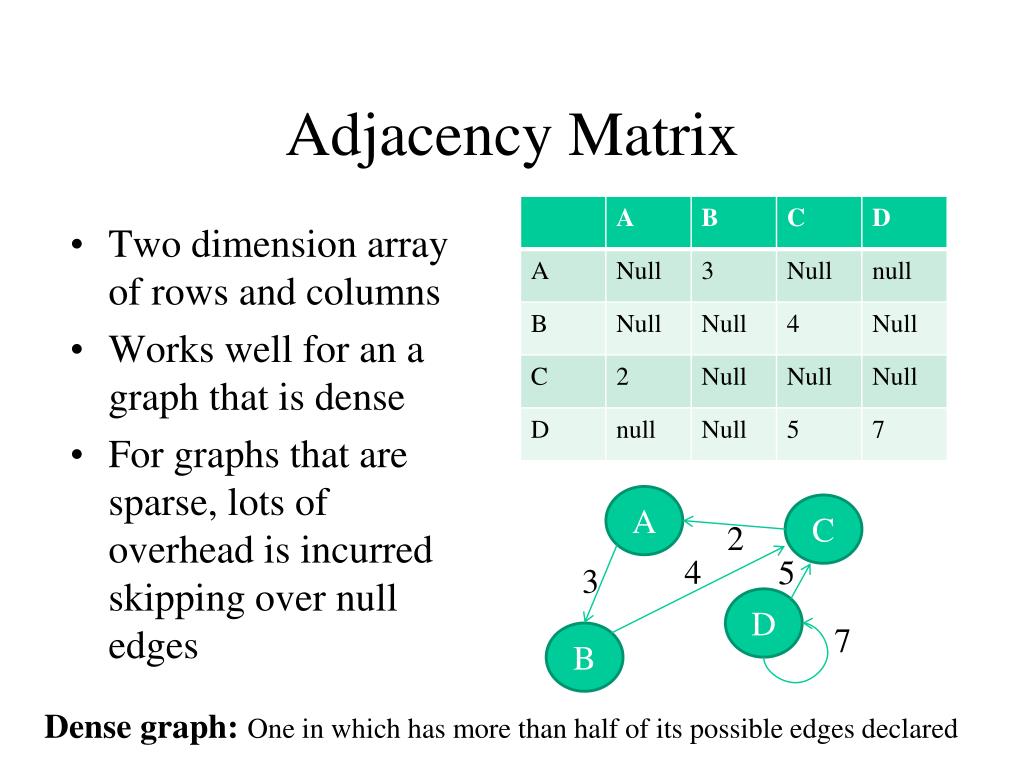

3. Adjacency Matrix • Two dimension array of rows and columns • Works well for an a graph that is dense • For graphs that are sparse, lots of overhead is incurred skipping over null edges A C 2 4 5 3 D 7 B Dense graph: One in which has more than half of its possible edges declared

4. Adjacency Lists B,3 • One dimension array of linked lists • Works well for an a graph that is sparse • For graphs that are dense, lots of overhead is incurred because we loose direct access capability • For dense graphs, more C,4 A,2 C,5 D,7 A C 2 4 5 3 D 7 B

5. Parallel Arrays • Parallel arrays has the advantage of making a good use of memory for both sparse and dense graphs, while preserving the direct access of edges • Parallel arrays make it easy to send graphs between computers A C 2 4 5 3 D 7 B

6. Graph Algorithms • Traversal • Depth First For all Vertices, clear colors depthFirstSearch(Vertex v) If not null Then Visit() and color the Vertex push all unvisited adjacent vertices onto the stackWhile stack not empty pop a vertex, newVertex, from the stack depthFirstSearch(newVertex) • Breadth First (Same as depth first except use a queue) • Complexity is O(E+V)

7. Minimum Spanning TreeMinimum edge set of a graph that visits all edges |T|=|V|-1 • Undirected –DFS or BFS; record vertices and unvisited neighbors • Directed – Algorithm 1 (Kruskal’s Algorithm) Sort the edges (O(E lg E) For each of the sorted edges {(O(~E) with Union Find Algorithm} If a cycle is not created, add the edge to the spanning tree • Directed – Algorithm 2 (Prim’s Algorithm) Create a priority queue (StartV Key=0, OtherVertices Key = infinity) While priority queue is not empty min = RemoveMin()For each vertex adj adjacent to minIf weight(min,adj)< key(adj) Then adjustKey(adj) and set Predecessor[adj] = min • Complexities O(ElgE) Kruskal and O(lgV*(V+E))Prim

8. Topological SortCritical Path Analysis • Application, sequence of courses where prerequisites are met • Limitations: Graph cannot have cycles (v1,v2,…,vk,v1) • Algorithm Let G=[V,E] be a clone of the original graph WhileV > 0 vertex = FindVertexWithNoSuccessors() IffoundThenCall delete(vertex) sortedArray[--V] = vertex Else Print error message; graph has cycles

9. Shortest PathRequirements: Directed Graph with positive weights • Step 1:Create a shortest path array, short, with each entry having an infinite weight Except the original vertex that has a weight of zero. • Step 2:Create a path array, path, that will indicate the shortest path from one vertex to another • Step 3: The Algorithm While more vertices are left Find the remaining vertex, light, with the lightest weight For each edge, (light,w), of light If edge weight w(light,w)+short(light) < short(light) Thenshort[light] = w(light,w) + short(light) path[light] = w • Complexity: O(V+lg V*V+lgV*E) = O(lgV*(V+E)) if a heap is used to order, remove-min, and relax weights.
