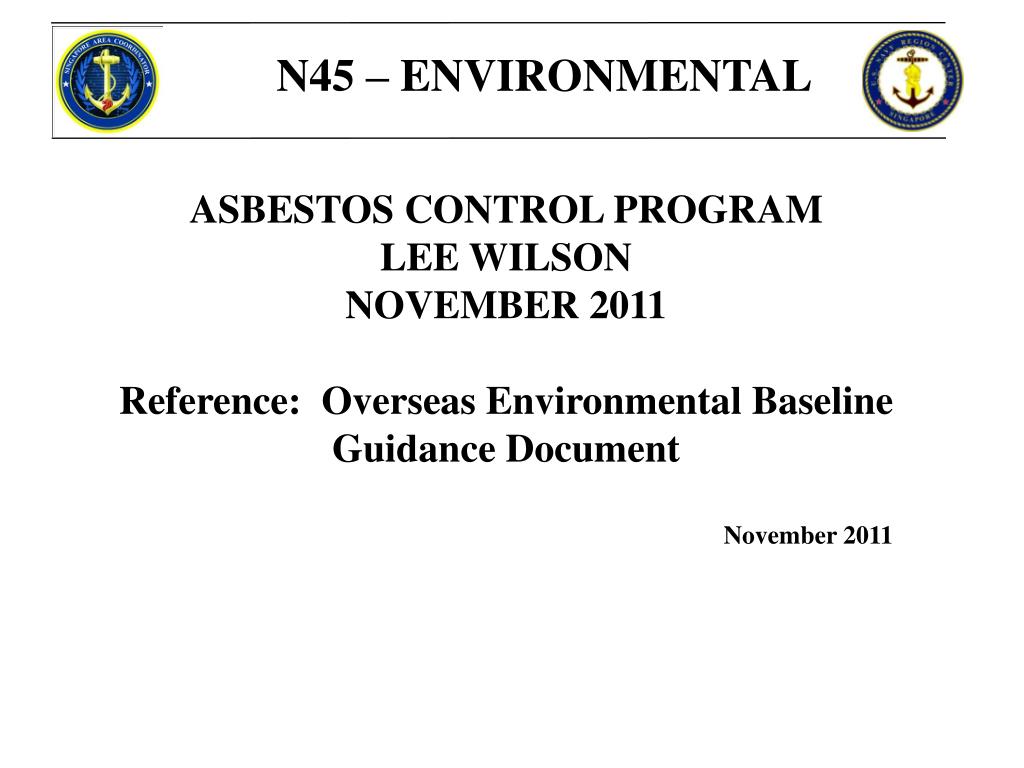

1. N45 – ENVIRONMENTAL ASBESTOS CONTROL PROGRAM LEE WILSON NOVEMBER 2011 Reference: Overseas Environmental Baseline Guidance Document November 2011

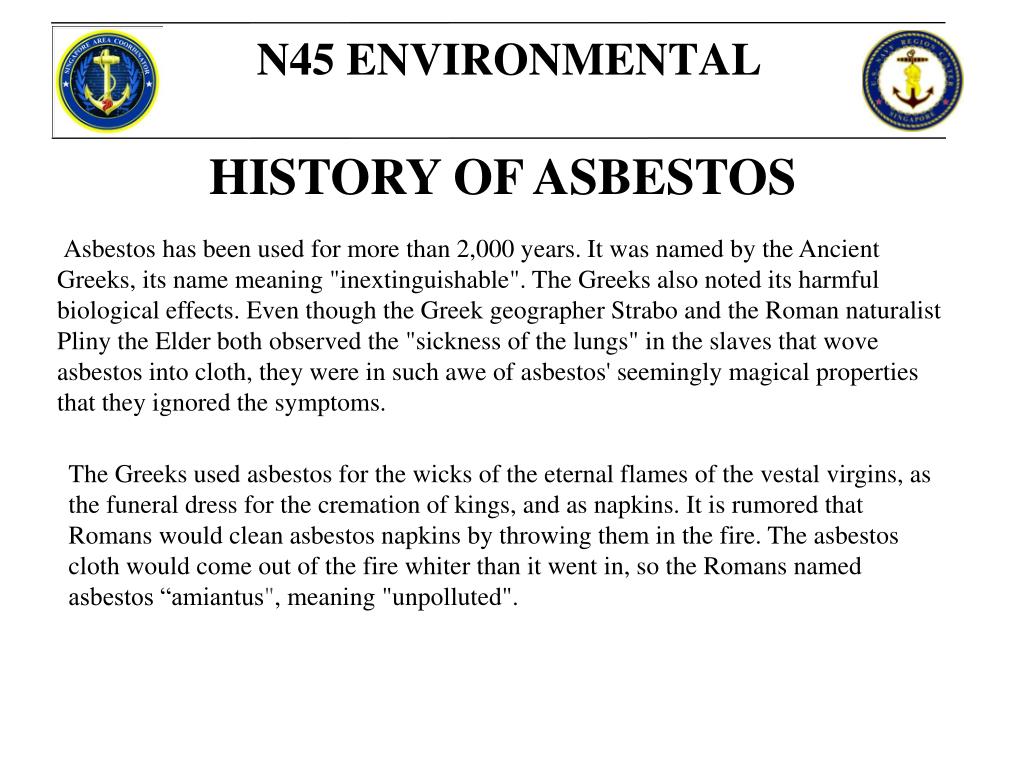

2. N45 ENVIRONMENTAL HISTORY OF ASBESTOS Asbestos has been used for more than 2,000 years. It was named by the Ancient Greeks, its name meaning "inextinguishable". The Greeks also noted its harmful biological effects. Even though the Greek geographer Strabo and the Roman naturalist Pliny the Elder both observed the "sickness of the lungs" in the slaves that wove asbestos into cloth, they were in such awe of asbestos' seemingly magical properties that they ignored the symptoms. The Greeks used asbestos for the wicks of the eternal flames of the vestal virgins, as the funeral dress for the cremation of kings, and as napkins. It is rumored that Romans would clean asbestos napkins by throwing them in the fire. The asbestos cloth would come out of the fire whiter than it went in, so the Romans named asbestos “amiantus", meaning "unpolluted".

3. N45 ENVIRONMENTAL HISTORY OF ASBESTOS Use of asbestos declined during the Middle Ages, yet some say that Charlemagne had asbestos tablecloths. Marco Polo was also shown items made from asbestos cloth on his travels.Asbestos use was brought back in the 1700s, but did not become popular until the Industrial Revolution during the late 1800s. It then began to be used as insulation for steam pipes, turbines, boilers, kilns, ovens, and other high-temperature products. Ancient observations of the health risks of asbestos were either forgotten or ignored.At the turn of the twentieth century, researchers began to notice a large number of deaths and lung problems in asbestos mining towns. In 1917 and 1918, it was observed by several studies in the United States that asbestos workers were dying unnaturally young.

4. HISTORY OF ASBESTOS The first diagnosis of asbestosis was made in 1924. A woman had been working with asbestos since she was thirteen. She died when she was thirty-three years old, and an English doctor determined that the cause of death was what he called "asbestosis". Because of this, a study was done on asbestos workers in England. Twenty-five percent of them showed evidence of asbestos-related lung disease. Laws were passed in 1931 to increase ventilation and to make asbestosis an excusable work-related disease. It would take the United States ten more years to make these steps.

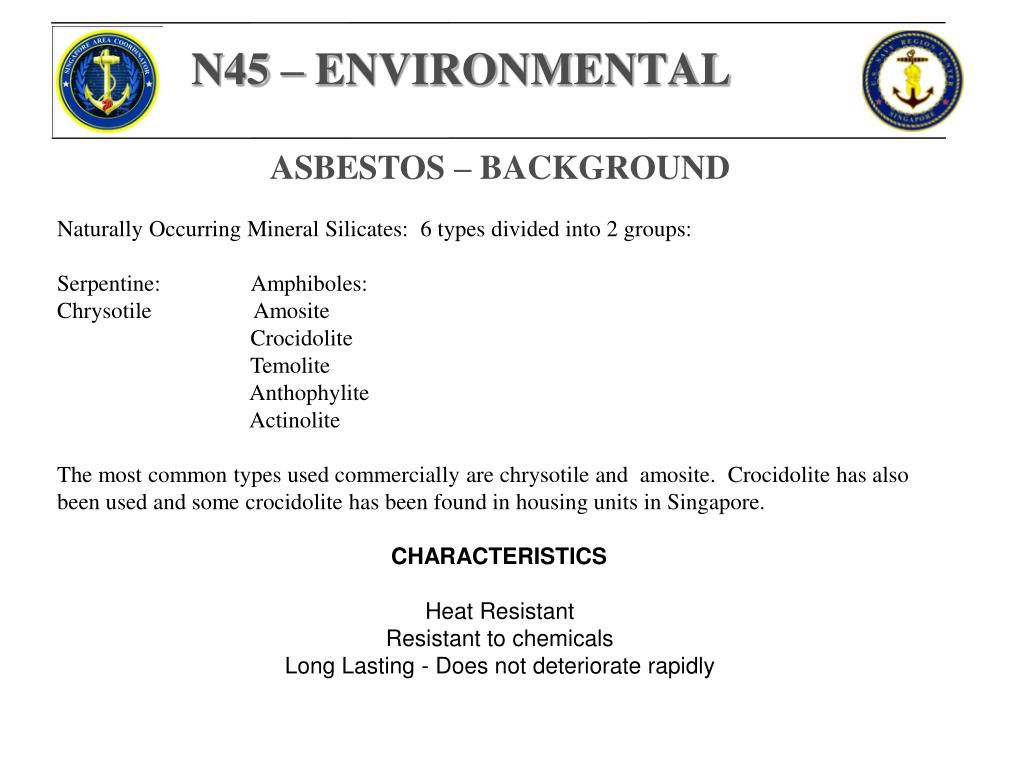

5. N45 – ENVIRONMENTAL ASBESTOS – BACKGROUND Naturally Occurring Mineral Silicates: 6 types divided into 2 groups: Serpentine: Amphiboles: Chrysotile Amosite Crocidolite Temolite Anthophylite Actinolite The most common types used commercially are chrysotile and amosite. Crocidolite has also been used and some crocidolite has been found in housing units in Singapore. CHARACTERISTICS Heat Resistant Resistant to chemicals Long Lasting - Does not deteriorate rapidly

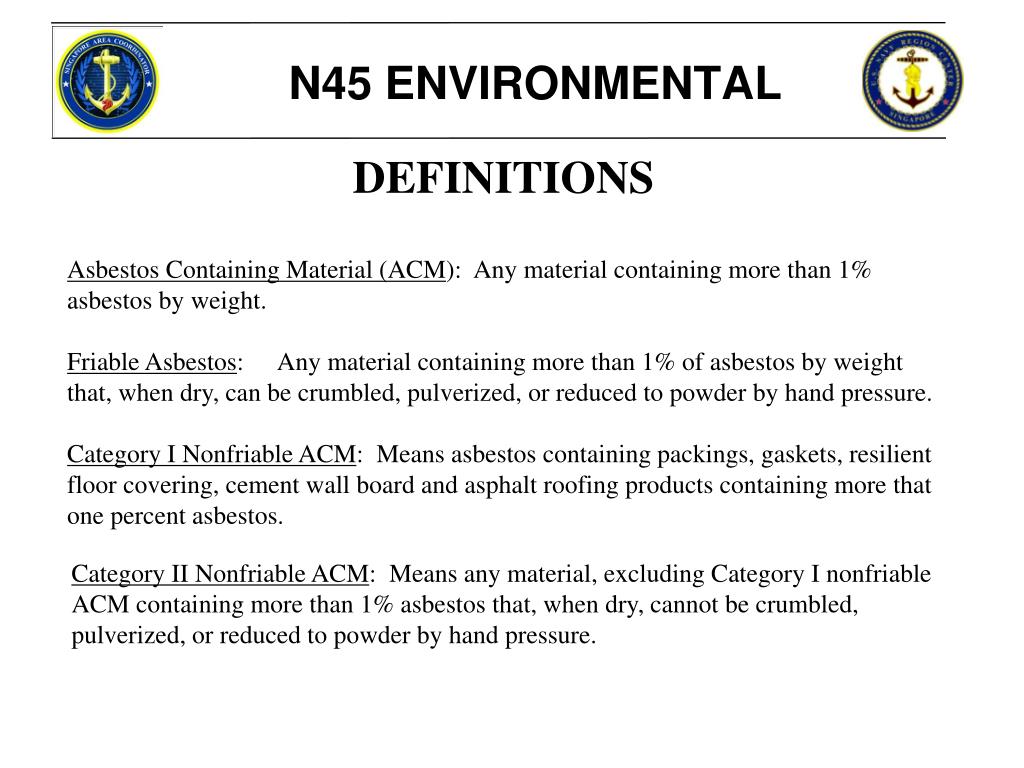

6. N45 ENVIRONMENTAL DEFINITIONS Asbestos Containing Material (ACM): Any material containing more than 1% asbestos by weight. Friable Asbestos: Any material containing more than 1% of asbestos by weight that, when dry, can be crumbled, pulverized, or reduced to powder by hand pressure. Category I Nonfriable ACM: Means asbestos containing packings, gaskets, resilient floor covering, cement wall board and asphalt roofing products containing more that one percent asbestos. Category II Nonfriable ACM: Means any material, excluding Category I nonfriable ACM containing more than 1% asbestos that, when dry, cannot be crumbled, pulverized, or reduced to powder by hand pressure.

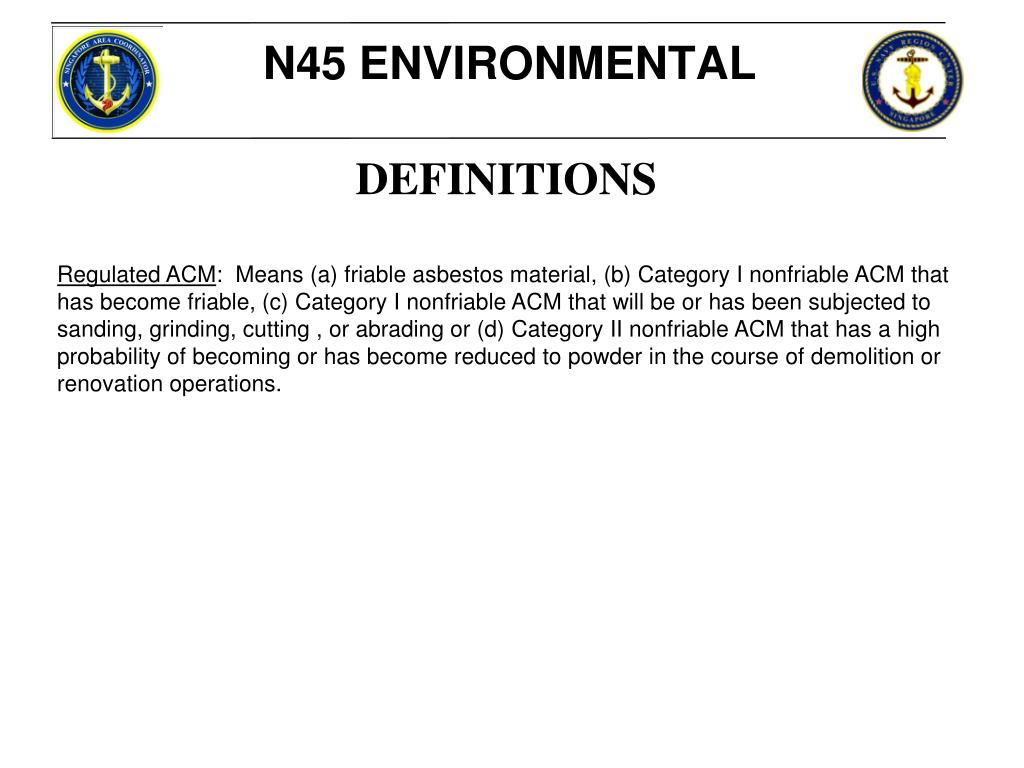

7. N45 ENVIRONMENTAL DEFINITIONS Regulated ACM: Means (a) friable asbestos material, (b) Category I nonfriable ACM that has become friable, (c) Category I nonfriable ACM that will be or has been subjected to sanding, grinding, cutting , or abrading or (d) Category II nonfriable ACM that has a high probability of becoming or has become reduced to powder in the course of demolition or renovation operations.

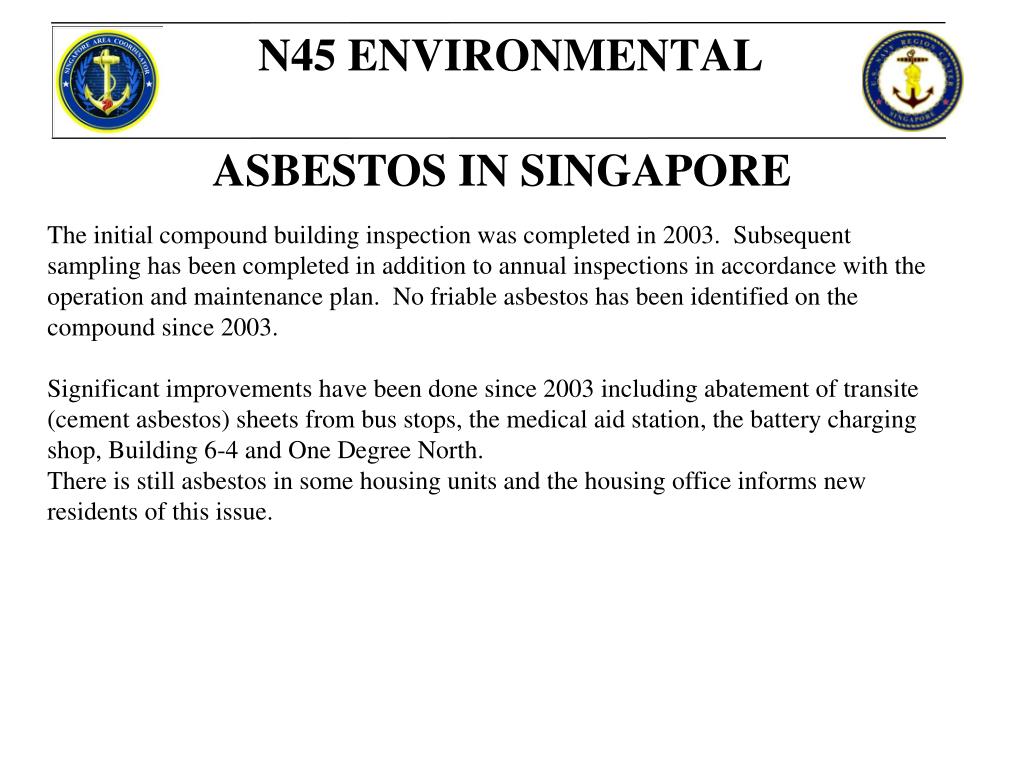

8. N45 ENVIRONMENTAL ASBESTOS IN SINGAPORE The initial compound building inspection was completed in 2003. Subsequent sampling has been completed in addition to annual inspections in accordance with the operation and maintenance plan. No friable asbestos has been identified on the compound since 2003. Significant improvements have been done since 2003 including abatement of transite (cement asbestos) sheets from bus stops, the medical aid station, the battery charging shop, Building 6-4 and One Degree North. There is still asbestos in some housing units and the housing office informs new residents of this issue.

9. N45 ENVIRONMENTAL HEALTH HAZARDS Asbestos causes significant health problems: Mesothelioma – Cancer involving the mesothelium or lining of a number of internal organs. Lung Cancer – Incidence is greatly increased 80 -100x’s in people who smoke and are exposed to asbestos. Asbestosis – Scarring of the lungs resulting in diminished capacity of the lungs to process oxygen. Peritoneal cancer Laryngeal cancer

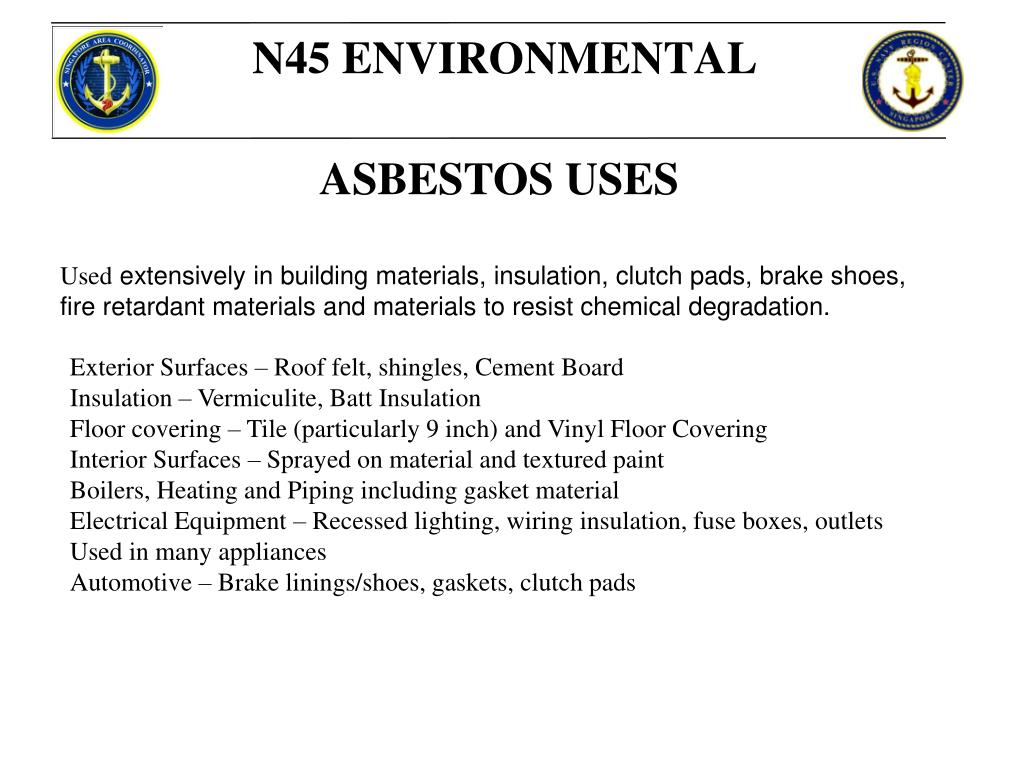

10. N45 ENVIRONMENTAL ASBESTOS USES Used extensively in building materials, insulation, clutch pads, brake shoes, fire retardant materials and materials to resist chemical degradation. Exterior Surfaces – Roof felt, shingles, Cement Board Insulation – Vermiculite, Batt Insulation Floor covering – Tile (particularly 9 inch) and Vinyl Floor Covering Interior Surfaces – Sprayed on material and textured paint Boilers, Heating and Piping including gasket material Electrical Equipment – Recessed lighting, wiring insulation, fuse boxes, outlets Used in many appliances Automotive – Brake linings/shoes, gaskets, clutch pads

11. N45 ENVIRONMENTAL ROUTESOF ENTRY INTO THE BODY Most significant is through inhalation, for asbestos, the target organs are primarily the lungs, Ingestion – Some risk of developing peritoneal cancers via this route.

12. N45 ENVIRONMENTAL QUESTIONS ?
