hoard a scalable memory allocator for multithreaded applications

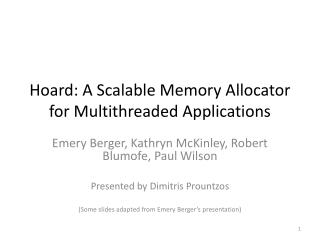

Hoard: A Scalable Memory Allocator for Multithreaded Applications

Emery Berger, Kathryn McKinley, Robert Blumofe, Paul Wilson

Presented by Dimitris Prountzos

(Some slides adapted from Emery Berger’s presentation)

outline
Outline
  • Motivation
  • Problems in allocator design
    • False sharing
    • Fragmentation
  • Existing approaches
  • Hoard design
  • Experimental evaluation
motivation
Motivation
  • Parallel multithreaded programs prevalent
    • Web servers, search engines, DB managers etc.
    • Run on CMP/SMP for high performance
    • Some of them embarrassingly parallel
  • Memory allocation is a bottleneck
    • Prevents scaling with number of processors
desired allocator attributes on a multiprocessor system
Desired allocator attributes on a multiprocessor system
  • Speed
    • Competitive with uniprocessor allocators on 1 cpu
  • Scalability
    • Performance linear with the number of processors
  • Fragmentation (=max allocated / max in use)
    • High fragmentation  poor data locality  paging
  • False sharing avoidance
the problem of false sharing
Program causes false sharing

Allocate number of objects in a cache line, pass objects to different threads

Allocators cause false sharing!

Actively:

malloc satisfies different thread requests from same cache line

Passively:

free allows future malloc to produce false sharing

The problem of false sharing

A cache line

processor 1

processor 2

x1 = malloc(s);

x2 = malloc(s);

thrash…

thrash…

the problem of fragmentation
The problem of fragmentation
  • Blowup:
    • Increase in memory consumption when allocator reclaims memory freed by program, but fails to use it for future requests
    • Mainly a problem of concurrent allocators
    • Unbounded (worst case) or bounded (O(P))
example pure private heaps allocator
Example: Pure Private Heaps Allocator

processor 1

processor 2

  • Pure private heaps:
    • one heap per processor.
    • malloc gets memoryfrom the processor's heap or the system
    • free puts memory on the processor's heap
  • Avoids heap contention
    • Examples: STL, Cilk

x1= malloc(s)

x2= malloc(s)

free(x1)

free(x2)

x4= malloc(s)

x3= malloc(s)

= allocated by heap 1

= free, on heap 2

how to break pure private heaps fragmentation
How to Break Pure Private Heaps: Fragmentation
  • Pure private heaps:
    • memory consumption can grow without bound!
  • Producer-consumer:
    • processor 1 allocates
    • processor 2 frees
    • Memory always unavailable to producer

processor 1

processor 2

x1= malloc(s)

free(x1)

x2= malloc(s)

free(x2)

x3= malloc(s)

free(x3)

example ii private heaps with ownership
Example II: Private Heaps with Ownership
  • free puts memory back on the originating processor's heap.
  • Avoids unbounded memory consumption
    • Examples: ptmalloc,LKmalloc

processor 1

processor 2

x1= malloc(s)

free(x1)

x2= malloc(s)

free(x2)

how to break private heaps with ownership fragmentation
How to Break Private Heaps with Ownership:Fragmentation
  • memory consumption can blowup by a factor of P.
  • Round-robin producer-consumer:

processor i allocates

processor i+1 frees

  • Program requires 1 (K) blocks, allocator gets 3 (P*K) blocks

processor 1

processor 2

processor 3

x1= malloc(s)

free(x1)

x2= malloc(s)

free(x2)

x3=malloc(s)

free(x3)

uniprocessor allocators on multiprocessors
Uniprocessor Allocators on Multiprocessors
  • Fragmentation: Excellent
    • Very low for most programs [Wilson & Johnstone]
  • Speed & Scalability: Poor
    • Heap contention
      • A single lock protects the heap
  • Can exacerbate false sharing
    • Different processors can share cache lines
existing multiprocessor allocators
Existing Multiprocessor Allocators
  • Speed:
    • One concurrent heap (e.g., concurrent B-tree):
      • O(log (#size-classes)) cost per memory operation
      • too many locks/atomic updates

 Fast allocators use multiple heaps

  • Scalability:
    • Allocator-induced false sharing
    • Other bottlenecks (e.g. nextHeap global in Ptmalloc)
  • Fragmentation:
    • P-fold increase or even unbounded
hoard overview
Hoard Overview
  • P per-processor heaps & 1 global heap
  • Each thread accesses only its local heap & global
  • Manages memory in page-sized superblocks of same-sized objects (LIFO free-list)
    • Avoids false sharing by not carving up cache lines
    • Avoids heap contention – local heaps allocate & free small blocks from their superblocks
  • Avoids blowup by
    • Moving superblocks to global heap when fraction of free memory exceeds some threshold
superblock management
Superblock management

Emptiness threshold: (ui ≥ (1-f)*ai)∨(ui ≥ ai – K*S)

f = ¼

K = 0

  • Multiple heaps  Avoid actively induced false sharing
  • Block coalescing  Avoid passively induced false sharing
  • Superblocks transferred are usually empty and transfer is infrequent
hoard pseudo code
Hoard pseudo-code

malloc(sz)

  • If sz > S/2, allocate the superblock from the OS and return it.
  • i hash(current thread)
  • Lock heap i
  • Scan heap i’s list of superblocks from full to least (for the size class of sz)
  • If there is no superblock with free space {
  • Check heap 0 (global) for a superblock
  • If there is none {
  • Allocate S bytes as superblock s & set owner to heap i
  • } Else {
  • Transfer the superblock s to heap i
  • u0  u0 – s.u; ui ui + s.u
  • a0  a0 - S; ai  ai + S
  • }
  • }
  • ui ui + sz; s.u  s.u + sz
  • Unlock heap i
  • Return a block from the superblock

free(ptr)

  • If the block is “large”
  • Free superblock to OS and return
  • Find the superblock s this blocks comes from
  • Lock s
  • Lock heap i, the superblock’s owner
  • Deallocate the block from the superblock
  • uiui – block size
  • s.u  s.u – block size
  • If (i = 0) unlock heap i, superblock s and return
  • If (ui < ai – K*S) and (ui<(1-f)*ai) {
  • Transfer a mostly-empty superblock s1 to heap 0 (global)
  • u0 u0 + s1.u; ui  ui – s1.u
  • a0  a0 + S; ai  ai – S
  • }
  • Unlock heap i and superblock s
deriving bounds on blowup
Deriving bounds on blowup
  • blowup:= O(A(t) / U(t))
  • A(t) = A’(t)
  • ai(t) – K*S ≤ ui(t)) ∨ (1-f)ai(t) ≤ ui(t)
  • P << U(t)  blowup := O(1)
  • Worst case consumption is a constant factor overhead that does not grow with the amount of memory required by the program

A(t) = O(U(t) + P)

deriving bounds on contention 1
Deriving bounds on contention (1)
  • Per-processor Heap contention
    • 1 allocator thread / multiple threads free
      • Inherently unscalable
    • Pairs of producer/consumer threads
      • malloc/free calls serialized
      • At most 2X slowdown (undesirable but scalable)
    • Empirically only a small fraction of memory is freed by another thread  Contention expected to be low
deriving bounds on contention 2
Deriving bounds on contention (2)
  • Global Heap contention
    • Measure # GH lock acquisitionsas upper bound
    • Growing phase:
      • Each thread at most k/(f*S/s) acquisitions for kmalloc’s
    • Shrinking phase:
      • Pathological case where program frees (1-f) of each superblock and then frees every block in superblock one at a time
    • Empirically: No excessive shrinking and gradual growth of memory usage  low overall contention
experimental evaluation
Experimental Evaluation
  • Dedicated 14-processor Sun Enterprise
    • 400 MHz Ultrasparc
    • 2 GB RAM, 4MB L2 cache
    • Solaris 7
    • Superblock size=8K, f = ¼
  • Comparison between
    • Hoard
    • Ptmalloc (GNU libC, multiple heaps & ownership)
    • Mtmalloc (Solaris multithreaded allocator)
    • Solaris (default system allocator)
speed
Speed

Size classes need to be handled more cleverly

scalability threadtest
Scalability - threadtest

278% faster than Ptmalloc on 14 cpus

t threads allocate/deallocate 100,000/t 8-byte objects

scalability larson
Scalability – Larson
  • “Bleeding” typical in server applications
  • Mainly stays within empty fraction during execution
  • 18X faster than next best allocator on 14 cpus
scalability bemengine
Scalability - BEMengine
  • Few times below empty fraction  low synchronization
false sharing behavior
False sharing behavior
  • Active-false: Each thread allocates small object, writes it few times, frees it
  • Passive-false: Allocate objects, hand them to threads that free them, emulate Active-false
  • Illustrate effects of contention of the coherence mechanism
fragmentation results
Fragmentation results

Large number of size classes remain live for duration of program and scattered across blocks

Within 20% of Lea’s allocator

hoard conclusions
Hoard Conclusions
  • Speed: Excellent
    • As fast as a uniprocessor allocator on one processor
      • amortized O(1) cost
      • 1 lock for malloc, 2 for free
  • Scalability: Excellent
    • Scales linearly with the number of processors
    • Avoids false sharing
  • Fragmentation: Very good
    • Worst-case is provably close to ideal
    • Actual observed fragmentation is low
discussion points
Discussion Points
  • If we had to re-evaluate Hoard today which benchmarks would we use?
  • Are there any changes needed to make it work with languages like Java?
