GIS and Drought Applications

Keith Stellman

Senior Hydrologist

Lower Mississippi River Forecast Center

Slidell, LA


Outline

Outline

  • Overview of CPC products

  • History/Background info/Examples

  • Validity of the Data

  • Gridded Normals?

  • Compositing

  • Possibilities


Normal cpc drought graphics

Normal CPC Drought Graphics


Cpc graphics cont

CPC Graphics Cont’


Cpc graphics cont1

CPC Graphics Cont.


Overview history

Overview / History

  • Stage III

    • 4 x 4 km resolution

    • Gridded PRISM data

  • ABRFC

    • Computed daily average from PRISM data

    • Posted output images to web

  • LMRFC

    • Converted prism grids to HRAP projection in GIS

    • Computed monthly images on 1st of the month


Cpc percent of normal

CPC Percent of Normal

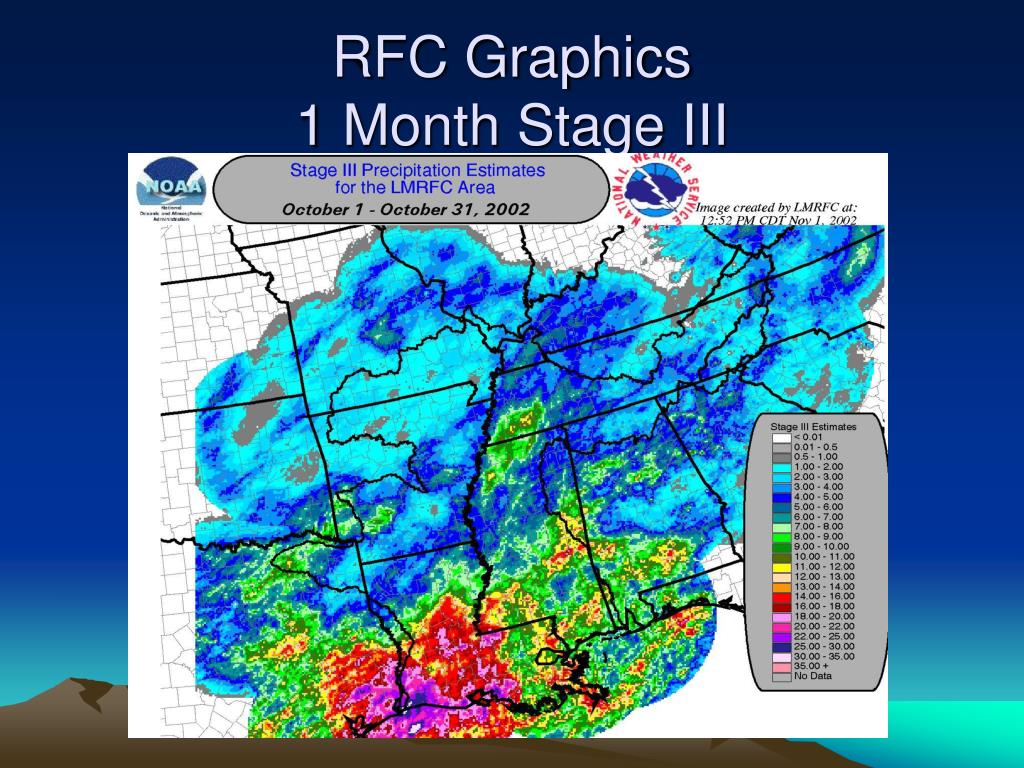

Rfc graphics 1 month stage iii

RFC Graphics1 Month Stage III


Rfc graphics

RFC Graphics


Wgrfc abrfc ohrfc examples

WGRFC/ABRFC/OHRFC Examples


Detailed rfc images

Detailed RFC Images


Details details

Details, Details

  • County to county rainfall surplus/deficits

  • Grid to grid comparisons

  • Water supply issues from county to county


Rfc observed analysis

RFC Observed Analysis

  • Daily rain gage analysis in GIS using IDW method of interpolation on 4x4 km grid

  • Grids are archived

  • Grids are summed for monthly totals

  • Rain gage analysis can then be used for percent of normal


Observed analysis 1 month totals

Observed Analysis1 Month Totals

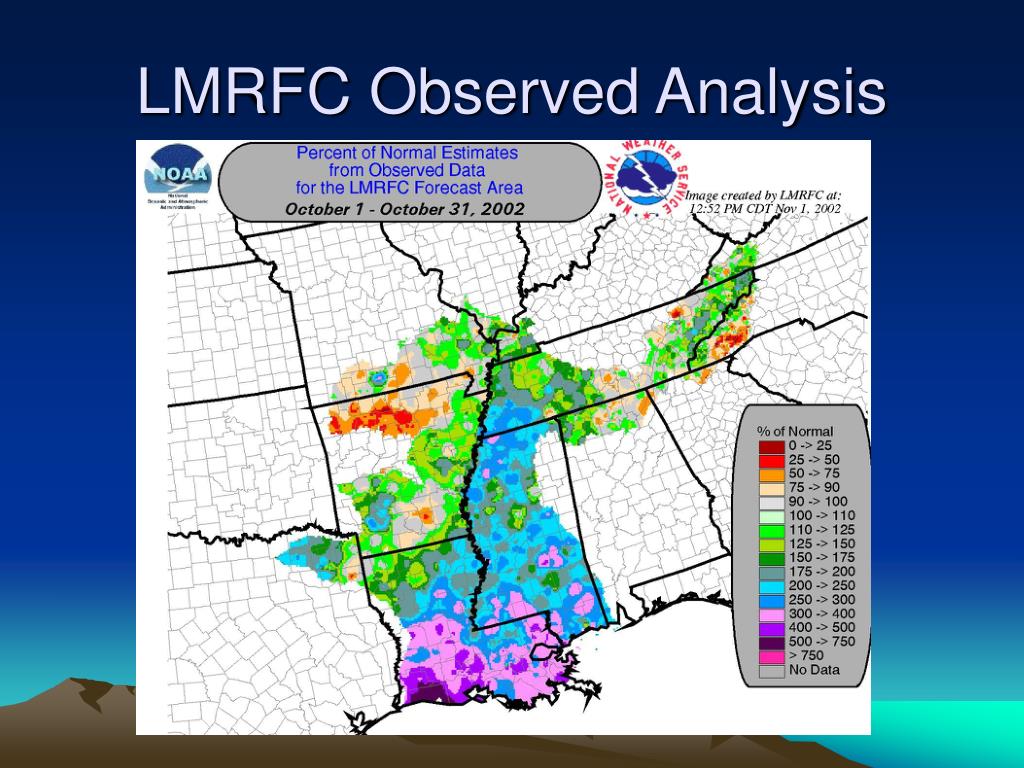

Lmrfc observed analysis

LMRFC Observed Analysis


Comparisons

Comparisons

Minimums


How accurate is the data 1 month totals for october 2002

How Accurate is the Data?1 month totals for October 2002


What is normal

What is Normal?

  • PRISM (Parameter-elevation Regressions on Independent Slopes Model)

  • Knowledge-based system using point data, digital elevation model, & other spatial data sets

  • Generates gridded estimates of climatic parameters (such as precipitation & temperature)

  • Accounts for rain shadows, inversions, coastal proximity, and others


Orographic enhancement

Orographic Enhancement


Prism maps

PRISM Maps


Where can i find prism data

Where Can I Find PRISM Data?

  • Digital via Web Sites

    SCAS: www.ocs.orst.edu/prism/

    NRCS: www.ftw.nrcs.usda.gov/prism/prism.html

    Contact Info:

    Christopher Daly

    Director

    Spatial Climate Analysis Service

    Oregon State University

    Corvallis, Oregon


How do we get the results

How do we get the results

  • PRISM data is on a 4x4 km grid

  • Stage III data is on a 4x4 km grid

  • ((((StageIII-Prism)/Prism)+1)*100) = % of Normal Precipitation

  • GIS Software does grid calculations and exports result as a JPEG

  • Program is automatically run on 1st of the month for previous 1,2,3 and 6 months


Who is doing what

Who is doing what?

  • ABRFC,WGRFC,LMRFC,OHRFC,CBRFC

    • Utilize gridded datasets

      • CBRFC lists under water supply in form of pdf document

  • MBRFC,NERFC and MARFC

    • Utilize observed datasets on larger scale

      • MBRFC uses pdf document under water supply


Composite

Composite

  • Southern Region RFC Web Team

    • Goal is to composite graphics with levels of zoom

  • Each SR RFC (SERFC,WGRFC,LMRFC,ABRFC) sends daily StageIII totals to WGRFC

  • Data is summed into monthly totals and compared to PRISM data


Coming very soon

Coming Very Soon!


Future possibilities

Future Possibilities

  • Providing each monthly calculation as a shapefile or ascii grid

  • Incorporating more than SR RFC’s into the datasets

  • Utilizing gage only datasets across SR
