  1. GIS and its applications in Health دانشکده بهداشت دانشگاه علوم پزشکی تهران آذر ماه 1384 ارايه دهنده: علي اکبر حقدوست

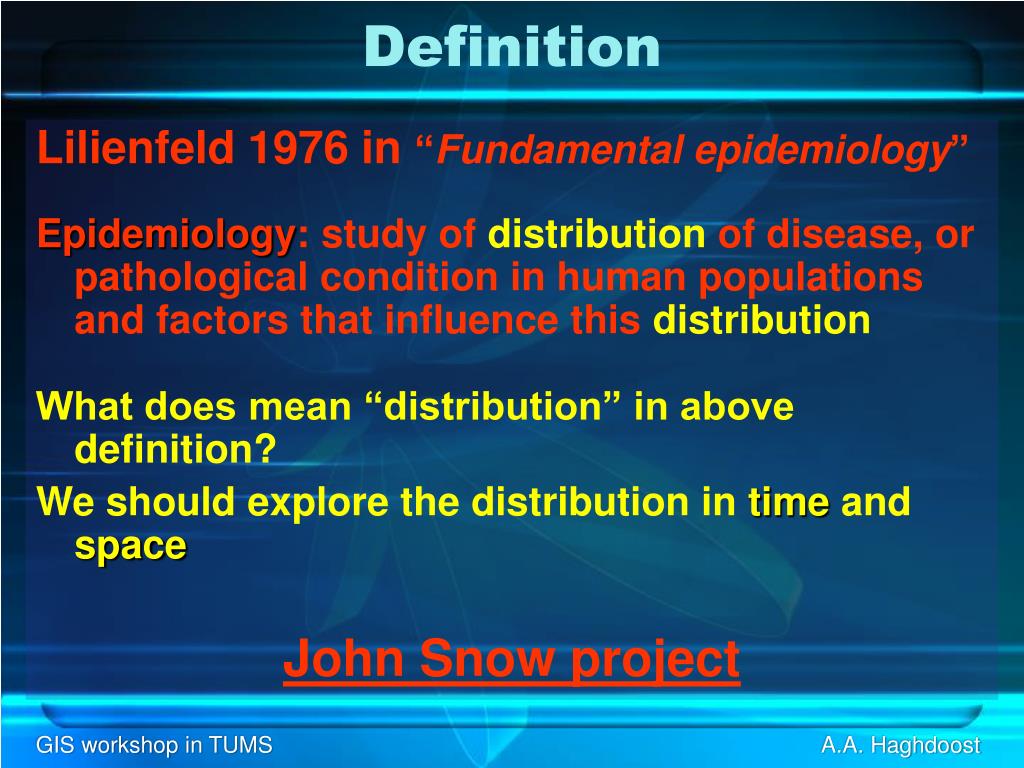

  2. Definition • Lilienfeld 1976 in “Fundamental epidemiology” • Epidemiology: study of distribution of disease, or pathological condition in human populations and factors that influence this distribution • What does mean “distribution” in above definition? • We should explore the distribution in time and space • John Snow project

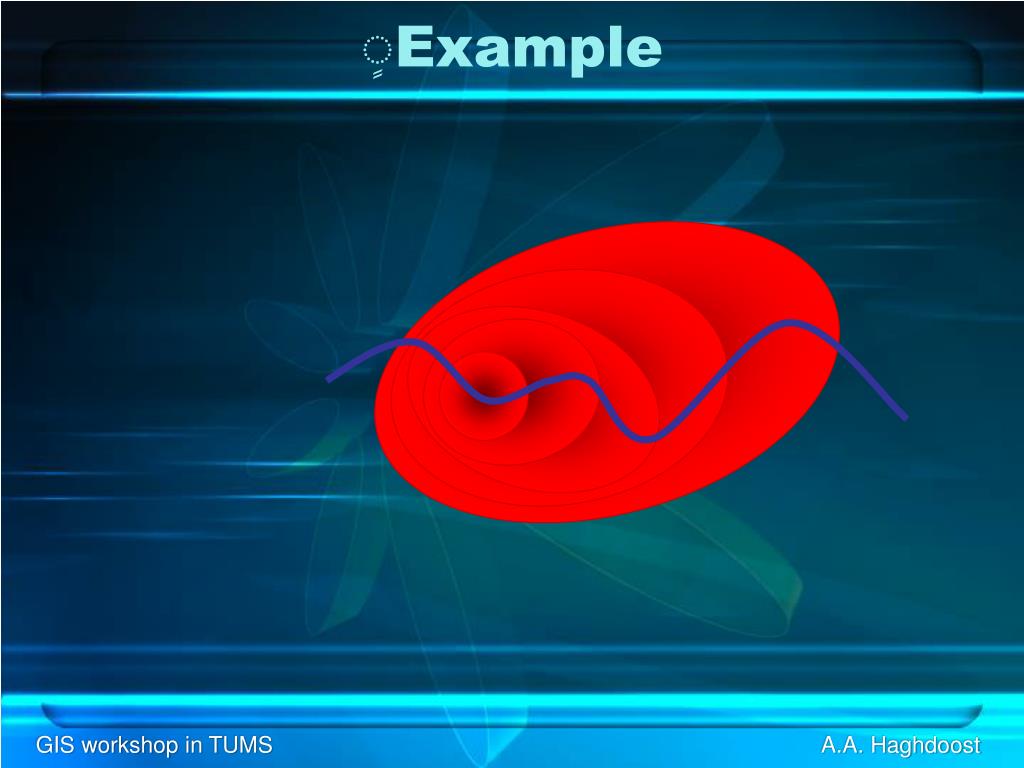

  3. ٍExample

  4. Poisson Distribution Assumptions: • Constant proportion in area • Independent distribution

  5. Flying bombs strikes, south London • آيا بمبهاي آلمان در جنگ جهاني دوم آن گونه كه ادعا مي نمود قدرت تفكيك بالا در هدف قرار دادن مواضع را داشت؟

  6. Flying bombs strikes, south London • Number of bombs in cells

  7. Flying bombs strikes, south London • How can we test if the distribution of bombs was random?

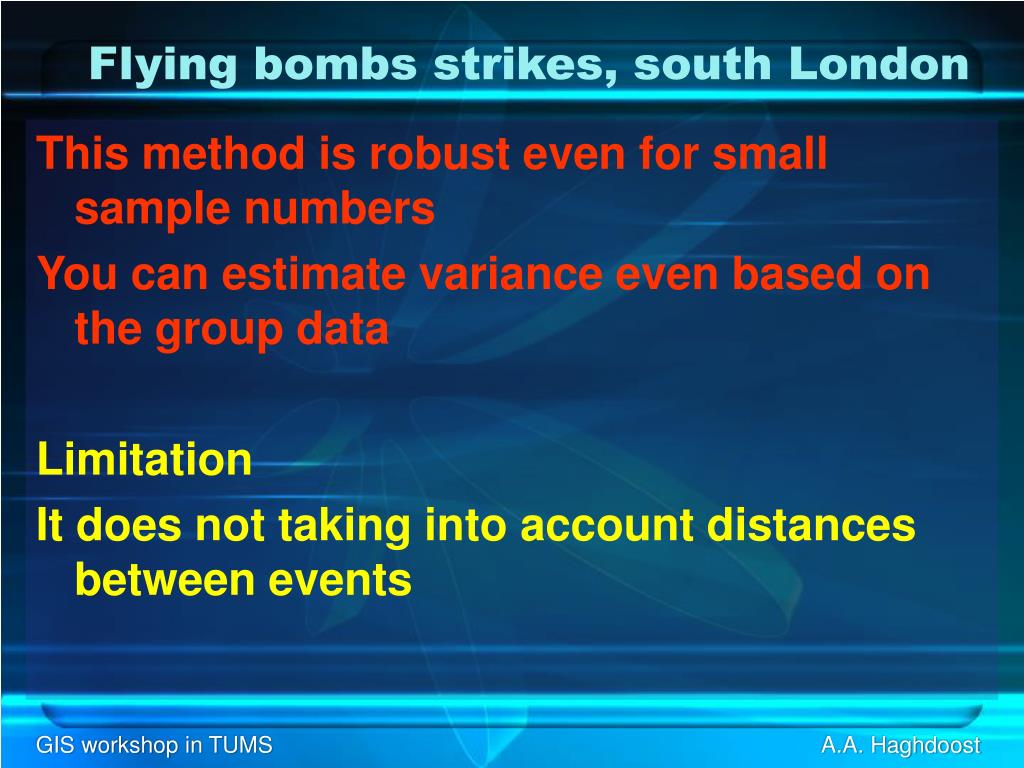

  8. Flying bombs strikes, south London • This method is robust even for small sample numbers • You can estimate variance even based on the group data • Limitation • It does not taking into account distances between events

  9. Nearest neighbor method A a b c d • Minimum distance between observation I and (n-1) • Checks the distances between events

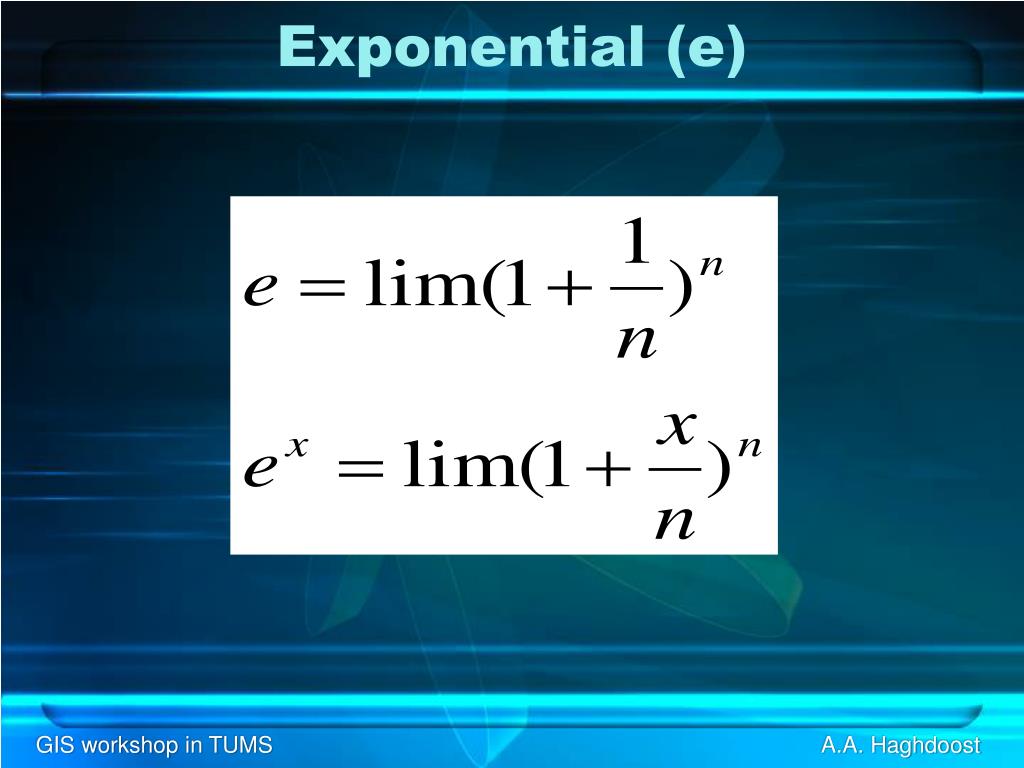

  10. Exponential (e)

  11. Exponential (e)

  12. R r

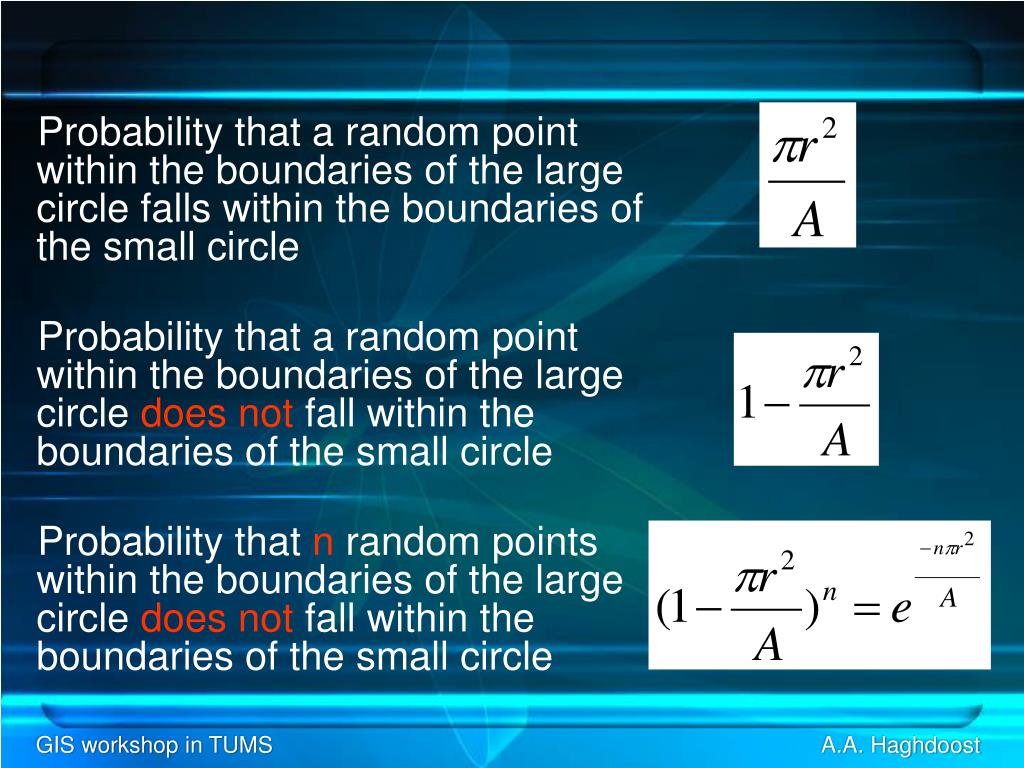

  13. Probability that a random point within the boundaries of the large circle falls within the boundaries of the small circle Probability that a random point within the boundaries of the large circle does not fall within the boundaries of the small circle Probability that n random points within the boundaries of the large circle does not fall within the boundaries of the small circle

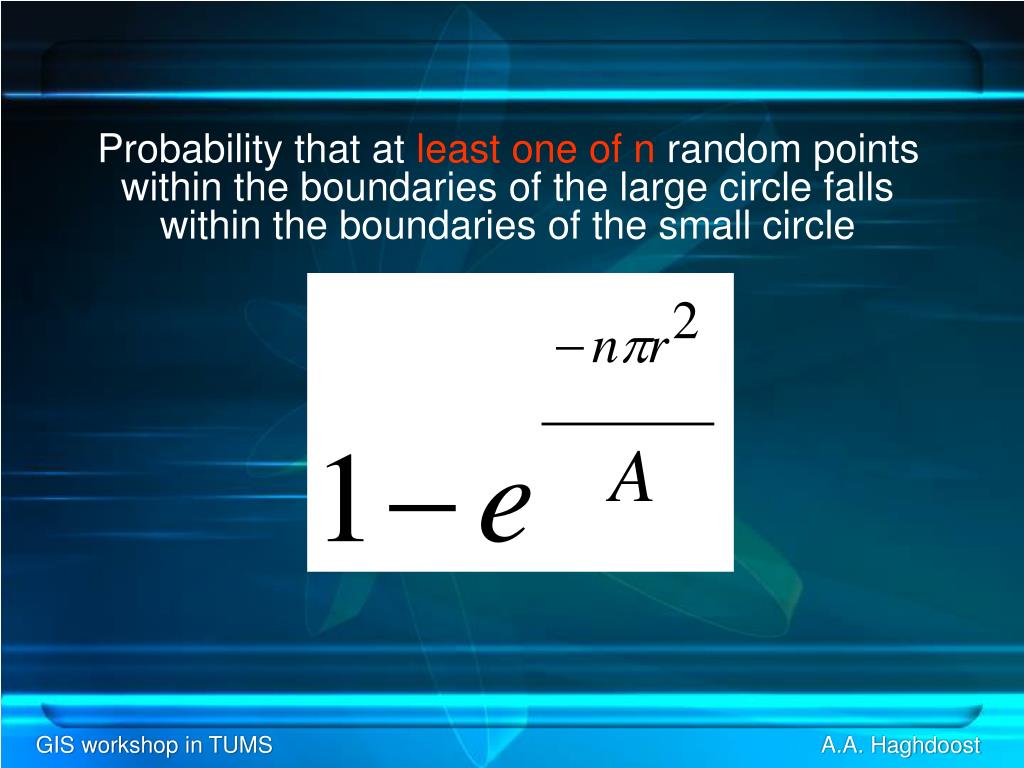

  14. Probability that at least one of n random points within the boundaries of the large circle falls within the boundaries of the small circle

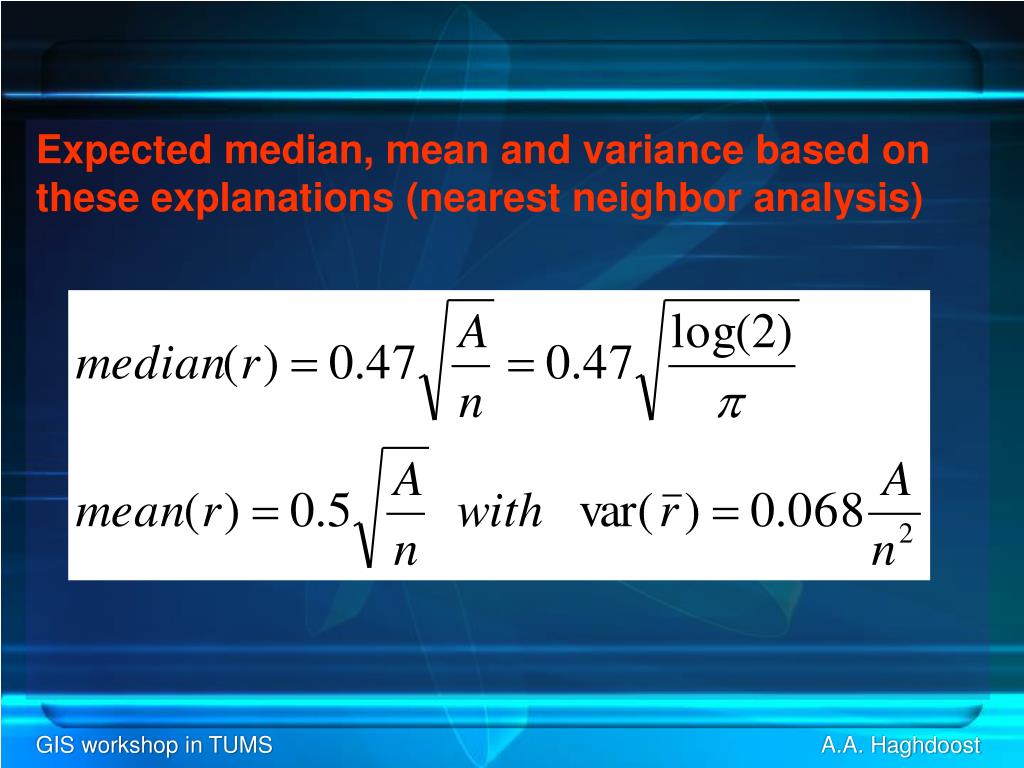

  15. Expected median, mean and variance based on these explanations (nearest neighbor analysis)

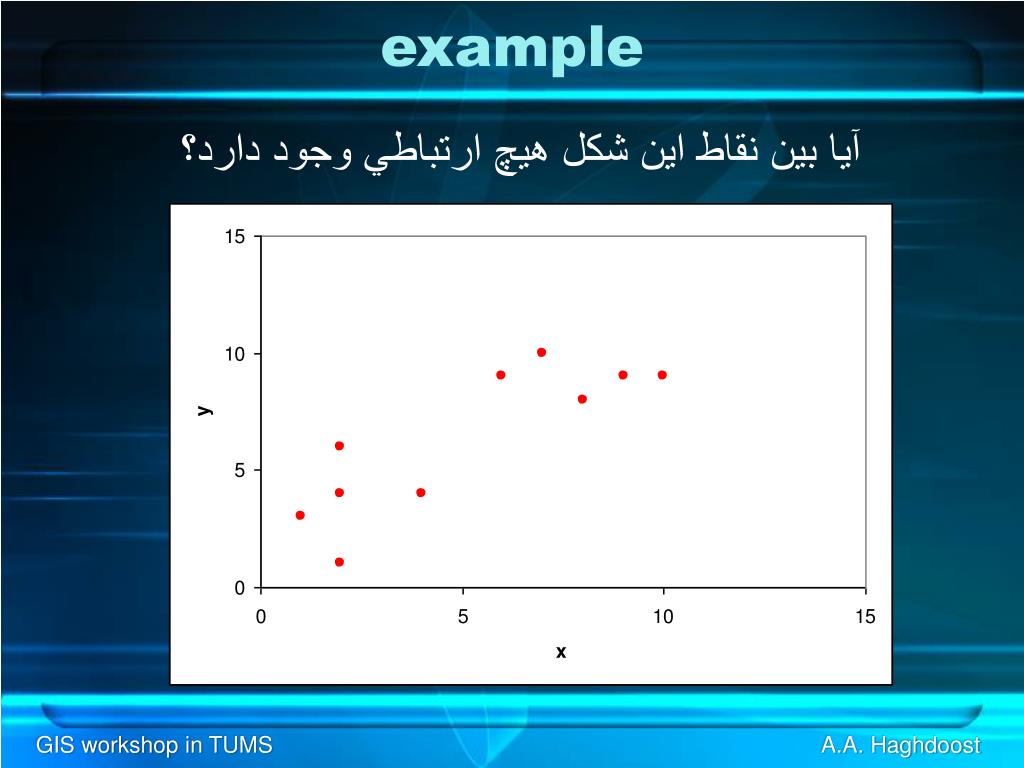

  16. example آيا بين نقاط اين شكل هيچ ارتباطي وجود دارد؟

  17. نقاط ضعف روش نزديكترين گزينه • Very large and small area (A) may reduce the significance

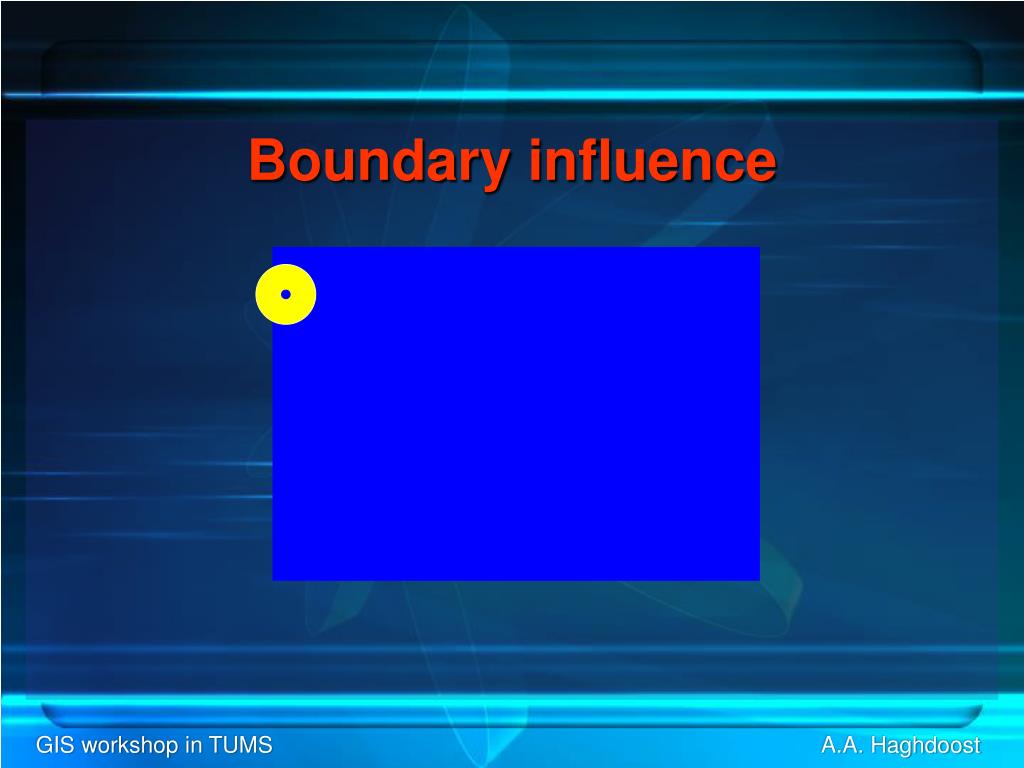

  18. Boundaryinfluence

  19. Transformed map • Uniform distribution is violated in nearly all situations. • Redraw a map so that the density of the individuals at risk is equalized over the area under study, called a cartogram

  20. Original map

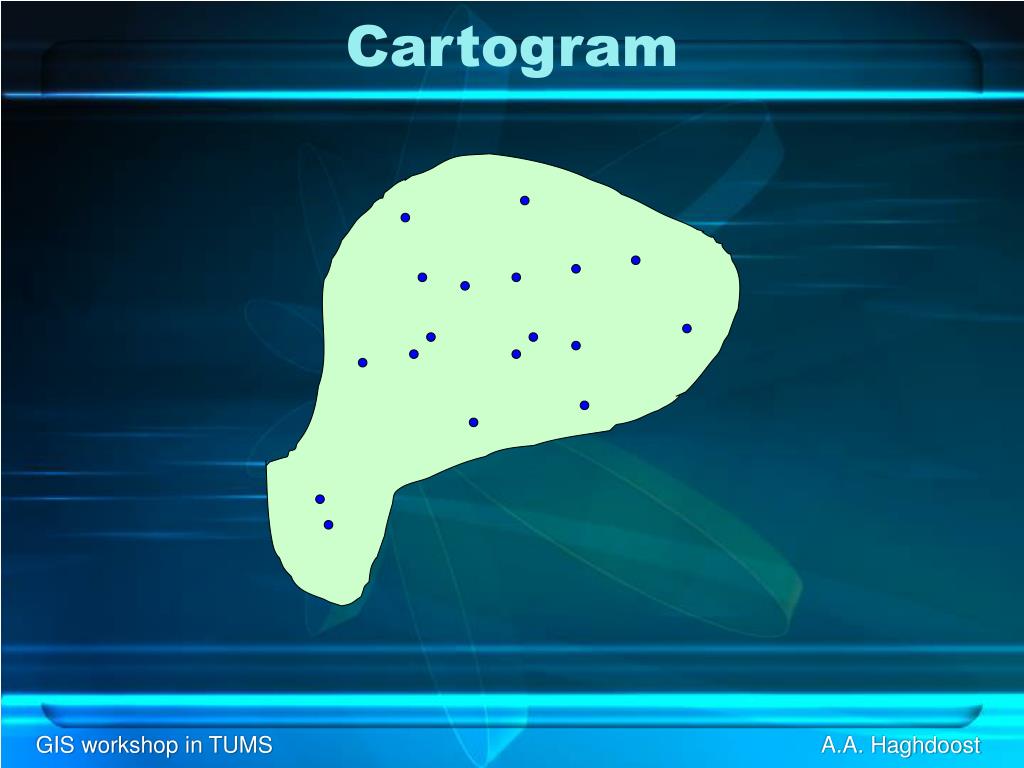

  21. Cartogram

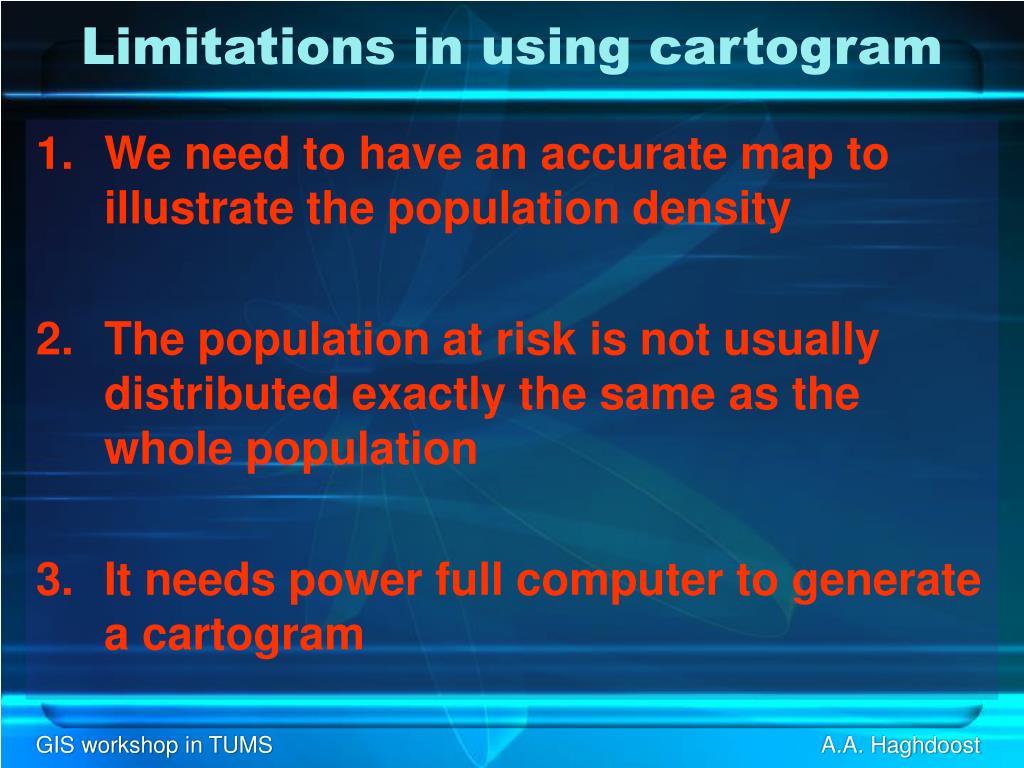

  22. Limitations in using cartogram • We need to have an accurate map to illustrate the population density • The population at risk is not usually distributed exactly the same as the whole population • It needs power full computer to generate a cartogram

  23. Alternative method • Case control approach • It means we can compare the spatial distribution of cases versus controls using Poisson models
