simulating the response of fibrous scaffolds for tissue engineering

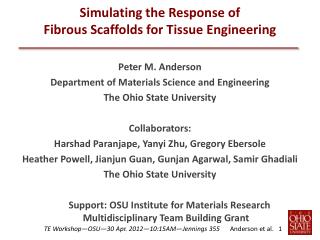

Simulating the Response ofFibrous Scaffolds for Tissue Engineering

Peter M. Anderson

Department of Materials Science and Engineering

The Ohio State University

Collaborators:

Harshad Paranjape, Yanyi Zhu, Gregory Ebersole

Heather Powell, Jianjun Guan, Gunjan Agarwal, Samir Ghadiali

The Ohio State University

Support: OSU Institute for Materials ResearchMultidisciplinary Team Building Grant

outline
Outline
  • Motivation
  • Background
  • Experiment-Simulation Approach
    • Experimental input
      • fiber geometry in scaffolds
      • macro mechanical response
    • Output
      • Electrospun Fiber Properties
  • Vision and Challenges
  • Conclusions

cyclic excitation

Cell-matrix interaction

motivation
Motivation
  • Engineered Skin
    • 4 week waiting period
      • skin biopsy (1 wk)
      • fibroblasts (1 wk)
      • culture in scaffold (2 wk)
  • Outcomes: Engineered skin is
    • weak
    • too compliant
    • prone to tearing
    • lacks pigment, hair, nerves
  • Reduce time, improve properties

Burn patient, post-op day 28

CourtesyST Boyce

ES, day 14

Skin, adult breast

background engineered skin
Background: Engineered Skin
  • Properties: governed by epidermal differentiation
  • Role of scaffold environment?

Histology during culture: 7 to 21 days

Mechanical Properties

Ebersole Anderson, Powell. J. Biomechanics. 2010.

background mechanical environment
Background: Mechanical Environment
  • Used cross-linking to increase
    • modulus, E, of collagen gel substrate
  • E directs stem cell differentiation

1 kPa—brain—neurogenic

10 kPa—muscle—myogenic

100 kPa—collagenous bone—osteogenic

  • Chemical and mechanical environmentcritical to cell differentiation

Engler, Sweeney, Discher, Schwarzbauer. J. Musc. Neur. Interac. 2007

background modeling
Background: Modeling
  • Network models
    • Affine vs. non-affine deformation
      • How inhomogeneous is actual deformation?
    • Sources of nonlinearity (strain stiffening)
      • fiber straightening (unbending)
      • fiber rotation (reorientation)
      • fiber cross-links, contacts
      • fiber constitutive properties (s-e)
    • Scaffold geometry
      • from images or artificially generated?

Sander et al. IEEE Eng. Medic. Biol. 2009

Stein et al. Complexity. 2011

Wang et al. J Eng Mater Tech. 2000

background single fiber testing
Background: Single Fiber Testing
  • Single fiber testing
    • bridge mode: stretching (AFM) - bridge mode: bending (AFM)
  • Difficult procedure. Physiological loading?

Carlisle et al. Acta Biomater. 2010

Yang et al. Acta Biomater. 2008

strategy
Strategy
  • Get fiber s-e properties viaan experiment-modeling approach

Exp. input:

scaffold

geometry

Output:

fiber s-e

properties

Finite Element Model

Exp. input:

Scaffold

S-E response

background scaffold synthesis
Background: Scaffold Synthesis
  • Material
    • 10% wt/vol solution of acid-soluble collagen type I
  • Fiber Spinning
    • 8.5 cm2 grounding plate
    • 30 kV potential, 20 cm distance, 4.5 ml/hr
  • Cross-linking
    • physical: vacuum dehydration, 140 C, 24 hrs
    • chemical: solution 5 mM 1-ethyl-3-3-dimethylaminopropylcarbodiimide hydrochloride in 100% ethanol
experimental input
Experimental Input

Before Hydratation

  • Scaffold fiber geometry
    • Confocal microscopy
      • hydrated in buffer
      • z-stack imaging
      • 5 mm slice x 150 slices per scaffold
    • Digitize coodinates->Finite Element Code
    • Extract Fourier spectra

100 um

Hydrated

Fourier amplitude/l

100 um

Ebersole, Paranjape, Anderson, Powell. Acta Biomaterialia, in review.

experimental input1
Experimental Input
  • Macro Stress-Strain Response
  • Large "Toe" region (40% strain)

Toe region

finite element simulations
Finite Element Simulations
  • ABAQUS software
  • 54 fibers: beam elements
  • 20 x 20 x 5 mm system
  • 110% axial strain
    • imposed in X direction.
  • Negative transverse strain
    • Poisson effect

Z

Y

X

Before Deformation

simulation results
Simulation Results
  • 110% axial strain along X-dir
fe simulations fiber properties
FE Simulations: Fiber Properties
  • LE Fiber ModuliEf
    • Ef(small strain) = 0.35 MPa
    • Ef(large strain) = 1.11 MPa

Simu

Scaffold Simulations

LE fibers

Ef = 1.11MPa

HyperE fiber s-e response

Expe riments

HyperE fibers

LE FibersEf = 0.35MPa

  • Hyperelastic fiber model
    • nonlinear fiber s-e response

Movie

effect of system size
Effect of System Size
  • Simulations of single fiber extension:
    • use Fourier spectra
    • 200 mm fibers:
      • more compliant
  • Rationale
    • longer fibers:
      • incorporate longer wavelength modes

Fiber load (normalized)

Fiber strain (DL/L0)

before stretching

during stretching

variation in fiber response
Variation in Fiber Response
  • Fiber stress vs. strain
  • Large statistical deviation
  • Cause? fiber geometry
  • Toe-in strain
    • from ~0 to >20%
  • Post Toe-in stiffness
    • uniform
  • Mean behavior
    • more rounded, gradual toe-in

Collagen fibers, L = 200 mm

Fiber stress (F/A0)

75

Fiber strain (DL/L0)

challenges
Challenges
  • Need larger model to encompass cell(s)
    • 200 x 200 x 50 microns
  • Cannot create by periodically replicating small 20 mm models
    • misses larger wavelengths
  • Confocal imaging
  • Conversion to fibercoordinates
vision
Vision
  • Determine cell force footprints
    • after Legant et al.
    • polyethylene glycol hydrogels
    • lyse cells; measure resulting beaddisplacements (0.2 mm diam)
    • finite element model: deduce tractions
  • Results from Legant et al.
    • GFP expressing NIH 3T3 fibroblasts:0.1 – 5 kPa tractions
    • tractions  as hydrogel modulus 

Legant et al. 2mm fluorescent beads

tractions

Legant et al. Nature Methods 7(12): 969 (2010).

application to fibrous matrices
Application to Fibrous Matrices
  • Confocal images at two states:

(1) during cell differentiation/growth

(2) after lysing

  • Get displacements u(i) at focal adhesion sites (i) btw states (1)-(2)
  • Construct FE mesh of state (2)
  • Determine focal adhesion forces f(i) needed to achieve measured u(i)
  • Green's functions: supplied by FE model.
conclusions
Conclusions
  • Finite element (FE) modeling
    • input: fiber geometry; macro S-E behav.
    • output: local fiber properties
    • caveat: need large FE model to capturelarge wavelength contributions.
  • Long-range vision
    • capture cell force footprints, correlate with directed cell differentiation
  • Challenges
    • large scale images/automated import to FE
    • simulation times, esp. w/nonlinear system
    • stress-free state?
  • ex: local s-e properties type I collagen
