  1. Jean-Marie Grégoire Satellite-derivedglobal scalebiomass burning products ACCENT/GEIA workshop – Paris – 19-20 April 2005

  2. Helicopter view - Australia SPOT-VGT 1 km resolution – RCA Sudan border - ~ 500 km x 500 km

  3. Northern Australia June 1999 NOAA-AVHRR ( ~ 2 pm ) SPOT-VEGETATION ( ~ 10 am )

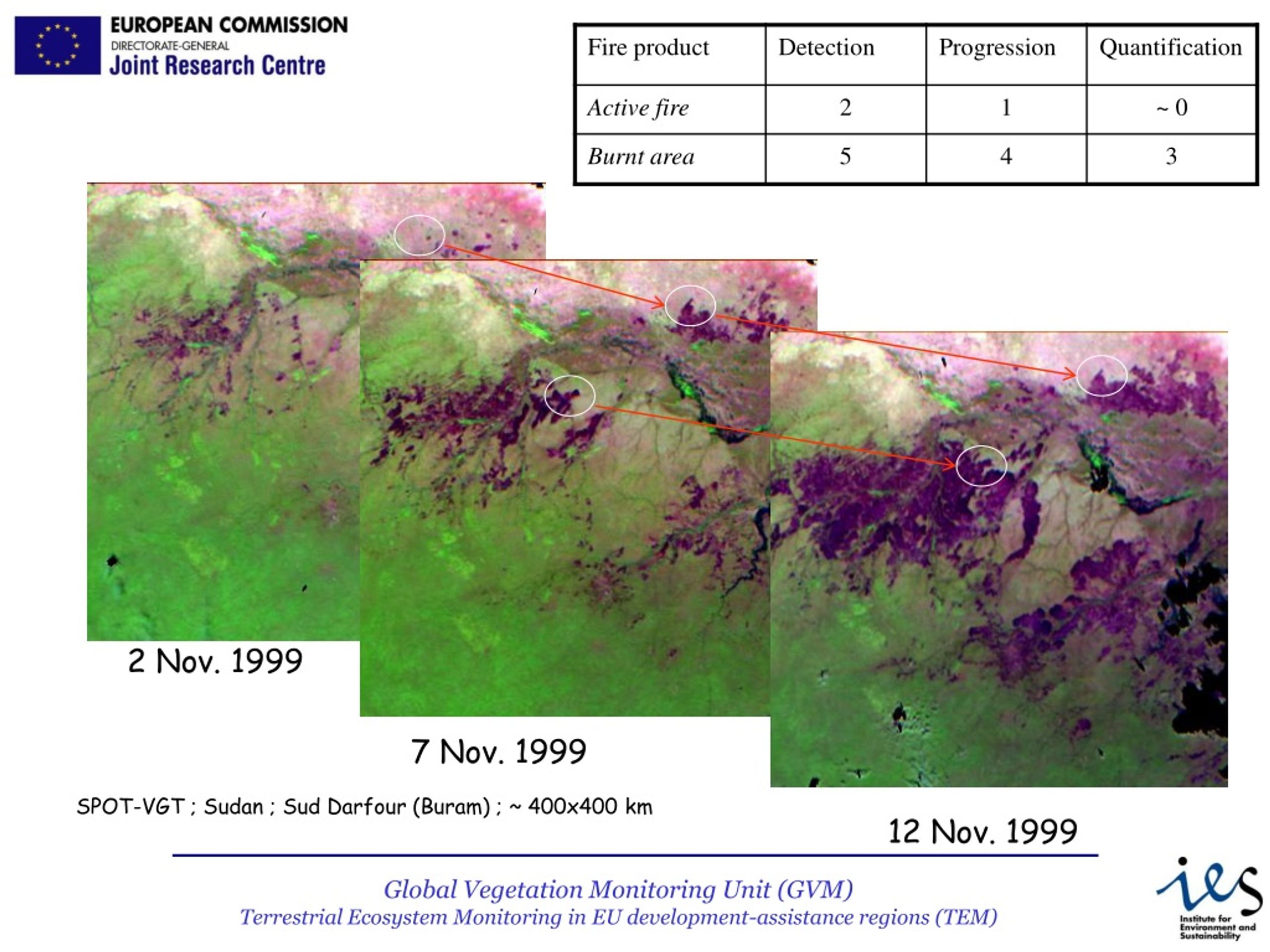

  4. 2 Nov. 1999 7 Nov. 1999 12 Nov. 1999 SPOT-VGT ; Sudan ; Sud Darfour (Buram) ; ~ 400x400 km

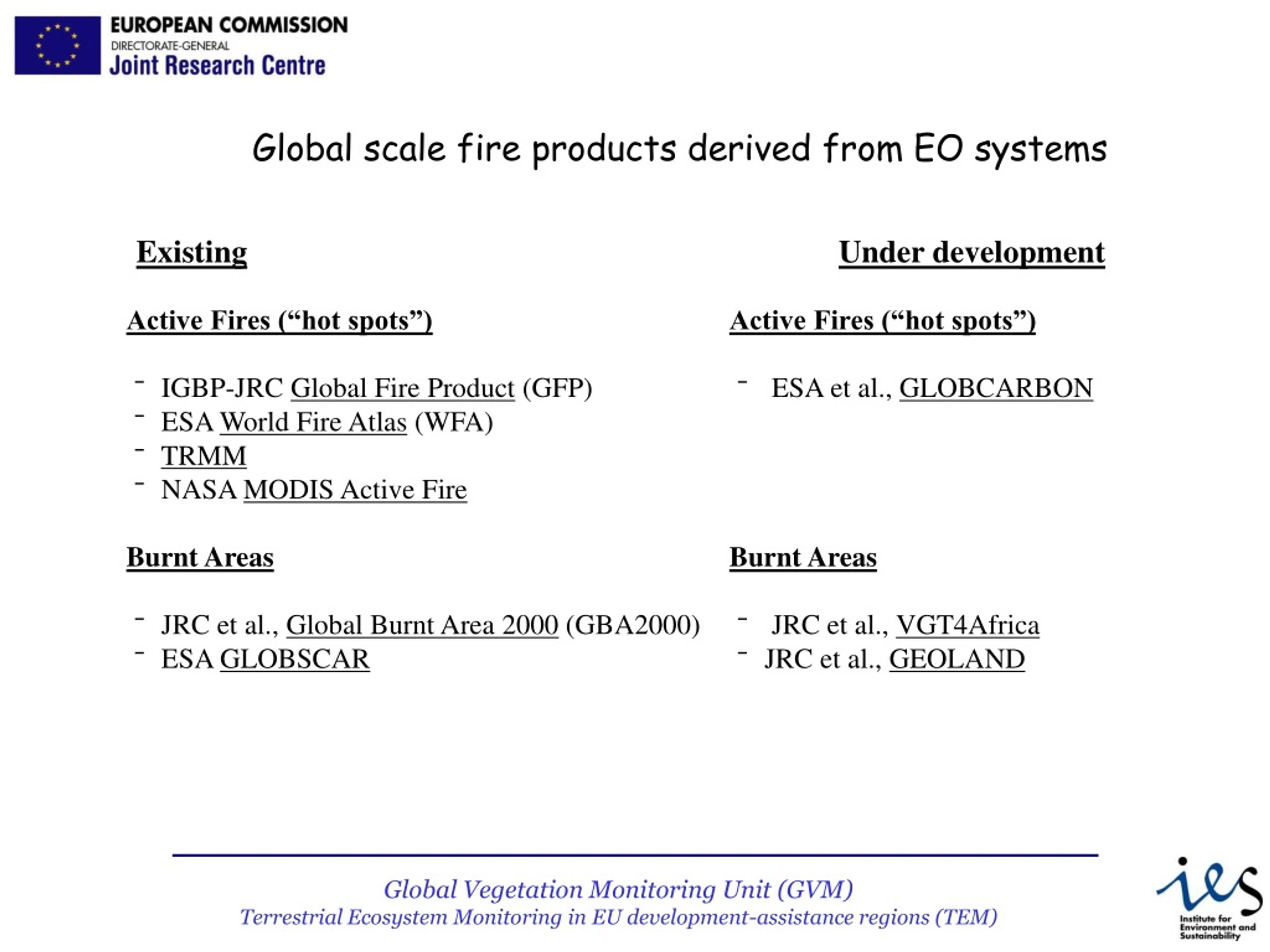

  5. Global scale fire products derived from EO systems Existing Under development Active Fires (“hot spots”) • IGBP-JRC Global Fire Product (GFP) • ESA World Fire Atlas (WFA) • TRMM • NASA MODIS Active Fire Burnt Areas • JRC et al., Global Burnt Area 2000 (GBA2000) • ESA GLOBSCAR Active Fires (“hot spots”) • ESA et al., GLOBCARBON Burnt Areas • JRC et al., VGT4Africa • JRC et al., GEOLAND

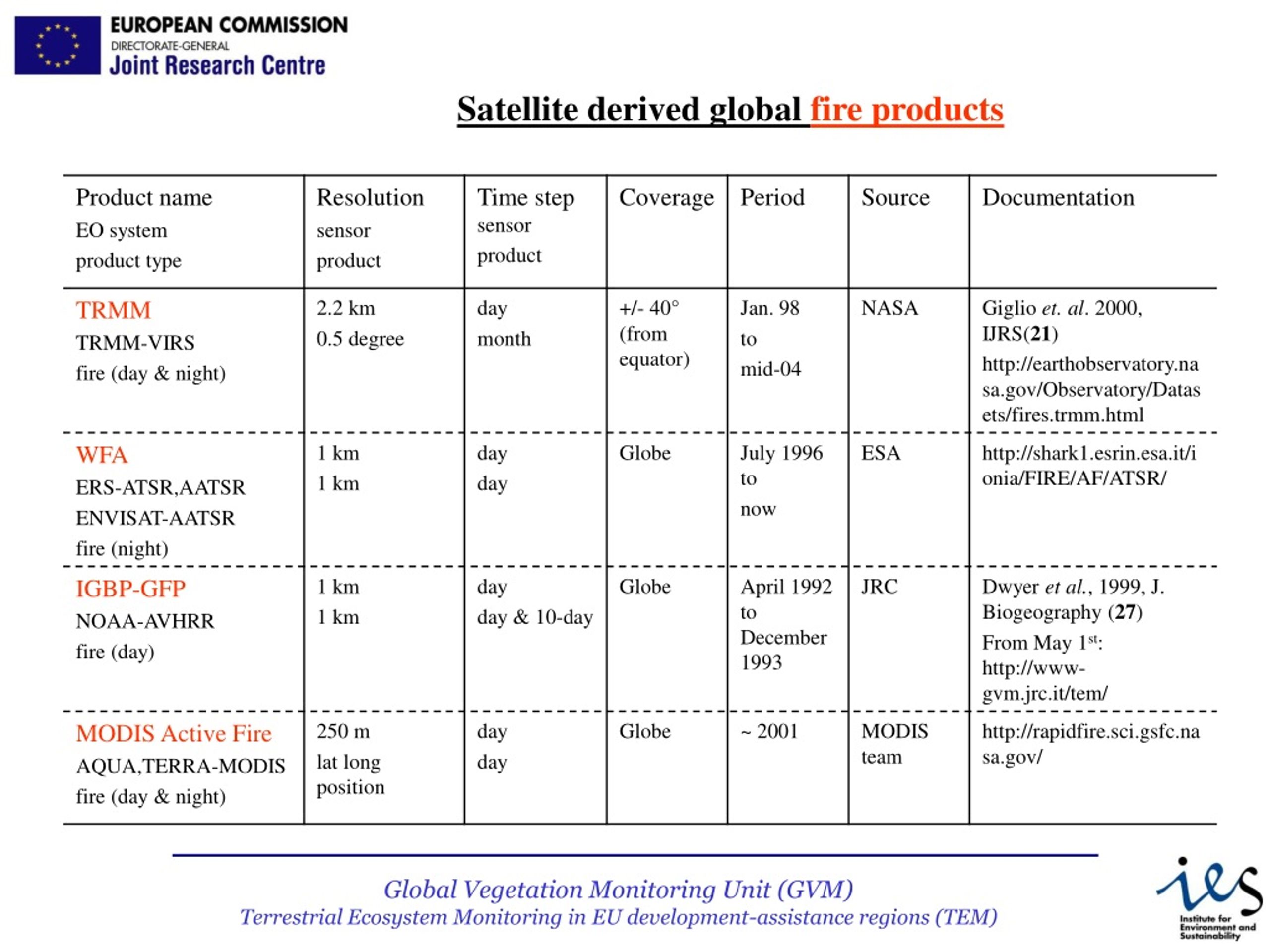

  6. Satellite derived global fire products

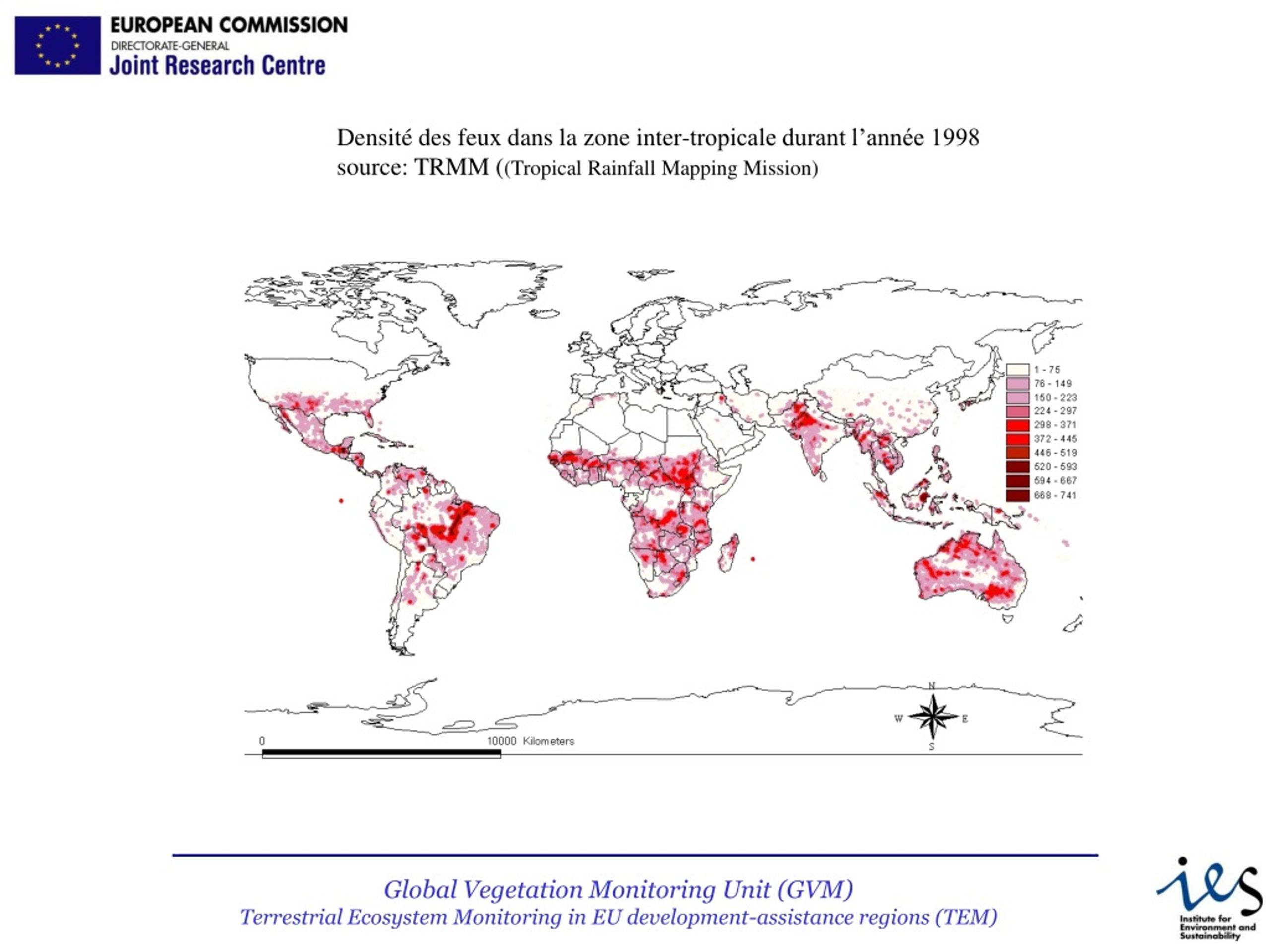

  7. Densité des feux dans la zone inter-tropicale durant l’année 1998 source: TRMM ((Tropical Rainfall Mapping Mission)

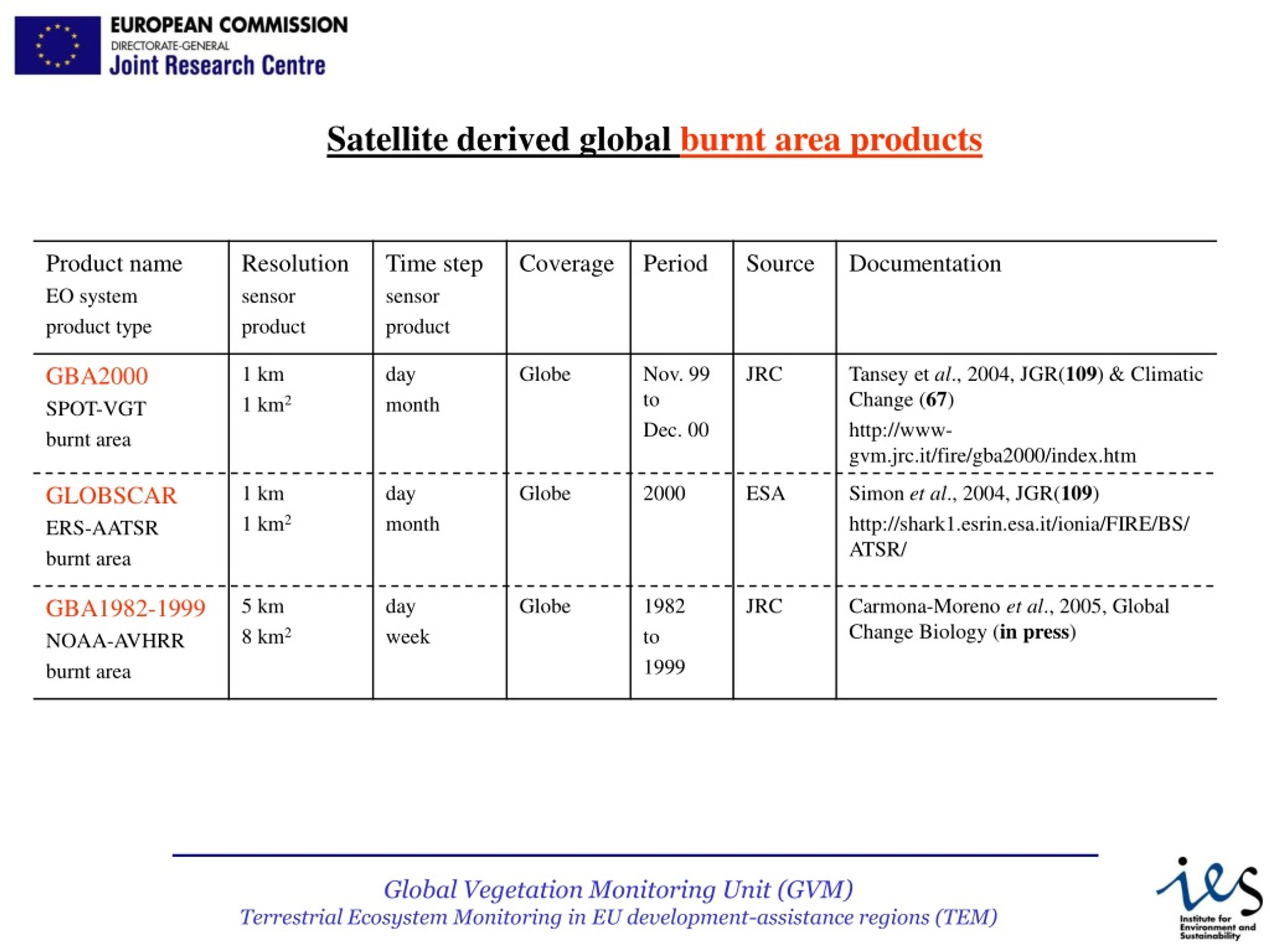

  8. Satellite derived global burnt area products

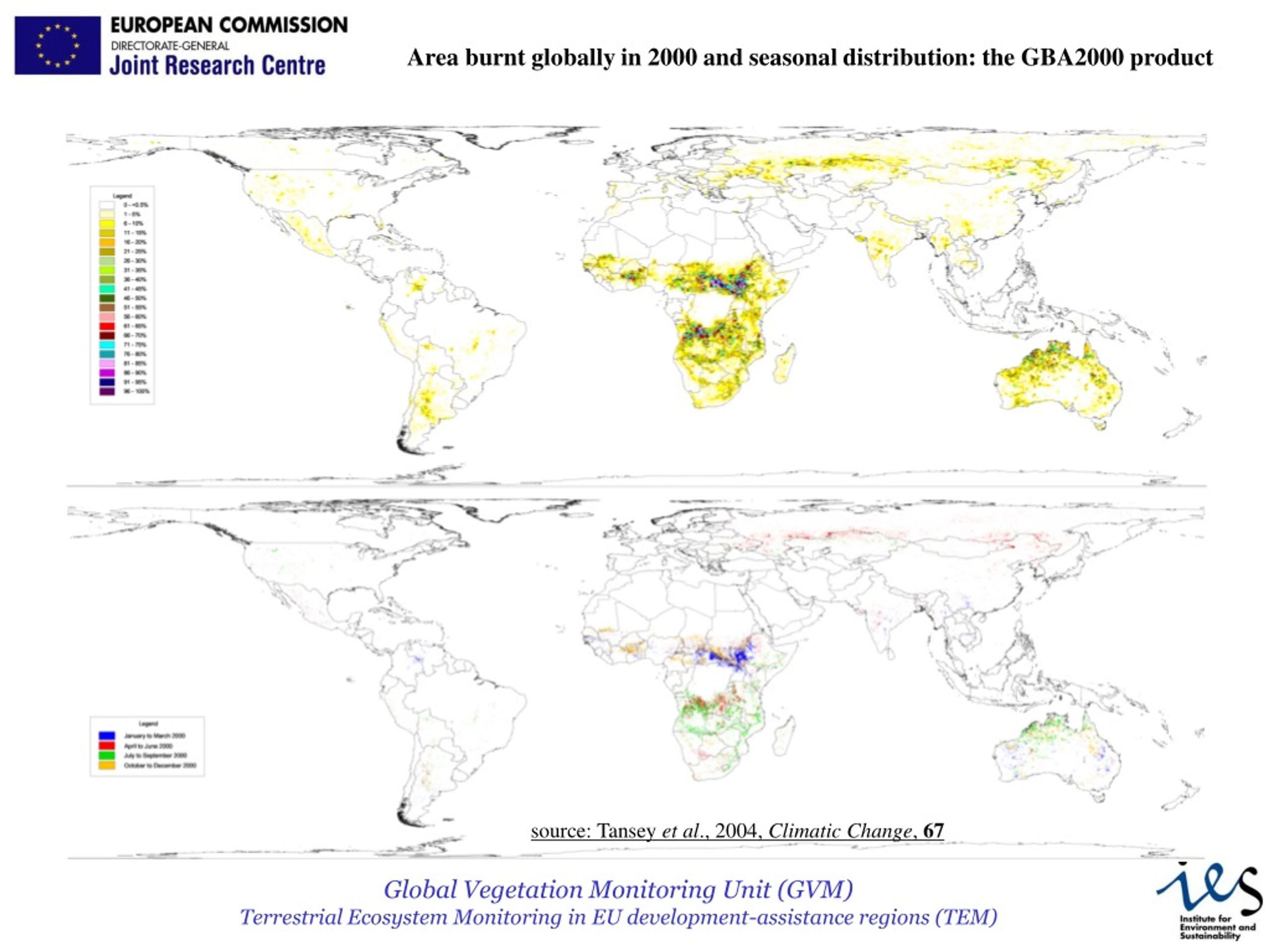

  9. Area burnt globally in 2000 and seasonal distribution: the GBA2000 product source: Tansey et al., 2004, Climatic Change, 67

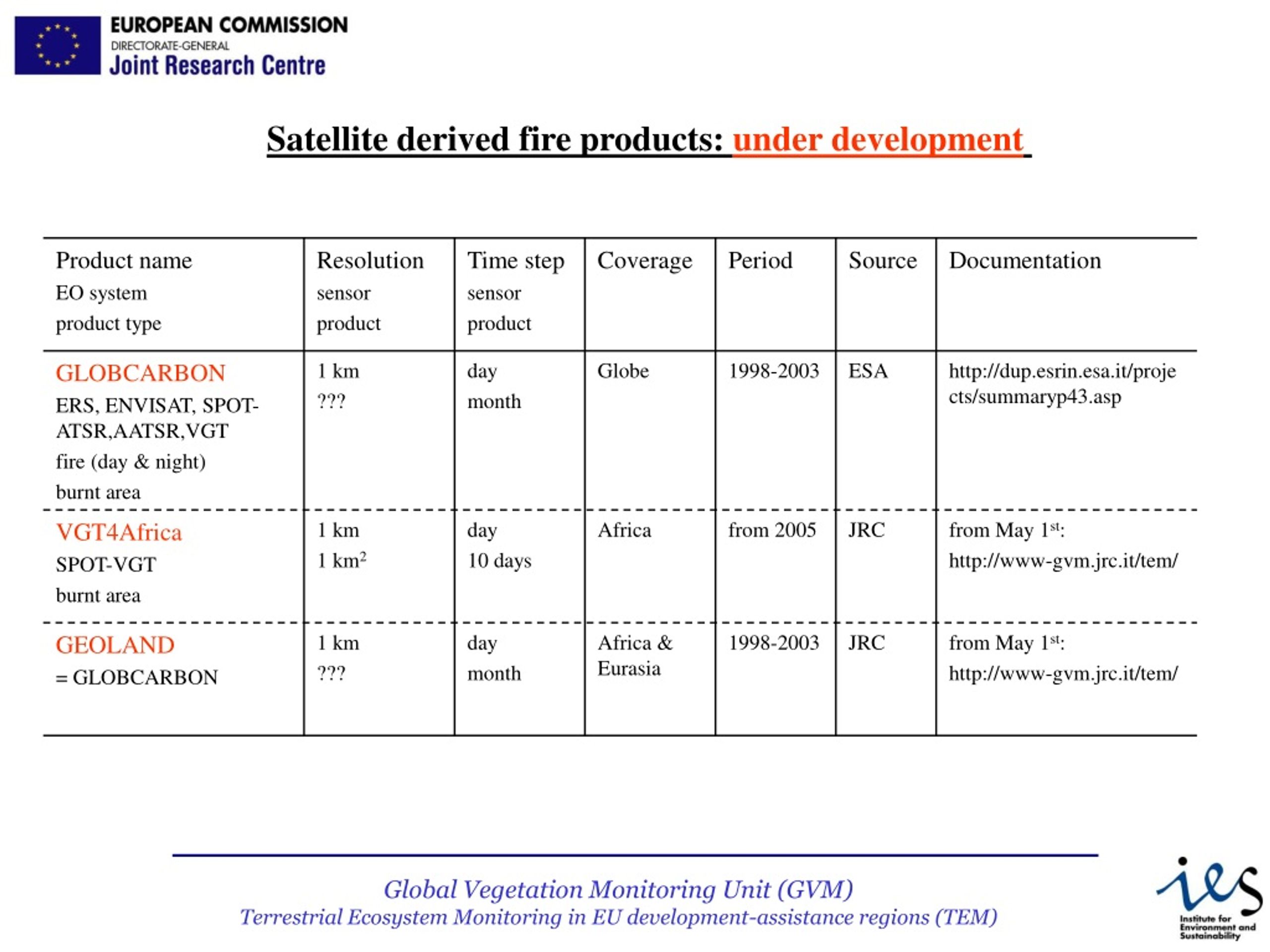

  10. Satellite derived fire products: under development

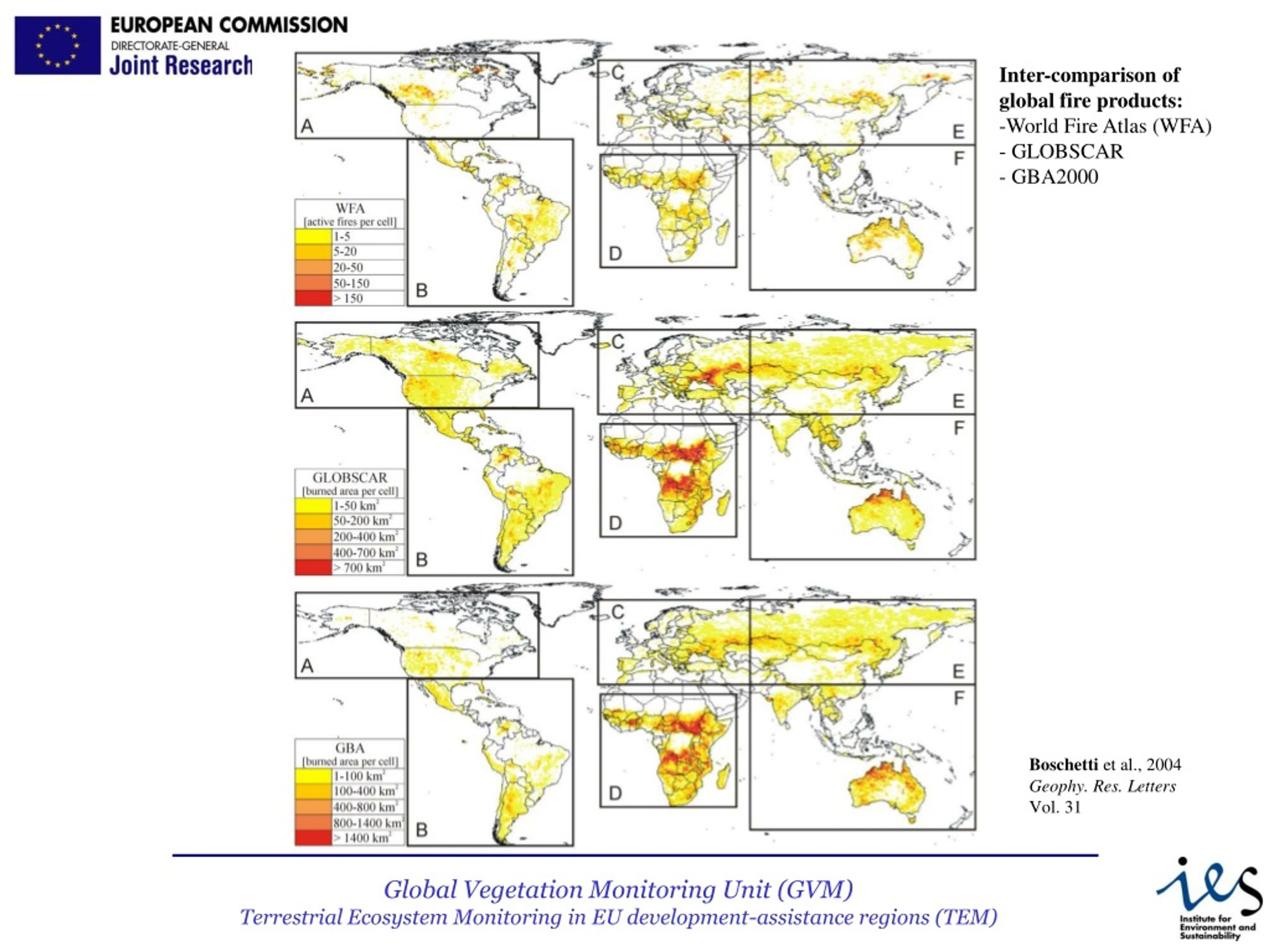

  11. Inter-comparison of • global fire products: • World Fire Atlas (WFA) • GLOBSCAR • GBA2000 Boschetti et al., 2004 Geophy. Res. Letters Vol. 31

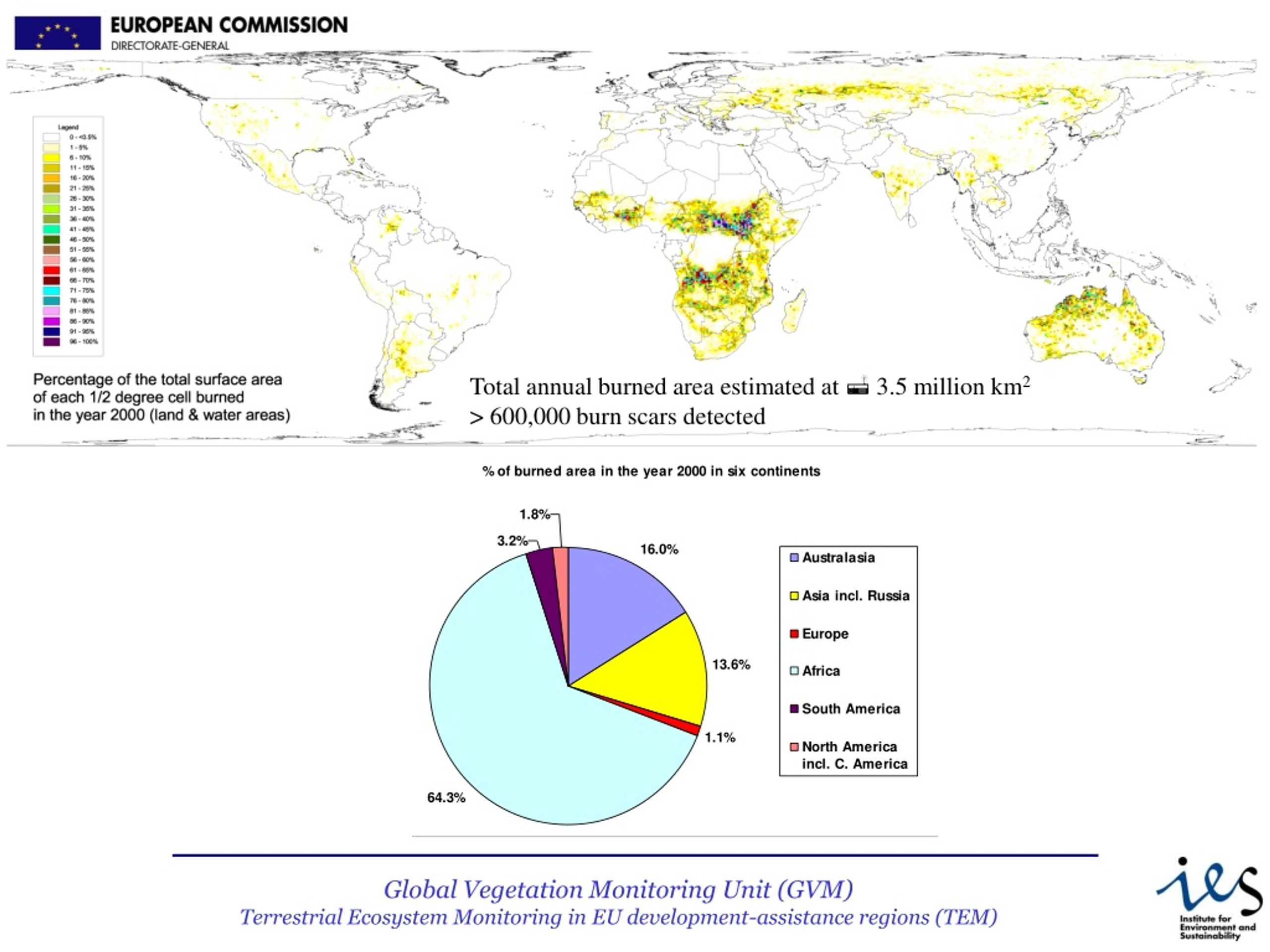

  12. Total annual burned area estimated at  3.5 million km2 > 600,000 burn scars detected

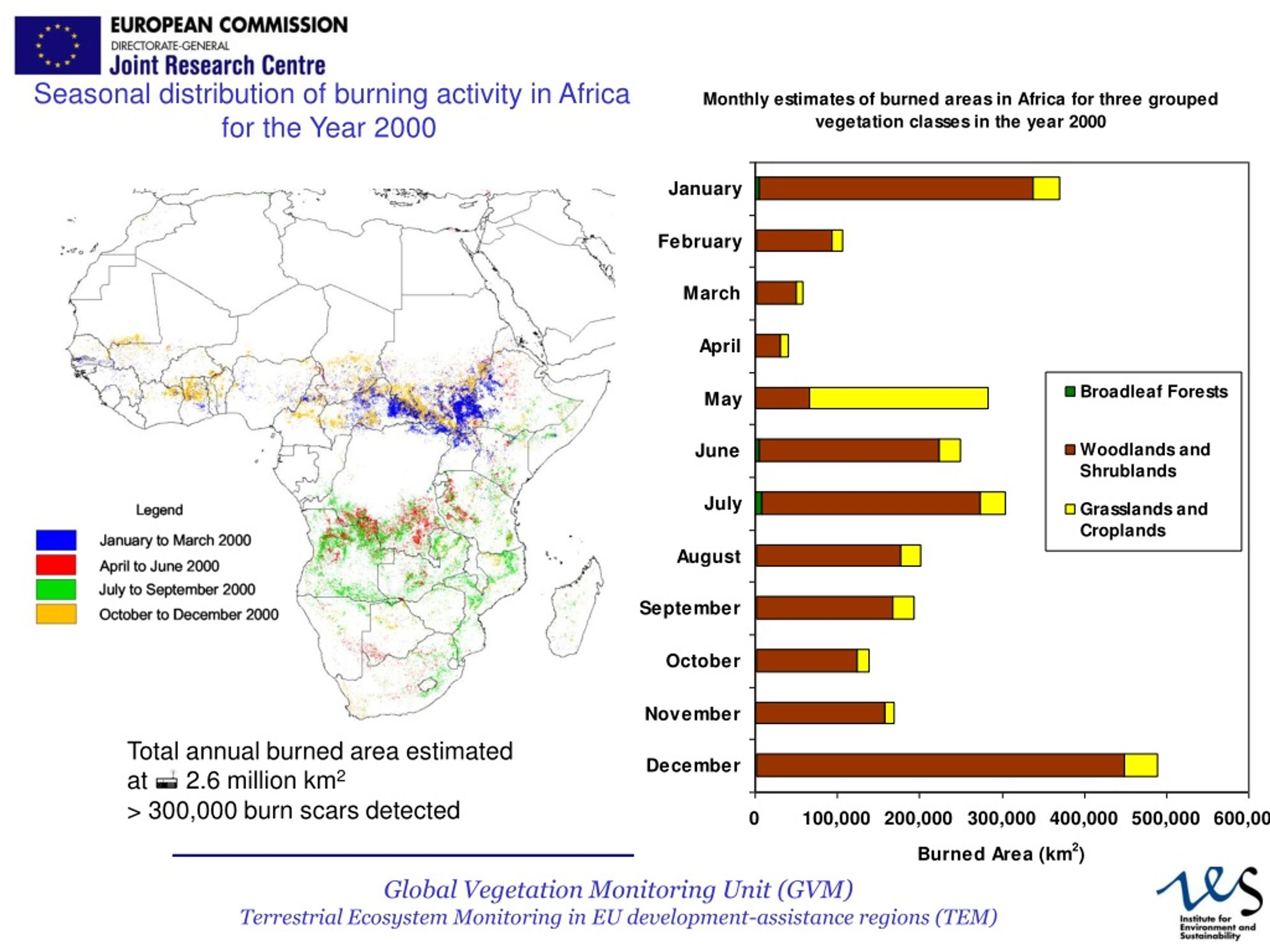

  13. Seasonal distribution of burning activity in Africa for the Year 2000 Total annual burned area estimated at  2.6 million km2 > 300,000 burn scars detected

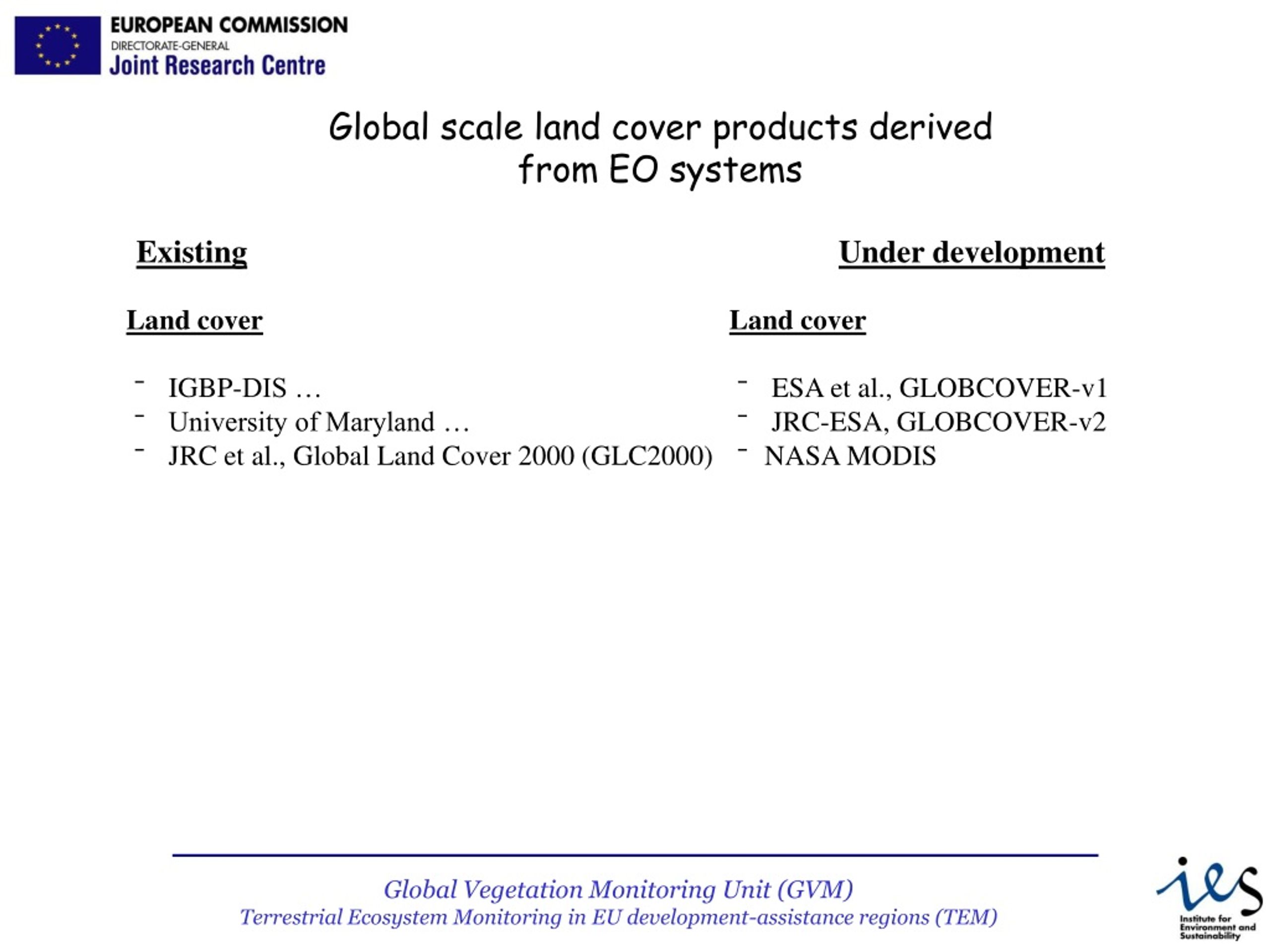

  14. Global scale land cover products derived from EO systems Existing Under development Land cover • IGBP-DIS … • University of Maryland … • JRC et al., Global Land Cover 2000 (GLC2000) Land cover • ESA et al., GLOBCOVER-v1 • JRC-ESA, GLOBCOVER-v2 • NASA MODIS

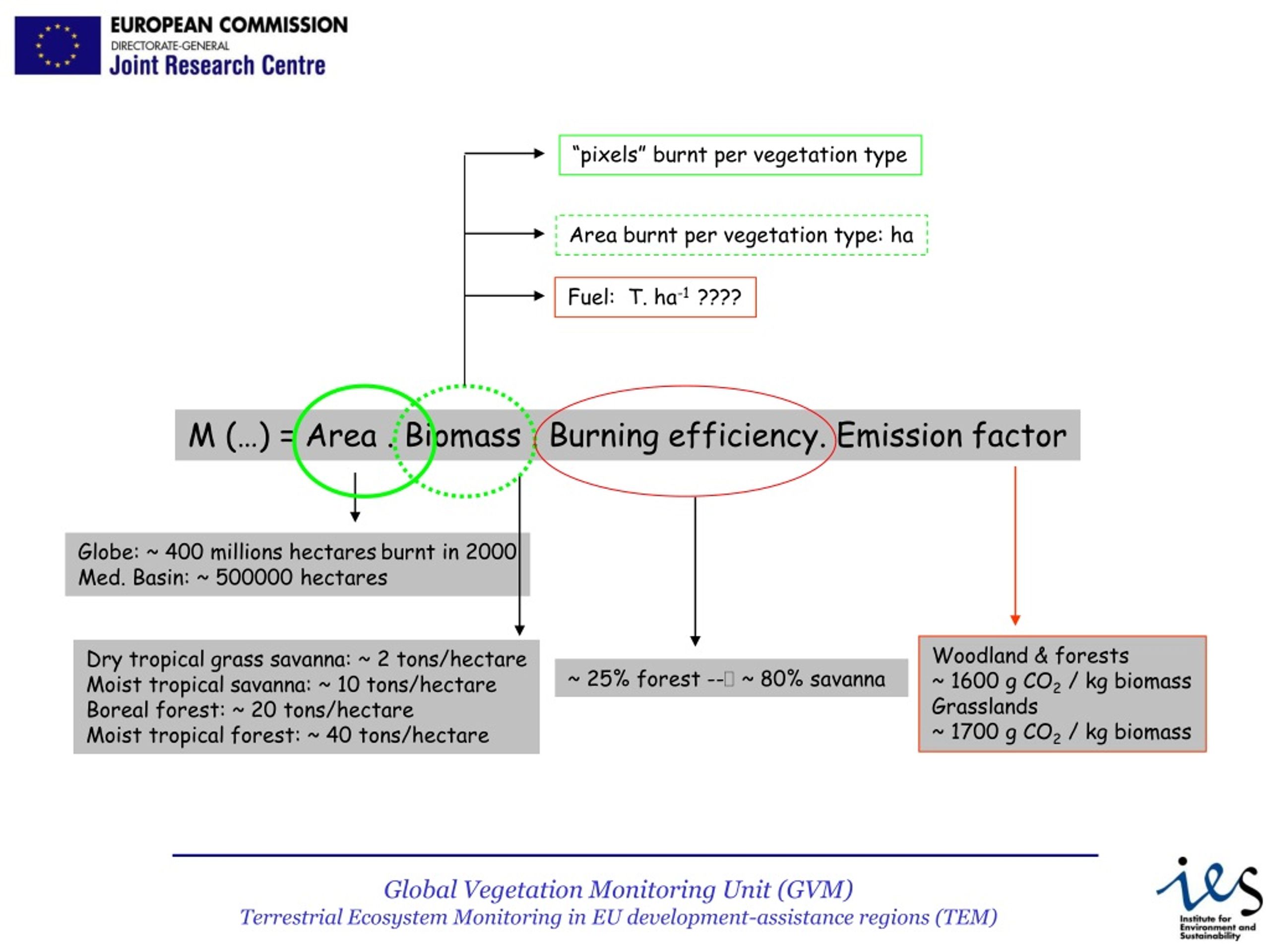

  15. “pixels” burnt per vegetation type Area burnt per vegetation type: ha Fuel: T. ha-1 ???? M (…) = Area . Biomass . Burning efficiency. Emission factor Globe: ~ 400 millions hectaresburnt in 2000 Med. Basin: ~ 500000 hectares Woodland & forests ~ 1600 g CO2 / kg biomass Grasslands ~ 1700 g CO2 / kg biomass Dry tropical grass savanna: ~ 2 tons/hectare Moist tropical savanna: ~ 10 tons/hectare Boreal forest: ~ 20 tons/hectare Moist tropical forest: ~ 40 tons/hectare ~ 25% forest -- ~ 80% savanna
