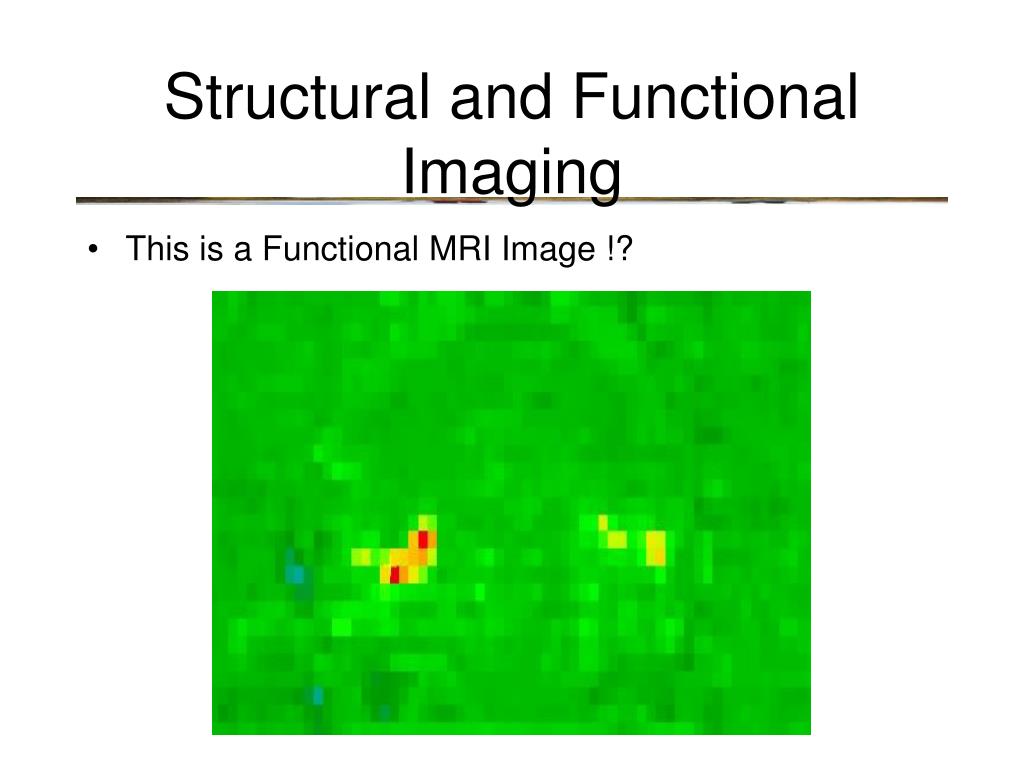

  1. Structural and Functional Imaging • This is a Functional MRI Image !?

  2. Structural and Functional Imaging • This is a structural MRI image (an “anatomical” image)

  3. Structural and Functional Imaging • What you really want is both images co-registered

  4. Structural and Functional Imaging • What you really want is both images co-registered • Why? What’s wrong with the functional image alone?

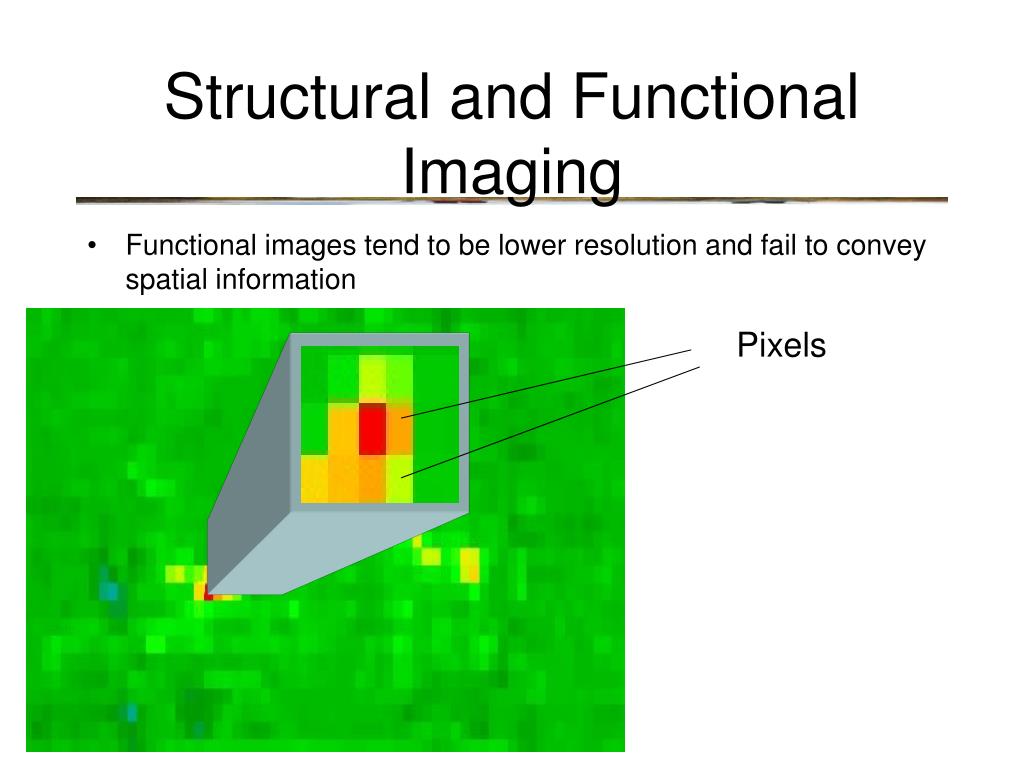

  5. Structural and Functional Imaging • Functional images tend to be lower resolution and fail to convey spatial information Pixels

  6. Structural and Functional Imaging • Structural images have finer (smaller) pixels Pixels

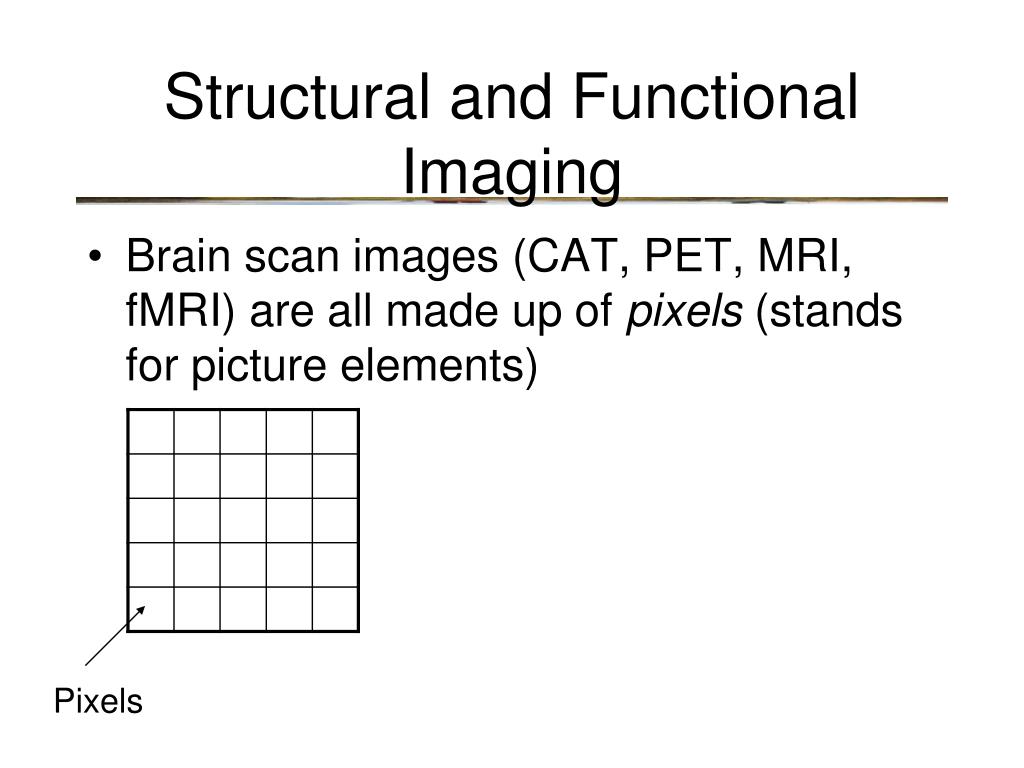

  7. Structural and Functional Imaging • Brain scan images (CAT, PET, MRI, fMRI) are all made up of pixels (stands for picture elements) Pixels

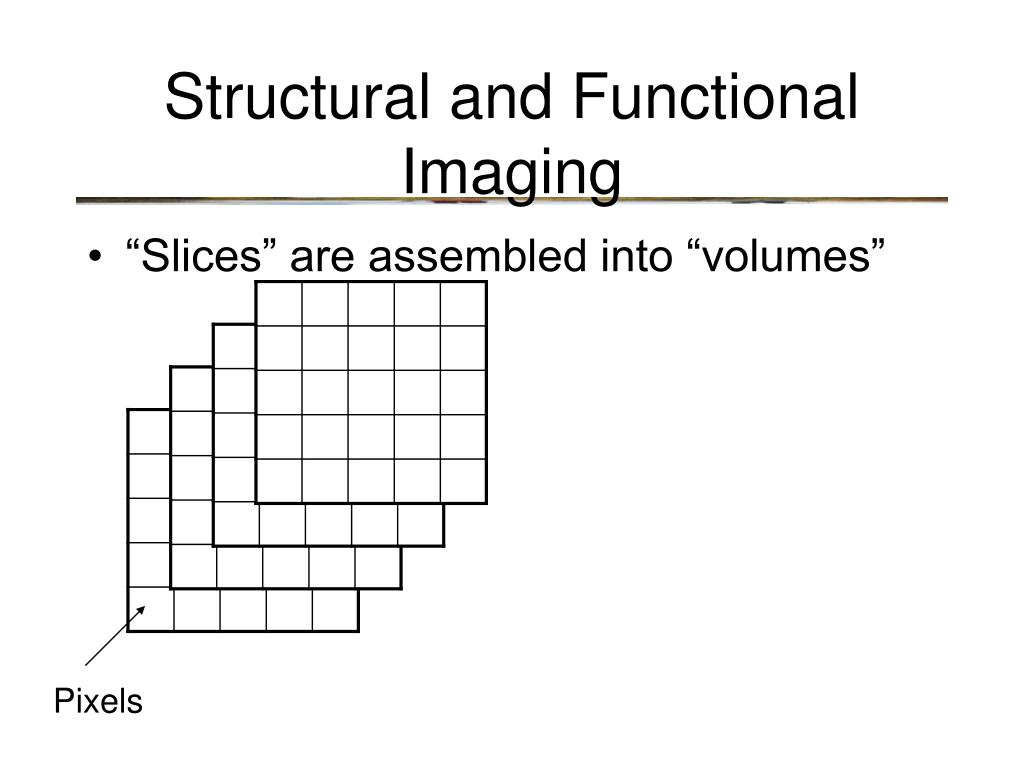

  8. Structural and Functional Imaging • “Slices” are assembled into “volumes” Pixels

  9. Structural and Functional Imaging • Volumes are composed of “volume elements” or voxels Voxels

  10. Structural and Functional Imaging • Another thing you want: the ability to tell other people where something is • “the activity was centered on voxel #653” will not work in a scientific journal

  11. Structural and Functional Imaging • MRI anatomical spaces • Talairach Space: • Based on detailed analysis of one elderly woman • Talairach & Tournoux (1988) • Montreal Neurological Institute Template (MNI) • based on average of 152 different brains, each normalized to Talairach space • advantage: gyri and sulci are more representative • disadvantage: it’s blurry • MNI “Representative Brain” • the one brain from the 152 in the MNI Template set that is most like the average • advantage: it’s not blurry • disadvantage: it’s still just one person’s brain

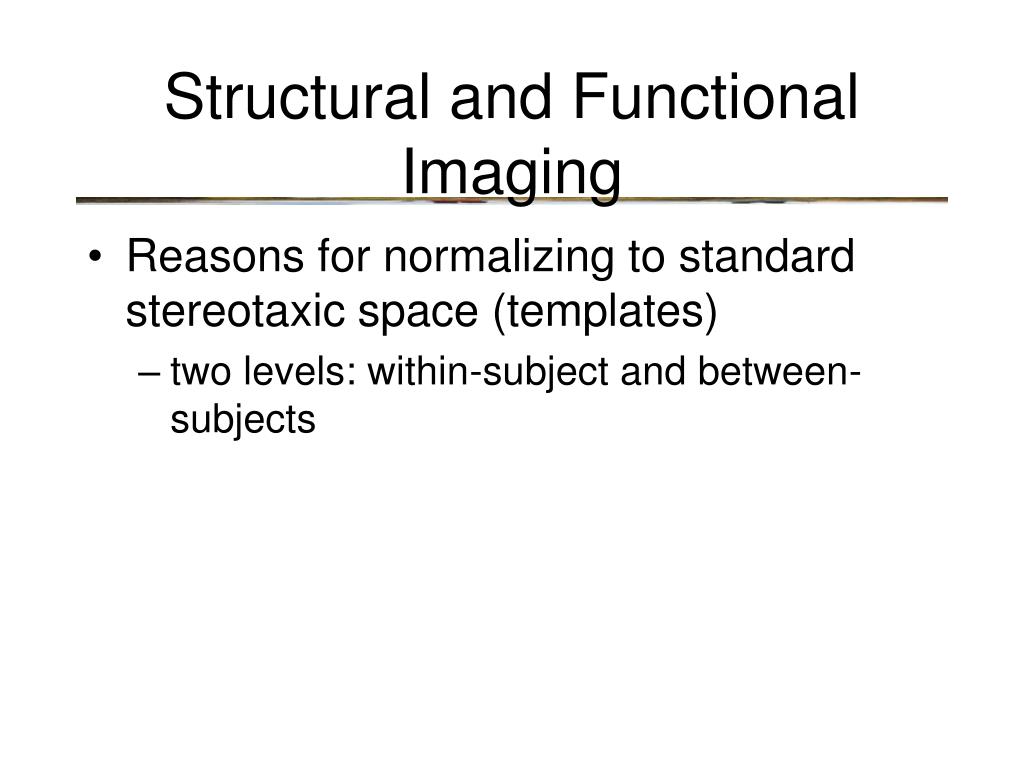

  12. Structural and Functional Imaging • Reasons for normalizing to standard stereotaxic space (templates) • two levels: within-subject and between-subjects

  13. Structural and Functional Imaging • Within-Subject Reasons: • structural and functional volumes may not be coregistered due to • movement • distortion • results can be described in standard coordinates • data across sessions can be averaged

  14. Structural and Functional Imaging • Between-Subject Reasons: • Volumes will not match because of variability across individuals • results can be described in standard coordinates • data across participants can be averaged

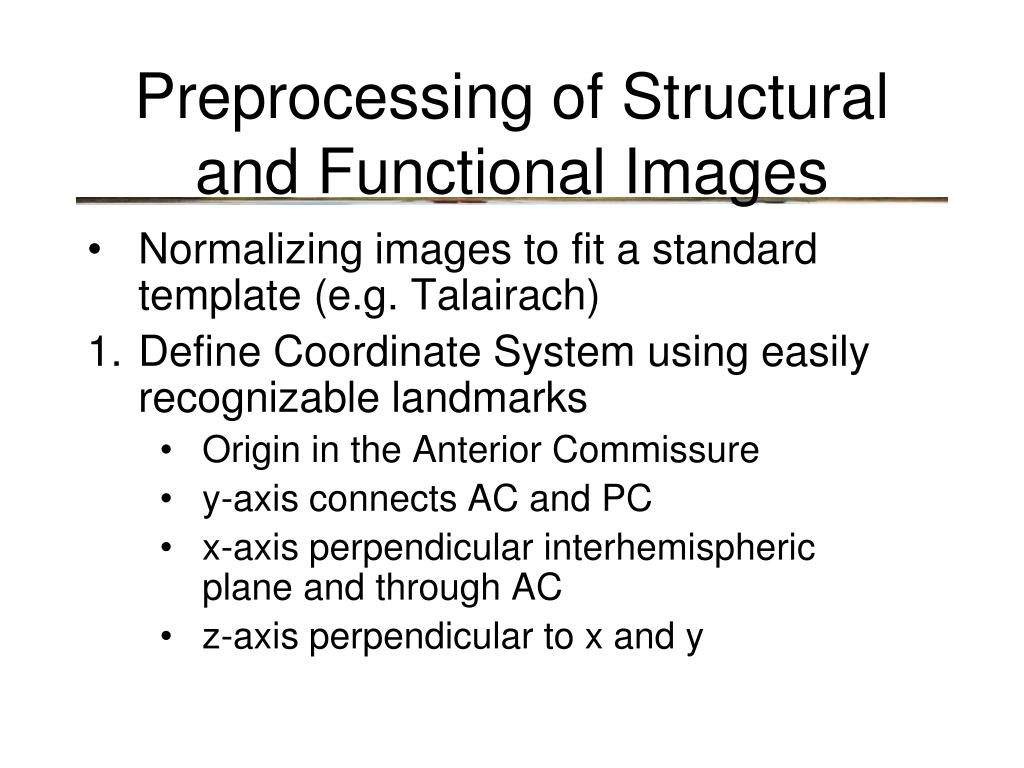

  15. Preprocessing of Structural and Functional Images • Normalizing images to fit a standard template (e.g. Talairach) • Define Coordinate System using easily recognizable landmarks • Origin in the Anterior Commissure • y-axis connects AC and PC • x-axis perpendicular interhemispheric plane and through AC • z-axis perpendicular to x and y

  16. The Talairach Coordinate System PC AC

  17. The Talairach Coordinate System -y AC - PC line defines y-axis +y

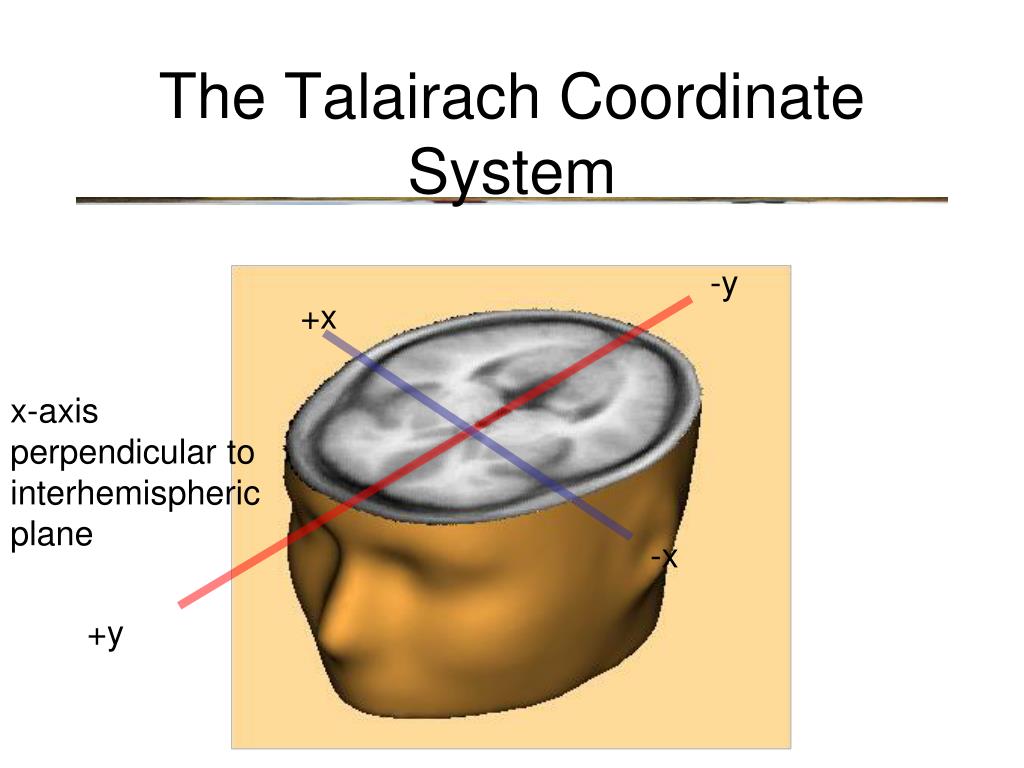

  18. The Talairach Coordinate System -y +x x-axis perpendicular to interhemispheric plane -x +y

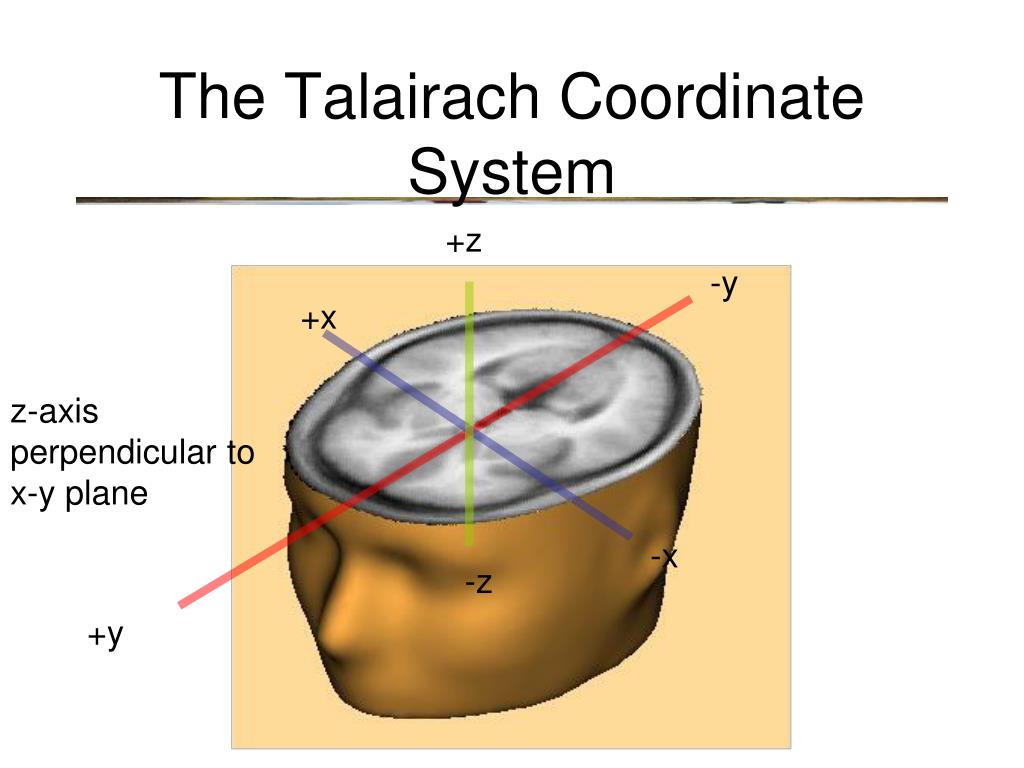

  19. The Talairach Coordinate System +z -y +x z-axis perpendicular to x-y plane -x -z +y

  20. Structural and Functional Imaging • Cortical Flattening • Software such as BrainVoyager can “inflate” the cortex like a balloon so that sulci and gyri are “flattened” • functional data can be transformed with the same complex function • functional and structural data can be overlaid so that distribution on cortical sheet can be visualized
