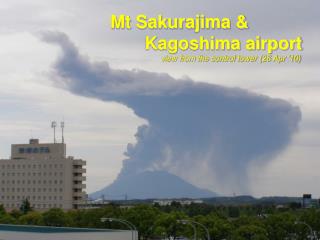

Mt Sakurajima & Kagoshima airport view from the control tower (26 Apr ’10)

Loading in 2 Seconds...

play fullscreen
1 / 19

Mt Sakurajima & Kagoshima airport view from the control tower (26 Apr ’10) - PowerPoint PPT Presentation


  • 89 Views
  • Uploaded on

Mt Sakurajima & Kagoshima airport view from the control tower (26 Apr ’10). VOR/DME Final approach fix at 3,100ft. Kagoshima Airport. Distance ; 25 km Direction 200 ゚. ILS R/W 34 Final approach fix at 3,100 ft. Mt Sakurajima. Location of Kagoshima airport & Mt Sakurajima.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Mt Sakurajima & Kagoshima airport view from the control tower (26 Apr ’10)' - samuru


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
location of kagoshima airport mt sakurajima

VOR/DME

Final approach fix

at 3,100ft

Kagoshima Airport

Distance ; 25 km

Direction 200゚

ILS R/W 34

Final approach fix

at 3,100 ft

Mt Sakurajima

Location of Kagoshima airport & Mt Sakurajima
number of volcanic eruption at mt sakurajima in a year

Calendar year

2009

1 2 3 4 5 6 7 8 9 10 11 12 Total

1 15 23 41 1 13 55 53 55 102 72 117 548

Adjacent one year

2009 2010

7 8 9 10 11 12 1 2 3 4 5 6 Total

55 53 55 102 72 117 131 120 121 100 31 99 1,056

Number of Volcanic eruption at Mt Sakurajima in a year

slide6

Magnified volcanic ash

5 Nov ’09 at the airport

1 ㎜ ; line width 0.1㎜

time line information flow of volcanic activity e g 27 may 10

Eruption

15:37 15:40 15:46 15:48 15:49 15:55 15:58

V A Advisory

SIGMET

WX

office

CAB

V A

Observation

Report

ATIS

NOTAM

AEIS

Time lineInformation flow of volcanic activity( e.g. 27 May ’10 )
hight of the volcanic ash column
Hight of the volcanic ash column

Through Apr ’09 to Mar ‘10

Altitude

reaching

Number of occurrences

number of aircrafts deviated from the volcanic ash
Number of aircrafts deviated from the volcanic ash

Total 360 aircrafts

(121 eruptions)

Total 251 aircrafts

(100 eruptions)

deviation from the ash when visibility more than 3 200m

RNAV R/W16

VOR/A

Deviation from the ash when visibility more than 3,200m

RNAV R/W16

Kagoshima Airport

Ash flow

Mt Sakurajima

sid for r w34

Kagoshima Airport

10,000ft+

Mt Sakurajima

SID for R/W34
sid for r w16

7-8,000ft

SID for R/W16

Kagoshima Airport

Mt Sakurajima

road sweeper collects ash
Road sweeper collects ash

Fire car

wash ash away and settled

type of road sweeper

Dust separator

Main brush

Type of road sweeper

Recirculating air Type

; Adapted at Kagoshima airport

Broom Type

; Using in the Kagoshima city

Vacuum Suction Type

; Most typical & last used

correcting to the manual
Correcting to the manual

Doc#9691

Term 2.3.2 is explained about Mt Sakurajima in Japan

Sentence is・・・・while the eruptions are often of an explosive type,

accompanied by explosion earthquakes and atmospheric shock waves,

the usually only last a few hours with columns reach

in a maximum height of 3km.

Comment is;

climbing velocity of the column is 10 to 20m/s, so it

can reach to 3,000m in a few minutes.
