complex 2d fields analysis of eddies in the southern indian ocean

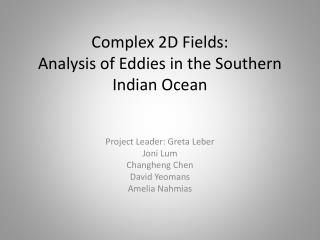

Complex 2D Fields:Analysis of Eddies in the Southern Indian Ocean

Project Leader: Greta Leber

Joni Lum

ChanghengChen

David Yeomans

Amelia Nahmias

eddies in the agulhas current background info

Eddies in the Agulhas CurrentBackground Info

The Agulhas Current is the Western Boundary Current (WBC) for the Southern Indian Ocean.

It flows down the East Coast of Africa from ~27°S to 40°S (Gordon, 1985)

It is the strongest WBC in the world (Bryden & Beal, 2005)

Transport: 73 Sverdrups (Beal & Bryden, 1999)

Max Velocity: 2m/s (Bryden & Beal, 2005)

Depth: ~2300m (Donohue et al., 2000)

eddies in the agulhas current background info1
Eddies in the Agulhas CurrentBackground Info
  • Eddies near the tip of South Africa are called “Agulhas Rings” and those found on either side of Madagascar are “Madagascar & Mozambique Channel Eddies”
  • These warm-core rings are pinched-off anticyclones that can be 320km in diameter and contain water that is 5° warmer and has 0.3 psu greater salinity than surrounding waters (Gordon, 1985)
  • This warm-water link between the Atlantic & Indian Oceans is likely to have a strong influence on global climate patterns (Gordon, 1985)
eddies in the agulhas current background info2
Eddies in the Agulhas CurrentBackground Info

The dataset used is a Delayed Time Map of Absolute Dynamic Topography from the SSALTO/Data Unification and Altimeter Combination System (DUACS) satellite, restricted from 10°S - 45°S, 10°E - 55°E

It was funded by the European Commission, beginning in Feb. 1997

The data is devoted to scientific, non-commercial use to study ocean variability (mesoscale circulation, seasonal variability, El Nino…)

We use 1/4°x1/4° AVISO data

eddy identification ssha and boolean fields
Eddy Identification: SSHA and Boolean Fields

The SSH anomaly (SSHA) field was calculated by subtracting the local time-mean at each grid point. Eddies were then defined as anomalies larger than 20 cm (negative  cyclonic, positive  anticyclonic)

  • Two separate Boolean fields were defined: One each where cyclones and then anticyclones had been replaced by 1s (with zeros elsewhere)
eddy identification variables from boolean fields
Eddy Identification: Variables from Boolean Fields
  • probability maps of where eddies are likely to be present:

From the simple Boolean fields, one can create:

eddy identification variables from boolean fields1
Eddy Identification: Variables from Boolean Fields
  • Ortime series of number of pixels (~area) representing a cyclone or anticyclone.
eddy identification bwconncomp function
Eddy Identification: bwconncomp function
  • Matlab’sbwconncomp (binary image connected components) will take these boolean fields as inputs and give as one of its outputs (in this case) the number of anticyclones or cyclones at each time step:
  • Their sum, then, is the total number of eddies over time:
slide9

Correlation between number/area of cyclonic and anticyclonic eddies

Correlation coefficient = -0.4773 % weak anticorrelation

Correlation coefficient = -0.7939 % strong anticorrelation

slide10

Anticorrelation of cyclonic and anticyclonic eddies

Slope of number of cyclonic eddies = -0.0014

Slope of number of anticyclonic eddies = 0.0017

Slope of area of cyclonic eddies = -0.1065

Slope of area of anticyclonic eddies = 0.1490

conclusions
Conclusions
  • A simple analysis of a complex 2D field reveals some interesting trends:
  • A strong anticorrelation between the area of anticyclonic and cyclonic eddies over time is found. Though this is most likely due to how eddies were defined, it is suggestive of a broader trend.
  • Number of Cyclonic and Anticyclonic eddies, on their own, as well as total area of eddies over time, have distinct annual cycles.
  • Size distribution analysis reveals that large eddies are much less common than small eddies. Again, this is possibly due to how eddies were defined (large anomalies are less likely than small ones) but it is suggestive.
  • Complex 2D fields show a lot of variability (first 10 EOFs only explain 30% of the total variance), with most variability, in this case, contained within the Agulhas Return Current (as it fluctuates northward and southward).
