mapping understory vegetation using phenological characteristics derived from remotely sensed data

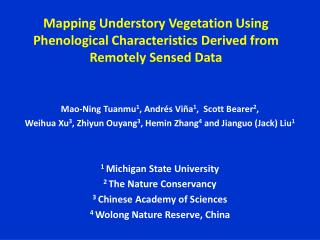

Mapping Understory Vegetation Using Phenological Characteristics Derived from Remotely Sensed Data

Mao-Ning Tuanmu1, Andrés Viña1, Scott Bearer2,

Weihua Xu3, Zhiyun Ouyang3, Hemin Zhang4 and Jianguo (Jack) Liu1

1 Michigan State University

2 The Nature Conservancy

3 Chinese Academy of Sciences

4 Wolong Nature Reserve, China

understory vegetation
Understory Vegetation
  • An important component in forest ecosystems
    • Affecting forest structure, function and species composition
    • Supporting wildlife species
    • Providing ecosystem services
  • Lack of detailed information on its

spatio-temporal dynamics

    • Interference of overstory canopy on the remote detection of understory vegetation
    • Limitations of LANDSAT data and LiDAR data
land surface phenology
Land Surface Phenology

http://landportal.gsfc.nasa.gov/Documents/ESDR/Phenology_Friedl_whitepaper.pdf

Seasonal pattern of variation of vegetated land surfaces captured by remotely sensed data

Affected by both overstory and understory vegetation

objectives
Objectives
  • To develop an effective remote sensing approach using land surface phenologies for mapping overall understory vegetation
  • To explore the application of this approach to mapping and differentiating individual understory species
wolong nature reserve
Wolong Nature Reserve

~2000 km2

~ 10% of entire wild giant panda population

Evergreen bamboo species dominate the understory of forests

Two dominant bamboo species constitute the major food for giant pandas

arrow and umbrella bamboo
Arrow and Umbrella Bamboo

Umbrella bamboo

Photographed by Andrés Viña (Elevation: 2546 m)

Arrow bamboo

  • Arrow bamboo
    • Bashania fangiana
    • Elevation: 2300 – 3600 m
  • Umbrella bamboo
    • Fargesia robusta
    • Elevation: 1600 – 2650 m
phenology metrics
Phenology Metrics

A - Base level

B - Maximum level

C – Amplitude

D - Date of start of a season

E - Date of middle of a season

F - Date of end of a season

G - Length of a season

H - Large integral

I - Small integral

J - Increase rate

K - Decrease rate

  • Time series of 16-day MODIS-WDRVI composites
    • MODIS surface reflectance (~ 250 m/pixel)
    • Wide Dynamic Range Vegetation Index (WDRVI)
  • Eleven phenology metrics
identifying phenological features of forests with understory bamboo
Identifying Phenological Features of Forests with Understory Bamboo
  • Comparing the 11 phenology metrics among 5 groups of pixels
    • Pixels in the entire study area (background pixels)
    • Pixels with forest cover
    • Forest pixels with understory bamboo
    • Forest pixels with arrow bamboo
    • Forest pixels with umbrella bamboo
overall bamboo distribution model
Overall Bamboo Distribution Model
  • Maximum Entropy Algorithm (MAXENT)
    • Using pixels with understory bamboo cover ≥ 25% as presence locations
    • Using the 11 phenology metrics as predictor variables
    • Estimating bamboo presence probability (0~1) across the entire study area
  • Model evaluation
    • Kappa statistics
    • Area under the receiver operating characteristic curve (AUC)
individual bamboo distribution model
Individual Bamboo Distribution Model
  • Using pixels with arrow and umbrella bamboo as presence locations, separately
  • Using the 11 phenology metrics as predictor variables
  • Using elevation as an additional predictor variable
  • Comparing the accuracy between the models with and without elevation
overall bamboo distribution
Overall Bamboo Distribution
  • AUC: 0.851±0.005
  • Kappa: 0.591±0.018
phenological features of forests with understory bamboo
Phenological Features of Forests with Understory Bamboo

Pixels with overall understory bamboo were significantly different from background and forest pixels in most phenology metrics

Pixels with single bamboo species (arrow or umbrella bamboo) were also different from the background and forest pixels in most metrics

individual bamboo distribution
Individual Bamboo Distribution

Kappa:

0.68 ± 0.02

AUC:

0.91 ± 0.01

Kappa:

0.46 ± 0.02

AUC:

0.80 ± 0.01

Kappa:

0.66 ± 0.02

AUC:

0.90 ± 0.01

Kappa:

0.70 ± 0.02

AUC:

0.92 ± 0.01

summary
Summary

Phenology metrics derived from a time series of MODIS data can be used to distinguish forests with understory bamboo from other land cover types

By combining field data, phenology metrics, and maximum entropy modeling, understory bamboo can be mapped with high accuracy

By incorporating species-specific information (e.g., elevation), individual understory species can be differentiated

advantages of the approach
Advantages of the Approach
  • Suitability for broad-scale monitoring
    • Easy access, global coverage, and temporally continuous availability of MODIS data
  • Generality
    • Without the need of specific information on the phenological difference between overstory and understory vegetation or the relationships between understory vegetation and environmental variables
  • Flexibility and extensibility
    • Overall understory vegetation or groups of species with similar phenological characteristics
    • Individual species within specific geographic areas
conservation implications
Conservation Implications
  • Ecosystem management
    • Invasive understory species
  • Biodiversity conservation
    • Biodiversity of understory vegetation
  • Wildlife conservation and habitat management
    • Habitat quality
    • Habitat monitoring
acknowledgements
Acknowledgements

National Aeronautics and Space Administration

National Science Foundation

Michigan Agricultural Experiment Station

National Natural Science Foundation of China

reference
Reference
  • Remote Sensing of Environment (doi:10.1016/j.rse.2010.03.008 )
  • http://www.csis.msu.edu/Publications/
