Automated Pilot Control Assistance for a Micro-Scale Helicopter

Parker Evans

Jeffrey Hudson

Collin Weber

Cornell University Laboratory for Intelligent Machine Systems


Goals l.jpg
Goals Helicopter

  • Initial Goal: Stabilized hover

    • Altitude and yaw controlled autonomously

    • Stable in pitch and roll axes

    • Greatly simplifies operator control of vehicle

    • Achieved

  • Additional Goals: Advanced Maneuvers

    • On-board wireless video relay (Achieved)

    • Improved flight control (Achieved)

      • Altitude input by operator, held constant

      • Movement in constant-altitude plane controlled by stick

  • Future Goals: Rangefinder-based obstacle avoidance and path redirection


Previously l.jpg
Previously Helicopter

  • Integrated all sensors into code

  • Implemented two separate PID loops for altitude and yaw.

    • Used magnetometer, gyroscope and sonar


Video l.jpg
VIDEO Helicopter


Board revs l.jpg
Board Revs Helicopter

  • Issues

    • Timer conflict with input and output of PWM signals

      • Helped give more stable signal for absoluter control of altitude and yaw

    • Added battery level measurement

    • Gyro solder joint was breaking

  • Created two new boards that are fully populated


Board revs cont l.jpg
Board Revs Cont. Helicopter

Stencil and Unpopulated Board

Oven

Fully Populated Board

Hot air rework station


Magnetometer calibration l.jpg

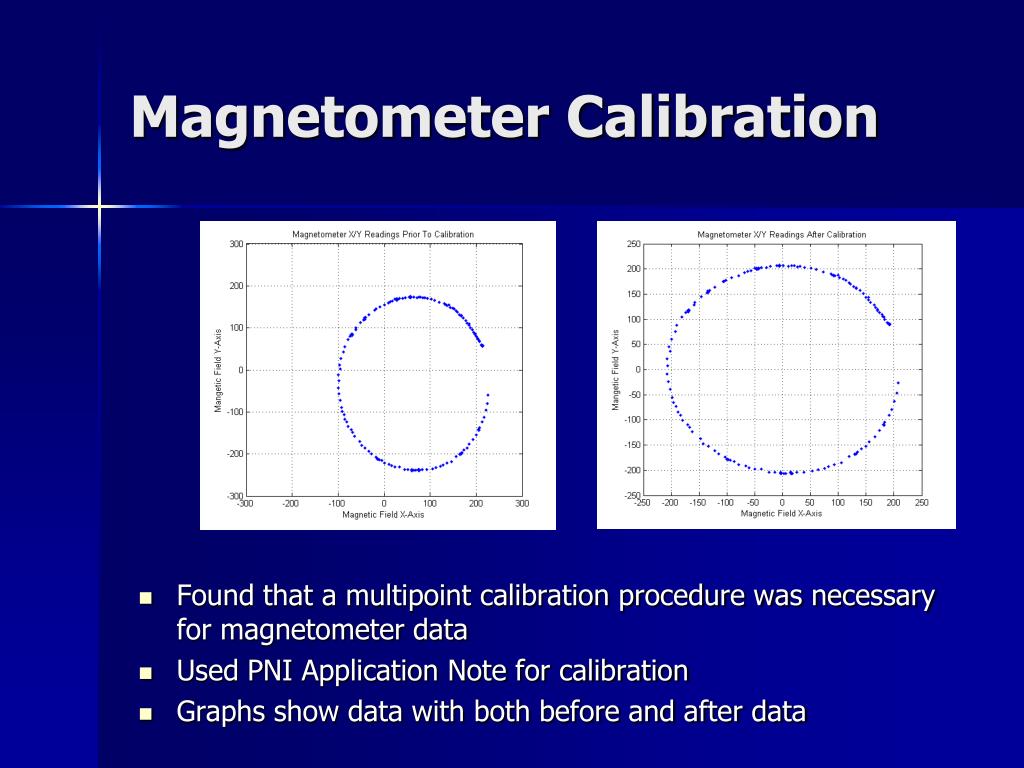

Magnetometer Calibration Helicopter

  • Found that a multipoint calibration procedure was necessary for magnetometer data

  • Used PNI Application Note for calibration

  • Graphs show data with both before and after data


New piloting techniques l.jpg
New Piloting Techniques Helicopter

  • Developed Pilot Intuitive Controls

  • Manual Altitude Adjustment

    • Height, not throttle, is controlled by left stick

    • Range of the stick is relative to height off the ground

  • Manual Heading Adjustment

    • Shifting the throttle stick left and right will yaw the helicopter until the stick is re-centered

    • New heading is maintained until pilot changes the desired heading.


Video9 l.jpg
Video Helicopter


In flight data l.jpg

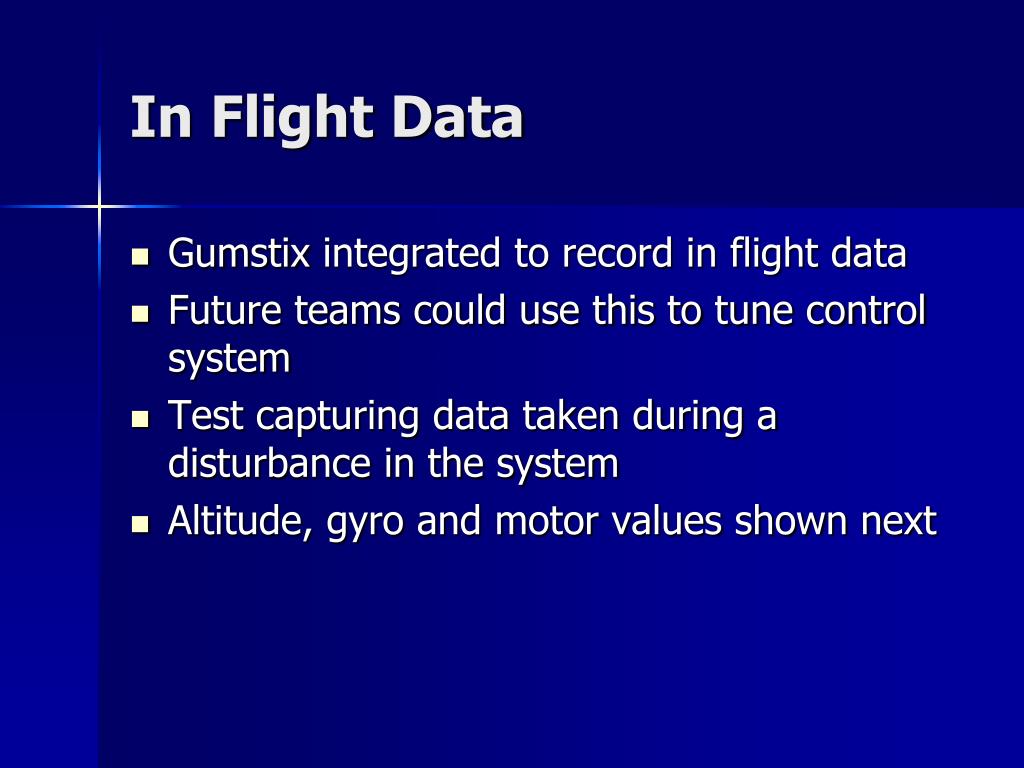

In Flight Data Helicopter

  • Gumstix integrated to record in flight data

  • Future teams could use this to tune control system

  • Test capturing data taken during a disturbance in the system

  • Altitude, gyro and motor values shown next


Wireless video camera l.jpg

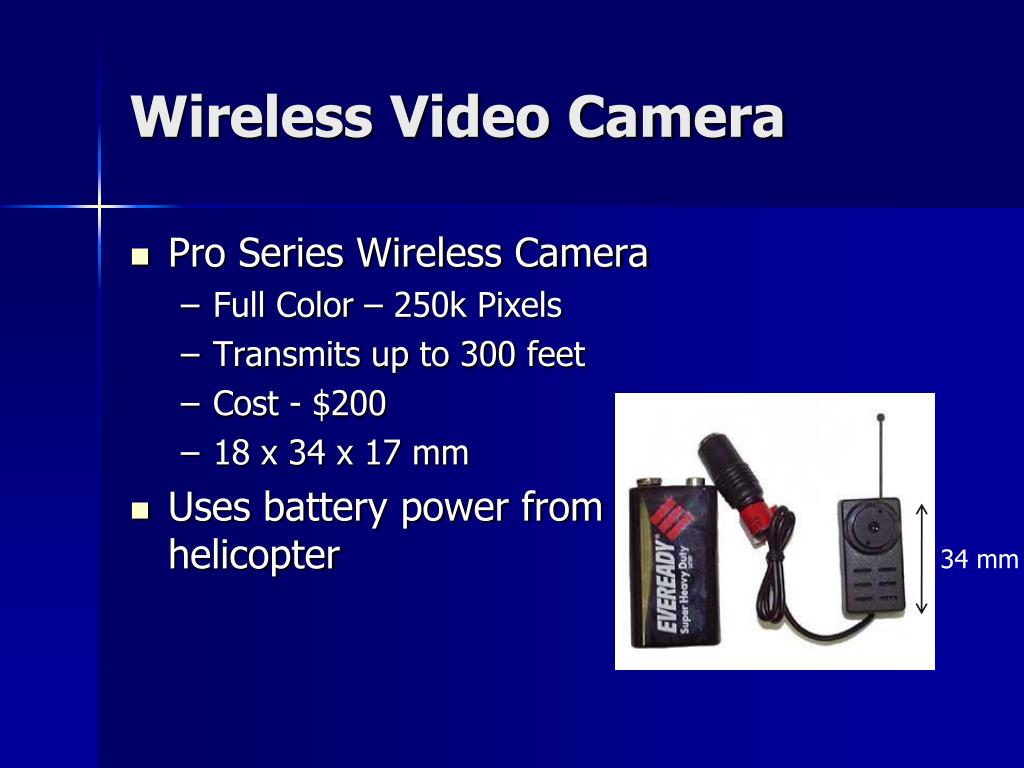

Wireless Video Camera Helicopter

  • Pro Series Wireless Camera

    • Full Color – 250k Pixels

    • Transmits up to 300 feet

    • Cost - $200

    • 18 x 34 x 17 mm

  • Uses battery power fromhelicopter

34 mm


Video14 l.jpg
Video Helicopter


Conclusions l.jpg
Conclusions Helicopter

  • Proof of concept of assisted flight

    • Independent control to stabilize altitude and yaw

  • On-board video allows for real world applications

  • Won AIAA Student Conference Region I Paper Competition

  • Future work

    • Gumstix integration will allow for higher level mathematical operations

    • Additional sensor integration to be used in obstacle avoidance


Slide16 l.jpg

Acknowledgments Helicopter

  • Cornell University Department of Mechanical Engineering

    • Professor Ephrahim Garcia

    • Professor Thomas Avedisian

    • Professor Mark Campbell

    • Rob MacCurdy

  • Cornell University Laboratory for Intelligent Machine Systems

  • Funding provided by United Technologies Corporation


Overview l.jpg
Overview Helicopter

  • Project Goals

  • System Constraints

  • Hardware Selection

  • Yaw Control Development and Implementation

  • Altitude Control Simulation

  • Altitude Control Implementation


Hardware vehicle l.jpg
Hardware: Vehicle Helicopter

  • Blade CX Helicopter

    • Widely available, common hobby helicopter

      • Permits fast, low-cost replacement of components

    • Counter-rotating blades

      • Choice removes complexities added by tail rotor

    • $200 price point

    • Gross take-off weight: 310 grams


Hardware on board electronics l.jpg

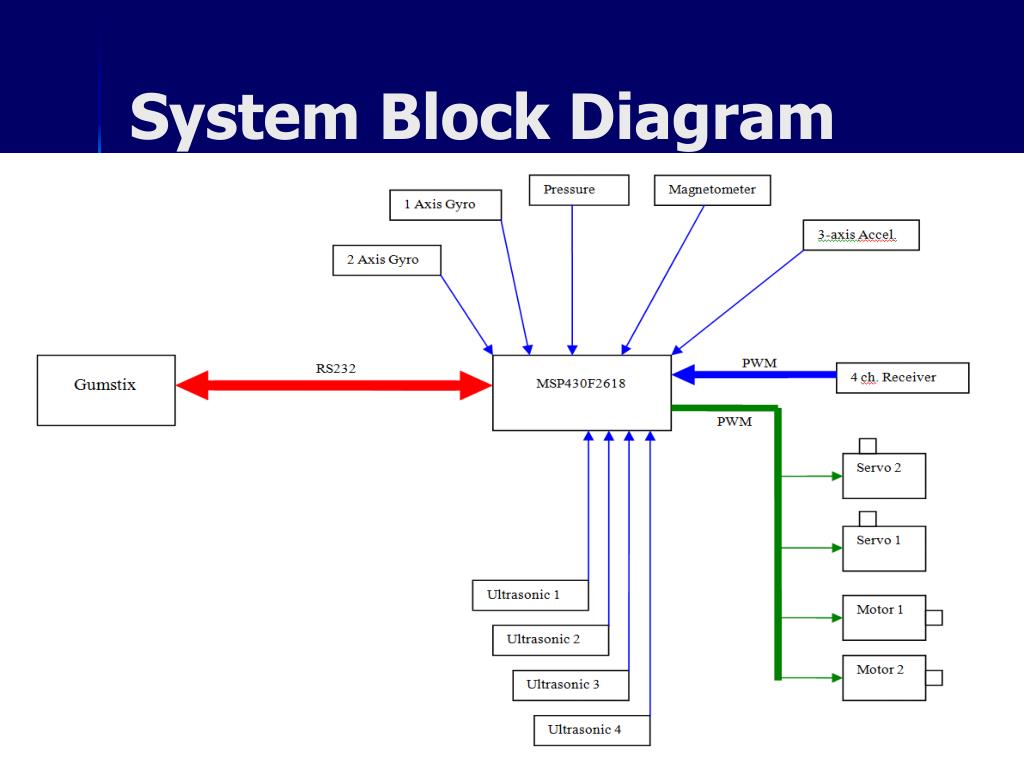

Hardware: On-Board Electronics Helicopter

  • Custom-built microcontroller board

    • Designed in-house for this application

    • $200 cost (small run), 20 gram mass

    • Microcontroller: TI MSP430

      • 16 bits

      • Low cost, low power, widely used

    • Sensors: Magnetometer, accelerometers, sonar, gyroscope

  • Additional electronics: 4-channel receiver, wireless video camera, Gumstix Linux computer

    • Gumstix allows for future work: in-flight data capture and high-level mathematics


Design constraints l.jpg
Design Constraints Helicopter

  • Imposed by choice of platform

    • 7.4V 800 mAh Lithium Polymer battery

      • Only sufficient for 3-4 minutes sustained flight

    • 90 gram payload capacity

    • 1 foot rotor diameter

  • Low system cost essential

    • Required use of commercial, off-the-shelf components

    • MEMS components key driver of low-cost sensor package

      • Inherent issues: sensor noise and unpredictability


Slide22 l.jpg

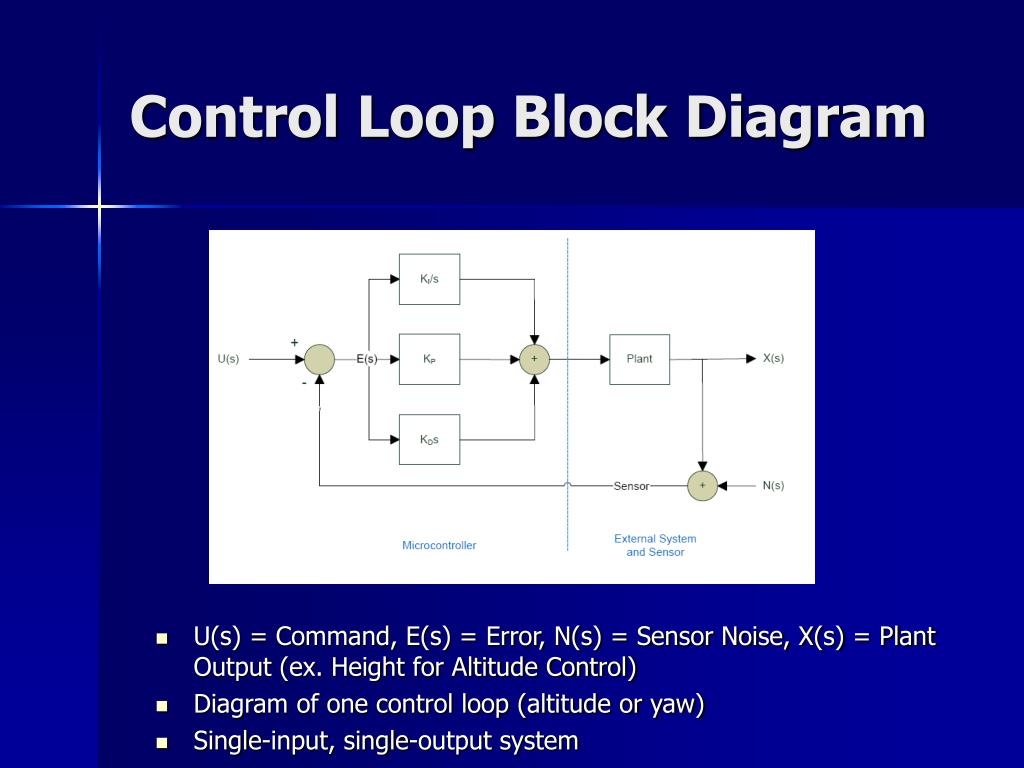

Control Loop Block Diagram Helicopter

  • U(s) = Command, E(s) = Error, N(s) = Sensor Noise, X(s) = Plant Output (ex. Height for Altitude Control)

  • Diagram of one control loop (altitude or yaw)

  • Single-input, single-output system


Microcontroller code l.jpg

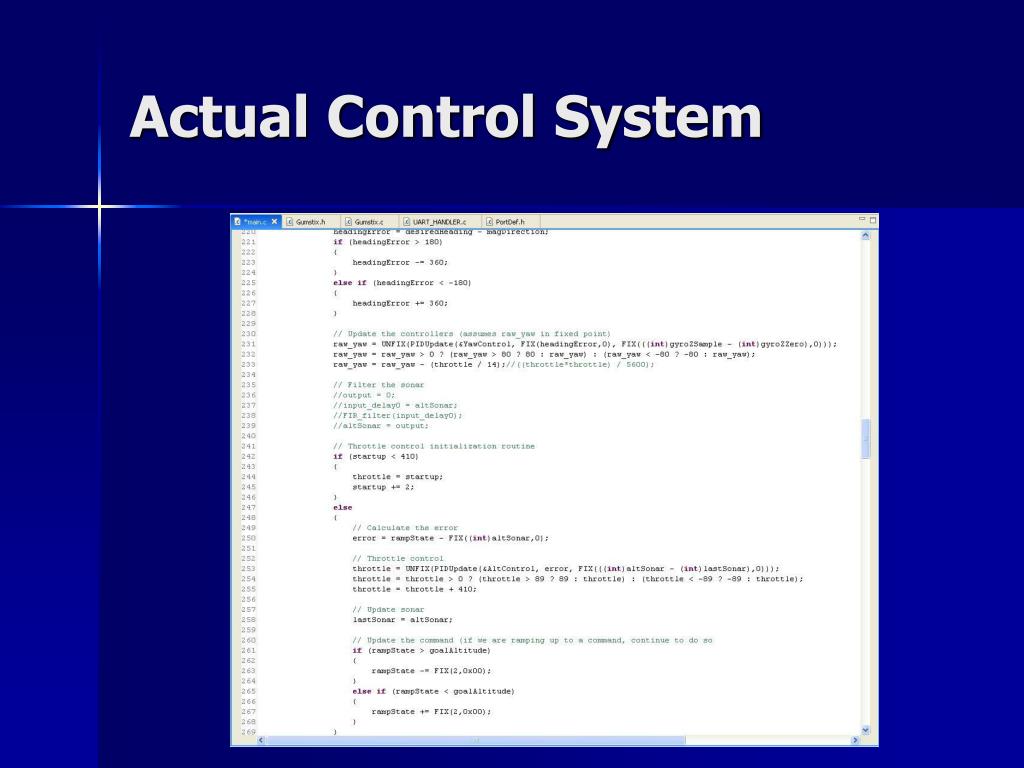

Microcontroller Code Helicopter

  • Control calculations are done in fixed-point to save time

  • Magnetometer heading determination algorithm uses binary search and a lookup table (rather than trig and floating point)

  • Mixing algorithm for motor control (takes yaw and throttle, produces power for each motor)

  • Etc.




Slide26 l.jpg

Gyro Drift Data Helicopter


Slide27 l.jpg

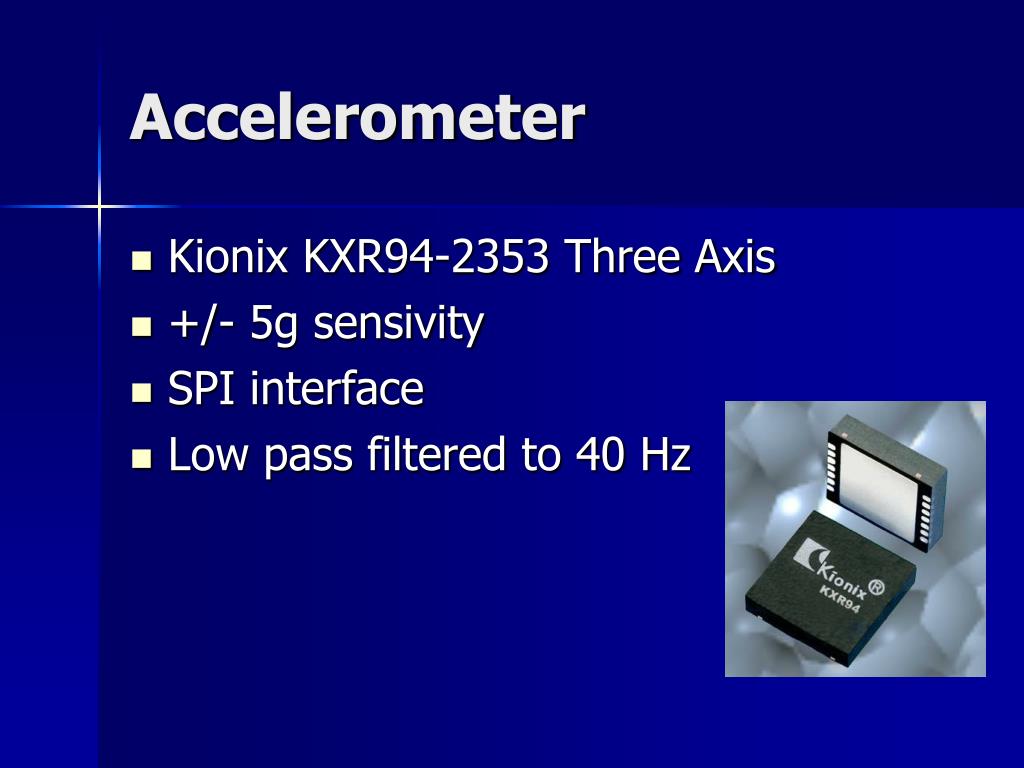

Accelerometer Helicopter

  • Kionix KXR94-2353 Three Axis

  • +/- 5g sensivity

  • SPI interface

  • Low pass filtered to 40 Hz


Sensors magnetometer l.jpg

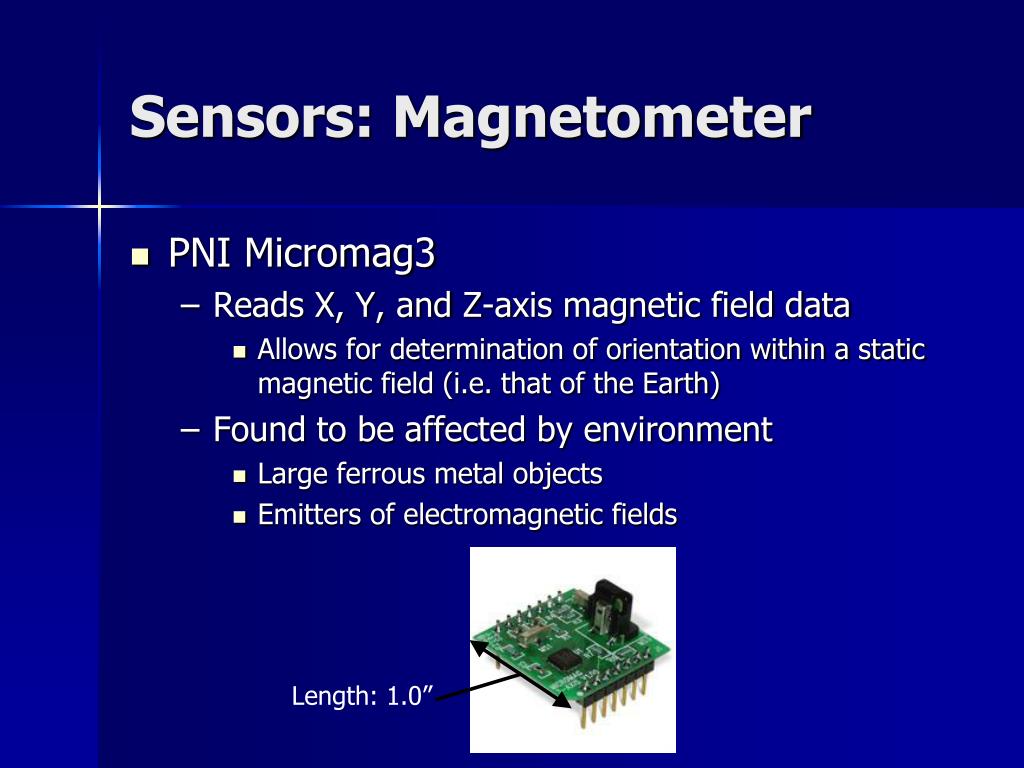

Sensors: Magnetometer Helicopter

  • PNI Micromag3

    • Reads X, Y, and Z-axis magnetic field data

      • Allows for determination of orientation within a static magnetic field (i.e. that of the Earth)

    • Found to be affected by environment

      • Large ferrous metal objects

      • Emitters of electromagnetic fields

Length: 1.0”


Slide29 l.jpg

Integrated Electronics - Overview Helicopter

Magnetometer

Z Axis Gyro

Accelerometer

Microcontroller

XY Axes Gyro

Length: 4.5”


Slide30 l.jpg

Magnetometer Motor Test Helicopter

  • EMI Test

    • Collected magnetometer data at fixed radial increments (45°)

    • Performed with and without helicopter motors running

    • Proved that motor operation does not affect ability to sense change in heading with respect to field


Sensors z axis gyroscope l.jpg
Sensors: Z–Axis Gyroscope Helicopter

From Analog Devices ADIS16100 Datasheet

  • Analog Devices ADIS 16100

  • Automatic calibration at startup

  • Low steady state drift over observed time scales

Gyro output (blue) and temperature (red) versus time (50 second test)


Sensors ultrasonic rangefinders l.jpg
Sensors: Ultrasonic Rangefinders Helicopter

  • GPS not an option for indoor use

  • Maxbotics LV-MaxSonar-EZ0

    • Allows for ranging to obstacles, walls, and ground

    • Operational range of 0.15 to 6.4 meters

    • Calibrates on startup

    • “Dead zone”: returns value of 6” for objects <=6” away

Length: 0.8”


Ultrasonic rangefinder testing l.jpg
Ultrasonic Rangefinder Testing Helicopter

  • 120 samples collected per 5-inch increment

  • Confirmed linear response beyond dead zone

  • Predictable, constant values inside of 6”



Slide35 l.jpg

Magnetometer Test HelicopterConstant Z - Board Only


Slide36 l.jpg

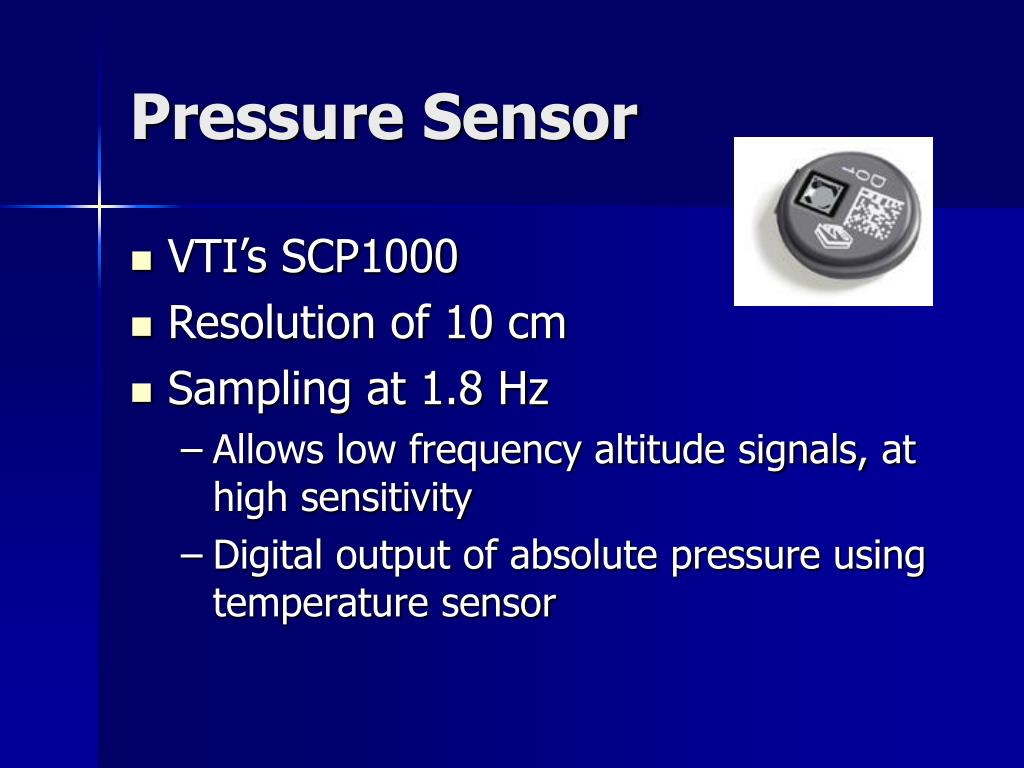

Pressure Sensor Helicopter

  • VTI’s SCP1000

  • Resolution of 10 cm

  • Sampling at 1.8 Hz

    • Allows low frequency altitude signals, at high sensitivity

    • Digital output of absolute pressure using temperature sensor


Slide37 l.jpg

Servo Control and Operator Radio Command Link Helicopter

  • Castle Creations Berg 4L Receiver

  • Helicopter comes with 72 MHz transmitter and integrated receiver, gyro and motor control unit

  • Recevier inputs PWM signals from servos and motors to the microcontroller

  • Total weight = 4 g


Control system overview l.jpg

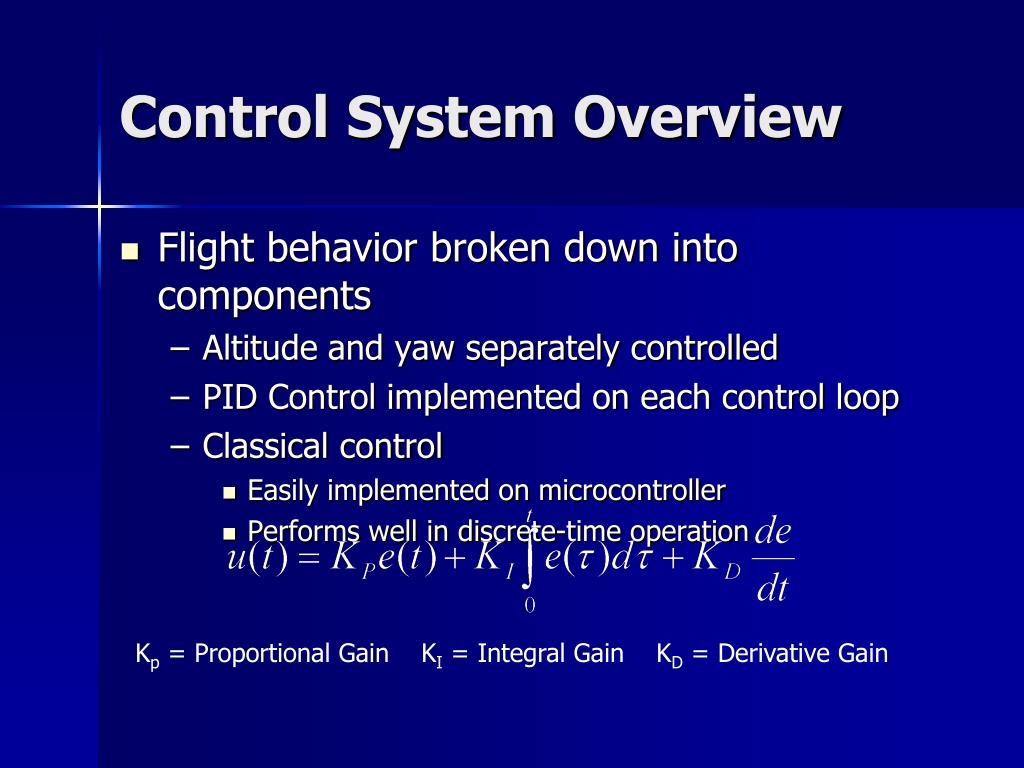

Control System Overview Helicopter

Flight behavior broken down into components

Altitude and yaw separately controlled

PID Control implemented on each control loop

Classical control

Easily implemented on microcontroller

Performs well in discrete-time operation

Kp = Proportional Gain KI = Integral Gain KD = Derivative Gain


Yaw control system l.jpg

Desired Heading Helicopter

Z-axis

Rotation Rate

Error

Actual Heading

Magnetometer Input

Z-Axis Gyro Input

Yaw Control System

  • Based on data from magnetometer and Z-axis gyro

    • Uses Proportional-Derivative-Integral (PID) Control

    • Magnetometer provides direct measurement of error signal (deviation from desired heading)

      • Recalibrates and obtains initial heading upon startup

    • Gyro measures rotation rate; derivative of error signal


Yaw implementation details l.jpg
Yaw Implementation Details Helicopter

  • Counter-rotating blades couple yaw and lift

    • Net thrust is sum of thrust from each blade

    • Difference in blade speeds produces yaw (unbalanced angular momentum)

    • Reduction in blade speed, however, also lowers total lift

  • Decoupling of throttle and yaw control

    • Desired difference in blade speed distributed between the two motors

    • Result is no loss of lift during yaw

    • Allowed implementation of independent control loops for altitude and yaw


Motor mixing l.jpg

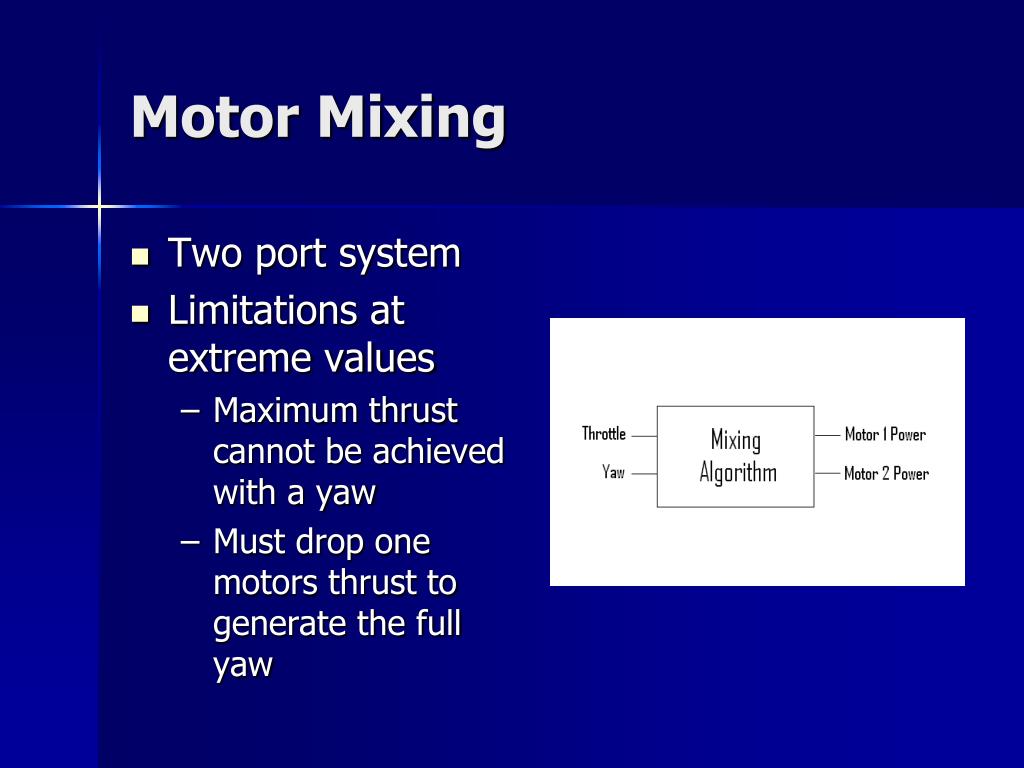

Motor Mixing Helicopter

  • Two port system

  • Limitations at extreme values

    • Maximum thrust cannot be achieved with a yaw

    • Must drop one motors thrust to generate the full yaw


Altitude control simulation l.jpg
Altitude Control Simulation Helicopter

  • Discrete-time MATLAB model

    • Single degree-of-freedom: vertical position

    • Based on system time step length (40ms)

    • Simulated sonar input basis for model

      • Discretized integer input values correspond to altitude

      • Change in value over time step produces derivative of error

      • Sonar noise modeled with small random integer

    • Quadratic drag model

    • System parameters (mass, max thrust, etc.) empirically determined


Slide43 l.jpg

Altitude Simulation Helicopter

Note simulated sonar noise input

Tuning of model generated preliminary KP, KI, KD values


Implementation of altitude control l.jpg
Implementation of Altitude Control Helicopter

  • Gain values from model matched system values well

  • Take-off routine developed and implemented

    • Slow throttle ramp to takeoff thrust

    • Ramp of altitude input up to desired value

      • Minimizes overshoot and lessens settling time

      • Results in less erratic flight


Altitude simulation l.jpg

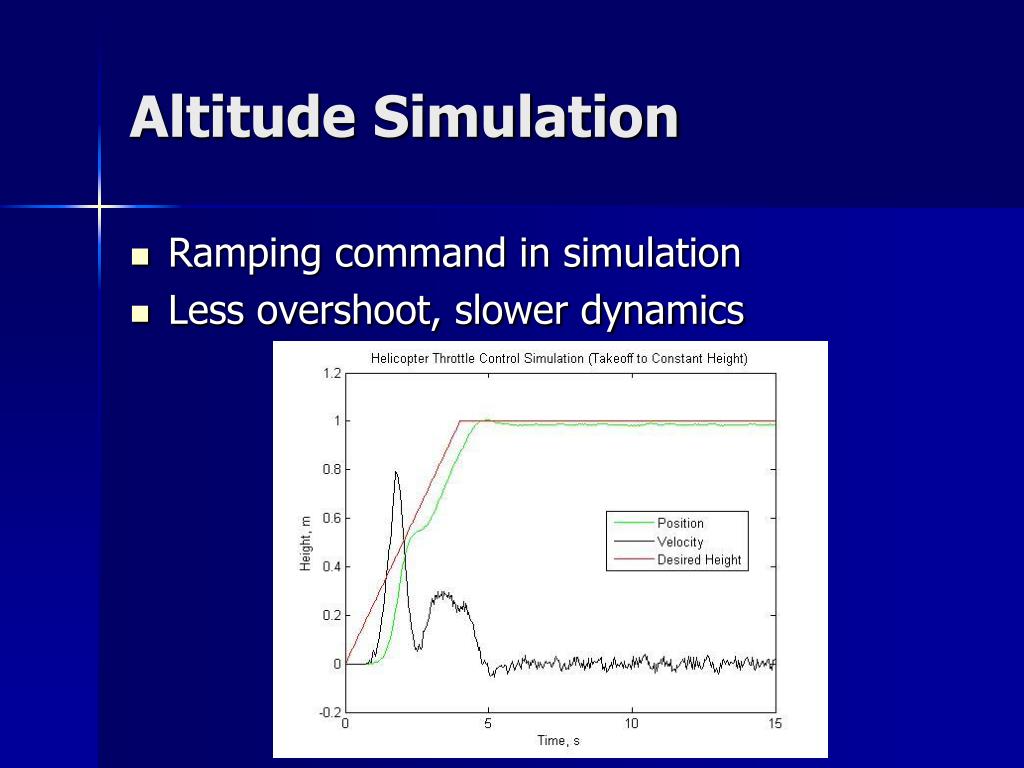

Altitude Simulation Helicopter

  • Ramping command in simulation

  • Less overshoot, slower dynamics


Sonar rangefinder issues l.jpg
Sonar Rangefinder Issues Helicopter

  • Initial Calibration

    • Requires 14” clearance for startup calibration

    • Mandates startup from platform

  • Dead Zone

    • Take-off routine designed to require no input at low altitudes

  • Downwash errors

    • Pressure waves from blades affect readings

    • Sonar moved to tail to correct this


Slide47 l.jpg

Microcontroller Helicopter

  • Texas Instrument’s MSP430F2618

  • Small, low power, flash based microcontrollers

  • Multiple time modules for PWM I/O output

  • Together with board it sets sample rates, performs FIR filtering, receives R/C inputs and implements control loops.


Slide48 l.jpg

Microcontroller Helicopter

  • MSP430 cannot handle matrix conversions and Kalman filtering for future progress.

  • Board designed to mate with small Linux based computer from Gumstix

    • 8 gram board, 400 MHz processor, with 128 MB RAM, 32 MB flash memory

    • Communicate with RS232 link with the Gumstix providing output for motors and servos


ad
