The Skull

The Skull. Ehab ZAYYAN, MD, PhD. The skull is composed of separate bones united at immobile joints called sutures . Sutural ligaments : between the bones TMJ: the only mobile joint in the skull Skull bones: external and internal tables of compact bone separated by spongy bone called diploë

portia-gill
Download Presentation

The Skull

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. The Skull Ehab ZAYYAN, MD, PhD

  2. The skull is composed of separate bones united at immobile joints called sutures. • Sutural ligaments: between the bones • TMJ: the only mobile joint in the skull • Skull bones: external and internal tables of compact bone separated by spongy bone called diploë • Outer and inner periosteum

  3. Anatomical positionFrankfort horizontal plane The cranium is in the anatomical position when the inferior margin of the orbit and the superior margin of the external acoustic meatus lie in the same horizontal orbitomeatal or Frankfort horizontal plane, a standard craniometric reference

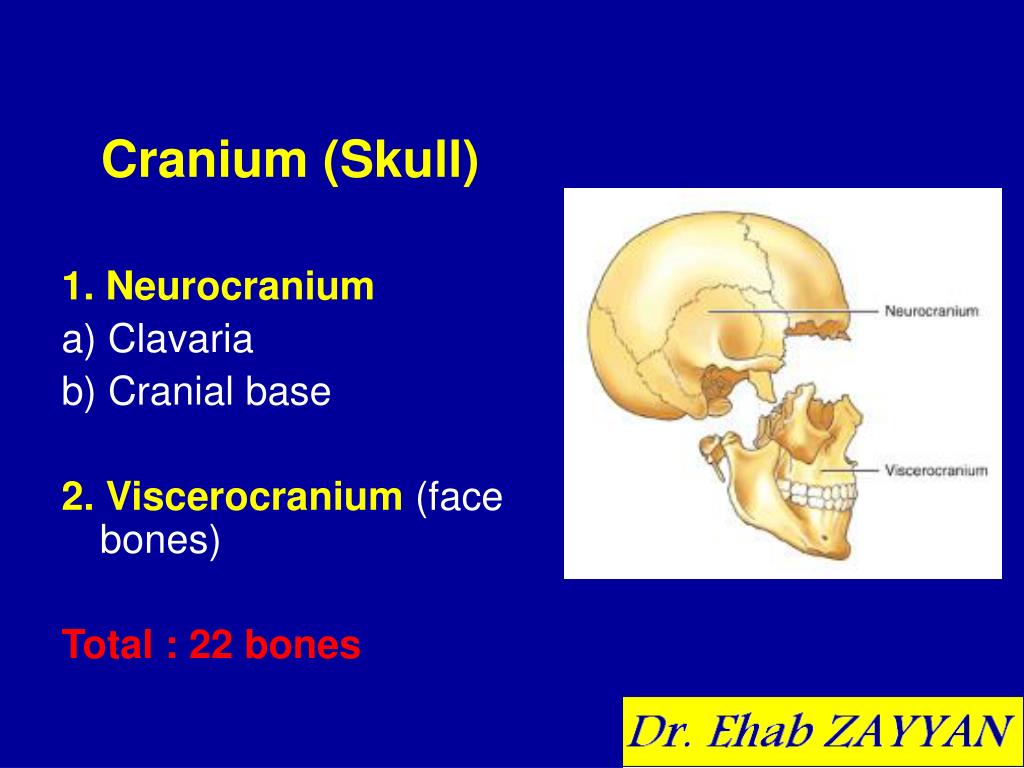

  4. Cranium (Skull) 1. Neurocranium a) Clavaria b) Cranial base 2. Viscerocranium (face bones) Total : 22 bones

  5. Neurocranium Formed from the mesenchyme of the neural crest Clavariaand skull base (basocranium) • Frontal bone 1 • Parietal bones 2 • Occipital bone 1 • Temporal bones 2 • Sphenoid bone 1 • Ethmoid bone 1

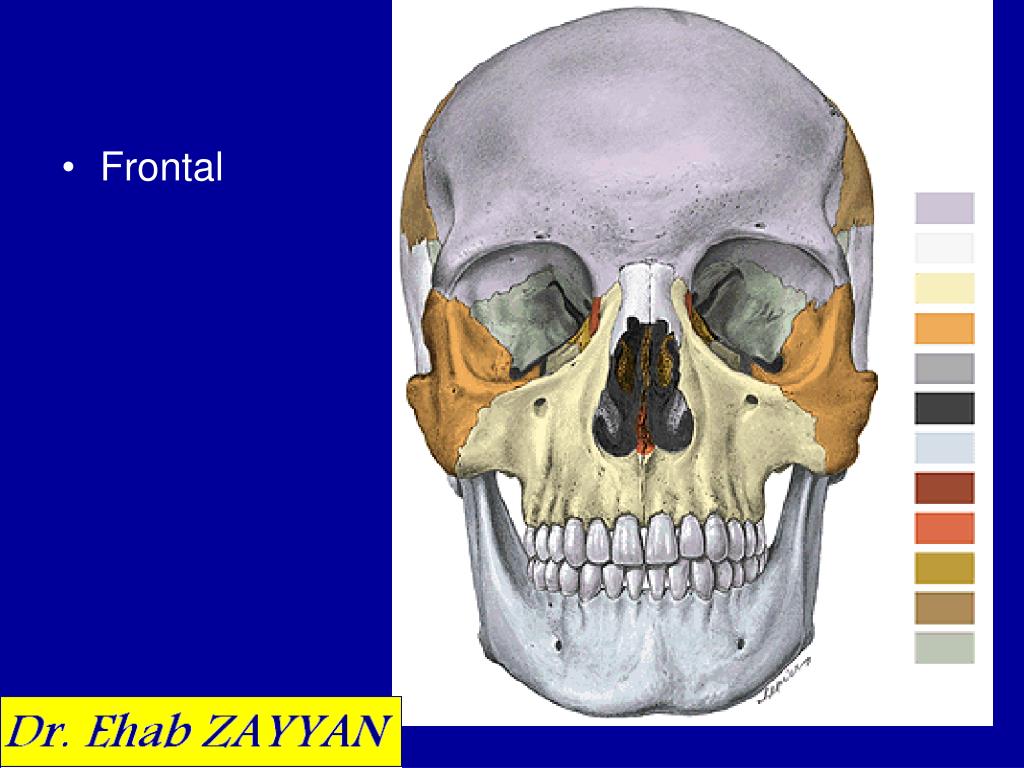

  6. Frontal

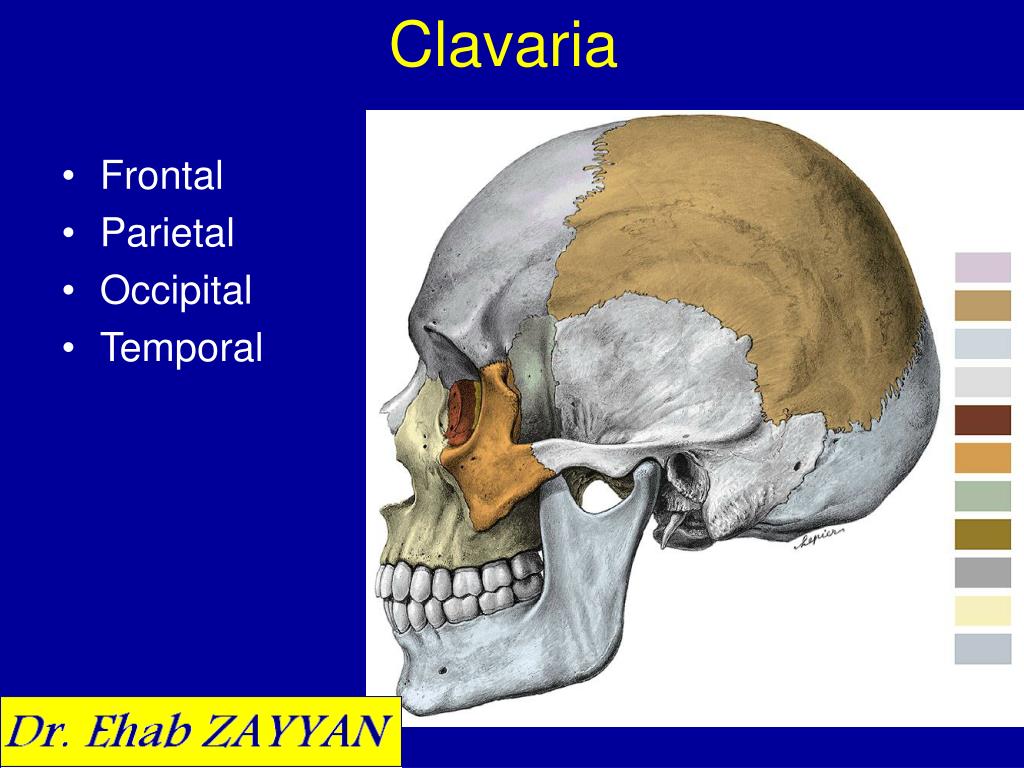

  7. Clavaria • Frontal • Parietal • Occipital • Temporal

  8. Skull base • Occipital • Temporal • Sphenoid • Ethmoid

  9. Frontal • Parietal • Occipital • Temporal • Sphenoid • Ethmoid

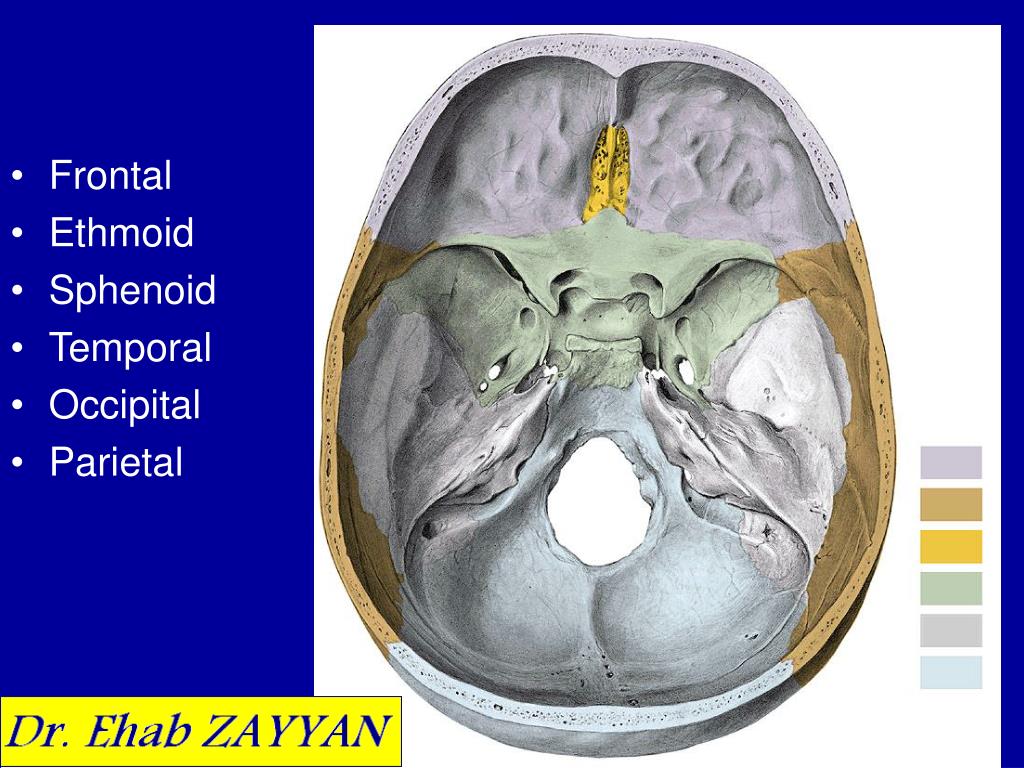

  10. Frontal • Ethmoid • Sphenoid • Temporal • Occipital • Parietal

  11. Viscerocranium(Facial skeleton) • Develop from the embryonic mesenchyme of the pharyngeal arches • Consists of the bones surrounding the mouth (upper and lower jaws), nose/nasal cavity, and most of the orbits (eye sockets or orbital cavities)

  12. Facial bones (viscerocranium)

  13. Maxilla • Mandible • Zygoma • Nasalis • Lacrimal

  14. Maxilla • Mandible • Zygoma • Nasalis • Lacrimal

  15. Maxilla • Palatine • Zygoma • Ethmoid and vomer

  16. Mid- sagittal sectionmedial nasal wall • Ethmoid • Vomer • Maxilla • Palatine • Nasalis

  17. Lateral nasal wall • Nasalis, maxilla, ethmoid, inferior concha, palatine

  18. The maxillae contribute the greatest part of the upper facial skeleton, forming the skeleton of the upper jaw, which is fixed to the cranial base. • The mandible forms the skeleton of the lower jaw, which is movable because it articulates with the cranial base at the temporomandibular joints (TMJs).

  19. Several bones of the cranium are pneumatized bones, which contain air spaces (air cells or larger sinuses), presumably to decrease their weight. The total volume of the air spaces in these bones increases with age. Frontal Ethmoid Sphenoid Maxilla Temporal Pneumatized bones of the skull

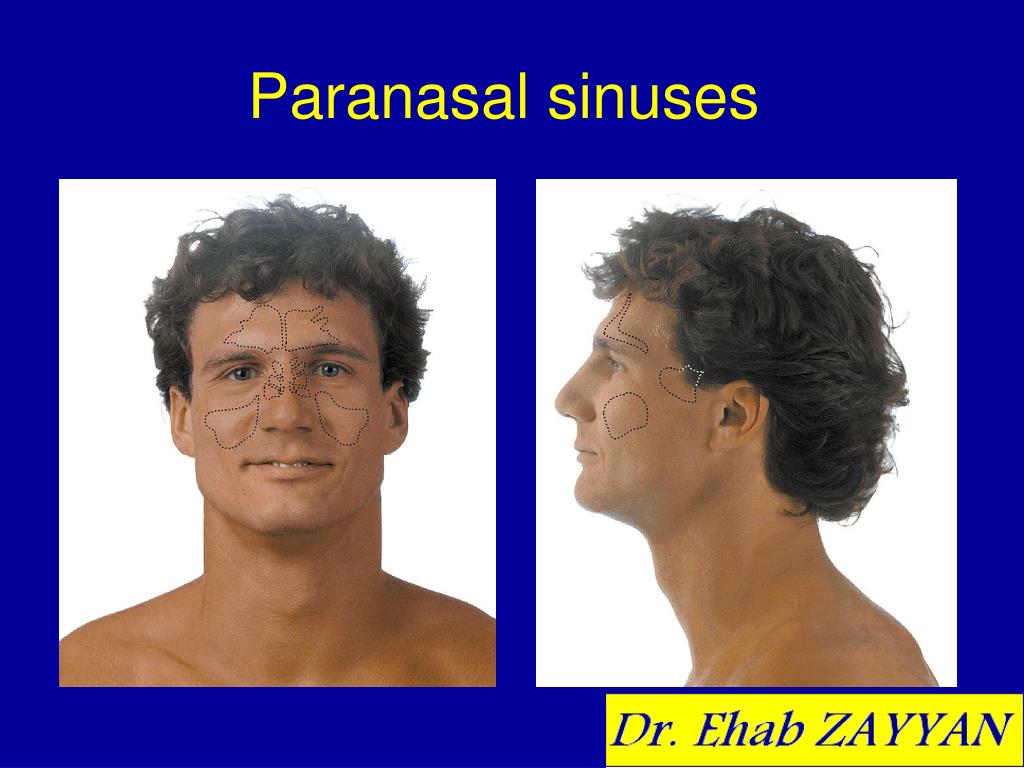

  20. Paranasal sinuses

  21. Paranasal sinuses x-ray

  22. Pneumatization of the temporal bone

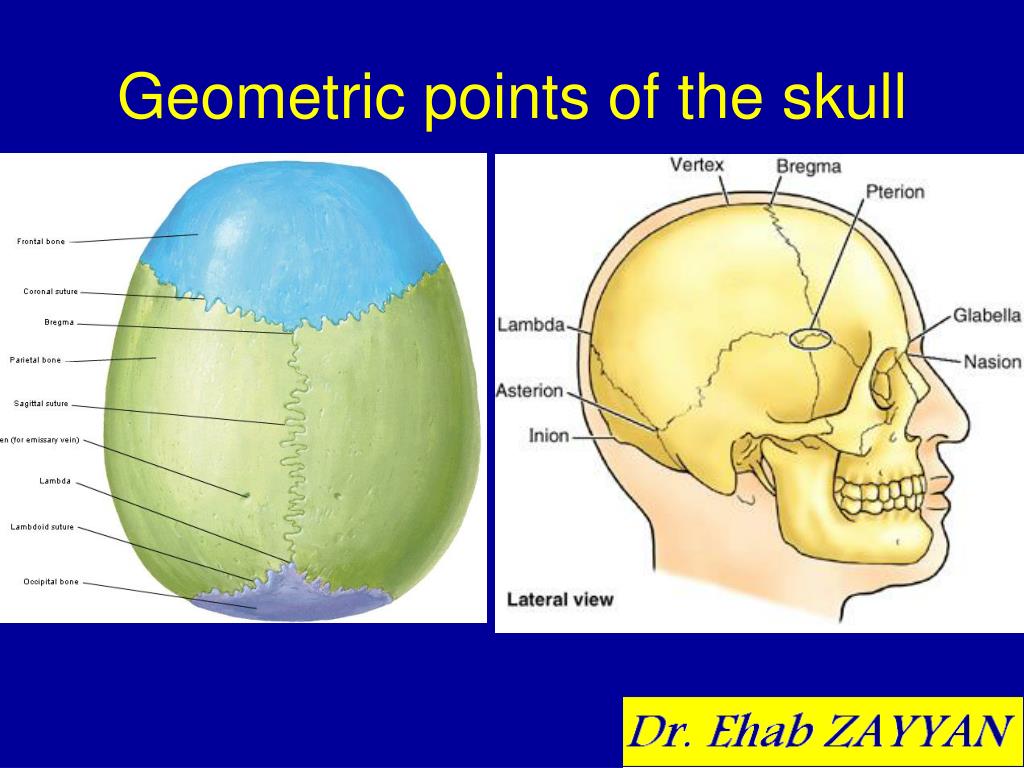

  23. Geometric points of the skull

  24. Pterion (G. wing): Junction of the greater wing of the sphenoid, squamous temporal, frontal, and parietal bones; overlies course of anterior division of middle meningeal artery • Lambda (G. the letter L): Point on calvaria at junction of lambdoid and sagittal sutures • Bregma (G. forepart of head): Point on calvaria at junction of coronal and sagittal sutures • Vertex (L. whirl, whorl): Superior point of neurocranium, in the middle with the cranium oriented in anatomical (orbitomeatal or Frankfort) plane

  25. Asterion (G. asterios, starry): Star shaped; located at junction of three sutures: parietomastoid, occipitomastoid, and lambdoid • Glabella (L. smooth, hairless): Smooth prominence; most marked in males; on the frontal bones superior to root of nose; most anterior projecting part of forehead • Inion (G. back of head): Most prominent point of external occipital protuberance • Nasion (L. nose): Point on cranium where frontonasal and internasal sutures meet

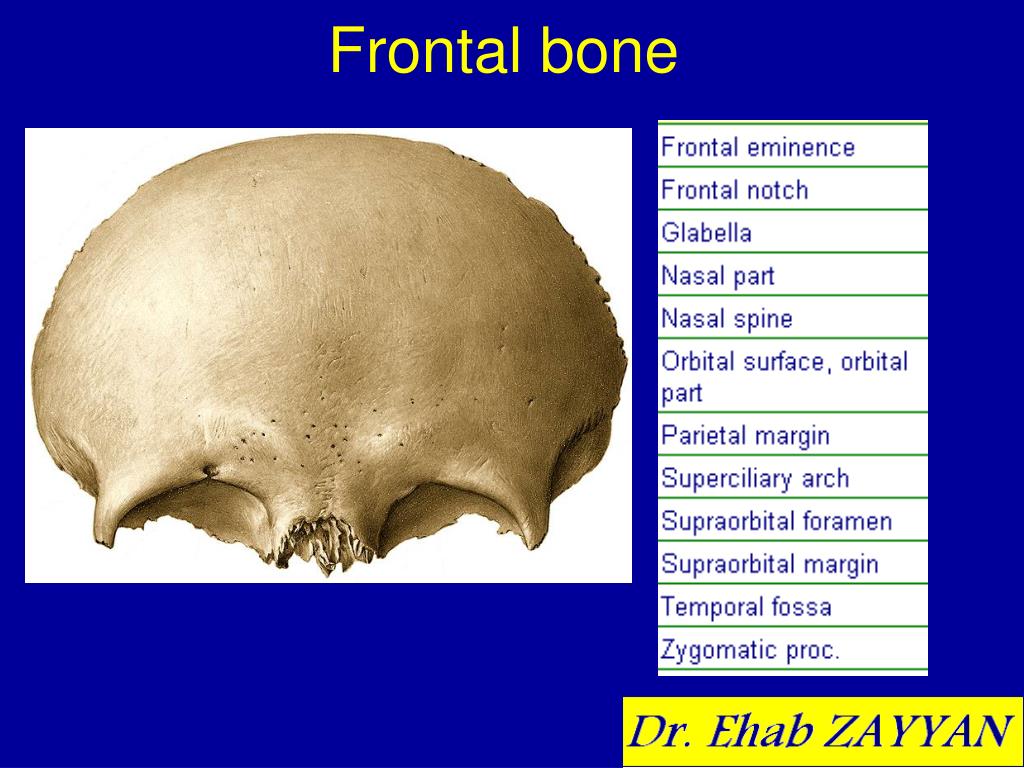

  26. Frontal bone

  27. Frontal sinuses

  28. Parietal bones

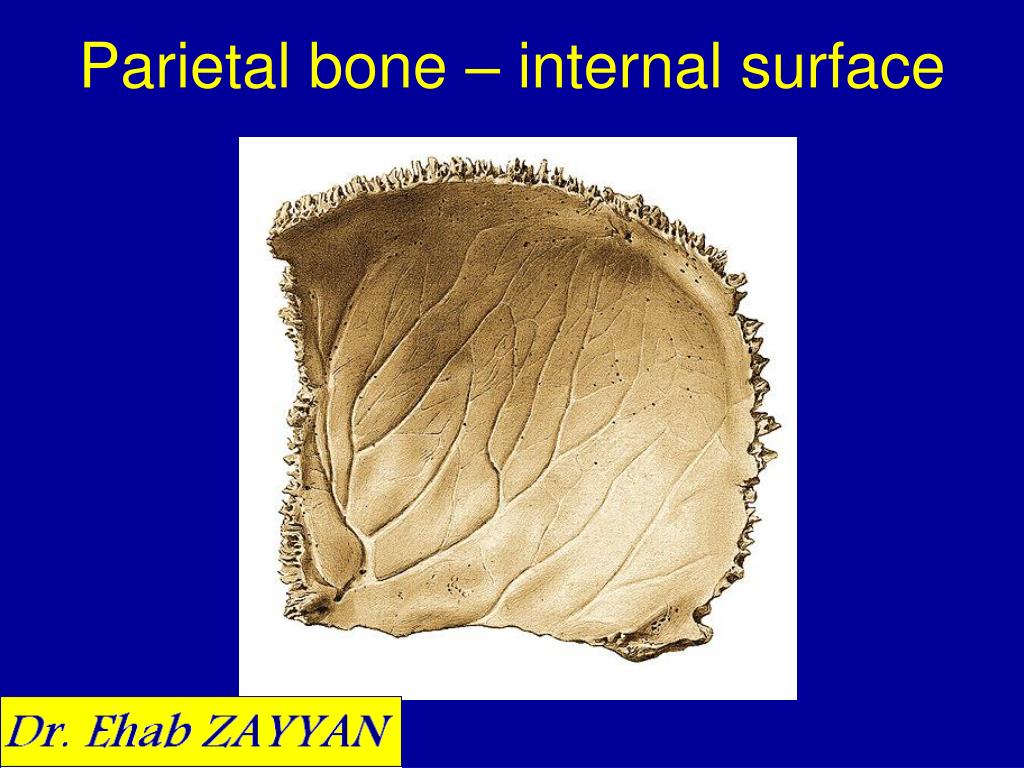

  29. Parietal bone – internal surface

  30. Occipital bone

  31. Occipital bone – internal surface

  32. Temporal bone • Squamous • Mastoid • Petrous • Styloid • Tympanic

  33. Adult skull

  34. Neonatal skull At birth the mastoid process and the bony external canal of the tympanic part are absent.

  35. Neonatal temporal bone • Squamous part • Petrous part • Tympanic part

  36. Nasal bones • Anterior nasal aperture

  37. Zygomatic bone • Cheeks prominence • Orbital cavities • Zygomatic arch • Zygomaticofacial & zygomaticotemporal nerve foraminae
