four bit carry look ahead adder

FOUR BIT CARRY LOOK AHEAD ADDER

SUBMITTED BY:

MILAN PATNAIK

SHANTHI TENNETI

DURGA L NALLARI

ADVISOR: PROF. DAVID PARENT

DATE : 12-06-2004

agenda
Agenda
  • Abstract
  • Introduction
    • why
    • Theory of operation
  • Project (Experimental) Details
  • Results
  • Cost Analysis
  • Conclusions
abstract
Abstract
  • We designed a 4-bit carry look ahead adder that operates at 263 MHz and uses 4.37W (3.06mW/sqcm) of Power and occupies an area of 404m x 353m
introduction

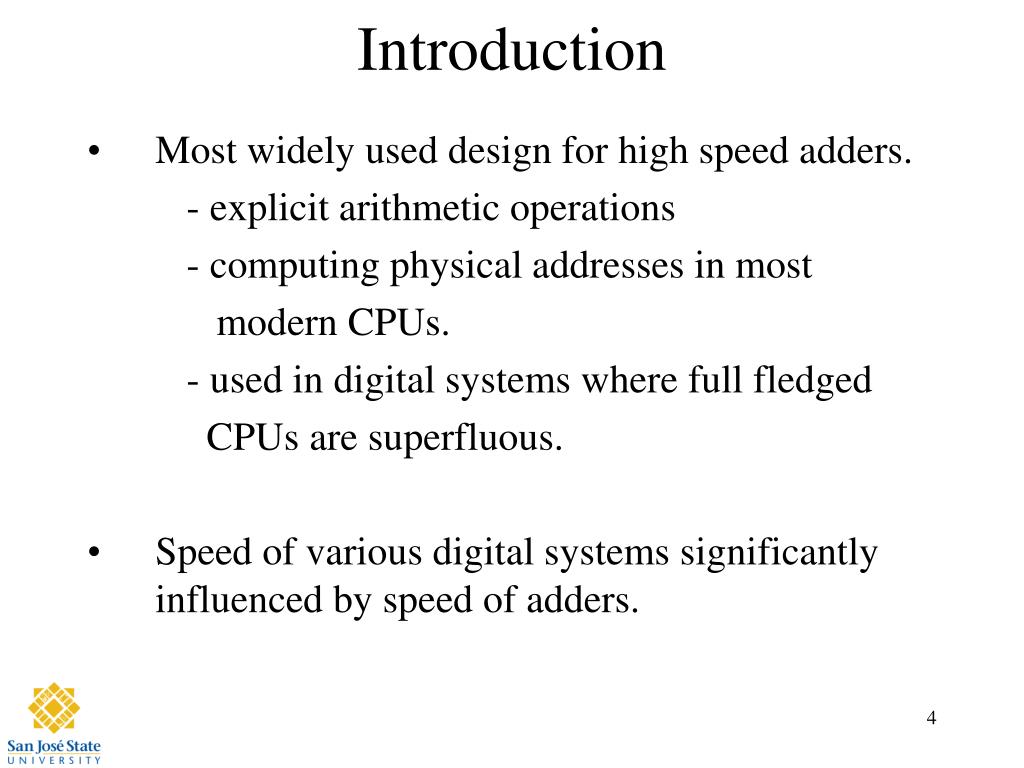

Introduction
  • Most widely used design for high speed adders.

- explicit arithmetic operations

- computing physical addresses in most

modern CPUs.

- used in digital systems where full fledged

CPUs are superfluous.

  • Speed of various digital systems significantly influenced by speed of adders.
theory of operation
Theory of operation
  • Carry values calculated independently (determines carry ahead of time)
  • Propagate and Generate terms:

Gi = Ai + Bi and Pi= Ai XOR Bi

  • Then outputs can be summarized as,

Si=Pi xor Ci & Ci+1=Gi +PiCi

C1:Previous carry

C2 = G1 + P1C1

C3 = G2+P2G1+P2P1C1

C4=G3+P3G2+P3P2G1+P3P2PC1

C5=G4+P4G3+P4P3G2+P4P3P2C2

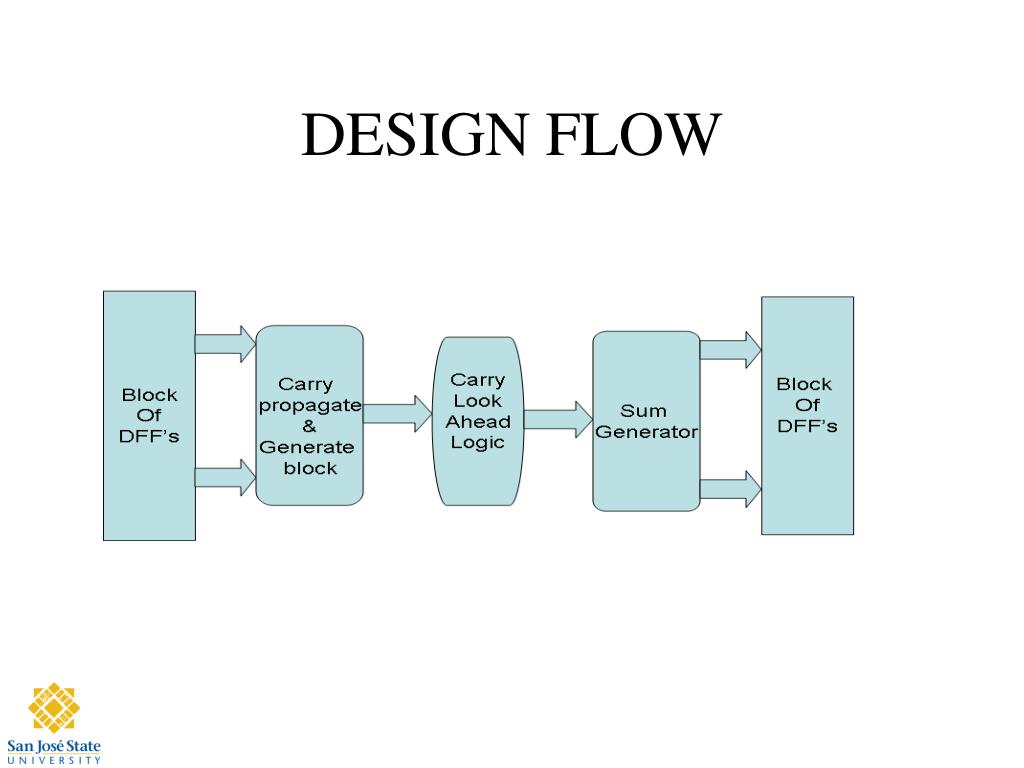

1BIT FULL ADDER

project details
Project Details

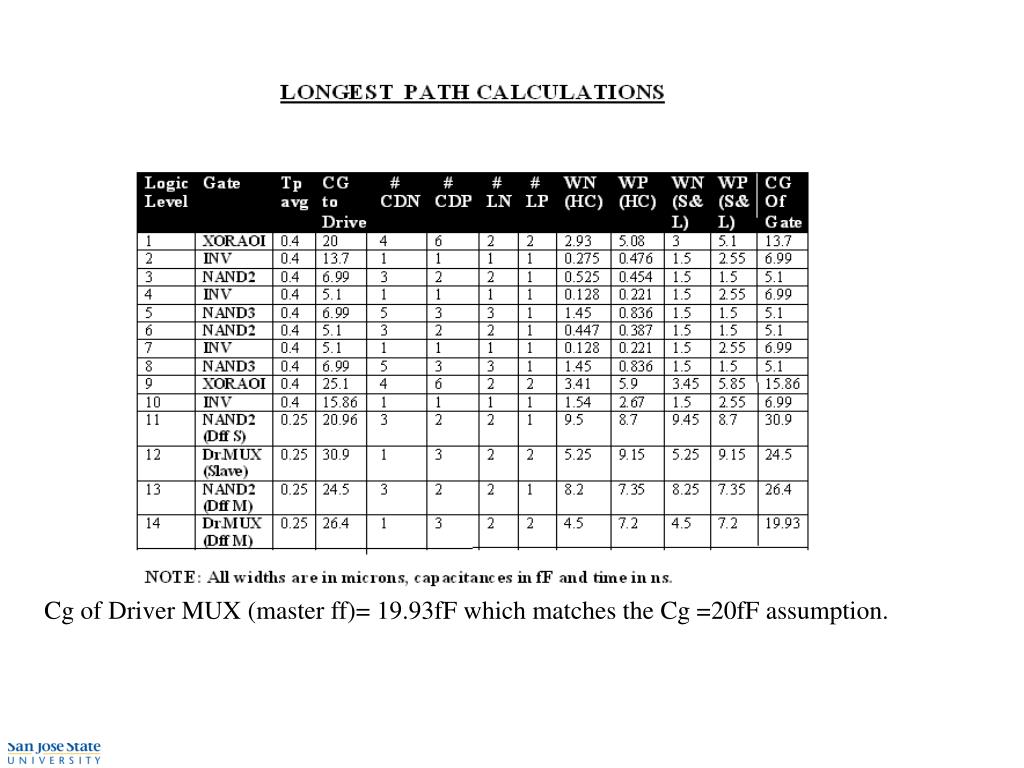

  • Initial hand calculations
  • Block level schematics
  • Block level layouts
  • Total schematic
  • Integration of the block level layouts
  • Circuit extraction & LVS
  • Post extraction simulations
dff timings
DFF timings

T hold (rise)=0.5n

T hold (fall)=0.48n

T setup (rise)=0.73n

T setup (fall)=0.64n

cost analysis
Cost Analysis
  • Time spent on the various phases of the project:
    • verifying logic(2 days)
    • Hand calculations(1 week)
    • Layout(4 days)
    • Modifying layout(2 days)
    • post extracted simulations(1 day)
lessons learned
Lessons Learned
  • Start working as early as possible!!
  • Plan the layout beforehand for an efficient design.
  • Use the same cell heights for all the blocks.
summary
Summary
  • Our CLA operates at 263 MHz of Clock Frequency, uses 4.37W of Power and occupies an area of 404m x 353m
  • The adder can be designed with lesser

area and power consumption with a more

organized Layout

acknowledgements
Acknowledgements
  • Thanks to Cadence Design Systems for the VLSI lab
  • Thanks to Synopsys for Software donation
  • Thanks to Professor David Parent
  • Thanks to EE166 Classmates
