Use CMOS Transistors to bit a 4-bit Adder

Use CMOS Transistors to bit a 4-bit Adder

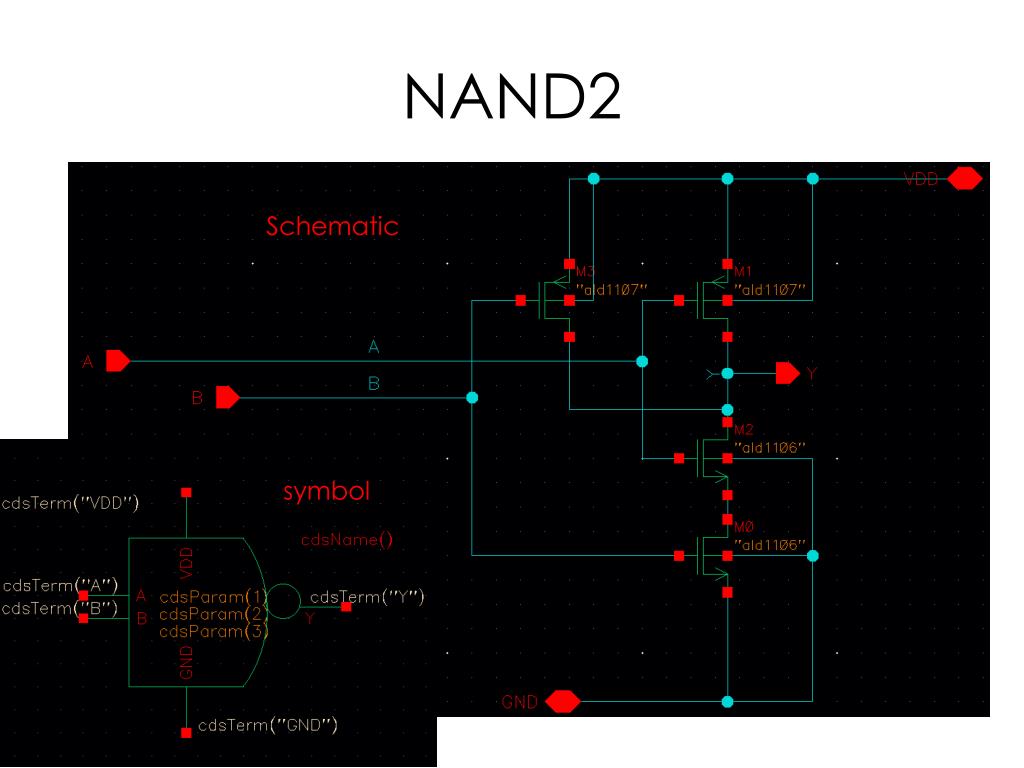

NAND2 Schematic symbol

Implementation of a Full Adder (ES210) (carry-in)

Full Adder • 2 Half Adder • XOR • AND • OR

NAND-Based XOR Gate symbol schematic

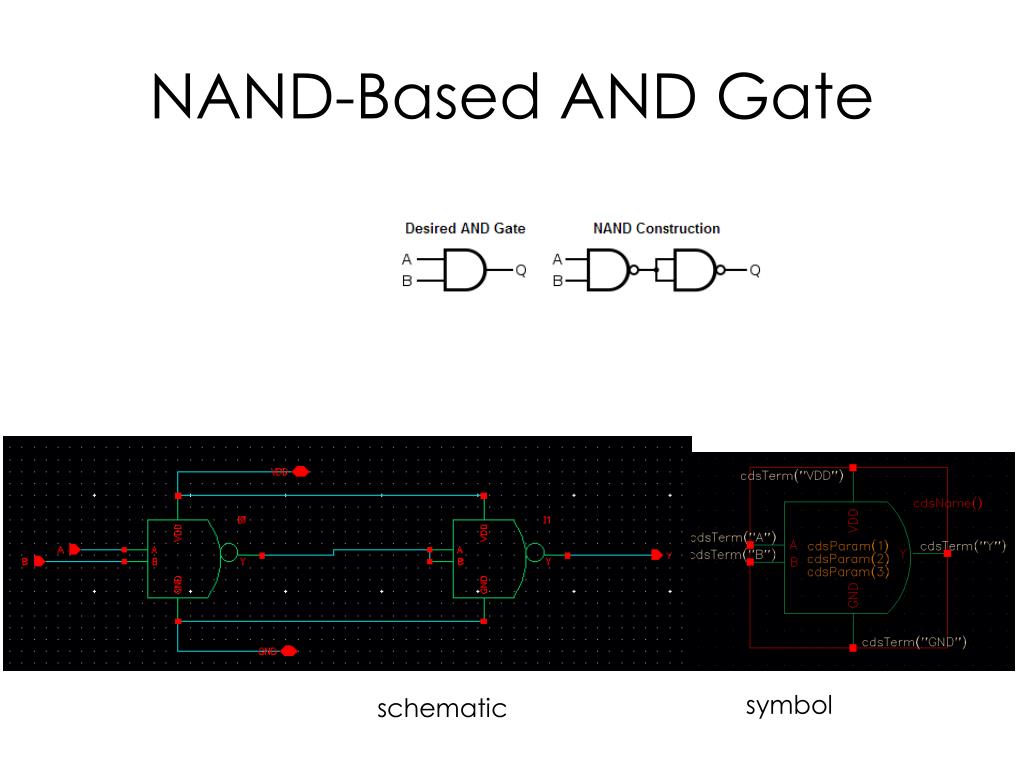

NAND-Based AND Gate symbol schematic

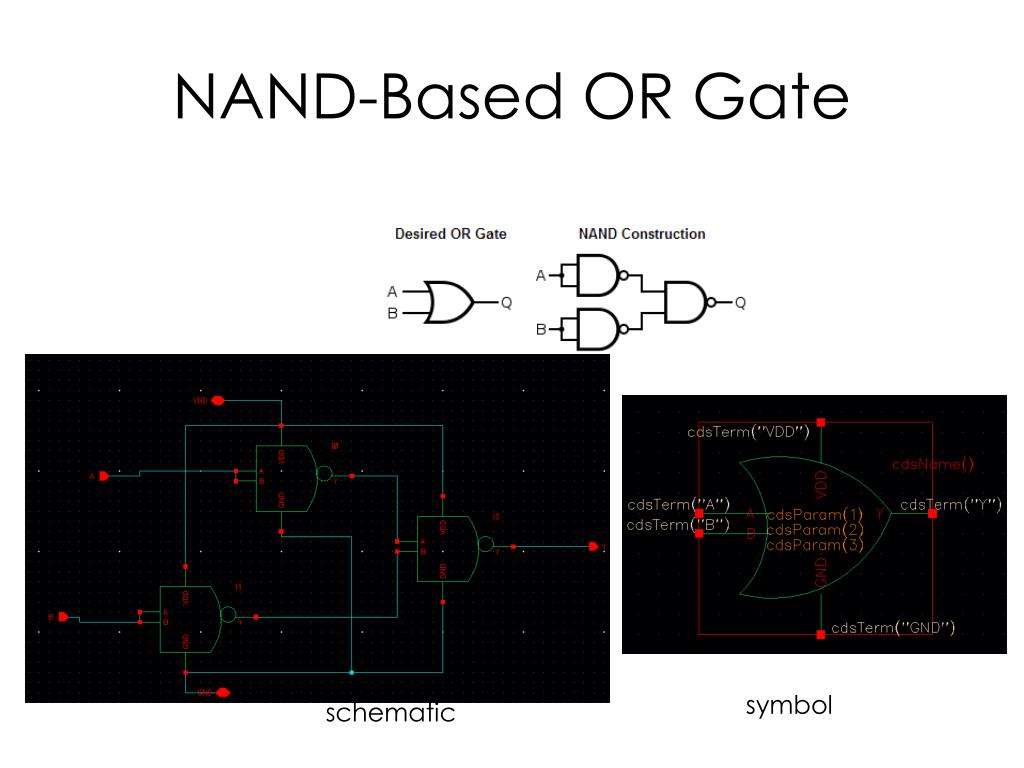

NAND-Based OR Gate symbol schematic

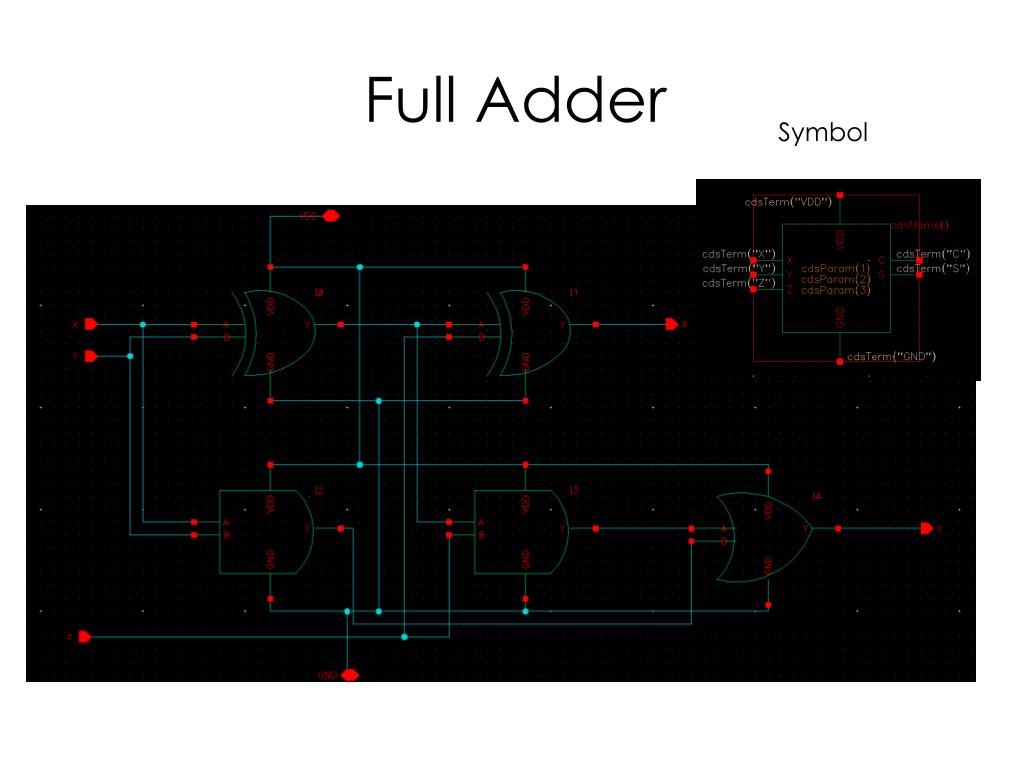

Full Adder Symbol

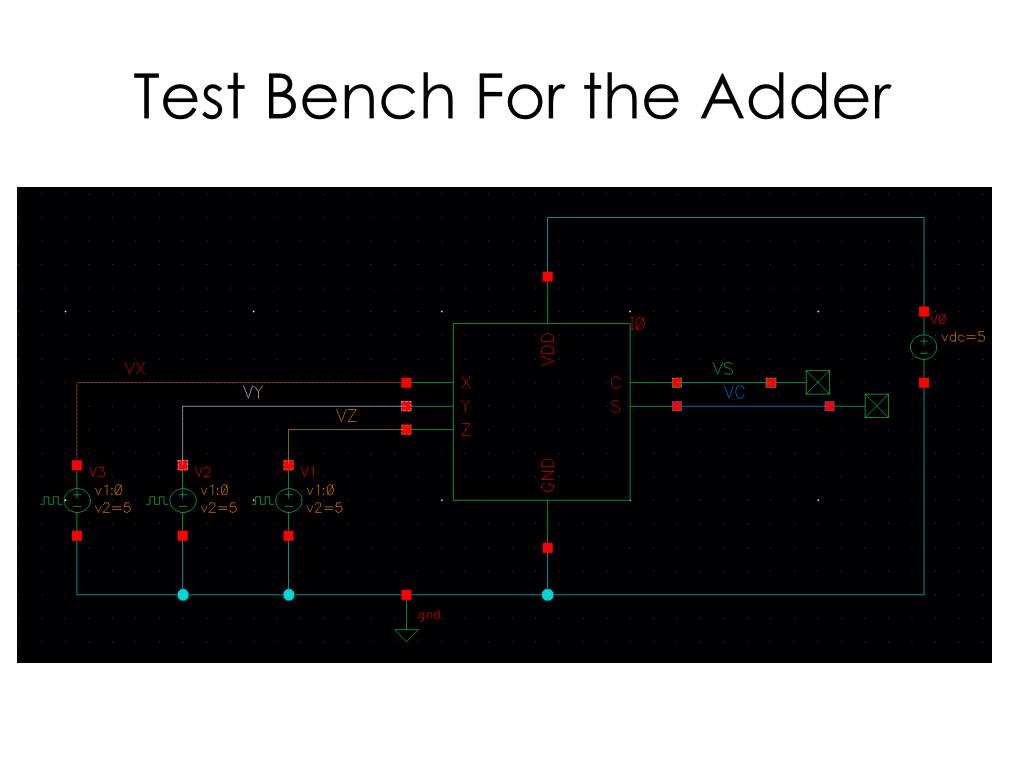

Test Bench For the Adder

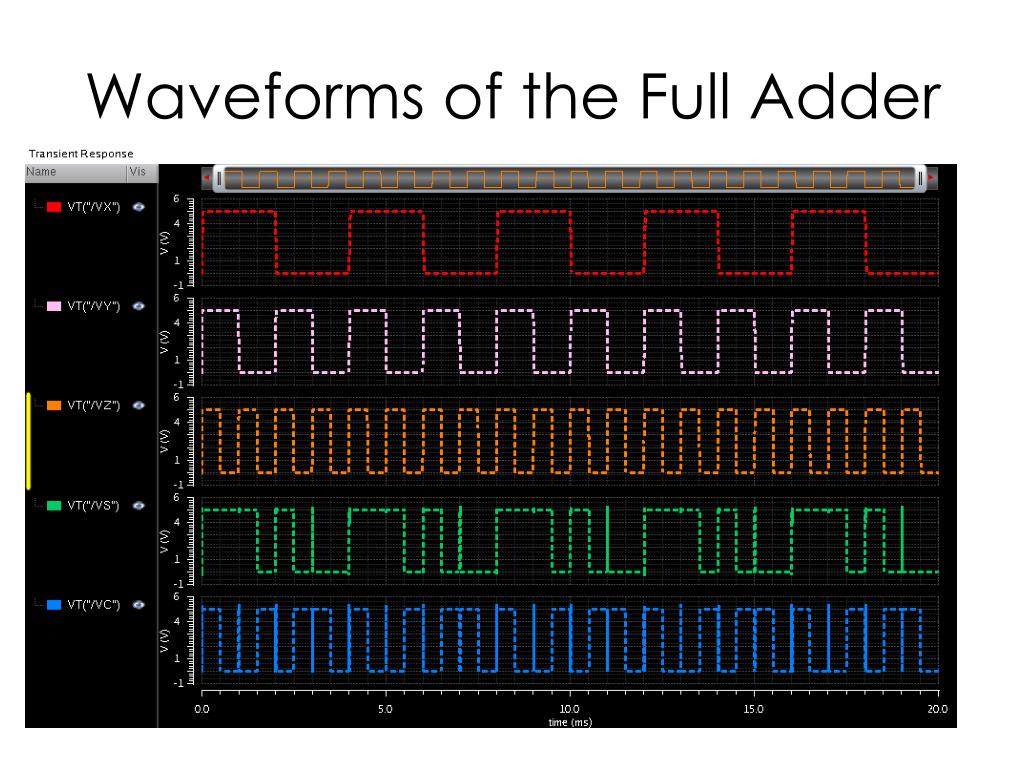

Waveforms of the Full Adder

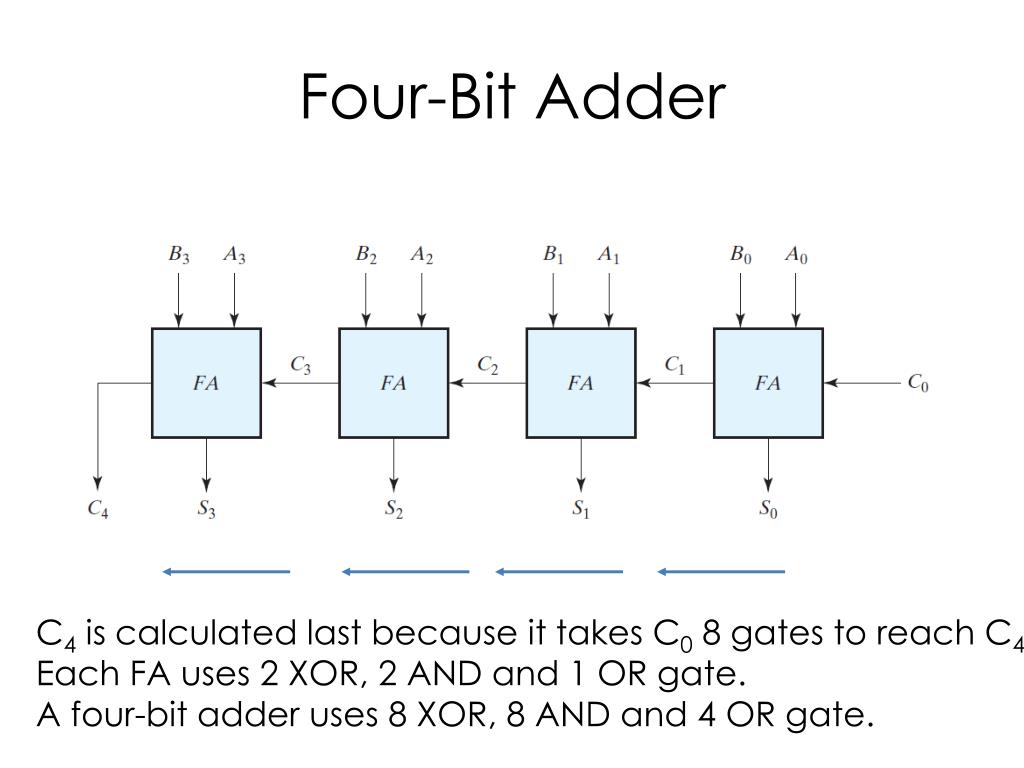

Four-Bit Adder C4 is calculated last because it takes C0 8 gates to reach C4. Each FA uses 2 XOR, 2 AND and 1 OR gate. A four-bit adder uses 8 XOR, 8 AND and 4 OR gate.

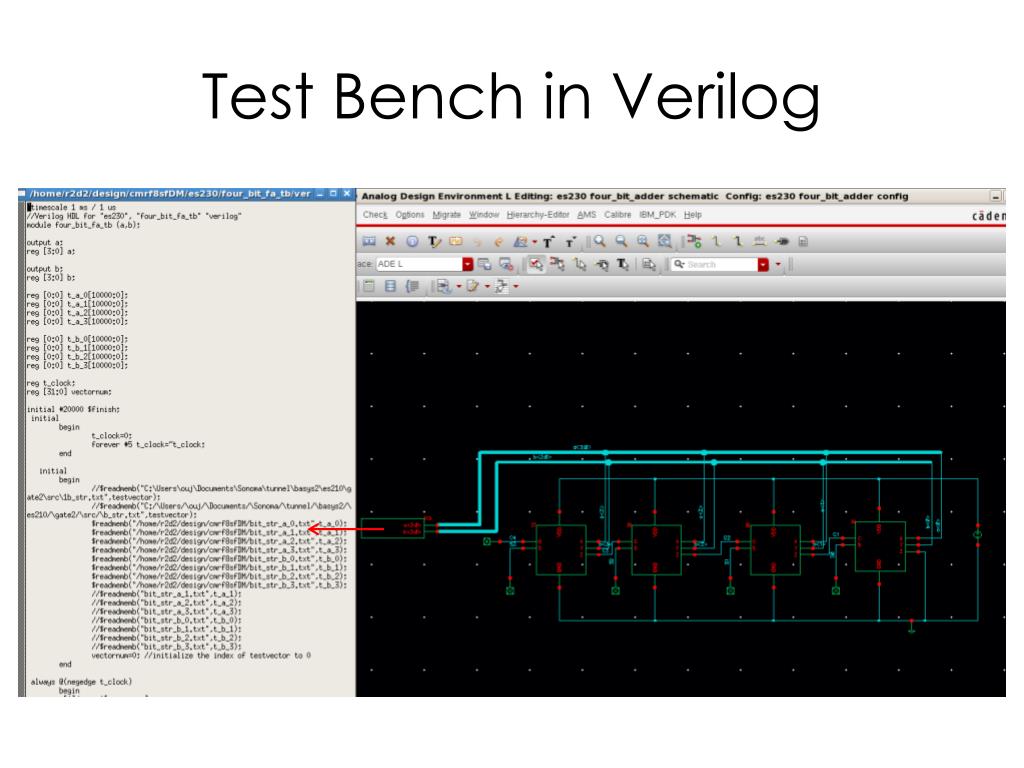

Test Bench in Verilog

Create Config

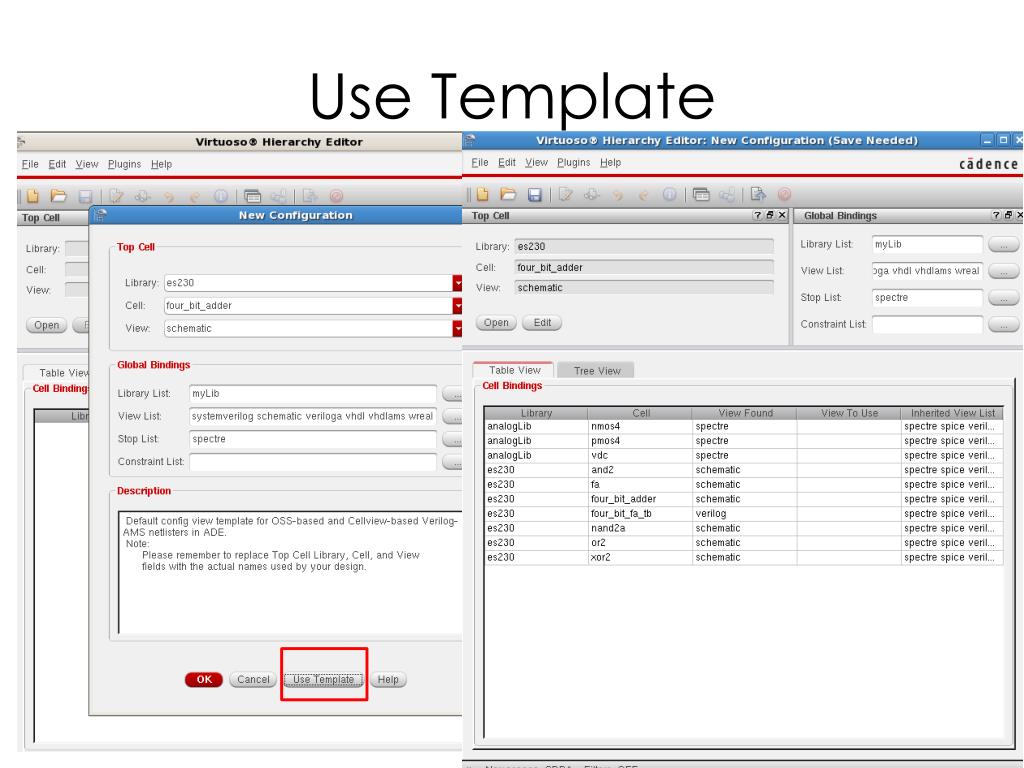

Use Template

AMS Simulator

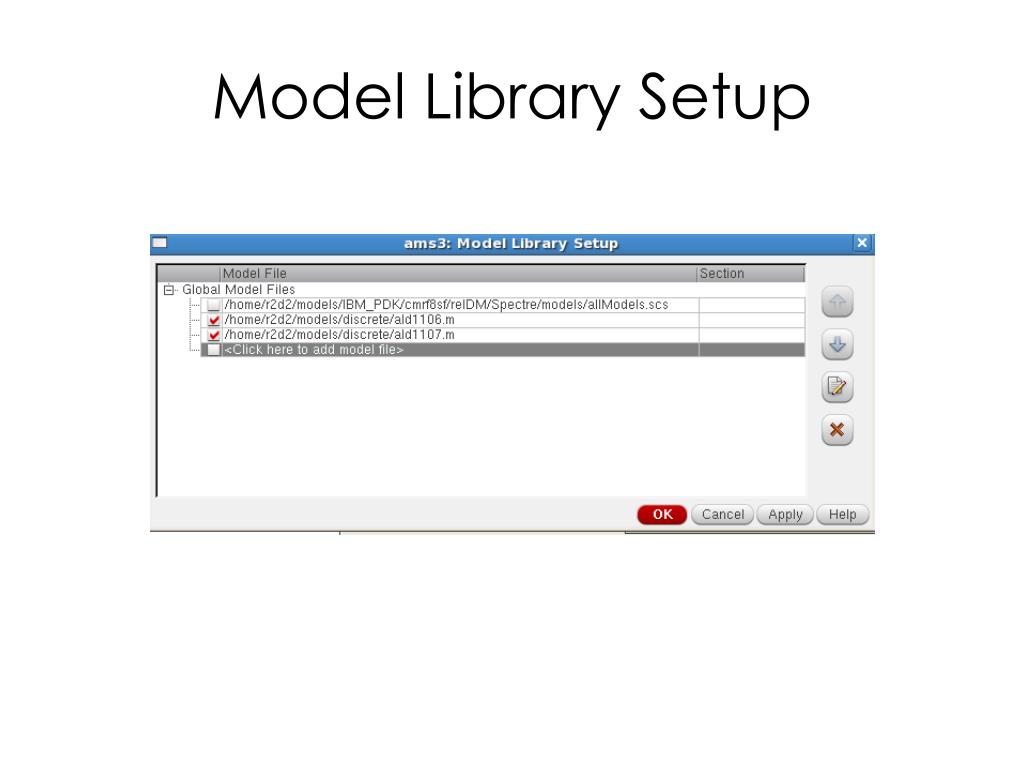

Model Library Setup

Use the 5 V Connect Rules

Choose Enough Levels of Hierarchy to Save

Output of the 4-bit Adder Open database first!

Use CMOS Transistors to bit a 4-bit Adder

Use CMOS Transistors to bit a 4-bit Adder

Presentation Transcript
