  1. MDT SoftwareAutoSave

  2. MDT SoftwareThe Change Management Company Jean-Claude Cornu Implementation Engineer AutoSave Overview

  3. Overview MDT Software is the world leader in change management solutions for automated manufacturing assets. We focus solely on software solutions for the industrial marketplace. We empower our clients to: • Gain visibility into changes in plant floor devices • Detect unauthorized changes • Comply with regulatory requirements • Efficiently manage plant floor devices • Maximize plant uptime and profitability

  4. Proven Experience We serve over 250 companies in a wide variety of industries. Our customer list includes: Pharmaceutical Pulp & Paper 3M BAA Brach’s Confections Anheuser-Busch Campbell Soup Caterpillar Chase Brass ChevronTexaco Coca-Cola ConvaTec Coors Brewing Corn Products CVRD DaimlerChrysler Dell Delphi DHL Ford Motor Company General Mills General Motors Corporation Hayes-Lemmerz IAMS Leprino Foods Lawrence Livermore National Labs Lorillard Tobacco Mozal Aluminum Mitsubishi National Starch & Chemical Michelin Nestlé New York Times Newport News Shipbuilding Phelps Dodge Procter & Gamble Roseburg Forest Products Rustenburg Platinum Sara Lee SGM SGMW Snowy Hydro Siemens Automotive South African Breweries Toyota Motor Company Weyerhaeuser Metals Food & Beverage Oil & Gas Automotive Ship Building Brewing

  5. Change Management – Questions • Protection of Assets & Intellectual Property • Where is the latest version of your programs? • Reduced Downtime • What program is in the device? • Provide Audit trails for investigation • Who made the last changes, and why were they made? • Increase in Safety • What was last changed, and when was it changed? • Disaster Recovery • Hardware failure, Security, Sabotage; Am I prepared? • Regulatory Compliance • Are we in compliance? (i.e. Sarbanes-Oxley, CFR21 Part 11)

  6. Change Management & AutoSave • Protection of Assets & Intellectual Property • Fully Automated Program & Document Archival system • Reduced Downtime • What program is in the device? • Provide Audit trails for investigation • Who made the last changes, and why were they made? • Increase in Safety • What was last changed, and when was it changed? • Disaster Recovery • Hardware failure, Security, Sabotage; Am I prepared? • Regulatory Compliance • Are we in compliance? (i.e. Sarbanes-Oxley, CFR21 Part 11)

  7. Change Management & AutoSave • Protection of Assets & Intellectual Property • Fully Automated Program & Document Archival system • Reduced Downtime • Version Tracking & Automated Retreival • Provide Audit trails for investigation • Who made the last changes, and why were they made? • Increase in Safety • What was last changed, and when was it changed? • Disaster Recovery • Hardware failure, Security, Sabotage; Am I prepared? • Regulatory Compliance • Are we in compliance? (i.e. Sarbanes-Oxley, CFR21 Part 11)

  8. Change Management & AutoSave • Protection of Assets & Intellectual Property • Fully Automated Program & Document Archival system • Reduced Downtime • Version Tracking & Automated Retreival • Provide Audit trails for investigation • Extensive Change Logs & Database Tracking • Increase in Safety • What was last changed, and when was it changed? • Disaster Recovery • Hardware failure, Security, Sabotage; Am I prepared? • Regulatory Compliance • Are we in compliance? (i.e. Sarbanes-Oxley, CFR21 Part 11)

  9. Change Management & AutoSave • Protection of Assets & Intellectual Property • Fully Automated Program & Document Archival system • Reduced Downtime • Version Tracking & Automated Retreival • Provide Audit trails for investigation • Extensive Change Logs & Database Tracking • Increase in Safety • Detailed-Comparison Reporting system, identifying changes made • Disaster Recovery • Hardware failure, Security, Sabotage; Am I prepared? • Regulatory Compliance • Are we in compliance? (i.e. Sarbanes-Oxley, CFR21 Part 11)

  10. Change Management & AutoSave • Protection of Assets & Intellectual Property • Fully Automated Program & Document Archival system • Reduced Downtime • Version Tracking & Automated Retreival • Provide Audit trails for investigation • Extensive Change Logs & Database Tracking • Increase in Safety • Detailed-Comparison Reporting system, identifying changes made • Disaster Recovery • Complete Data & System backup & recovery, integrated security • Regulatory Compliance • Are we in compliance? (i.e. Sarbanes-Oxley, CFR21 Part 11)

  11. Change Management & AutoSave • Protection of Assets & Intellectual Property • Fully Automated Program & Document Archival system • Reduced Downtime • Version Tracking & Automated Retreival • Provide Audit trails for investigation • Extensive Change Logs & Database Tracking • Increase in Safety • Detailed-Comparison Reporting system, identifying changes made • Disaster Recovery • Complete Data & System backup & recovery, integrated security • Regulatory Compliance • CFR21 Part 11 Compliant, as well as contributing to the process & operational control requirements of Sarbanes-Oxley

  12. MDT’s AutoSave • AutoSave is a central system that is networked to the operation/machine • Captures changes as they are made • Documents the changes • Automatic checking of operation/machine programs • Electronic notification of changes • Historical data of changes • Reporting on changes • Disaster recovery of operation/machine programs • User Access and Security Control. AutoSave Plant Network

  13. Typical Manual Process AutoSave Find the Right Program! Login to AutoSave Select Program Verify user permissions Verify client permissions Lock program Transfer from server to client Comment files available Launch Editor Make Changes Save and Exit Editor Comment Prompt Check-in program New revision created Saved on Server Copy to Backup? Logout of AutoSave Note changes? Server periodically verifies PLC to Library copy and emails difference report Making changes to a device

  14. MDT’s AutoSave • Client/Server Based Architecture • SQL Server Database-based Archive Configure Here BackupHere Edit Here The Central Location of the Software to which All Agents, Personalities, and Clients Report – Master Control Center Client Laptop Server Agent The interface through which the user interacts with the AutoSave system. PC-BasedControl The Component of AutoSave that communicates with the Device Processors – Uploads/Downloads/Compares Gateway Client Workstation Field bus Edit Here Robot PLC CNC

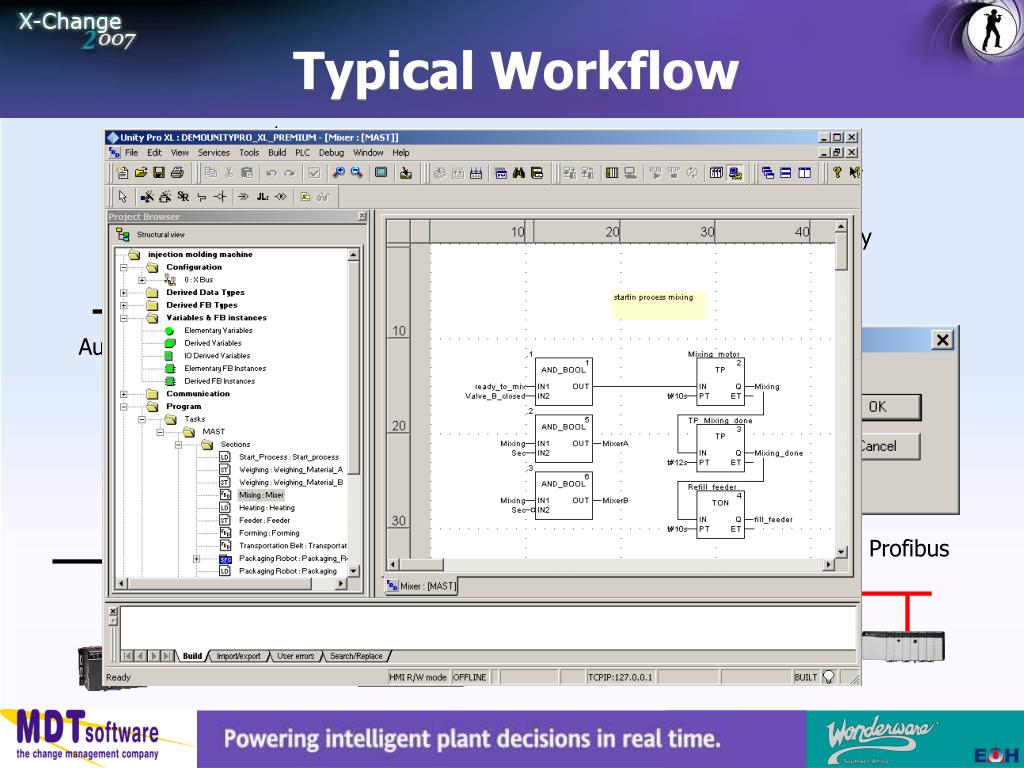

  15. Current Copy Local Copy SMTP Ancestor Copy AutoSave Server Agent Client 1 Client 2 Agent Profibus Typical Workflow TCPIP TCPIP

  16. Current Copy Local Copy SMTP Ancestor Copy AutoSave Server Agent Client 1 Client 2 Agent Profibus TCPIP PLC Level Scheduled Compare (1) Time-scheduled event (2) Upload device (3) Compare to Current Version (4) Email differences report (5) Create new Current Version Backupis difference exists (Optional) Processor Copy TCPIP

  17. AutoSave Screen Tour

  18. Program Information Program Status Information Version Control & Tracking Open Program Tabs NavigationTree Program Search Device Network Configuration User Interface

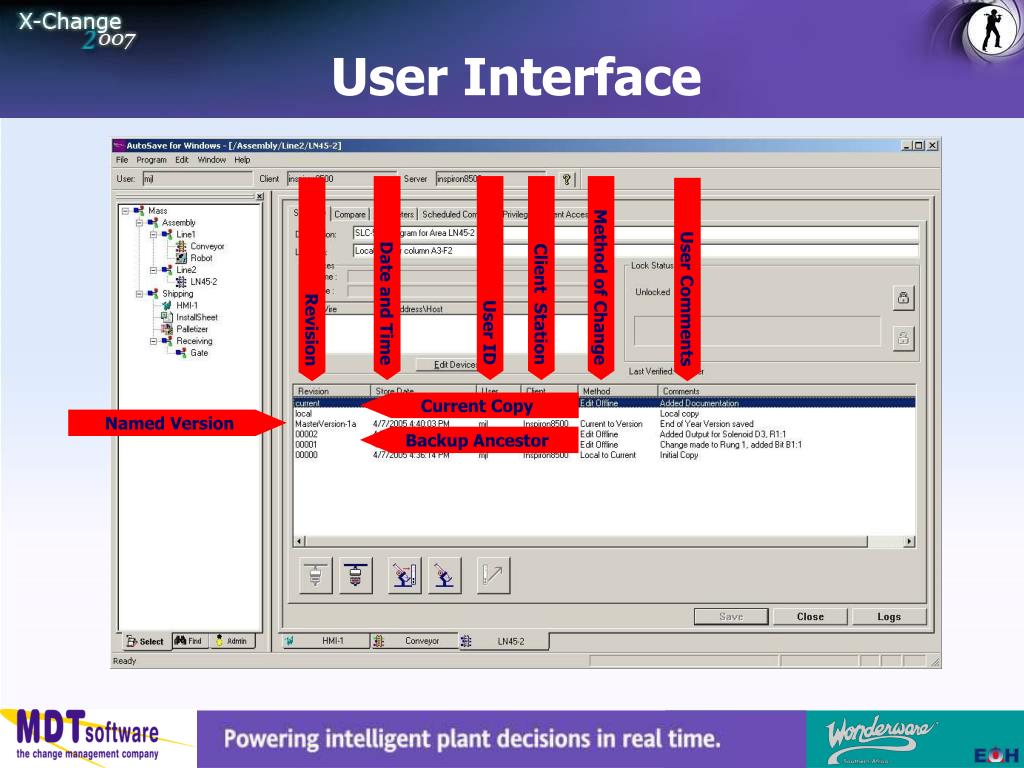

  19. User Interface Date and Time User ID Client Station Method of Change Revision User Comments Current Copy Named Version Backup Ancestor

  20. User Interface Right Mouse Edit Compare Upload

  21. Steps Why? If Changes are Not made Via Client, Time Scheduled Compares will monitor and document the change Maintain a Current Copy of your programs 1) Create Scheduled Compare Group(s) 2) Define Schedule 3) Select options for Results 4) Assign Programs / Areas Scheduled Compares

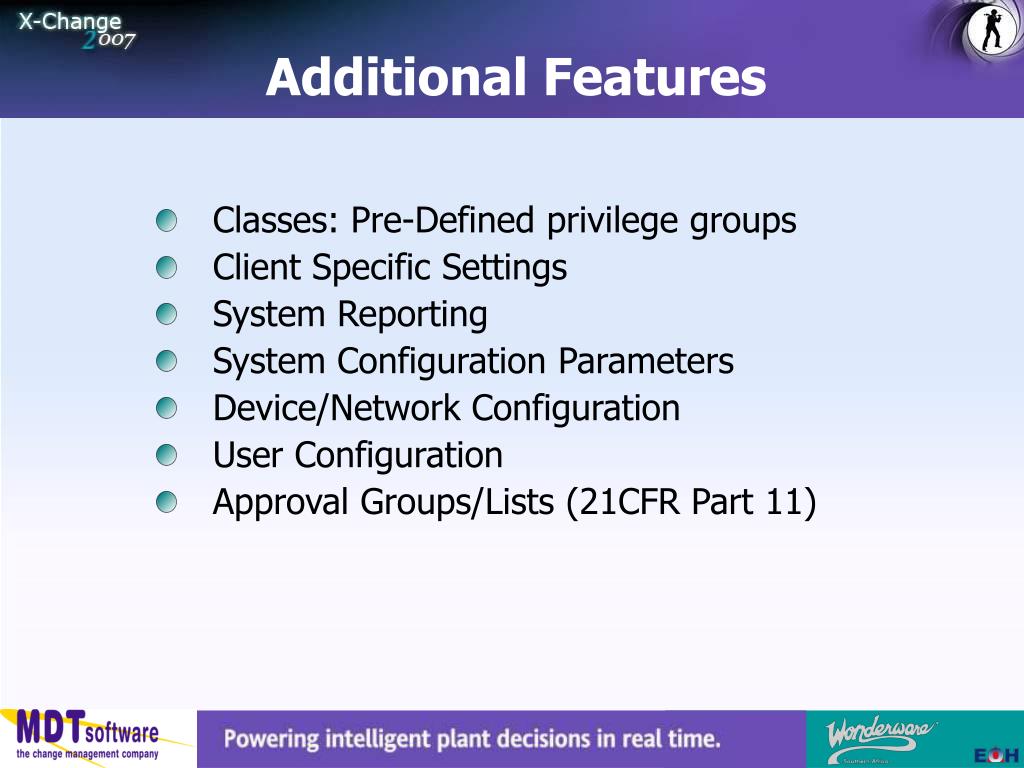

  22. Additional Features • Classes: Pre-Defined privilege groups • Client Specific Settings • System Reporting • System Configuration Parameters • Device/Network Configuration • User Configuration • Approval Groups/Lists (21CFR Part 11)

  23. Devices Supported AutoSave supports the most comprehensive range of devices and editors in the industry } PLCs Robots CNCs Welders Drives HMI's (OIT) Workstations Project Files Documents • Schneider • Telemecanique • Allen-Bradley • Siemens • GE • Indramat • Toyopuc • Bosch/Rexroth • Modicon • Wonderware • Rockwell Automation • Mitsubishi • Omron • FANUC / Kuka / ABB • iFIX / Fix32 …to name a few!!

  24. Approval and Workflow Enhancements to support a more formalized change control process

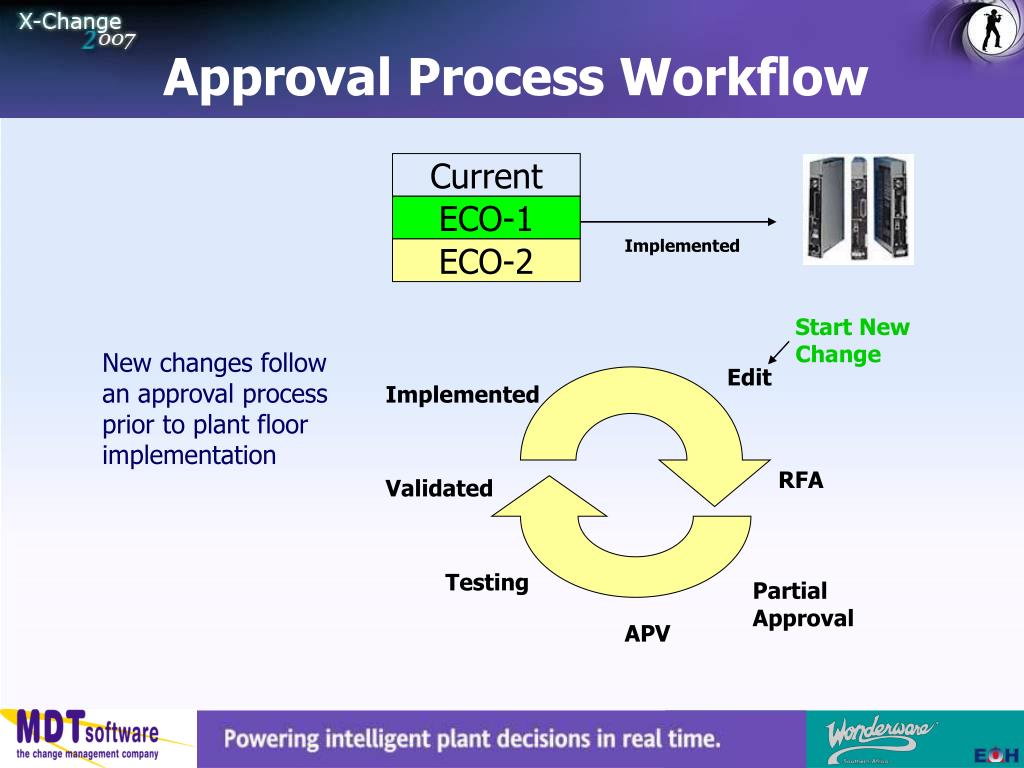

  25. Current ECO-1 ECO-2 Approval Process Workflow Implemented Start New Change New changes follow an approval process prior to plant floor implementation Edit Implemented RFA Validated Testing Partial Approval APV

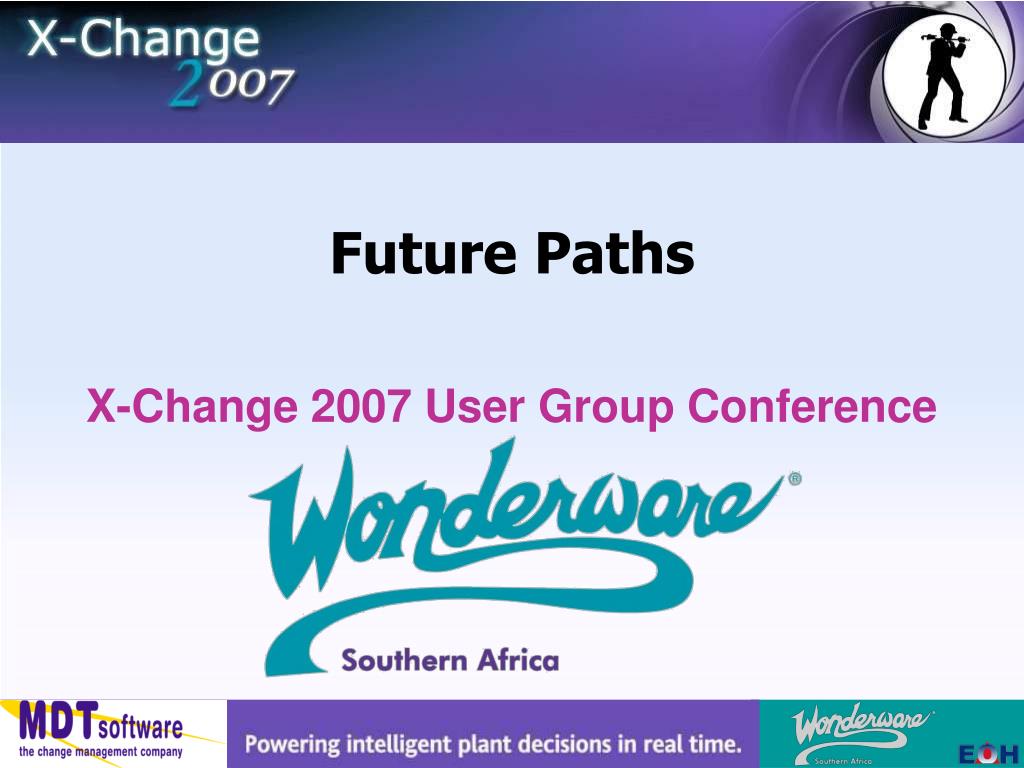

  26. Future Paths

  27. AutoSave 5.04 (2Q 2007) • Client • Support for Multi-Lingual Client • Find tab improvements • Drag-n-Drop moving of programs or areas • Program / Area names can contain spaces • Depends on support by 3rd party programs • Time Scheduled Compare • TSC Email to include summary information • Support a Processor to Version compare • Improvements to agent selection process • Pre-Kill Process INI File • AutoSave Licensing • Support for multiple machine ids • Support for demo licenses or trials of specific module types • New automated License Registration process

  28. 2007 Plug-In Update • Document Pack • Microsoft Word (DOC) • Microsoft Excel (XLS) • Microsoft PowerPoint (PPT) • Adobe Reader (PDF) • Drawing Files (DWG) • FTP Plugin Module (FTPWin) • Standard FTP with configurable filelist • GE iFIX Plugin Module • Supports GE iFIX v3.5 • Wonderware InTouch v8-v9 Plugin Module • Support v9.5 New updates and bug fixes • Omron CX Programmer Plugin Module • Supports CX Programmer v6.0 - v6.1 • Schneider ProWORX Plus Plugin Module • Schneider Unity XL Pro Plugin Module • New Beta of Unity-Diff in Development • Rockwell RSLogix 5000 v16 Plugin Module • Rockwell RSLogix 500 v5-7 Plugin Module • Now supports Forced-Bit comparison • Rockwell RSViewME v3.2-4.0 Plugin Module • Siemens Step7 5.4 Plugin Module • Siemens WinCC Plugin Module • Toyoda PCWin (toyopuc) Plugin Module

  29. Web-based Reporting Tool The new AutoSave Web-based reporting tool will allow customer to drill down into the logs and AutoSave data for many additional customizable reporting of data. In addition, reports can be scheduled and e-mail notification is possible.

  30. AutoSave Geneva Flexible Interface AutoSave functionality will be readily accessible outside of the standard Client GUI, as well as administration. This will allow customers to develop their own Client Interface, if desired. Examples: • Web Browser Integration • HMI/SCADA Integration • Desktop Icons

  31. AutoSave Geneva AutoSave 6.xx will support a new highly functional scripting language. This should allow customers to create custom applications or executables to address any custom needs not solved by current application interface. Sample Script • Execute initial application • Download program from AutoSave • Process downloaded data using using external application • Restore program back to AutoSave

  32. Conclusion AutoSave is the industry's most advanced feature-rich change management software. Today over 5,000 end users in a variety of industries worldwide use our AutoSave software suite to effectively manage change and minimize downtime. We are dedicated to customer satisfaction. Thank You! www.mdtsoft.com

  33. AutoSave for Highly Regulated Industries continued in more detail…

  34. Starting the Change Process • Create a new version within the appropriate AutoSave Program

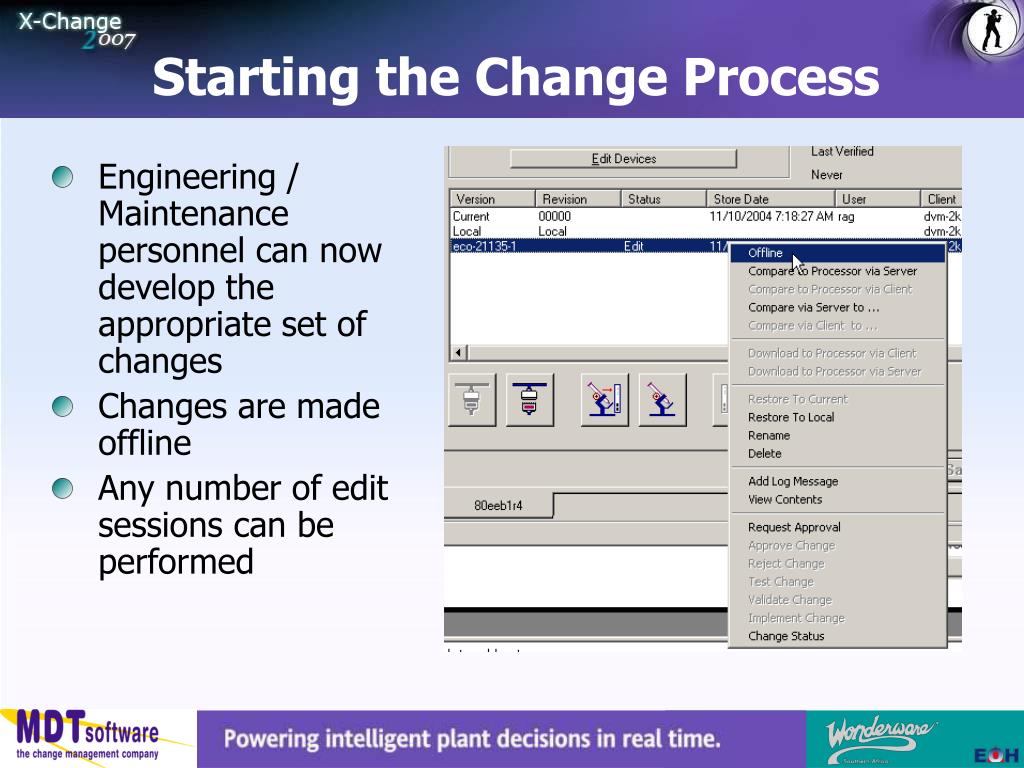

  35. Starting the Change Process • Engineering / Maintenance personnel can now develop the appropriate set of changes • Changes are made offline • Any number of edit sessions can be performed

  36. Making the change offline Edit changes like normal. An update to the version occurs after a comment is entered You cannot cancel a change

  37. Starting the Approval Process • When the changes requested have been developed, the user making the changes initiates the approval process • Email sent to applicable users who can then approve the change Management Email Notification Quality

  38. Who Approves changes • Users who approve changes are set up once administratively. One user representing each group must approve the change before implementation can occur

  39. Approving Changes • An approver logs in and selects role to approve the change • A comment and control number will be entered • AutoSave automatically records all events and converts the status to APV (Approved Pending Validation) when one user in each group in the approval list approves the change

  40. Completing the Approval • When last approval is entered • Version automatically converted to APV (Approved Pending Validation) • Allows for time lag to occur from approval to the start of plant floor testing

  41. Testing Changes Prior to Rollout • Testing is required to ensure that the approved changes actually produce the desired product on the plant floor. • Product produced at this time is typically quarantined until such time that the changes made have become validated. • Time lag from APV to Testing is very realistic due to the need to coordinate the actual testing on the plant floor • When the status is switched, downloading of this ‘approved but not validated’ change is enabled. • The conclusion of the testing should be a switch either back to the edit state (due to a reject) or a transition to a validated state

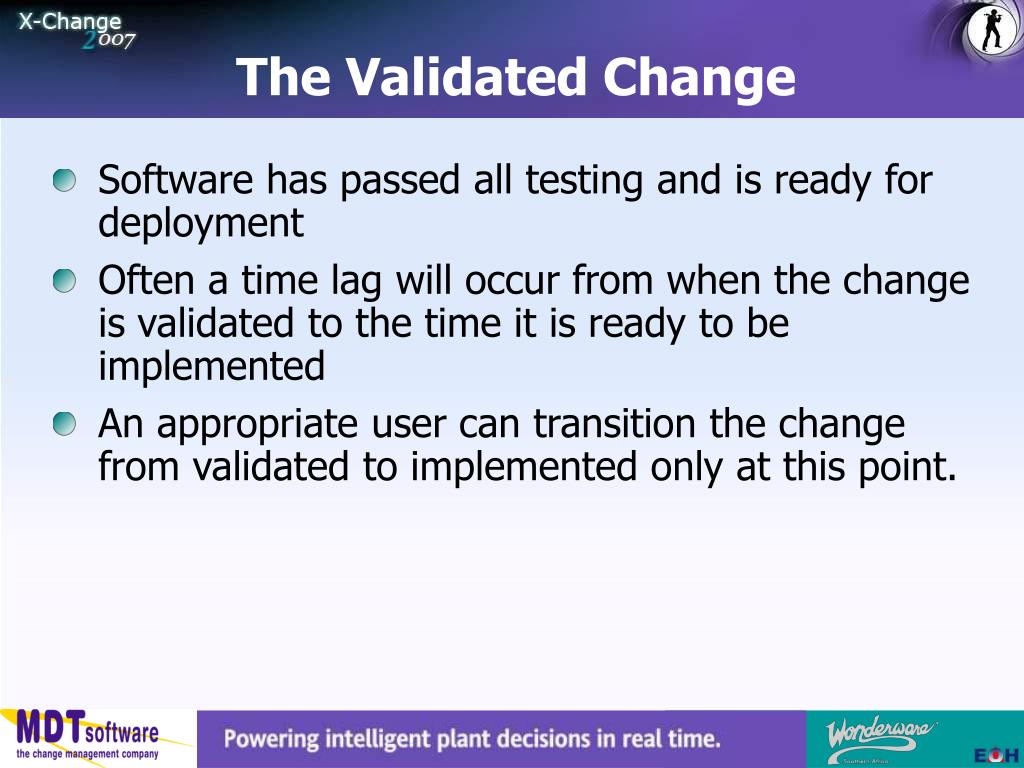

  42. The Validated Change • Software has passed all testing and is ready for deployment • Often a time lag will occur from when the change is validated to the time it is ready to be implemented • An appropriate user can transition the change from validated to implemented only at this point.

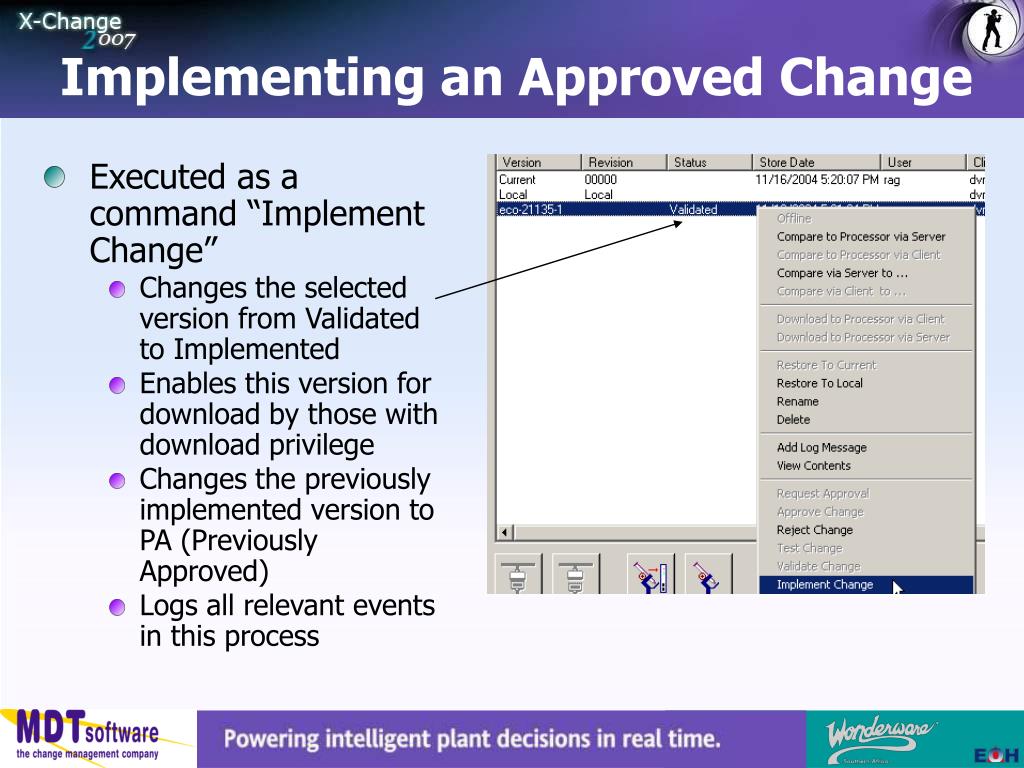

  43. Implementing an Approved Change • Executed as a command “Implement Change” • Changes the selected version from Validated to Implemented • Enables this version for download by those with download privilege • Changes the previously implemented version to PA (Previously Approved) • Logs all relevant events in this process

  44. Downloading an Implemented Change • The change can now be downloaded into the device • If the device must ever be reset, then this implemented version is the only one that can be used

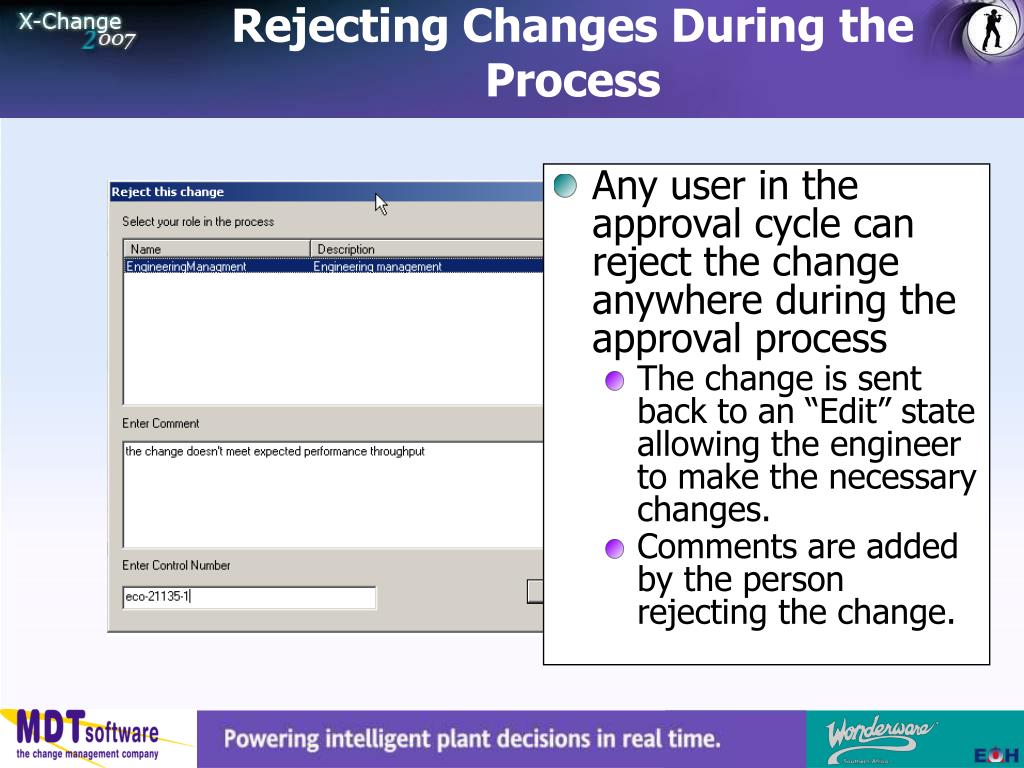

  45. Rejecting Changes During the Process • Any user in the approval cycle can reject the change anywhere during the approval process • The change is sent back to an “Edit” state allowing the engineer to make the necessary changes. • Comments are added by the person rejecting the change.

  46. Acquiring Real Time Updates • At any point in the cycle, a user can double-click on the version and see the current state of the approval process.
