passivation of carbon nanotube chips for biosensing applications

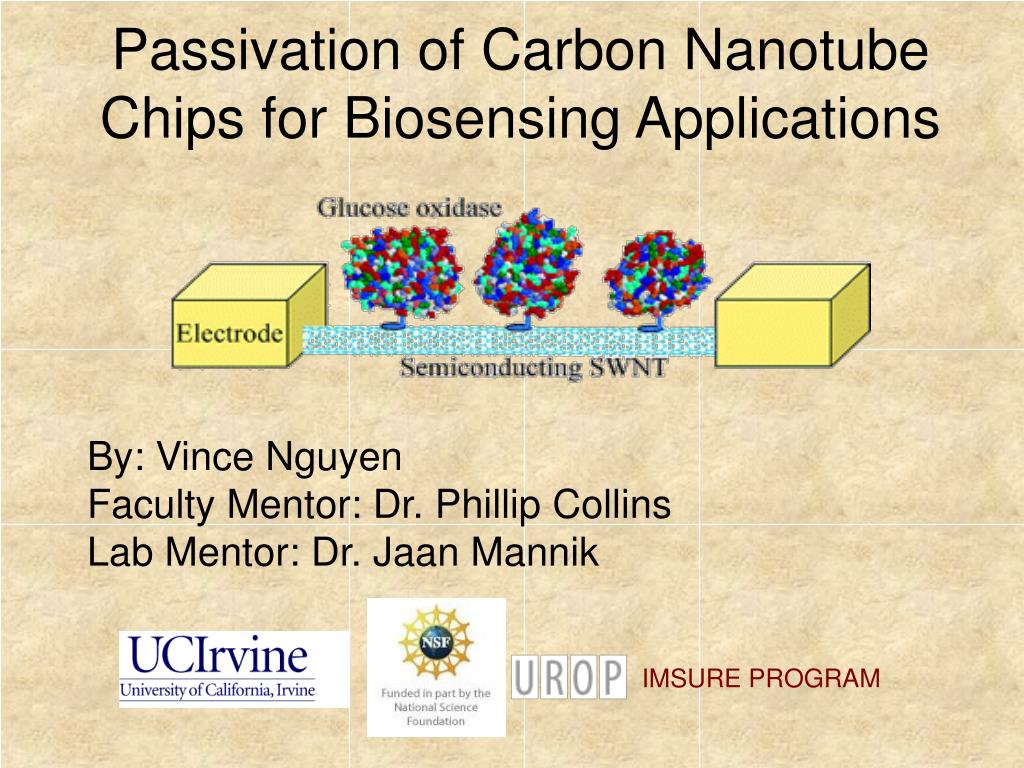

Passivation of Carbon Nanotube Chips for Biosensing Applications

By: Vince Nguyen

Faculty Mentor: Dr. Phillip Collins

Lab Mentor: Dr. Jaan Mannik

IMSURE PROGRAM

what is passivation
What is Passivation?

According to www.dictionary.com

-To treat or coat (a metal) in order to reduce the chemical reactivity of its surface.

-To coat (a semiconductor) with an oxide layer to protect against contamination and increase electrical stability.

Why Research Passivating CNTS Chips?

  • Contribute knowledge to understand more about nanoelectronics.
  • Gain experience in a more technical laboratory work by working with others.
  • Future contribution to biochemistry, chemistry, and physics.
introduction to carbon nanotubes cnts

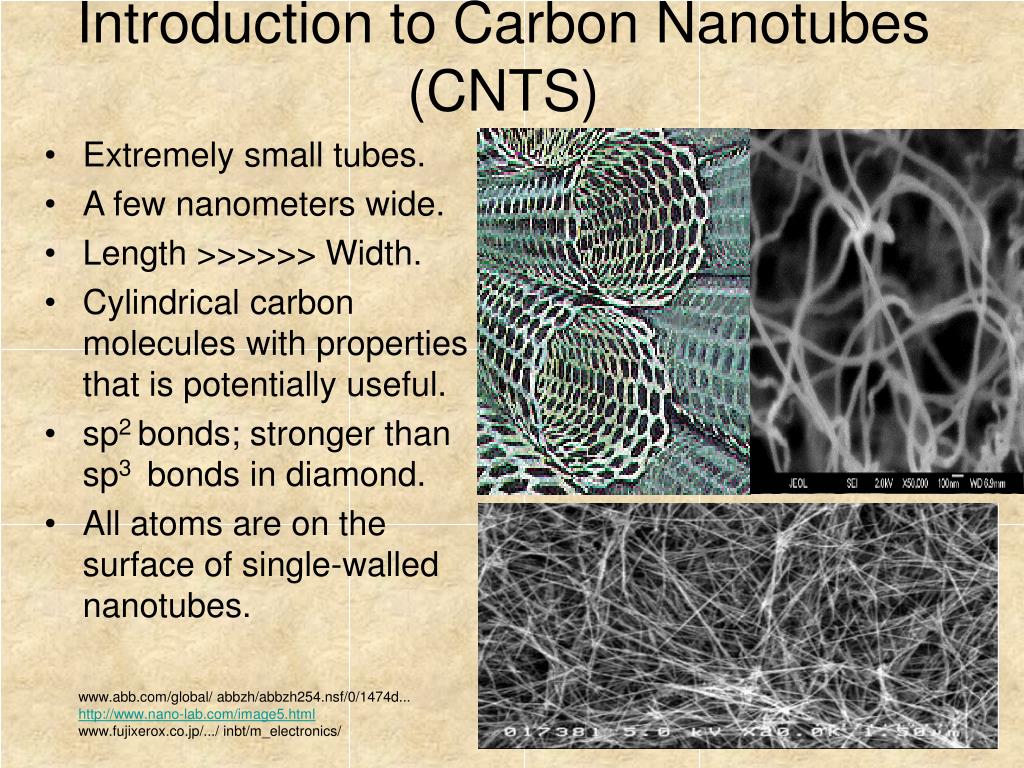

Introduction to Carbon Nanotubes (CNTS)
  • Extremely small tubes.
  • A few nanometers wide.
  • Length >>>>>> Width.
  • Cylindrical carbon molecules with properties that is potentially useful.
  • sp2 bonds; stronger than sp3 bonds in diamond.
  • All atoms are on the surface of single-walled nanotubes.

www.abb.com/global/ abbzh/abbzh254.nsf/0/1474d...

http://www.nano-lab.com/image5.html

www.fujixerox.co.jp/.../ inbt/m_electronics/

big picture of current research
Big Picture of Current Research
  • Minimize the amount of electrochemical reactions to accurately do electrical measurements on CNTS chips.
  • Detect if biomolecules actually bind to CNTS in electrolyte solutions.
  • Current scientific/medical companies successfully create H2(g) sensor using CNTS for patients with breathing problem; they are considering of creating CO2(g) sensor as well.
how do biomolecules bind to cnts
How do Biomolecules Bind to CNTS

www.jcnabity.com/ nanotube.htm

pubs.acs.org/cen/topstory/ 7919/7919notw9.html

experimental methods

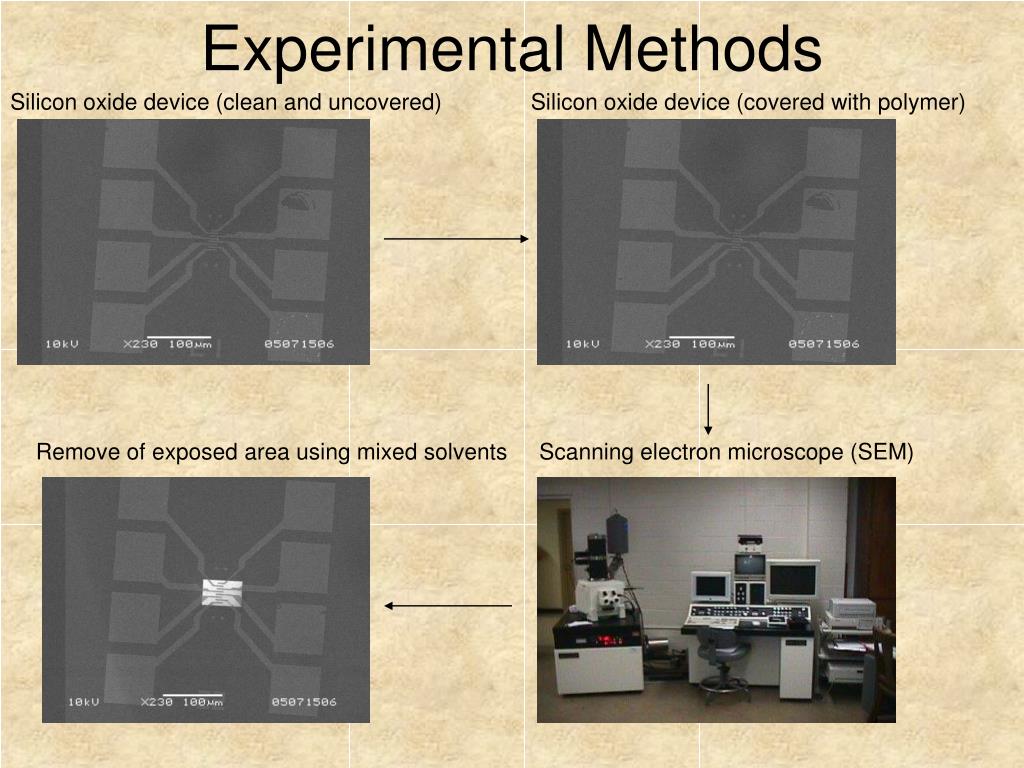

Experimental Methods

Silicon oxide device (clean and uncovered)

Silicon oxide device (covered with polymer)

Remove of exposed area using mixed solvents

Scanning electron microscope (SEM)

sem s contribution to research

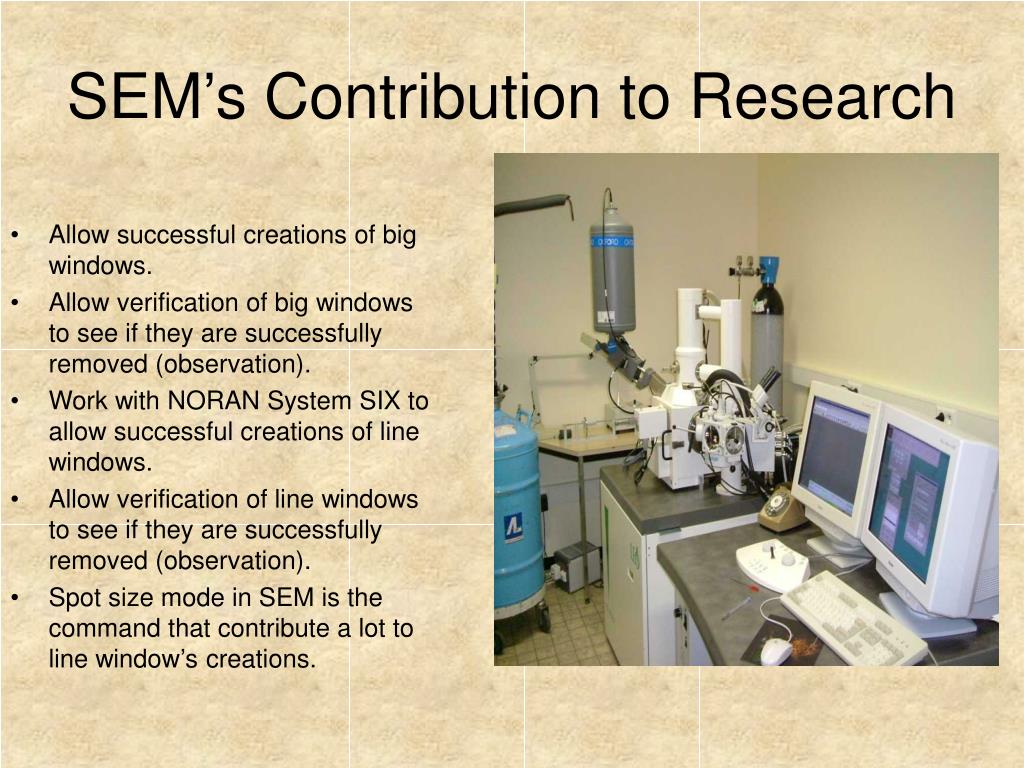

SEM’s Contribution to Research
  • Allow successful creations of big windows.
  • Allow verification of big windows to see if they are successfully removed (observation).
  • Work with NORAN System SIX to allow successful creations of line windows.
  • Allow verification of line windows to see if they are successfully removed (observation).
  • Spot size mode in SEM is the command that contribute a lot to line window’s creations.
limitations of our sem
Limitations of Our SEM
  • Higher magnification causes polymer’s exposed area to burn.
  • Scan 1 mode’s scanning box can’t be minimize for smaller window’s creations.
  • Measurement of beam current is quite complex.
  • SEM system does not have a built-in command to automatically scan the area of interest on silicon oxide chips at an exact amount of time that we want.
  • Using SEM to do passivation requires quick and fast hand movement to minimize the amount of exposure of beam current on unwanted area.
results

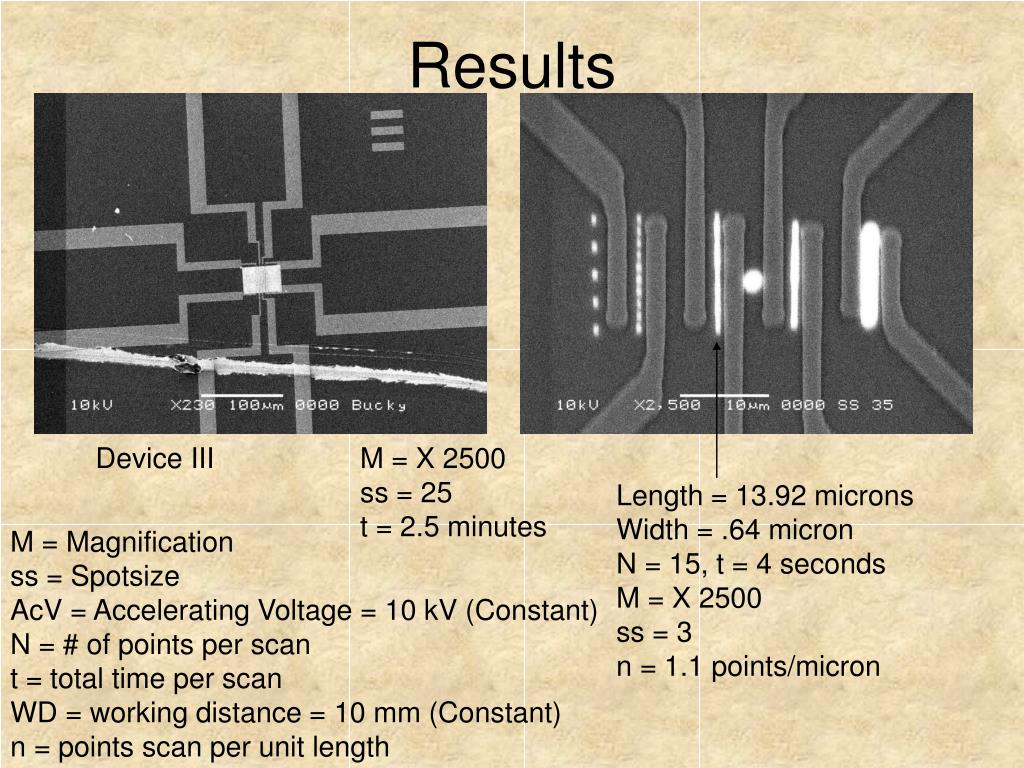

Results

Device III

M = X 2500

ss = 25

t = 2.5 minutes

Length = 13.92 microns

Width = .64 micron

N = 15, t = 4 seconds

M = X 2500

ss = 3

n = 1.1 points/micron

M = Magnification

ss = Spotsize

AcV = Accelerating Voltage = 10 kV (Constant)

N = # of points per scan

t = total time per scan

WD = working distance = 10 mm (Constant)

n = points scan per unit length

continue

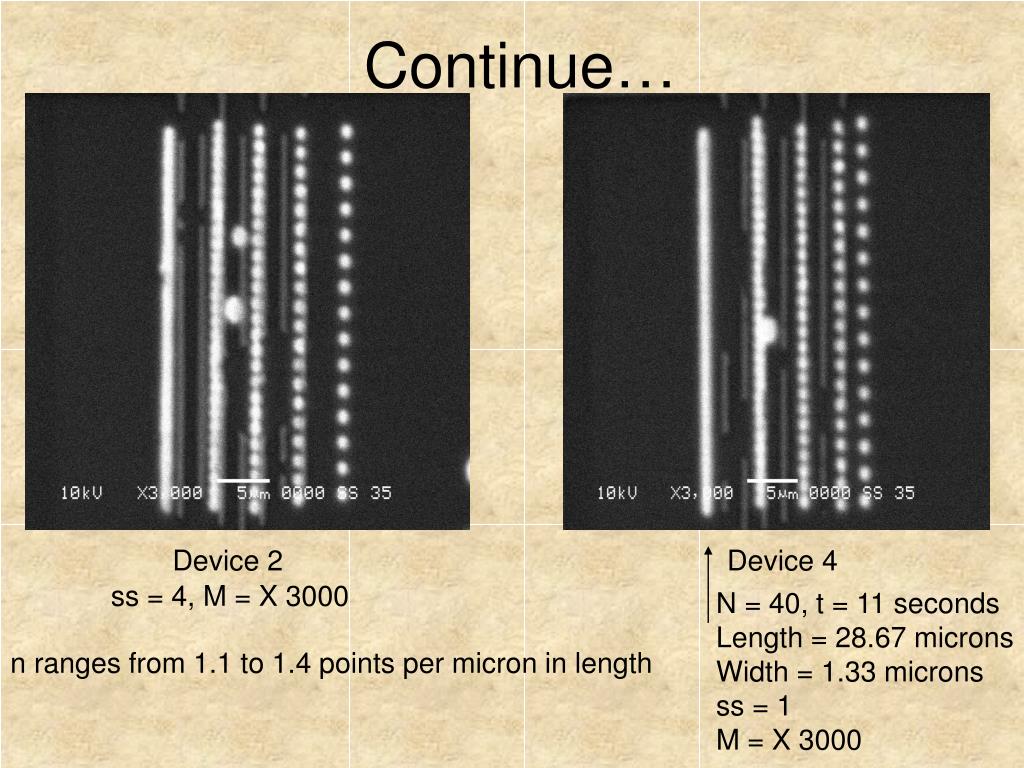

Continue…

Device 2

Device 4

ss = 4, M = X 3000

N = 40, t = 11 seconds

Length = 28.67 microns

Width = 1.33 microns

ss = 1

M = X 3000

n ranges from 1.1 to 1.4 points per micron in length

verification of results
Verification of Results

Before Passivation

After Passivation

Device I

continue1

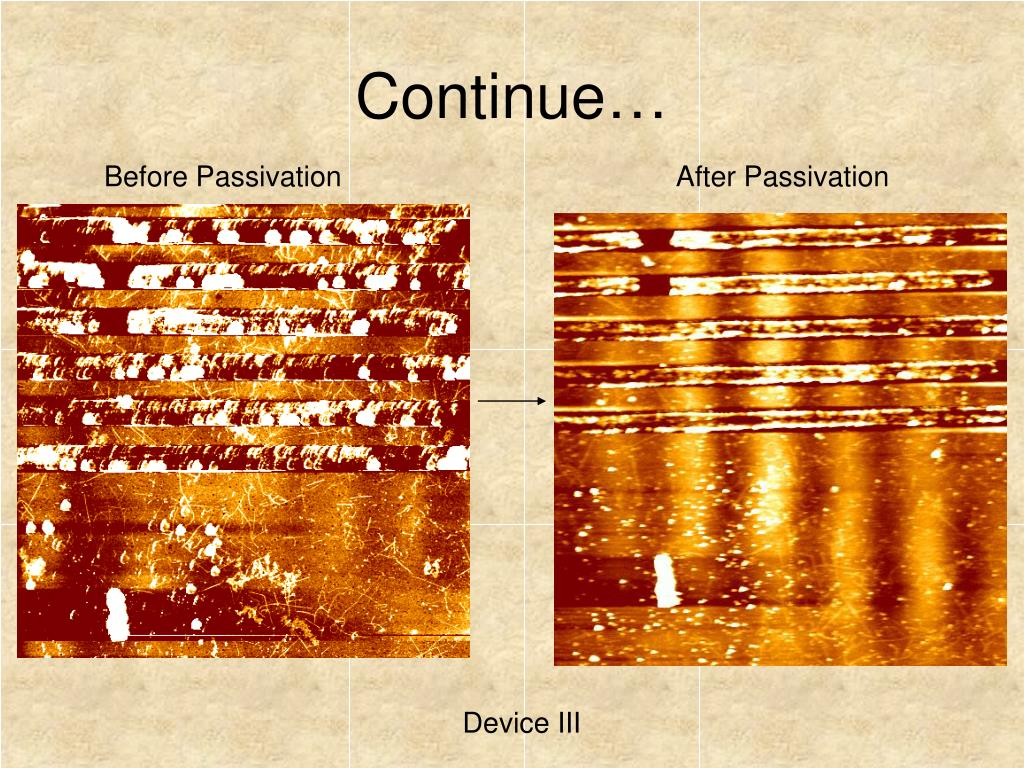

Continue…

Before Passivation

After Passivation

Device III

future research
Future Research
  • May explain why strange dots exist when creating line windows.
  • May create even smaller windows if measured interference is found to be unacceptable.
acknowledgements

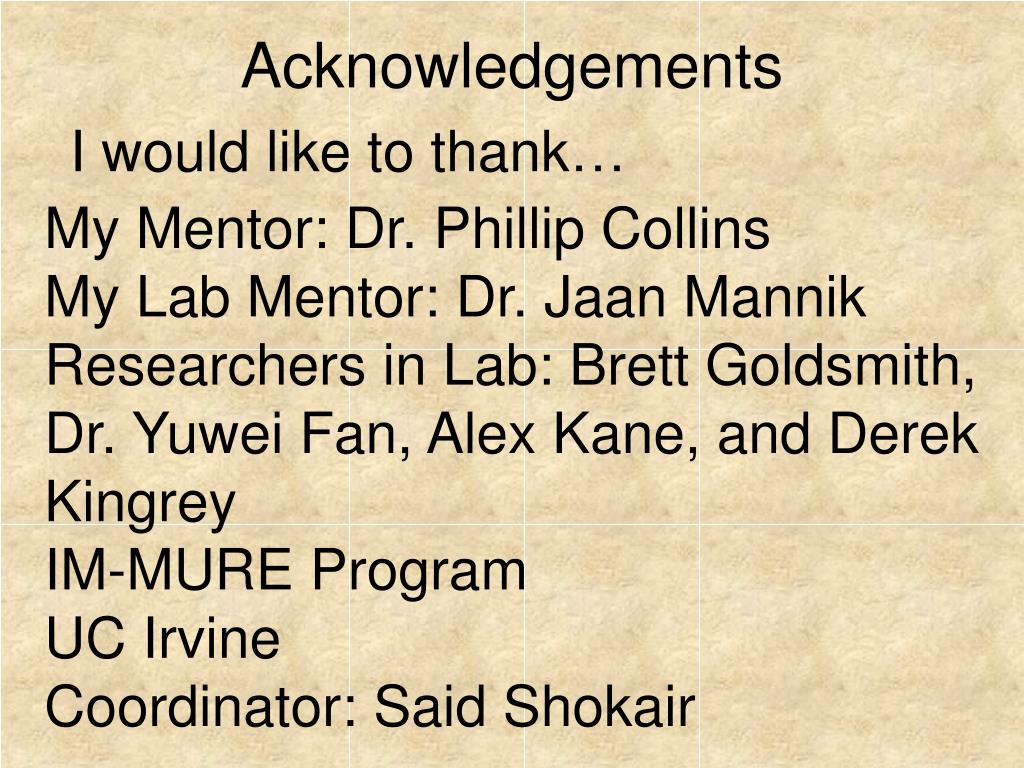

Acknowledgements

I would like to thank…

My Mentor: Dr. Phillip Collins

My Lab Mentor: Dr. Jaan Mannik

Researchers in Lab: Brett Goldsmith,

Dr. Yuwei Fan, Alex Kane, and Derek

Kingrey

IM-MURE Program

UC Irvine

Coordinator: Said Shokair
