sunstationii front end suspension
SunstationIIFront End Suspension
  • Design Team: Kevin Beckford Solomon Metcalf Daniel Atsyor
objective
Objective
  • Design and build a new front suspension for the solar car (Sunsation II)
specifications
Specifications
  • Easy Adjustment; camber, caster, toe-in/out
  • Mounting to honeycomb unibody
  • 6” of total shock travel
  • Little weight
  • Support body weight (=900-1000lb)
  • Improved performance
shock concept
Shock Concept
  • Fully adjustable shock, with piggyback reservoir
design idea
Design Idea
  • Double “A” arm suspension
  • Adjustable “A” arms
  • Adjustable shocks (Foxracing Shox)
  • Rocker Arms

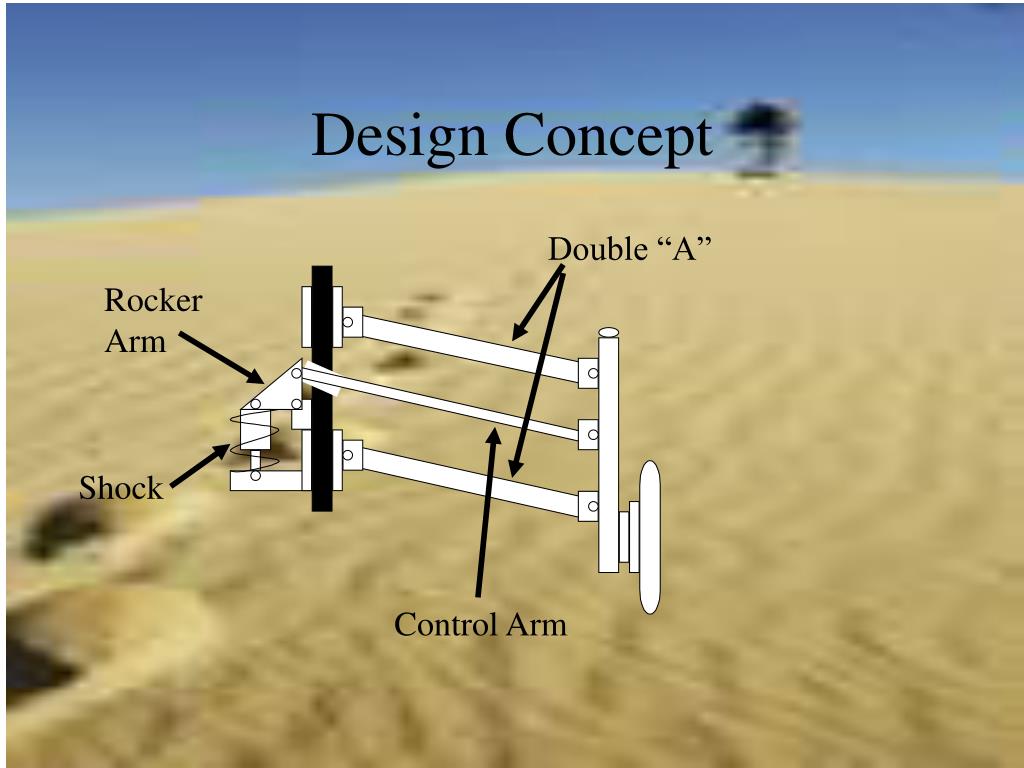

design concept
Design Concept

Double “A”

Rocker Arm

Shock

Control Arm

current activities
Current Activities
  • Design compromising with other design teams on solar car
  • Suspension dimensions
  • Suspension calculations
