Presentation Transcript

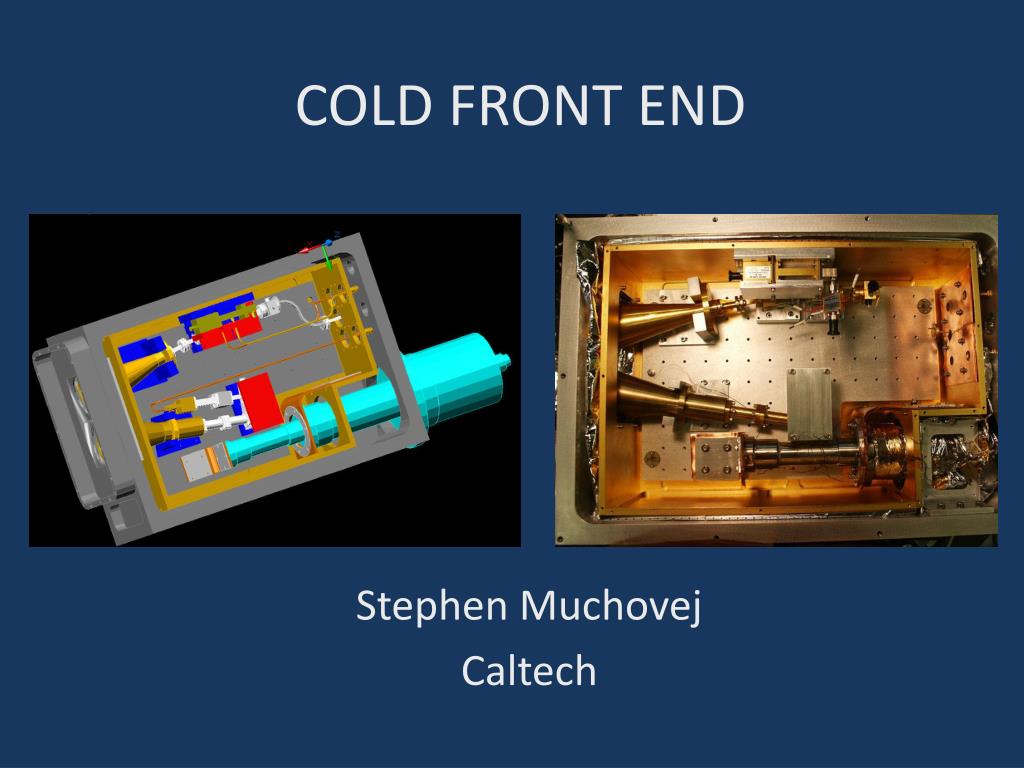

  1. COLD FRONT END Stephen Muchovej Caltech

  2. CONSIDERATIONS RF System Itself Physical Considerations Packaging Mounting

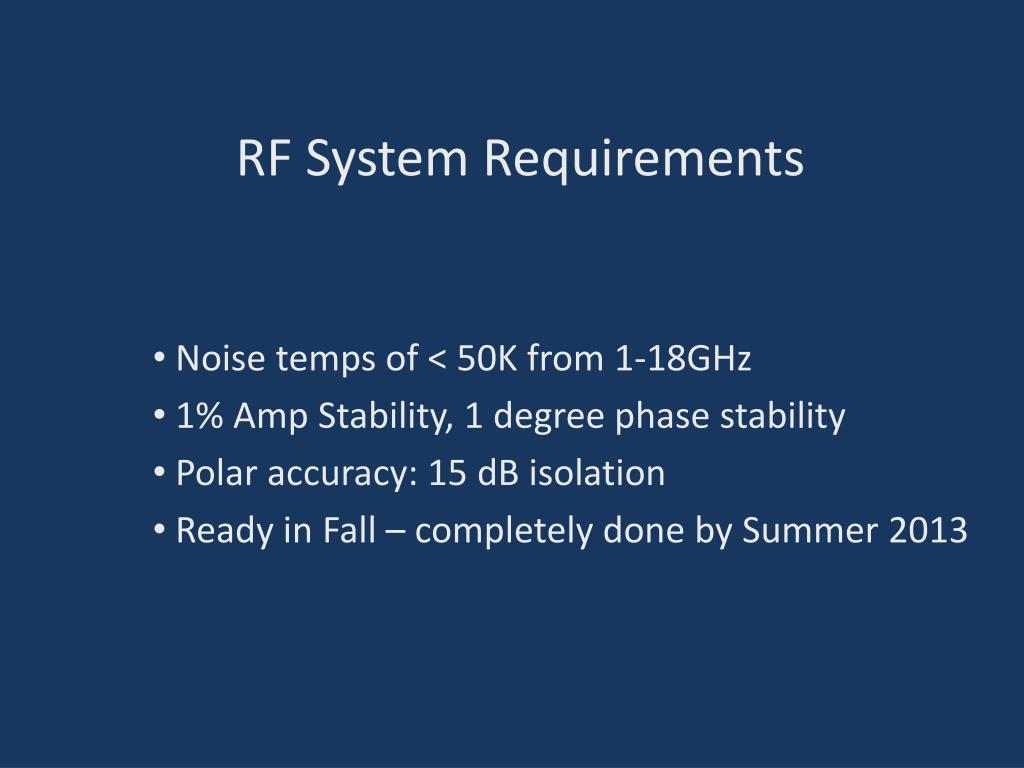

  3. RF System Requirements Noise temps of < 50K from 1-18GHz 1% Amp Stability, 1 degree phase stability Polar accuracy: 15 dB isolation Ready in Fall – completely done by Summer 2013

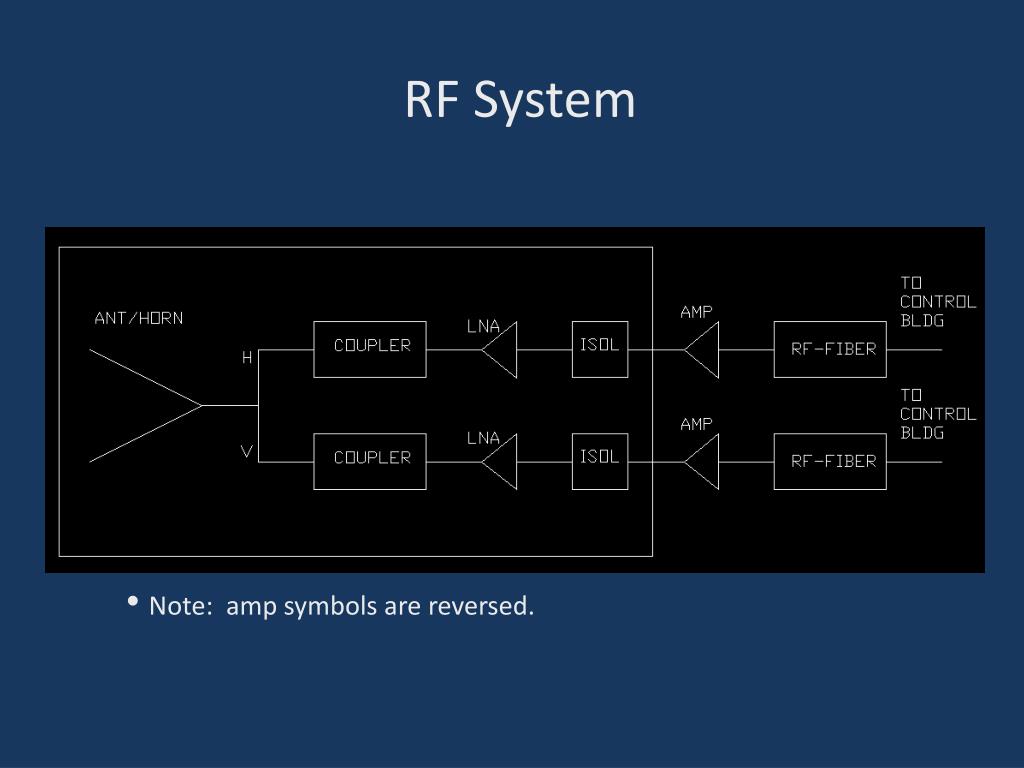

  4. RF System Note: amp symbols are reversed.

  5. Horn Considerations - Spillover

  6. Horn Considerations - Cooling

  7. Possible Solution Well-matched optics Low spillover Free Design …only operates over factor of 6 in frequency. Means we have to split the system

  8. Telescope Focus Point 2m in front of platform. We can put the two systems side-by-side, and cool all components in a single dewar.

  9. Features Better system temp ( <50K across whole band ) Perfect beam matching between two systems. Lateral translation between 2 systems. Need 15cm Vertical Translation between two feeds. Needs to rotate to calibrate smaller dishes.

  10. Mount Proposal Replace the mechanism up there with a full, self-contained system that bolts onto the ring platform. Uses tracks for linear (and vertical -- focus) translations with actuators. Uses a gear for rotation Install whole rx system at once Adjust y once on installation

  11. Mount Proposal Replace the mechanism up there with a full, self-contained system that bolts onto the ring platform. • Allows for rotation and translation

  12. Prime Focus Inventory Rx and cryo lines. Temp Controlled (TECA) box with: Bias for amps Temp Stable noise source Temp monitoring RF switch Pre-amp module RF-optical converter Ethernet Switch Ethernet controllable power supply Small computer to control Noise Diode, Bias, and Alignment jig (rotation, x, and z)

  13. Other people involved are TomiHovatta • (most machining) and Russ Keeney • March-Mid May: Component Selection and Costing, Rx Design, and Support Jig Design • May 15: Order RF components, Quotes on Machining (that won’t happen here) • May-July: Machining (Jig, horns, cryostat), control subsystem development • August-September: Rx construction, Mechanical testing of Jig, Rx Testing • October: Buffer Month. • Nov-Dec: Installation/Commissioning Timeline

  14. Communications between small computer and control system • Amount of focus shift in pointing the telescope • Tolerances for Rx placement -- laterally and rotationally • Control of focus mechanism (distortion of dish) • Budget. Still to define
