  1. Microprocessor Laboratory Arrangements for ‘product’ time J. Nash - Microprocessor Course

  2. Demonstrators Demonstrators will now reduce their time in the laboratory to a 15 minute visit during each session. Demonstrators remain available on call at any time during their allocated periods. J. Nash - Microprocessor Course

  3. Reports 2 unit experiments automatic sign-off on Friday 25th November Report deadline is 10 days later on Monday 5th December Submit using standard 3rd year lab process and forms Standard penalties apply for late submissions Reports may be handed in by paper copy Electronic versions must be available Your programmes should be left on the machines and they will be looked at by the assessors. Attach (commented!) programme code as appendix Use laboratory guidelines for report writing Length guidelines – <4000 words J. Nash - Microprocessor Course

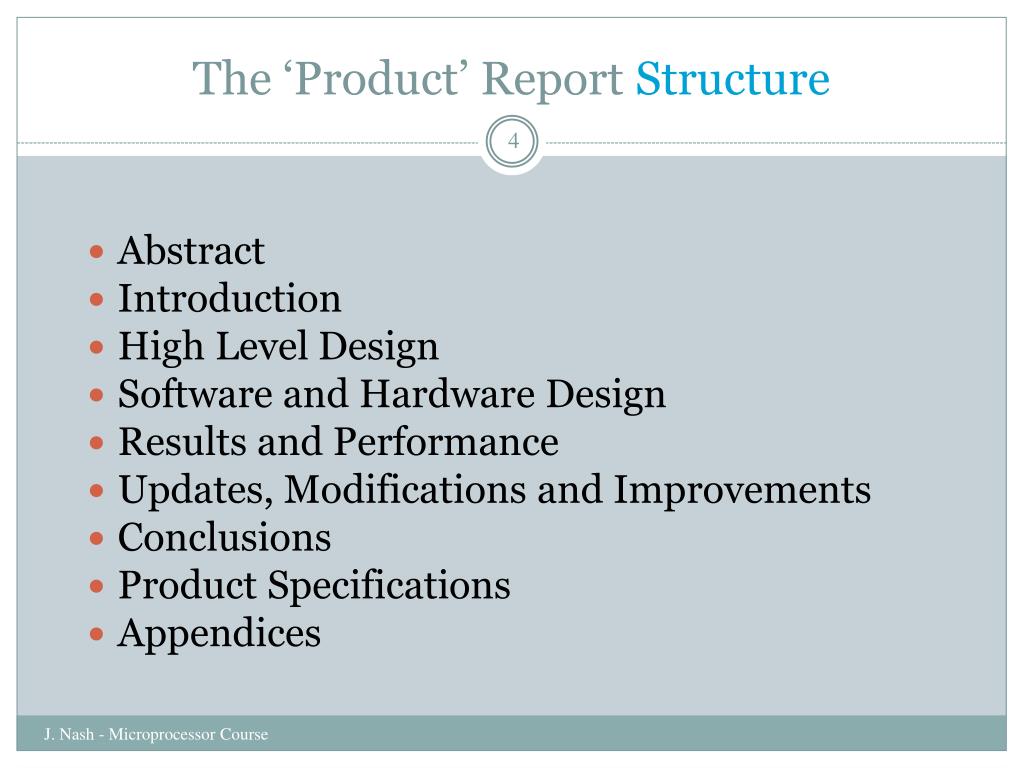

  4. The ‘Product’ Report Structure Abstract Introduction High Level Design Software and Hardware Design Results and Performance Updates, Modifications and Improvements Conclusions Product Specifications Appendices J. Nash - Microprocessor Course

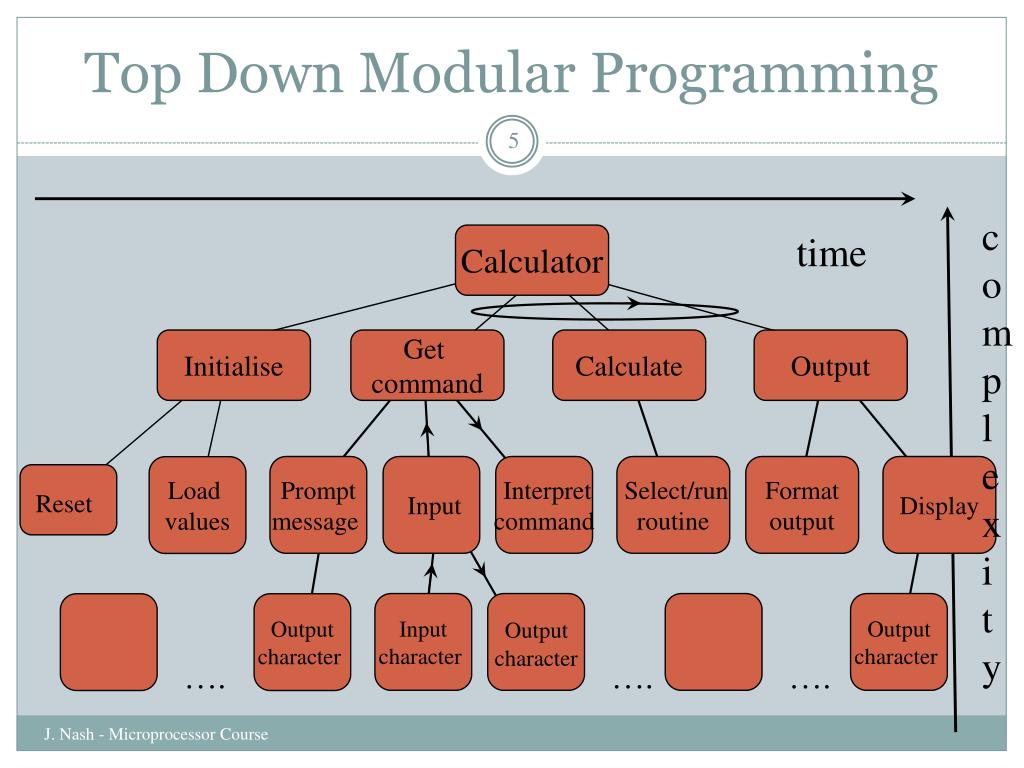

  5. C C C C Top Down Modular Programming complexity time Calculator Initialise Get command Calculate Output Prompt message Input Interpret command Select/run routine Format output Display Load values Reset Input character Output character Output character Output character …. …. …. J. Nash - Microprocessor Course

  6. Assessment process Report will be first marked by assigned demonstrator within 1 week. Demonstrator will arrange interview with you for sometime in week of 5th December or the following week Individual interview (15 minutes) should include working demonstration and question and answer session. Feedback on report will be given. Second marking by me J. Nash - Microprocessor Course

  7. Arrange your interview times NOW! Assessors J. Nash - Microprocessor Course

  8. Project • Produce plan by end of next week and submit as ‘progress report’. It will be assessed and used to agree your project with your demonstrator. • Be creative • We are looking for innovative ideas J. Nash - Microprocessor Course

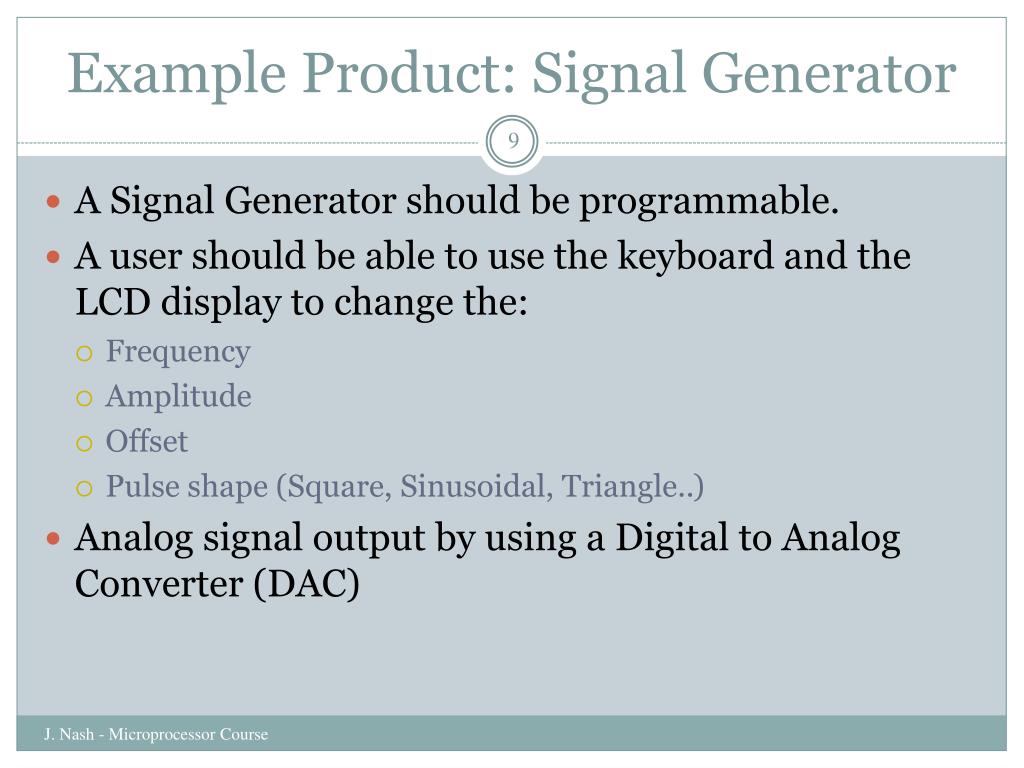

  9. Example Product: Signal Generator • A Signal Generator should be programmable. • A user should be able to use the keyboard and the LCD display to change the: • Frequency • Amplitude • Offset • Pulse shape (Square, Sinusoidal, Triangle..) • Analog signal output by using a Digital to Analog Converter (DAC) J. Nash - Microprocessor Course

  10. Other ideas for a ‘product’ Alarm Clock Home Security System Digital Thermometer Calculator Cycle Computer Distance ranging device Programming Language (parser/Interpreter) Guitar tuner Elevator Control I2C Master/Slave interfaces Tetris Game Digital Safe(swipe/PIN) Voice Recorder X-Y Plotter Data Logger Signal Generator Plant water control J. Nash - Microprocessor Course
