earth s changing environment lecture 24
Earth’s Changing EnvironmentLecture 24

Increasing Transportation Efficiency

outline
Outline
  • Car and Driver
  • Efficiency
  • Mass Transit
  • Urban Planning
  • New Technologies
cars and drivers
Cars and Drivers
  • 210 million cars and light trucks
  • 191 million licensed drivers
  • 140 billion gallons gasoline/year
  • 2.7 trillion vehicle miles
us automobile culture
US Automobile Culture
  • Transportation consumes18% of Household Expenses
  • 91% travel by private vehicles vs. 2% by mass transit
  • 76% rides to work are solo
  • 2.7 trillion vehicle miles per year
carbon emissions
Carbon Emissions
  • US Automobiles add 1.3 billion metric tons of CO2 to atmosphere annually. (23% of US total emission)
  • Efficiency of cars is 20 miles/gallon
  • Drivers travel 14,000 miles annually
how do we reduce global impact of us transportation
How do we reduce global impact of US transportation?
  • Raise CAFE Standards
  • Reduce Miles Traveled
  • New Technologies
raise cafe standards
Raise CAFE Standards
  • Corporate Average Fuel Economy
  • Established in 1975 to set U.S. mileage standards.
current cafe standards
Current CAFE Standards
  • 27.5 mpg for passenger automobiles
  • 20.7 mpg for light trucks & SUVs
how can cars be more efficient
How can cars be more efficient?
  • Smaller & more streamlined (wind resistance)
  • Lighter (starting & stopping)
  • Less powerful (lower acceleration)
slide10
SUVs
  • Mileage varies, but as low as 10 mpg as compared with 20 – 30 mpg for many cars and 50 mpg for hybrid electrics.
  • Possible to achieve a more than 40% improvement with payback within ownership period.
reduce driving
Reduce Driving
  • Mass Transit
  • Urban Planning
  • Ride Sharing
mass transit
Mass Transit
  • METRORail
  • DART
  • VIA Transit
  • BART
  • Mexico City
train
Train
  • AMTRAK
urban planning
Urban Planning
  • Curitiba, Brazil
  • Portland, Oregon
ride sharing
Ride Sharing
  • HOV Lanes
  • Park & Ride
new technologies
New Technologies
  • Electric Cars
  • Hybrid Cars
  • Fuel Cells
internal combustion engine
Internal Combustion Engine
  • Engine – 20% efficient
  • Highway driving – Energy lost to air drag.
  • City driving – Energy lost during braking
electric car
Electric Car
  • Batteries are heavy and limit range to 100 miles.
  • Vehicles don’t have enough acceleration for traffic.
  • Not a practical solution.
hybrid electric vehicles
Hybrid Electric Vehicles
  • HEV Program
  • Honda Insight
  • Honda Civic
  • Toyota Prius
  • 50 mpg
why do hybrids get better mileage
Why do hybrids get better mileage?
  • Smaller engine. Electric motor boosts gas engine for acceleration.
  • Regenerative braking.
  • Electric motor runs at low speed where gas engine is very inefficient.
  • Electric motor shuts off when stopped.
fuel cells and the hydrogen economy
Fuel Cells and the Hydrogen Economy
  • Fuels Cells use hydrogen to produce electrical energy
  • 2H2 +O2 2H2O + energy
  • Fuel cells could be used to power cars with hydrogen as the fuel.
  • Clean fuel
barriers to hydrogen cars
Barriers to Hydrogen Cars
  • Availability of hydrogen fuel.
  • Storage of hydrogen fuel.
  • Expensive.
  • Infrastructure
fuel cells
Fuel Cells
  • In development stage.
  • Currently very expensive.
  • Are not a source of energy.
  • Hydrogen must be supplied.
hydrogen sources
Hydrogen Sources
  • Steam reforming of natural gas:

CH4 +2H2O  CO2 + 4H2

  • Electrolysis:

2H2O + energy 2H2+ O2

energy source for electrolyzer

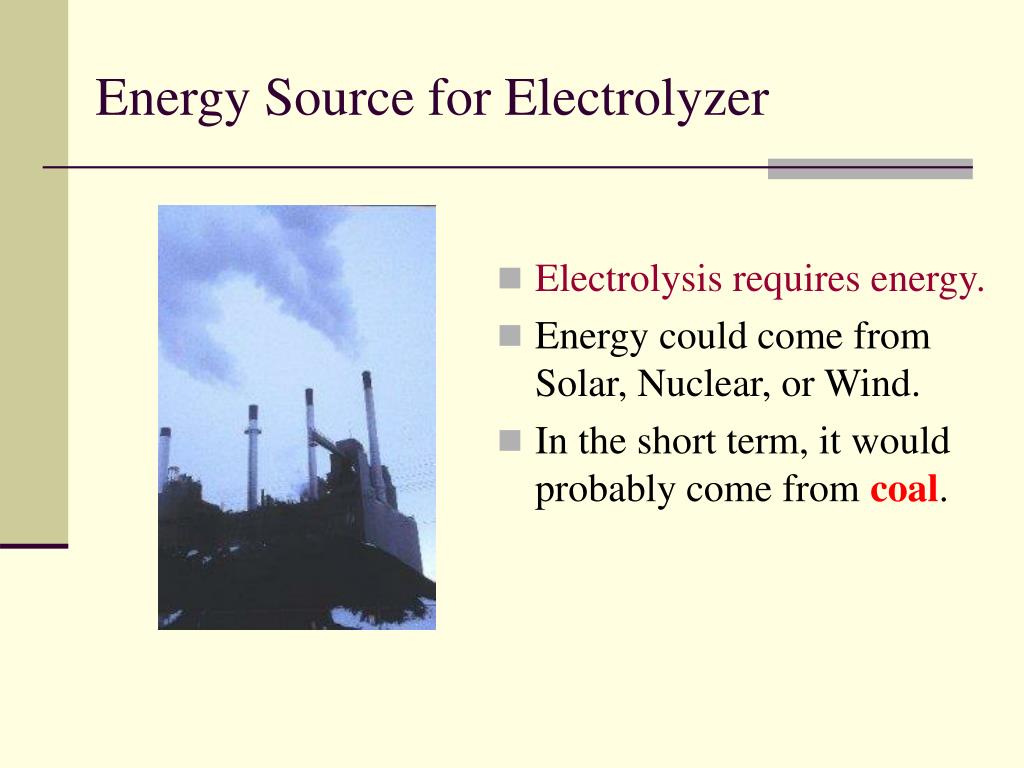

Energy Source for Electrolyzer
  • Electrolysis requires energy.
  • Energy could come from Solar, Nuclear, or Wind.
  • In the short term, it would probably come from coal.
economics of hydrogen economy
Economics of Hydrogen Economy
  • Burning gasoline produces a therm for $1.50.
  • Coal can produce a therm for $0.08.
  • Coal burned at a power plant to produce electricity to run an electrolyzer could produce power cheaper than gasoline.
conclusions
Conclusions
  • Hybrid vehicles offer major short-term advantages
  • Fuel cells are expensive and have infrastructure issues.
  • Fuel cells based on electricity from coal plants could increase emissions
  • Mass Transit & other non-automotive options must be considered.
references links
References/Links

USDOE: EERE

Federal Highway Administration

Energy Information Agency

National Household Travel Survey

Our Nation’s Highways 2000

Hydrogen economy
