Chapter 7

Chapter 7

Ionic Compounds and Metals


National standards for chapter 7
National Standards for Chapter 7

  • UCP.1 – Systems, order, and organization

  • UCP.2 – Evidence, models, and explanation

  • A.1 –Abilities necessary to do scientific inquiry

  • B-1 – Structure of atoms

  • B-2 – Structure and properties of matter

  • B-3 – Chemical reactions

  • B-4 – Motions and forces

  • B-6 – Interactions of energy and matter

  • E-1 – Abilities of technological design

  • E-2 – Understandings about science and technology

  • G.2 – Nature of scientific knowledge


Vocabulary study guide
Vocabulary/Study Guide

  • Define each term using the Glossary

  • Either write on the handout, or use your own paper

  • This is due on Test Day, Wednesday, December 18


Section 1 ion formation
Section 1: Ion Formation

National Standards:

  • UCP.1 – Systems, order, and organization

  • UCP.2 – Evidence, models, and explanation

  • A.1 –Abilities necessary to do scientific inquiry

  • B-1 – Structure of atoms

  • B-2 – Structure and properties of matter


Objectives section 1
Objectives – Section 1

  • Define a chemical bond.

  • Describe the formation of positive and negative ions.

  • Relate ion formation to electron configuration.

    REVIEW VOCABULARY:

  • octet rule: atoms tend to gain, lose, or share electrons in order to acquire eight valence electrons

  • ionization energy: refers to how easily an atom loses an electron

  • electron affinity: indicates how much attraction an atom has for electrons


New vocabulary
New Vocabulary

  • chemical bond

  • cation

  • anion

  • Ions are formed when atoms gain or lose valence electrons to achieve a stable octet electron configuration.


Valence electrons and chemical bonds
Valence Electrons and Chemical Bonds

  • A chemical bond is the force that holds two atoms together.

  • Chemical bonds form by the attraction between the positive nucleus of one atom and the negative electrons of another atom.


Valence electrons and chemical bonds1
Valence Electrons and Chemical Bonds

  • Atom’s try to form the octet—the stable arrangement of eight valence electrons in the outer energy level—by gaining or losing valence electrons.


Positive ion formation
Positive Ion Formation

  • A positively charged ion is called a cation.

  • This figure illustrates how sodium loses one valence electron to become a sodium cation.


Positive ion formation1
Positive Ion Formation

  • Metals are reactive because they lose valence electrons easily.


Positive ion formation2
Positive Ion Formation

  • Transition metals commonly form 2+ or 3+ ions, but can form greater than 3+ ions.

  • Other relatively stable electron arrangements are referred to as pseudo-noble gas configurations.


Negative ion formation
Negative Ion Formation

  • An anionis a negatively charged ion.

  • The figure shown here illustrates chlorine gaining an electron to become a chlorine ion.


Negative ion formation1
Negative Ion Formation

  • Nonmetal ions gain the number of electrons required to fill an octet.

  • Some nonmetals can gain or lose electrons to complete an octet.




Homework section 1
Homework, Section 1 Predicting Ionic Change

  • SECTION 1 REVIEW, Page 209

  • Questions #1-6

  • Answer with complete sentences

  • Due tomorrow


Section 2 ionic bonds and ionic compounds

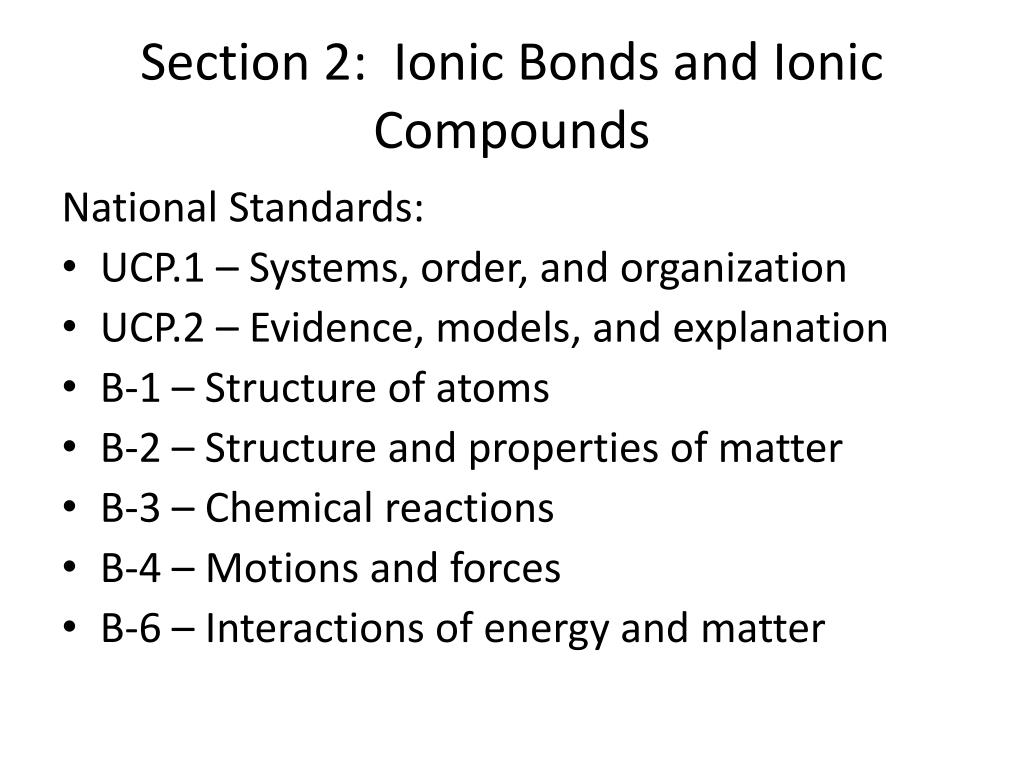

Section 2: Ionic Bonds and Ionic Compounds Predicting Ionic Change

National Standards:

  • UCP.1 – Systems, order, and organization

  • UCP.2 – Evidence, models, and explanation

  • B-1 – Structure of atoms

  • B-2 – Structure and properties of matter

  • B-3 – Chemical reactions

  • B-4 – Motions and forces

  • B-6 – Interactions of energy and matter

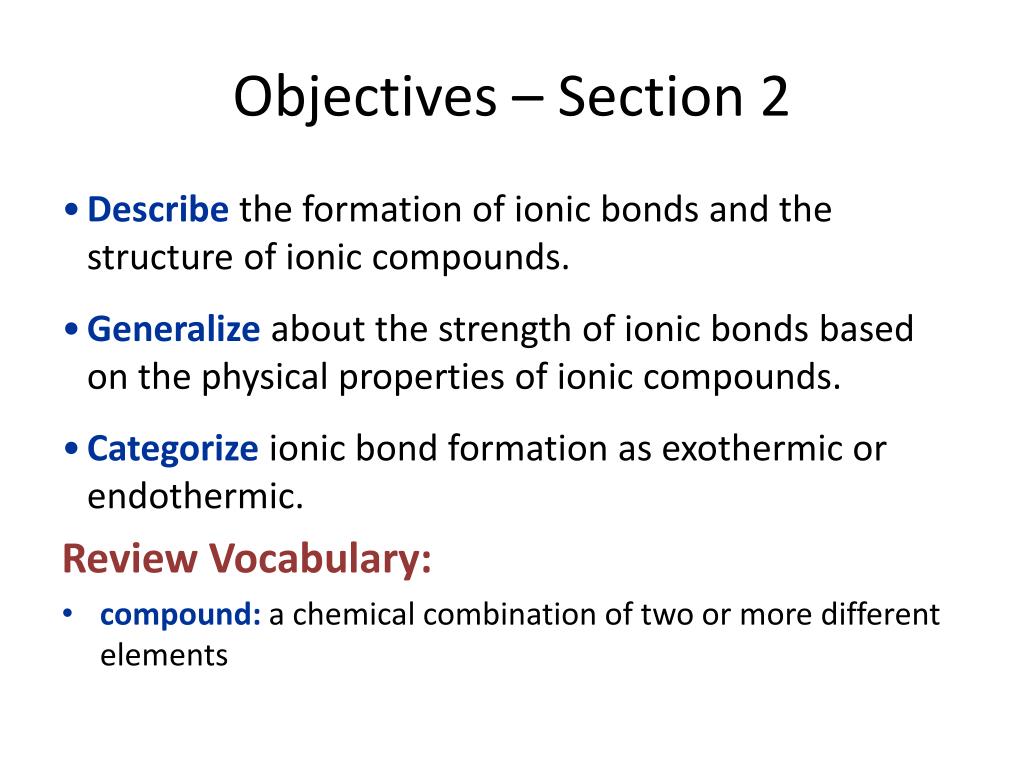

Objectives section 2
Objectives – Section 2 Predicting Ionic Change

  • Describethe formation of ionic bonds and the structure of ionic compounds.

  • Generalizeabout the strength of ionic bonds based on the physical properties of ionic compounds.

  • Categorizeionic bond formation as exothermic or endothermic.

    Review Vocabulary:

  • compound:a chemical combination of two or more different elements


New vocabulary1
New Vocabulary Predicting Ionic Change

  • ionic bond

  • ionic compound

  • crystal lattice

  • electrolyte

  • lattice energy

  • Oppositely charged ions attract each other, forming electrically neutral ionic compounds.


Formation of an ionic bond
Formation of an Ionic Bond Predicting Ionic Change

  • The electrostatic force that holds oppositely charged particles together in an ionic compound is called an ionic bond.

  • Compounds that contain ionic bonds are called ionic compounds.

  • Binary ionic compounds contain only two different elements—a metallic cation and a nonmetallic anion.


Formation of an ionic bond1
Formation of an Ionic Bond Predicting Ionic Change



Transparency 23 ionic bonds
Transparency 23: Ionic Bonds Predicting Ionic Change


Chapter 7


Properties of ionic compounds
Properties of Ionic Compounds Predicting Ionic Change

  • Positive and negative ions exist in a ratio determined by the number of electrons transferred from the metal atom to the non-metal atom.

  • The repeating pattern

    of particle packing in

    an ionic compound is

    called an ionic crystal.


Properties of ionic compounds1
Properties of Ionic Compounds Predicting Ionic Change

  • The strong attractions among the positive and negative ions result in the formation of the crystal lattice.

  • A crystal latticeis the three-dimensional geometric arrangement of particles, and is responsible for the structure of many minerals.


Properties of ionic compounds2
Properties of Ionic Compounds Predicting Ionic Change

  • Melting point, boiling point, and hardness depend on the strength of the attraction.


Properties of ionic compounds3
Properties of Ionic Compounds Predicting Ionic Change

  • In a solid, ions are locked into position and electrons cannot flow freely—solid ions are poor conductors of electricity.

  • Liquid ions or ions in aqueous solution have electrons that are free to move, so they conduct electricity easily.

  • An ion in aqueous solution that conducts electricity is an electrolyte.


Properties of ionic compounds4
Properties of Ionic Compounds Predicting Ionic Change

  • This figure demonstrates how and why crystals break when an external force is applied.



Lab properties of ionic compounds

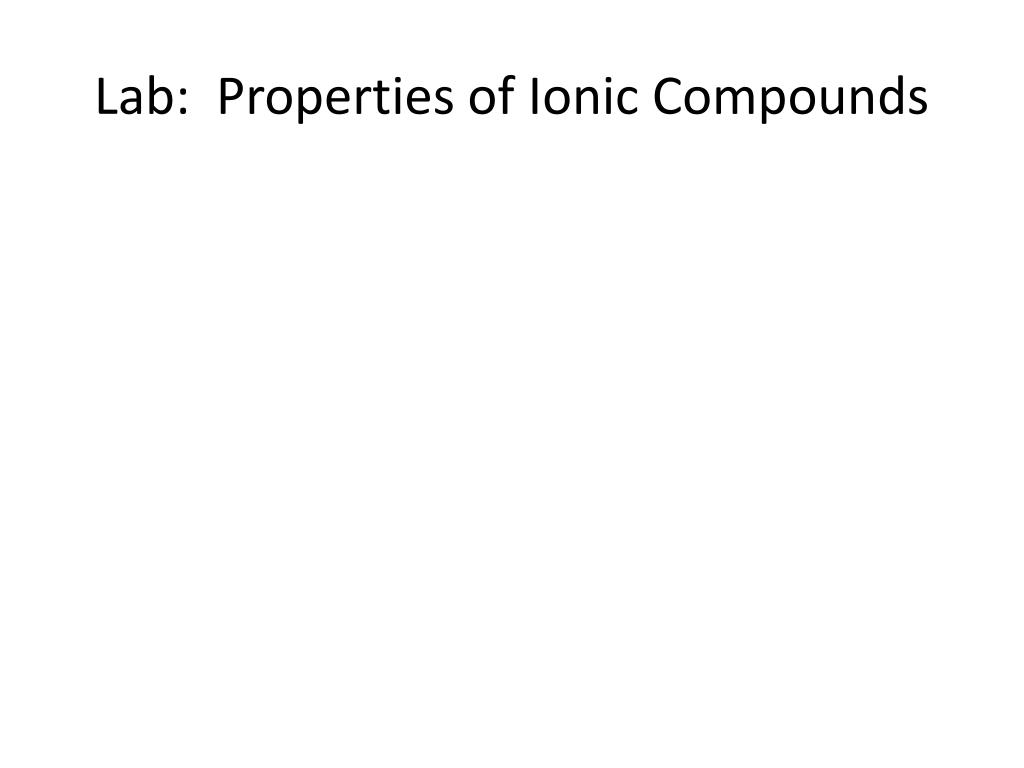

Lab: Properties of Ionic Compounds Predicting Ionic Change


Energy and the ionic bond
Energy and the Ionic Bond Predicting Ionic Change

  • Reactions that absorb energy are endothermic.

  • Reactions that release energy are exothermic.


Energy and the ionic bond1
Energy and the Ionic Bond Predicting Ionic Change

  • The energy required to separate 1 mol of ions in an ionic compound is referred to as the lattice energy.

  • Lattice energy is directly related to the size of the ions that are bonded.


Energy and the ionic bond2
Energy and the Ionic Bond Predicting Ionic Change

  • Smaller ions form compounds with more closely spaced ionic charges, and require more energy to separate.

  • Electrostatic force of attraction is inversely related to the distance between the opposite charges.

  • The smaller the ion, the greater the attraction.


Energy and the ionic bond3
Energy and the Ionic Bond Predicting Ionic Change

  • The value of lattice energy is also affected by the charge of the ion.

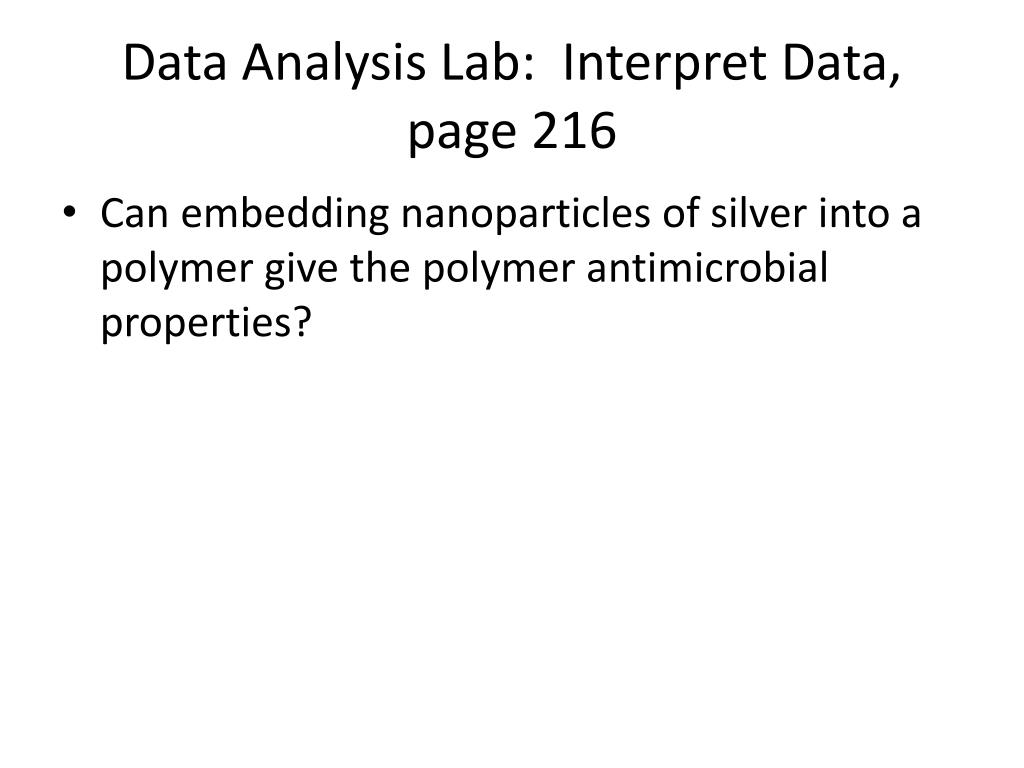

Data analysis lab interpret data page 216
Data Analysis Lab: Interpret Data, page 216 Predicting Ionic Change

  • Can embedding nanoparticles of silver into a polymer give the polymer antimicrobial properties?


Lab formation of a salt
Lab: Formation of a Salt Predicting Ionic Change

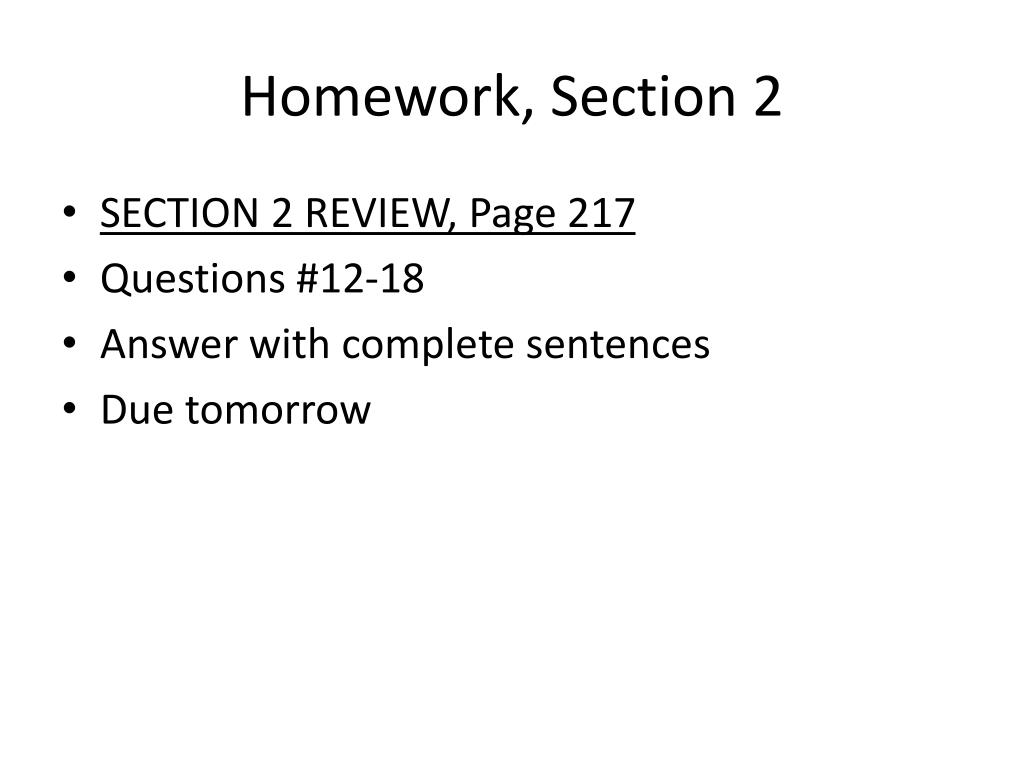

Homework section 2
Homework, Section 2 Predicting Ionic Change

  • SECTION 2 REVIEW, Page 217

  • Questions #12-18

  • Answer with complete sentences

  • Due tomorrow


Section 3 names and formulas for ionic compounds

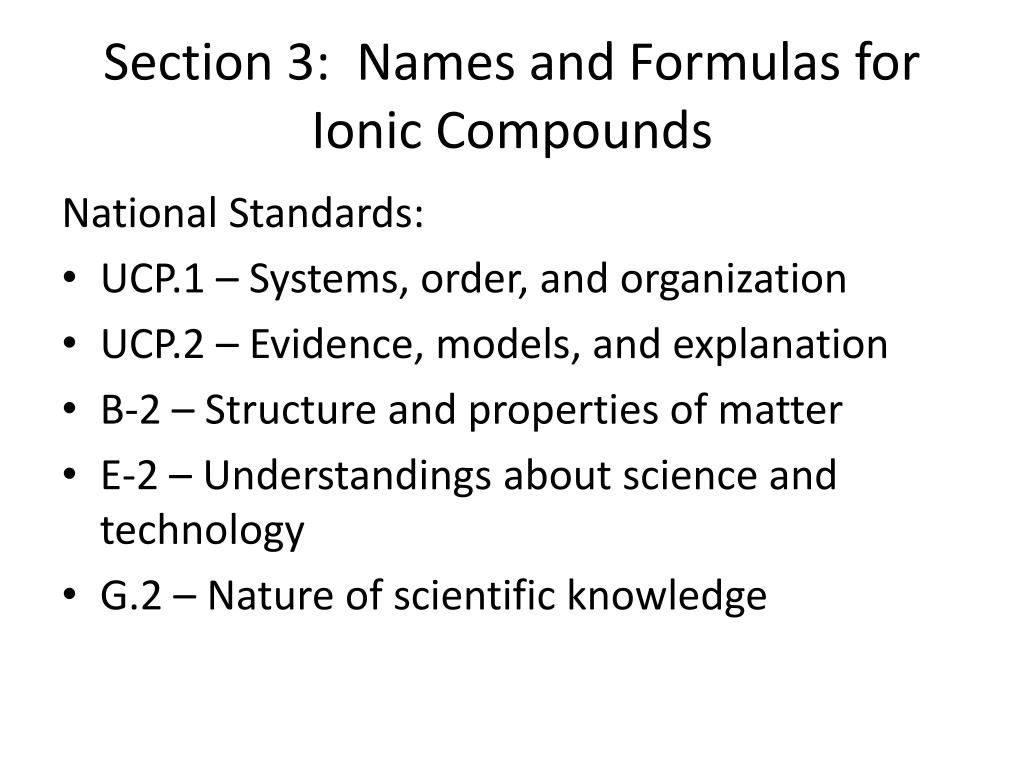

Section 3: Names and Formulas for Ionic Compounds Predicting Ionic Change

National Standards:

  • UCP.1 – Systems, order, and organization

  • UCP.2 – Evidence, models, and explanation

  • B-2 – Structure and properties of matter

  • E-2 – Understandings about science and technology

  • G.2 – Nature of scientific knowledge


Objectives section 3
Objectives – Section 3 Predicting Ionic Change

  • Relatea formula unit of an ionic compound to its composition.

  • Writeformulas for ionic compounds and oxyanions.

  • Applynaming conventions to ionic compounds and oxyanions.

    Review Vocabulary:

  • nonmetal:an element that is generally a gas or a dull, brittle solid and is a poor conductor of heat and electricity


New vocabulary2
New Vocabulary Predicting Ionic Change

  • formula unit

  • monatomic ion

  • oxidation number

  • polyatomic ion

  • oxyanion

  • In written names and formulas for ionic compounds, the cation appears first, followed by the anion.

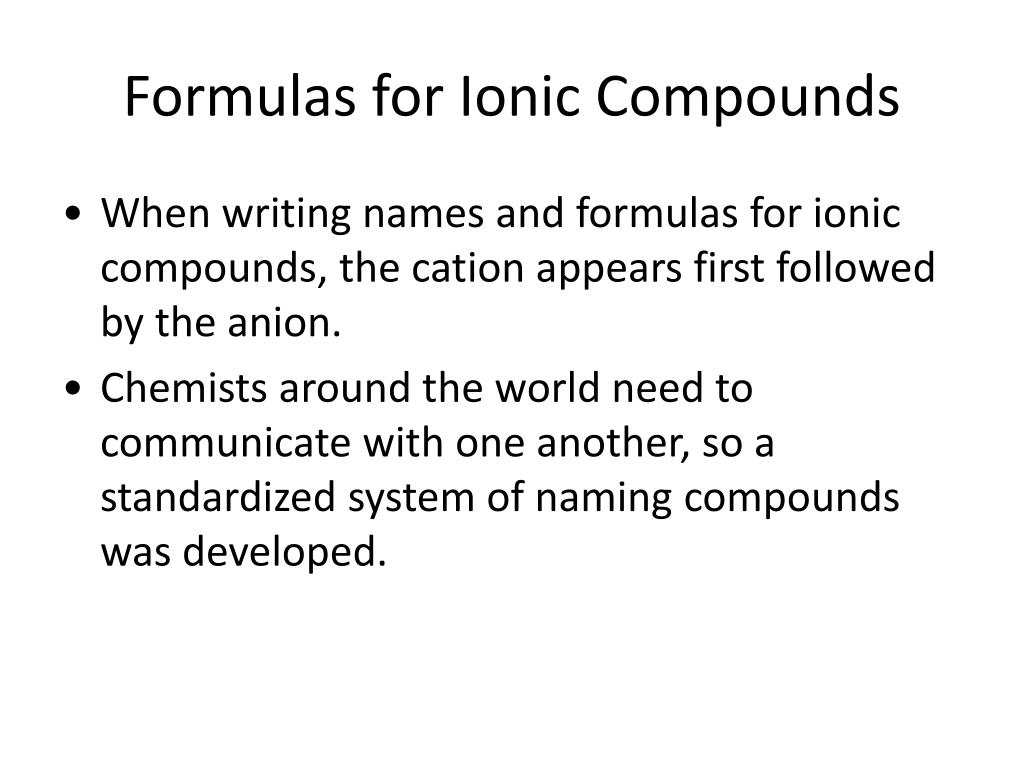

Formulas for ionic compounds
Formulas for Ionic Compounds Predicting Ionic Change

  • When writing names and formulas for ionic compounds, the cation appears first followed by the anion.

  • Chemists around the world need to communicate with one another, so a standardized system of naming compounds was developed.


Formulas for ionic compounds1

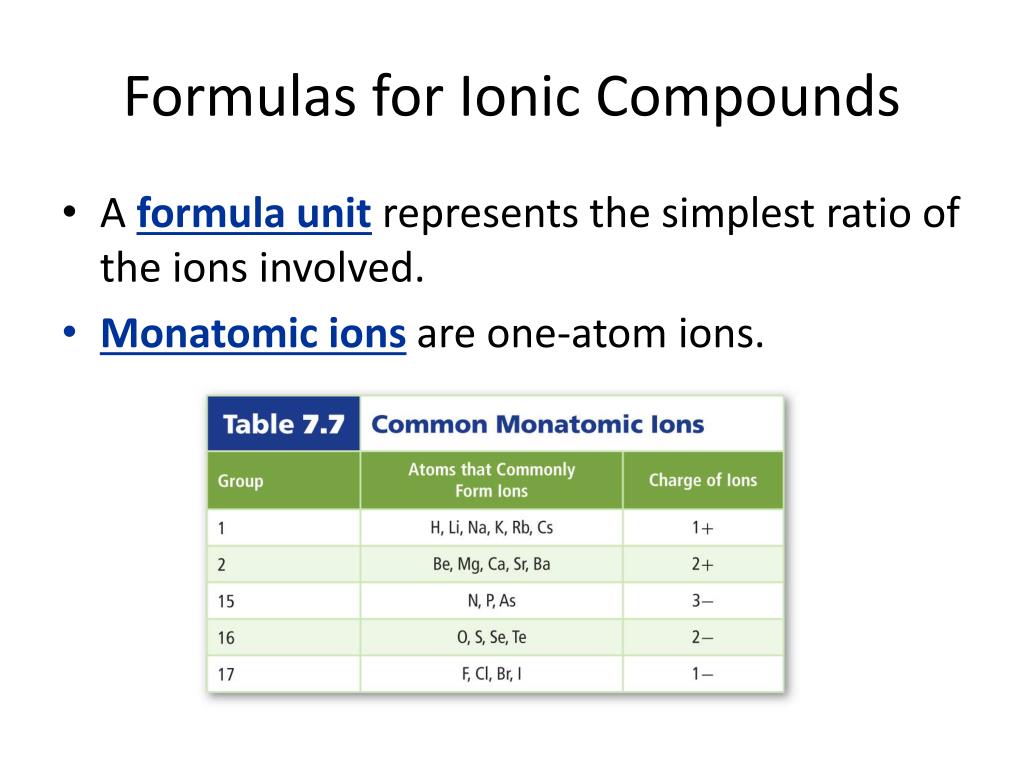

Formulas for Ionic Compounds Predicting Ionic Change

  • A formula unit represents the simplest ratio of the ions involved.

  • Monatomic ionsare one-atom ions.


Formulas for ionic compounds2
Formulas for Ionic Compounds Predicting Ionic Change

  • Oxidation number, or oxidation state, is the charge of a monatomic ion.

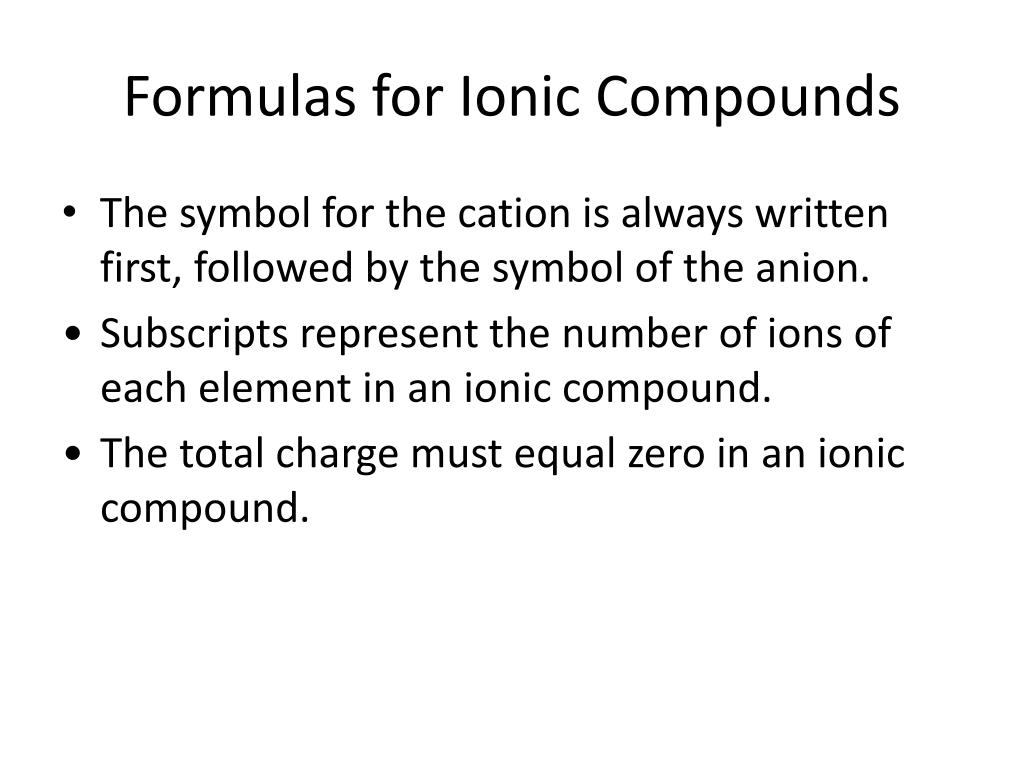

Formulas for ionic compounds3
Formulas for Ionic Compounds Predicting Ionic Change

  • The symbol for the cation is always written first, followed by the symbol of the anion.

  • Subscripts represent the number of ions of each element in an ionic compound.

  • The total charge must equal zero in an ionic compound.


Formulas for ionic compounds4

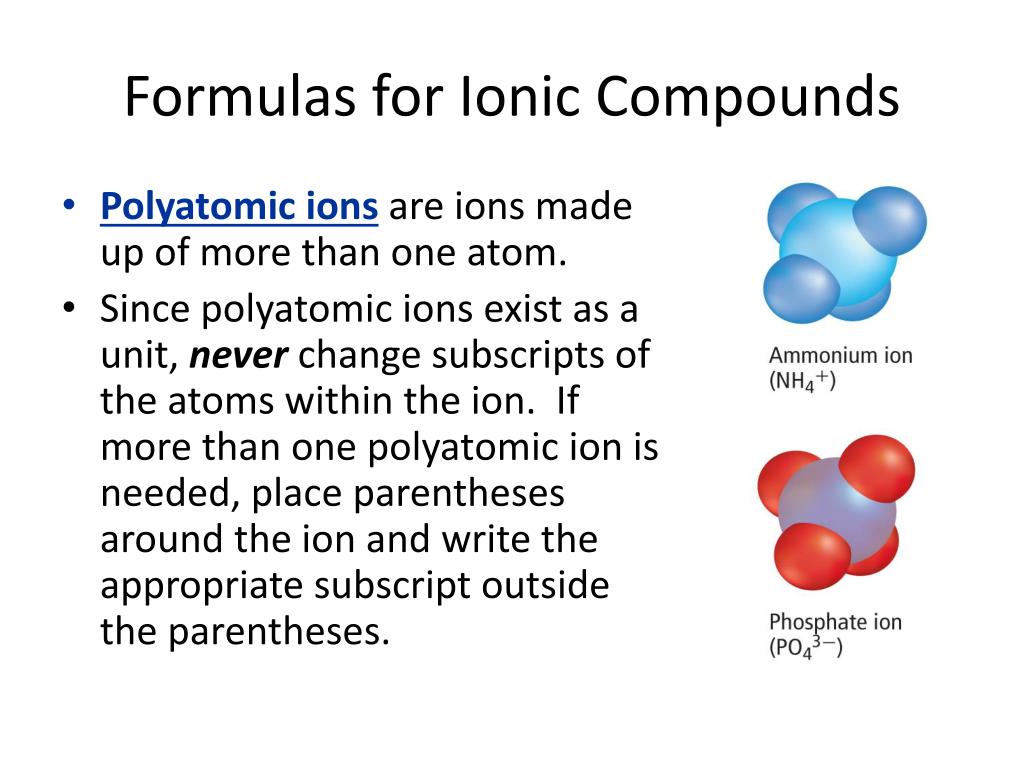

Formulas for Ionic Compounds Predicting Ionic Change

  • Polyatomic ionsare ions made up of more than one atom.

  • Since polyatomic ions exist as a unit, never change subscripts of the atoms within the ion. If more than one polyatomic ion is needed, place parentheses around the ion and write the appropriate subscript outside the parentheses.

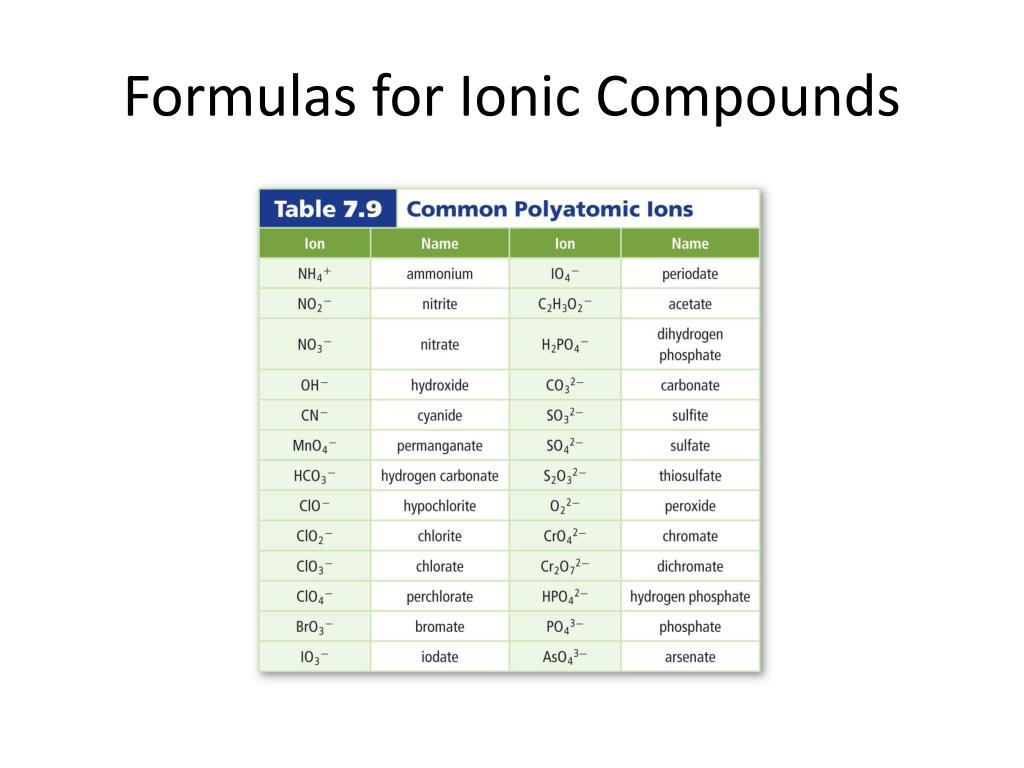

Formulas for ionic compounds5
Formulas for Ionic Compounds Predicting Ionic Change




Chapter 7


Names for ions and ionic compounds
Names for Ions and Ionic Compounds Predicting Ionic Change

  • An oxyanionis a polyatomic ion composed of an element (usually a non-metal), bonded to one or more oxygen atoms.


Names for ions and ionic compounds1
Names for Ions and Ionic Compounds Predicting Ionic Change


Names for ions and ionic compounds2
Names for Ions and Ionic Compounds Predicting Ionic Change

  • Chemical nomenclature is a systematic way of naming compounds.

  • Name the cation followed by the anion.

  • For monatomic cations use the element name.

  • For monatomic anions, use the root element name and the suffix –ide.

  • To distinguish between different oxidation states of the same element, the oxidation state is written in parentheses after the name of the cation.

  • When the compound contains a polyatomic ion, name the cation followed by the name of the polyatomic ion.


Chapter 7


Names for ions and ionic compounds3
Names for Ions and Ionic Compounds Predicting Ionic Change


Homework section 3
Homework, Section 3 Predicting Ionic Change

  • SECTION 3 REVIEW, Page 224

  • Questions #34-39

  • Answer with complete sentences

  • Due tomorrow


Section 4 metallic bonds and the properties of metals
Section 4: Metallic Bonds and the Properties of Metals Predicting Ionic Change

National Standards:

  • UCP.1 – Systems, order, and organization

  • UCP.2 – Evidence, models, and explanation

  • A.1 –Abilities necessary to do scientific inquiry

  • B-1 – Structure of atoms

  • B-2 – Structure and properties of matter

  • B-3 – Chemical reactions

  • B-4 – Motions and forces

  • B-6 – Interactions of energy and matter

  • E-1 – Abilities of technological design


Objectives section 4
Objectives – Section 4 Predicting Ionic Change

  • Describea metallic bond.

  • Relatethe electron sea model to the physical properties of metals.

  • Definealloys, and categorize them into two basic types.

    Review Vocabulary:

  • physical property:a characteristic of matter that can be observed or measured without altering the sample’s composition


New vocabulary3
New Vocabulary Predicting Ionic Change

  • electron sea model

  • delocalized electron

  • metallic bond

  • alloy

  • Metals form crystal lattices and can be modeled as cations surrounded by a “sea” of freely moving valence electrons.


Metallic bonds
Metallic Bonds Predicting Ionic Change

  • Metals are not ionic but share several properties with ionic compounds.

  • Metals also form lattices in the solid state, where 8 to 12 other atoms closely surround each metal atom.


Metallic bonds1
Metallic Bonds Predicting Ionic Change

  • Within the crowded lattice, the outer energy levels of metal atoms overlap.

  • The electron sea model proposes that all metal atoms in a metallic solid contribute their valence electrons to form a "sea" of electrons.

  • The electrons are free to move around and are referred to as delocalized electrons, forming a metallic cation.


Metallic bonds2
Metallic Bonds Predicting Ionic Change

  • A metallic bondis the attraction of an metallic cation for delocalized electrons.


Metallic bonds3
Metallic Bonds Predicting Ionic Change

  • Boiling points are much higher than melting points because of the energy required to separate atoms from the groups of cations and electrons.


Metallic bonds4
Metallic Bonds Predicting Ionic Change

  • Metals are malleable because they can be hammered into sheets.

  • Metals are ductile because they can be drawn into wires.


Metallic bonds5
Metallic Bonds Predicting Ionic Change

  • Mobile electrons surrounding positively charged nuclei make metals good conductors of electricity and heat.

  • As the number of delocalized electrons increases, so does hardness and strength.


Transparency 25 metallic bonding
Transparency 25: Metallic Bonding Predicting Ionic Change



Metal alloys
Metal Alloys Predicting Ionic Change

  • An alloy is a mixture of elements that has metallic properties.

    • Ex. Stainless steel, brass, cast iron

  • The properties of alloys differ from the elements they contain.

    • Ex. Steel is iron mixed with at least one other element. Some properties of iron are present, like magnetism, but steel is stronger than iron.


Metal alloys1
Metal Alloys Predicting Ionic Change


Metal alloys2
Metal Alloys Predicting Ionic Change

  • Substitutional alloys are formed when some atoms in the original metallic solid are replaced by other metals of similar atomic structure.

  • Interstitial alloys are formed when small holes in a metallic crystal are filled with smaller atoms.


Homework section 4
Homework, Section 4 Predicting Ionic Change

  • SECTION 4 REVIEW, Page 228

  • Questions #40-45

  • Answer with complete sentences

  • Due tomorrow


Key concepts
Key Concepts Predicting Ionic Change

  • A chemical bond is the force that holds two atoms together. In a vacuum, all electromagnetic waves travel at the speed of light.

  • Some atoms form ions to gain stability. This stable configuration involves a complete outer energy level, usually consisting of eight valence electrons.

  • Ions are formed by the loss or gain of valence electrons.

  • The number of protons remains unchanged during ion formation.


Key concepts1
Key Concepts Predicting Ionic Change

  • Ionic compounds contain ionic bonds formed by the attraction of oppositely charged ions.

  • Ions in an ionic compound are arranged in a repeating pattern known as a crystal lattice.

  • Ionic compound properties are related to ionic bond strength.

  • Ionic compounds are electrolytes; they conduct an electric current in the liquid phase and in aqueous solution.


Key concepts2
Key Concepts Predicting Ionic Change

  • Lattice energy is the energy needed to remove 1 mol of ions from its crystal lattice.


Key concepts3
Key Concepts Predicting Ionic Change

  • The arrangement of electrons in an atom is called the atom’s electron configuration.

  • A monatomic ion is formed from one atom. The charge of a monatomic ion is its oxidation number.

  • Roman numerals indicate the oxidation number of cations having multiple possible oxidation states.

  • Polyatomic ions consist of more than one atom and act as a single unit.


Key concepts4
Key Concepts Predicting Ionic Change

  • To indicate more than one polyatomic ion in a chemical formula, place parentheses around the polyatomic ion and use a subscript.


Key concepts5
Key Concepts Predicting Ionic Change

  • A metallic bond forms when metal cations attract freely moving, delocalized valence electrons.

  • In the electron sea model, electrons move through the metallic crystal and are not held by any particular atom.

  • The electron sea model explains the physical properties of metallic solids.

  • Metal alloys are formed when a metal is mixed with one or more other elements.
