    1. An open source version of the Nonpoint-Source Pollution and Erosion Comparison Tool Dave Eslinger, Shan Burkhalter 21 August, 2014

    2. Outline • Background • Getting started • Installation • Activation • Basic analysis • Advanced analysis

    3. Background • Why this tool? • Why open source? • What does OpenNSPECT do? • What do you need to run it? • What does it produce? • Who else has used it? • How can you get involved?

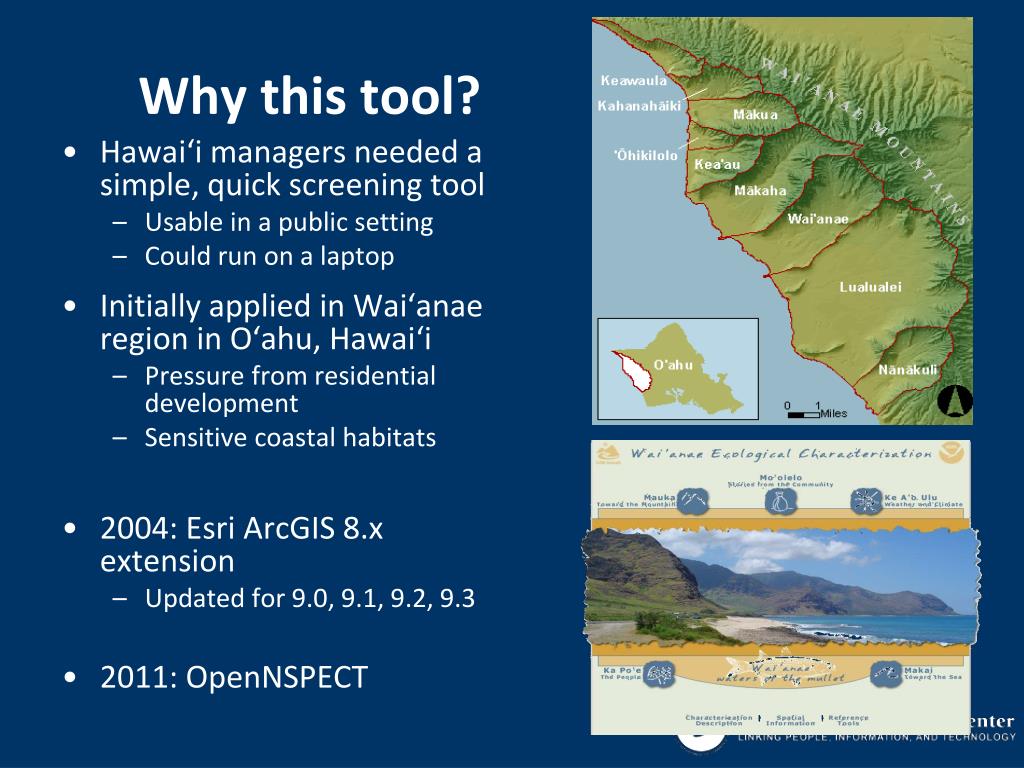

    4. Why this tool? • Hawai‘i managers needed a simple, quick screening tool • Usable in a public setting • Could run on a laptop • Initially applied in Wai‘anae region in O‘ahu, Hawai‘i • Pressure from residential development • Sensitive coastal habitats • 2004: Esri ArcGIS 8.x extension • Updated for 9.0, 9.1, 9.2, 9.3 • 2011: OpenNSPECT

    5. Why Open Source? • N-SPECT Requirements • Esri ArcGIS Desktop • Spatial Analyst Extension • ArcGIS 10 changes • Customer requests • “easy, online and free” • MapWindow • GeoTools 2007 • EPA BASINS

    6. Open Source and ESRI versions • Strengths • Speed • “Free” • Community support • Weaknesses • Different program • learning curve, anxiety, distrust • Some features missing • Community support

    7. What does OpenNSPECT do? • Water quality screening tool • Spatially distributed (raster-based) pollutant and sediment yield model • Compares the effects of different land cover and land use scenarios on total yields • User friendly graphical interface within a GIS environment

    8. Processes Simulated • Topography determines flow direction and slope • Soil characteristics, land cover, andprecipitation determine runoff • Runoff, land cover, and pollutant coefficients determine pollutant loads • Runoff, topography, soil characteristics, and land coverdetermine sediment loads

    9. Uses Existing Approaches • Rainfall runoff • Soil Conservation Service (SCS) curve number technique • Nonpoint pollutant • Event mean concentration technique • Sediment erosion • Universal Soil Loss Equation (USLE) • Modified (MUSLE) • Revised (RUSLE)

    10. Assumptions/Limitations • Omitted processes • Stormwater drainage • Stream diversions • Snowmelt • Landslides • No time component for • Runoff dynamics • Sediment redeposition • Pollutant dynamics Source: NASA Earth Science Enterprise

    11. What do you need to run it? • National sources* • Land cover data • Topography • Precipitation • Soils data • Pollutant coefficients • Rainfall erosivity • Local sources • Water quality standards • Additional pollutant coefficients *Local “tuning” improves accuracy

    12. Topography • Defines flow direction, stream networks, watersheds • Default • U.S. Geological Survey (USGS) 30 m resolution digital elevation model • Resolution impacts processing speed and file size

    13. Land Cover • Foundation for runoff quantity, sediment yield, pollutant yield • Default • Coastal Change Analysis Program (C-CAP) • 30 m resolution • Flexible • Can easily substitute any land cover grid

    14. Soils • Runoff and erosion estimates are dependent upon soils and land cover • Default • SSURGO soils† • County level resolution • Infiltration rate • Hydrologic group • Soil erodibility • K-factor † Soil Survey Geographic Database provided by the Natural Resources Conservation Service

    15. Precipitation • Derived from point estimates or modeled • OSU PRISM data • Annual average • Single event rainfall

    16. Pollutants • Pollutant coefficients • Event mean concentrations • Land cover specific • Defaults • Nitrogen • Phosphorus • Lead • Zinc • User–definable • New pollutants • New coefficients • Different criteria

    17. What does it produce? • Runoff volume • Accumulated runoff • Sediment yield • Accumulated sediment load • Pollutant yield • Accumulated pollutant load • Pollutant concentration

    18. Flow directions derived from topography Precipitation grid provides amount of rainfall Uses soils and land cover data to estimate volume of runoff Validated Baseline Runoff Flow direction

    19. Estimates total annual sediment load delivered to coast Provides a conservative estimate A “worst-case” scenario Baseline Erosion

    20. Baseline Nitrogen • Estimates total annual pollutant load delivered to coast • Focuses attention on source areas

    21. Baseline Nitrogen • Estimates total annual pollutant concentration • Focuses attention on source areas

    22. Who else is using it? • Pelekane Bay, Hawaii • Sediments from extreme events.

    23. Who else is using it? • Kingston Lake Watershed Association, near Conway, SC • Nutrient loads under different growth scenarios

    24. Getting involved • OpenNSPECT: • Nspect.codeplex.com • MapWindow.org • Esri N-SPECT: • www.csc.noaa.gov/nspect • NSPECT listserver • https://csc.noaa.gov/mailman/listinfo/n-spect-community

    25. Project Contacts: Dave Eslinger, Project lead Dave.Eslinger@noaa.gov 843-740-1270 Shan Burkhalter Shan.Burkhalter@noaa.gov 843-740-1275 Questions?

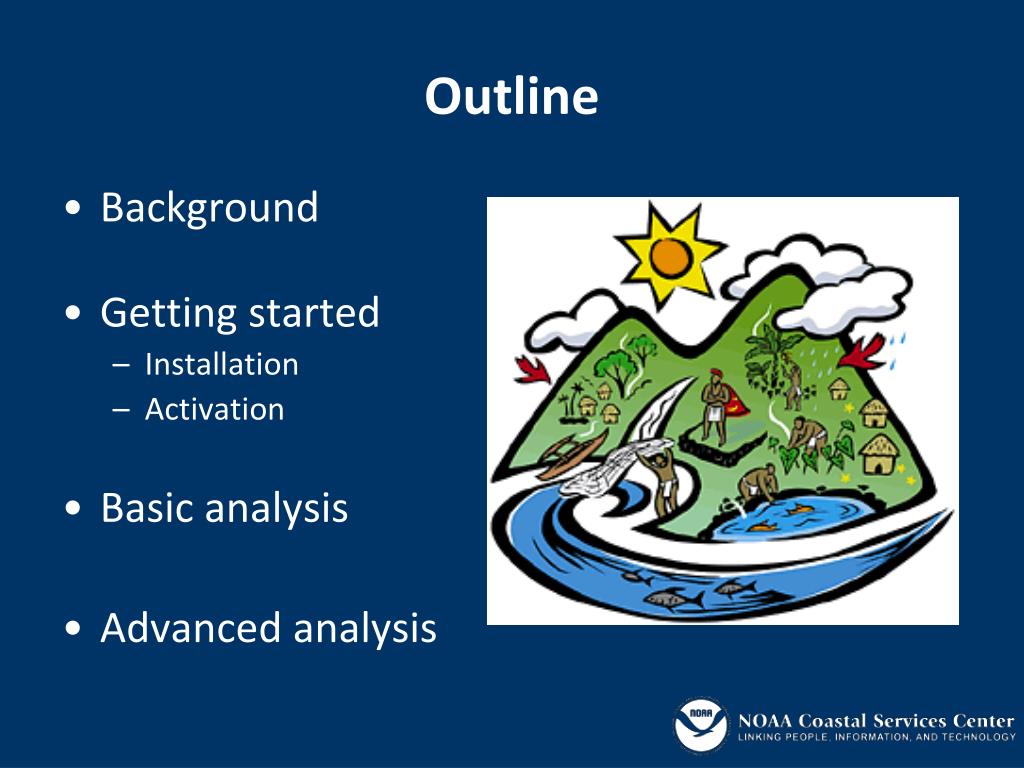

    26. Outline • Background • Getting started • Installation • Activation • Import new data • Basic analysis • Advanced analysis

    27. MapWindow GIS • Free • Open-source • Desktop GIS • Developer driven applications (plugins) • OpenNSPECT • BASINS • 3D Viewer

    28. Installation • Two-part installation • MapWindow GIS • mapwindow.org • 32-bit version • OpenNSPECT • csc.noaa.gov/nspect • Unzip and install • Turn on the Plugin Contents of C:\NSPECT • Bin • Coefficients • Help • HI_Sample_Data • Metadata • Projects • Workspace • Wsdelin • Nspect.mdb

    29. Activation • Open MapWindow GIS • MapWindow Pull-Down Menu, select Plug-ins > OpenNSPECT

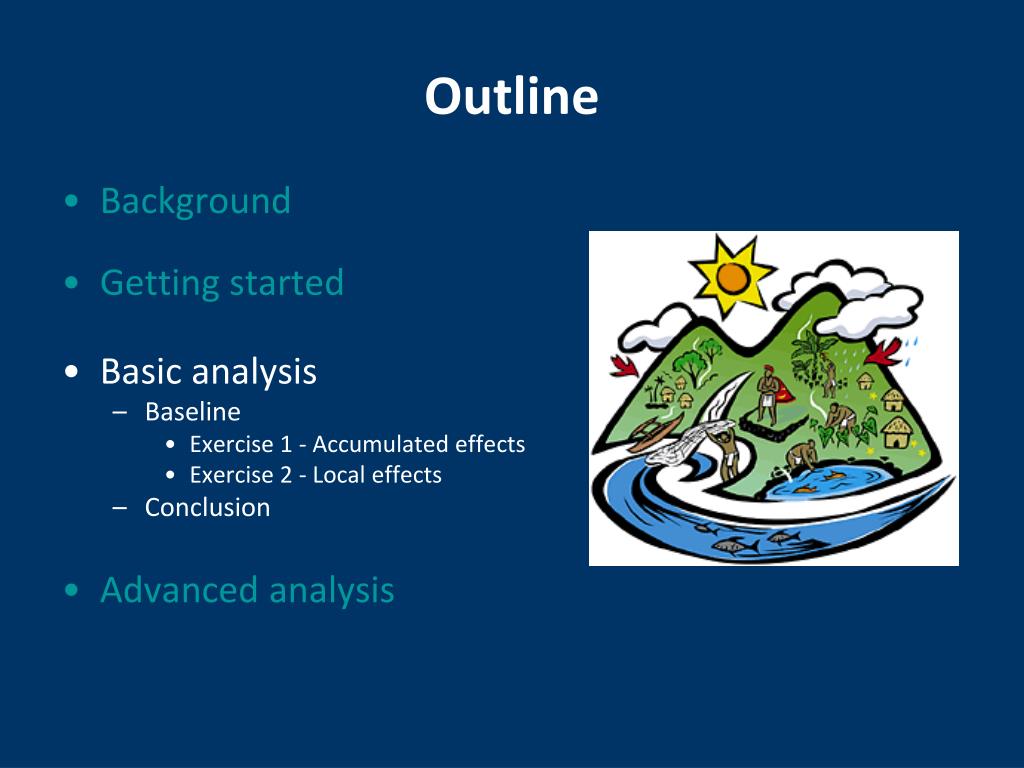

    30. Outline • Background • Getting started • Basic analysis • Baseline • Exercise 1 - Accumulated effects • Exercise 2 - Local effects • Conclusion • Advanced analysis

    31. Example Application • Makaha Valley, O‘ahu, Hawai‘i • Annual time scale • “What-if” scenario • Baseline • Land cover change • New residential development • Comparison

    32. Land Cover Change Scenario • Develop a subdivision • Change scrub/shrub vegetation to low intensity development

    33. Nitrogen (Pre-Change) • Baseline • Low nitrogen runoff • Add scenario

    34. Nitrogen (Post-Change) • Compare baseline estimate to the new estimated load • Can calculate the difference in annual nitrogen load

    35. Basic Analysis • Baseline analyses • Objective • Run a basic analysis with OpenNSPECT and produce baseline runoff, erosion, and pollutant load data sets for an annual time scale. • Important Learning Objectives: • Gain familiarity with the OpenNSPECT user interface. • Learn which data sets are necessary to run the model. • Understand the properties associated with the Pollutants tab. • Understand the properties associated with the Erosion tab. • Understand the function of the Local Effects Only option. • Learn to visually assess the data output.

    36. Exercise 1 • Baseline analysis (accumulated effects) • Accumulated runoff, nonpoint source pollutants, and eroded sediments are estimated. • Accumulated effects include: • Expected pollutant or sediment concentration at a cell. • Contributions from upstream cells. • Page 2

    37. Exercise 2 • Baseline analysis (local effects) • Local effects of runoff, nonpoint source pollution, and erosion are estimated. • Local effects include expected pollutant or sediment concentration at a cell without upslope contributions. • Page 4

    38. Exercises 1 and 2 Results • Baseline runoff, sediment loads, and nitrogen concentrations (accumulated and nonaccumulated) • Model outputs are representative of the landscape conditions during the time at which the input data was collected. • Visual interpretation • Topography was associated with the shape and density of drainage networks. • Land cover types were associated with various degrees of sediment and pollutant loads.

    39. Exercise 1 Results

    40. Exercise 2 Results

    41. Outline • Background • Getting started • Basic analysis • Advanced analysis • Management scenario • Exercise 3 – Accumulated and Local effects • Exercise 4 - Accumulated effects • Alternative land use • Exercise 5 – define a new Land Use

    42. Advanced Analysis • Management scenario analyses • Objective • Run an analysis that incorporates a hypothetical management scenario and examines the potential changes to runoff, erosion, and pollution. • Important Learning Objectives: • Understand the properties associated with the Management Scenarios tab. • Learn to incorporate a management scenario. • Learn to quantitatively evaluate the data output. • Understand the relative contributions of different land cover classes to nonpoint source pollution.

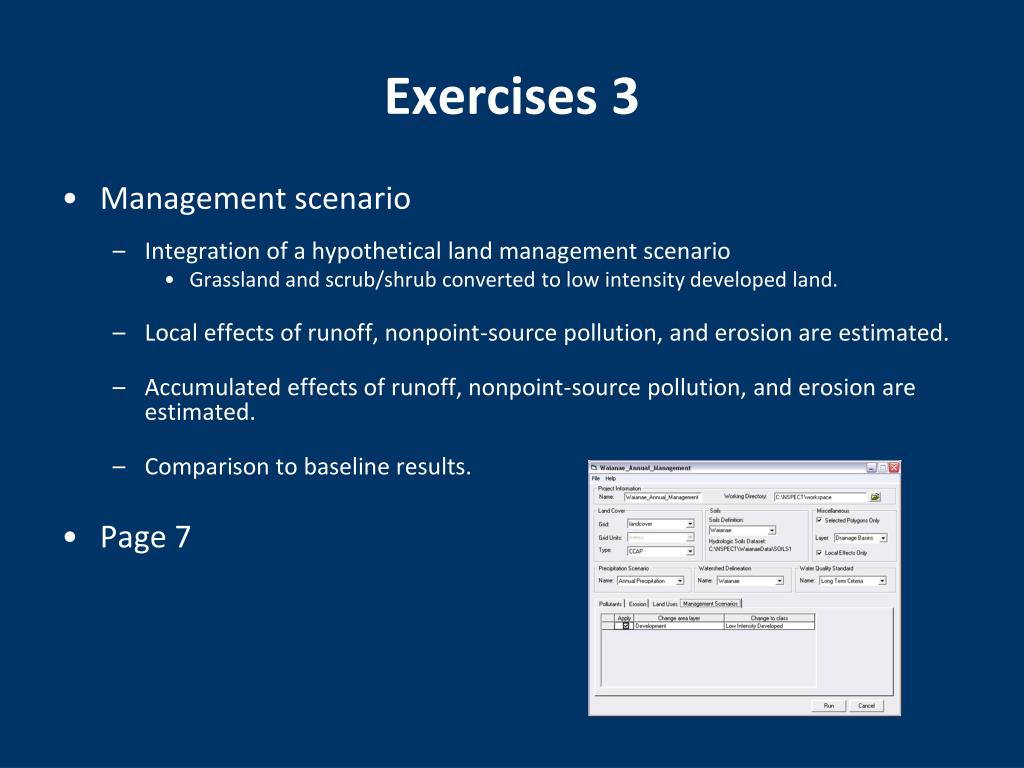

    43. Exercises 3 • Management scenario • Integration of a hypothetical land management scenario • Grassland and scrub/shrub converted to low intensity developed land. • Local effects of runoff, nonpoint-source pollution, and erosion are estimated. • Accumulated effects of runoff, nonpoint-source pollution, and erosion are estimated. • Comparison to baseline results. • Page 7

    44. Exercise 3 Results Baseline • Nitrogen yields (mg) • Baseline conditions • Low density residential management scenario • Difference between A and B • The 0.2 km2 development is predicted to yield an additional 86.7 kilograms of nitrogen under the alternative land management scenario (a 138 percent increase). Management Comparison % Change

    45. Exercise 4 Results • Nitrogen yields (mg) • This translates to a 0.5 percent increase in the accumulated nitrogen load for the entire 14.1 km2 watershed. • Page 14

    46. Advanced Analysis • Alternative land use scenario analysis • Objective • Run an analysis with a new land use scenario and produce modified runoff, erosion, and pollutant load data sets for an annual timescale. • Important learning objectives: • Understand the properties associated with the Land Use tab. • Learn to parameterize a new land use scenario. • Learn to quantitatively evaluate the data output.

    47. Exercise 5 • Alternative land use scenario (accumulated effects) • Integration of a hypothetical land use scenario • New pollutant coefficients defined for a golf course. • Accumulated effects of runoff, nonpoint source pollution, and erosion are estimated. • Comparison to baseline results. • Page 16

    48. Exercise 5 Results • Net decrease in accumulated nitrogen load • Land cover beneath the golf course polygon was recoded. • SCS curve numbers control runoff volume. • Runoff volume controls pollutant load.

    49. Download OpenNSPECT: www.csc.noaa.gov/nspect Today’s Trainer: Dave Eslinger Dave.Eslinger@noaa.gov 843-740-1270 Project Contacts: Dave Eslinger, Project lead Dave.Eslinger@noaa.gov 843-740-1270 Shan Burkhalter Shan.Burkhalter@noaa.gov 843-740-1275 Questions?
