Presentation Transcript
introduction
Introduction
  • Cultural Resource Management (CRM) is the practice of preserving and interpreting cultural resources.
  • CRM has been growing since the National Historic Preservation Act was passed in 1966.
  • CRM is performed by investigating sites that have archaeological potential.
  • CRM agencies employ Archaeologist to conduct site evaluations in order to determine the presence of cultural sites and materials.

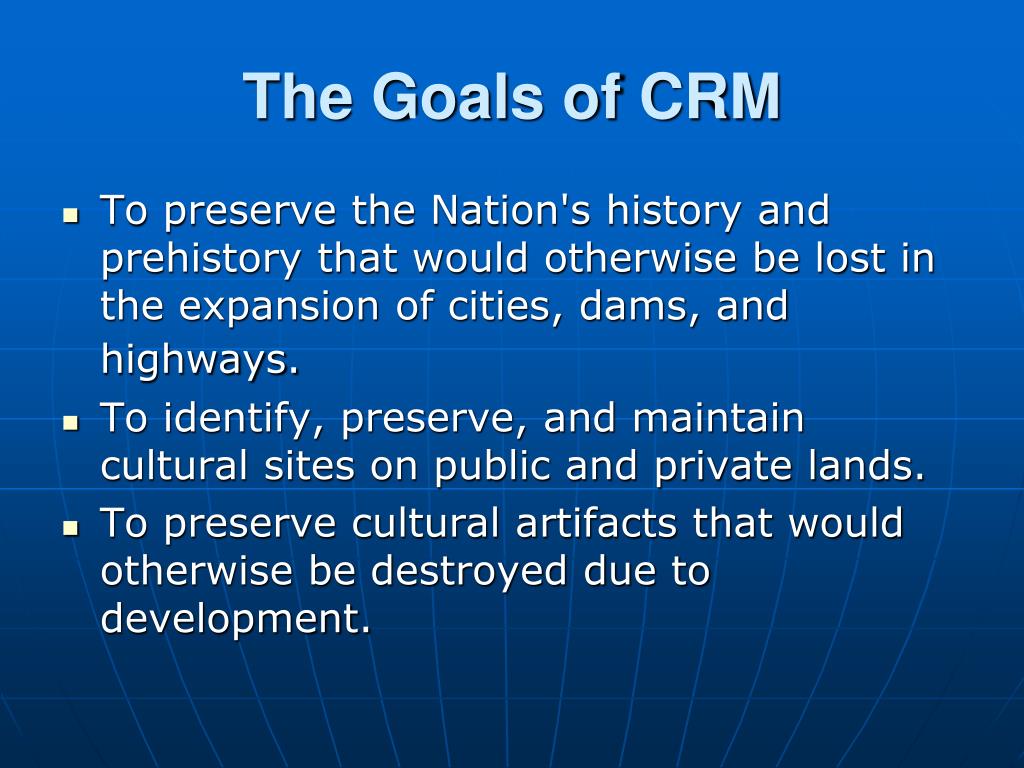

the goals of crm
The Goals of CRM
  • To preserve the Nation's history and prehistory that would otherwise be lost in the expansion of cities, dams, and highways.
  • To identify, preserve, and maintain cultural sites on public and private lands.
  • To preserve cultural artifacts that would otherwise be destroyed due to development.
purpose of gis in crm
Purpose of GIS in CRM
  • GIS can be used to:
  • Assist in examining the spatial distribution of archaeological sites
  • Assist in determining the geographic make-up of sites, such as wetlands and utilities
  • Assist in identifying new archaeological sites based on common site characteristics
  • Analyze and predict where potential archaeology sites are located
slide5
Data
  • Archaeological and Major utility data was obtained from the Fairfax County Cultural Resource and Protections Department Files
  • 1:310, 319 ; 1:123,027
  • Vector Data
  • FFX Archaeological files – not available to the general public
  • FFX hydrography/boundary layershttp://data.geocomm.com/ - public
  • FFX Soils polygon file - http://www.fairfaxcounty.gov/gisapps/metadata/default.asp - public
  • NAD_1983_Stateplane_Virginia_North_FIPS_4501_Feet_Lambert_Conformal_Conic
slide6
Data
  • Fairfax County Border (polygon) SDE Feature Class File
  • Fairfax County Planning District (polygon) SDE Feature Class File
  • Fairfax County Archaeological sites – Shapefile

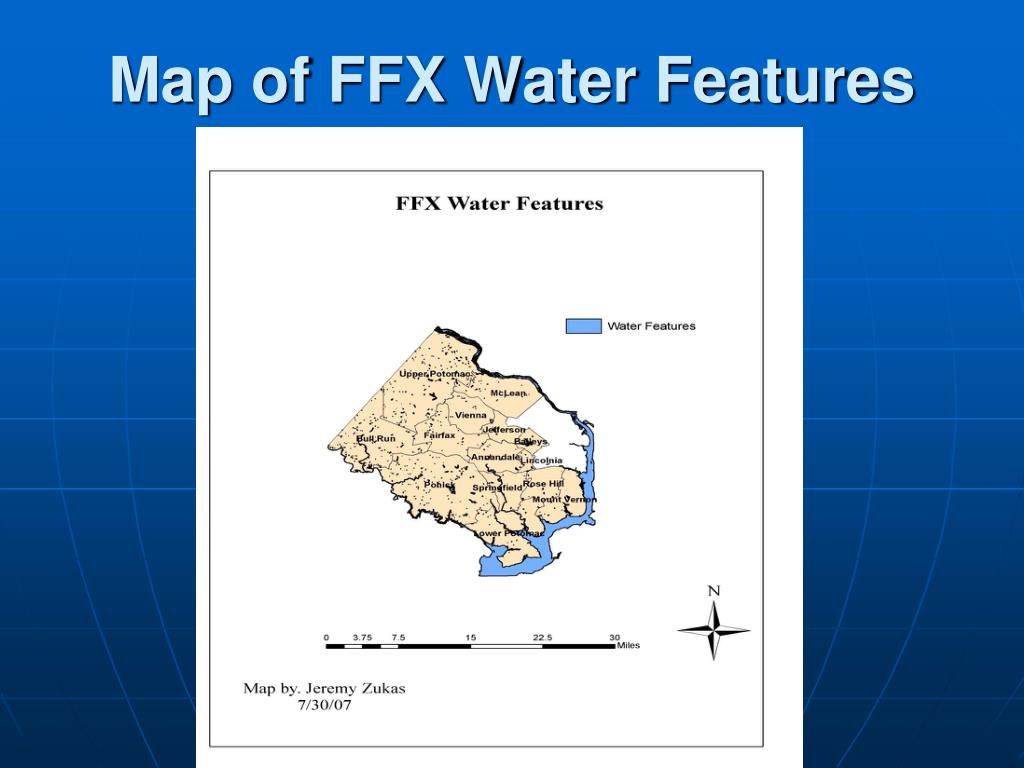

  • FFX Water Features (polygon) – Feature Class
  • FFX Major Utilities – Feature Class
  • FFX Soils (polygon) - Shapefile

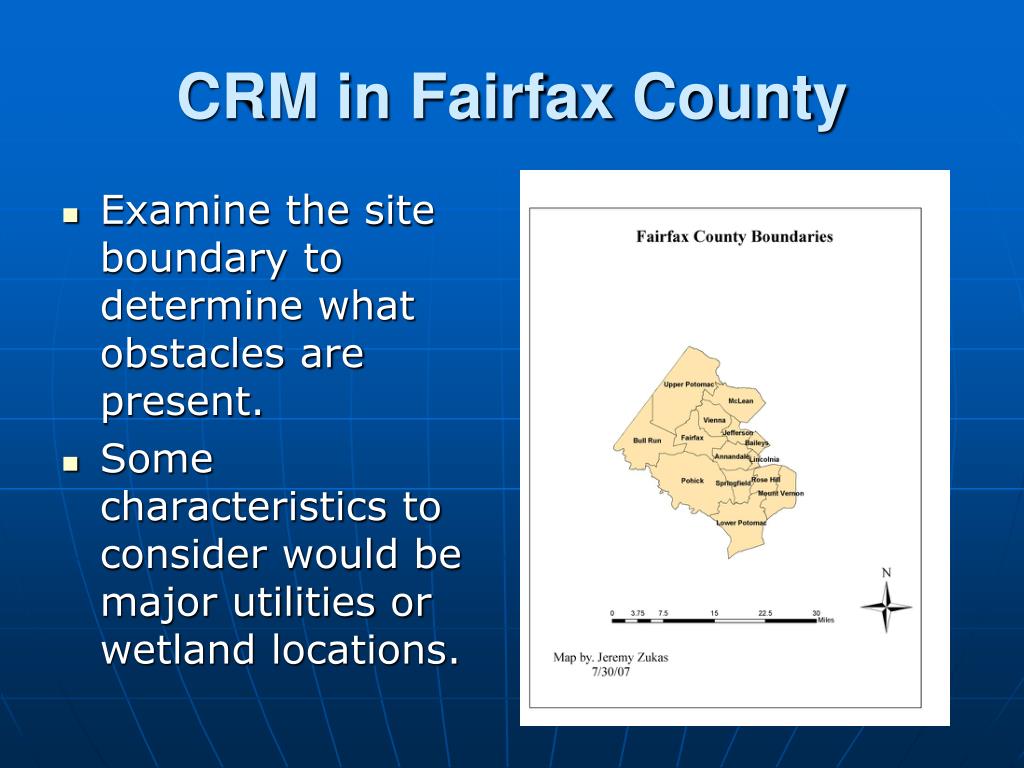

crm in fairfax county
CRM in Fairfax County
  • Examine the site boundary to determine what obstacles are present.
  • Some characteristics to consider would be major utilities or wetland locations.
analysis
Analysis
  • Select by location – located all the Archaeological sites that were occupied by Native Americans.
  • Created a layer for all the Native American sites

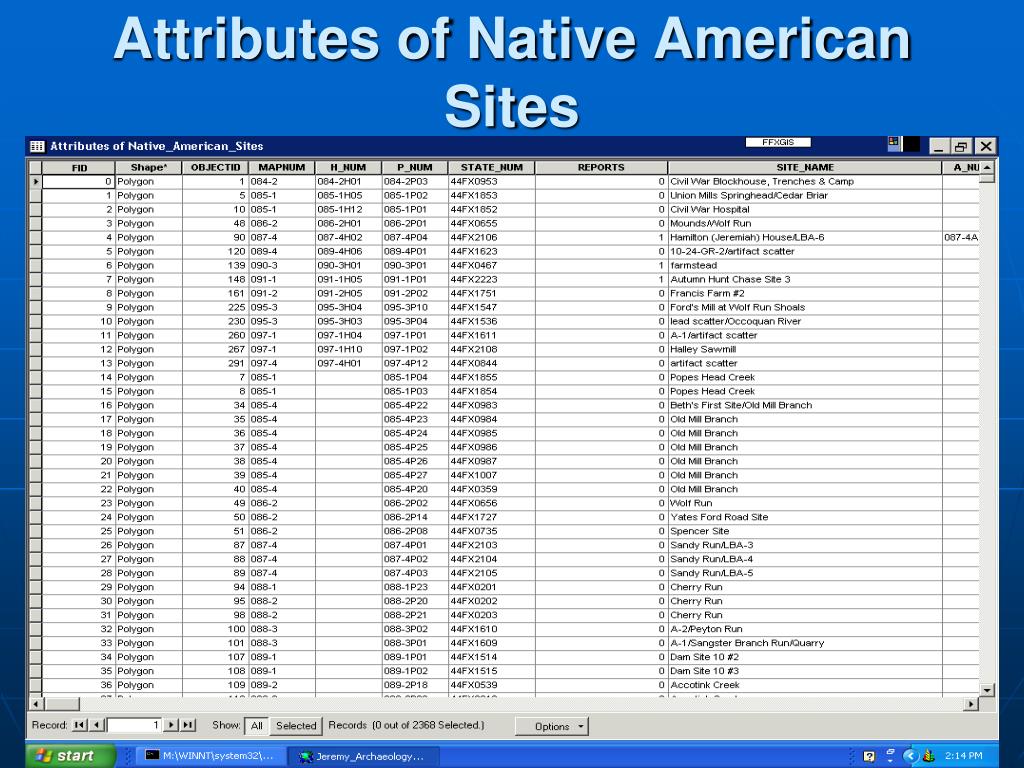

  • Export Native American .dbf from Archaeology layer to create a Native American attribute table

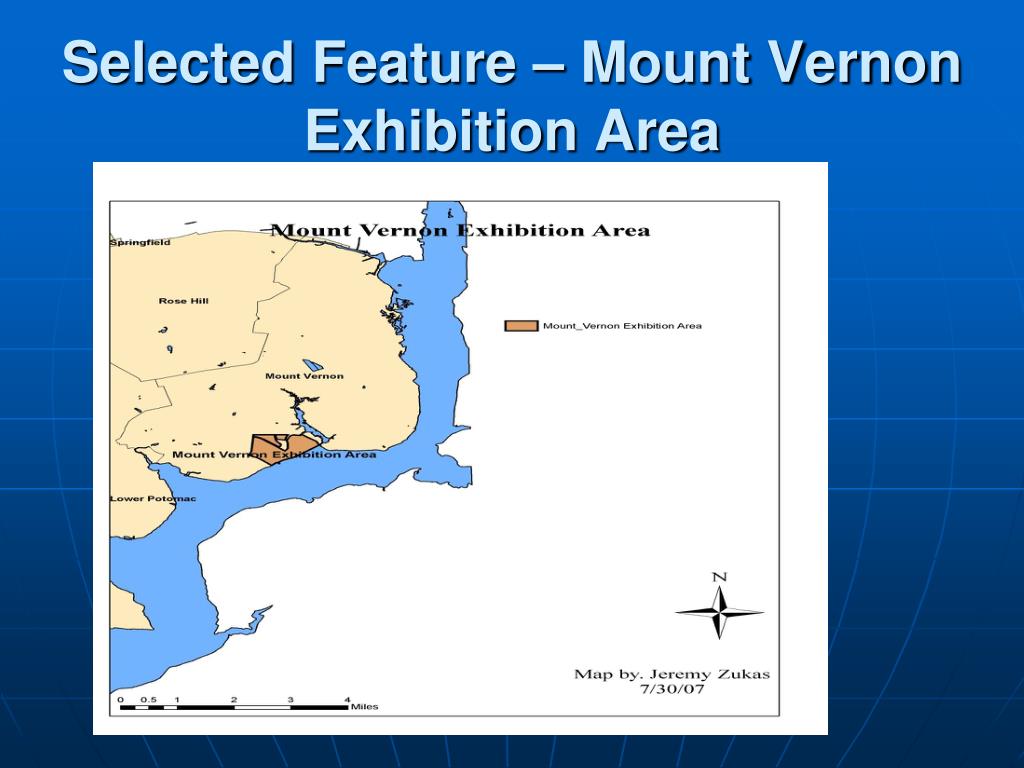

  • Selected Feature – Mount Vernon Exhibition Area
  • Created a new layer from the selected feature.
  • Select by location all of the soils that were within the Mount Vernon Exhibition Area.
analysis cont
Analysis (cont)
  • Compare site characteristics of Mount Vernon Exhibition Area with areas that share common traits
  • Lithics and soil type were the variables used to test other areas
  • Constructed a successful predictive model to locate potential areas to carry out conservation and protective efforts.
marine clay deposits
Marine Clay Deposits
  • Examined what soil types were present in the Mount Vernon Exhibition Area
  • Select by location all of the soils that contained marine clay deposits

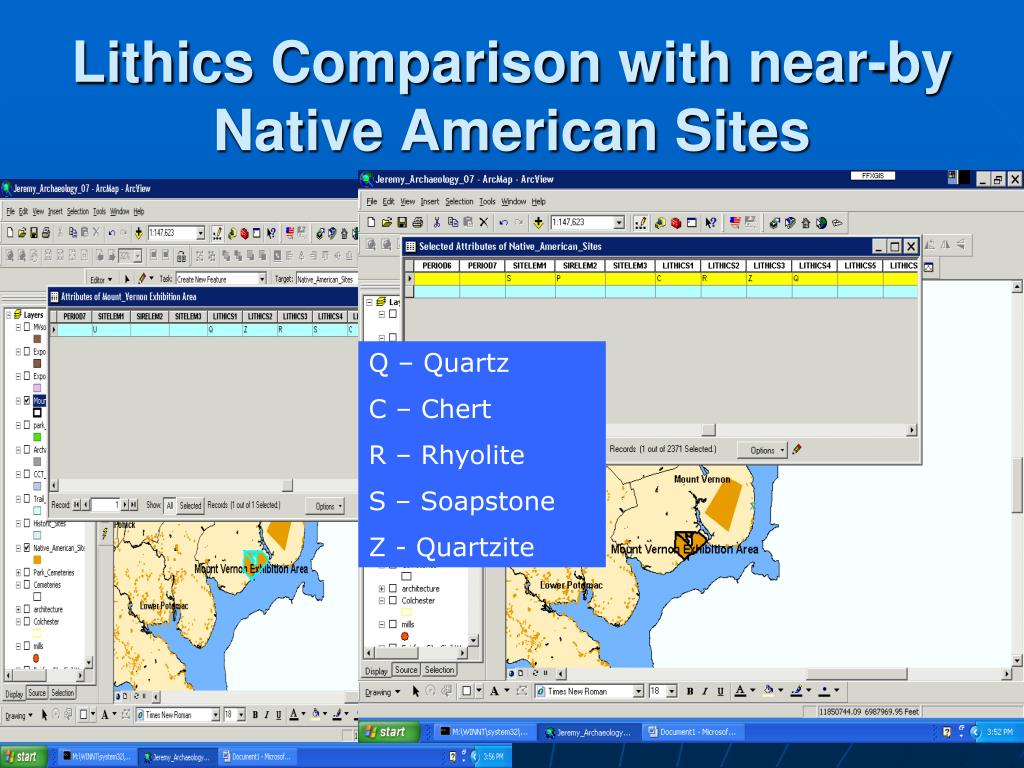

lithics comparison with near by native american sites
Lithics Comparison with near-by Native American Sites

Q – Quartz

C – Chert

R – Rhyolite

S – Soapstone

Z - Quartzite

potential areas for new native american archaeology sites
Potential Areas for New Native American Archaeology Sites

Heads-up digitizing to mark potential Native American sites based on soil type and lithics.

conclusion
Conclusion
  • GIS is useful in producing maps of current archaeological sites to assist in finding new areas for conservation and protection.
  • GIS is useful in creating a “user friendly” database of archaeological sites
  • GIS is useful in examining the spatial distribution of archaeology sites
