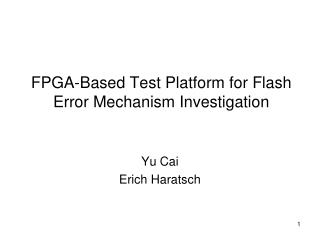

FPGA-Based Test Platform for Flash Error Mechanism Investigation

Yu Cai

Erich Haratsch

outline
Outline
  • Background
  • Hardware Architecture
  • Implementation
  • Future Work
current nand flash challenges
Current NAND Flash Challenges
  • NAND Flash memories are widely used for data storage (USB Flash drives, SSDs)
    • Compactness, low power, high throughput and low cost
  • Doubling of NAND Flash density each year through production geometries shrinking and SLC to MLC migration makes reliability a critical issue
    • NAND’s Physical Impairments: Cross coupling, read/write disturbs, data retention etc
  • Current Error Correction Code (ECC) itself is becoming insufficient to retain reliability in NAND-based products
future nand controller architecture
Future NAND Controller Architecture

Raw Bit

Error Rate

Error

Correction

BER < 10-15

Signal

Processing

  • BCH Codes
  • Reed-Solomon
  • Binary-LDPC
  • Non-binary-LDPC

Low Cost/Bit

High Area Density

More Noises/Errors

Challenges:

Unknown NAND Flash Error/Noise Patterns

error patterns generation
Error Patterns Generation

Erase

Program

Read

Compare

Millions of Times

Error Patterns Generated

system architecture
System Architecture

Algorithms

Wear Leveling

Address Mapping

Garbage Collection

ECC

(BCH, RS, LDPC)

Control

Firmware

Signal Processing

Software Platform

USB

PHYChip

FPGA

(Data Pipe)

NAND

Controller

Flash

Memories

USB Driver

Host USB PHY

Host Computer

USB Daughter Board

Mother Board

Flash Board

flash emulation platform

USB Daughter Board

USB Jack

HAPS-52 Mother Board

Virtex-II Pro

(Data Pipe)

NAND Daughter Board

Flash Emulation Platform

Virtex-V FPGA

(NAND Controller)

NAND Flash

usb daughter board
USB Daughter Board

USB Jack

USB PHY Chip

HAPS Interface

Virtex-II Pro FPGA

usb daughter board logic design
USB Daughter Board Logic Design

FPGA

Virtex-II Pro

(Master Logic)

Control CPU

(Enhanced 8051)

usb interface implementation
USB Interface Implementation
  • Software
    • Windows Application Software
      • Send/Receive USB Packet, Command Interface
    • Cypress USB driver
  • Firmware
    • Cypress USB Firmware on Enhanced 8051
      • USB behavior configuration, Interrupt routine processing
  • RTL Logic
    • Glue logic in Virtex-II Pro as data pipe between USB PHY chip and NAND controller
experimental nand flash features
Experimental NAND Flash Features

HAPS Interface

Flash Chips

  • TSOP Package, ONFI compliant
  • Single-Level Cell (SLC) Technology
  • Organization
    • Page Size x8: 4314 Bytes (4096 + 128)
    • Block Size: 64 Pages (256K + 13K Bytes)
    • Plane Size 8Gb: 4096 blocks
  • Read Performance
    • Random Read: 25 us
    • Sequential Read: 25 ns
  • Write Performance
    • Program Page: 250 us
    • Block Erase: 700 us
  • Endurance
    • 100,000 Program/Erase Cycles (4-bit ECC)
nand controller
NAND Controller

HAPS Interface

NAND Controller Finite State Machine

8x

Write Page Buffer

Flash 1

8x

Flash 2

Control Register

Files

Error Pattern Generation

Accelerator

8x

Flash 3

8x

Read Page Buffer

Flash 4

nand controller implementation
NAND Controller Implementation

Reset NAND

Read

ID

Read Status

Start

Read Page

Erase Block

Program Page

sample nand flash pin assignment
Sample NAND Flash Pin Assignment

Timing Signals

CE: Chip Enable

CLE: Command Latch Enable

RE: Read Enable

R/B: Ready/Busy

ALE: Address Latch Enable

WE: Write Enable

nand flash reset command timing
NAND Flash Reset Command Timing

Specification

Chip-Scope Results

erase block command timing
Erase Block Command Timing

Specification

Chip-Scope Results

Long Erase Time (tBERS)

read page command timing example
Read Page Command Timing (Example)

Specification

Chip-Scope Results

Correct! All FF after Block Erase

read status command timing
Read Status Command Timing

Specification

Chip-Scope Results

E0 Means Correct Erase

Status

No Write Protect

Ready/Busy

Successful Program/Erase

program page command timing
Program Page Command Timing

Specification

Chip-Scope Results

read id command timing
Read ID Command Timing

Specification

Chip-Scope Results

Micron

MT29F8G08

8Gb, x8, 3V

current status
Current Status
  • All sub-modules integrated together
    • Application C++ code, USB driver, Embedded firmware on 8051, RTL code on Virtex-II Pro (data pipe), RTL code for NAND controller on Virtex-V
    • Automatic Flash memory testing is now running to collect data
  • Raw write/read files generated on host machine
    • Data Pattern: Independent Uniform Random Data
    • Program Pattern: First four pages of even and odd Blocks
    • Speed: 200 erase-program-read-compare cycles/hour
    • Raw data for 4000 write/read cycles generated
    • Errors not found in the first 4000 cycles, need to run the board for a longer time
future work
Future Work
  • Short Term
    • Accelerate the whole system
    • Generate Error/Noise Patterns for SLC
  • Long Term
    • Generate Error/Noise Patterns for MLC
    • Propose new signal processing and error correction codes
    • Propose new wear leveling algorithms
    • Evaluate good algorithms with real hardware implementation
    • Enhance platform to support highly-parallel computer architecture exploration under NAND Flash clusters (eg. >100 NAND chips)
    • Enhance platform to investigate wear leveling of NAND flash storage under multi-thread / multi-core processors
