slide1

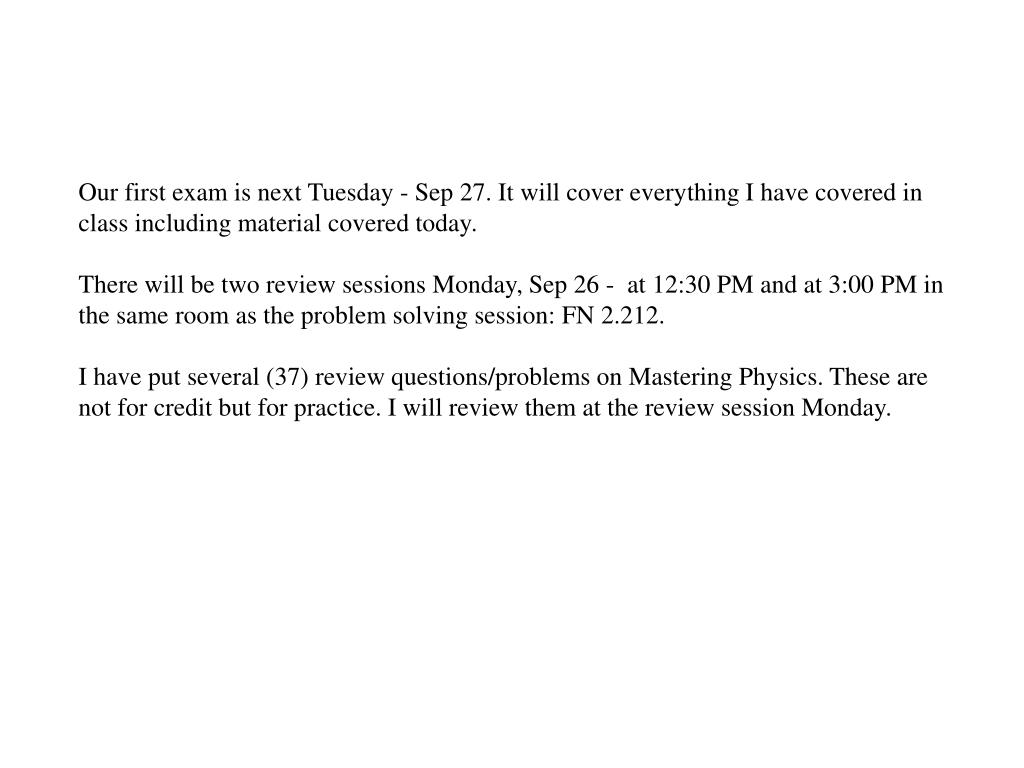

Our first exam is next Tuesday - Sep 27. It will cover everything I have covered in class including material covered today.

There will be two review sessions Monday, Sep 26 - at 12:30 PM and at 3:00 PM in the same room as the problem solving session: FN 2.212.

I have put several (37) review questions/problems on Mastering Physics. These are not for credit but for practice. I will review them at the review session Monday.

slide2

Example: A positively charged (+q) metal sphere of radius ra is inside

of another metal sphere (-q) of radius rb. Find potential at different points

inside and outside of the sphere.

-q

1

a)

2

+q

Total V=V1+V2

b)

c)

Electric field between spheres

equipotential surfaces
Equipotential Surfaces
  • Equipotential surface—A surface consisting of a continuous distribution of points having the same electric potential
  • Equipotential surfaces and the E field lines are always perpendicular to each other
  • No work is done moving charges along an equipotential surface
    • For a uniform E field the equipotential surfaces are planes
    • For a point charge the equipotential surfaces are spheres
slide4

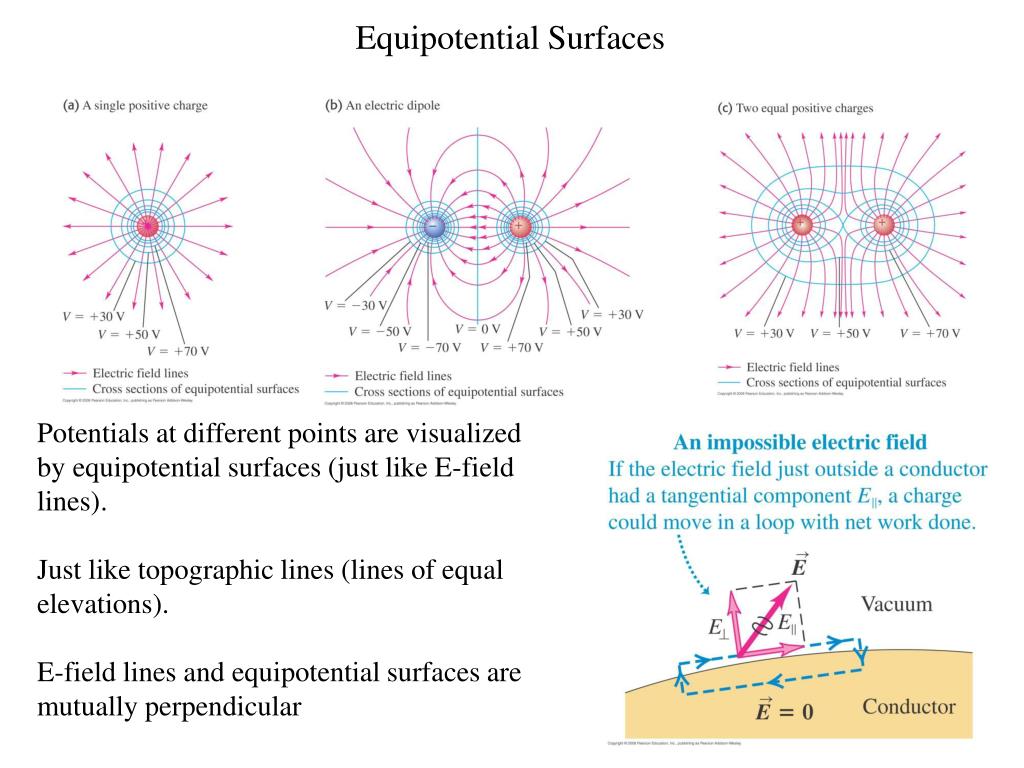

Equipotential Surfaces

Potentials at different points are visualized by equipotential surfaces (just like E-field lines).

Just like topographic lines (lines of equal elevations).

E-field lines and equipotential surfaces are mutually perpendicular

definitions cont
Definitions cont
  • Electric circuit—a path through which charge can flow
  • Battery—device maintaining a potential difference V between its terminals by means of an internal electrochemical reaction.
  • Terminals—points at which charge can enter or leave a battery
definitions
Definitions
  • Voltage—potential difference between two points in space (or a circuit)
  • Capacitor—device to store energy as potential energy in an E field
  • Capacitance—the charge on the plates of a capacitor divided by the potential difference of the plates C = q/V
  • Farad—unit of capacitance, 1F = 1 C/V. This is a very large unit of capacitance, in practice we use F (10-6) or pF (10-12)
capacitors
Capacitors
  • A capacitor consists of two conductors called plates which get equal but opposite charges on them
  • The capacitance of a capacitor C = q/V is a constant of proportionality between q and V and is totally independent of q and V
  • The capacitance just depends on the geometry of the capacitor, not q and V
  • To charge a capacitor, it is placed in an electric circuit with a source of potential difference or a battery
slide8

CAPACITANCE AND CAPACITORS

Capacitor: two conductors separated by insulator and charged by opposite and equal charges (one of the conductors can be at infinity)

Used to store charge and electrostatic energy

Superposition / Linearity: Fields, potentials and potential differences, or voltages (V), are proportional to charge magnitudes (Q)

(all taken positive, V-voltage between plates)

CapacitanceC (1 Farad = 1 Coulomb / 1 Volt) is determined by pure geometry (and insulator properties)

1 Farad IS very BIG: Earth’s C < 1 mF

calculating capacitance
Calculating Capacitance
  • Put a charge q on the plates
  • Find E by Gauss’s law, use a surface such that
  • Find V by (use a line such that V = Es)
  • Find C by
slide10

Parallel plate capacitor

Energy stored in a capacitor is related to the E-field between the plates

Electric energy can be regarded as stored in the field itself.

This further suggests that E-field is the separate entity that may exist alongside charges.

Generally, we find the potential difference

Vab between conductors for a certain

charge Q

Point charge potential difference ~ Q

This is generally true for all capacitances

slide11

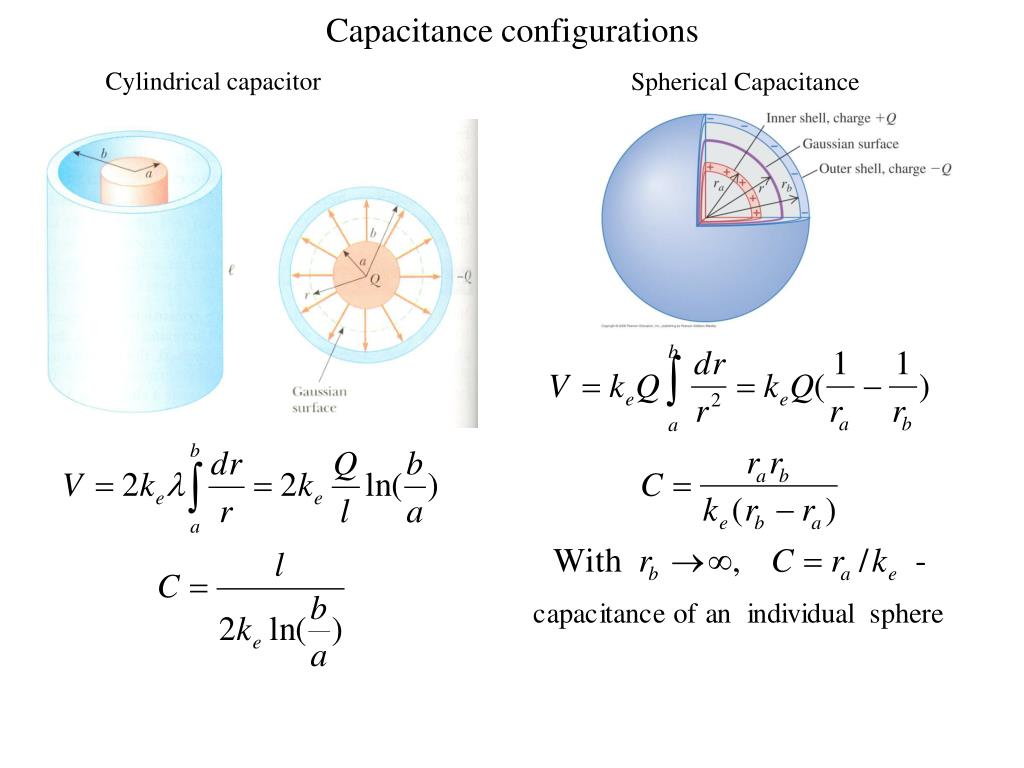

Capacitance configurations

Cylindrical capacitor

Spherical Capacitance

definitions1
Definitions
  • Equivalent Capacitor—a single capacitor that has the same capacitance as a combination of capacitors.
  • Parallel Circuit—a circuit in which a potential difference applied across a combination of circuit elements results in the potential difference being applied across each element.
  • Series Circuit—a circuit in which a potential difference applied across a combination of circuit elements is the sum of the resulting potential differences across each element.
slide14

Capacitors in Parallel

Example: Voltage before and after
