  1. ALLIED WINCHES • The world’s leading winch for bulldozers • Over 70 Years of experience • Covers bulldozers from 70-500 HP. Dec 2, 2005

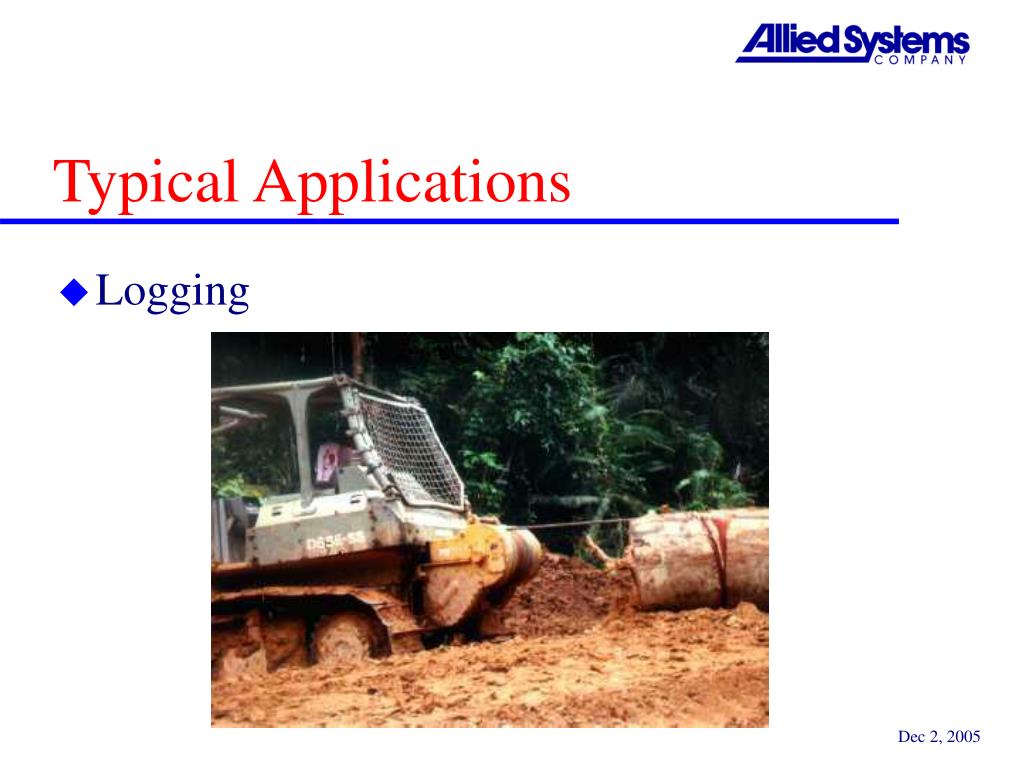

  2. Typical Applications • Logging Dec 2, 2005

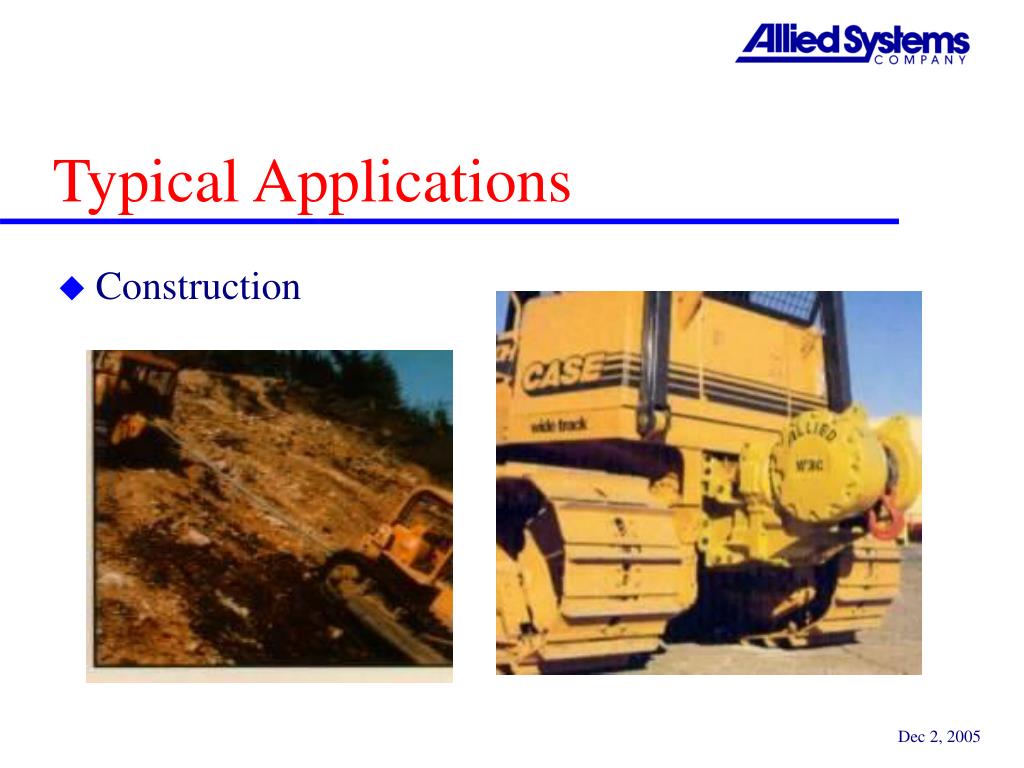

  3. Typical Applications • Construction Dec 2, 2005

  4. Typical Applications • Oil Fields Dec 2, 2005

  5. Typical Applications • Pipelaying Dec 2, 2005

  6. Typical Applications • Recovery Dec 2, 2005

  7. Common Features • SCH - Self Contained Hydraulics • All hoses, valve & pump inside winch. • No exposed hydraulic lines. Eliminate external leaks. • Cuts installation time • Easier to move winch fromone tractor to another Dec 2, 2005

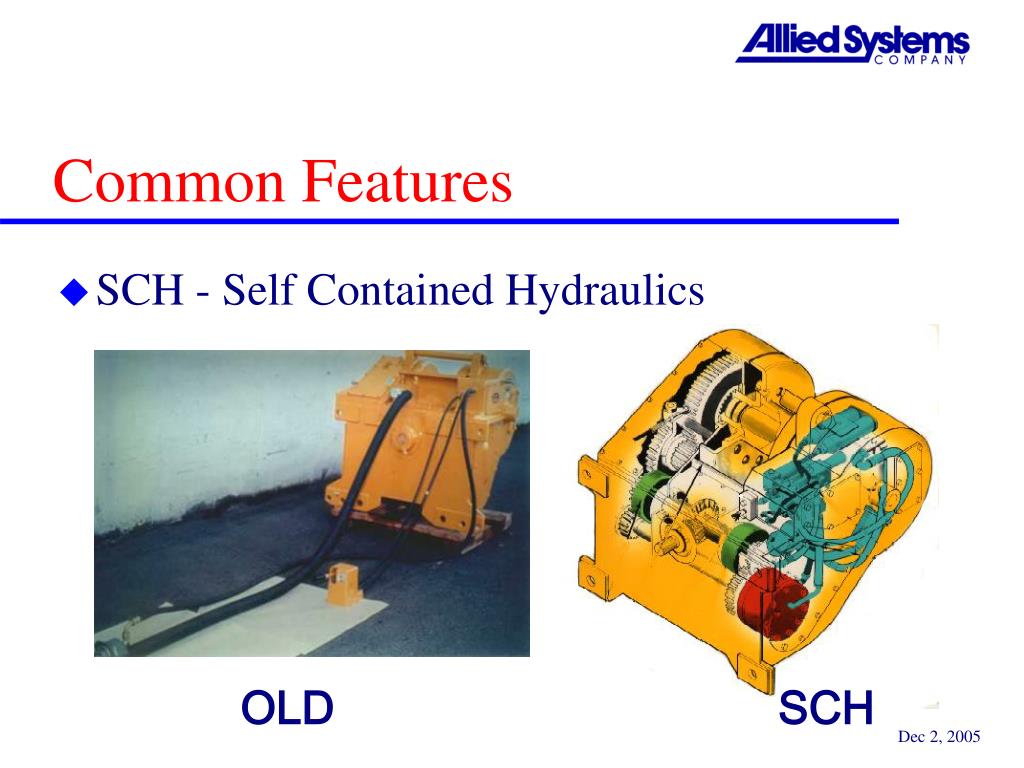

  8. Common Features • SCH - Self Contained Hydraulics OLD SCH Dec 2, 2005

  9. Common Features • Oil Clutch, Oil Brake • Eliminates adjustment • Runs cooler • Provides longer life • Allows winching on-the-go Dec 2, 2005

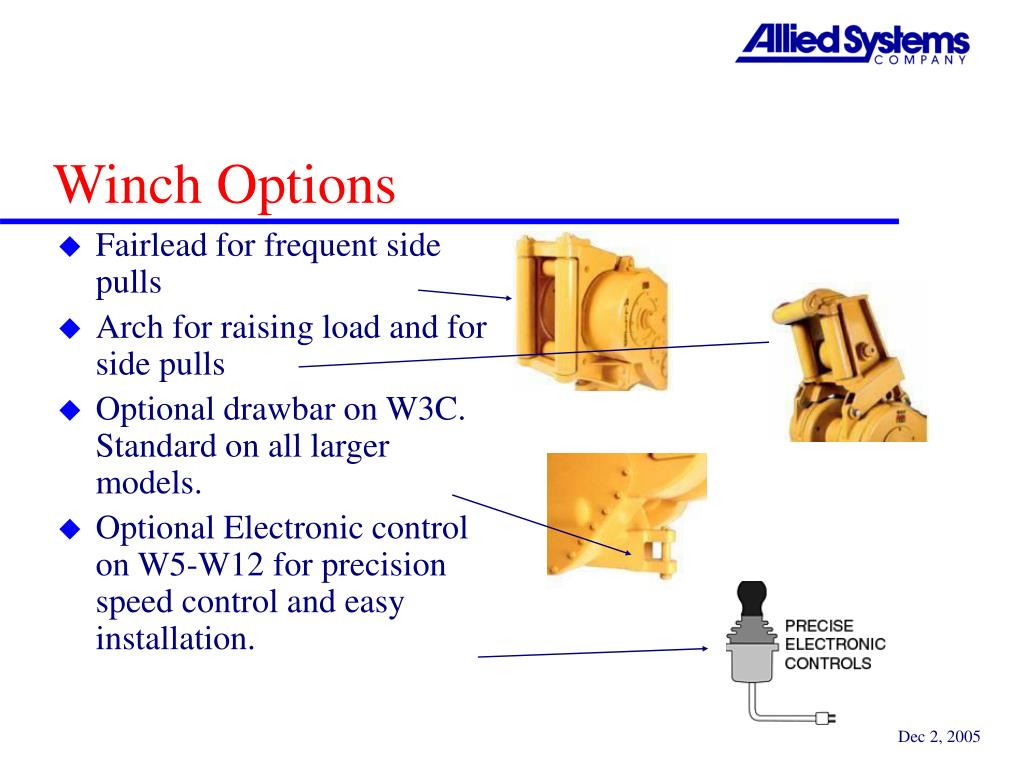

  10. Winch Options • Fairlead for frequent side pulls • Arch for raising load and for side pulls • Optional drawbar on W3C. Standard on all larger models. • Optional Electronic control on W5-W12 for precision speed control and easy installation. Dec 2, 2005

  11. W3C • Line pull rated at 30,000 lbs. • For 70-85 HP tractors • High line pull in a compact package • Standard freespool and Power-In • Optional drawbar and Power-in/Power-out. Dec 2, 2005

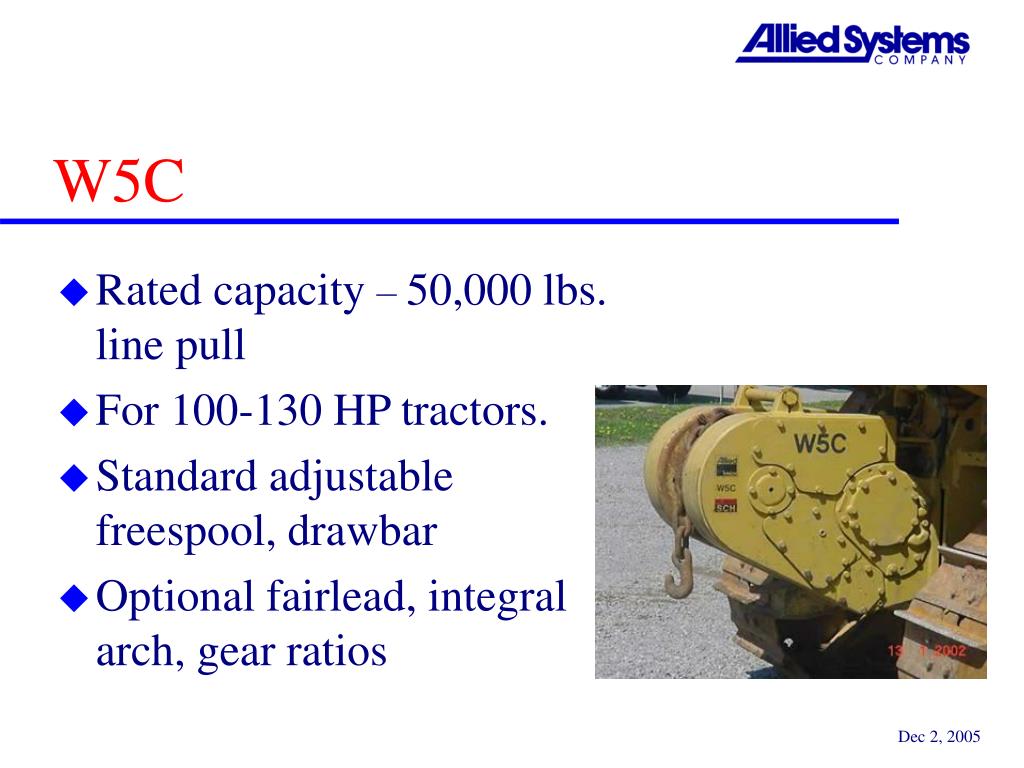

  12. W5C • Rated capacity – 50,000 lbs. line pull • For 100-130 HP tractors. • Standard adjustable freespool, drawbar • Optional fairlead, integral arch, gear ratios Dec 2, 2005

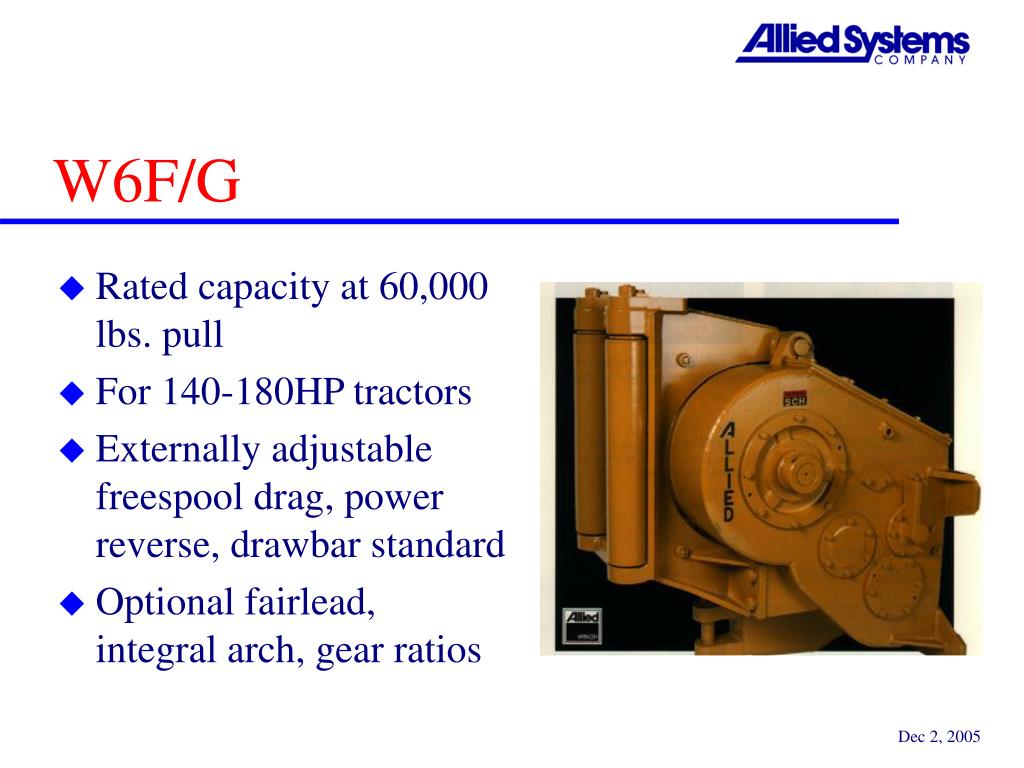

  13. W6F/G • Rated capacity at 60,000 lbs. pull • For 140-180HP tractors • Externally adjustable freespool drag, power reverse, drawbar standard • Optional fairlead, integral arch, gear ratios Dec 2, 2005

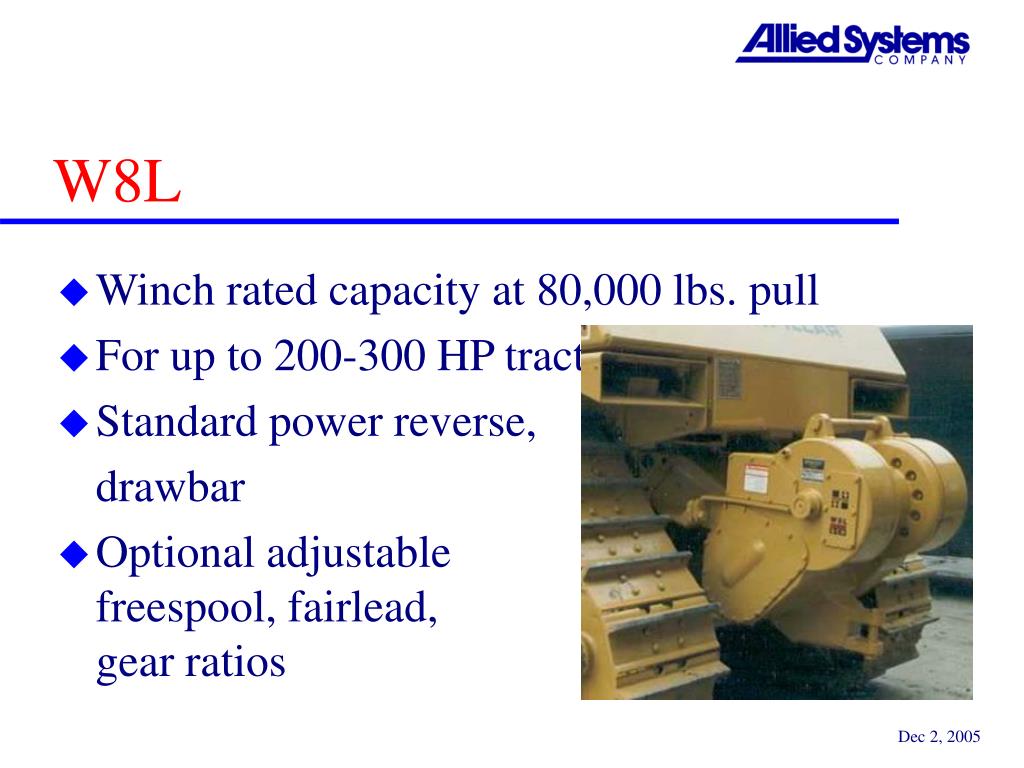

  14. W8L • Winch rated capacity at 80,000 lbs. pull • For up to 200-300 HP tractors • Standard power reverse, drawbar • Optional adjustable freespool, fairlead, gear ratios Dec 2, 2005

  15. W12E • Winch rated capacity at 120,000 lbs. pull • For up to 300-520 HP tractors • Standard power reverse, drawbar • Optional fairlead Dec 2, 2005

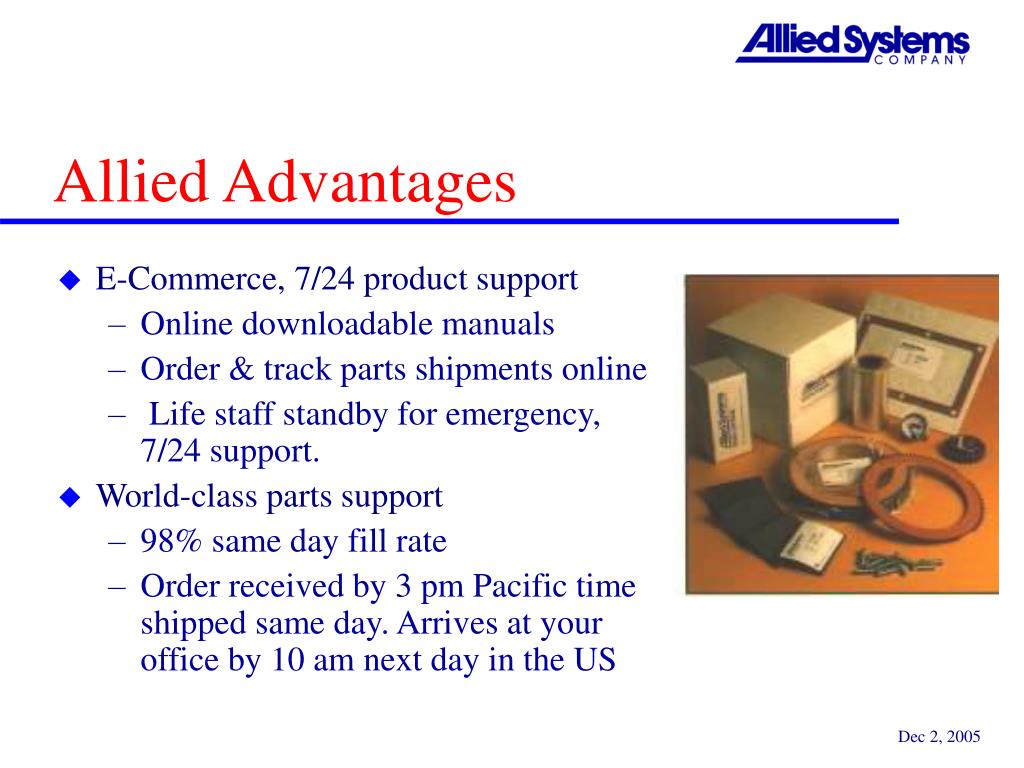

  16. Allied Advantages • E-Commerce, 7/24 product support • Online downloadable manuals • Order & track parts shipments online • Life staff standby for emergency, 7/24 support. • World-class parts support • 98% same day fill rate • Order received by 3 pm Pacific time shipped same day. Arrives at your office by 10 am next day in the US Dec 2, 2005

  17. Summary Dec 2, 2005

  18. THANK YOU Allied Systems Company Tel: 503-625-2560 Fax: 503-625-7269 Email: marketing@alliedsystems.com Website: http://www.alliedsystems.com 10-Mar-14
