allied wh5c wh6g hydraulic winches

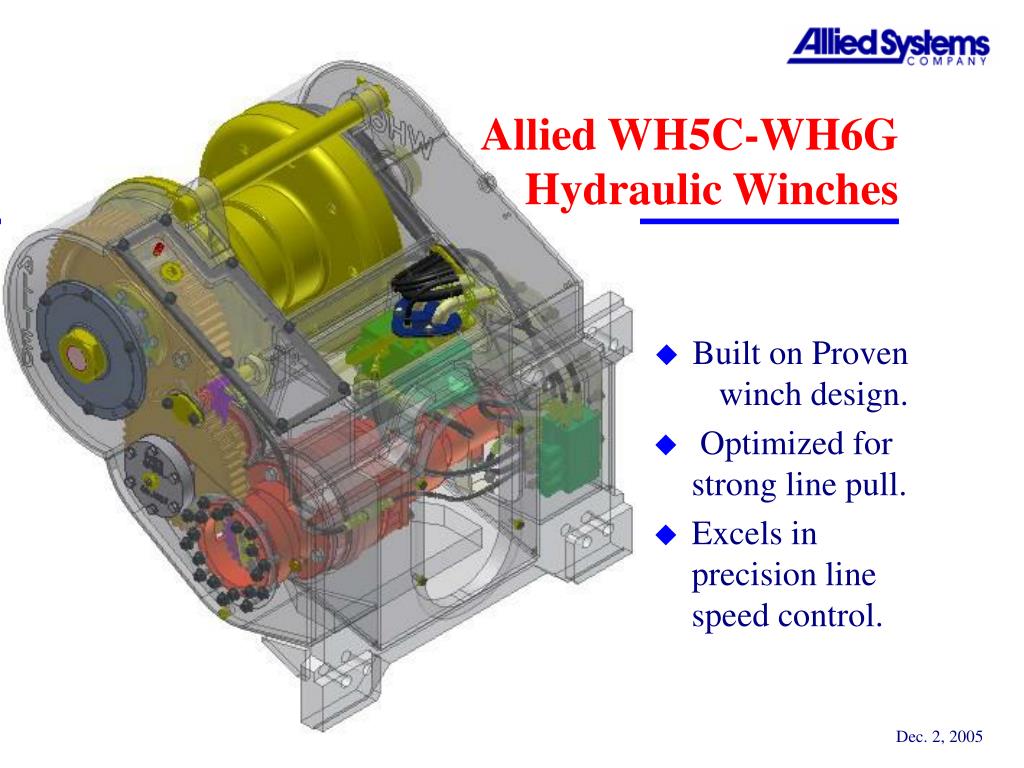

Allied WH5C-WH6GHydraulic Winches
  • Built on Proven winch design.
  • Optimized for strong line pull.
  • Excels in precision line speed control.

Dec. 2, 2005

a true bulldozer winch
A TRUE BULLDOZER WINCH
  • WH5C for 140-HP bulldozer
  • WH6G for 190-HP bulldozer
  • Both winches developed from well-proven W5C & W6G.
  • A true bulldozer winch. Not another winch adaptation from cranes or fishing boats.
  • Maximum parts commonality with W5C & W6G. Same drum, bearings, gear train.

Dec. 2, 2005

features

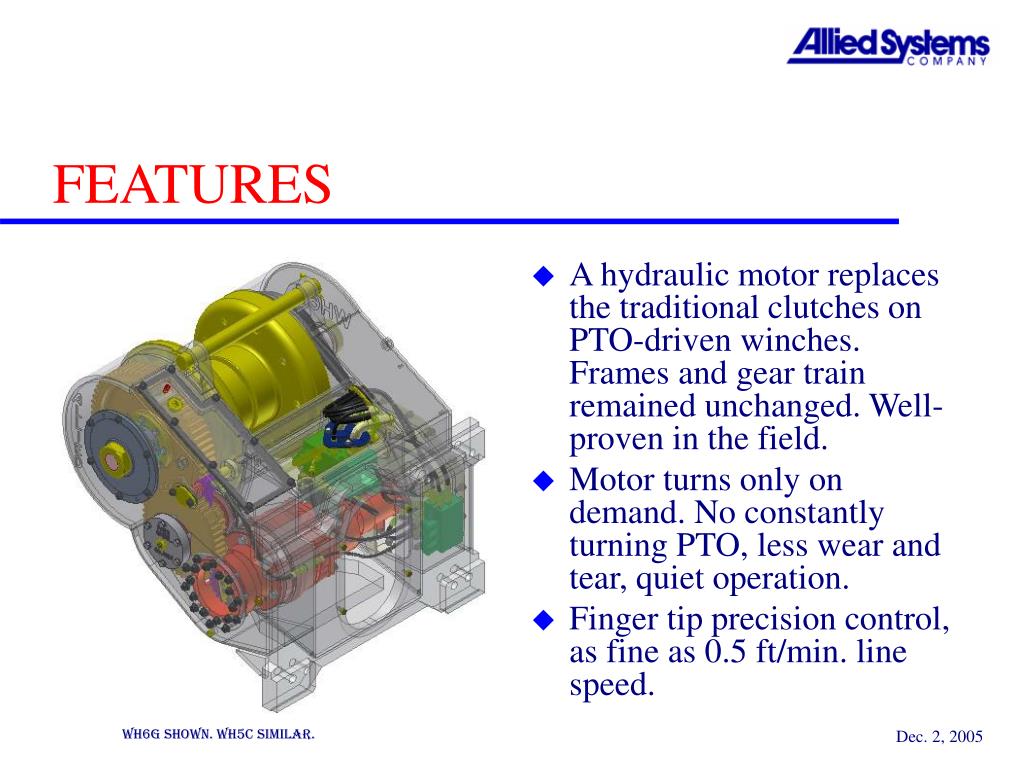

FEATURES
  • A hydraulic motor replaces the traditional clutches on PTO-driven winches. Frames and gear train remained unchanged. Well-proven in the field.
  • Motor turns only on demand. No constantly turning PTO, less wear and tear, quiet operation.
  • Finger tip precision control, as fine as 0.5 ft/min. line speed.

Dec. 2, 2005

WH6G shown. WH5C similar.

features4

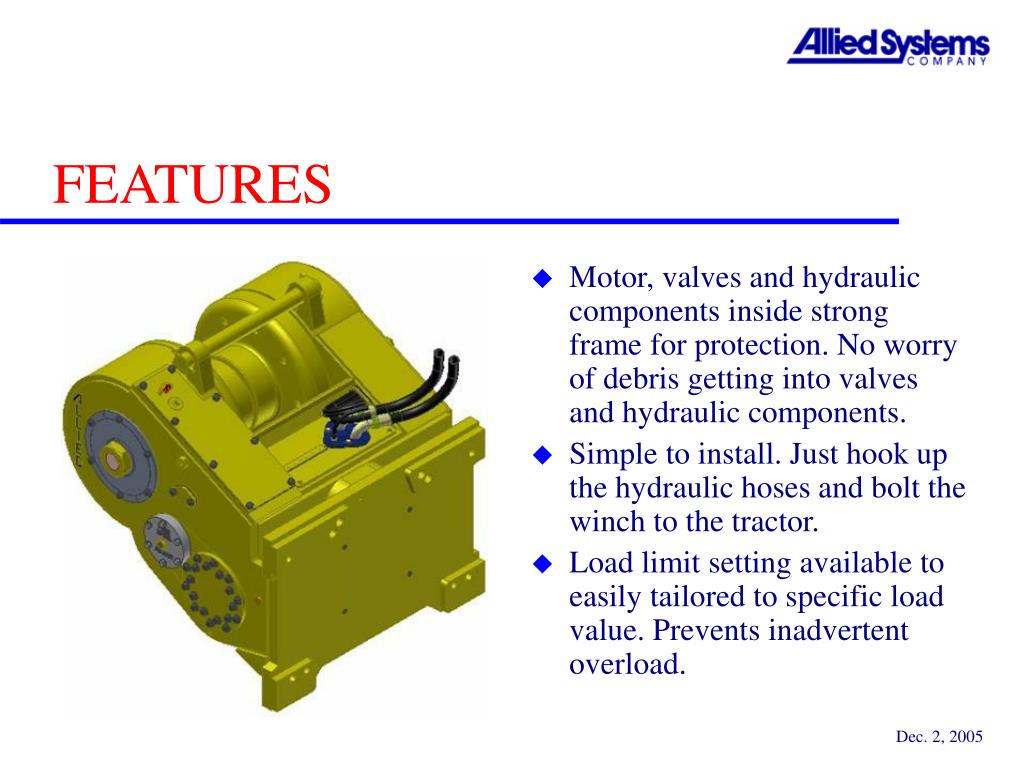

FEATURES
  • Motor, valves and hydraulic components inside strong frame for protection. No worry of debris getting into valves and hydraulic components.
  • Simple to install. Just hook up the hydraulic hoses and bolt the winch to the tractor.
  • Load limit setting available to easily tailored to specific load value. Prevents inadvertent overload.

Dec. 2, 2005

customer benefits

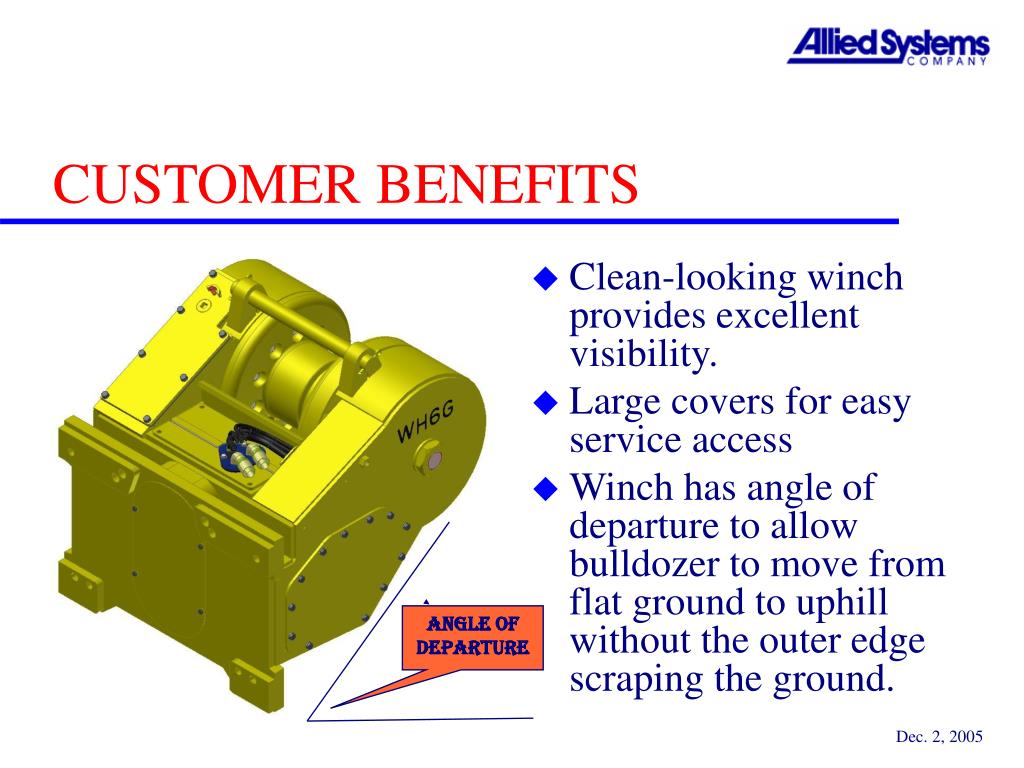

CUSTOMER BENEFITS
  • Clean-looking winch provides excellent visibility.
  • Large covers for easy service access
  • Winch has angle of departure to allow bulldozer to move from flat ground to uphill without the outer edge scraping the ground.

Angle of departure

Dec. 2, 2005

product support
Product Support
  • E-Commerce, 7/24 support
    • On-line downloadable manuals
    • Order & track parts shipments on line
  • World-class parts support
    • 98% same day fill rate
    • Order received by 3 pm Pacific time shipped same day. Arrives at your office by 10 am next day in the US.

Dec. 2, 2005

thank you

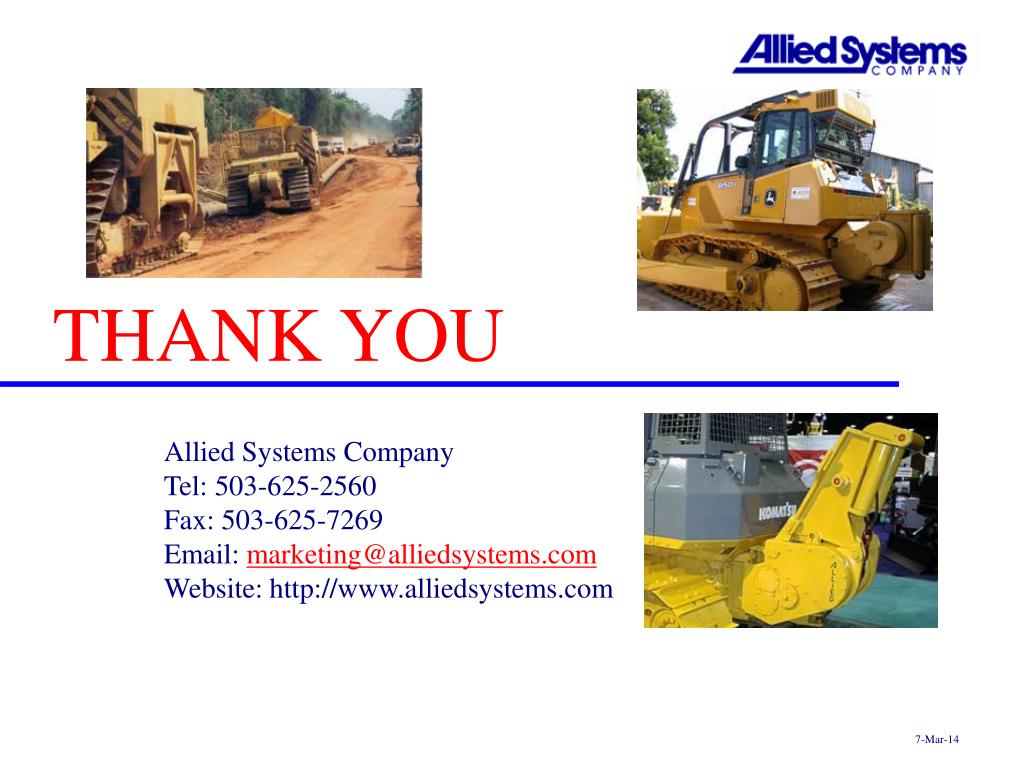

THANK YOU

Allied Systems Company

Tel: 503-625-2560

Fax: 503-625-7269

Email: marketing@alliedsystems.com

Website: http://www.alliedsystems.com
