  1. 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 EnvironmentChapter 5: Managing File Access

  2. Objectives • Identify and understand the differences between the various file systems supported in Windows Server 2003 • Create and manage shared folders • Understand and configure the shared folder permissions available in Windows Server 2003 • Understand and configure the NTFS permissions available in Windows Server 2003 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

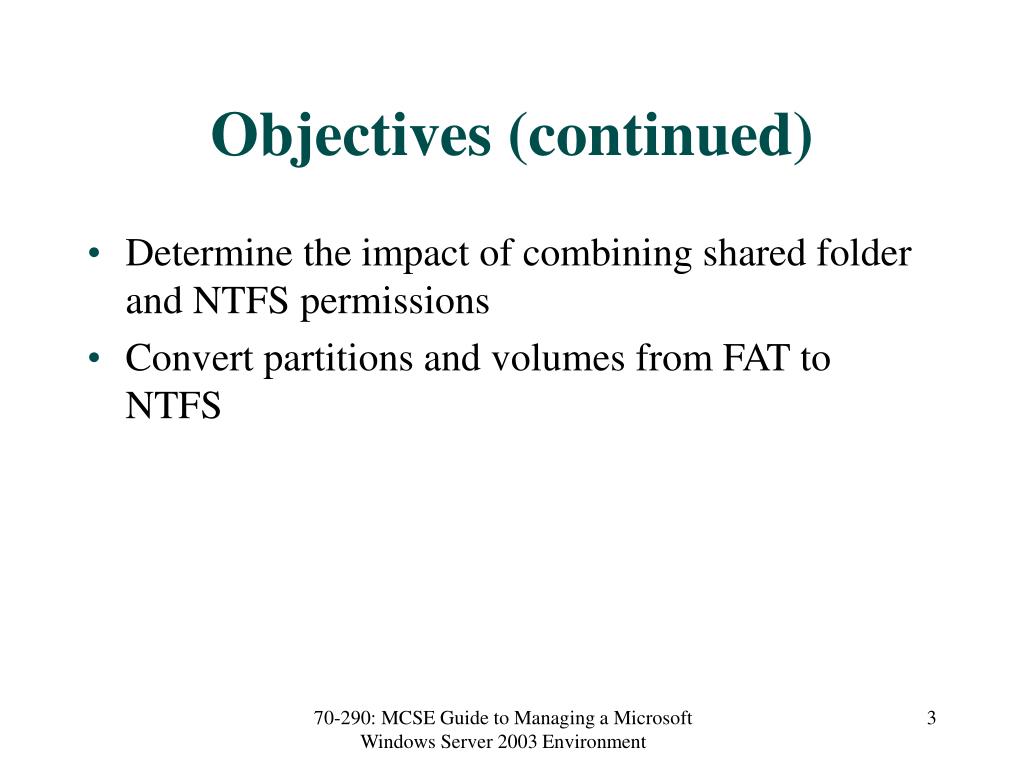

  3. Objectives (continued) • Determine the impact of combining shared folder and NTFS permissions • Convert partitions and volumes from FAT to NTFS 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

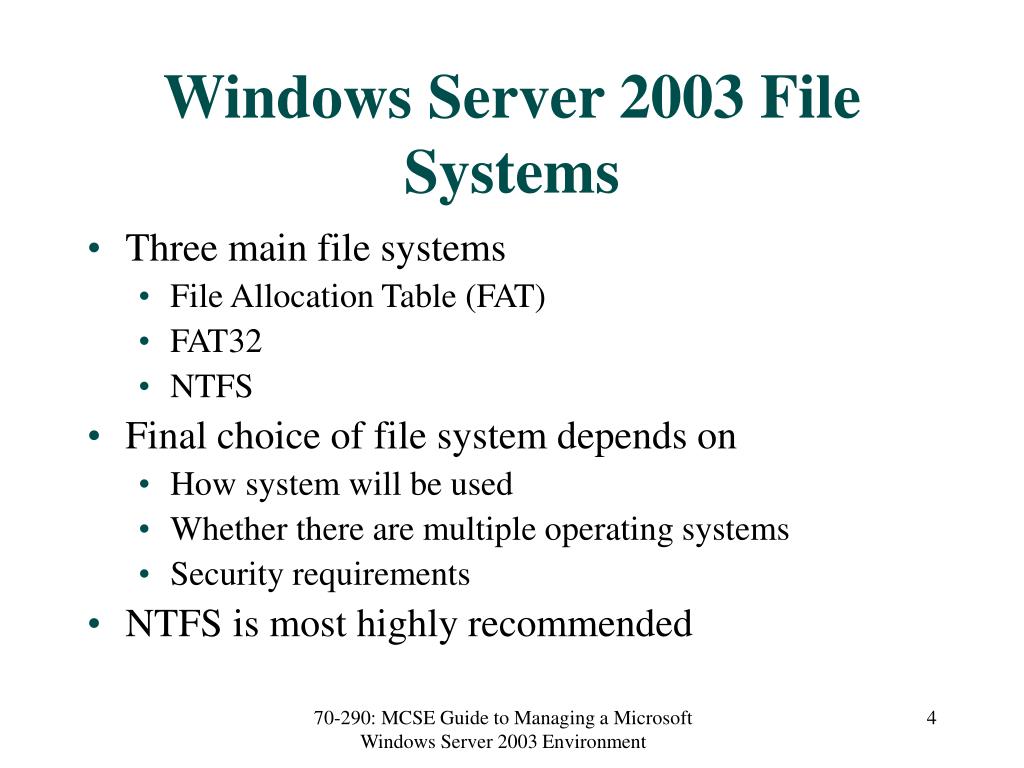

  4. Windows Server 2003 File Systems • Three main file systems • File Allocation Table (FAT) • FAT32 • NTFS • Final choice of file system depends on • How system will be used • Whether there are multiple operating systems • Security requirements • NTFS is most highly recommended 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

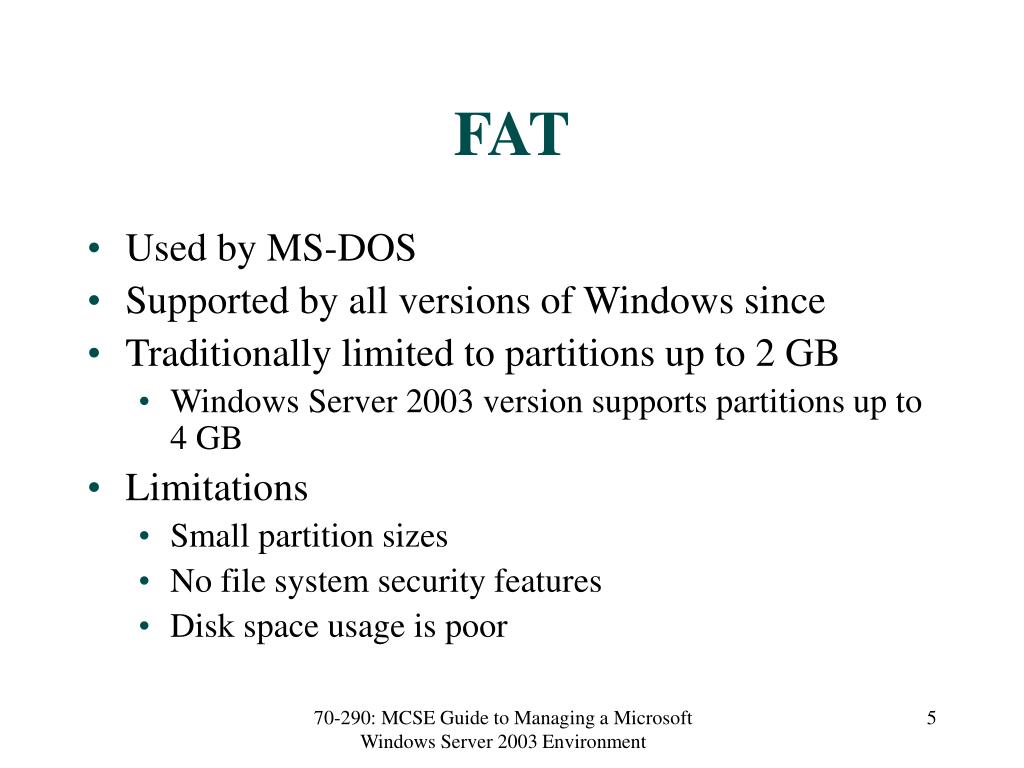

  5. FAT • Used by MS-DOS • Supported by all versions of Windows since • Traditionally limited to partitions up to 2 GB • Windows Server 2003 version supports partitions up to 4 GB • Limitations • Small partition sizes • No file system security features • Disk space usage is poor 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  6. FAT32 • A derivative of the FAT file system • Supports partition sizes up to 2 TB • Still does not provide advanced security features • Cannot configure permissions on file and folder resources 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  7. NTFS • Introduced with Windows NT operating system • Current version (version 5) • Windows NT 4.0 • Windows 2000 • Windows XP • Windows Server 2003 • Theoretically supports partition sizes of up to 16 Exabytes (EB) • Practically supports maximum partition sizes from 2 TB to 16 TB 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  8. NTFS (continued) • Advantages of NTFS • Greater scalability and performance on larger partitions • Support for Active Directory on systems configured as domain controllers • Ability to configure security permissions on individual files and folders • Built-in support for compression and encryption • Ability to configure disk quotas for individual users • Support for Remote Storage • Recovery logging of disk activities 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

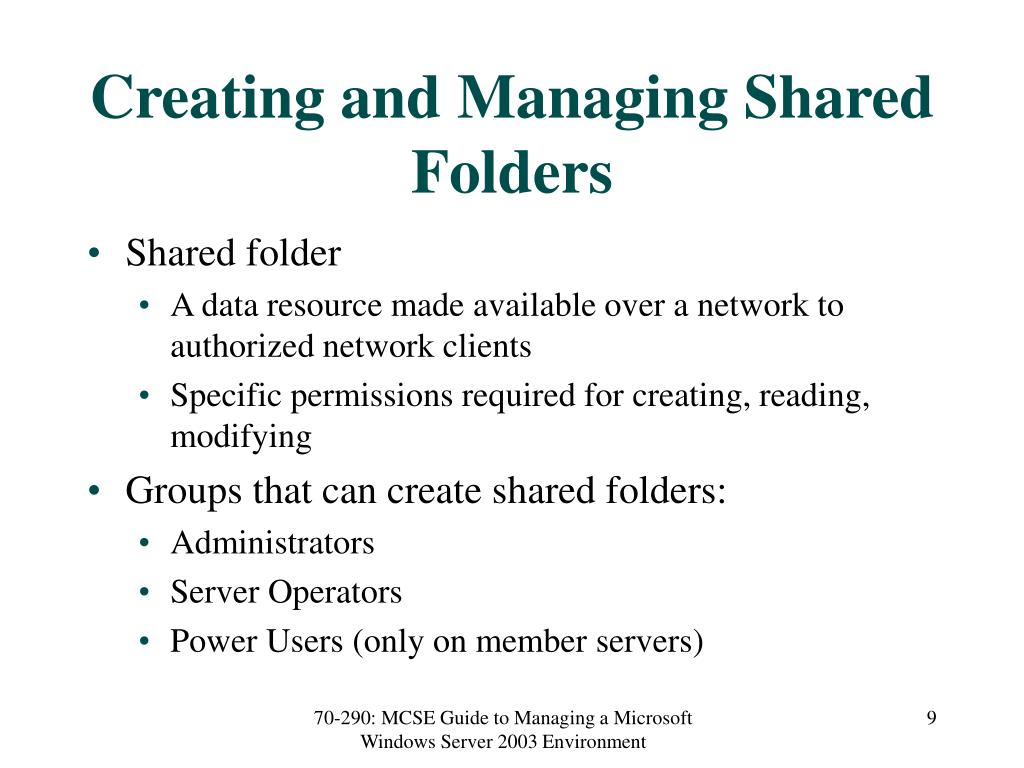

  9. Creating and Managing Shared Folders • Shared folder • A data resource made available over a network to authorized network clients • Specific permissions required for creating, reading, modifying • Groups that can create shared folders: • Administrators • Server Operators • Power Users (only on member servers) 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  10. Creating and Managing Shared Folders (continued) • Several ways to create shared folders • Two important methods • Windows Explorer Interface • Computer Management console • Also allows shared folders to be monitored 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  11. Using Windows Explorer • Used since Windows 95 • Can create, maintain, and share folders • Folders can be on any drive connected to the computer • Folders are shared in Windows Explorer by accessing the Sharing tab of folder’s properties 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  12. Using Windows Explorer (continued) 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

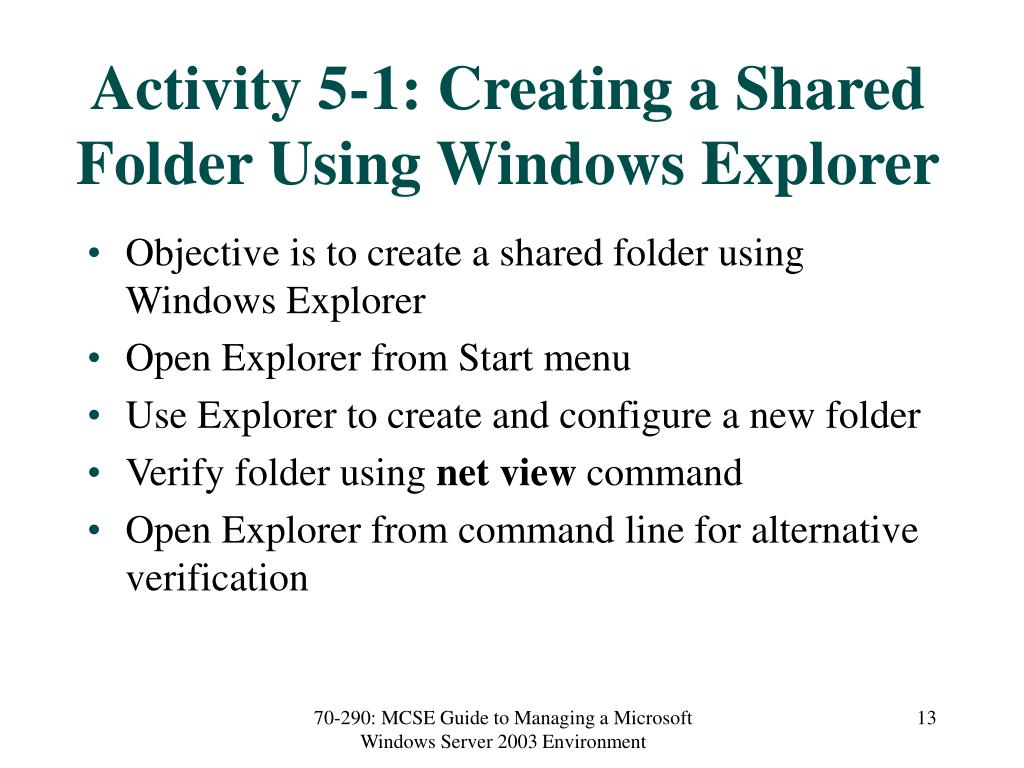

  13. Activity 5-1: Creating a Shared Folder Using Windows Explorer • Objective is to create a shared folder using Windows Explorer • Open Explorer from Start menu • Use Explorer to create and configure a new folder • Verify folder using net view command • Open Explorer from command line for alternative verification 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  14. Activity 5-1 (continued) 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  15. Using Windows Explorer (continued) • Shared name of folder does not have to be the actual file name • Hand icon used to indicate shared status • Shared folders can be hidden from My Network Places and Network Neighborhood • Place dollar sign ($) after name, e.g., Salary$ • Number of hidden administrative shares created automatically at installation 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

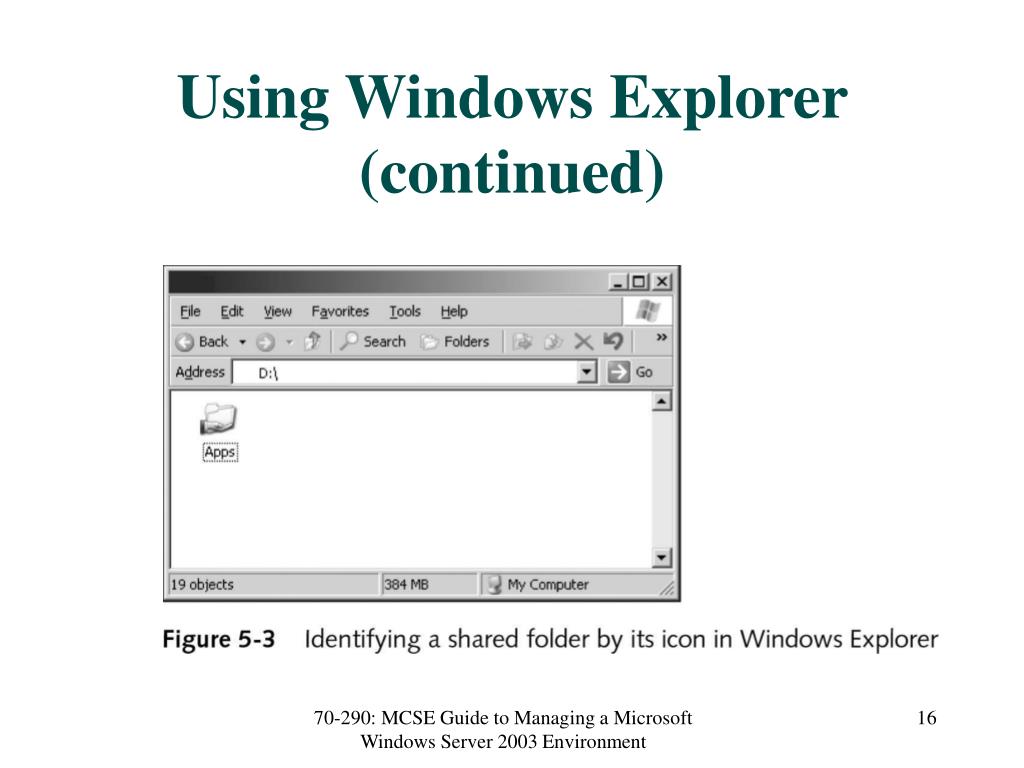

  16. Using Windows Explorer (continued) 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

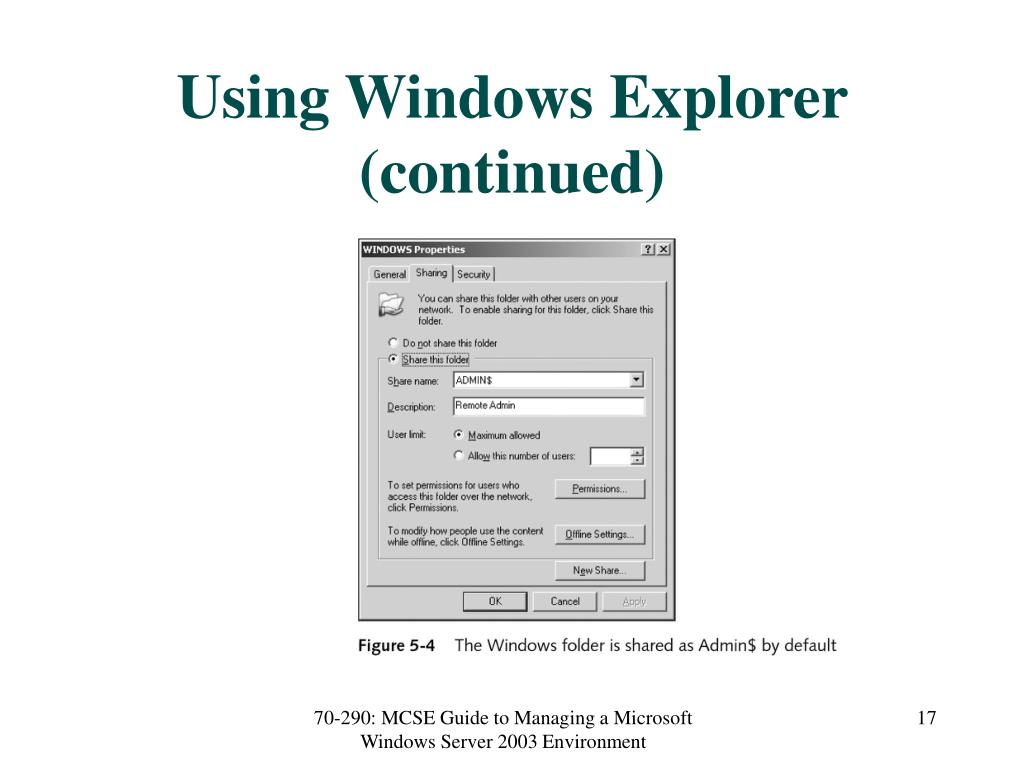

  17. Using Windows Explorer (continued) 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  18. Using Computer Management • Computer Management console is a pre-defined Microsoft Management Console (MMC) • Allows you to share and monitor folders for local and remote computers • Allows you to stop sharing if desired 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  19. Using Computer Management (continued) • Share a Folder Wizard • Used to create folders in Shared Folders section of Computer Management • Used to provide preconfigured or manual permissions • All users have read-only access • Administrators have full access; others have read-only access • Administrators have full access; others have read and write access • Custom share and folder permissions 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

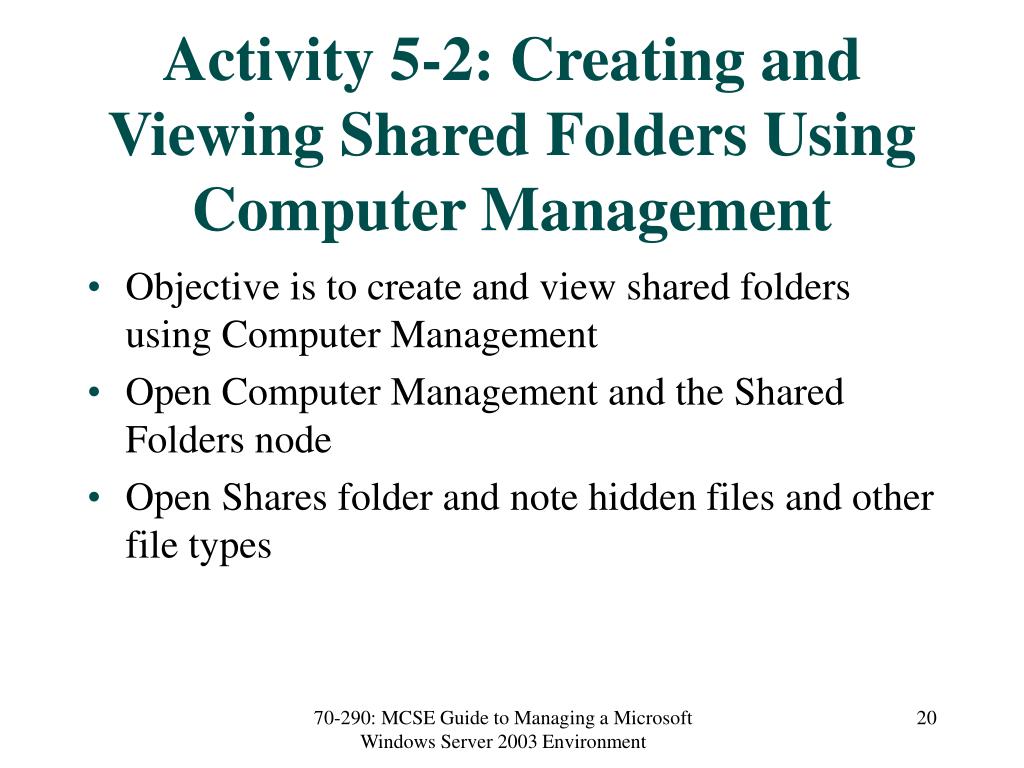

  20. Activity 5-2: Creating and Viewing Shared Folders Using Computer Management • Objective is to create and view shared folders using Computer Management • Open Computer Management and the Shared Folders node • Open Shares folder and note hidden files and other file types 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

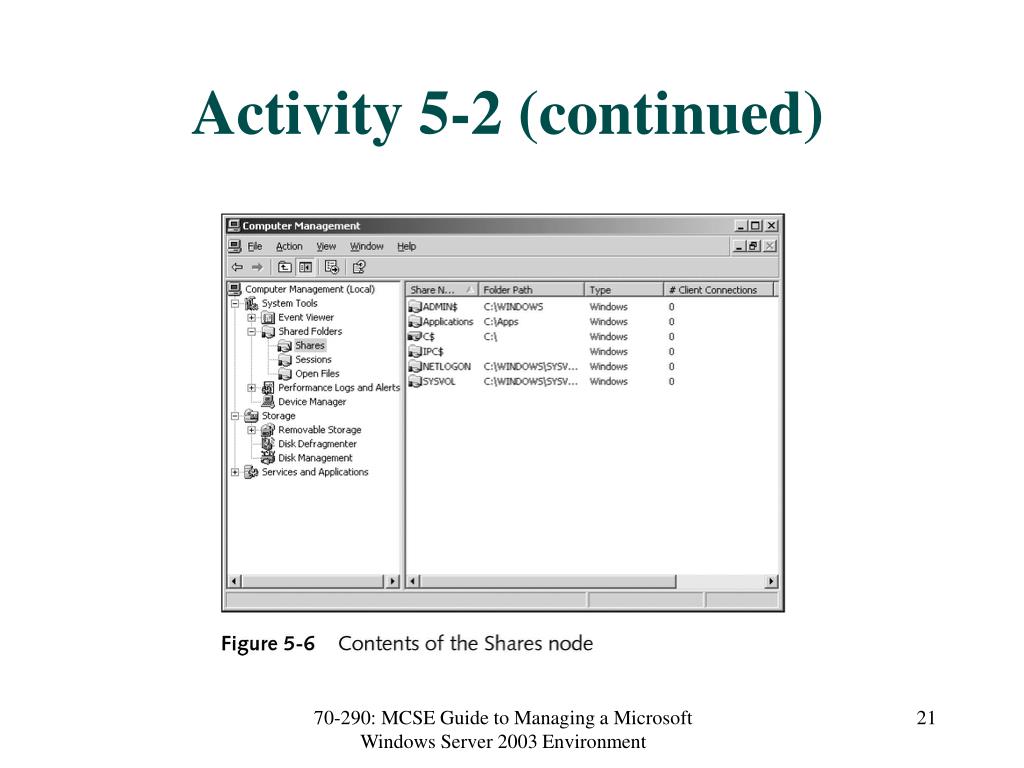

  21. Activity 5-2 (continued) 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  22. Activity 5-2 (continued) • Open the Share a Folder Wizard • Configure the folder attributes • Configure the folder permissions • Verify folder accessibility from command line 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  23. Activity 5-2 (continued) 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  24. Monitoring Access to Shared Folders • Monitoring involves • Who is using shared files • What shared files are open at any given time • Other functions • Disconnect users from a share • Send network alert messages • Primary monitoring tool is Computer Management 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  25. Monitoring Access to Shared Folders (continued) 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  26. Managing Shared Folder Permissions • A shared folder has a discretionary access control list (DACL) • Contains a list of user or group references that have been allowed or denied permissions • Each reference is an access control entry (ACE) • Accessed from Permissions button on Sharing tab of folder’s properties • Permissions only apply to network users, not those logged on directly to local machine 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  27. Managing Shared Folder Permissions (continued) 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  28. Managing Shared Folder Permissions (continued) • To deny access to a user or group • Windows Server 2003 does not include No Access share permission • Must explicitly deny access to each individually • Default permission is read access for Everyone group • Should be immediately addressed when a share is created • Folder permissions are inherited by all contained objects 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

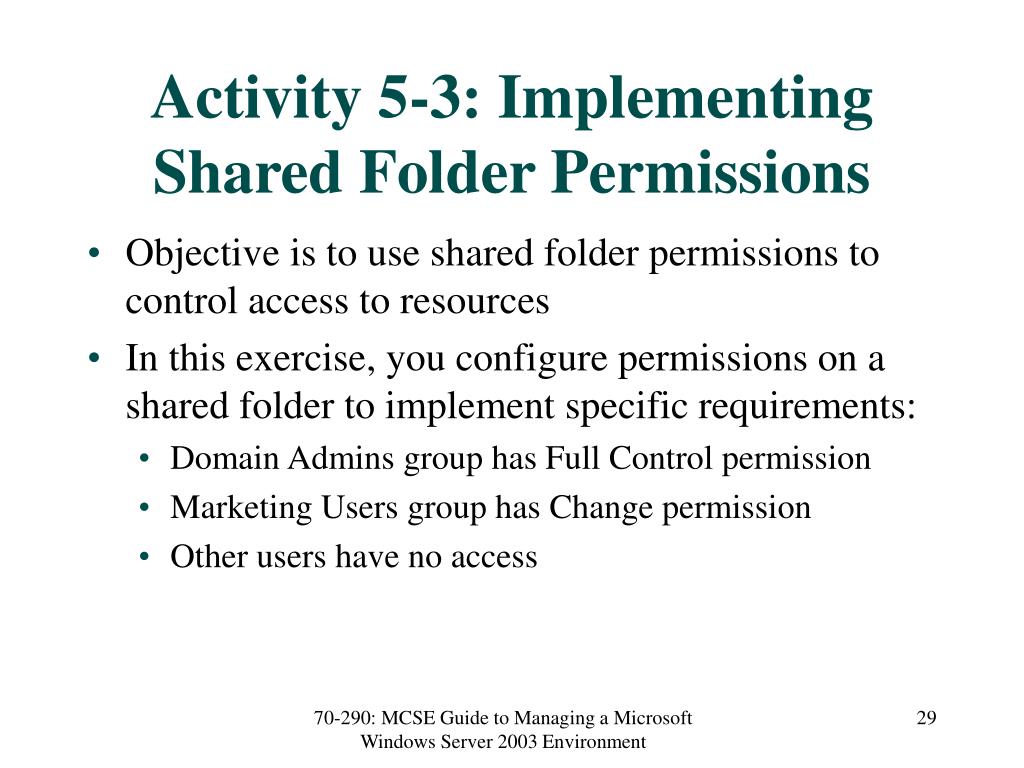

  29. Activity 5-3: Implementing Shared Folder Permissions • Objective is to use shared folder permissions to control access to resources • In this exercise, you configure permissions on a shared folder to implement specific requirements: • Domain Admins group has Full Control permission • Marketing Users group has Change permission • Other users have no access 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  30. NTFS Permissions • Resources located on an NTFS partition or volume can be given NTFS permissions • An administrator must • Know how permissions are applied • Standard and special NTFS permissions available • How effective permissions are determined 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

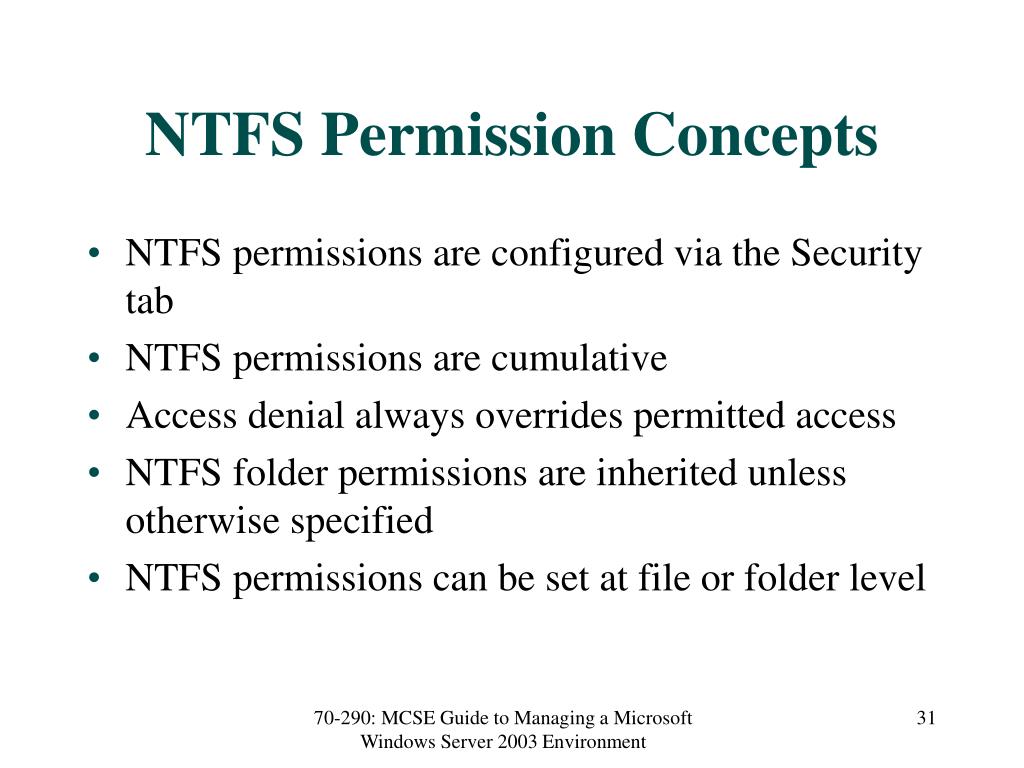

  31. NTFS Permission Concepts • NTFS permissions are configured via the Security tab • NTFS permissions are cumulative • Access denial always overrides permitted access • NTFS folder permissions are inherited unless otherwise specified • NTFS permissions can be set at file or folder level 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

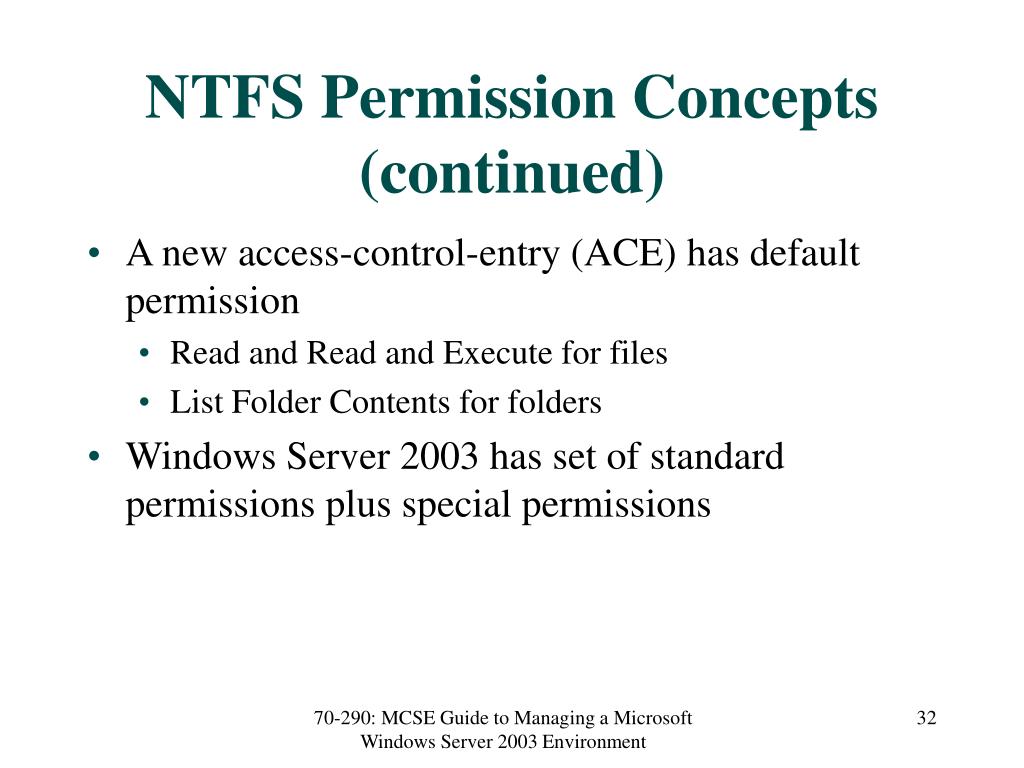

  32. NTFS Permission Concepts (continued) • A new access-control-entry (ACE) has default permission • Read and Read and Execute for files • List Folder Contents for folders • Windows Server 2003 has set of standard permissions plus special permissions 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  33. NTFS Permission Concepts (continued) 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  34. Activity 5-4: Implementing Standard NTFS Permissions • Objective is to configure and test NTFS permissions on a local folder • Implement standard NTFS permissions on a folder • Review default permissions • Explore behavior of permission inheritance 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  35. Special NTFS Permissions • Can provide more or less access than standard permissions • Special permissions accessed from Advanced button in the Security tab on Properties dialog box for resource • Permission Entry dialog box enables assignment of permissions and control of inheritance settings 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  36. Special NTFS Permissions (continued) 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  37. Special NTFS Permissions (continued) • Inheritance settings • This folder only • This folder, subfolders, and files (default) • This folder and subfolders • This folder and files • Subfolders and files only • Subfolders only • Files only 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  38. Special NTFS Permissions (continued) 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  39. Special NTFS Permissions (continued) 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  40. Activity 5-5: Configuring Special NTFS Permissions • Objective is to view, configure, and test special NTFS permissions • Deny a group the ability to read the NTFS permissions associated with a folder • Verify that access has been denied 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  41. Determining Effective Permissions • Permissions that actually apply to a user can be the result of membership in multiple groups • Prior to Windows Server 2003, determining effective permissions was done manually • In Windows Server 2003, there is an Effective Permissions tab in Advanced Security Settings dialog box for resource • Shows specific permissions for a user or group 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  42. Determining Effective Permissions (continued) 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  43. Activity 5-6: Determining Effective NTFS Permissions • Objective is to view effective permissions for a user on an NTFS folder • Open the Effective Permissions tab for a test folder • Enter the name of the user • Review the permissions specifically granted to that user for that folder • Repeat with a group 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  44. Combining Shared Folder and NTFS Permissions • NTFS permissions can be combined with share permissions • When accessing a share across a network, if both apply, use most restrictive • When accessing a file locally, only NTFS permissions apply 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

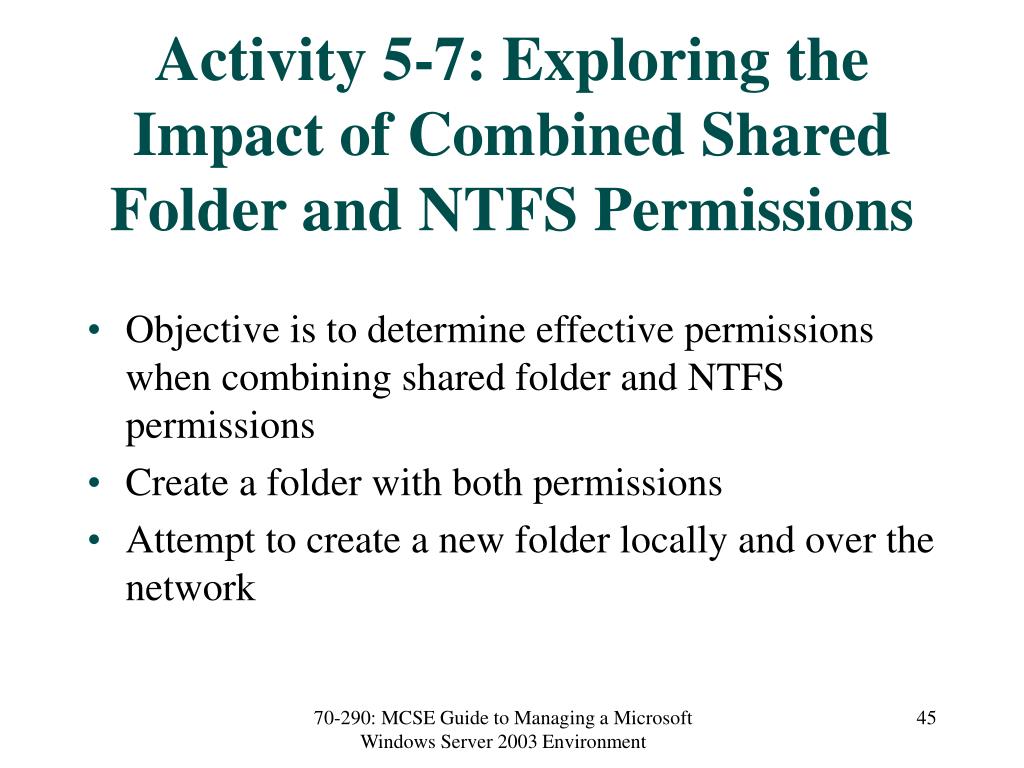

  45. Activity 5-7: Exploring the Impact of Combined Shared Folder and NTFS Permissions • Objective is to determine effective permissions when combining shared folder and NTFS permissions • Create a folder with both permissions • Attempt to create a new folder locally and over the network 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  46. Converting a FAT Partition to NTFS • For highest security, partitions and volumes should be configured to use NTFS • Command-line utility, CONVERT, will convert FAT or FAT32 partitions and volumes to NTFS • All existing files and folders are retained • CONVERT cannot convert NTFS to FAT or FAT32 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

  47. Activity 5-8: Converting a FAT32 Partition to NTFS • Objective is to convert a FAT32 partition to NTFS file system • Create a small FAT32 partition on server (using New Partition Wizard) • Create new file and folder on the partition • Use CONVERT to convert the partition to NTFS • Review permissions on the converted folder 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

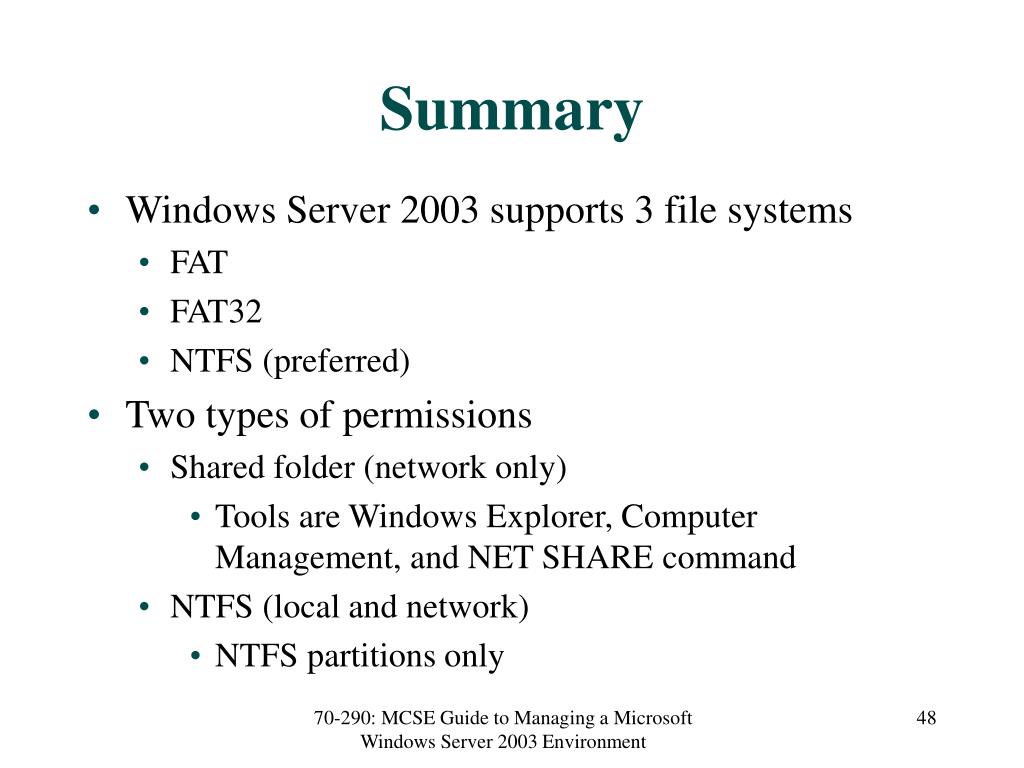

  48. Summary • Windows Server 2003 supports 3 file systems • FAT • FAT32 • NTFS (preferred) • Two types of permissions • Shared folder (network only) • Tools are Windows Explorer, Computer Management, and NET SHARE command • NTFS (local and network) • NTFS partitions only 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment

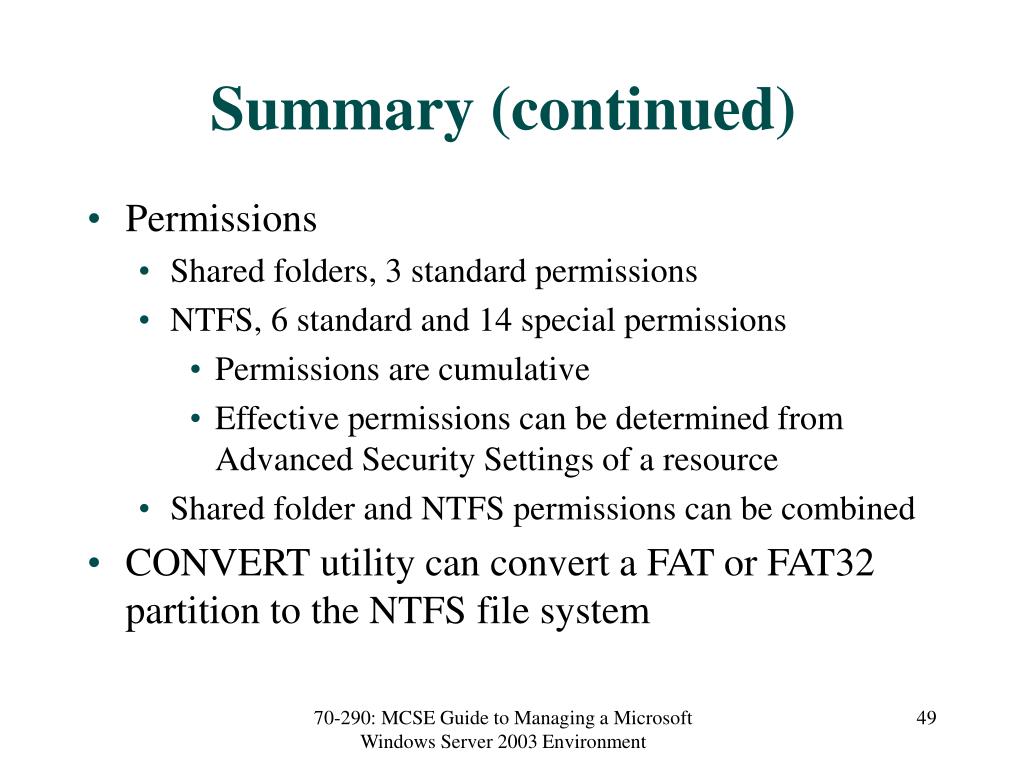

  49. Summary (continued) • Permissions • Shared folders, 3 standard permissions • NTFS, 6 standard and 14 special permissions • Permissions are cumulative • Effective permissions can be determined from Advanced Security Settings of a resource • Shared folder and NTFS permissions can be combined • CONVERT utility can convert a FAT or FAT32 partition to the NTFS file system 70-290: MCSE Guide to Managing a Microsoft Windows Server 2003 Environment
