pathology of the thyroid gland

Pathology of the Thyroid Gland

Prof. Dipak Shah

Department of Pathology

UWI, Mona

diseases of the thyroid gland
Diseases of the Thyroid Gland
  • Congenital diseases
  • Inflammation
  • Functional abnormality
  • Diffuse and Multinodular goiters
  • Neoplasia


  • Acute illness with pain
    • Infectious
      • Acute
      • Chronic
    • Subacute or granulomatous (De Quervain’s)
  • Little inflammation with dysfunction
    • Subacute lymphocytic thyroiditis
    • Fibrous (Riedel) thyroiditis
  • Autoimmune
    • Hashimoto thyroiditis
hashimoto thyroiditis
  • Most common cause of hypothyroidism
  • Autoimmune, non-Mendelian inheritance
  • 45-65 years, F:M = 10-20:1
  • Painless symmetrical enlargement
  • Risk of developing
    • B-cell non-Hodgkin’s lymphoma
    • Other concomitant autoimmune diseases
      • Endocrine and non-endocrine
hashimoto thyroiditis pathogenesis
Hashimoto ThyroiditisPathogenesis
  • Immune systems reacts against a variety of thyroid antigens
  • Progressive depletion of thyroid epithelial cells which are gradually replaced by mononuclear cells → fibrosis
  • Immune mechanisms may includes:
    • CD8+ cytotoxic T cell-mediated cell death
    • Cytokine-mediated cell death
    • Binding of antithyroid antibodies → antibody dependent cell-mediated cytotoxicity
hashimoto thyroiditis6

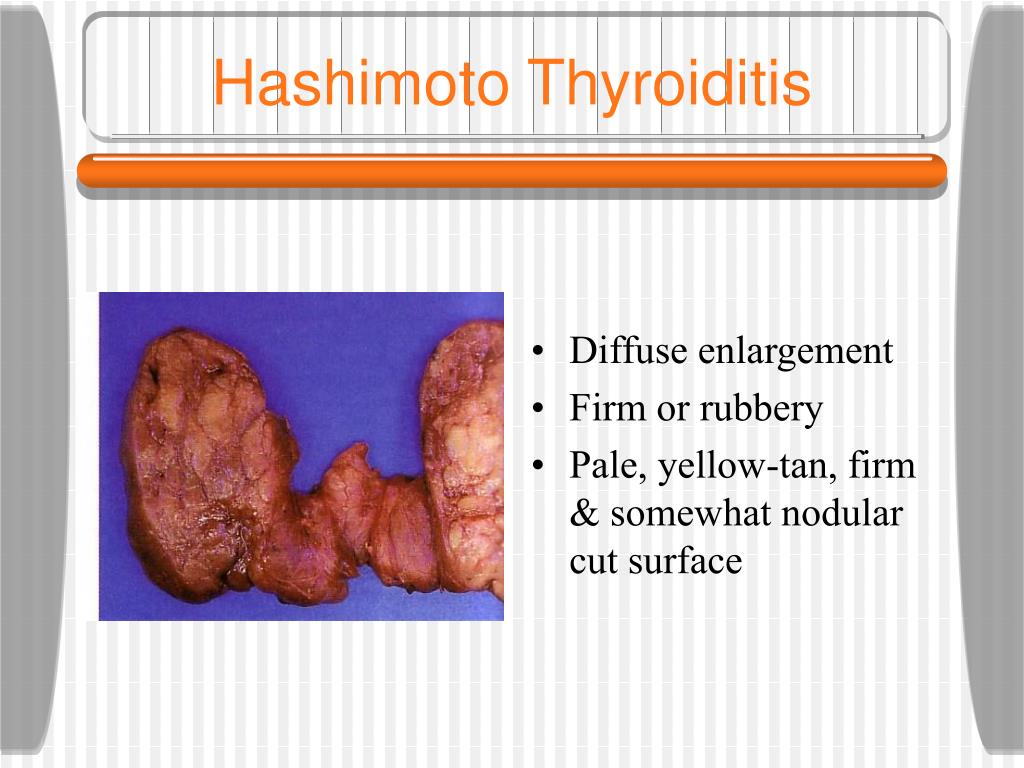

Hashimoto Thyroiditis
  • Diffuse enlargement
  • Firm or rubbery
  • Pale, yellow-tan, firm & somewhat nodular cut surface
hashimoto thyroiditis7
Hashimoto Thyroiditis
  • Massive lymphoplasmcytic infiltration with lymphoid follicles formation
  • Destruction of thyroid follicles
  • Remaining follicles are small and many are lined by Hurthle cells
  • Increased interstitial connective tissue
functional abnormality
Functional Abnormality
  • Hyperfunction
    •  in level of hormone → toxic effects
      • Due to:
        • Diffuse hyperplasia
        • Hyperfunctioning multinodular goiter
        • Hyperfunctioning adenoma
        • Subacute lymphocytic (painless) thyroiditis
functional abnormality9
Functional Abnormality
  • Hypofunction
    •  in level of hormone → impair development in infants and slowing of physical and mental ability in adults
      • Due to:
        • Postablation
          • Surgery
          • Radiation
        • Autoimmune thyroiditis
        • Drugs
        • Dyshormonogenetic
graves disease
Graves Disease
  • Most common cause of endogenous hyperthyroidism
  • Characterized by hyperthyroidism, ophthalmopathy with exophthalmos and dermopathy (pretibial myxedema)
  • Autoimmune disease with genetic susceptibility associated with HLA-B8 and DR3
  • Female:Male = 7:1
  • 3rd to 4th decades
  • Diffuse enlargement with audible bruit
  • Wide,staring gaze,lid lag,exophthalmos,pretibial myxedema
  • ↑ levels of free T4 & T3 and ↓ levels of TSH in blood
  • ↑ uptake of radioactive iodine
graves disease11
Graves’ Disease

Autoimmune disease with breakdown of helper-T-cell tolerance

Excessive production of TWO thyroid autoantibodies:

  • Thyroid-stimulating antibody (TSAb) &
  • Growth-stimulating antibody (GSAb)

Antibodies bind to the TSH receptor of the follicular cell

Stimulation of the cell resulting in:

Increased levels of thyroid hormones &

Hyperplasia of the thyroid gland

Hyperthyroidism and Thyroid gland enlargement

graves disease12
Graves Disease
  • Symmetrical enlargement of thyroid gland
  • Cut-surface is homogenous, soft and appear meaty
  • Hyperplasia and hypertrophy of follicular cells
diffuse multinodular goiters
Diffuse & Multinodular goiters
  • Reflects impaired synthesis of thyroid hormone most often caused by iodine deficiency
  • Impairment leads to compensatory ↑ in TSH levels → hypertrophy and hyperplasia of follicular cells → gross enlargement of gland
  • Euthyroid metabolic state
  • Degree of enlargement is proportional to level and duration
diffuse nontoxic goiter
Diffuse nontoxic goiter
  • Diffuse non-toxic (simple) goiter
    • colloid goiter
    • Endemic
    • sporadic (dyshormonogenetic)
endemic goiter
Endemic Goiter
  • Low iodine content in drinking water & food (Himalayas, Alps, Andes, areas far from the sea)
  • Prevalence decreasing due to prophylactic iodination of salt
  • Iodine deficiency causes decreased hormone levels & consequent elevation in TSH
sporadic goiter
Sporadic Goiter
  • Commonest type of goiter
  • Euthyroid, but may be hypo- or hyper-
  • Mostly idiopathic, but RARELY, may be caused by:
    • Drugs used in Rx of hyperthyroidism
    • Goitrogens e.g. cauliflower, cabbage, cassava
    • Suboptimal iodine intake
    • Hereditary enzymatic defects
multinodular goiter
Multinodular goiter
  • Recurrent episodes of hyperplasia and involution leads to irregular enlargement
  • All long standing diffuse endemic and sporadic goiter may eventually convert to multinodular goiter
  • Causes most extreme enlargement and may be mistaken for neoplasm
  • May arise due to variable response of follicular cells to external stimuli such as trophic hormones
  • With uneven follicular hyperplasia, generation of new follicles and uneven accumulation of colloid → rupture of follicle and vessels →hemorrhage, scarring & calcification → nodularity
multinodular goiter18
Multinodular Goiter
  • Asymmetric enlargement
  • Multinodular
  • Haemorrhage
  • Calcification
  • Fibrosis
  • Cystic degeneration
multinodular goiter19
Multinodular Goiter
  • Numerous follicles varying in size
  • Recent haemorrhage
  • Haemosiderin
  • Calcification
  • Cystic degeneration
  • +/- dominant nodule
thyroid neoplasms
Thyroid Neoplasms

I. Primary Tumours

  • Epithelial
  • Malignant Lymphomas
  • Mesenchymal tumours

II. Metastatic Tumours

epithelial thyroid neoplasms
Epithelial Thyroid Neoplasms
  • Tumours of follicular cells
    • Benign (adenomas)
      • Follicular adenoma
    • Malignant (carcinomas)
      • Follicular carcinoma (10-20%)
      • Papillary carcinoma (75-85%)
      • Undifferentiated (anaplastic) carcinoma (<5%)
  • Tumours of C-cells
    • Medullary thyroid carcinoma (MTC - 5%)
follicular adenoma
Follicular Adenoma
  • Benign, encapsulated tumor showing evidence of follicular differentiation
  • Common
  • Predominantly young to middle women
  • Presents as solitary thyroid nodule
  • Painless nodular mass, cold on isotopic scan
follicular adenoma23
Follicular Adenoma
  • Solitary, Variably sized, encapsulated, well-circumscribed with homogenous gray-white to red-brown cut-surface
  • +/- degenerative changes
follicular carcinoma
Follicular Carcinoma
  • Second most common form, 10-20%
  • Females > Males, average age ~ 45 - 55 yr
  • Rare in children
  • Solitary nodule, painless, cold on isotopic scan
  • Widely invasive Vs minimaly invasive
  • 50% 10 yr survival Vs 90%10 yr survival
  • Haematogenous route is preferred mode of spread
follicular carcinoma25
Follicular Carcinoma
  • Solitary round or oval nodule
  • Thick capsule
  • Composed of follicles
  • Capsular invasion or vascular invasion within our outside capsular wall
papillary carcinoma
Papillary Carcinoma
  • Commonest thyroid malignancy, 75-85%
  • Female:Male = 2.5:1
  • Mean age at onset = 20 - 40 yr
  • May affect children
  • Prior head & neck radiation exposure
  • Indolent, slow-growing painless mass cold on isotopic scan
  • Cervical lymphadenopathy may be presenting feature
papillary carcinoma27
Papillary Carcinoma
  • Variable size (microscopic to several cm)
  • Solid or cystic
  • Infiltrative or encapsulated
  • Solitary or multicentric (20%)
papillary carcinoma28
Papillary Carcinoma
  • Papillae or follicles
  • Psammoma bodies
papillary carcinoma29
Papillary Carcinoma

Nuclear Features

  • Optically clear (ground glass, Orphan Annie) nuclei
  • Nuclear pseudoinclusions or nuclear grooves
papillary carcinoma prognosis
Papillary CarcinomaPrognosis

Excellent but following factors play important role:

  • Age and sex
  • Size
  • Multicentricity
  • Extra-thyroid extension
  • Distant metastasis
  • Total encapsulation, pushing margin of growth & cystic change
anaplastic carcinoma
Anaplastic Carcinoma
  • Rare; < 5% of thyroid carcinomas
  • Highly malignant and generally fatal < 1yr.
  • Elderly  65 yrs; females slightly > males
  • Rapidly enlarging bulky neck mass
  • Dysphagia, dyspnoea, hoarseness
anaplastic carcinoma32
Anaplastic Carcinoma
  • Large, firm, necrotic mass
  • Frequently replaces entire thyroid gland
  • Extends into adjacent soft tissue, trachea and oesophagus
  • Highly anaplastic cell on histology with:
    • Giant, spindle,small or mix cell population
  • Foci of papillary or follicular differentiation
anaplastic carcinoma33
Anaplastic Carcinoma
  • Cellular pleomorphism
  • +/- multinucleated giant cells
  • High mitotic activity
  • Necrosis
medullary thyroid carcinoma mtc
Medullary Thyroid Carcinoma (MTC)
  • Malignant tumour of thyroid C cells producing cacitonin
  • 5 % of all thyroid malignancies
  • Sporadic (80%)
  • Rest in the setting of MEN IIA or B or as familial without associated MEN syndrome
medullary thyroid carcinoma mtc35
Medullary Thyroid Carcinoma (MTC)

Sporadic MTC

  • Middle-aged adults
  • Female:male = 1.3:1
  • Unilateral involvement of gland
  • +/- cervical lymph node metastases
  • Indolent course with 60-70% 5-yr survival after thyroidectomy
multiple endocrine neoplasia types iia iib
Multiple Endocrine Neoplasia Types IIA & IIB
  • Germ-line mutation in Ret protooncogene on chromosome 10q11.2
  • MEN IIA: MTC, phaeochromocytoma, parathyroid adenoma or hyperplasia
  • MEN IIB: MTC, phaeochromocytoma, mucosal ganglioneuromas, Marfanoid habitus, other skeletal abnormalities
medullary thyroid carcinoma mtc37
Medullary Thyroid Carcinoma (MTC)

Associated with MEN IIA

  • Younger patients in twenties
  • Multicentric and bilateral
  • Slow growing

Associated with MEN IIB

  • Even younger patientsin teens
  • Aggressive with early metastasis
  • Poor prognosis
medullary thyroid carcinoma mtc38

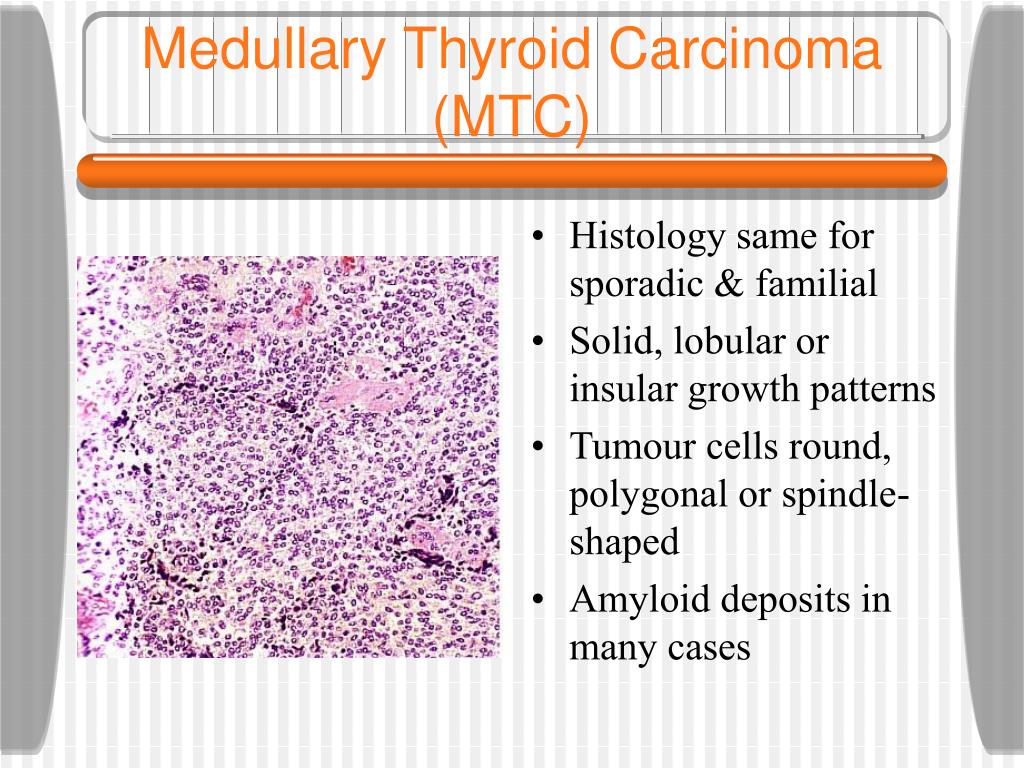

Medullary Thyroid Carcinoma (MTC)
  • Histology same for sporadic & familial
  • Solid, lobular or insular growth patterns
  • Tumour cells round, polygonal or spindle-shaped
  • Amyloid deposits in many cases
medullary thyroid carcinoma mtc39
Medullary Thyroid Carcinoma (MTC)
  • Amyloid deposits stain orange-red with Congo Red stain
prognosis of thyroid carcinomas
Prognosis of Thyroid Carcinomas

Papillary Best prognosis



Anaplastic Worst prognosis

secondary tumours
Secondary Tumours
  • Direct extensions from: larynx, pharynx, oesophagus etc.
  • Metastasis from: renal cell carcinoma, large intestinal carcinoma, malignant melanoma, lung carcinoma, breast carcinoma etc.
solitary thyroid nodule
Solitary thyroid nodule
  • Papillary carcinoma
  • Follicular carcinoma
  • Medullary carcinoma
  • Follicular adenoma
  • Hyperplastic (dominant) nodule
  • Metastatic neoplasms
congenital thyroid diseases

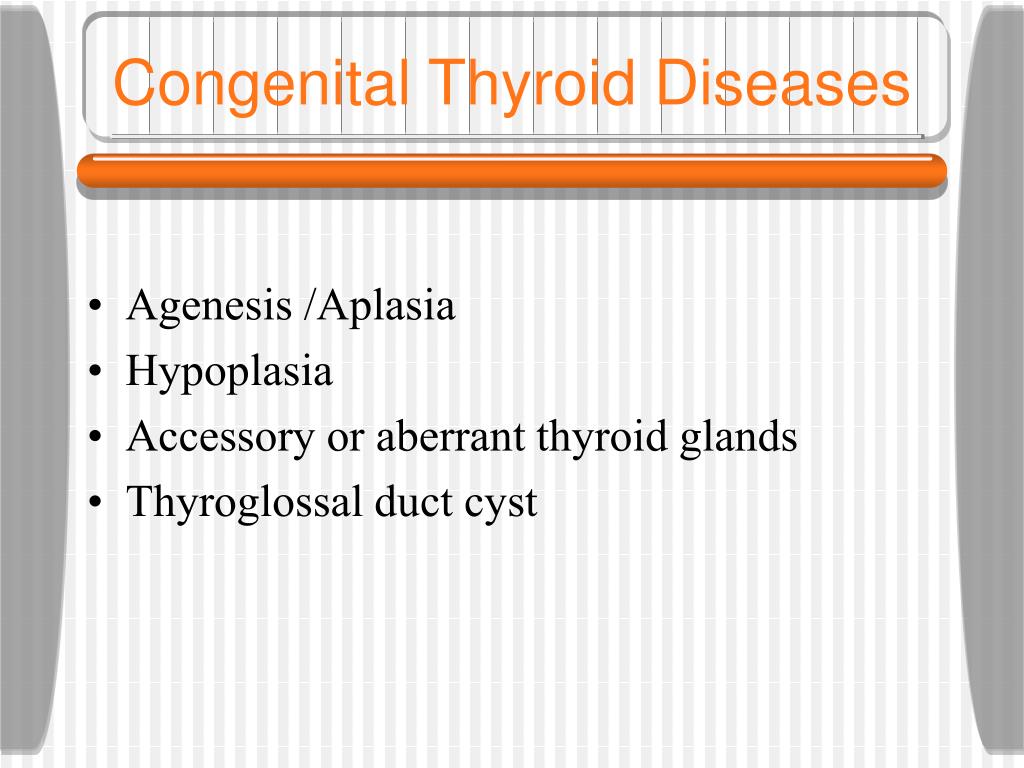

Congenital Thyroid Diseases
  • Agenesis /Aplasia
  • Hypoplasia
  • Accessory or aberrant thyroid glands
  • Thyroglossal duct cyst
thyroglossal duct cyst
Thyroglossal Duct Cyst
  • Children
  • Failure of regression
  • Neck, medial
  • Squamous or columnar lining
  • Complications: inflammation, sinus tracts
