Presentation Transcript

Must know

  • How to examine the neck and diagnose thyroid enlargement from other neck lumps.

  • Clinical presentation of hypo and hyper

  • Meaning and interpretaion of thyroid function tests.

  • How to investigate and manage a patient with STN

  • Clinical features ,dx and management of thyroid neoplasms

Anatomy and physiology


Midline swellings

  • Thyroid enlargement

  • Thyroglossal cyst

  • Dermoid cyst


  • F:M 10:1

  • Due to commonly hashimotos[TPO AND ANTI THYROGLOBULIN IS RAISED]

  • Symptoms and signs

  • Exam

  • Lymphoma can develop on a back ground of autoimmune disease

  • TSH,T4 ,T3

  • TX Thyroxine


  • Causes include

  • Grave’s

  • Toxic multinodular goiter

  • Solitary toxic adenoma

  • Tx with thyroid uptake drugs

  • radioactive iodine

  • surgery

Thyroid gland

  • Majority are non toxic

  • Some can become toxic ( plummers disease)

  • May extend retrosternally if large causing trachael deviation, compression and strider

  • O/E multinodular if there is dominant nodule then this should be investigated as the risk of malignancy in this nodule is about 10%.

Thyroid gland

  • TSH : Low if toxic

  • FNA

  • US

  • X-ray of thoracic inlet

  • Tx – Total for non-toxic if there is retrosternal ext., trachael comp or cosmotically unacceptable

  • If toxic - tx first the either total or radioactive iodine

Solitary thyroid nodule

  • 5% Of female population. But only 5% are malignant.

  • Causes 1- thyroid cyst

    2- degenerative thyroid nodule

    3- benign follicular adenoma

    4- differentiated thyroid ca

Thyroid gland

  • History

  • Feature suggestive of malignancy

    1- previous irradiation (as a child)

    2- hoarsness

    3- family Hx (papillary)

Thyroid gland

  • Investigation

  • Exclude solitary toxic adenoma (where TSH is suppressed) + malignancy therefore TSH and FNA most important

  • If suspicious on FNA then for surgery as 30% are malignant

  • Ultrasound to distinguish solid from cystic or dominant nodule within MNG (50% STN)

Thyroid gland

Thyroid tumours
Thyroid tumours

Benign thyroid tumours

  • Most are follicular adenomas

  • Papillary adenomas are rare

  • All papillary tumours should be considered malignant

Follicular adenoma
Follicular adenoma

  • Of all follicular lesions-80% benign and 20% malignant

  • They are smooth and discrete lesions with glandular or acinar pattern

  • They are incapsulated usually 2-4 cm in diameter

  • Adenomas can not be differentiated from carcinoma on FNA cytology

  • Requires histological assessment of capsular invasion

Malingnat thyroid tumours
Malingnat thyroid tumours

  • Differentiated thyroid cancer accounts for 80% of thyroid neoplasms

  • Female : Male ratio is 4:1

  • Usually presents as solitary thyroid nodule in young/middle age adult

  • Nodule more likely to be malignant in man or child

  • Papillary and follicular tumours are biologically very different

Comparison of papillary and follicular tumours
Comparison of papillary and follicular tumours

  • Papillary tumours Follicular tumours

  • Multifocal Solitary

  • Unencpasulated Encapsulated

  • Lymphatic spread Haematogenous spread

  • Metastasize to Metastasize to lung.

    regional bone and brain

Papillary and mixed tumours
Papillary and mixed tumours

  • Accounts fro 70% Of Ca. thyroid.

  • 20-40 yrs

  • 50% tumours are less than 2cm diameter at presentation

  • Tumours less than 1cm diameter regarded as minimal or micropapillary lesoins

  • Psammoma bodies and “orphan Annie” nuclei are characteristic histologicalfeatures

Thyroid gland

Thyroid gland

  • Many tumours are TSH dependent contralateral lobe

  • TSH suppression with post-operative thyroxine appropriate

  • Thyroxine reduces recurrence and improves survival

  • 80% nodes have microscopic involvement

  • Role of prophylactic lymph node dissection at time of initial surgery unclear

Thyroid gland

Follicular tumours
Follicular tumours contralateral lobe

  • 40 – 50 yrs

  • Can not differentiate follicular adenoma and carcinoma on FNA cytology

  • Treatment of all follicular neoplasms is thyriod lobectomy with frozen section

  • If frozen section confirms carcinoma- total thyriodectomy

  • If frozen section confirms adenoma-No further surgery required

  • Total thyroidectomy allows detection of metastased using 123/Scanning during follow up

  • All patients require suppressive thyroxine therapy

Thyroid gland

  • Follow up of thyroid carcinoma contralateral lobe

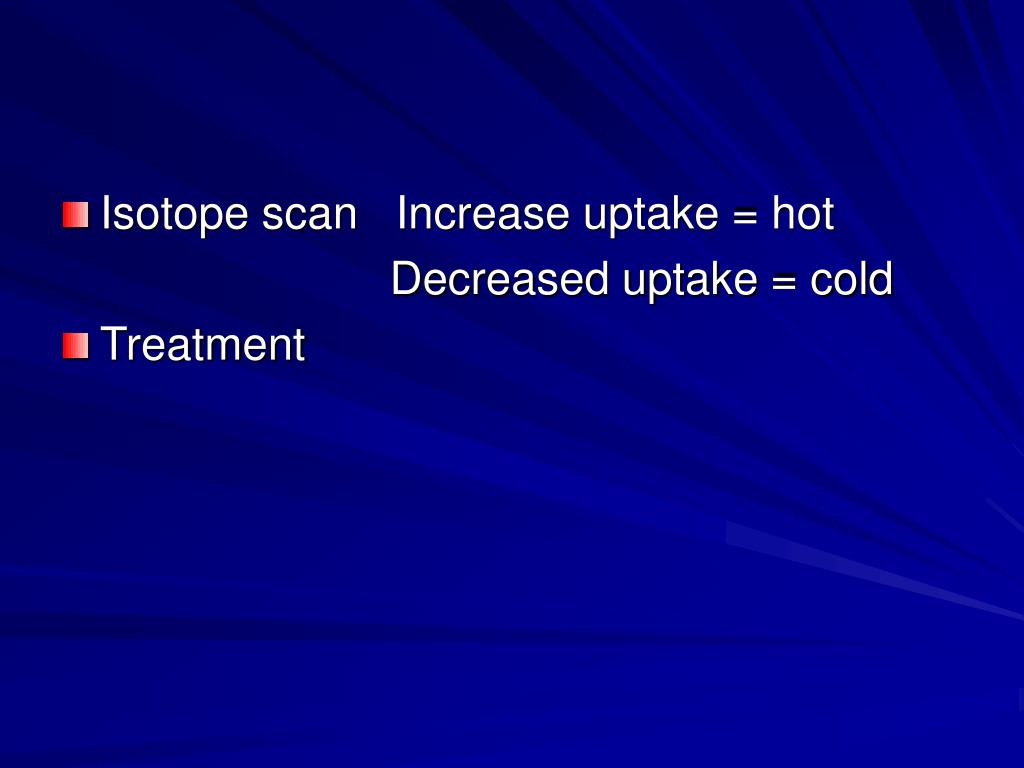

  • Annual isotope scanning to detect asymptomatic recurrence

  • Treatment of such recurrence can still be curative

  • Serum thyroglobulin-increasing levels often first sign of recurrence

Anaplastic carcinoma
Anaplastic carcinoma contralateral lobe

  • Accounts for less than 5%thyroid malignancies

  • Occurs in elderly and is usually an aggressive tumour

  • Local infilteration causes dysponea and dysphagia

  • Thyriodectomy seldom feasible

  • incision biopsy should be avoided as it often causes uncontrollable local spread

  • Radiotherapy and chemotherapy important modes of treatment

  • Death usually occurs within 6 months

Thyroid lymphoma
Thyroid lymphoma contralateral lobe

  • Accounts for 2% of thyroid malignancies

  • Often arises with Hashimotos thyroiditis or non-Hodgkins B-cell lymphoma

  • Presents as a goitre in association with generalized lymphoma

  • Diagnosis can often be made by FNA cytology

  • Radiotherapy is treatment of choice

  • Prognosis is good – often more than 85% 5 yr survival

Medullary carcinoma
Medullary carcinoma contralateral lobe

  • 8%

  • Para-follicular C-cells

  • 20% are familial

  • Can occur as part of MEN 2

  • 80% of cases are sporadic

  • Sporadic cases usually unilateral

  • 50% have lymph nodes at presentation

  • Familial cases often multifocal and bilateral

  • Tumours mets to nodes and via blood to bone, liver and lung

  • They produce calcitonin,

  • Total thyroidectomy is treatment of choice

  • Calcitonin can be used in follow up for the presence of metastatic disease

Thank you
THANK YOU contralateral lobe
